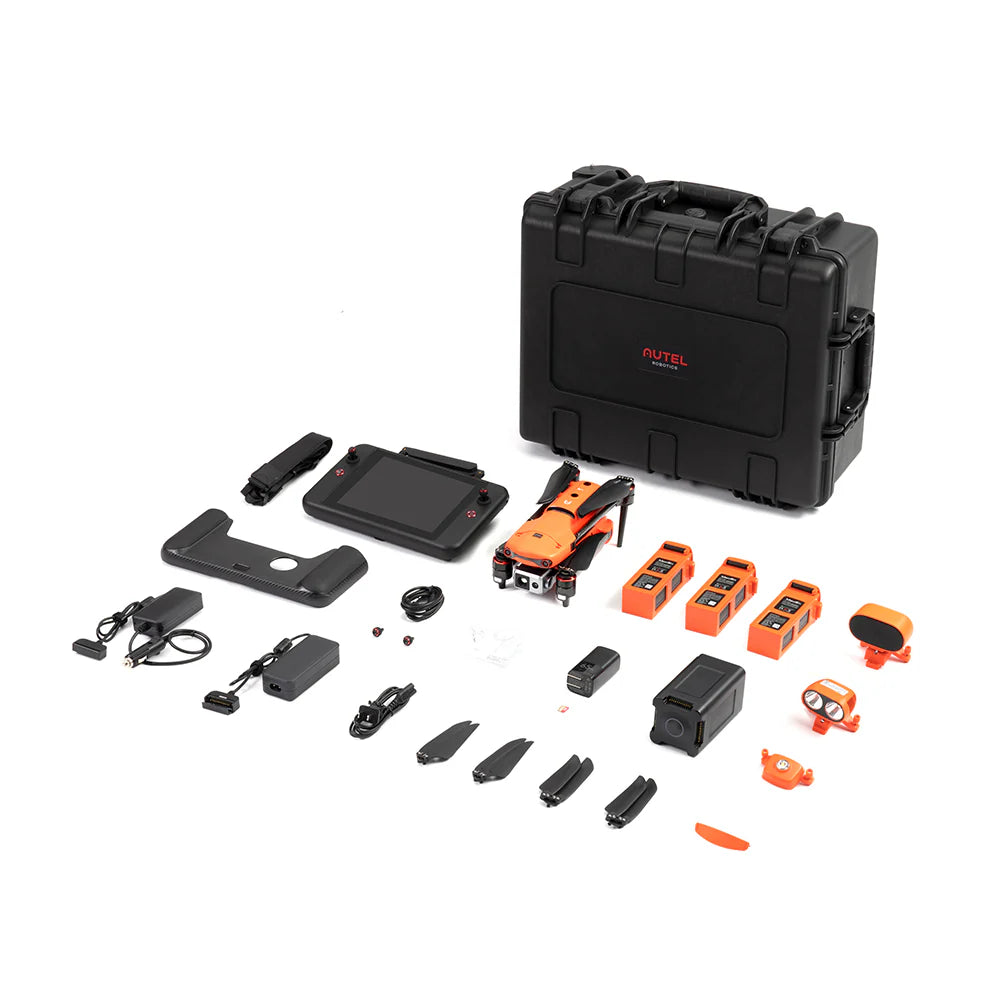

Autel Robotics EVO II Dual 640T Enterprise Bundle V3 102001516

• Thermal Imaging and Measurement Features

  • Center Temperature Monitoring: Displays the real-time temperature at the center of the remote controller’s screen.

  • Spot Temperature Reading: Simply tap the screen to get the real-time temperature of any selected object.

  • Area Temperature Analysis: Shows live data including average, minimum, and maximum temperatures within a selected region.

  • 10 Thermal Color Modes: Choose from White Hot, Cold and Hot, Rainbow, Enhanced Rainbow, Ironbow, Lava, Arctic, Searing, Gradation, and Heat Detection.

  • Dual View Mode: See both standard visual and thermal images simultaneously using picture-in-picture display.

  • Temperature Alert System: Set a temperature threshold; an alarm will sound when that level is reached in real time.

  • Isotherm Functionality: Define a specific temperature range to automatically highlight any objects detected within that range.

  • Thermal Image Tuning: Adjust brightness, contrast, and clarity in real time; objects within the target temperature range are emphasized.

  • Infrared Analysis Software (IRPC): Quickly import thermal images, analyze temperature data, make edits, and generate detailed reports for collaboration and sharing.

  ---

  Thermal Detection, Recognition, and Identification Ranges

  Capability	Person	SUV	Truck
  Detection	Up to 0.34 miles (547 m)	Up to 1.03 miles (1.66 km)	Up to 1.8 miles (2.9 km)
  Recognition	Up to 443 feet (135 m)	Up to 0.26 miles (420 m)	Up to 0.45 miles (720 m)
  Identification	Up to 223 feet (68 m)	Up to 682 feet (208 m)	Up to 0.22 miles (350 m)

  ---

  This system offers powerful thermal imaging capabilities ideal for search and rescue, inspection, and surveillance applications where accuracy and detailed temperature analysis are critical.

•

Visual Camera Capabilities

The EVO II Dual 640T isn’t just for inspections or search and rescue—it also excels at capturing high-quality visuals. Its 50MP camera supports 4K HDR video, delivering professional-grade footage. Instead of the standard RGB sensor, it uses a 0.8″ RYYB CMOS sensor, which has a larger surface area to capture more detail, especially in scenes with strong contrasts. Fast and smooth focus is achieved through a PDAF + CDAF autofocus system, while low-light performance is enhanced by the Moonlight Algorithm 2.0, which reduces image noise significantly.

Smart Controller V3 with SkyLink 2.0

Equipped with SkyLink 2.0, the Smart Controller V3 features a 7.9-inch ultra-bright display that can stream HD video up to 9.32 miles away or QHD video up to 0.62 miles. Its triple-band frequency hopping (900 MHz, 2.4 GHz, 5.8 GHz) ensures stable, low-interference signal transmission. The 2000 cd/m² brightness makes it easy to view footage even under direct sunlight. Designed for tough environments, the controller works in temperatures ranging from -4°F to 104°F and is IP43-rated for use in varying weather conditions.

360° Obstacle Avoidance

The drone uses a network of 19 sensors—including 12 visual sensors, ultrasound, IMUs, and the main camera—to generate a 3D map of its environment, allowing it to detect obstacles and navigate safely in real time.

Additional Highlights

• Foldable design for easy transport and quick deployment (under 1 minute)

• Up to 38 minutes of flight time

• Handles wind speeds up to 39 mph

• Maximum speed of 45 mph

• Carries payloads up to 2 lb

• Operable without firmware or app updates

• No geofencing restrictions, allowing unrestricted takeoffs

• Not subject to U.S. ITAR regulations

• Compatible with Live Deck 2, enabling live mission video broadcast

This makes the EVO II Dual 640T a versatile tool for professionals in public safety, industrial inspection, filmmaking, and more—offering robust performance, high-quality imaging, and operational flexibility.
