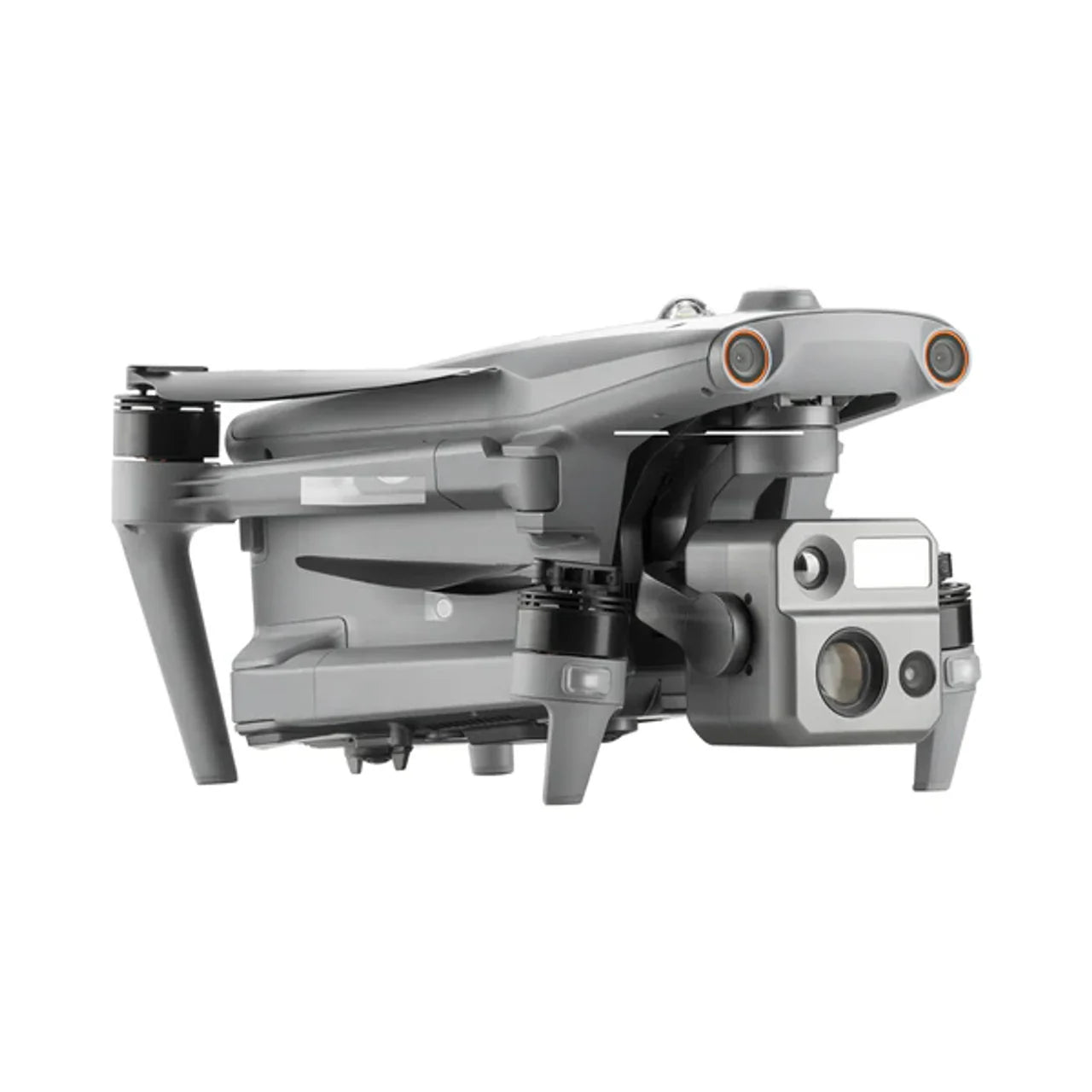

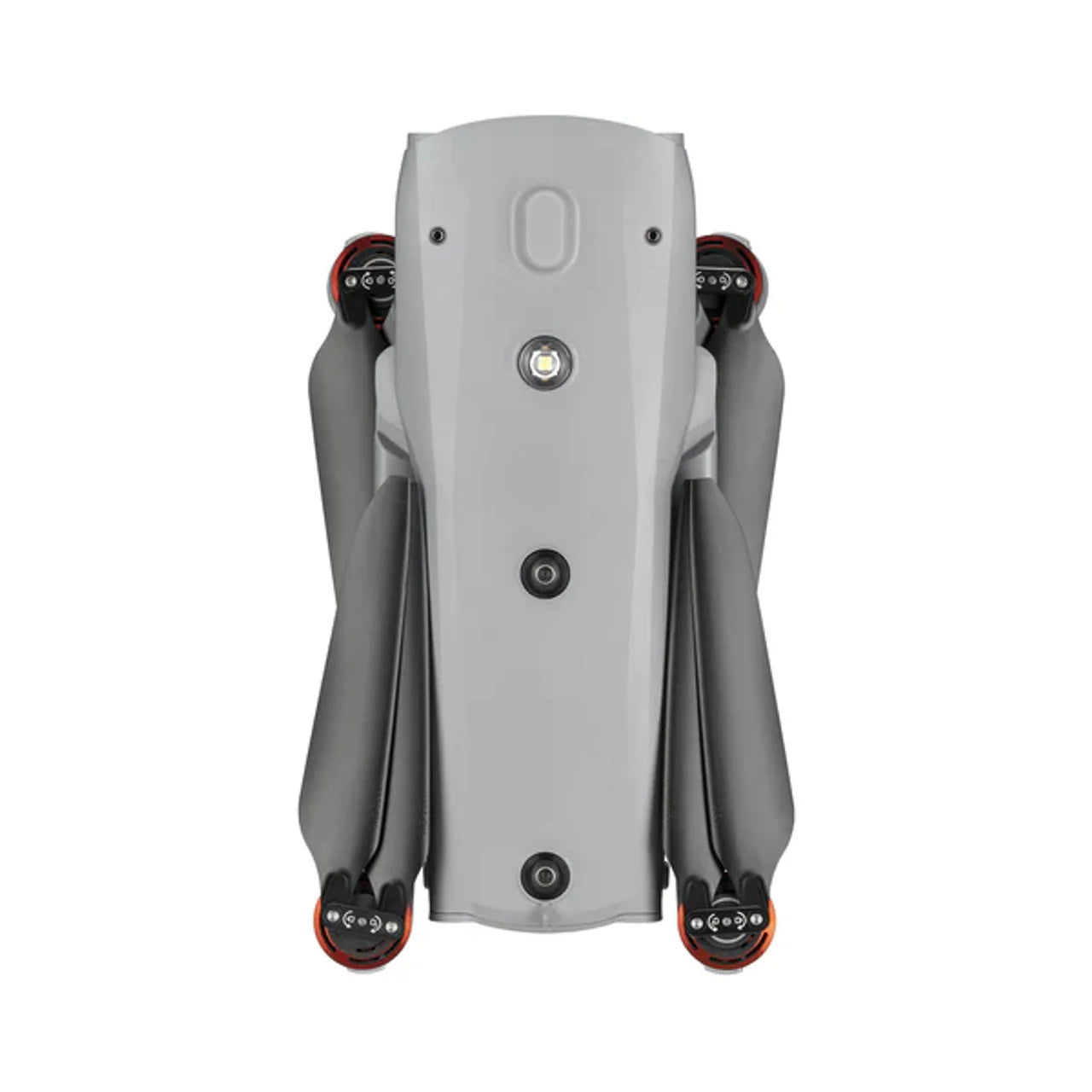

Autel EVO Max 4N – Advanced Night-Optimized Enterprise Drone

The Autel EVO Max 4N is the latest addition to the EVO Max series, officially launched in April 2023 at the Autel Robotics Global Partner Summit. Designed for demanding enterprise operations, it builds on the strengths of the EVO Max lineup while introducing next-generation low-light capabilities.

The standout feature of the EVO Max 4N is its Starlight Camera, which delivers unmatched night-vision performance. This makes it the ideal choice for missions in low-light or night-time environments. While both the EVO Max 4N and 4T share the same advanced platform, the key difference lies in their camera and gimbal systems:

• EVO Max 4N – Optimized for exceptional low-light and night operations.

• EVO Max 4T – Designed for long-range zoom and daylight precision.

With its robust autonomy, enhanced safety, and advanced payload system, the EVO Max 4N is tailored for professionals who need reliable performance around the clock.

The Autel EVO MAX 4N sets a new standard for enterprise drones, combining intelligent autonomy, robust security, and an advanced multi-sensor camera system designed for critical operations. Whether deployed for inspection, mapping, law enforcement, or search and rescue, it delivers unmatched performance in both day and night missions.

Key Features

• Complete 360° Awareness – 720° omnidirectional obstacle avoidance eliminates blind spots.

• Anti-Interference Protection – Resists RFI, EMI, and GPS spoofing/jamming for reliable operation in complex environments.

• Smart Autonomy – Autonomous pathfinding, GPS-denied navigation, object detection, and precision tracking.

• A-Mesh 1.0 – The industry’s first mesh networking for drones, enabling seamless inter-drone communication.

• Skylink 3.0 Transmission – Secure HD video feeds up to 12.4 miles.

• Flexible Payload Options – Modular gimbal plus top-mounted expansion ports for mission-specific equipment.

• Mission Versatility – Supports polygon mapping, terrain following, corridor scans, oblique photography, vertical inspections, spiral scans, and waypoint routing.

• Advanced Visual Display – Multi-channel live view with AR overlays for improved situational awareness.

• Intelligent Mission Tools – Includes 3D mapping, quick-launch missions, and automated mission replay.

• Strong Data Security – Local-only storage with AES-256 encryption and password protection.

• All-Weather Ready – IP43-rated, operates in -4°F to 122°F conditions.

• Remote Integration – Compatible with EVO Nest for automated remote deployment and charging.

• Developer-Friendly – Mobile SDK support for custom applications.

Highlight: Multi-Sensor Camera System

The EVO MAX 4N combines four powerful sensors in one gimbal:

• Starlight Camera – HyperStar-grade sensitivity with 0.0001 Lux detection and ISO up to 450,000 for unmatched night vision.

• Wide-Angle Camera – Expansive coverage for mapping and situational awareness.

• Thermal Imaging Camera – Detects heat signatures for inspections and search & rescue.

• Laser Rangefinder – Precise distance measurements for targeting and analysis.

EVO MAX 4N vs. EVO MAX 4T

• EVO MAX 4N – Features the Starlight Night Vision Camera, ideal for extreme low-light missions.

• EVO MAX 4T – Offers a 160x zoom camera for detailed long-range observation.
  Both integrate FUSION Light Camera technology, combining multiple imaging sources for superior clarity in complex conditions.

Why Choose EVO MAX 4N

Engineered for night operations, secure data handling, and autonomous missions, the EVO MAX 4N is a reliable solution for professionals who demand versatility, precision, and durability in the field.

• • 12.4 miles
    Image Transmission Distance
  • <150ms
    Latency

  •

  • 12.4 miles
    Image Transmission Distance
  • <150ms
    Latency
  • 1080p/60fps
    Real-Time Image Quality
  • 900MHz/2.4GHz/5.2GHz/5.8GHz**
    Frequency Bands



  This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

  Mission Ready Payload

  The payload integrates wide-angle camera, zoom camera, thermal camera and a laser rangefinder for all data capture needs and critical decision making.

  • As low as 0.0001 Lux
    operate in lighting conditions
  • Auto ISO100-ISO450000
    Super Sensitive Mode
  • 50MP
    Wide Camera
  • 1/1.28 CMOS
    Wide Camera Sensor
  • 640x512
    Thermal Resolution
  • 5m to 1.2km
    Laser Rangefinder Measuring Range
  • As low as 0.0001 Lux
    operate in lighting conditions
  • Auto ISO100-ISO450000
    Super Sensitive Mode
  • 50MP
    Wide Camera
  • 1/1.28 CMOS
    Wide Camera Sensor
  • 640x512
    Thermal Resolution
  • 5m to 1.2km
    Laser Rangefinder Measuring Range

  • •
    • Wide Camera
    • 50MP
    • 1/1.28" CMOS
    • Aperture: f/1.9
    • DFVO: 85°
    • Equivalent: 23 mm
    •
    • Starlight Camera
    • Effective Pixels: 2.3M
    • Super Sensitive Mode: Auto ISO100-ISO450000
    • Photo Resolution: 1920×1200
    • Video Resolution: 20Mbps (1920×1200 P30)
    • Zoom Range: 1-8x, supports linkage zoom
    •
    • Thermal Camera
    • 640x512
    • Aperture: 13mm
    • 16x Digital Zoom
    • Temperature Measurement
    • Range: -4℉ to 302℉, 32℉ to 1022℉
    •
    • Laser Rangefinder
    • Measuring Range: 5 - 1200m
    • Measurement Accuracy: ± (1 m + D×0.15%) D is the distance to a vertical surface

  Chase the Heat and Explore the Night

  Starlight Camera(4N)

  Super Zoom*

  Supersensitivity

  Strong Infrared Perception

  Accurate Ranging




  Autel Enterprise App Platform

  The Autel Enterprise App is purpose-built for industrial operations, featuring a redesigned interface that simplifies workflows and improves usability. With expanded functionality and semi-autonomous flight modes, the app enhances the Autel EVO Max 4N’s mission performance, enabling efficient and reliable operation across a wide range of professional use cases.

•




  Smart Features

  • •
    • 3D Map Planning
      Plan, create, and execute 3D waypoint mission plan on a 3D map.
    •
    • Quick Mission*
      Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
    •
    • Mission Reproduction*
      With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. Autel EVO Max4N will automatically record the camera angles and replicate the mission you just flew.
  • •
    • 3D Map Planning
      Plan, create, and execute 3D waypoint mission plan on a 3D map.
    •
    • Quick Mission*
      Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
    •
    • Mission Reproduction*
      With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. Autel EVO Max4N will automatically record the camera angles and replicate the mission you just flew.

  Multiple Mission Types

  Autel Enterprise App offers a range of autonomous and semi-autonomous mission planning capabilities for a variety of applications, including public safety, inspection, and surveying.

  • •
    • Spiral Mission*

      Supports helical flight search in a designated area for SAR.

    •
    • Vertical Scan*

      Perform vertical surveys for building facades, open pit walls, and towers.

    •
    • Corridor Mission*

      Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

    •
    • Polygon Mission

      Supports one-click automatic generation of polygon flight areas.

    •
    • Terrain Follow*

      Maintain relatively constant altitude from the ground for uneven or sloped terrain.

    •
    • Rectangular Mission

      Supports one-click automatic generation of a rectangular flight area.

  • •
    • Spiral Mission*

      Supports helical flight search in a designated area for SAR.

    •
    • Vertical Scan*

      Perform vertical surveys for building facades, open pit walls, and towers.

    •
    • Corridor Mission*

      Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

    •
    • Polygon Mission

      Supports one-click automatic generation of polygon flight areas.

    •
    • Terrain Follow*

      Maintain relatively constant altitude from the ground for uneven or sloped terrain.

    •
    • Rectangular Mission

      Supports one-click automatic generation of a rectangular flight area.

  Data Security

  Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.

  Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.



  Complete Remote Operations System

  Used with Autel EVO Nest, Autel EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.

  Autel SDK

  Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

  •
    •
      Mobile SDK

    • Open UX SDK (iOS/Android) can directly call up the interactive interface.

  •
    •
      Mobile SDK

    • Open UX SDK (iOS/Android) can directly call up the interactive interface.

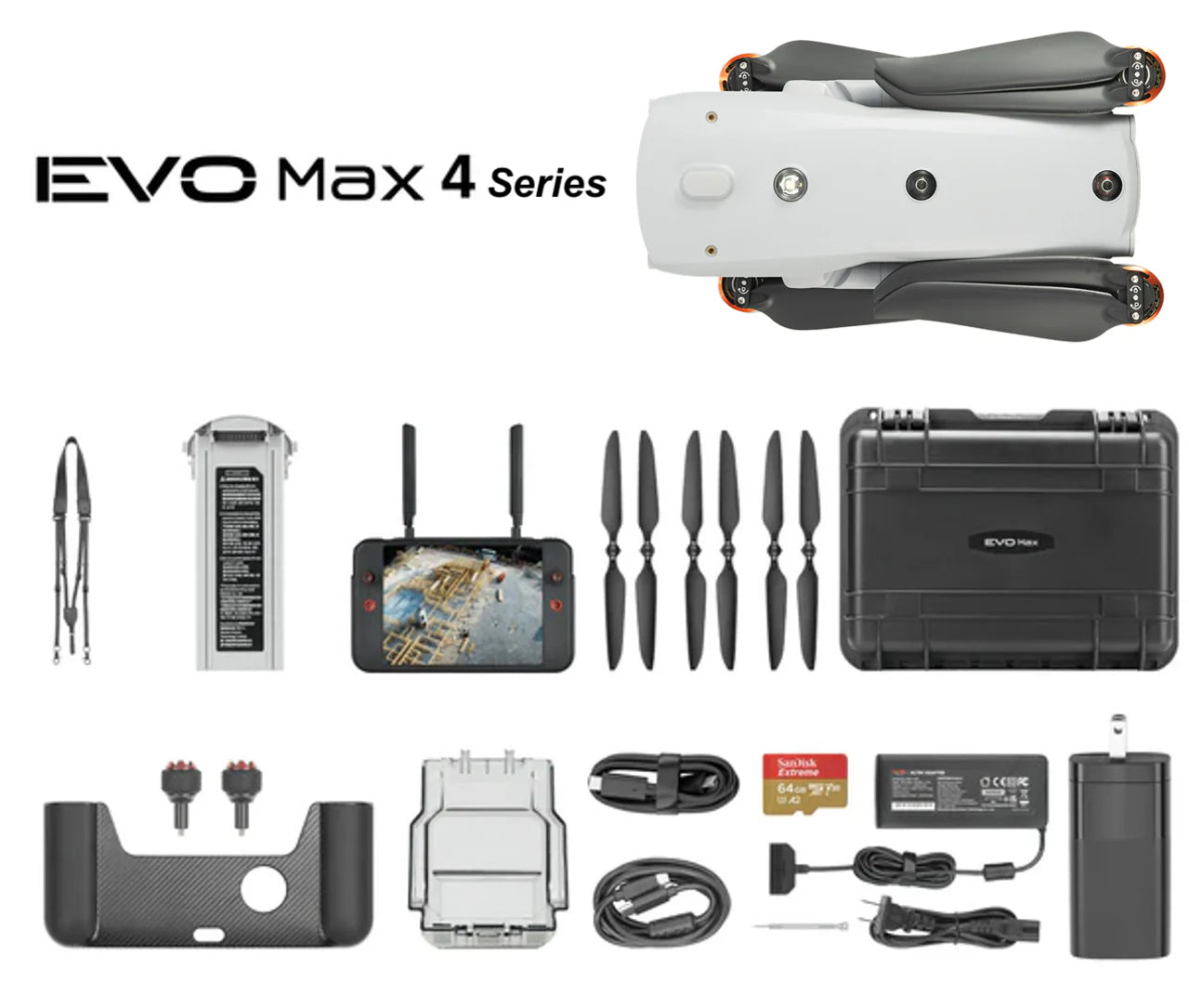

  Accessories

  • •
    • Autel Smart Controller V3
      Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
    •
    •

      EVO Nest is a base for automatic take off, landing, charging, and mission planning for Autel EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.
    •
    • Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.
  • •
    • Autel Smart Controller V3
      Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
    •
    •

      EVO Nest is a base for automatic take off, landing, charging, and mission planning for Autel EVO series. The Nest is designed for all-weather operation and uses a single-piece protective drum with fewer moving parts to simplify maintenance.
    •

• • • Provides centimeter-accurate positioning data for mapping and reduces electromagnetic interference for flying near critical structures.

• Aircraft

  Weight	3.62 lbs (1641g, battery and gimbal included)
  Dimensions	562*651*147 mm (unfolded, incl. propellers) 318*400*147 mm (unfolded, excl. propellers) 257*145*131 mm (folded, excl. propellers)
  Diagonal Wheelbase	1.53 ft (466mm)
  Max Ascent Speed	8m/s
  Max Descent Speed	6m/s
  Max Horizontal Speed (windless near sea level)	23m/s *Maximum speed in Ludicrous Mode is 19m/s when operating in EU regions.
  Max Service Ceiling Above Sea Level	13,124ft (4000m)
  Max Flight Time (windless)	42 mins
  Max Hovering Time (windless)	38 mins
  Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
  IP Rating	IP43
  Max Tilt Angle	35°
  Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
  Operating Temperature	-4°F to 122°F (-20℃ - 50℃)
  Operating Frequency	2.4GHz/5.8GHz 5.2GHz (only applicable for FCC, CE, and UKCA regions). 900MHz (only applicable for FCC regions).
  GNSS	GPS+Galileo+BeiDou+GLONASS
  Transmitter Power (EIRP)	2.4GHz: <30dBm (FCC), <20dBm(CE/SRRC/MIC) 5.8GHz: <27dBm (FCC/SRRC), <14dBm (CE) 5.15-5.25GHz: <23dBm (FCC/CE) 902-928MHz: <30dBm (FCC) 5.65-5.755GHz: <27dBm (MIC)
  Hovering Accuracy	Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled);
  Wi-Fi Protocol	802.11a/b/g/n/ac/ax Support 2 x 2 MIMO Wi-Fi
  Wi-Fi Operating Frequency	2.400 - 2.4835 GHz; 5.150 - 5.250GHz (CE/FCC/MIC); 5.725 ‒ 5.850 GHz*(Except MIC）
  Wi-Fi Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC:＜30dBm; CE/SRRC/MIC:＜20dBm 5.150 - 5.250GHz FCC/CE/MIC<22dBm 5.725 ‒ 5.850 GHz FCC/SRRC: ＜21dBm CE: ＜14dBm

  Gimbal

  Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
  Controllable Range	-90° to 45°
  Stable system	3-axis mechanical gimbal (pitch, tilt, roll)
  Max Control Speed (pitch)	200º/s
  Angular Vibration Range	<0.005°

  Starlight Camera

  Sensor	Effective Pixels: 2.3M
  Lens	Focal Length: 35mm (equivalent 41.4mm) FOV：52° Zoom Range: 1-8x, supports linkage zoom
  ISO Range	Auto: ISO100-ISO450000 Super Sensitive Mode: Auto ISO100-ISO450000
  Camera Modes	Single shot (default), long press for continuous shots
  Photo Format	JPG
  Photo Resolution	1920×1200
  Video Format	MP4
  Video Resolution	20Mbps (1920×1200 P30)
  HDR Video	Auto
  Video Output	Super Sensitive Mode: 1920×1200 P30

  Wide Camera

  Sensor	1/1.28 CMOS, Effective pixels: 50M
  Lens	DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
  Exposure Compensation	±3EV 0.3EV/step
  ISO Range	Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400
  Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
  Max. Video Resolution	3840×2160
  Photo Size	8192*6144 4096*3072

  Thermal Camera

  Thermal Imager	Uncooled VOx Microbolometer
  Lens	DFOV: 64° Aperture: 13mm Focus: f/1.2
  Infrared Temperature Measurement Accuracy	26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉
  Video Resolution	640*512
  Photo Size	640*512
  Pixel Pitch	12 um
  Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
  Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
  Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperaturevalues

  Laser Range Finder

  Measurement Accuracy	± (1 m + D×0.15%) D is the distance to a vertical surface
  Measuring Range	5m to 1.2km

  Image Transmission

  Operating Frequency	2.4G/5.2G*/5.8G/900MHz*
  Max Transmission Distance (unobstructed, free of interference)	20km
  Independent Networking	7.9-inch Smart Controller
  Transmitter Power (EIRP)	2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC)

  Autonomy

  Non-GPS Hovering and Manual Flight	Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height
  Non-GPS Return-to-Home	Within 500m flight height, horizontal error of Return-to-Home point < 30cm
  Automatic Obstacle Rerouting	High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m
  Multi-target Recognition and Tracking	Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85%

  Millimeter-wave Radar

  Frequency	60Ghz~64Ghz
  Size	38*14*2mm
  Weight	2g
  EIRP	18dbm
  Distance Detection Range	For Obstacle Avoidance：0.2m~100m For Height Measurement：0.05m~200m
  Ranging Accuracy	For Obstacle Avoidance：0.1m For Height Measurement：0.02m
  Speed Measurement Range	± 60m/s（4D Mode）；±28m/s（3D Mode）；
  Speed Measurement Accuracy	≤1%
  Max. Tracking Target Number	32

  Visual Sensing System

  Obstacle Sensing Range	Forward/Upward/Downward/Backward/Sideward: 0.2~50m
  FOV	Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V)

  7.9-inch smart controller

  Screen	7.9 inch, 2000nits max. brightness, 2048*1536 resolution
  External Battery	Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery
  Operating Time	3 hours (Max. brightness) 4.5 hours (50% brightness)
  Max Transmission Distance (with interference)	FCC: 20km CE: 7km
  Storage	128G
  GNSS	GPS+GLONASS+Galileo+Beidou
  Operating Temperature	-20℃ to 40℃
  Protocol	WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
  Operating Frequency	2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz
  Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm

  Aircraft Battery

  Capacity	8070mAh
  Voltage	14.88V
  Battery Type	LiPo 4S
  Energy	120wh
  Net Weight	520g
  Charging Temperature	5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
  Hot Swap	Support
