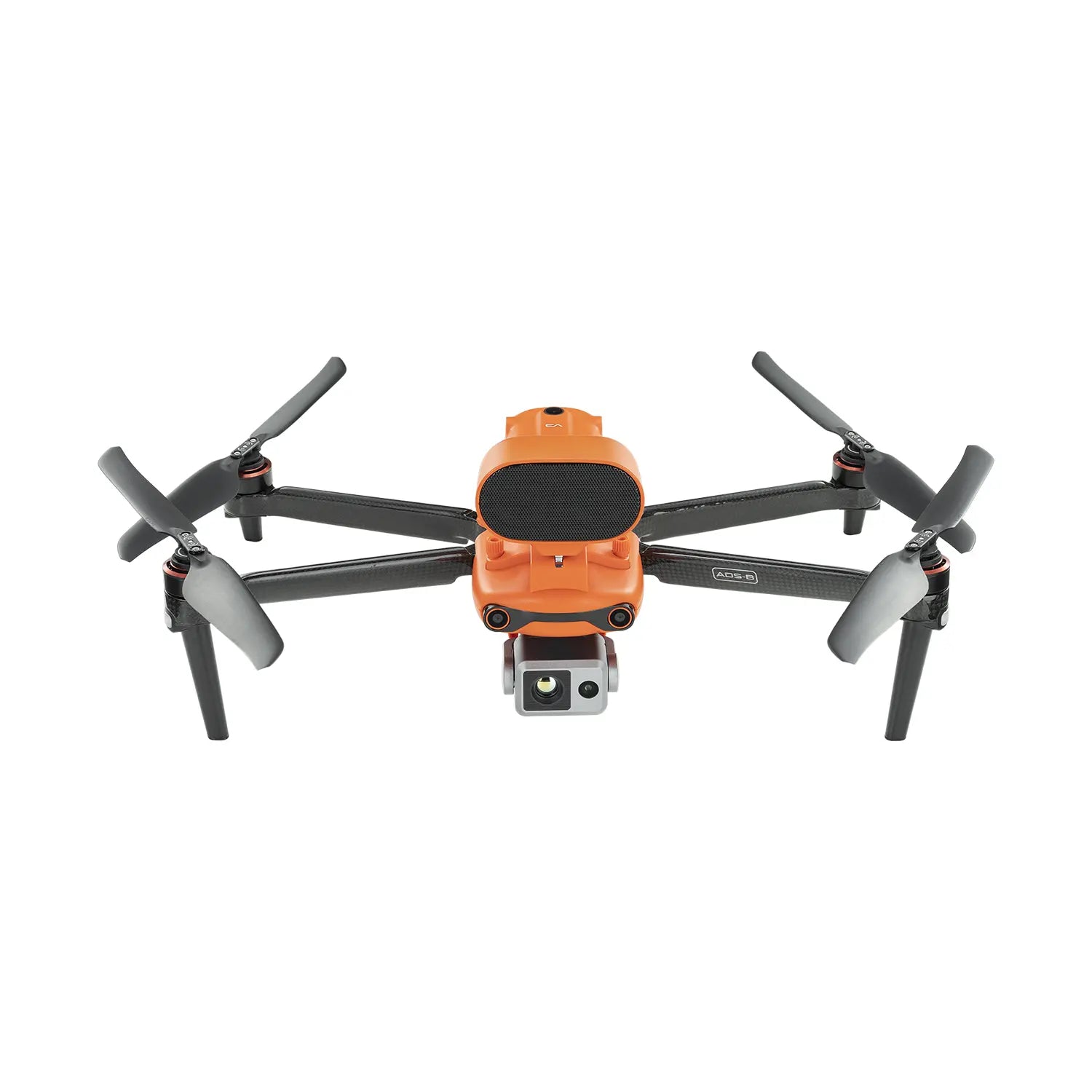

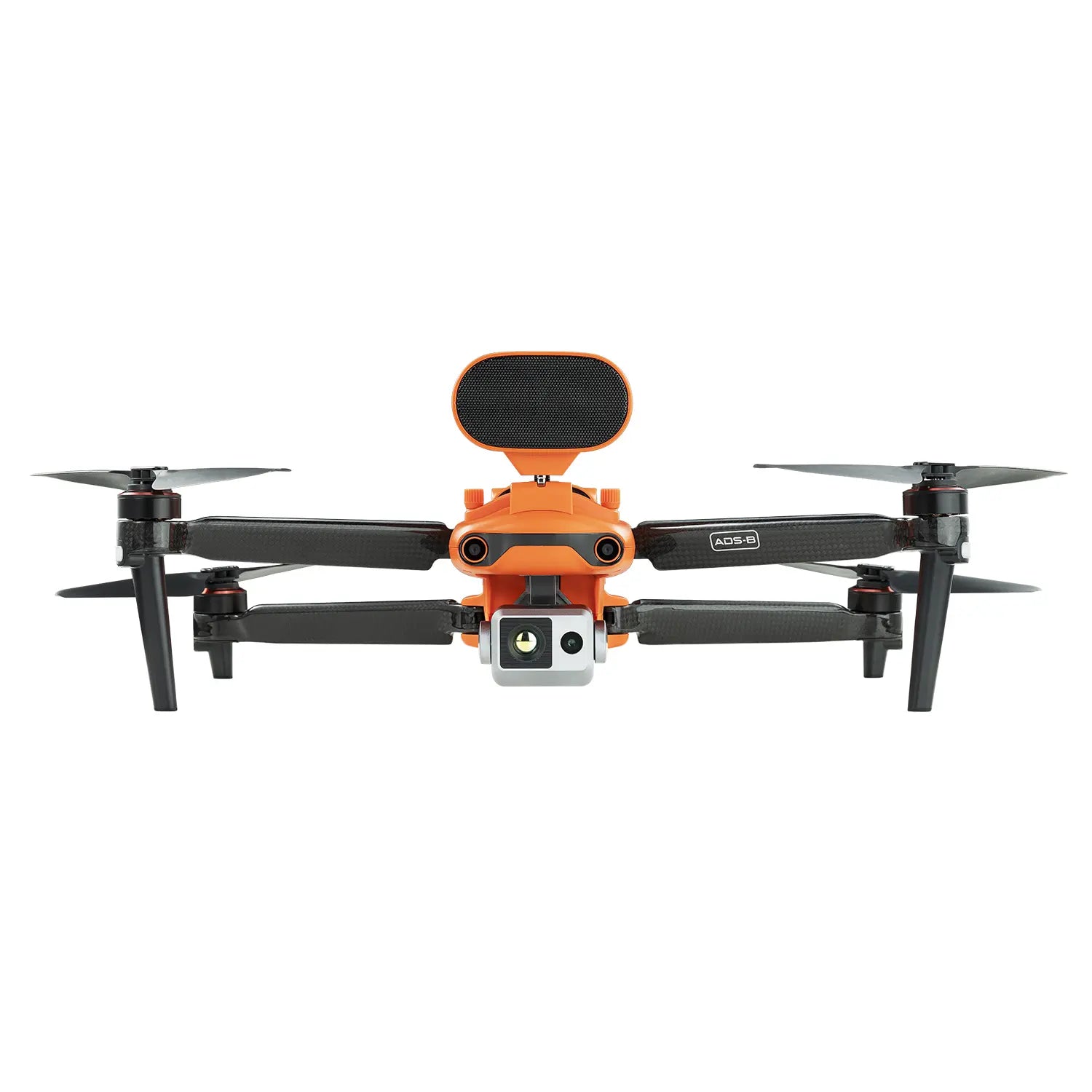

Autel Robotics EVO II Dual 640T RTK V3 Thermal Drone - Enterprise Bundle

• Remote ID Updated
• 7.9" Smart Controller V3
• 15km Image Transmission
• SkyLink 2.0
• 50MP Picture/0.8" CMOS Sensor
• 640*512 Thermal Imaging Resolution
• 10 Thermal Color Palettes
• 360° Obstacle Avoidance
• Dynamic Track 2.1
• 38 Mins Flight Time

[keyfeatures]

• Overview
• specificatiion
• Package
• Documents
• Faqs

• EVO II Dual 640T RTK V3

  Autel EVO 2 Dual 640T infrared drone is an industry-first drone combining infrared imaging camera with video camera. With thermal resolution up to 640x512 and visible light camera EVO 2 becomes a workhorse. First responders, contractors, and business owners finally have a compact and portable tool that gives them the data they have been asking for.

  •

    Dual Camera
    Thermal | Visual Camera
  •

    Thermal Camera
    640*512 Resolution
  •

    50MP
  •

    15km
    Transmission Range
  •

    360°
    Obstacle Avoidance
  •

    Carbon Fiber
    Arms
  •

    38 Minutes
    Flight Time
  •

    7.9"
    Smart Controller V3
  •

    Dual Camera
    Thermal | Visual Camera
  •

    Thermal Camera
    640*512 Resolution
  •

    50MP
    Pictures
  •

    15km
    Transmission Range
  •

    360°
    Obstacle Avoidance
  •

    Carbon Fiber
    Arms
  •

    38 Minutes
    Flight Time
  •

    7.9"
    Smart Controller V3


  640T Thermal Camera

  • • 640*512 High Resolution

      The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.

    • 16x Digital Zoom

      EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.

    • 13mm focal length lens

      This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.

  •
  • •

    • 640*512 High Resolution

      The EVO II 640T infrared camera is equipped with a high-resolution 640*512 infrared sensor, allowing for exceptional pixel density to capture more details and thermal information.

    • 16x Digital Zoom

      EVO II 640T infrared camera boasts a powerful 16x digital zoom capability, enabling users to magnify details without getting close to the target.

    • 13mm focal length lens

      This well-chosen focal length strikes a balance between target size and detail clarity, allowing users to obtain satisfactory infrared images in different application scenarios.



  Multiple Temperature Measurement Modes

  • •

    • Central, Spot, And Regional Temperature Measurement

      EVO II 640T V3 Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  • •

    • Temperature Alarm And Image Enhancement

      Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

  • • •

      • 10 Thermal Color Palettes

        White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

    • •

      • Picture-in-Picture Display Mode

        Visual and thermal imagery of 640T V3 are combined to help users quickly interpret data and aid in critical decision making.

  • •

    • Powerful Infrared Thermal Analysis Tool

      IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T Series, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

  • •

    • Central, Spot, And Regional Temperature Measurement

      Central temperature measurement: View real-time display of the temperature in the center area of the screen. Spot temperature measurement: Tap the screen, and the temperature of the selected object will be displayed in real time. Regional temperature measurement: Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

  • •

    • 10 Thermal Color Palettes

      White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Ironbow | Lava | Arctic | Searing | Gradation |Heat Detection

  • •

    • Picture-in-Picture Display Mode

      Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.

  • •

    • Temperature Alarm With Isotherm And Image Enhancement

      Temperature alarm: Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set threshold. Isotherm: Set a temperature range and the system will detect any objects within the temperature range specified. Image enhancement: Supports real-time adjustment of image brightness, contrast, and image details. The system will highlight any objects within the temperature target.

  • •

    • Powerful Infrared Thermal Analysis Tool

      IRPC TOOL: This free temperature measurement analysis tool is developed specifically for the 640T, and enables users to quickly import images, edit and analyze temperature measurements, and generate detailed reports for sharing and collaboration.

  50MP Ultra-Sensitive Camera

  The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.

  •

  • • 0.8" Sensor Size

      The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.

    • RYYB Sensor Technology

      RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.

    • PDAF+CDAF Autofocus System

      Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.

  •

  • • 0.8" Sensor Size

      The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.

    • RYYB Sensor Technology

      RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.

    • PDAF+CDAF Autofocus System

      Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.

  • •

    • Get The Full Scene

      The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.providing long-distance image acquisition and detailed insig

  • •

    • 4K HDR for Greater Dynamic Range

      4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

  • •

    • Get The Full Scene

      The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.

  • •

    • 4K HDR for Greater Dynamic Range

      4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

  Centimeter-Level Positioning

  Autel Robtoics EVO II Dual 640T RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.



  Autel Robtoics EVO II Dual 640T RTK V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports an RTK base station and NTRIP RTK network, which help to achieve accurate and stable data acquisition in complex operation environments.

  • •

    • RTK Horizontal Positioning Accuracy: 1cm+1ppm

  • •

    • RTK Vertical Positioning Accuracy: 1.5cm+1ppm



  • • No GCP Required

      Dual 640T RTK V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

    •

  • • 3rd Party Base Station Support

      EVO II Dual 640T RTK Series V3 supports all NTRIP-compatible base stations.

    •

  • • No GCP Required

      Dual 640T RTK V3 can connect to an NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

    •

  • • 3rd Party Base Station Support

      EVO II Dual 640T RTK Series V3 supports all NTRIP-compatible base stations.

    •

  Autel Explorer For Mapping

  • • •

      • Multi-NTRIP Profile Saving

        For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

    • •

      • Photo Replication

        For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

    • •

      • Multi-Battery Missions

        The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.

  •
  • • •

      • Multi-NTRIP Profile Saving

        For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

    • •

      • Photo Replication

        For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

    • •

      • Multi-Battery Missions

        The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.

  •

  Autel SkyLink 2.0 Video Transmission

  SkyLink 2.0 is built into the EVO II Dual 640T V3 chipset, expanding the possibilities for your most critical workflows.

  • 9+ Miles

    Do more because you can fly further away

  • QHD

    Incredible video resolution within a mile, meeting most common use cases.

  • 2.4GHz / 5.8GHz / 900MHz

    Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

  • * 900MHz is only applicable for FCC countries.



  • 9+ Miles

    Do more because you can fly further away.

  • QHD

    Incredible video resolution within a mile, meeting most common use cases.

  • 2.4GHz / 5.8GHz / 900MHz

    Supports tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

  • * 900MHz is only applicable for FCC countries.



  360° Obstacle Avoidance

  Autel Robotics EVO II Dual 640T V3 is equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

  EVO II - AI Enhanced Dynamic Track

  EVO II Dual smart tracking uses deep learning algorithms to automatically track the selected subject while avoiding obstacles during flight. The function can track the subject in three modes: behind, side-by-side, or fixed position.

  Auto go home & Accurate Landing

  EVO 2 Dual 640T  V3  will return home automatically when Low Aircraft Battery Level and Communication Lost. Additionally, EVO 2’s bottom binocular vision camera to create a density depth map. Then, it calculates the depth map's flatness and angles to ensure an accurate and safe landing.


  • ATH(Auto Reture Home)
  • Hover
  • Land Off
  • ATH(Auto Reture Home)
  • Hover
  • Land Off

  Industry Leading Performance

  • 38 minutes

    Maximum Flight
    Time

  • 9.3 miles (15km)

    Maximum Transmission
    Range

  • 27 mph (12m/s)

    Maximum Wind
    Resistance

  • 45 mph (20m/s)

    Maximum Flight
    Speed

  • 2 lbs (920g)

    Maximum Lift
    Capability



  • 38 minutes

    Maximum
    FlightTime

  • 9.3 miles (15km)

    Maximum Transmission Range

  • 27 mph (12m/s)

    Maximum
    Wind Resistance

  • 45 mph (20m/s)

    Maximum
    Flight Speed

  • 2 lbs
    (920g)

    Maximum
    Lift Capability

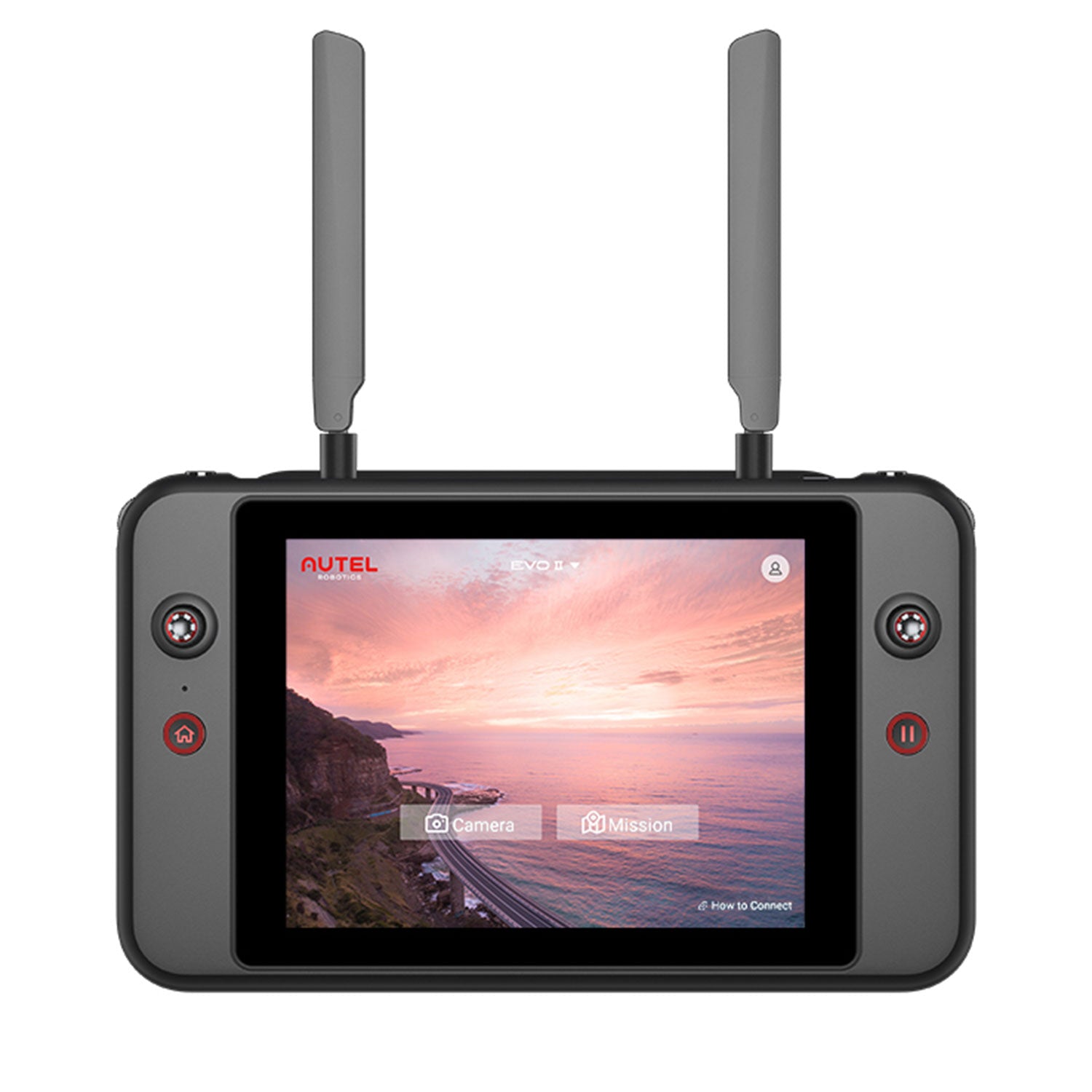

  Autel Smart Controller V3

  Smart Controller V3's 7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 9 miles away and enhances anti-interference abilities with triple-band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

  • • •
      • 7.9-Inch HD Touch Screen
    • •
      • -4 °F to 104 °F Temperature Range
    • •
      • 2000 nits Maximum Brightness
    • •
      • IP43 Resistance
  •
  • •

    • 7.9-Inch
      HD Touch Screen

  • •

    • -4 °F to 104 °F
      Temperature Range

  • •

    • 2000 nit
      Maximum Brightness

  • •

    • IP43
      Resistance



  Thermal Imaging Function

  • Picture-in-Picture Mode

    Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"



  • Spot Temperature Measurement

    Tap the screen, and the temperature of the selected object will be displayed in real time.

  • Regional Temperature Measurement

    Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

    The temperature measurement frame can be dragged to any position on the screen.



  • Temperature Warning

    Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds

    Note: The temperature alarm takes effects only in Regional temperature measurement mode

  10 Thermal Color Palettes

  White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection



  • Picture-in-Picture Mode

    Visual and thermal imagery are combined to help users quickly interpret data and critical decision making. From top to bottom are "Picture in Picture Mode", "infraed More", and "visible Light Mode"



  • Spot Temperature Measurement

    Tap the screen, and the temperature of the selected object will be displayed in real time.

  • Regional Temperature Measurement

    Get a dynamic view of the average temperature, maximum temperature, and minimum temperature displayed in a selected area.

    The temperature measurement frame can be dragged to any position on the screen.



  • Temperature Warning

    Monitors the screen temperature in real time. The system prompts the user when the temperature reaches a set thresholds

    Note: The temperature alarm takes effects only in Regional temperature measurement mode

  • 10 Thermal Color Palettes

    White Hot | Cold and Hot | Rainbow | Enhanced Rainbow | Iron bow | Lava | Arctic | Searing | Gradation | Heat Detection

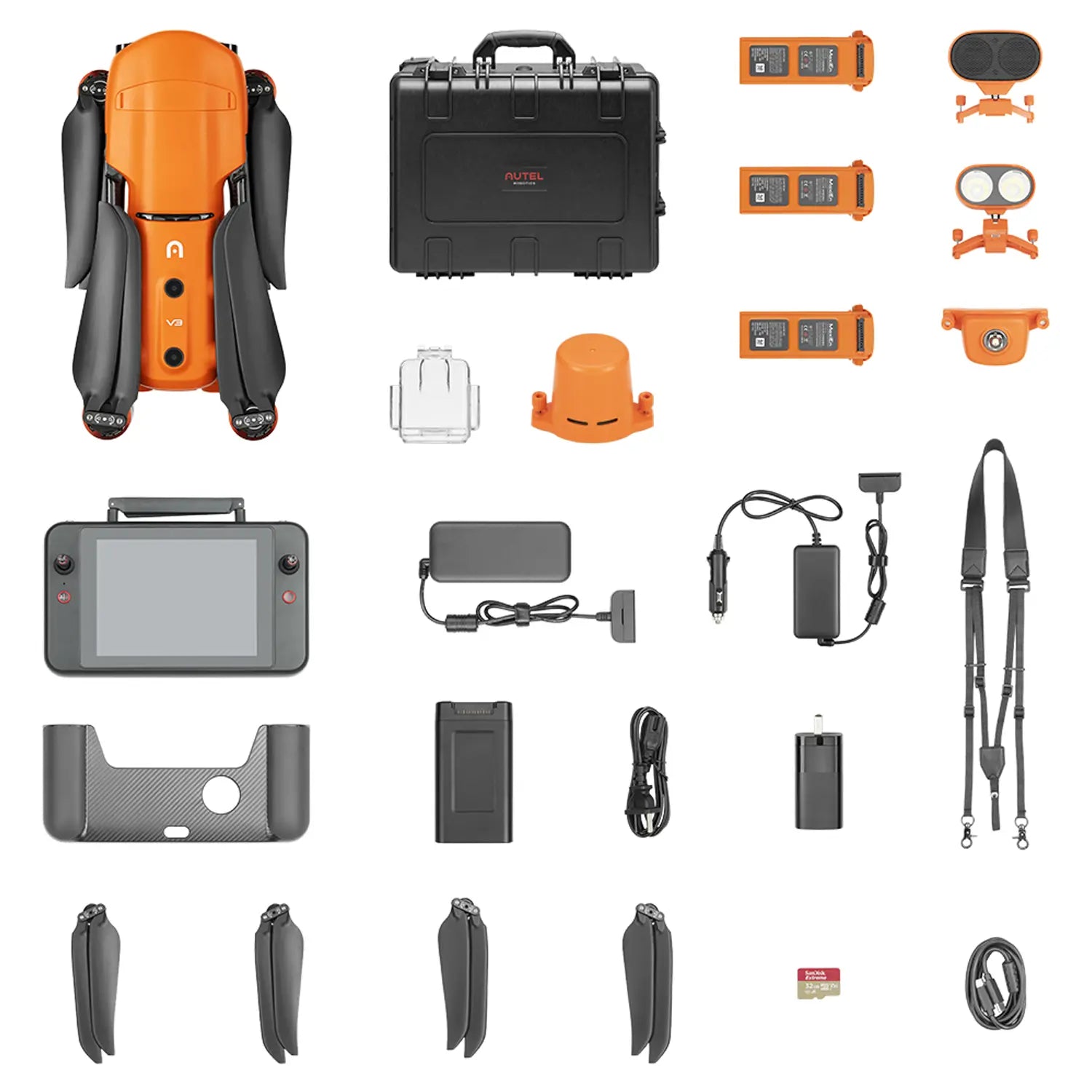

  Autel EVO II Dual 640T RTK Enterprise Bundle V3 Package List



• EVO II Dual 640T V3 Techinical Specifications

  Aircraft
  Takeoff weight (With propellers and battery)	2.67 lbs (1209 g)
  Max Takeoff Weight	4.4 lbs (1999 g)
  Size(L*W*H)	Folded(L x W x H): 230*130*108 mm (9.1*5.1*4.3 inches) Unfolded(L x W x H): 457*558*108 mm (18*22*4.3 inches)
  Max. rotation speed	9000 rpm
  Wheelbase	397 mm
  Maximum Service Ceiling Above Sea Level	5000 m
  Max ascent speed	Novice mode:3 m/s Standard: 5 m/s Ludicrous: 8 m/s
  Max descent speed	Novice mode:3 m/s Standard: 5 m/s Ludicrous: 4 m/s
  Maximum horizontal flight speed (no wind near sea level)	Novice mode:3 m/s Standard: 10 m/s Ludicrous: 20 m/s
  Maximum flight altitude	800 meters (Altitude limit in the App)
  Max flight distance (no wind)	22 km
  Max angular velocity	120°/s
  Max tilt angle	Novice mode: 15° Standard: 30° Ludicrous: 33°
  Max flight time (no wind)	38 minutes
  Max hovering time (no wind)	33 minutes
  Operating temperature range	14 °F to 104 °F (-10℃ ~ 40℃)
  Maximum resistance to wind	Fresh breeze
  Hovering accuracy	Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)
  GNSS	GPS/Beidou/Glonass/Gallieo
  Internal storage	8GB
  Max.SD storage	Support 256GB (UHS-3 or Class 10)
  Thermal Camera
  Sensor	Uncooled VOx Microbolometer
  Lens	FOV H33°V26° Focal length 13mm
  Zoom	1 - 16x
  Pixel size	12 µm
  Wavelength range	8-14 µm
  Temperature range	High gain mode: -20° to +150° Low gain mode: 0° to +550°
  Temperature measurement accuracy	±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃
  Accurate temperature measurement distance	2-20 meters
  Video resolution	640x512@25fps
  Video format	MOV / MP4 (Support H.264/H.265)
  Camera resolution	Infrared mode: 640*512 Picture-in-picture mode: 1920*1080, 1280*720
  Photo mode	Single shot Burst shooting: 3/5 frames, 3 is the default Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
  Photo format	JPG (with irg file)
  Visible Light Camera
  Sensor	1/1.28"(0.8") CMOS Effective Pixels: 50 MP
  Lens	FOV:85° 35 mm format equivalent focal length: 23 mm Aperture:f/1.9 Focus range: 0.5 m to infinity (with auto focus)
  ISO Range	Video: 100-64000 Photo: 100-6400
  Shutter Speed	Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates
  Digital Zoom	1-16x (up to 4x lossless zoom)
  Maximum photo size	8192*6144(4:3) 4096*30 72(4:3) 3840x2160(16:9)
  Image Format	JPG(default)/DNG/JPG+DNG
  Video format	MOV/MP4
  Video resolution	3840x2160P60/P50/P48/P30/P25/P24 2720x1528P60/P50/P48/P30/P25/P24 1920x1080P60/P50/P48/P30/P25/P24
  Max bitrate	80Mbps
  Supported file system	FAT32/exFAT
  Gimbal
  Gimbal	3-axis stabilization
  Mechanical Range	Tilt: -135° to +45°; Pan: -100° to +100°
  Controllable Range	Pitch: -90° to +30° Yaw: -90° to +90°
  Max Control Speed (Tilt)	300°/s
  Angular Vibration Range	±0.005°
  Sensing System (Obstacle Avoidance)
  Sensing System	Omnidirectional Binocular Obstacle Sensing System
  Sensing system type	Omnidirectional sensing system
  Forward	Accurate measurement range: 0.5-18 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Backward	Accurate measurement range: 0.5-16 m Effective sensing speed:<12m/s Viewing angle: Horizontal: 60°, Vertical: 80°
  Upward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 65°, Vertical: 50°
  Downward	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 100°, Vertical: 80°
  Left and right	Accurate measurement range: 0.5-10 m Effective sensing speed:<5m/s Viewing angle: Horizontal: 60°, Vertical: 50°
  Operating Environment	Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.) Downward:Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
  Remote Controller
  Operating frequency	902-928MHz(FCC Only) 2.400 to 2.4835GHz 5.725 to 5.850GHz
  Transmission power (E.I.R.P)	FCC:≤33dBm CE:≤20dBm@2.4G, ≤14dBm@5.8G SRRC:≤20dBm@2.4G, ≤33dBm@5.8G/5.7G
  Max Transmission Distance (unobstructed, free of interference)	FCC: 9.3 miles (15 km) CE: 5 miles (8 km)
  Display screen	2048x1536 60fps
  Battery	5800mAh
  Operating time	~3 hours (Max. Brightness) ~4.5 hours (50% Brightness)
  Charging time	120 min
  Internal Storage	128GB
  Battery
  Capacity	7100 mAh
  Voltage	11.55V
  Battery type	LiPo 3S
  Energy	82 Wh
  Weight	365g
  Charging temperature range	5℃ to 45℃
  Storage temperature and humidity	-10~30℃，65±20%RH
  Recommended storage temperature	22-28℃
  Max charging power	93W
  Charging time	90 minutes
  Charger
  Input	100-240 V, 50/60 Hz, 1.5A
  Output	13.2 V ⎓ 5 A 5V⎓3A 9V⎓2A 12V⎓1.5A
  Voltage	13.2±0.1V
  Rated power	66W
  Multi-Charger
  Voltage	13.2V
  Charging temperature range	5℃ to 45℃

• Autel EVO II Dual 640T RTK Enterprise Bundle V3 Package List



• Name	Download
  EVO II Dual 640T V3 Brochure - EN.pdf
  EVO II Dual 640T V3 Quick Guide - EN.pdf
  EVO II Series Disclaimer and Safety Guidelines - EN.pdf
  EVO II Dual Reports - FCC.pdf
  EVO II Dual Certificates - FCC.pdf
  Autel Smart Controller V3 Brochure
  Specs For Autel Smart Controller V3
  Autel Live Deck 2 Brochure
  Specs For Autel Live Deck 2

• Autel Robotics EVO II RTK Series Quick Questions & Quick Answers



  Q: What is the main difference between RTK series products and other EVO II series products?

  A: Unlike the other EVO II series aircraft, the EVO II RTK is epuipped with a high-precision RTK positioning and navigation system.



  Q: What is the effective image transmission range of the RTK Series?

  A: In an open area that is unobstructed and free of interference, the FCC Max is 9 miles and the CE Max is 5 miles.



  Q: In real-time mapping, can the aircraft continue mapping while the image transmission signal is lost?

  A: If the image transmission signal is lost now and then, the aircraft will be able to continue mapping after reconnecting.



  Q: What is the screen size and resolution of the remote controller?

  A: The autel smart controller v3 offerts a 7.9-inch 2048×1536@60fps ultra-bright touch screen.



  Q: Which RTK base station modes are currently supported?

  A: The A-RTK base station is currently supported.



  Q: What is the RTK positioning accuracy?

  A: 1 cm + 1 ppm (horizontal), 1.5 cm + 1 ppm (vertical)



  Q: What is the difference between PPK and RTK mode and how to choose?

  A: Real-Time Kinematic (RTK) and Post-Processed Kinematic (PPK) are both centimeter-level positioning systems; RTK is recommended when users have high requirements for convenience and real-time operation, and there is a network communication link in the survey area. If the user does not require real-time performance or is in an environment with a poor network communication, then the PPK post-processing method can be used.



  Q: Does the EVO II RTK series provide measurements in relative coordinates or absolute coordinates?

  A: The measurement coordinates given by the EVO II RTK are absolute coordinates.



  Q: Does the aircraft support lossless zoom?

  A: The Autel EVO II Pro RTK V3 achieve 3x lossless zoom, The Autel EVO II Dual 640T RTK V3 can achieve 4x lossless zoom.
