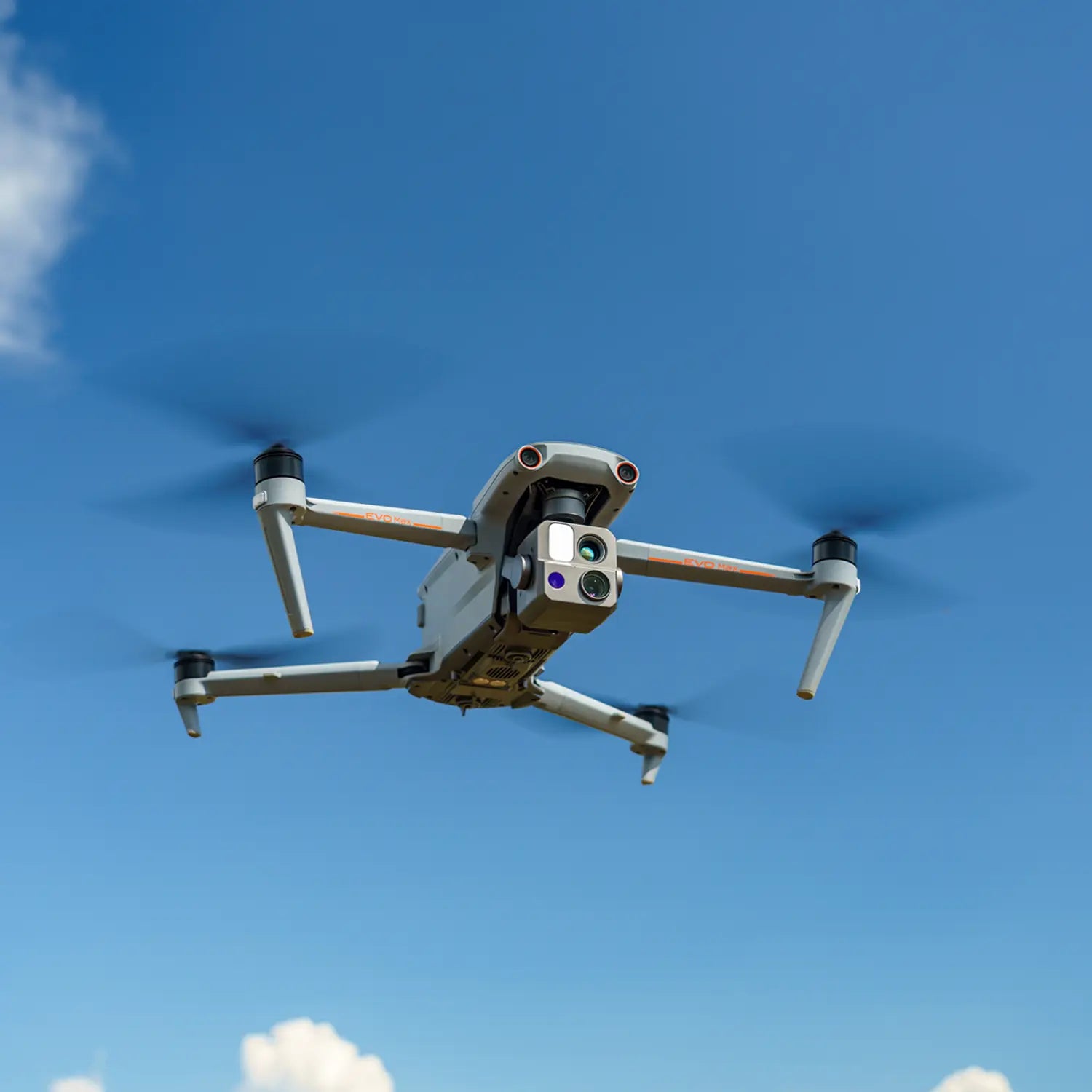

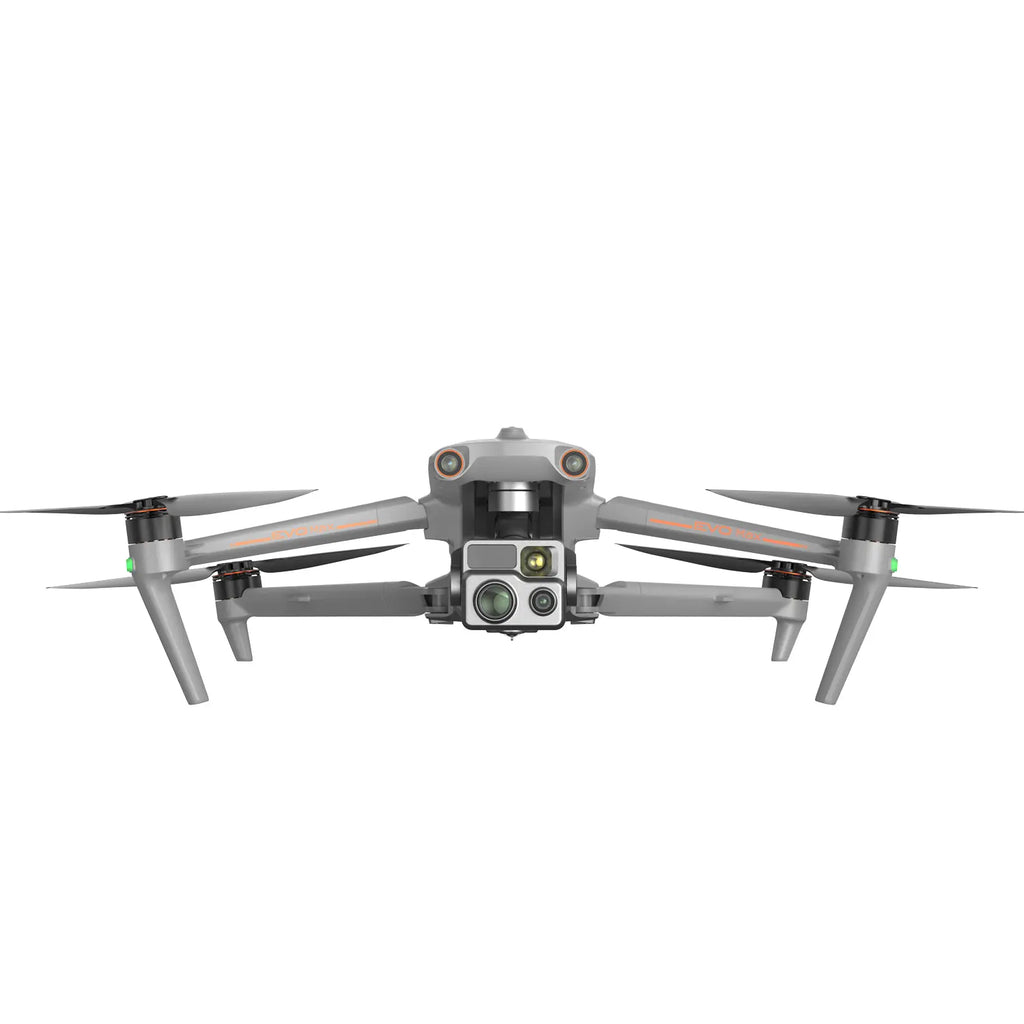

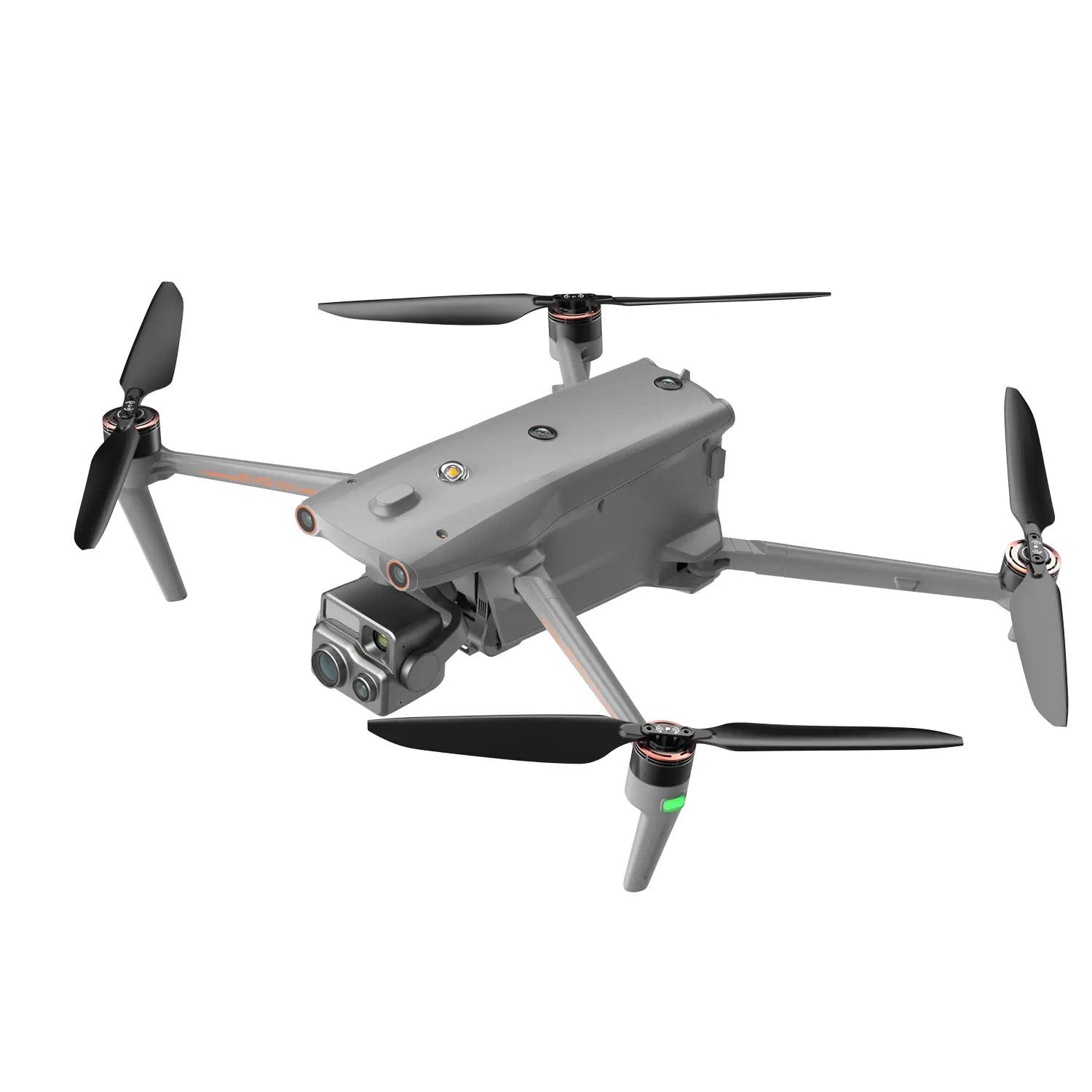

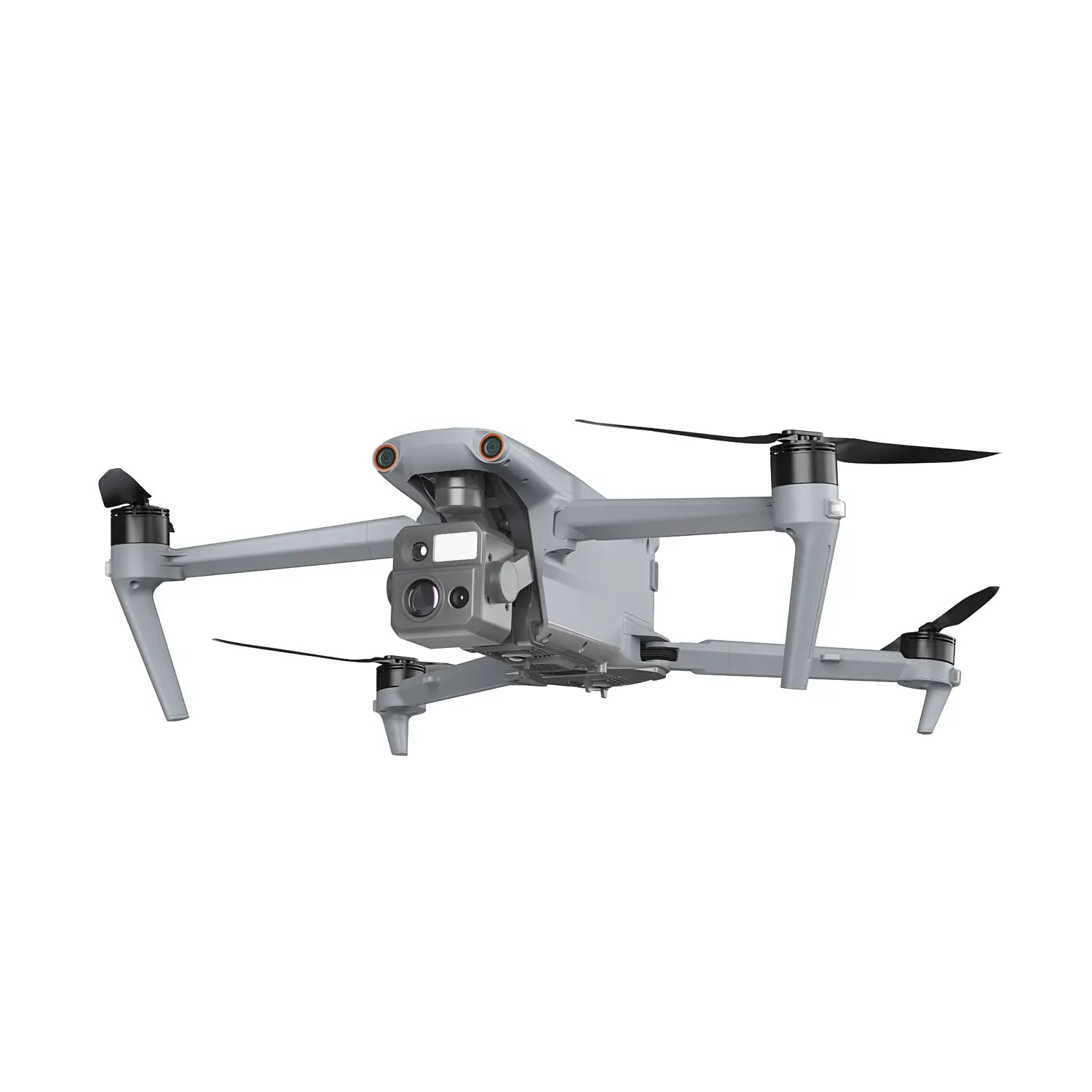

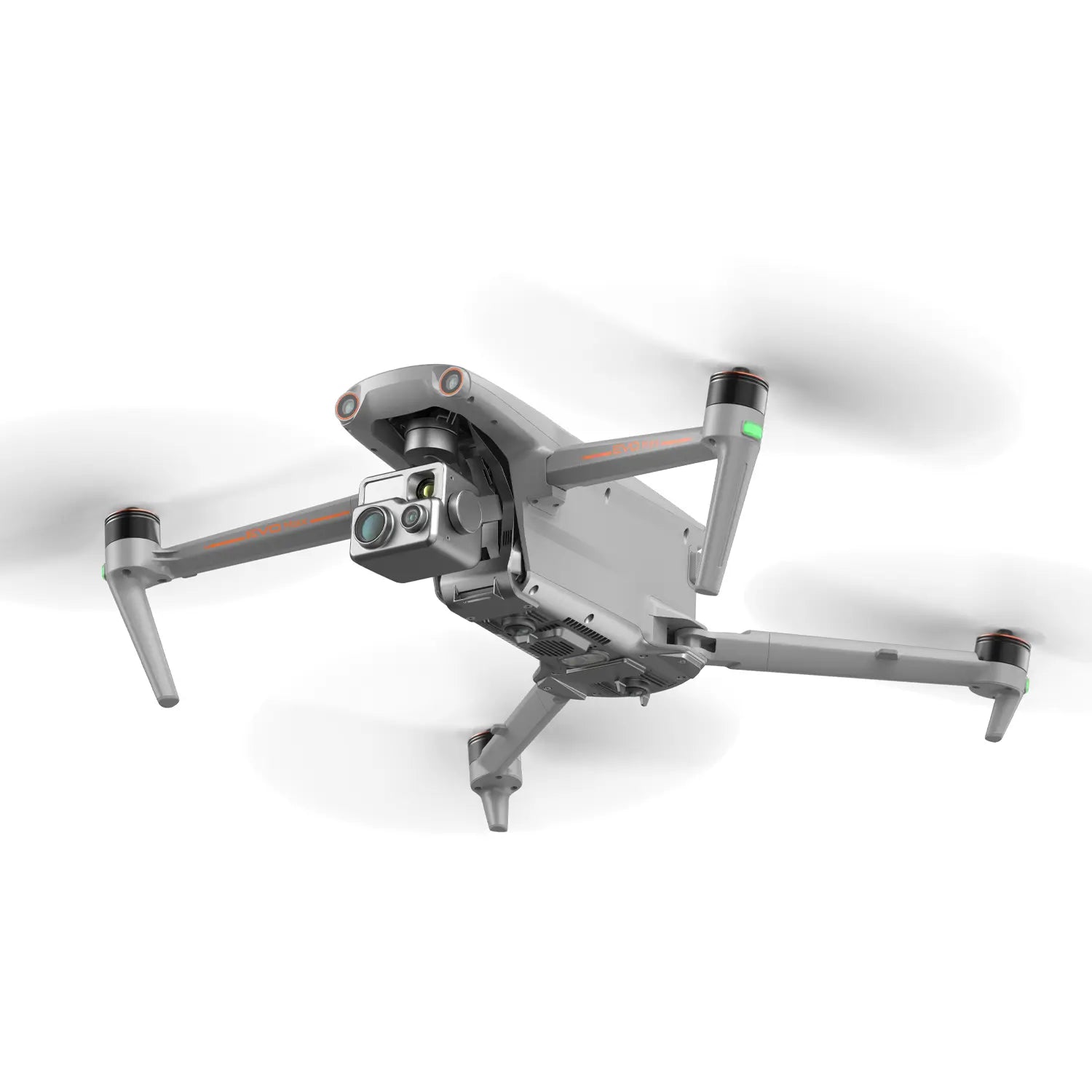

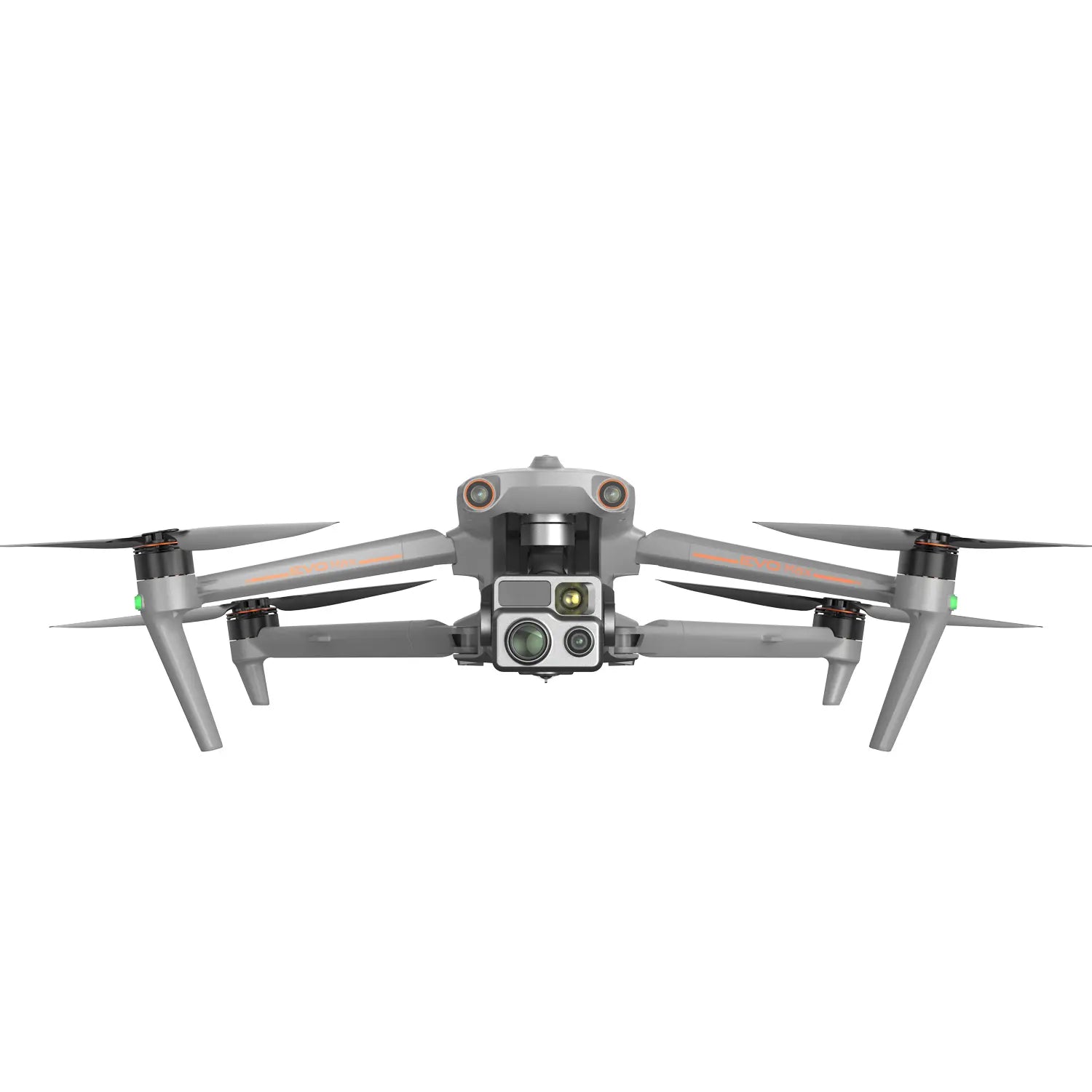

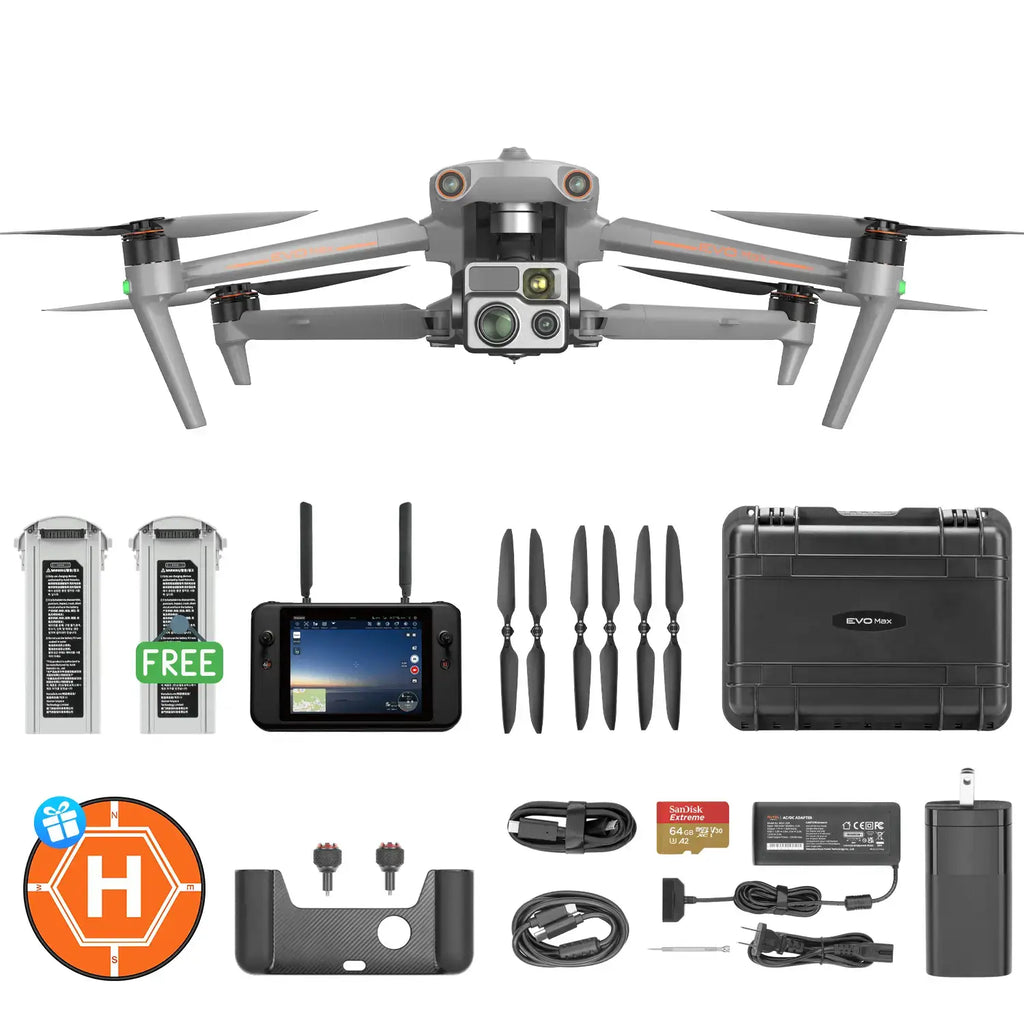

Autel Robotics EVO Max 4T V2 Rugged Bundle

• 10X Optical Zoom
• Thermal Camera:640x512 | 16x Digital Zoom
• Wide Camera: 50MP | 1/1.28" CMOS
• Zoom Camera: 48MP | 8K 10x Optical Zoom(160x Max)
• Laser Rangefinder
• Autel SkyLink 3.0 | 12.4 miles Transmission Range
• 720° Obstacle Avoidance
• 42 mins Max Flight Time
• A-Mesh 1.0 | Mesh Networking Technology
• 3D Map Planning | Multiple Mission Types | Data Security
• Multi-channel Projection Screen*
• Autel SDK

[keyfeatures]

• Overview
• Specification
• Packing
• Documents

• Autel EVO Max 4T V2

  Autel EVO Max 4T V2 brings powerful technologies and advanced autonomy to users. EVO Max 4T V2 assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance.Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios.With a foldable, weather-resistant design, the EVO Max 4T V2 is as portable as it is capable.



• •

    15s
    Take Off
  •

    8K 10x
    Optical Zoom
  •

    IP43
    Weather Rating
  •

    Hot-Swappable
    Batteries
  •

    Navigation
    In GPS Denied Environments
  •

    12.4 miles
    Transmission Range
  •

    42 Minutes
    Flight Time
  •

    720°
    Obstacle Avoidance

  • Autel Autonomy

    EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T V2's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

    •
      Binocular Vision System
    •
      Millimeter Wave Radar
  • • Autonomous Path Finding

      Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

    •
    • Navigation in GPS Denied Environment

      Advanced sensors allow the EVO Max 4T V2 to navigate within hardened structures, underground, or in environments without GPS.

    •
    • Accurate Object Identification and Tracking

      Based on Autel's AI recognition technology, the EVO Max 4T V2 can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

    •

  No Blind Spots

  Ultimate Obstacle Avoidance

  EVO Max 4T V2 is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T V2's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.

  • Anti Jam, Anti Interference

    The EVO Max 4T V2 uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T V2 to fly confidently near power lines, critical structures, and in complex areas.

  • Weather Rating-IP43

    Autel EVO Max 4T V2 with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

    Operation Temperature

    -4 ℉ to 122 ℉

  •

  • Weather Rating-IP43

    Autel EVO Max 4T V2 with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.

    Operation Temperature

    -4 ℉ to 122 ℉

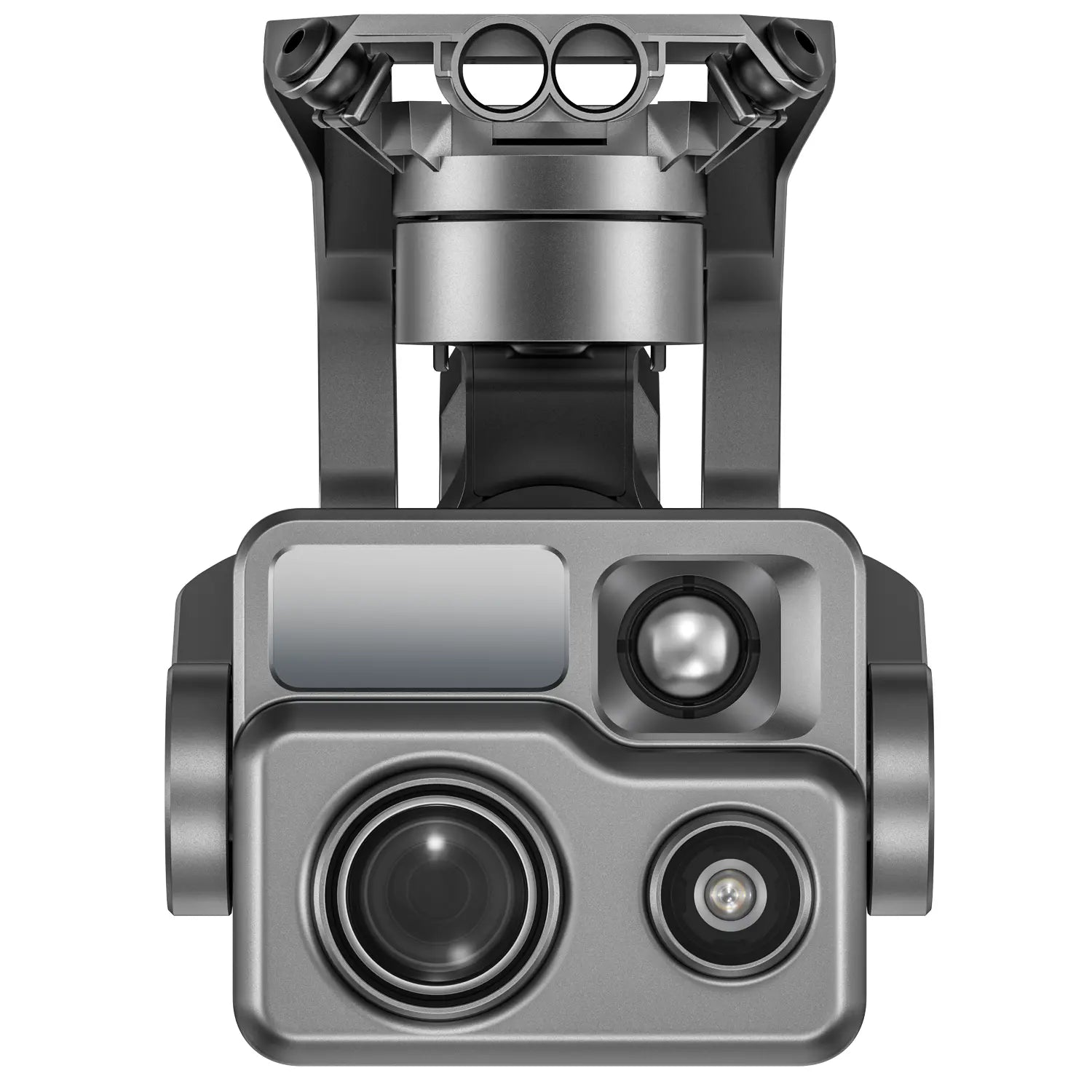

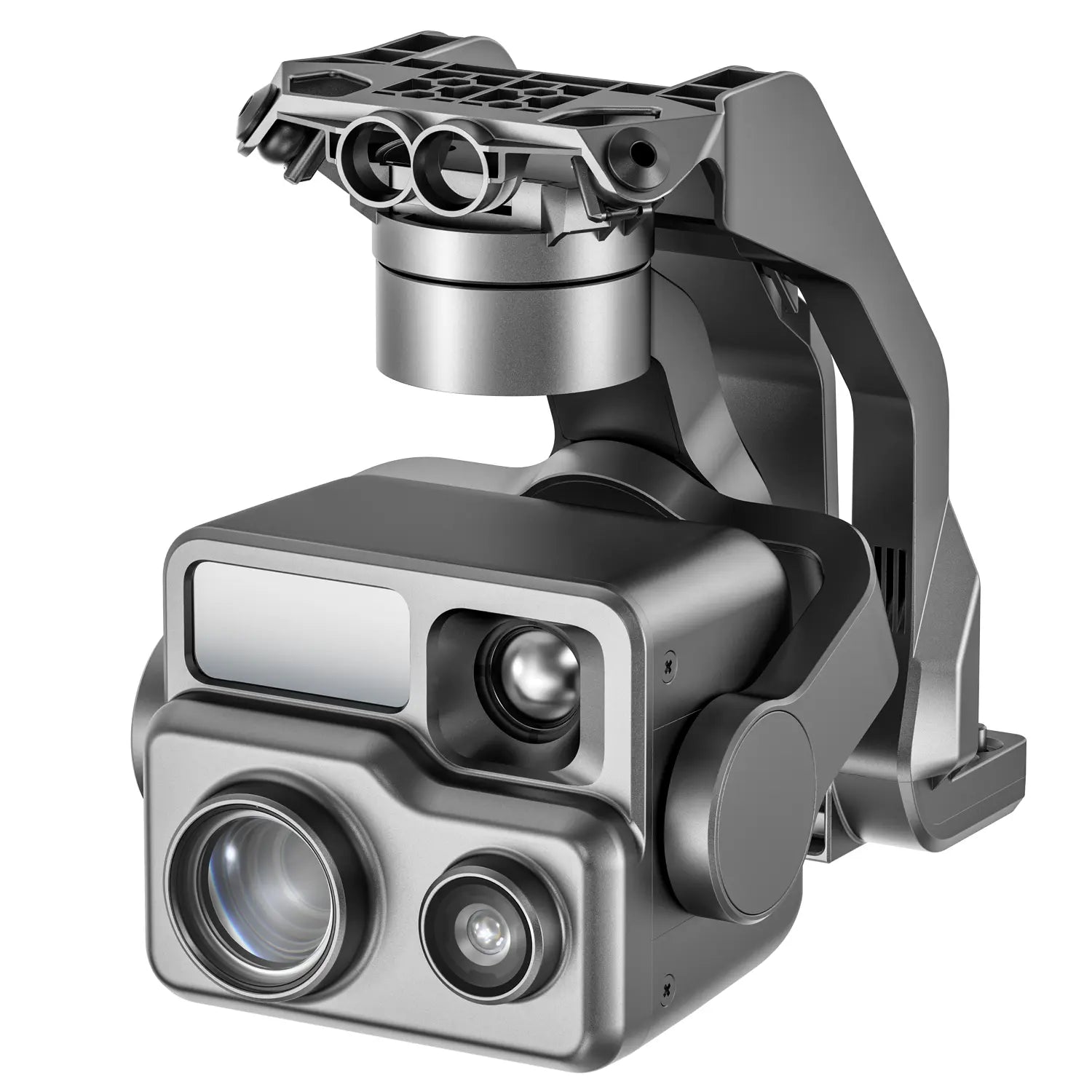

  4T V2 Mission Ready Payload

  Autel Max 4T V2 gimbal camera system combines a wide-angle camera, zoom camera, thermal camera, and a laser rangefinder, offering a comprehensive solution for data capture across a variety of environments. This versatile payload is designed to excel in multiple application scenarios, enabling precise decision-making and ensuring optimal performance under diverse conditions.


  Thermal Camera

  Laser Rangefinder

  Wide Angle Camera

  Zoom Camera
  • 640*512 resolution
  • 9.1 mm focal length
  • 16x digital zoom
  • Range: -4℉ to 1.22 ℉
  • Temperature accuracy: ±2℃ or reading 2℃
  • Measuring Rnage: 5-1200m(16.4-3737 ft)
  • Measurement Accuracy: ±(1m+D*0.15%) *where D is the distance to a vertical reflecting plane
  • 1/1.2" CMOS, 48MP
  • Equivalent: 24mm
  • Aperture: f/2.8
  • DFOV: 83.4°
  • 1/1.2" CMOS, 48MP
  • Apeature: f/2.8-f/4.8
  • 10x Optical Zoom
  • 160x Max. Hybird Zoom
  • Video Resolution:4000*3000 30fps
  • Phote Size: 4000*3000, 8000*6000

  Chase the Heat and Explore the Night

  • • Super Zoom

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up to 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuring the safety of personnel and flight equipment. This efficient capability empowers applications in energy inspections, emergency rescue, and public safety and security industries.

    • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up to 64000. Even in moonlight conditions, it can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion technology, ensuring delicate and clear photos in low-light environments.

    • Super-sensitive Imaging

      Video: Capable of recording up to 4K 30p extreme low-light videos, with ISO reaching up to 64000. Even in moonlight conditions, it can capture target details.

      Photography: Supports intelligent hardware multi-frame noise reduction and HDR fusion technology, ensuring delicate and clear photos in low-light environments.

    • Superior Infrared

      The zoom camera supports 8K 10x continuous optical zoom and a maximum hybrid zoom of up to 160x, making vehicles and ships visible up to 2 kilometers away.

      Operators do not need to go to the scene, thereby improving work efficiency and ensuring the safety of personnel and flight equipment. This efficient capability empowers applications in energy inspections, emergency rescue, and public safety and security industries.

    • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with a maximum ranging distance of up to 1.2 kilometers.

    • Precision Ranging

      One-click pinpoint positioning enables rapid acquisition of target location, with a maximum ranging distance of up to 1.2 kilometers.

  Platform Capability

  EVO Max 4T V2 redefines portability with its robust performance and all-weather design, making it the ideal choice for versatile aerial operations. It boasts an impressive 42 minutes of maximum flight time, a top horizontal speed of 23 m/s, and an image transmission range of up to 12.4 miles.

  • 42 mins
    Max. Flight Time
  • 23m/s
    Max. Horizontal Speed
  • 12.4 miles
    Image Transmission Range
  • 27 mph*
    Max. Wind Resistance


  Hot-Swappable Battery

  Autel Max 4T hot-swappable battery system, which allows for extended flight times without the need for downtime. This system allows users to easily swap out batteries while the drone is still in operation, making it ideal for use in time-critical applications where every second counts.

  • • 8070 mAh
      Capacity
    • 14.88V
      Voltage
    • LiPo 4S
      Battery Type
    • 120wh
      Energy
    • 520g
      Net Weight
    • Support
      Hot Swap
  •

  A-Mesh Networking Solution

  Autel EVO Max 4T V2 introduces the innovative A-Mesh system, enabling seamless drone-to-drone autonomous communication, connection, and collaboration. Unlike traditional communication chains, the system ensures continuous data relay, even if a single drone fails or disconnects, thanks to its strong anti-interference capabilities.

  •

    Zonal operations

    Autel EVO Max 4T V2 supports dual-drone dual-control to achieve zonal operations of aircraft, improving flight work efficiency. It also supports mutual obstacle avoidance among drones within the network, ensuring flight operation safety.

  •

    Information sharing

    The two remote controllers within the network can simultaneously monitor the aircraft footage. The AI target recognition feature used in the lead controller can also be displayed on the member controller. Additionally, both controllers can utilize the pinpoint positioning feature.

  •

    Relay operations

    In scenarios with signal obstructions or weak signals such as crossing hills or remote areas, the aircraft can be quickly deployed as a mobile relay communication node, providing reliable signal support for another member aircraft at a distance, efficiently expanding the communication coverage area.

  Autel SkyLink 3.0

  Autel Max 4T SkyLink 3.0 system is a highly advanced drone communication technology, offering impressive specifications for enhanced flight performance. Here's a summary of its key features:

  • 12.4 miles
    Image Transmission Distance
  • <150 ms
    Latency
  • 1080p/60fps
    Real-Time Image Quality
  • 900MHz/2.4GHz/5.2GHz/5.8GHz**
    Frequency Bands



  This feature will be available in a future update. **5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions.

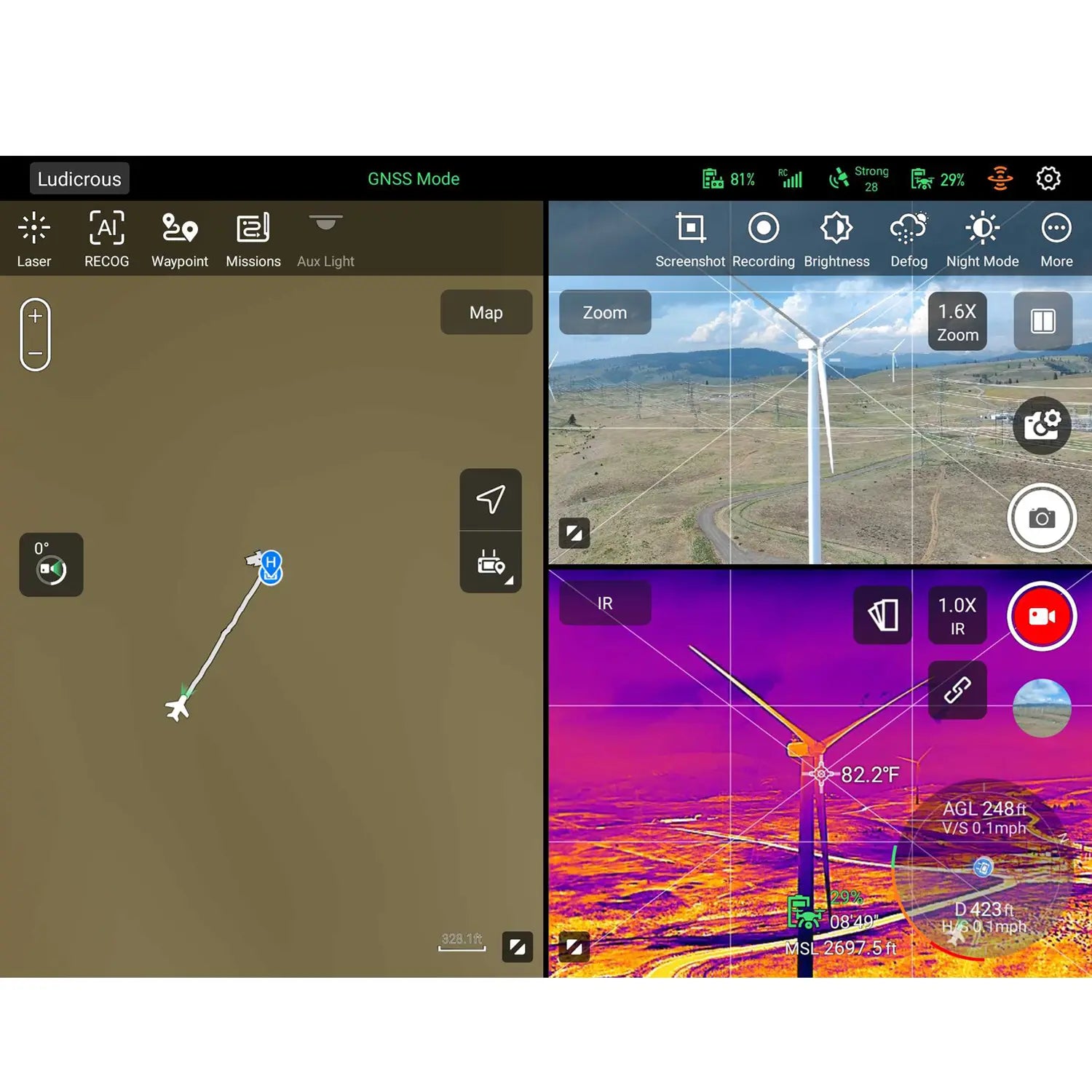

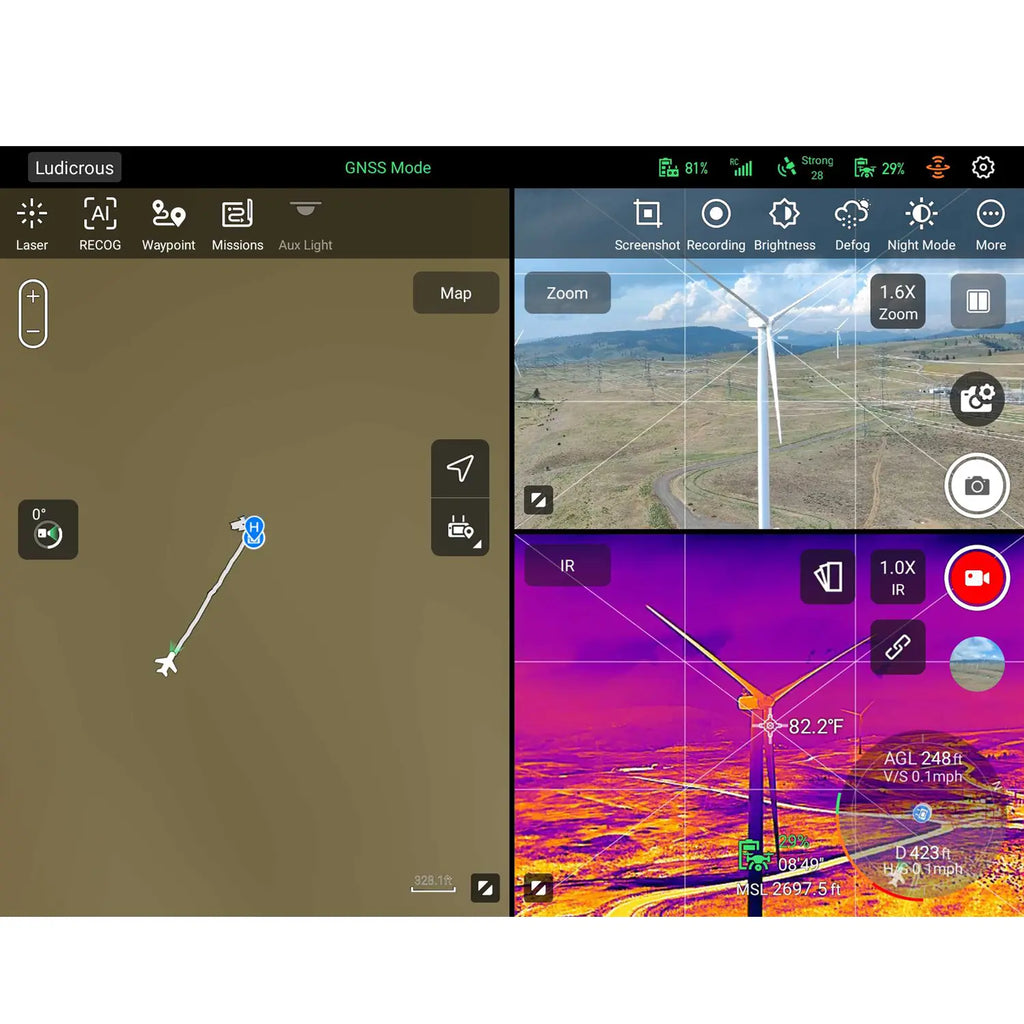

  Autel Enterprise App Platform

  The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max 4T V2's mission capability.



  Smart Features

  • • 3D Map Planning
      Plan, create, and execute 3D waypoint mission plan on a 3D map.
    •
    • 3D Map Planning
      Plan, create, and execute 3D waypoint mission plan on a 3D map.
    • Quick Mission*
      Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
    •
    • Quick Mission*
      Temporary quick missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.
    • Mission Reproduction*
      With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.
    •
    • Mission Reproduction*
      With this feature activated, fly a manual or semi-autonomous mission, or string multiple missions together. The EVO Max4T will automatically record the camera angles and replicate the mission you just flew.

  Multiple Mission Types

  The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

  •

    Automatic Mission Generation And Data Capture*

    Automatically produce routes by adding regional boundary points through dots or importing KML files

  •

    Polygon Mission

    Supports one-click automatic generation of polygon flight areas

  •

    Waypoint Missions

    Users can add waypointsfor flexible, non-structured flight paths

  Data Security

  Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.

  Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.



  Autel SDK

  The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

  •
    •
      Mobile SDK

    • Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

  Accessories

  • •
    • Speaker and Spotlight Combo
      Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
    •
    • RTK Module
      The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.
    •
    • Payload Drop System
      The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.
    •
    • Multi-charger
      The Autel EVO Max series offers a versatile multi-charger, designed to provide convenient and efficient charging solutions. With its ability to simultaneously charge the smart controller, batteries, and even mobile phones, the Autel EVO Max multi-charger provides a comprehensive charging solution for users. Its emphasis on safety, multi-device support, and efficiency make it an ideal accessory for EVO Max series users.

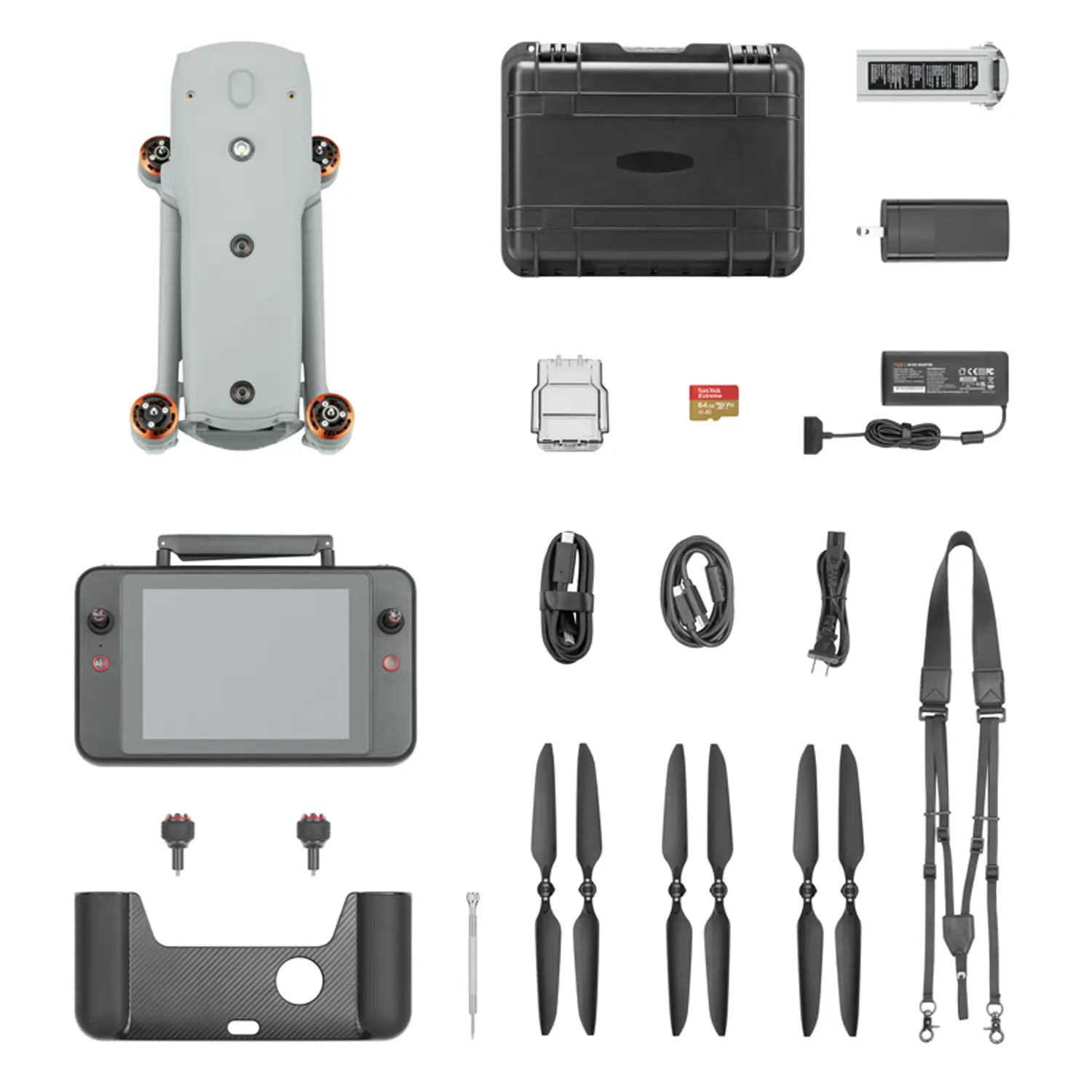

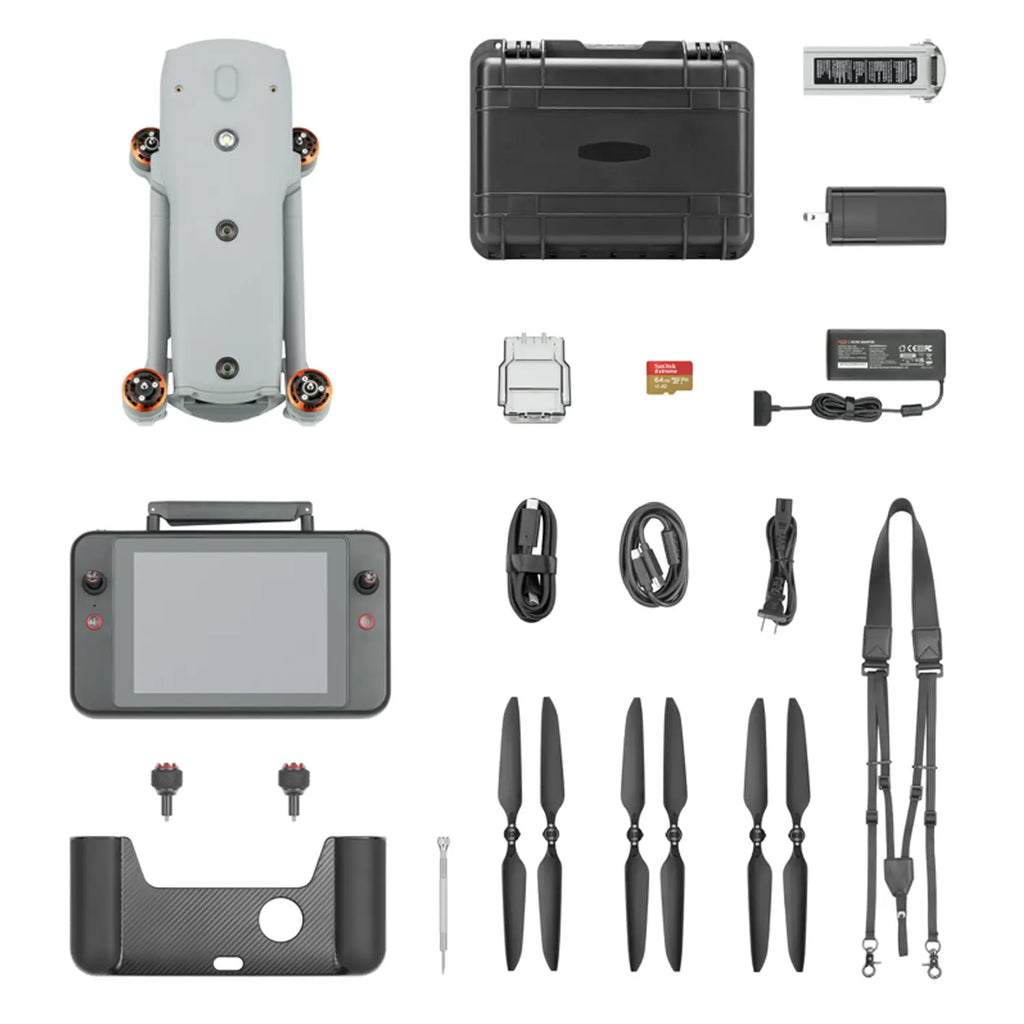

  Autel EVO Max 4T V2 Package List



• Aircraft	Gimbal	Zoom Camera(Telephoto)	Wide Camera	Thermal Camera	Laser Range Finder
  Image Transmission	Autonomy	Millimeter-wave Radar	Visual Sensing System	7.9-inch Smart Controller	Battery

  Aircraft

  Weight	3.5 lbs (1600g, battery and gimbal included)
  Dimensions	576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers)
  Diagonal Wheelbase	1.52 ft (464mm)
  Max Ascent Speed	8m/s
  Max Descent Speed	6m/s
  Max Horizontal Speed (windless near sea level)	22m/s
  Max Service Ceiling Above Sea Level	23000ft (7000m)
  Max Flight Time (windless)	42 mins
  Max Hovering Time (windless)	40 mins
  Max Wind Resistance	27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s).
  IP Rating	IP43
  Max Tilt Angle	35°
  Max Angular Velocity	Pitch: 300°/s; Yaw: 120°/s
  Operating Temperature	-4°F to 122°F (-20℃ - 50℃)
  Operating Frequency	2.4G/5.2G*/5.8G/900MHz*
  Transmitter Power (EIRP)	2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC)
  Hovering Accuracy	Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled);

  Gimbal

  Mechanical Range	Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100°
  Controllable Range	-90° to 45°
  Stable system	3-axis mechanical gimbal (pitch, tilt, roll)
  Max Control Speed (pitch)	200º/s
  Angular Vibration Range	<0.005°

  Zoom Camera (Telephoto)

  Sensor	1/2" CMOS, Effective pixels: 48M
  Lens	Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8
  Exposure Compensation	±3EV 0.3EV/step
  ISO Range	Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400
  Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
  Max Photo Size	8000×6000
  Max Video Resolution	7680×4320

  Wide Camera

  Sensor	1/1.28 CMOS, Effective pixels: 50M
  Lens	DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus
  Exposure Compensation	±3EV 0.3EV/step
  ISO Range	Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400
  Shutter Speed	Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s
  Max. Video Resolution	3840×2160
  Photo Size	8192*6144 4096*3072

  Thermal Camera

  Thermal Imager	Uncooled VOx Microbolometer
  Lens	DFOV: 64° Aperture: 13mm Focus: f/1.2
  Infrared Temperature Measurement Accuracy	26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉
  Video Resolution	640*512
  Photo Size	640*512
  Pixel Pitch	12 um
  Temperature Measurement Method	Center measurement, pot measurement, rectangular measurement
  Temperature Measurement Range	-4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C)
  Temperature Alert	High and low temperature alarm thresholds, reporting coordinates and temperaturevalues

  Laser Range Finder

  Measurement Accuracy	±1m
  Measuring Range	1.2km

  Image Transmission

  Operating Frequency	2.4G/5.2G*/5.8G/900MHz*
  Max Transmission Distance (unobstructed, free of interference)	20km
  Independent Networking	7.9-inch Smart Controller
  Transmitter Power (EIRP)	2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC)

  Autonomy

  Non-GPS Hovering and Manual Flight	Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height
  Non-GPS Return-to-Home	Within 500m flight height, horizontal error of Return-to-Home point < 30cm
  Automatic Obstacle Rerouting	High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m
  Multi-target Recognition and Tracking	Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85%

  Millimeter-wave Radar

  Operating Frequency	60G: 60Ghz~64Ghz 24G: 24.0~24.25GHz Please note: US regulations require that millimeter wave radar only supports 24GHz.
  Effective Isotropic Radiated Power (EIRP)	60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW (SRRC)
  Sensing Range	60G millimeter-wave radar: Upward: 0.3 - 20 m Downward: 0.15 - 80 m Forward & Backward: 0.3 - 50 m 24G millimeter-wave radar: Downward: 0.8 - 12 m
  FOV	Horizontal (6dB): ±60°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz)
  Operating Environment	60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters.
  Aircraft Version Limitations*	To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and use 60 GHz radars in the forward, backward, and upward directions. In the 24 GHz aircraft version, the 60GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory, and only the 24GHz radar in the downward direction is enabled to assist in landing. The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night.

  Visual Sensing System

  Obstacle Sensing Range	Forward/Upward/Downward/Backward/Sideward: 0.2~50m
  FOV	Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V)

  7.9-inch smart controller

  Screen	7.9 inch, 2000nits max. brightness, 2048*1536 resolution
  External Battery	Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery
  Operating Time	3 hours (Max. brightness) 4.5 hours (50% brightness)
  Max Transmission Distance (with interference)	FCC: 20km CE: 7km
  Storage	128G
  GNSS	GPS+GLONASS+Galileo+Beidou
  Operating Temperature	-20℃ to 40℃
  Protocol	WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi
  Operating Frequency	2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz
  Transmitter Power (EIRP)	2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm

  Aircraft Battery

  Capacity	8070mAh
  Voltage	14.88V
  Battery Type	LiPo 4S
  Energy	120wh
  Net Weight	520g
  Charging Temperature	5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
  Hot Swap	Support
