The FPV camera, visual sensors, positioning antennas, and storage card slot all adopt designs that are seamlessly integrated into the airframe for a minimalist look and modern industrial aesthetics.

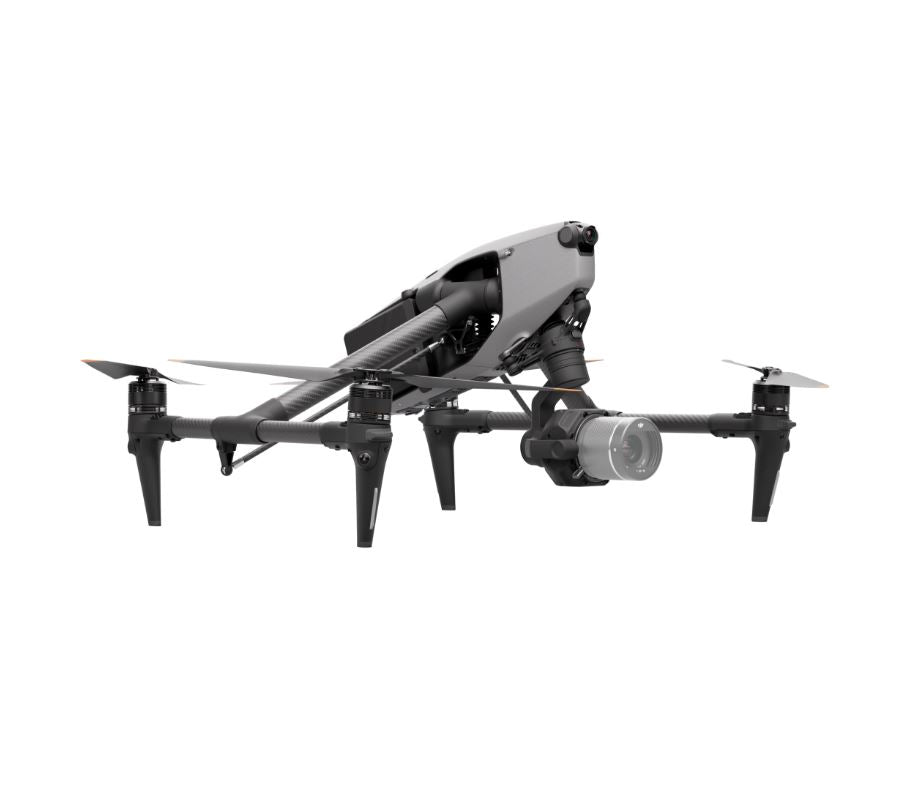

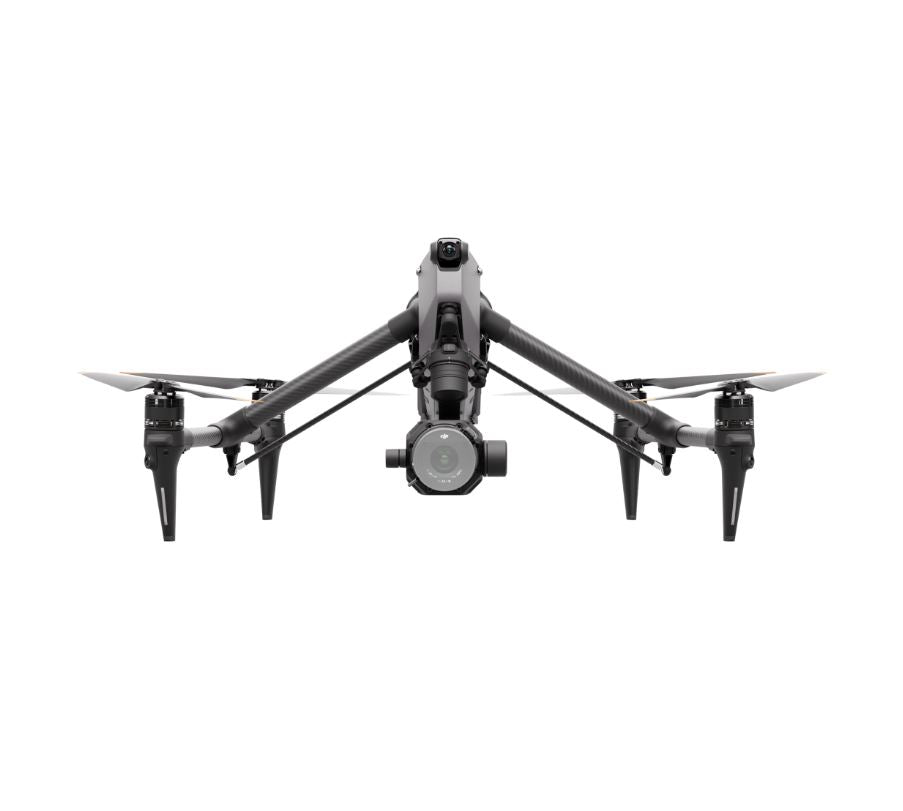

Inheriting the classic transformable configuration of the Inspire series, Inspire 3 uses an all-new design that supports 360° Pan and Tilt Boost structures. When the landing gear is lowered, the gimbal supports obstruction-free 80° upward-angle shooting, enabling cinematographers to capture strikingly innovative shots.

From the outer design to the internal structure, every detail of Inspire 3 was carefully considered and optimized.

Spacial Intelligence Beyond Boundaries

High-Mobility Precision Flight System

Centimeter-Level RTK Positioning

Inspire 3 integrates high-precision RTK positioning technology used in industries such as architecture and surveying to deliver centimeter-level accuracy. Compared with traditional meter-level positioning supported by Global Navigation Satellite Systems (GNSS), RTK not only makes flying more stable, but also makes flight-route planning more accurate, significantly improving creative efficiency.

RTK antennas have been built into the airframe with a new stacked ceramic design, which enables three types of GNSS (GPS, BeiDou, and Galileo) and delivers dual-frequency positioning down to the centimeter level. By activating an RTK network or setting up a D-RTK 2 Mobile Station, users can achieve highly accurate positioning without mounting any additional modules.

Dual-Antenna Orientation

Both the front and the rear of Inspire 3 have a built-in stacked ceramic antenna, providing powerful anti-magnetic-interference capability to further improve flight accuracy and safety.

Waypoint Pro

Specially designed for aerial cinematography, Waypoint Pro enables flight-route and shot planning with a wide range of customized settings. With the new Repeatable Routes and 3D Dolly modes, an innovative automated shooting experience can be easily achieved. In addition, RTK centimeter-level positioning ensures more accurate flight-route planning and execution. Whether solo shooting or in a professional crew, use Waypoint Pro to master even highly-complex scenes.

Repeatable Routes

Using Repeatable Routes, the aircraft will automatically fly on the same route and maintain all preset parameters such as altitude, speed, gimbal angle, and camera settings. Repeating the same flight mission allows cinematographers to effortlessly perform difficult one-takes, or to fly at different times in the same place to easily create long-duration timelapses that capture transitions such as day to night or season to season.

3D Dolly

3D Dolly can simulate a crane, cablecam, or dolly on film sets while going far beyond the limitations of those devices.

After planning a flight route, the cinematographer can manually control the aircraft to move along the route back and forth while adjusting parameters such as speed, gimbal angle, and more according to the needs of the shot. This makes complicated cinema-grade camera movements easier and more efficient and can deliver improved visual effects.

Spotlight Pro

Upgraded from Inspire 2, Spotlight Pro further enables solo creators with more shot possibilities. Based on powerful machine-learning algorithms, Inspire 3 supports automated subject recognition and locking for people, vehicles, and boats with greater accuracy than its predecessor.

When using Spotlight Pro's Follow mode, the aircraft and gimbal camera orient toward the same direction and remain locked on the subject so that the pilot can get circling shots without manual framing adjustments.

In Free mode, thanks to the 360° gimbal pan of Inspire 3, the gimbal camera can stay locked on a subject, while a solo pilot uses the FPV camera to check their surroundings and control the flight route more responsively to achieve complex camera movements more easily.

Omnidirectional Sensing System

Inspire 3 is equipped with nine sensors, which enable a robust omnidirectional sensing system that can detect obstacles in all directions and provide comprehensive protection for flying.

For the first time, a fisheye camera has been added to each of the four landing arms. This design helps to avoid obstruction from the airframe when the landing gear is raised and allows for horizontal obstacle sensing when the landing gear is lowered.

Customizable Obstacle Sensing

In addition, Inspire 3 features a new customizable function to help ensure greater flight safety and more creative freedom. Horizontal, upward, and downward obstacle sensing can be enabled or disabled independently, and an obstacle alert range can be manually set to suit different scenarios.

When active avoidance is turned off, users can still view the distance from an obstacle on the navigation display in real-time and receive an audio alert when an obstacle is within a set range without the aircraft performing an automatic avoidance movement. This brings new possibilities to professional aerial teams that want to achieve more complex camera language.

Ultra-Wide Night-Vision FPV Camera

Inspire 3 is equipped with a new 1/1.8-inch-sensor FPV camera with a 3μm pixel size, an ultra-wide DFOV of 161°, and the ability to transmit live feeds at up to 1080p/60fps. Compared to its predecessor, the DFOV is approximately doubled. This FPV camera delivers more impressive light-sensing capability, allowing pilots to observe their surroundings vividly and clearly, even at night, and ensure greater levels of flight safety.

Inspire 3

Inspire 2

A Stunning New Aerial Perspective

Full-Frame 8K Imaging System

Tailormade 8K Sensor

DJI’s lightest-ever full-frame three-axis gimbal camera, the X9-8K Air, is custom-built for Inspire 3 to take drone cinematography to the next level. It features DJI’s latest image processing system, CineCore 3.0, supporting internal recording of up to 8K/25fps CinemaDNG video as well as 8K/75fps Apple ProRes RAW video, meeting the needs of top-class film and television productions.

8K means ultra-high-resolution aerial footage that retains true-to-life texture close to what the human eye sees, with clarity that stuns audiences when displayed on larger screens. RAW brings X9-8K Air's sensor fully into play, providing abundant space for visual effects and color grading.

In S&Q mode, X9-8K Air supports internal recording of up to full-frame 4K/120fps ProRes RAW video without cropping, providing more creative editing options.

Dual Native ISO

X9-8K Air supports dual native ISO. At full-frame 30fps and below, it offers EI 800/4000, supporting the 24fps commonly seen in film productions and the 25fps used in commercial and television productions. At above 30fps, EI 320/1600 is available.

This allows X9-8K Air to record images with exquisite details and minimal noise, even low-light cityscapes or beaches, putting it on par with professional ground-based cinema cameras.

14+ Stops of Dynamic Range

X9-8K Air covers 14+ stops of dynamic range, which captures rich highlight and shadow details in complex lighting scenarios like sunrises and sunsets. High dynamic range brings more possibilities for post-editing, retaining genuine colors even after significant exposure adjustments.

DL Mount Lenses

The X9-8K Air camera carries forward DJI’s proprietary DL lens mount, expanding its compatibility to include a new 18mm F2.8 full-frame ultra-wide lens and an upcoming telephoto lens (to be released). These additions join the existing lineup of full-frame DL 24mm, 35mm, and 50mm F2.8 lenses. All five lenses are purpose-built for aerial cinematography, featuring lightweight monocoque carbon fiber bodies. The lightest of them weighs only 178g, aligning with Inspire 3’s demand for high agility and precise control in the air.

DJI Cinema Color System (DCCS)

The DJI Cinema Color System (DCCS), developed from DJI’s refined color science, allows the X9-8K Air to capture true-to-life colors across a variety of scenes—from natural landscapes to cityscapes. It also preserves natural skin tones under diverse lighting conditions, making it suitable for narrative filmmaking. DCCS enables seamless color matching between aerial footage from the X9-8K Air and ground shots taken with cameras like the DJI Ronin 4D, ensuring a consistent visual aesthetic from sky to ground and streamlining color grading in post-production.

Timecode Synchronization Across Cameras

The Inspire 3 supports multi-camera timecode sync via a 3.5mm port on the aircraft. This allows for precise synchronization between aerial and ground-based cameras. When working with footage from multiple sources, this feature helps simplify the editing workflow and keeps footage aligned, saving time and improving efficiency during post-production.

Interconnected Ecosystem

O3 Pro Video Transmission
and Control System

Inspire 2

Independent Links for Dual Control

Compared with its predecessor, the dual-control experience of Inspire 3 has been significantly upgraded. Two remote controllers can receive live feeds and control the drone independently, so the pilot and gimbal operator can be at different positions on set. This breaks Inspire 2's limitations of binding the primary and secondary control links.

If the pilot loses aircraft signal, the gimbal operator is now able to take control of the aircraft to safely return to home or land directly.

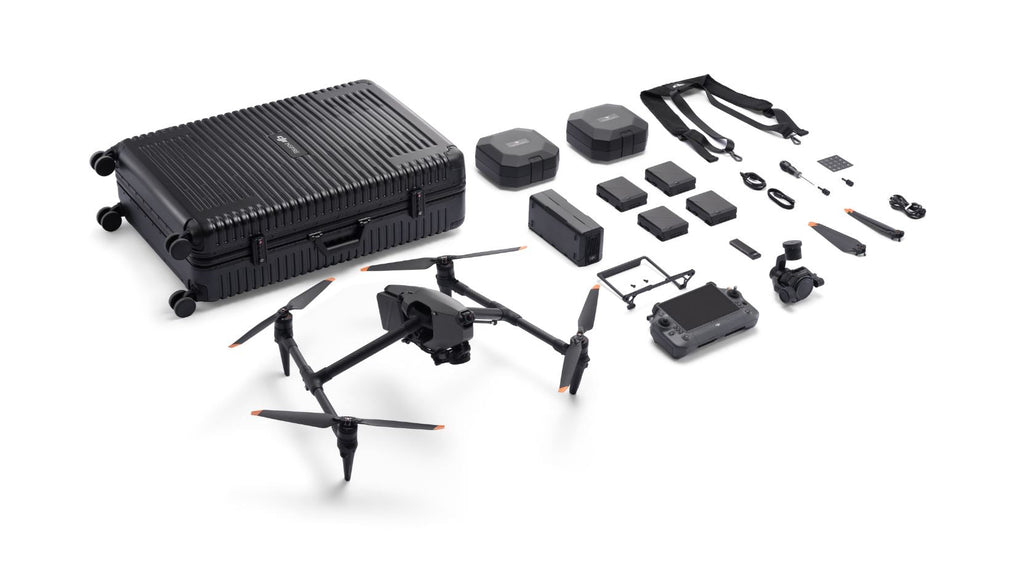

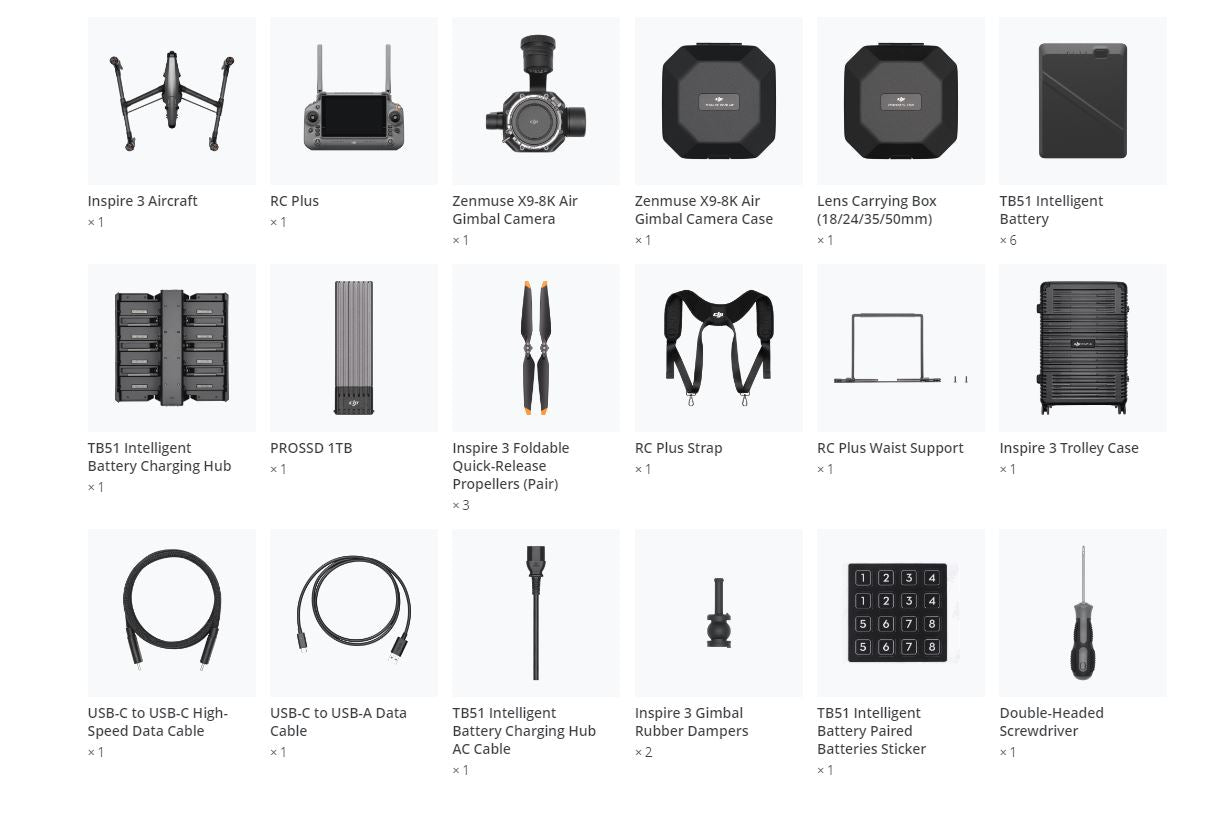

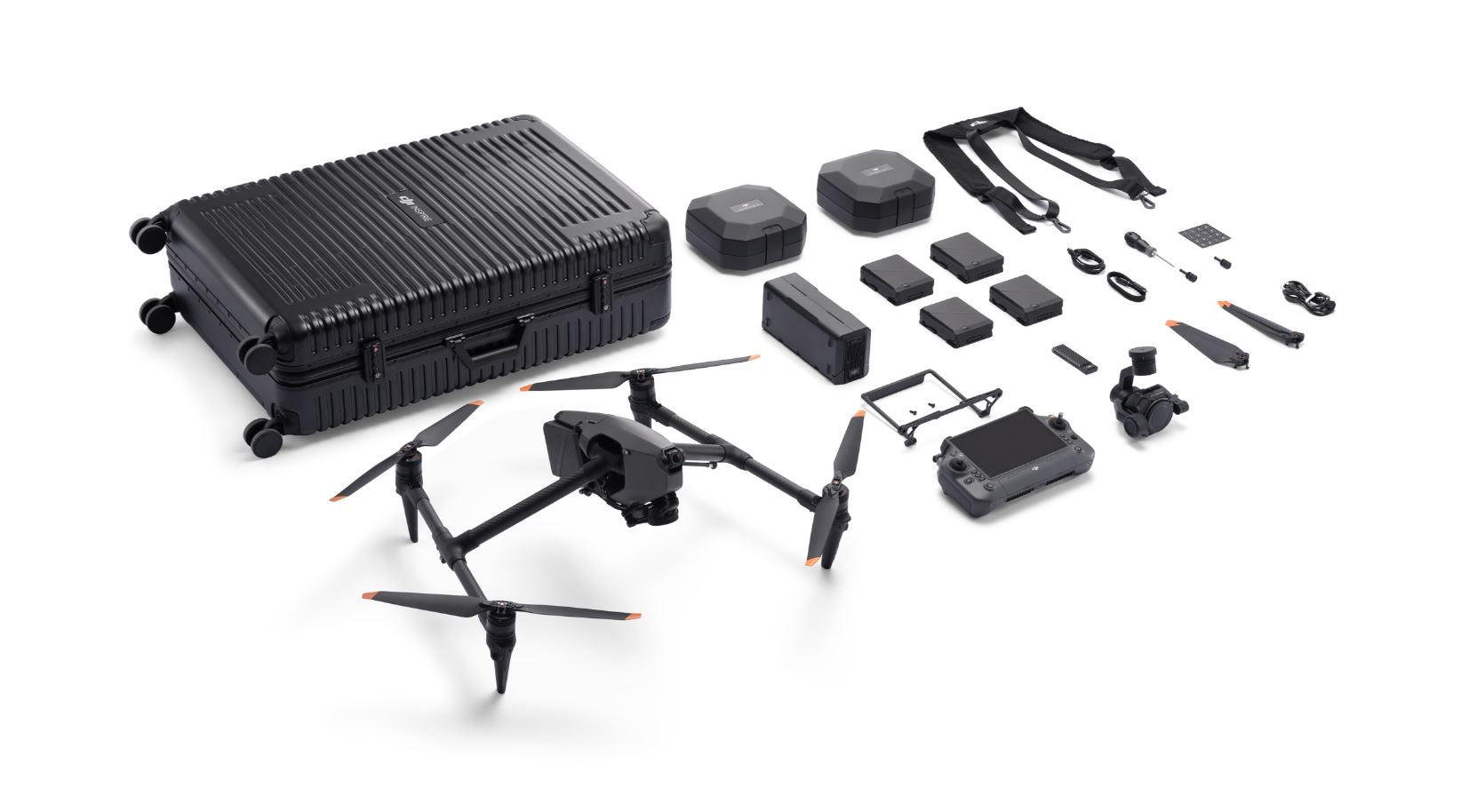

IN THE BOX

• 1 Inspire 3 Aircraft
• 1 RC Plus (Inspire 3)
• 1 Double-Headed Screwdriver
• 1 USB-C to USB-C High-Speed Data Cable
• 1 USB-C to USB-A Data Cable
• 6 TB51 Intelligent Battery
• 1 TB51 Intelligent Battery Charging Hub
• 1 TB51 Intelligent Battery Charging Hub AC Cable
• 1 TB51 Intelligent Battery Paired Batteries Sticker
• 3 Inspire 3 Foldable Quick-Release Propellers (Pair)
• 1 PROSSD 1TB
• 1 Inspire 3 Trolley Case
• 1 RC Plus Strap
• 1 RC Plus Waist Support
• 3 Documents
• 1 Zenmuse X9-8K Air Gimbal Camera
• 1 Zenmuse X9-8K Air Gimbal Camera Case
• 1 DL Mount Lens Cap
• 1 X9 Gimbal Base Cap
• 1 Lens Carrying Box (18/24/35/50mm)
• 2 Inspire 3 Gimbal Rubber Dampers
