A VESA-standard mount (100 mm × 100 mm) is available for a single monitor weighing up to 33 lb (15 kg). Before ordering, ensure the platform is equipped with SFU gearboxes and the latest wide wheel-support vertical bars for compatibility.
Description

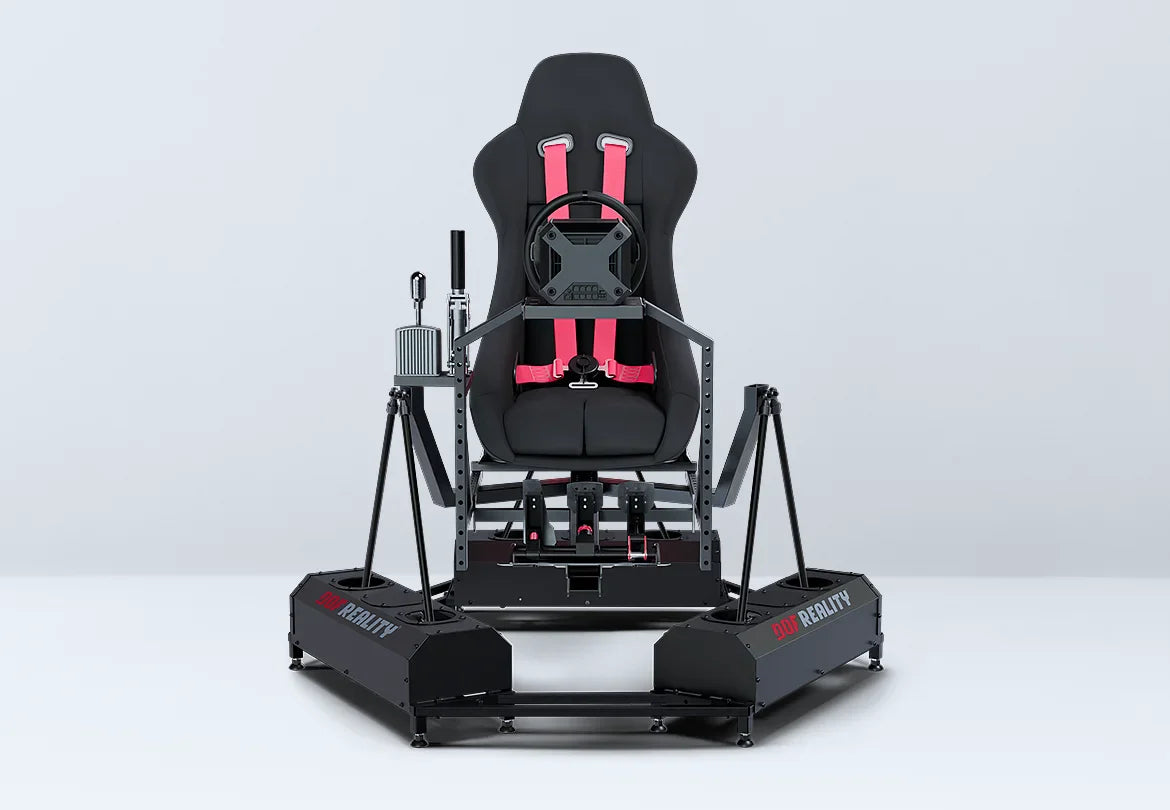

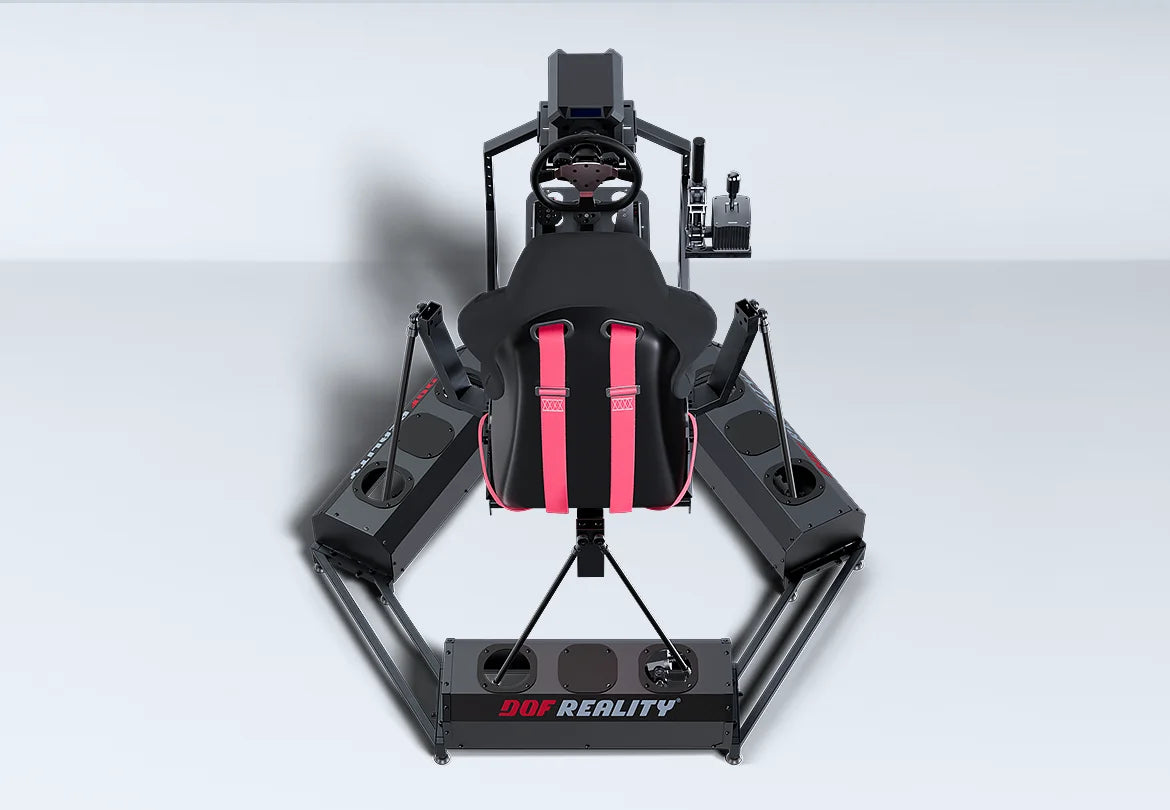

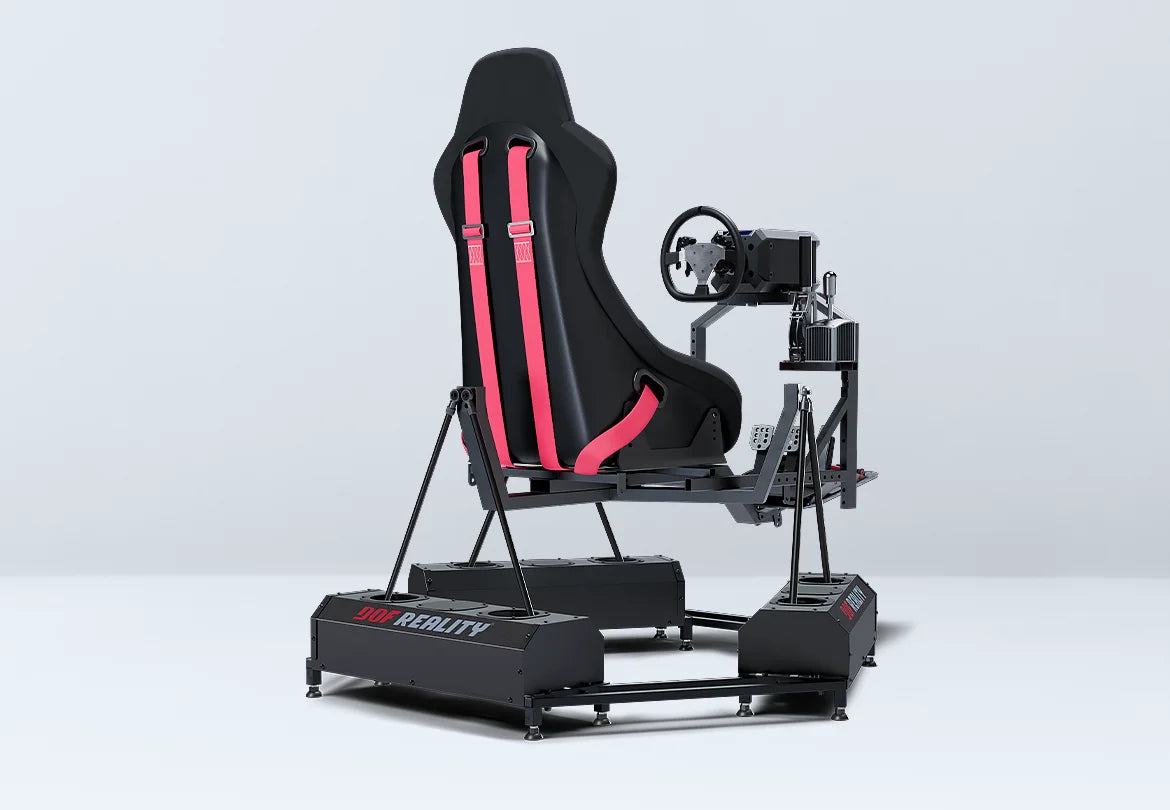

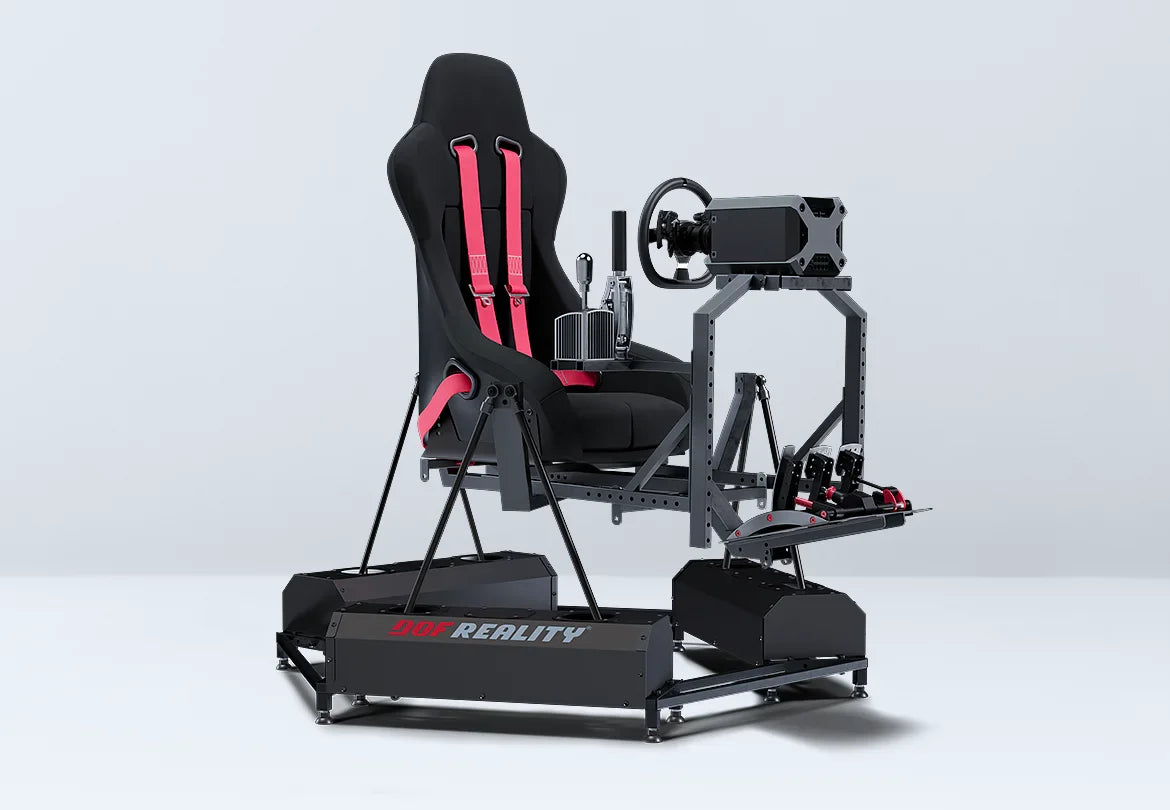

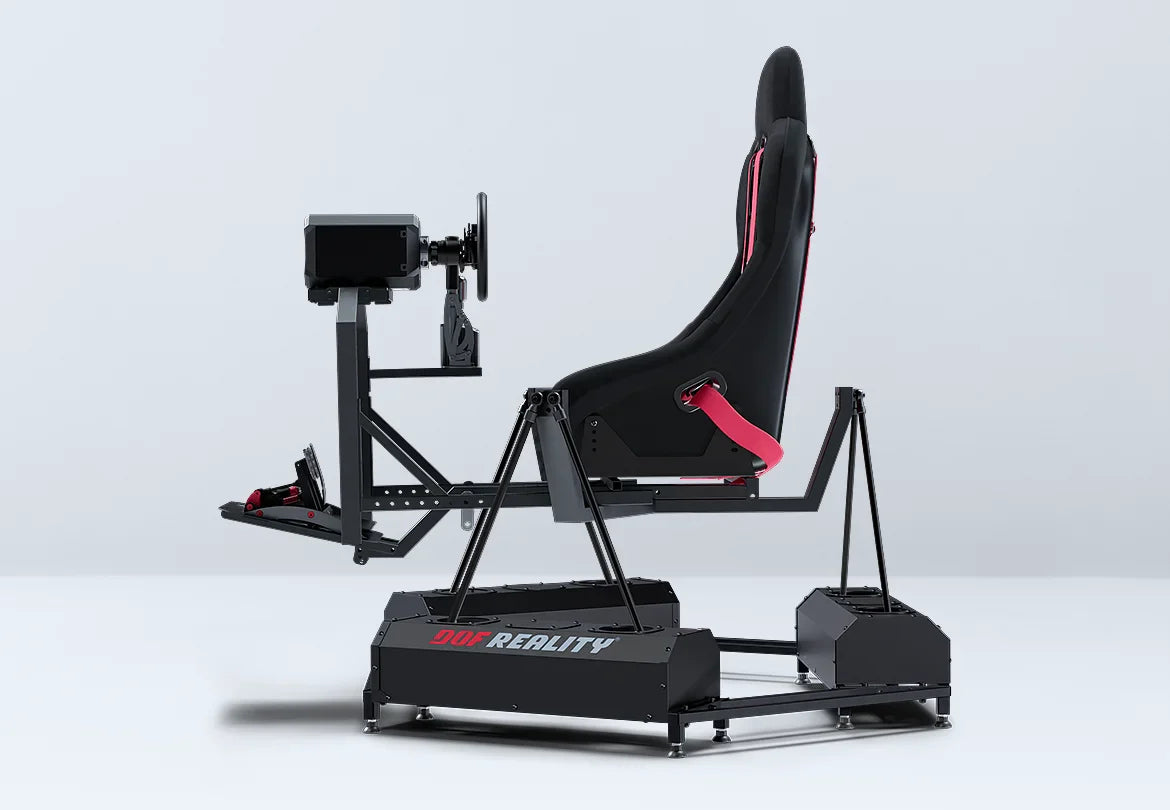

DOF Reality H6 6-Axis HERO Racing Motion Simulator Platform
The DOF Reality H6 6-Axis HERO Racing Motion Simulator Platform is a full six-axis motion system designed for advanced racing and simulation use. It combines pitch, roll, yaw, surge, sway, and heave to deliver coordinated motion that reflects real-world driving and flight dynamics.
The DOF Reality H6 6-Axis HERO Racing Motion Simulator Platform reproduces key motion cues such as braking, acceleration, elevation changes, directional shifts, and surface feedback. These synchronized movements help create a controlled and consistent simulation experience for users who require accurate physical response.
Designed to move the entire cockpit as a single unit, the system includes the seat, steering controls, pedals, and mounted displays. By maintaining alignment between visual input and physical motion, the DOF Reality H6 6-Axis HERO Racing Motion Simulator Platform supports a more stable and natural simulation environment.
Built with reinforced components and the HERO motion system, the DOF Reality H6 6-Axis HERO Racing Motion Simulator Platform is suitable for advanced home simulators, professional racing setups, flight simulation, and VR applications where precise motion feedback is required.
Free shipping is included, allowing for a straightforward purchasing experience without additional delivery costs.
Product Features
Product Features:
Full Six Degrees of Freedom (6DOF)
The H6 delivers motion across six independent axes:
Pitch (Forward and Backward Tilt)
Simulates braking dive and acceleration lift.
Roll (Side-to-Side Lean)
Recreates lateral forces experienced during cornering.
Yaw (Rotation)
Represents drifting behavior and oversteer correction.
Heave (Vertical Movement)
Allows detection of elevation changes, surface bumps, and suspension compression.
Surge (Forward and Backward Translation)
Mimics acceleration forces and braking deceleration.
Sway (Left and Right Translation)
Simulates track camber, cross forces, and uneven surfaces.
This full six-axis motion range provides a realistic physical representation of vehicle dynamics that goes beyond what 2-axis or 3-axis platforms can deliver.
Industrial-Grade Engineering

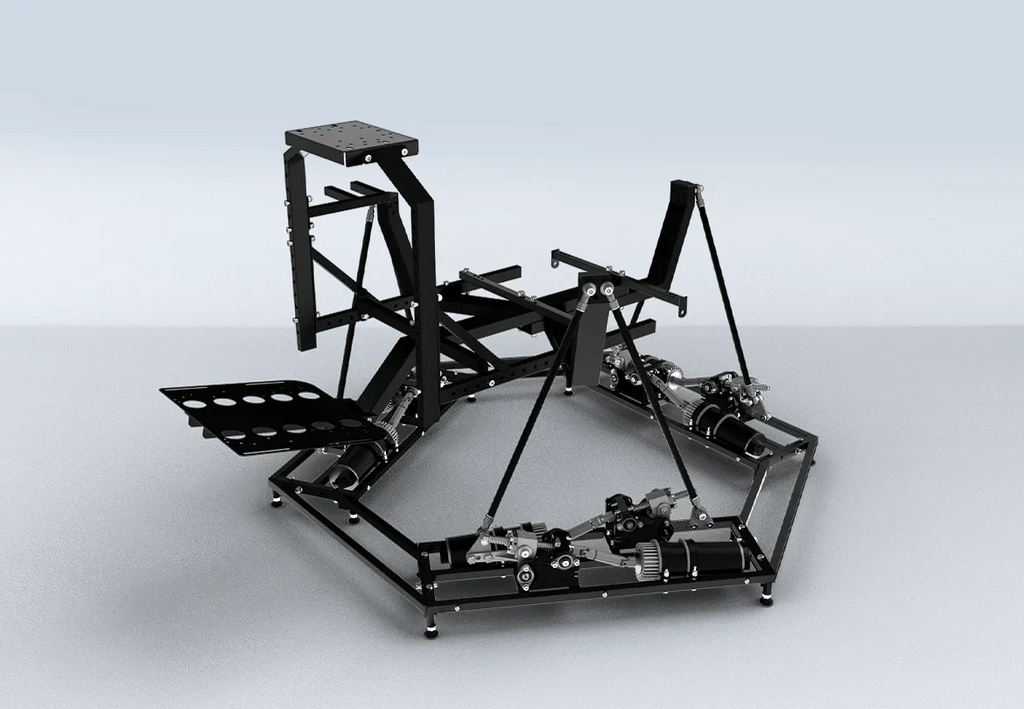

Each H6 frame is constructed from precision-welded, powder-coated steel and designed to support continuous use. The actuator motors use high-torque gear systems built for fast response and long-term durability. Despite the system’s power, operational noise remains low, typically under approximately 50 dB, due to tuned motion control and vibration dampening.
Full Cockpit Motion
Unlike seat-only motion systems, the H6 moves the entire cockpit as one unit. The seat, controls, and display move together, helping maintain consistent physical alignment and reducing the disconnected sensation common with partial-motion platforms.
This synchronized movement improves the body’s sense of motion and contributes to a more convincing simulation experience.
Motion Control Software Integration
When used with compatible motion telemetry software, the H6 converts in-game data into coordinated physical movement with fast response times.
Supported software allows motion profiles to be adjusted to suit different preferences, ranging from smoother, cinematic motion to more direct and detailed feedback for competitive use.
Smooth and Quiet Operation
Six independently controlled actuators work together to produce controlled and fluid motion without abrupt transitions. Worm-gear drive systems help minimize noise while maintaining consistent torque output, making the platform suitable for both home and professional environments.
Plug-and-Play Compatibility
-
The included control unit connects to a Windows PC via USB and is designed for quick setup with minimal configuration. The system supports use with PC-based simulators and VR setups, as well as console operation when configured through a compatible PC relay.
It is compatible with a wide range of common wheelbase systems and works with supported motion software platforms.
Modular Design and Expandability
The H6 features a modular frame design that allows the system to be adapted or expanded over time. Users can add flight controls, monitor mounts, or VR motion compensation components as needed.
The platform also supports future upgrades to electronics or actuators and can be configured for racing, flight, or combined simulation use. This modular approach allows the system to evolve alongside changing requirements.
Compatible Games
The platform supports a broad selection of racing and simulation titles that provide motion telemetry, including:
iRacing
Assetto Corsa and Assetto Corsa Competizione
Gran Turismo 7 and Gran Turismo Sport
F1 series from 2011 through 2024
Project CARS 1, 2, 3, and PRO
GRID 2 and GRID 2019
Automobilista 1 and 2
rFactor and rFactor 2
GTR and GTR 2 FIA GT Racing Game
GT Legends
Race 07, including Retro Pack and WTCC 2010 Pack
RaceRoom Racing Experience
Game Stock Car
STCC The Game
RACE Injection
Race WTCC Game
WRC 7, 8, 9, and Generations
World Racing Series
Torque Drift
RDS The Official Drift Videogame
Richard Burns Rally, including Classic and NGP 6 versions
Formula Truck 2013
Copa Petrobras de Marcas
KartKraft
Kart Racing Pro
GP Bikes
MX Bikes
All American Racing
Sprint Car Racing
NASCAR Heat 4 and 5
Dirt 2, 3, 4, 5, and Showdown
Dirt Rally and Dirt Rally 2.0
Colin McRae Dirt 2
BeamNG.drive
Wreckfest
The Crew 1 and 2
TrackMania 2 and TrackMania Turbo
Forza Motorsport 7
Forza Horizon 4 and 5
What’s Included
DOF Reality H6 Motion Platform Base
Heavy-duty six-axis motion platform with actuators and frame mounts pre-installed.
Universal Control Unit (USB)
Motion controller that synchronizes platform movement with supported simulation software.
Licensed Motion Software
License for SimRacingStudio or compatible motion software to enable game telemetry support.
Mounting Hardware and Tools
Bolts, brackets, and fasteners required for mounting the seat, wheel, and pedals.
Power Supply (100 to 240 V AC)
Dual-voltage power adapter suitable for worldwide use.
Quick Start Guide and Setup Manual
Illustrated instructions covering assembly, calibration, and initial setup.
Manufacturer Warranty
One-year warranty covering the platform frame and actuators under normal operating conditions.
The package includes a complete plug-and-play motion platform designed for quick installation. Users supply their own seat, VR headset, and control hardware such as steering wheels, pedals, or flight yokes, as the system supports a wide range of popular hardware.
All required motion software and cables are included. Games are not included with the purchase.
Not Included: Seat, steering wheel, wheel base, pedals, displays, PC, or VR headset. These items are user supplied to allow custom cockpit configurations.
Product Specifications
Degrees of Freedom: 6 (Pitch, Roll, Yaw, Heave, Sway, Surge)
Range of Motion: Up to approximately plus or minus 20 degrees of tilt with about 100 mm of travel
Speed: Up to approximately 50 to 60 cm per second
Torque Output: Approximately 25 Nm per actuator
Power Requirement: 100 to 240 V AC, up to approximately 1500 W
Maximum User Weight: Up to approximately 150 kg (330 lb)
Noise Level: Below approximately 50 dB
Footprint: Approximately 1.6 m by 1.6 m
Net Weight: Approximately 90 kg
Getting Started Guide
Prepare Your Space
Select a flat, stable surface with sufficient clearance for full motion travel. Avoid placing the platform near walls or fragile objects.
Unpack and Organize
Confirm that all actuators, control electronics, and frame components are present. Lay out parts for easy identification.
Assemble the Frame
Follow the step-by-step instructions to attach actuators and cross members. Mount the seat, wheelbase, pedals, and accessories before testing.
Connect Electronics
Connect the motion control unit to the PC and install the included motion software. The system will detect the connected actuators automatically.
Calibrate and Test Motion
Run a test cycle to confirm that all six axes operate correctly. Adjust limits or smoothing settings if necessary.
Launch Your Simulator
Open the selected racing or flight simulator, enable motion telemetry, and fine-tune motion intensity and gain settings.
Setup and Installation Recommendations
Use thread-locking fasteners on seat and wheel mounts.
Keep surrounding areas clear of objects that could restrict movement.
Route cables neatly and keep them away from moving components.
Inspect actuator joints periodically and apply lubrication as recommended.
For VR use, enable motion compensation to maintain stable visuals.
Operate the platform within the recommended temperature range of approximately 5 to 32 degrees Celsius.
Add On Options:
6 DOF Transportation Wheels:
This option adds portability to the platform by installing two heavy-duty front wheels. The fully assembled platform can be lifted from the rear so the front wheels contact the floor, allowing easier movement as well as loading and unloading.
It is suitable for frequent repositioning within a space or during events and is compatible with H6 and P6 platform models.
Pedals Quick Release:
This quick-release add-on is intended for users who switch between two pedal sets, such as flight and racing pedals. It allows pedals to be exchanged quickly without re-mounting and also provides additional adjustment range, making it easy to slide a single pedal set forward or backward for fine positioning.
HoneyComb A+B Adapter:
If you have HoneyComb Alpha Bravo yoke and throttle this adapter will make them fit to our standard wheel plate.
Monitor Mount:
MagicBox for PS5/XBOX:
This Console Link (MagicBox) allows motion data to be received directly from supported console games without requiring a Windows PC. Motion is handled through compatible software and can be managed using a mobile device or tablet.
This option is intended for users who plan to run motion exclusively with console games and without a PC. It supports motion output only and does not replace other controllers such as steering wheels or pedals. The motion platform connects directly to the Console Link for console-based motion operation.
eBreak Stop Button (6 DOF):
E Break emergency button can be placed on the platform within a close reach to stop any platform motions immediately. It is compatible with any platform model.
HOTAS Mounts Kit:
This flight control mounting kit is designed for HOTAS setups and includes mounts for both a throttle and a flight joystick. The joystick can be installed in either a center-mounted or side-mounted position.
The kit is compatible with all platform models except the M series.
Lift Supports for 6 DOF:
This option helps 6 DOF systems to lift even more weight. It provides three heavy-duty Lift Supports and a mounting kit. It is needed only for pilots over 300 lbs/ 136 kg or other significant loads.
Cables Extension Set for 6 DOF:
This cable set connects the control box to the motors. The standard cables are 1.2 m (4 ft) long and are suitable for most common installations.
For 2- and 3-DOF platforms, the recommended placement for the control box is beneath the pedal plate. For 6-DOF platforms, positioning the control box under the seat is preferred, as this helps keep cable routing organized. Extension cables are only required if the control box needs to be installed farther away from the platform.
Buttkicker Mount:
This is a mounting bracket designed for use with a tactile transducer commonly known as a ButtKicker. A tactile transducer is a vibration device that attaches to a simulator rig, typically beneath the seat or on the frame, and generates physical feedback based on audio or telemetry input.
The vibration feedback can simulate effects such as engine RPM and idle vibration, road surface texture, bumps, gear changes, wheel slip, and impact sensations in both racing and flight simulations.
The bracket positions the transducer in an optimal location on the frame, such as a crossbar or under the seat, to ensure efficient transfer of vibration through the simulator structure.
Sparco R100 Seat:
The Sparco R100 is a steel-frame foldable seat featuring updated bolster design for improved support and revised padding for enhanced comfort. The seat is supplied with sliders and all necessary mounting hardware.
Sparco Sprint Seat:
The Sprint is an FIA-approved racing bucket seat designed for competition use and motion simulator setups. It offers a balanced combination of safety, comfort, and practicality, featuring a tubular frame with a suspended bottom cushion to support a stable driving position.
The shoulder bolsters are shaped to fit smaller cockpit layouts. The seat supports both bottom mounting and traditional side mounting and includes openings for five- or six-point harness systems.
Size: Medium, suitable for users up to a 34-inch waist.
The seat is supplied with side brackets, sliders, and all required mounting hardware.
Sparco R333 Seat:
The Sparco R333 features a modern, foldable design that complements contemporary street vehicles. It includes contoured bolsters and padding for improved support and comfort, along with two easy-to-use adjustment levers on both sides of the seat.
The seat offers openings for five- or six-point harness systems and is supplied with sliders and all necessary mounting hardware.
4-Point Harness (Red):
Finished in red, this harness features lightweight, high-strength steel adjusters, an aluminum buckle, and snap-hook fasteners for secure and reliable fastening.
Made from 2-inch wide polyester webbing, it is designed for durability and comfort, with branded detailing for a clean, professional appearance.
Frequently Asked Questions
Q: What makes the H6 different from the H2 or H3?
The H2 provides two-axis motion using pitch and roll. The H3 adds a third axis with yaw rotation. The H6 expands this to full six-axis motion by adding vertical movement (heave), side-to-side movement (sway), and forward and backward movement (surge), allowing more complete physical motion cues.
Q: Can I use it for both racing and flight simulation?
Yes. The H6 is designed to support both racing and flight simulation. Motion profiles can be adjusted to switch between different simulation types quickly.
Q: Is it compatible with VR?
Yes. The H6 is compatible with major VR headsets. When used with motion compensation software, the platform can maintain visual stability while physical motion is applied.
Q: How difficult is it to assemble?
Assembly is straightforward. Most users complete installation within two to three hours using the supplied tools. The platform ships partially preassembled to simplify setup.
Q: Is it loud during operation?
No. The H6 uses optimized gear-driven actuators designed for quiet operation. Noise levels are comparable to a desktop computer or low background hum, even under heavier motion loads.
Q: What happens if a component needs replacement?
The platform is modular, allowing individual components such as actuators or control electronics to be replaced if necessary. Replacement parts and support are available.
Q: What maintenance is required?
Maintenance requirements are minimal. Keep the system free of dust, periodically check fasteners, and apply light lubrication to actuator components if the platform is used heavily.
Q: Will it work with PlayStation and Xbox?
Yes, with limitations. Console systems operate within closed environments, and only certain titles transmit motion telemetry. Motion support applies to platform movement only and does not replace standard console controllers. Additional console motion hardware is required for compatible games.
Q: What seat should I use with the platform?
Seat selection is based on personal comfort and driving or flying style. The H6 supports most bottom-mounted automotive and gaming seats.
Bucket-style racing seats are commonly used for improved stability during higher motion intensity. Lightweight seats are recommended to allow faster and more precise motion response. Harness systems are optional.
Seats with sliders are recommended for easier adjustment. Some bucket seats may require additional mounting brackets or adapters.
Seat Mount Dimensions:
Depth: 280 mm
Width options: 345 mm, 375 mm, or 405 mm
Q: Does it come assembled?
The H6 Motion Platform weighs approximately 60 to 100 kg depending on configuration. Units are shipped in multiple boxes for safe delivery, and some assembly is required upon arrival. This allows users to configure their setup and become familiar with the system during installation.
Q: How does motion compensation work with VR?
When the platform moves, the VR headset moves with the user, which can slightly affect the in-game view. In most cases, this effect is minimal.
If noticeable visual movement occurs, reducing motion intensity often improves stability. Motion compensation tools can also be used to help keep visuals aligned during platform movement.
Tracking devices should be securely mounted to the platform and isolated from excessive vibration to ensure consistent tracking performance.
