10800Wh Home Backup System

• The 3.5+ Day Backup System

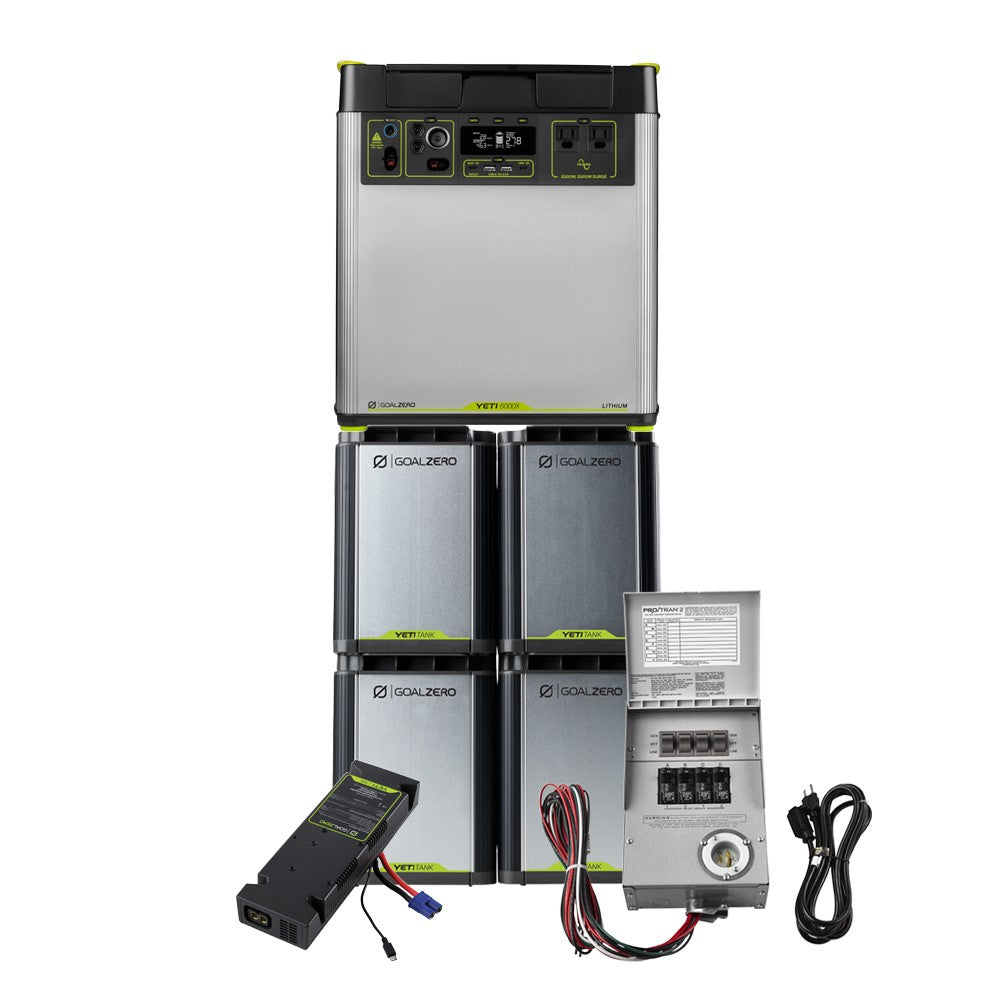

  This all-in-one bundle delivers about 10,800Wh of power for reliable home energy backup. Includes the Yeti 6000X, Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries, and the Link Expansion Module.

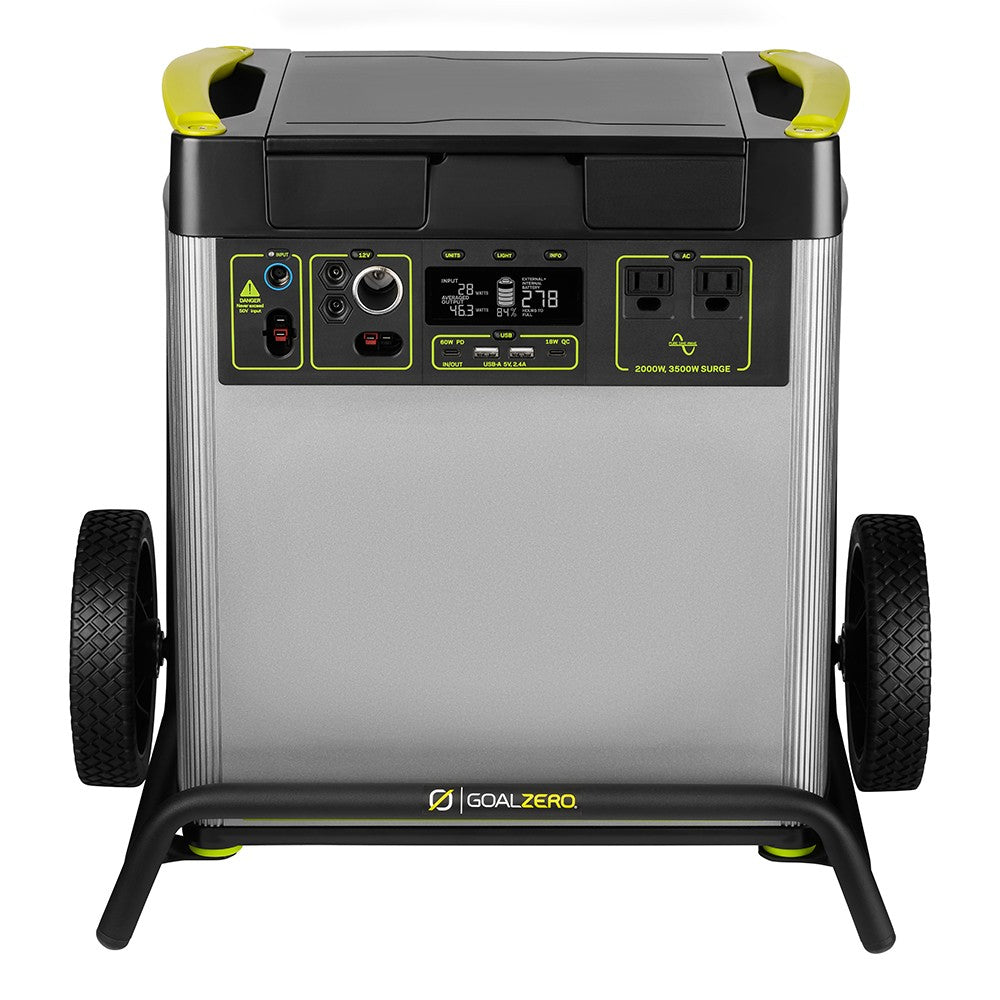

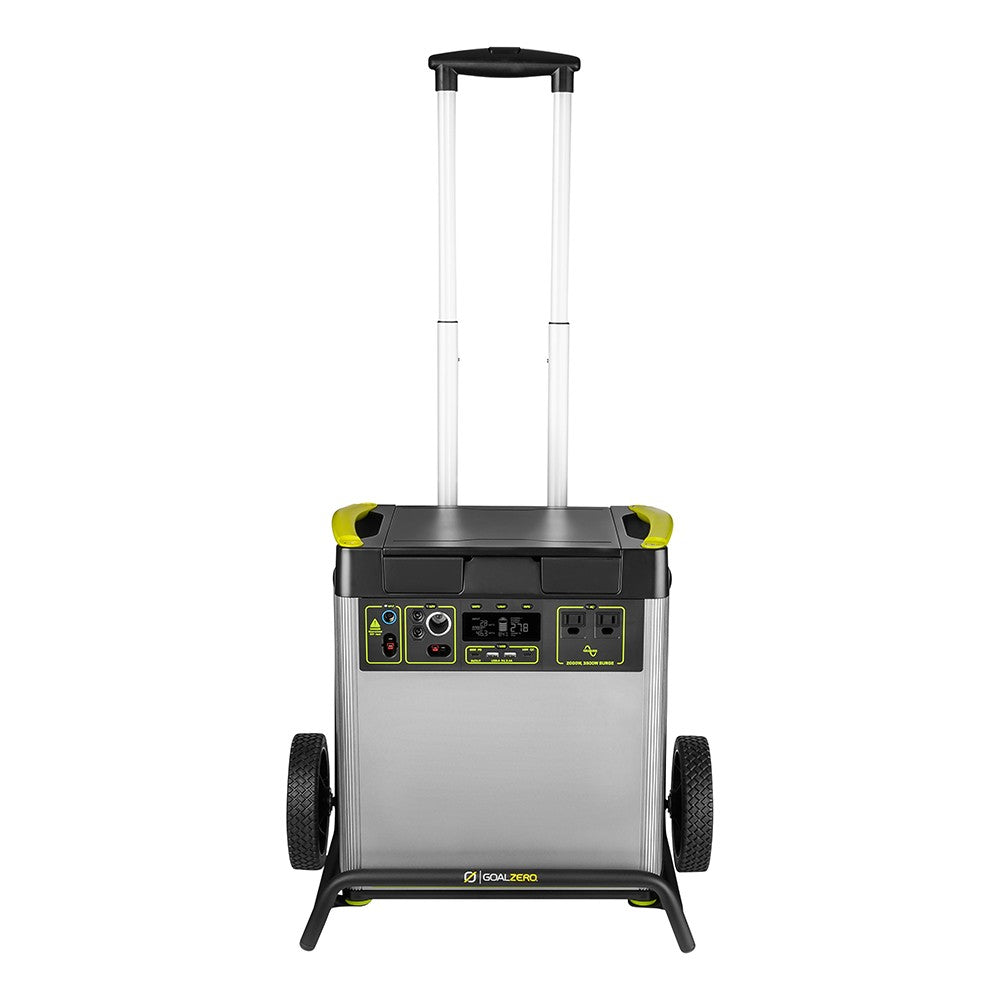

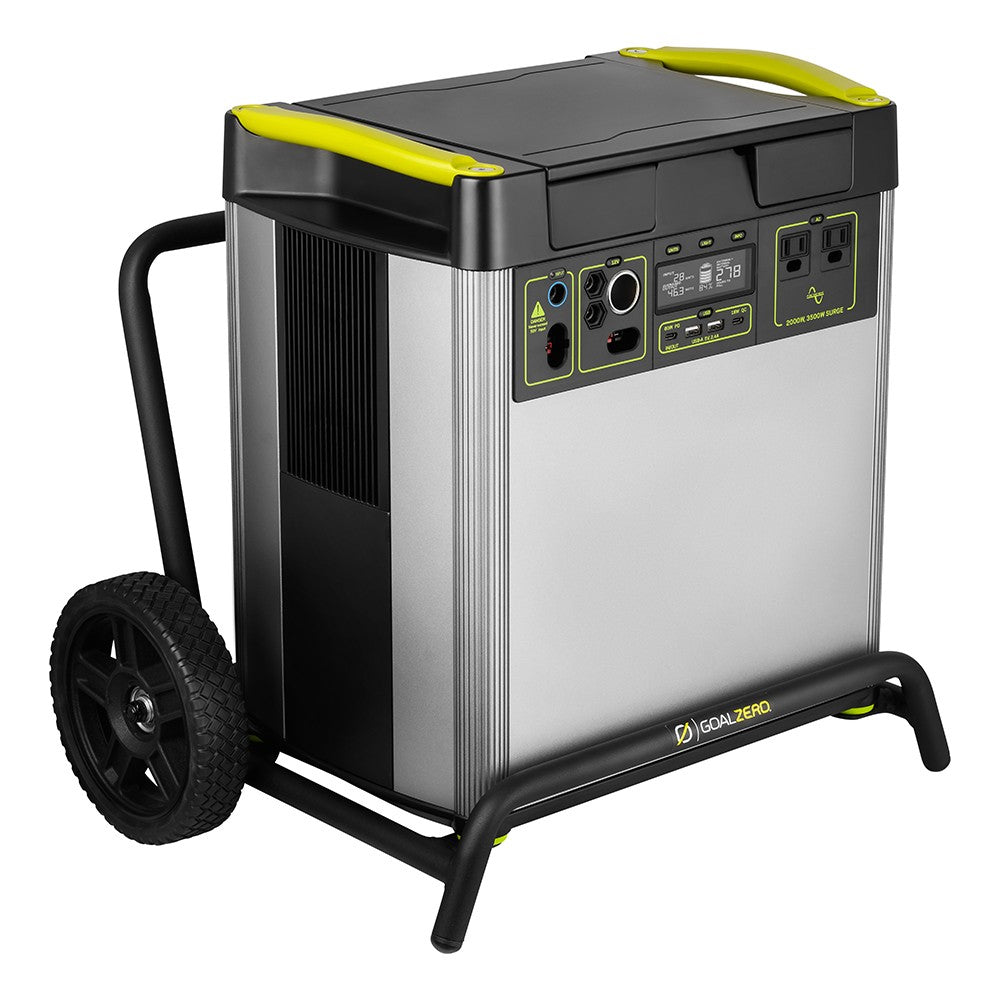

  Yeti 6000X Highlights

  • Clean Alternative to Gas Generators – Lithium-ion power for safe, quiet, portable energy.

  • 2000W AC Inverter (3500W Surge) – Runs large appliances, tools, and medical devices.

  • Versatile Ports – USB-C PD, USB-A, 12V, and dual AC outlets.

  • Unlimited Charging – Recharge via solar panels or wall outlet with MPPT efficiency.

  • Smart Control – Manage and monitor power anywhere with the Yeti App 3.0.

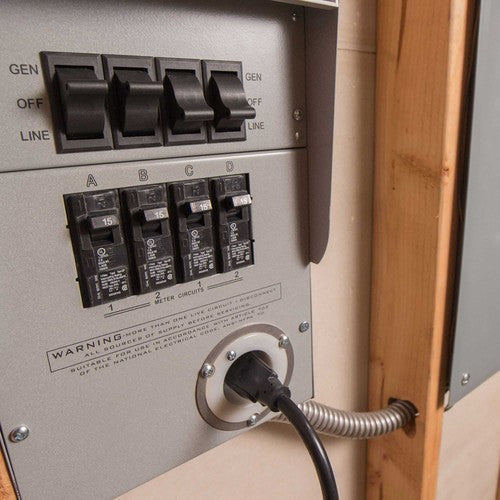

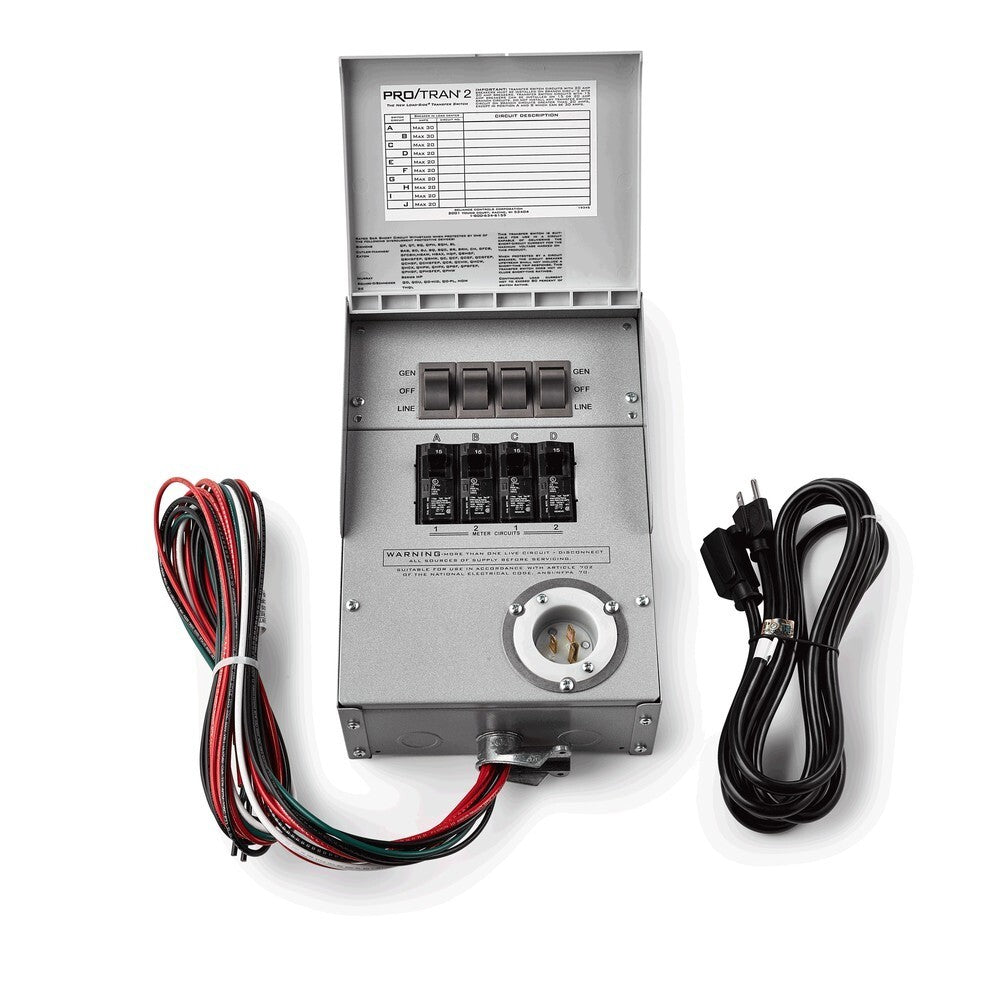

  Home Integration Kit Highlights

  • Reliance Pro/Tran 2 Series 15A, 4-Circuit Transfer Switch.

  • Power essentials like fridge/freezer, garage door, outlets, and lights.

  • Includes 10 ft. extension cable for easy connection to your Yeti Power Station.

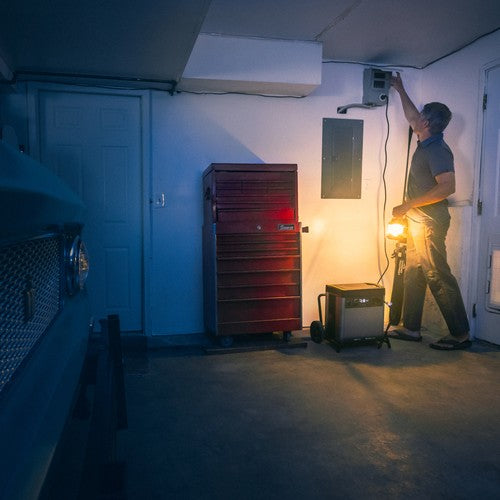

box1BACK UP YOUR HOME
A customizable energy storage system that powers up to four essential circuits and expands with your needs. Keep lights, refrigerators, medical devices, and internet routers running through seamless circuit integration for dependable home backup power.

• Tech 1 – Yeti Power Station

  Ports

  • 1× USB-A: 5V, 2.4A (12W max), regulated

  • 1× USB-C: 5–12V, 3.0A (18W max), regulated

  • 1× USB-C PD (in/out): 5–20V, 3.0A (60W max), regulated

  • 1× 6mm: 12V, 10A (120W max), regulated

  • 1× 12V car port: 12V, 13A (160W max), regulated

  • 1× 12V High Power Port (HPP): 12V, 30A (360W max), regulated (front face/under lid)

  • 2× AC outlets: 120VAC 60Hz, 16.5A, 2000W continuous (3500W surge), pure sine wave

  • 1× 8mm input: 14–50V, 10A (150W max), front face/under lid

  • 1× HPP input: 14–50V, 50A (600W max)

  • Expansion Module Port: under lid (Goal Zero modules only)

  Battery

  • Chemistry: Li-ion NMC

  • Capacity: 6071Wh (10.9V, 556Ah)

  • Equivalent: 1668Ah @ 3.6V

  • Lithium content: 500g

  • Cycle life: ~500 cycles to 80% (1C, 25°C)

  • Shelf life: Recharge every 3–6 months

  • Management: MPPT charge controller

  General

  • Kit SKU: 44536 | Product SKU: 36500

  • Weight: 106 lbs (48.1 kg)

  • Dimensions: 15.3 × 10.1 × 17 in (38.9 × 25.7 × 43.2 cm)

  • Chainable: No | Simultaneous charge/discharge: Yes

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 24 months

  ---

  Tech 2 – Home Integration Kit (HIK)

  Ports

  • Voltage: 120V single-phase | Frequency: 60Hz

  • Rated watts: 1875W | Current: 15A

  • Circuit breakers: 4 | Max generator input: 15A

  • Transfer circuits: 15A, 120V | Circuit protection: Each circuit

  General

  • Product SKU: 44060 | Made in USA

  • Weight: 9.5 lbs (4.3 kg)

  • Dimensions: 7.75 × 11.25 × 4.5 in

  • Enclosure: NEMA 1R | Conduit length: 18 in

  • UL listed | Compatible with Yeti X & Yeti Lithium (1000W+)

  ---

  Tech 3 – Yeti Link & Power Supply

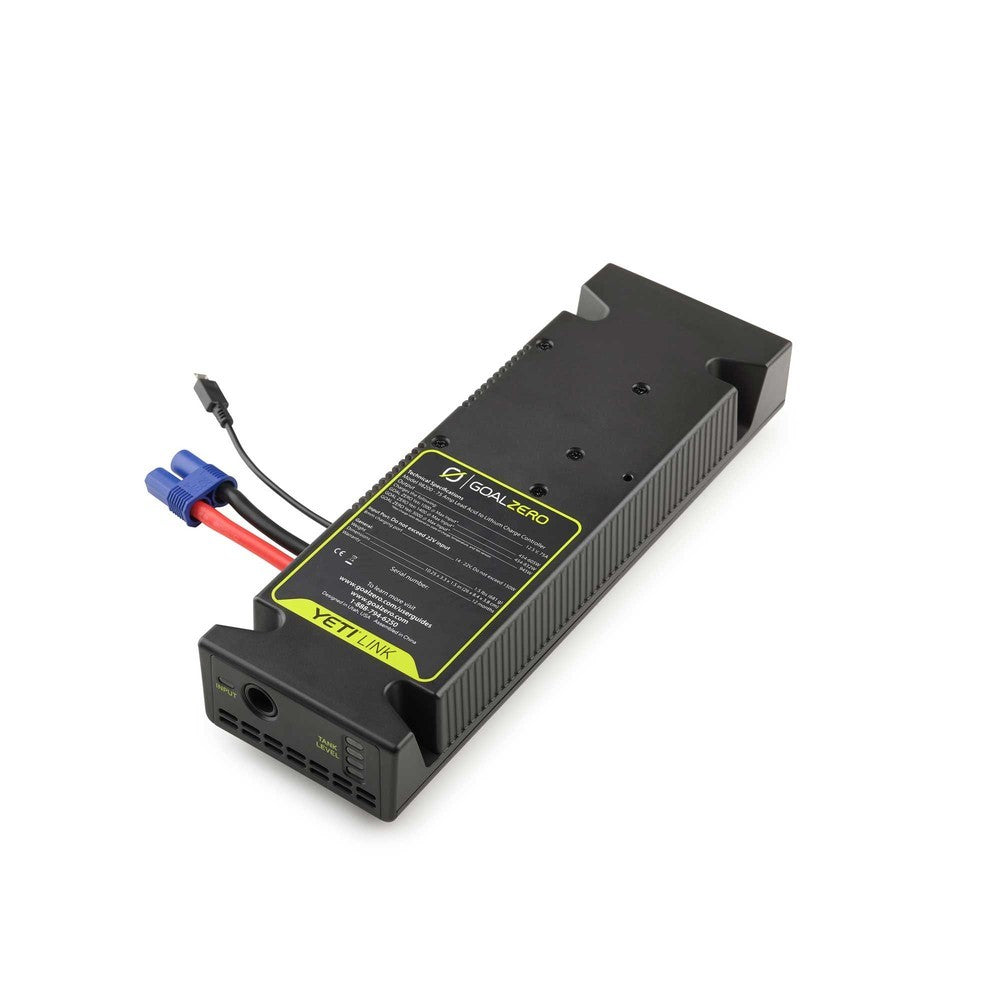

  Yeti Link

  • Product SKU: 98210

  • Weight: 1.5 lbs (680 g)

  • Dimensions: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

  • Warranty: 12 months

  Ports

  • Max input: 22V

  • 8mm charging input: 14–22V, 150W max (10A) per port

  • External battery connector (output): 65A charge controller

  • External battery connector (in/out): 10.7–15V, max 15V

  120W Power Supply

  • Cable: 16AWG, 9 ft 4 in

  • Dimensions: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

  • Input: AC 100–240V, 50/60Hz, 3.0A

  • Output: 8mm, 16V–7.5A (120W)

  ---

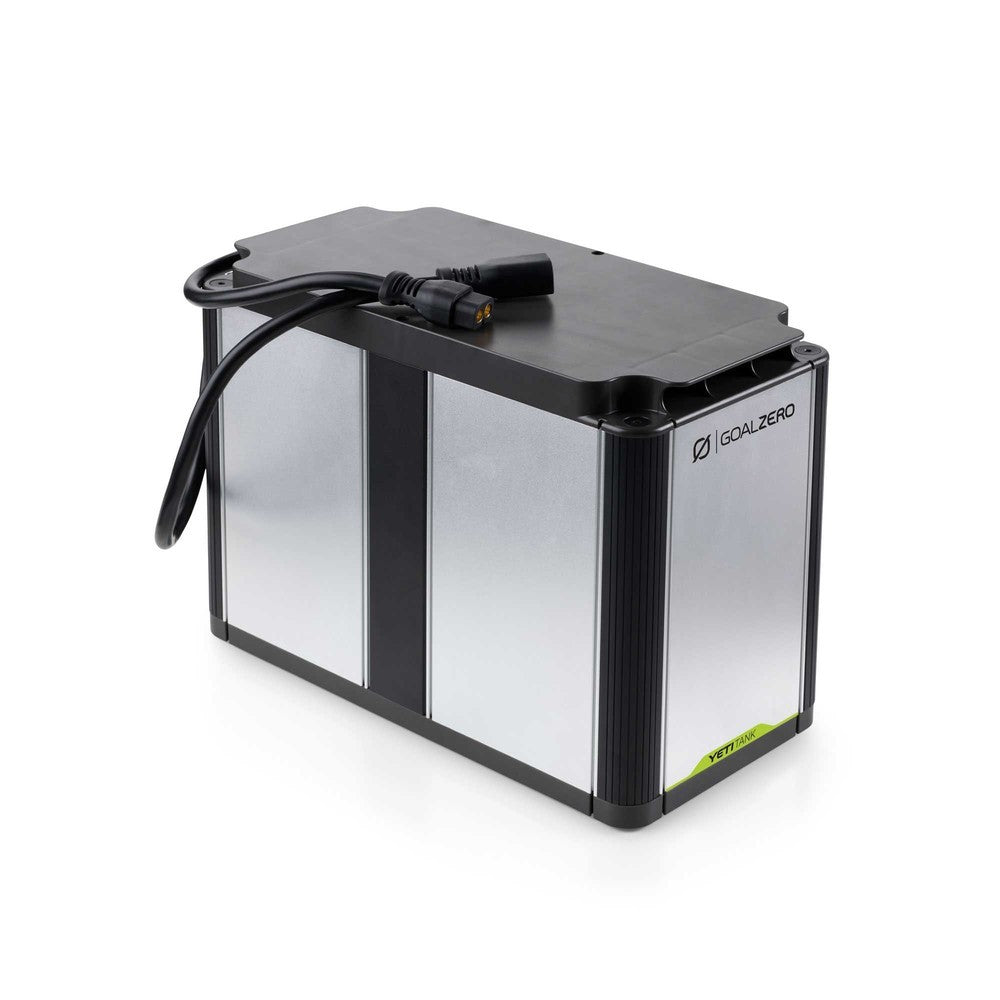

  Tech 4 – Yeti Tank Battery

  Charge Times

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:
    • Yeti 1000/1000X: 454–605W
    • Yeti 1400/1500X: 454–750W
    • Yeti 3000/3000X: 750W
    • Yeti 6000X: 750W

  Battery

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports

  • Expansion male connector: up to 100A

  • Expansion female connector: up to 100A

  General

  • Product SKU: 23105

  • Weight: 77.1 lbs (34.97 kg)

  • Dimensions: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

  • Warranty: 12 months
