10800Wh Home Backup Solar Generator

• 3.5+ Day Backup System with Solar

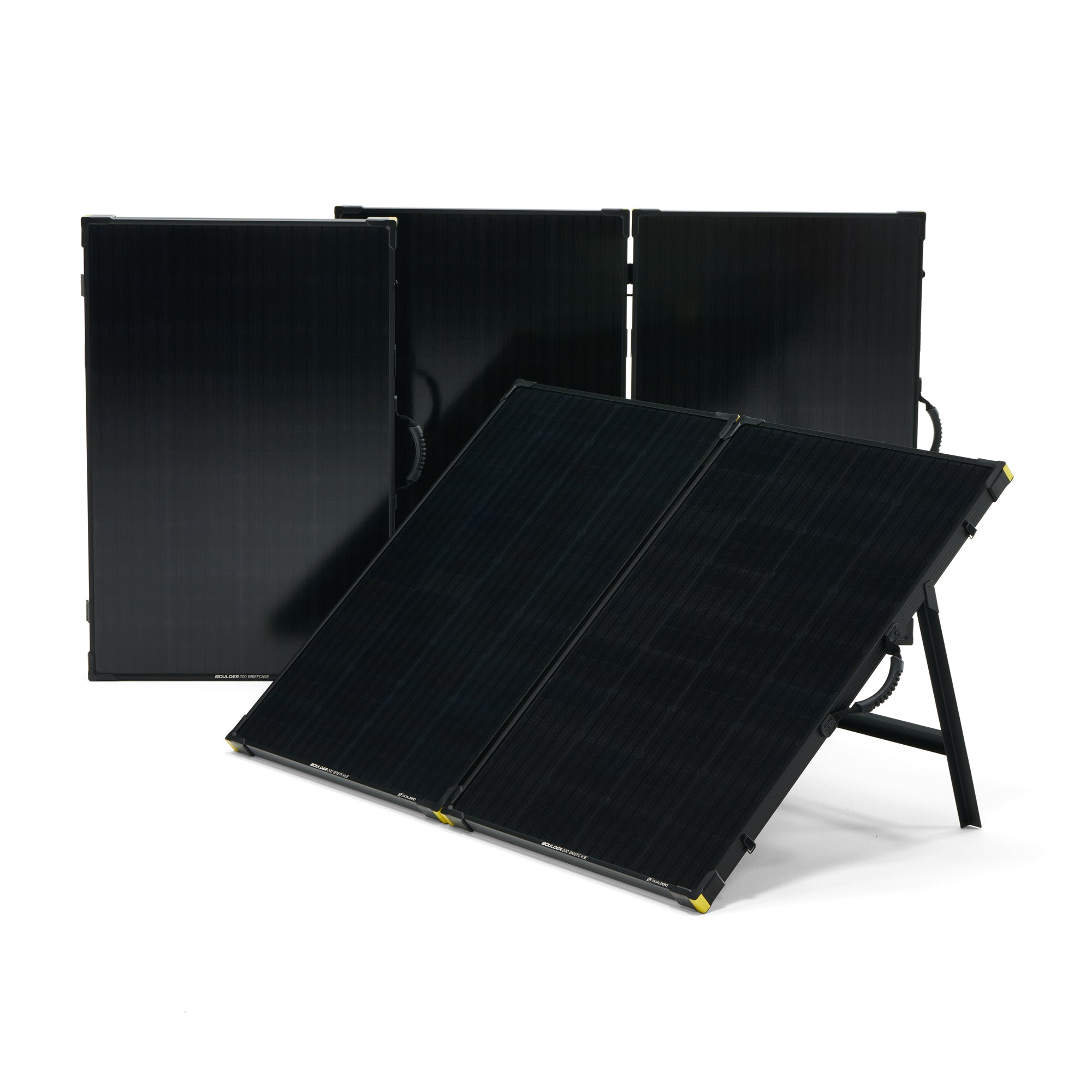

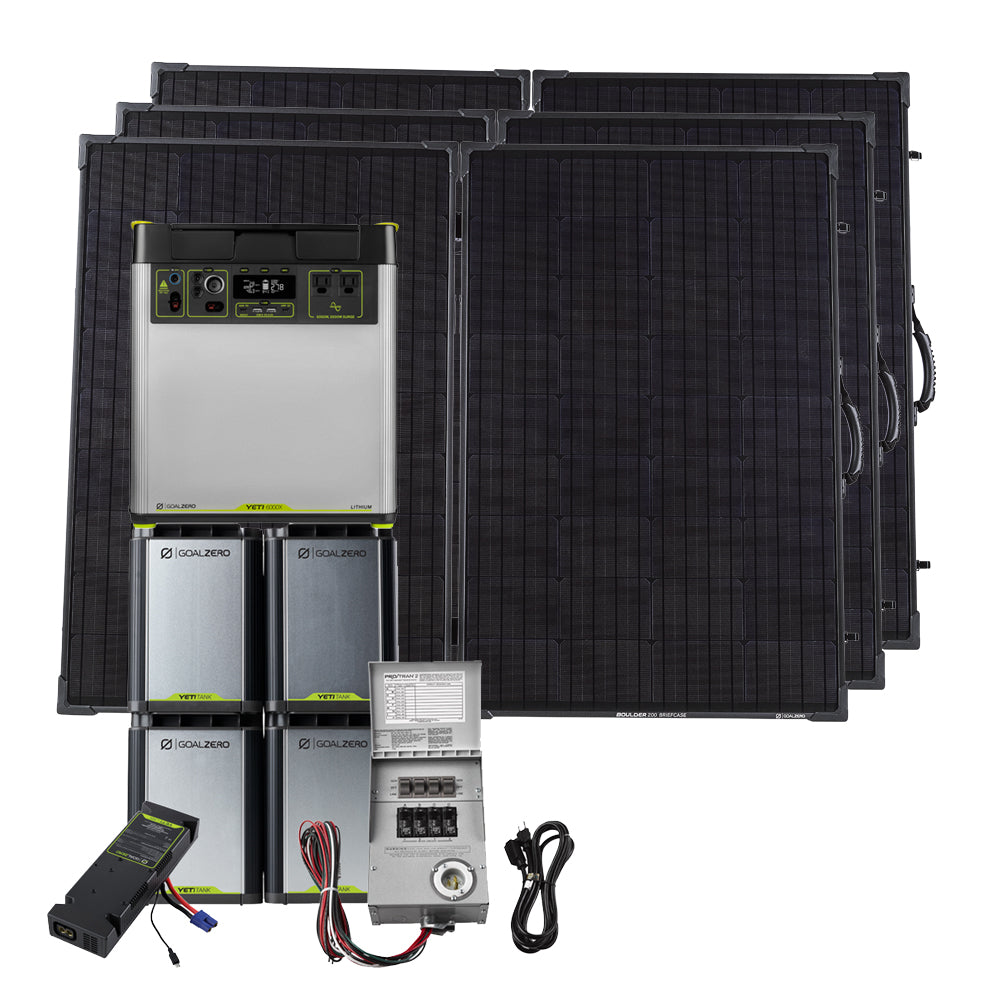

  A complete package delivering about 10,800Wh of power plus 600W solar capacity. Includes the Yeti 6000X, Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries, Link Expansion Module, and three Boulder 200 Briefcase solar panels with combiner and 30 ft extension cable.

  ---

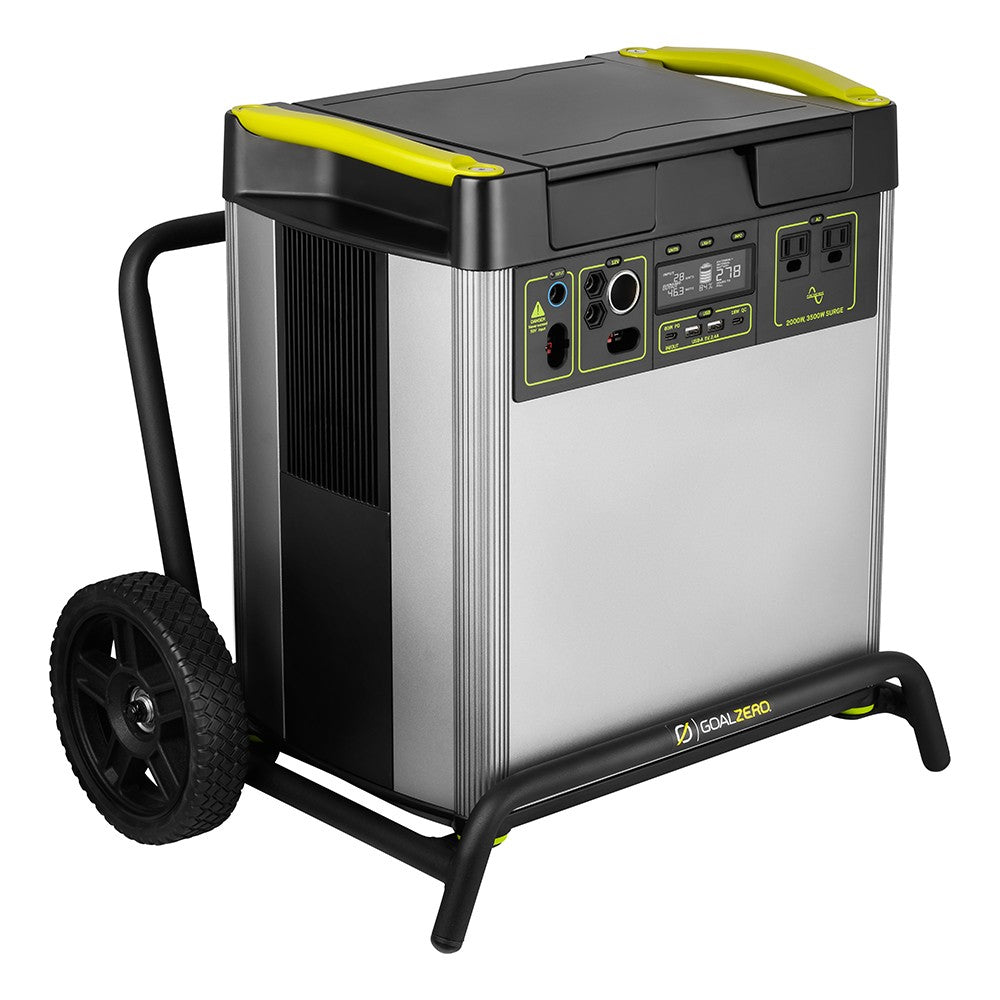

  Yeti 6000X Highlights

  • Gas-Free Power: Clean lithium battery for home backup, off-grid use, and events.

  • Heavy-Duty Output: 2000W AC inverter (3500W surge) runs full-size fridges, tools, and medical devices.

  • Multiple Ports: Seven options including 60W USB-C PD, USB-A, regulated 12V, and dual 120V AC.

  • Flexible Charging: Recharge via solar panels or wall outlet, with MPPT for efficient solar input.

  • Smart App Control: Yeti App 3.0 lets you monitor, manage, and optimize usage remotely.

  ---

  Home Integration Kit Highlights

  • Customizable Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit manual transfer switch.

  • Flexible Setup: Power up to four critical circuits such as fridges, garage doors, outlets, or lights.

  • Included Cable: 10 ft. 14AWG extension cord connects directly to your Yeti Power Station.

box1

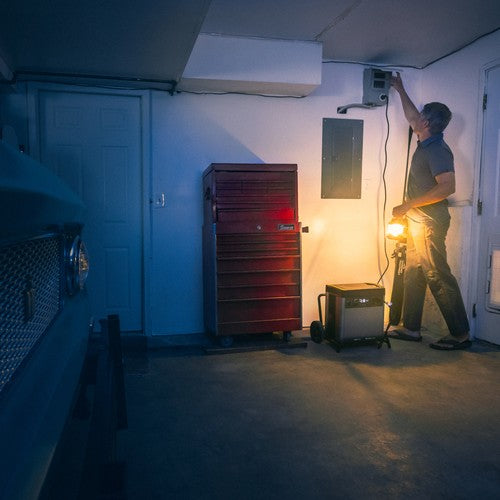

• BACK UP YOUR HOME
  A flexible energy storage system that supports up to four essential circuits and expands as your power needs grow. Keep critical devices running, lights, refrigerators, medical equipment, and internet routers, through seamless integration with your home’s circuits for reliable backup power.

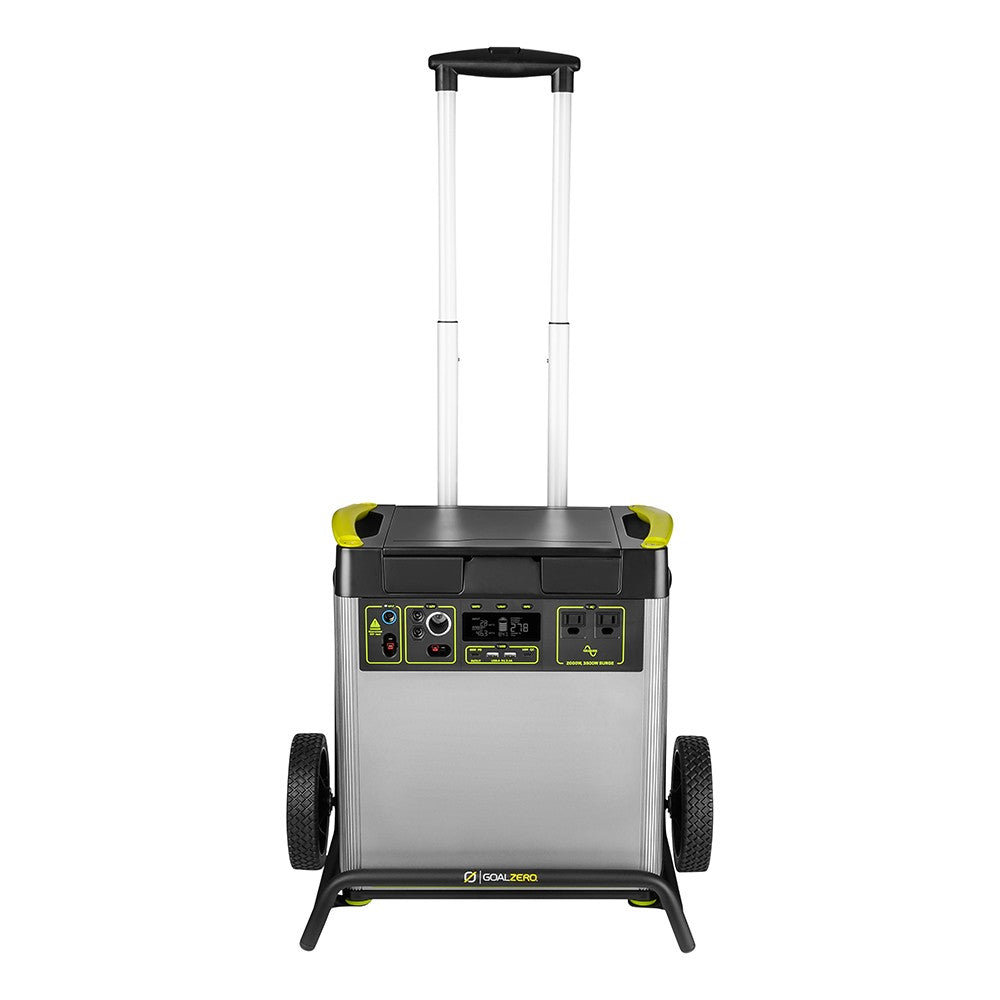

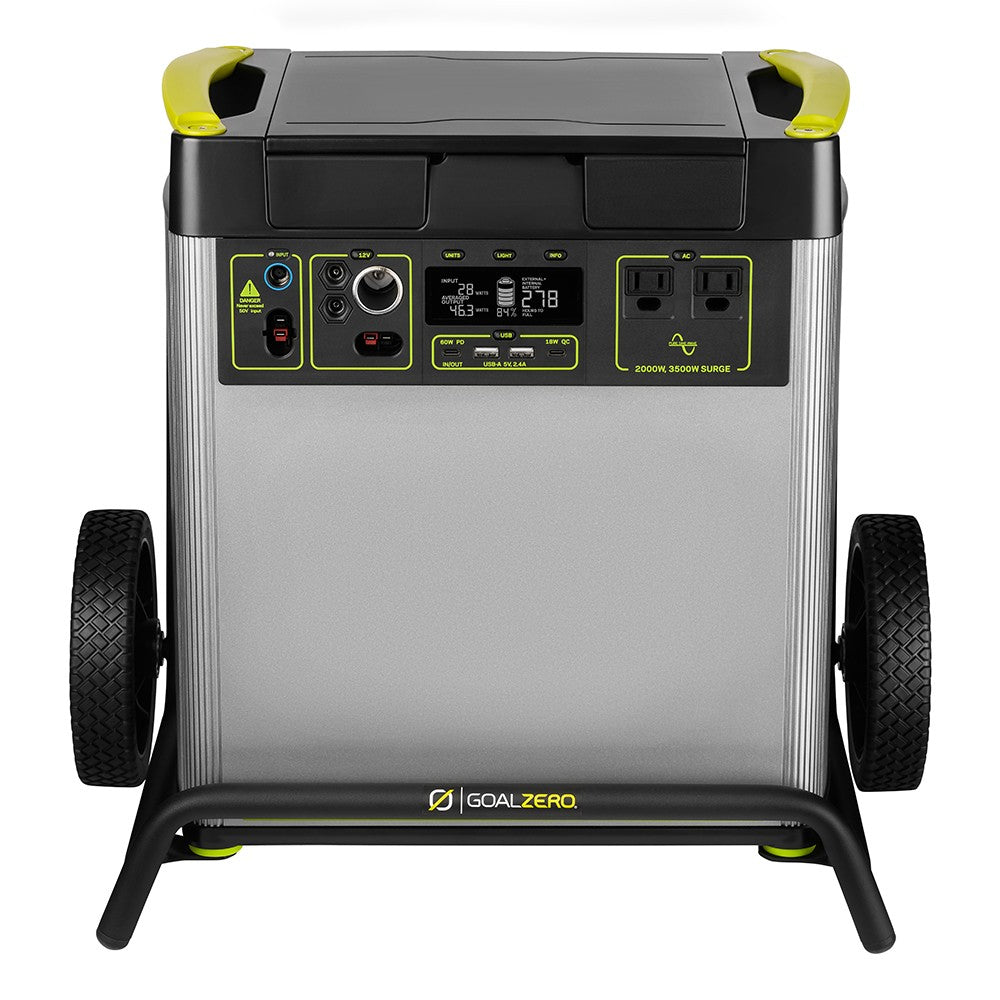

• Tech 1 – Yeti Power Station

  Ports

  • 1× USB-A: 5V, up to 2.4A (12W), regulated

  • 1× USB-C: 5–12V, up to 3.0A (18W), regulated

  • 1× USB-C PD (in/out): 5–20V, up to 3.0A (60W), regulated

  • 1× 6mm port: 12V, up to 10A (120W), regulated

  • 1× 12V car port: 12V, up to 13A (160W), regulated

  • 1× 12V High Power Port: 12V, up to 30A (360W), front/under lid

  • 2× AC outlets: 120VAC, 60Hz, 16.5A (2000W continuous / 3500W surge), pure sine wave

  • Charging (8mm): 14–50V, up to 10A (150W), front/under lid

  • Charging (HPP): 14–50V, up to 50A (600W)

  • Expansion Module port: under lid (for Goal Zero modules only)

  Battery

  • Chemistry: Li-ion NMC

  • Capacity: 6071Wh (10.9V, 556Ah)

  • Equivalent: 1668Ah @ 3.6V

  • Lithium content: 500g

  • Cycle life: ~500 cycles to 80% (1C discharge, 25°C)

  • Shelf life: Recharge every 3–6 months

  • Charge controller: MPPT

  General

  • Kit SKU: 44556 | Product SKU: 36500

  • Weight: 106 lbs (48.1 kg)

  • Dimensions: 15.3 × 10.1 × 17 in (38.9 × 25.7 × 43.2 cm)

  • Chainable: No | Simultaneous charge/discharge: Yes

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 24 months

  ---

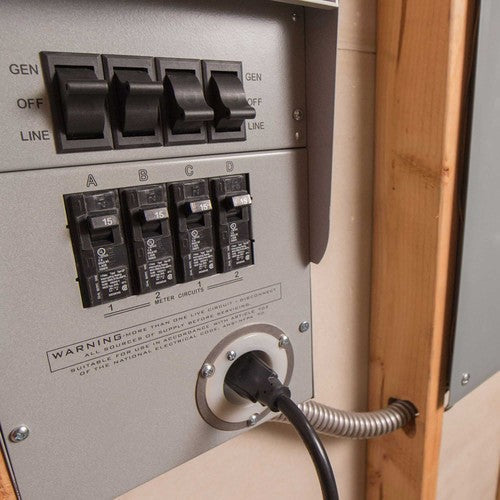

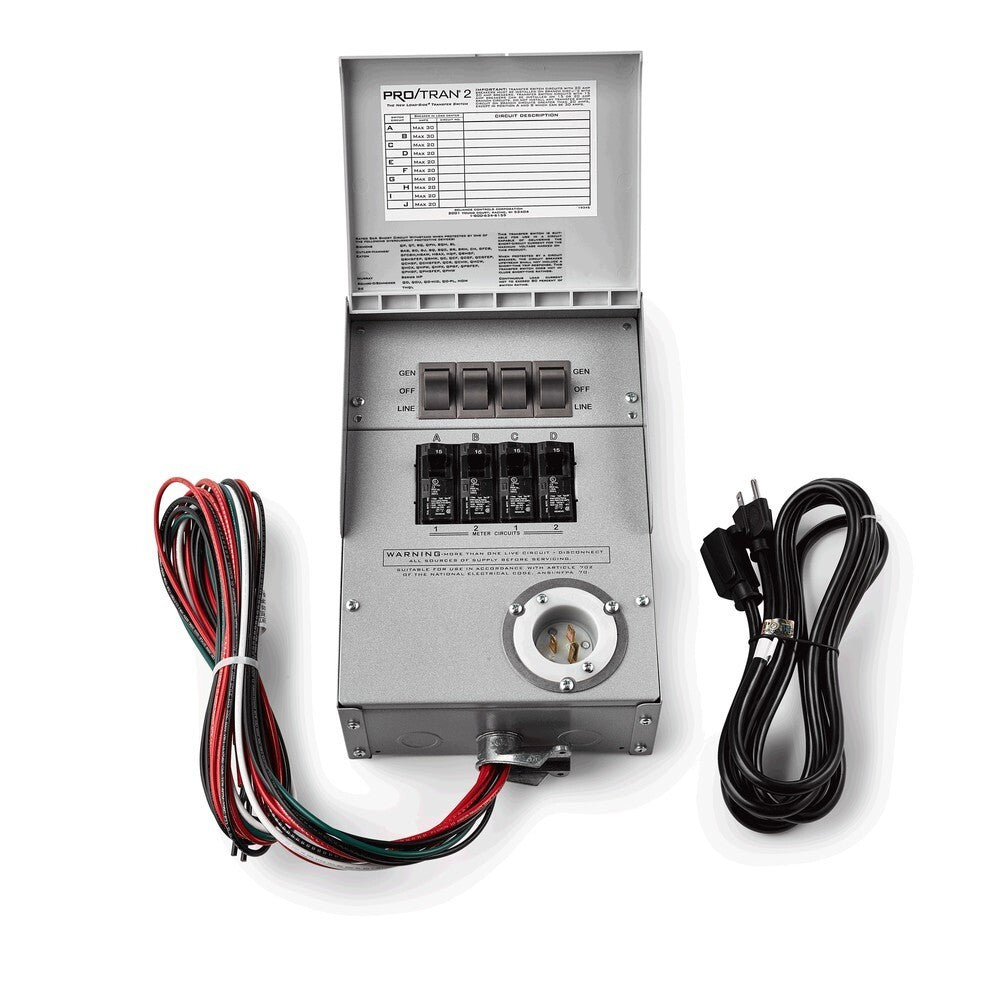

  Tech 2 – Home Integration Kit (HIK)

  Specs

  • Voltage: 120V single-phase | Frequency: 60Hz

  • Rated power: 1875W | Current: 15A

  • Circuit breakers: 4 | Max generator input: 15A

  • Transfer switch circuits: 15A, 120V | Protection: each circuit

  General

  • SKU: 44060 | Made in USA

  • Weight: 9.5 lbs (4.3 kg)

  • Size: 7.75 × 11.25 × 4.5 in

  • Enclosure: NEMA 1R | Conduit: 18 in

  • UL listed | Compatible with Yeti X & Lithium stations 1000W+

  ---

  Tech 3 – Yeti Link & Power Supply

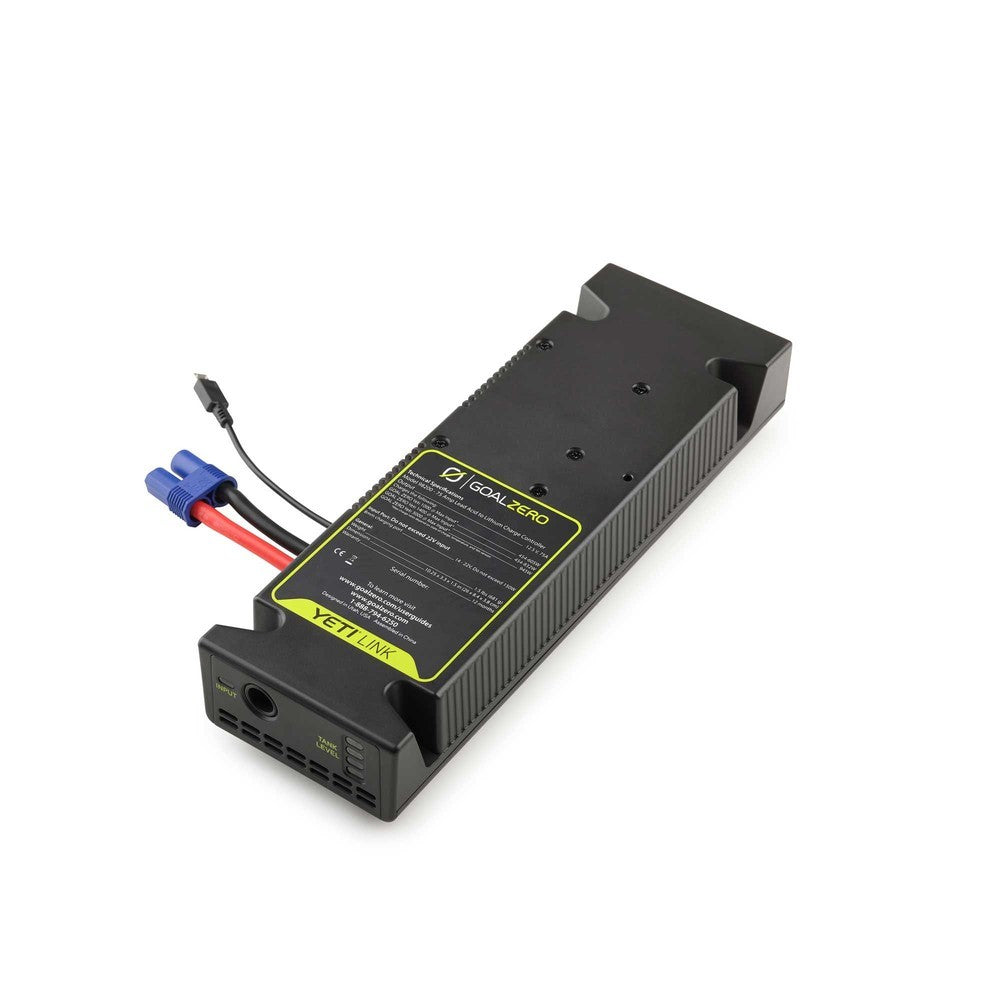

  Yeti Link

  • Product SKU: 98210

  • Weight: 1.5 lbs (680 g)

  • Size: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

  • Warranty: 12 months

  Ports

  • Max input: 22V

  • 8mm input: 14–22V, up to 150W (10A) each

  • External battery connector (output): 65A charge controller

  • External battery connector (I/O): 10.7–15V, max 15V

  120W Power Supply

  • Cable: 16AWG, 9 ft 4 in

  • Size: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

  • Input: AC 100–240V, 50/60Hz, 3.0A

  • Output: 8mm, 16V–7.5A (120W)

  ---

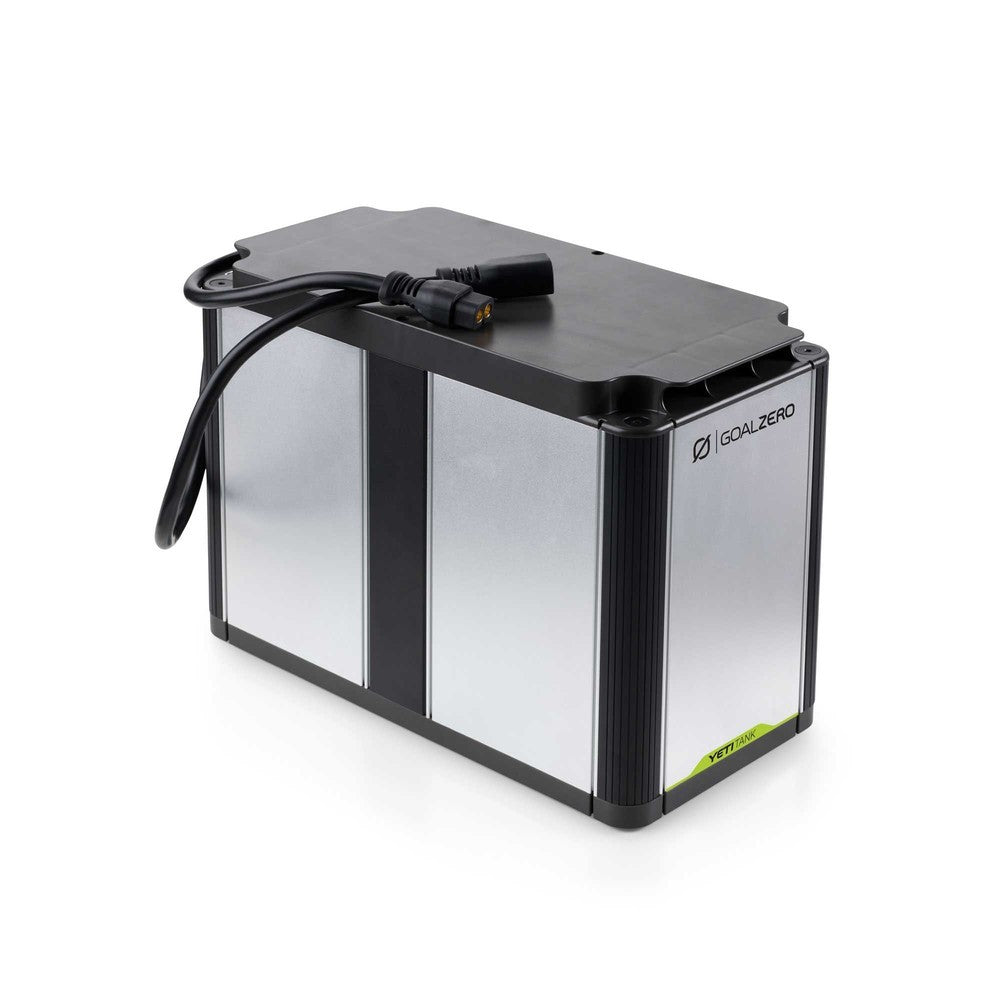

  Tech 4 – Yeti Tank Battery

  Charge Times

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:
    • Yeti 1000/1000X: 454–605W
    • Yeti 1400/1500X: 454–750W
    • Yeti 3000/3000X: 750W
    • Yeti 6000X: 750W

  Battery

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports

  • Expansion male connector: up to 100A

  • Expansion female connector: up to 100A

  General

  • Product SKU: 23105

  • Weight: 77.1 lbs (34.97 kg)

  • Dimensions: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

  • Warranty: 12 months
