10800Wh Home Backup System V3

3.5+ Day Backup System

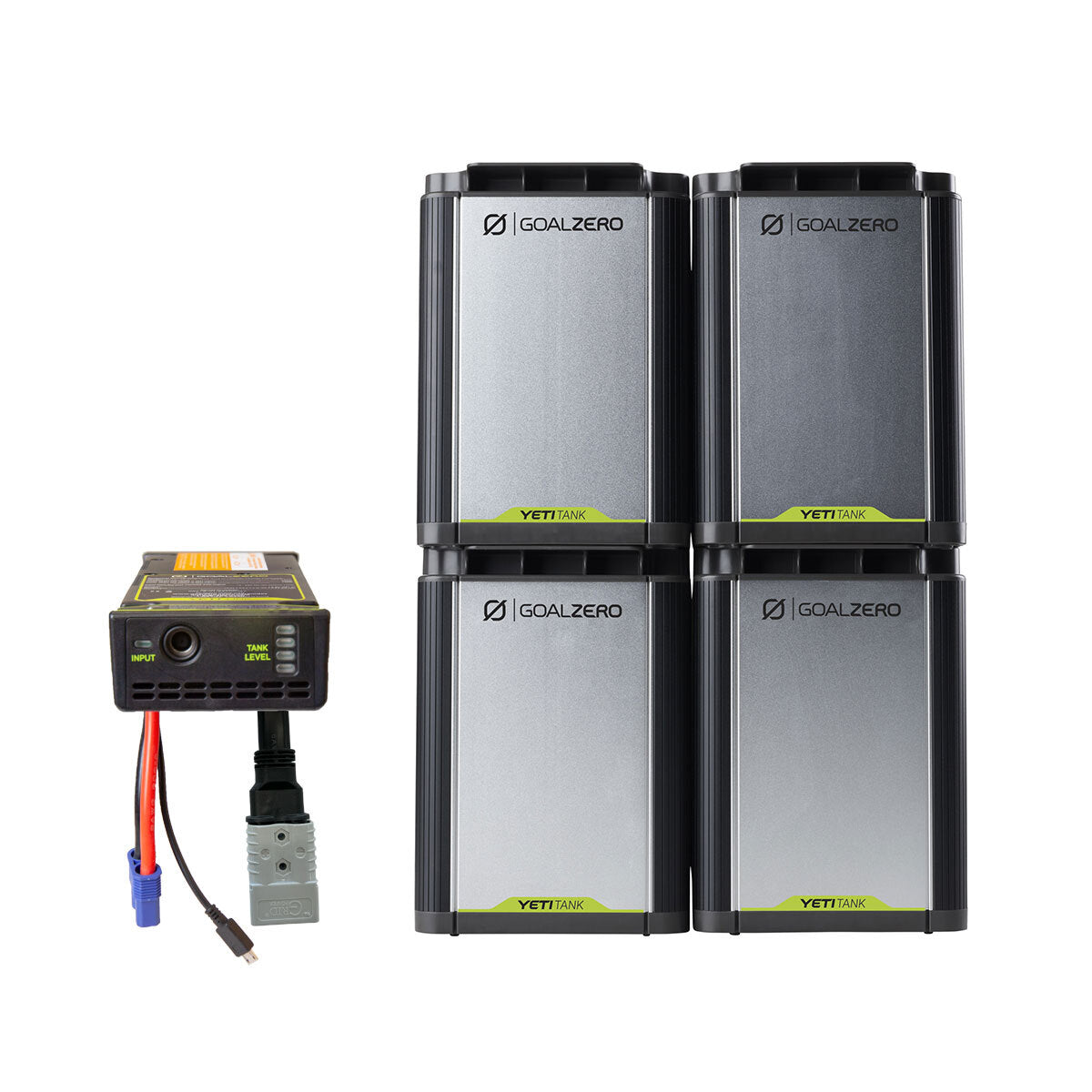

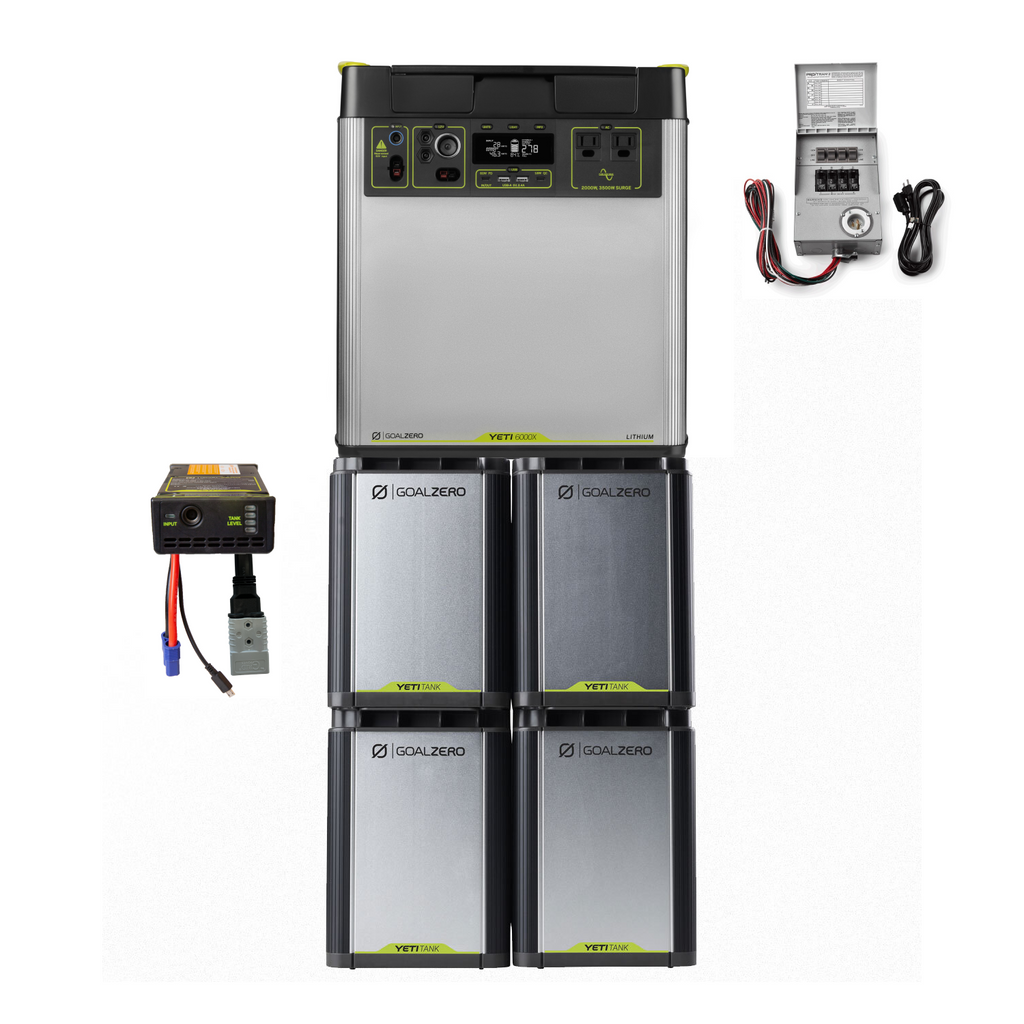

An all-in-one solution delivering about 10,800Wh of portable home energy. Includes the Yeti 6000X, Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries V3, and Link Expansion Module V3.

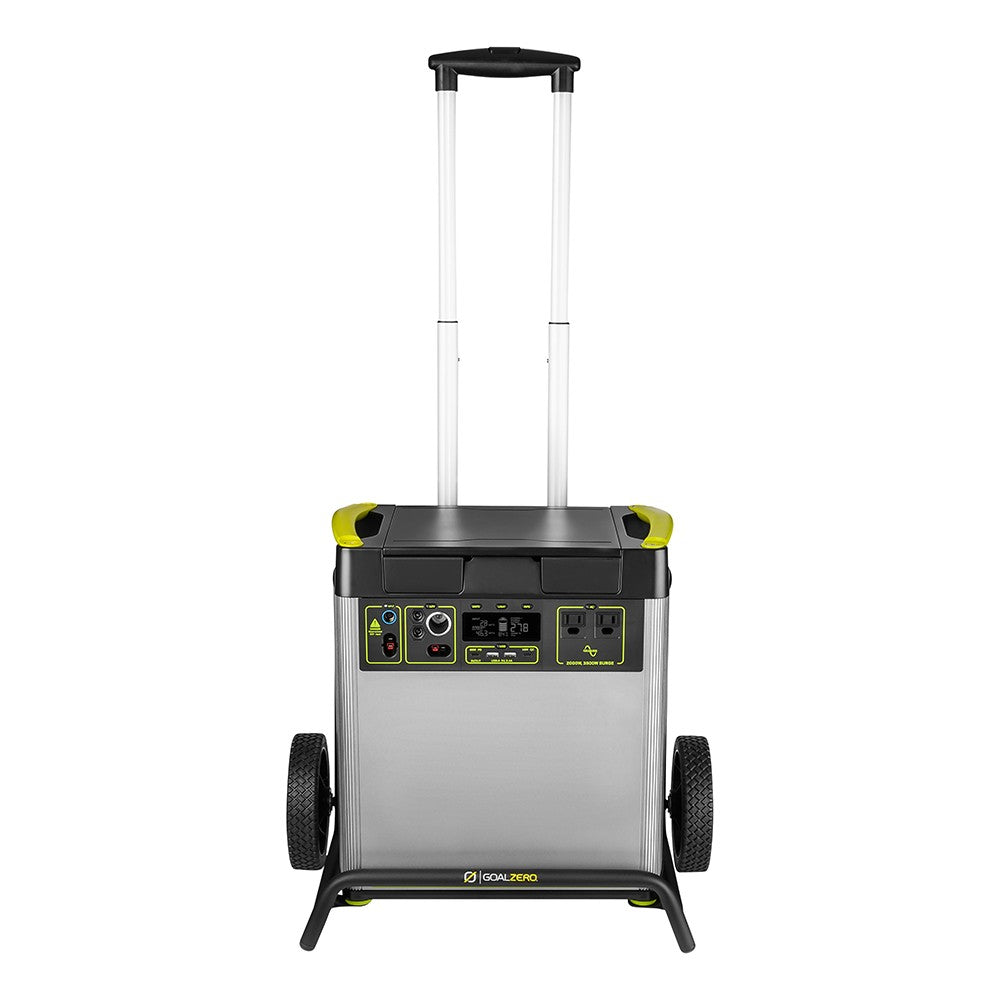

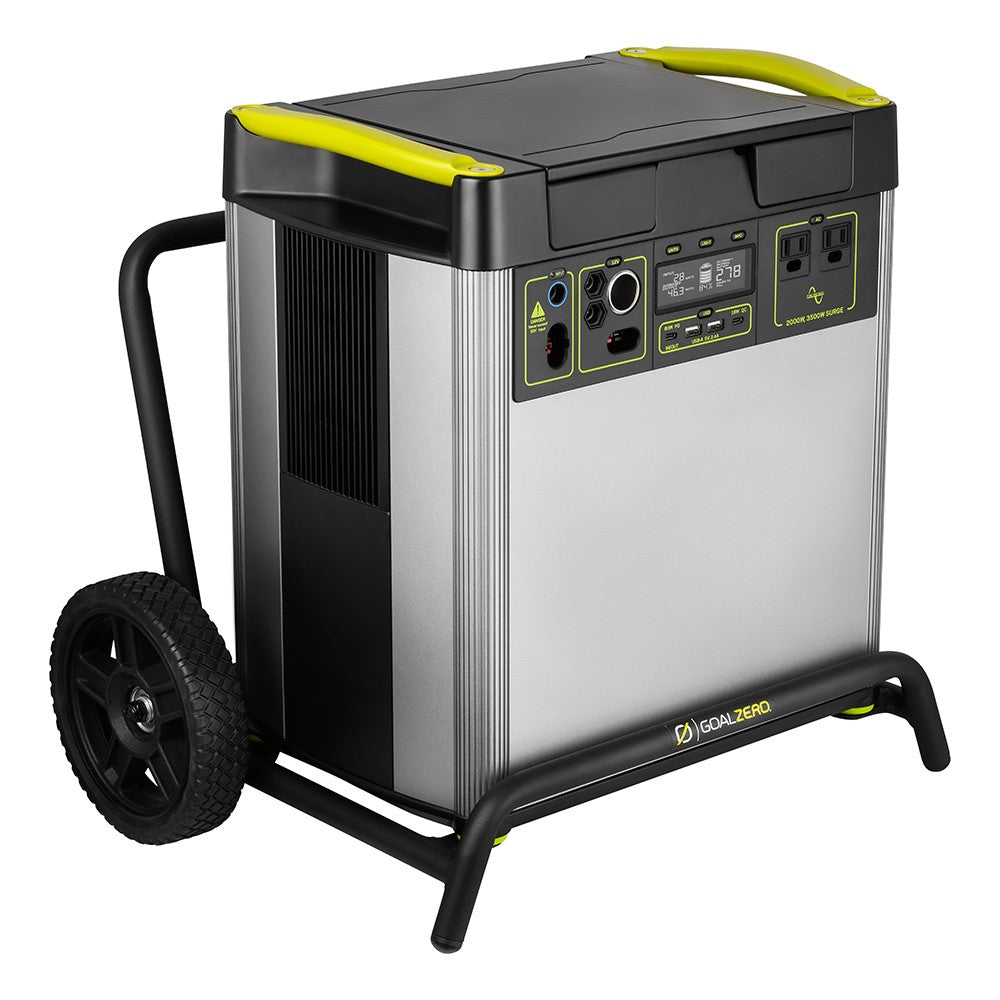

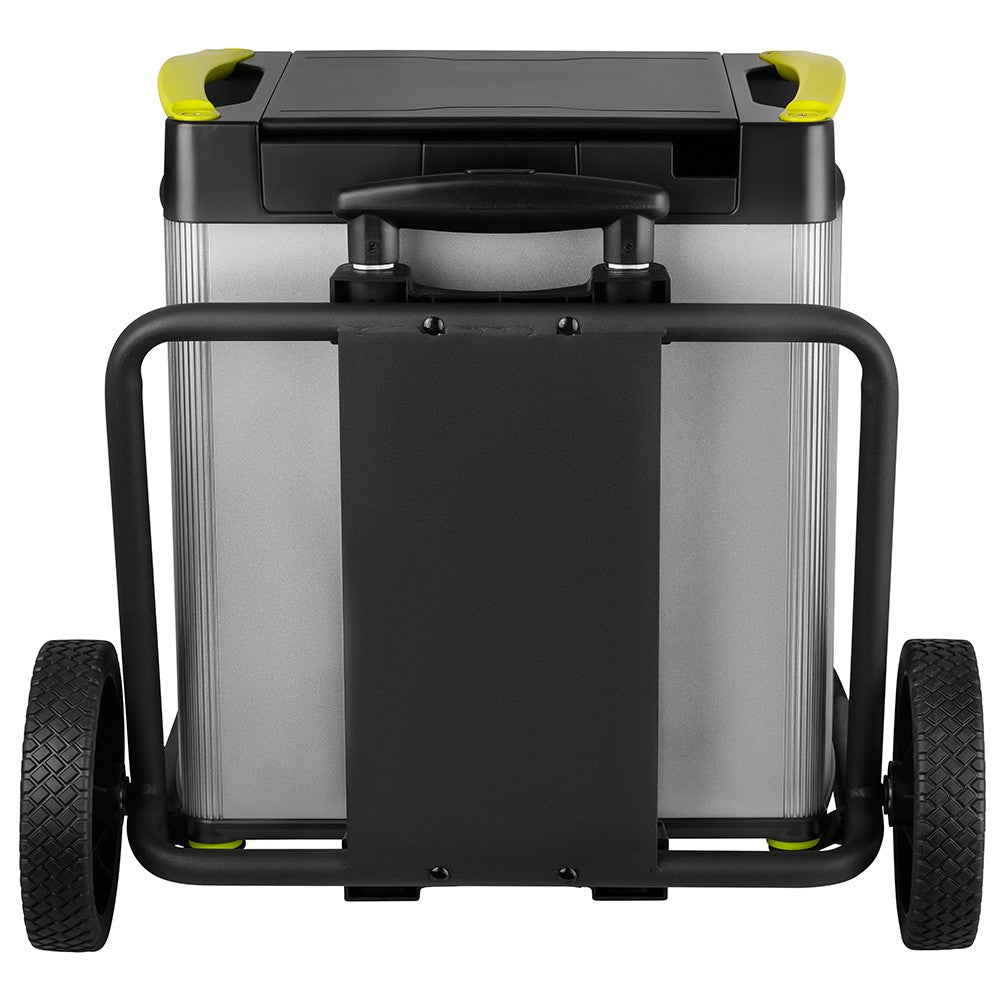

Yeti 6000X Highlights

• Gas-Free Power: Clean, safe lithium-ion battery for home backup, off-grid use, or events.

• Heavy-Duty Output: 2000W AC inverter (3500W surge) powers tools, medical devices, and full-size appliances.

• Multiple Ports: Seven options including 60W USB-C PD, USB-A, regulated 12V, and dual 120V AC.

• Flexible Charging: Solar-ready with MPPT controller or wall outlet recharge.

• Smart Control: Manage power use remotely via the Yeti App 3.0.

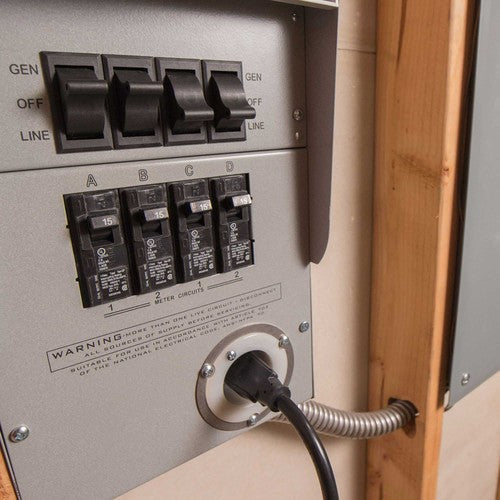

Home Integration Kit Highlights

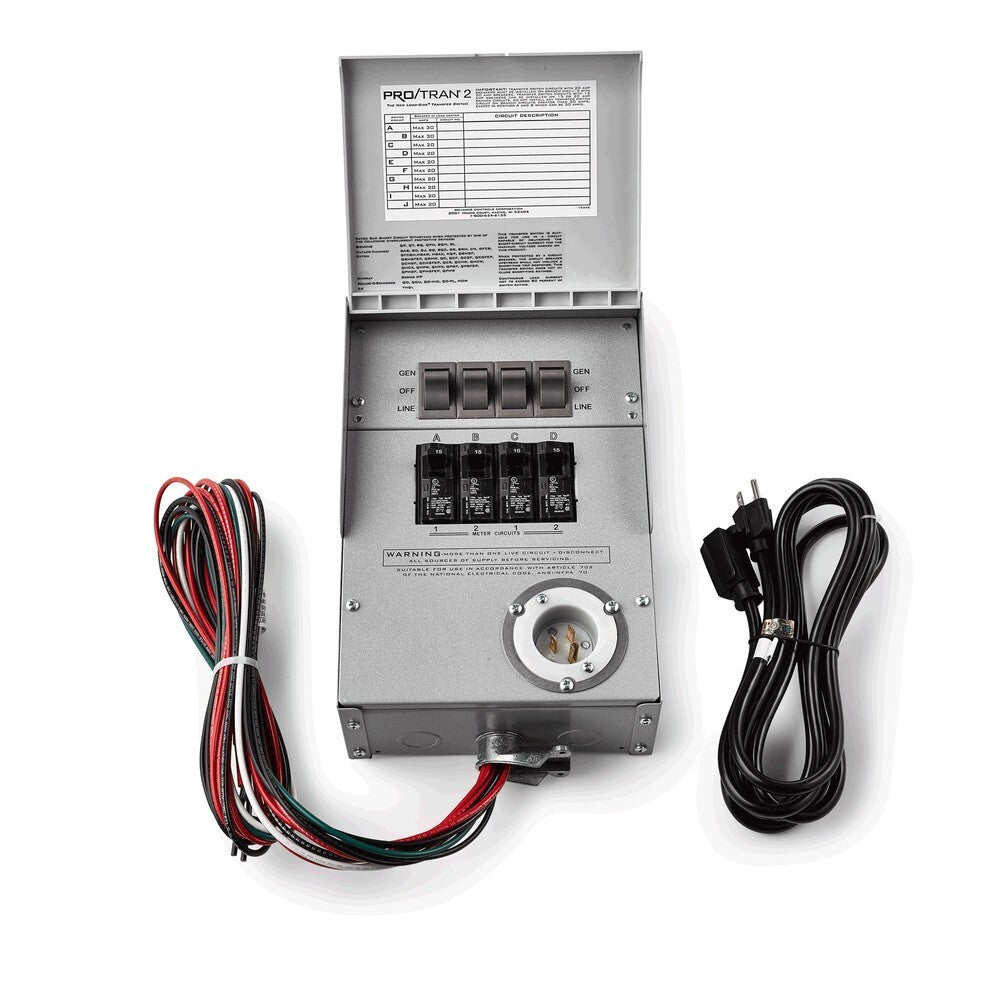

• Custom Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit 120V manual transfer switch.

• Flexible Setup: Choose up to four essential circuits with a licensed electrician (fridge, garage door, outlets, lights, etc.).

• Included Cable: 10 ft. 14AWG extension for connecting your Yeti Power Station.

• HOME BACKUP POWER
  A flexible and expandable energy storage system designed to support four key household circuits, with the ability to scale as your power needs grow.

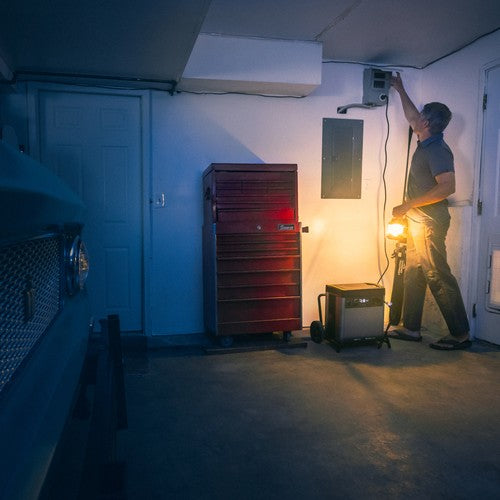

  Keep essentials running, from lighting and refrigerators to medical equipment, internet routers, and more, by integrating directly with your home’s circuits for reliable, seamless backup power.

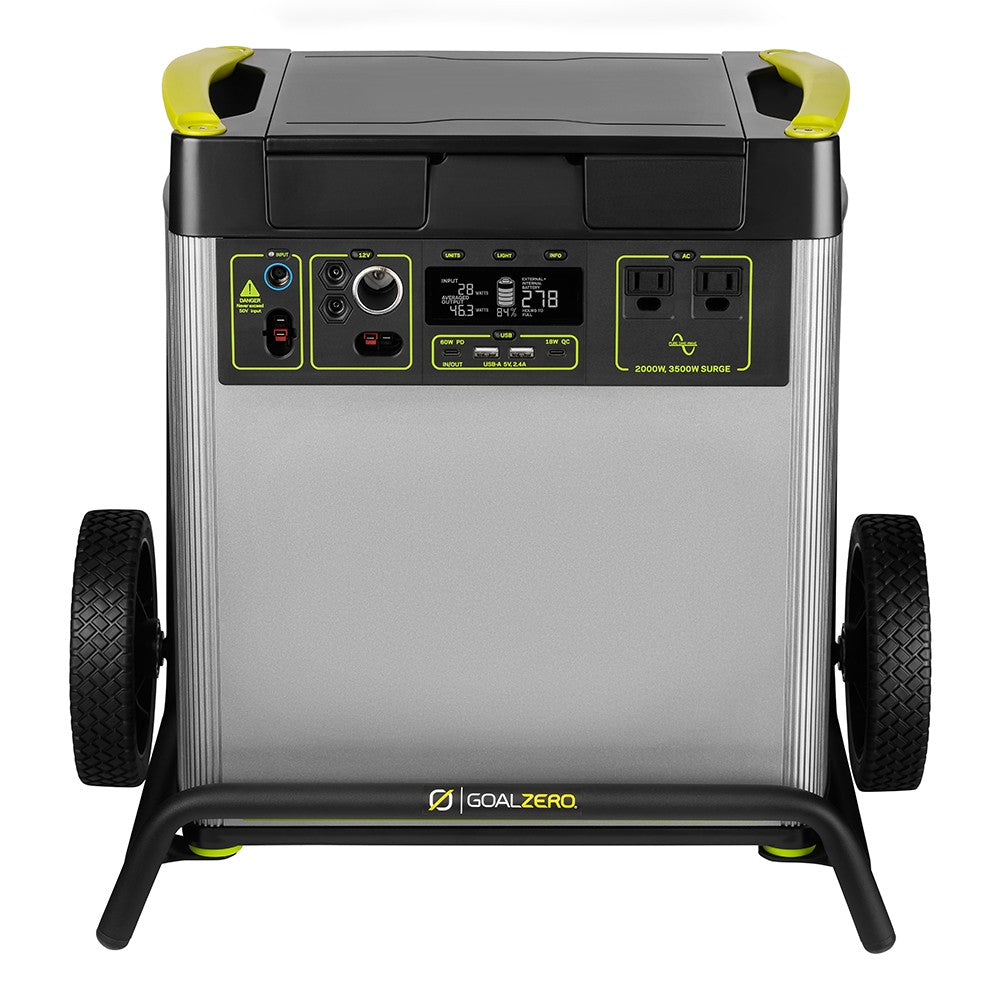

• Tech 1 – Yeti Ports & Battery

  Ports:

  1. USB-A (output): 5V, up to 2.4A (12W), regulated

  2. USB-C (output): 5–12V, up to 3.0A (18W), regulated

  3. USB-C PD (input/output): 5–20V, up to 3.0A (60W), regulated

  4. 6mm port (output): 12V, up to 10A (120W), regulated

  5. 12V car port (output): 12V, up to 13A (160W), regulated

  6. 12V HPP (output): 12V, up to 30A (360W), regulated (front/under lid)

  7. 120V AC Inverter: 120VAC, 60Hz, 16.5A (2000W continuous / 3500W surge), pure sine wave output

  8. 8mm charging port (input): 14–50V, up to 10A (150W), front/under lid

  9. HPP charging port (input): 14–50V, up to 50A (600W)

  10. Expansion Module Port: under lid, only for Goal Zero expansion modules

  Battery:

  • Type: Li-ion NMC

  • Capacity: 6071Wh (10.9V, 556Ah)

  • Equivalent single-cell capacity: 1668Ah @ 3.6V

  • Lithium content: 500g

  • Lifespan: ~500 cycles to 80% capacity (1C discharge, full cycles, 25°C)

  • Shelf life: recharge every 3–6 months

  • Management: MPPT charge controller

  General:

  • Kit SKU: 44536 / SKU: 36500

  • Chainable: No

  • Simultaneous charge/discharge: Yes

  • Weight: 106 lbs (48.1 kg)

  • Size: 15.3 x 10.1 x 17 in (38.9 x 25.7 x 43.2 cm)

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 24 months

  ---

  Tech 2 – HIK Specs

  Electrical:

  • Voltage: 120V single-phase

  • Frequency: 60Hz

  • Rated power: 1875W

  • Rated current: 15A @ 120V

  • Circuit breakers: 4

  • Max generator input: 15A

  • Max wattage: 1875W

  • Transfer switch circuits: 15A, 120V

  • Circuit protection: per circuit

  General:

  • SKU: 44060

  • Origin: USA

  • Weight: 9.5 lbs (4.3 kg)

  • Size: 7.75 x 11.25 x 4.5 in

  • Enclosure: NEMA 1R

  • Conduit length: 18 in

  • UL listed: Yes

  • Compatibility: Yeti X and Yeti Lithium Power Stations (1000W and higher)

  ---

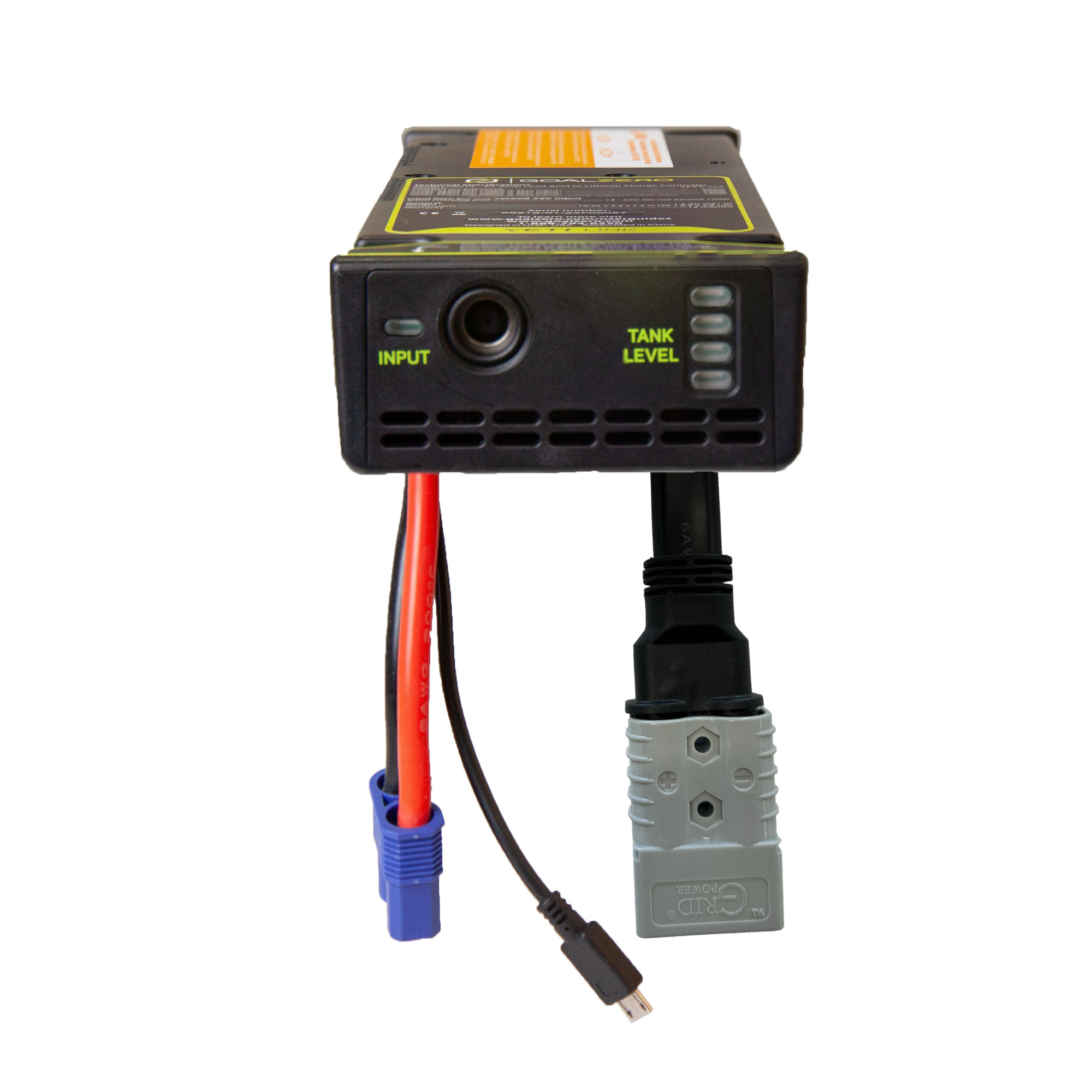

  Tech 3 – Yeti Link & Power Supply

  Yeti Link (General):

  • Weight: 1.5 lbs (680g)

  • Size: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)

  • Warranty: 12 months

  Yeti Link Ports:

  • Max input: 22V

  • 8mm charging port (input): 14–22V, up to 150W (10A) each

  • External battery connector (output): 65A charge controller

  • External battery connector (I/O): 10.7–15V (limit 15V)

  Yeti X 120W Power Supply:

  • Gauge: 16AWG

  • Cable: 9 ft 4 in

  • Size: 2.5 x 5.9 x 1.4 in (6.5 x 15 x 3.5 cm)

  • Input: AC wall plug 100–240V, 50/60Hz, 3.0A

  • Output: 8mm 16V–7.5A, 120W

  ---

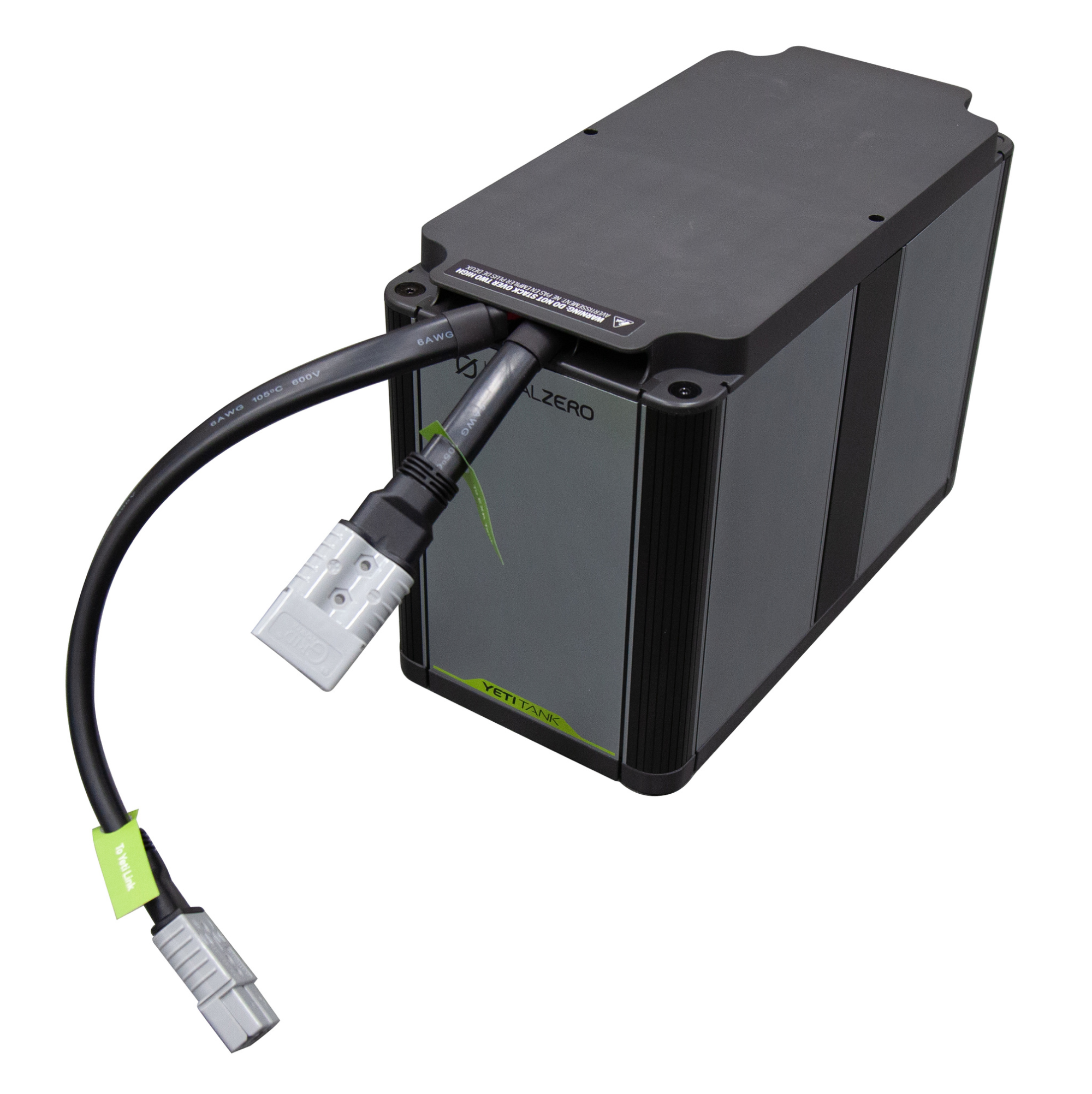

  Tech 4 – Yeti Tank

  Charge Times:

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:

    • Yeti 1500X: 454–750W

    • Yeti 3000X: 750W

    • Yeti 6000X: 750W

  Battery:

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports:

  • Expansion port male connector (I/O): max 100A

  • Expansion port female connector (I/O): max 100A

  General:

  • Size: 15.5 x 7.5 x 10.5 in (39.37 x 19.05 x 26.67 cm)

  • Weight: 77.1 lbs (34.97 kg)

  • Warranty: 12 months
