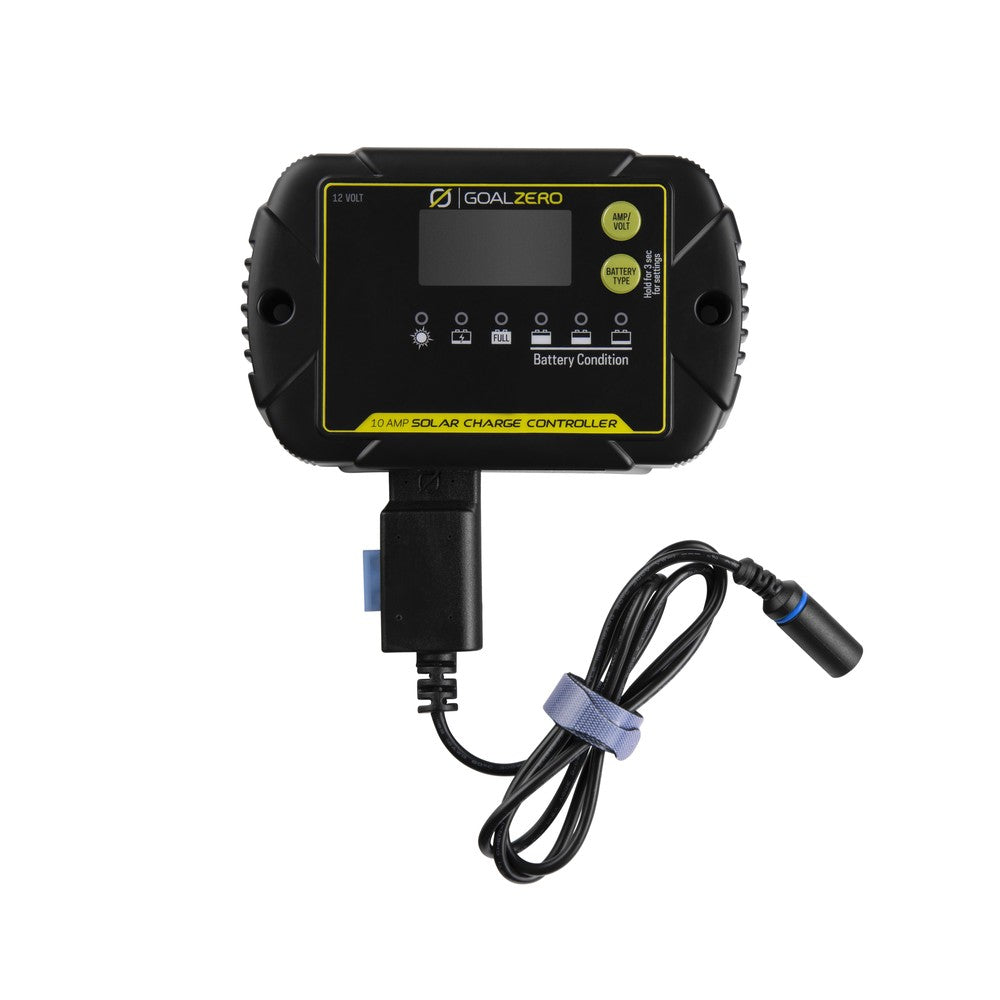

10-Amp Charge Controller

• 10A Charge Controller
  Compact controller for regulating solar input to 12V batteries. Features an 8mm connector, LED display, and IP65-rated weather and dust protection.

  Features

  • Best for solar setups up to 100W (use 20A controller for higher input).

  • Includes 8mm connector; additional SAE cables required for battery connection.

  • Not compatible with Yeti X Power Supply.

  Included

  • 10A Charge Controller

  • Spade to 8mm Cable

tech

PORTS

• Input/Output terminal: M5 terminals
• Input Port: Solar Port: (blue, 8mm): 14-22.5V up to 10A
• Fuse: 15A replaceable

GENERAL

• Product SKU: 96100
• Weight: 14.4 oz (408 g)
• Dimensions: 6.10 x 3.90 x 1.02 in. (15.5 x 9.91 x 2.6 cm)
• IP Grade: IP65
• Spade to 8mm Cable Length: 3 ft
• Operating temperature: -25 to 50°C/ -13 to 122°F
• Warranty: 2 Years
• Certs: IC, FCC, CE-EMC, CE-LVD

BATTERY DETAILS

• Rated solar panel amps GZ-10: 10A
• Normal input solar cell array voltage: 15-22V
• Max solar cell array voltage (output has no load): 25V
• Lowest operating voltage at solar or battery side: 8V Minimum
• Charging Characteristics:
• Start Voltage at 25°C: 3-10V
• Charge Voltage at 25°C:
• LTO battery: 14.0V
• Gel battery: 14.1V
• LiFePO4 battery: 14.4V
• Charge Voltage at 25°C: AGM battery-14.4V
• WET battery: 14.7V
• Calcium battery: 14.9V
• Equalizing Voltage at 25°C: WET or Calcium battery-15.5V
• Float Voltage at 25°C:
• Gel, AGM, WET, Calcium batteries-13.6V
• LTO and LiFePO4 batteries-13.4V
• Battery temperature compensation coefficient: -24mV/°C
