Renogy Energy 1200W/2500W Tiny House Home Cabin Kit SKU: RKIT1200D-US

Tiny House / Home Cabin Off-Grid Solar Kit

Key Features

• Next-generation PERC solar panels for high efficiency

• 48V 3500W solar inverter charger for seamless DC-to-AC power conversion

• 2.5kWh battery bank for reliable daily energy storage

• DC circuit protection built in for enhanced safety

• Bluetooth-enabled monitoring with the BT-2 module and Renogy DC HOME app

Product Overview

Designed for those who want a simple, dependable off-grid solution, the Tiny House/Home Cabin Kit powers both essential and luxury household devices with clean solar energy. Its integrated 3500W inverter charger ensures you can run standard appliances with ease while still having the option to charge from the grid when necessary.

With the included Bluetooth module, you can monitor system performance in real time straight from your smartphone. Built for versatility, this kit is also ideal for RVs, cabins, trucks, marine, camping, and other off-grid applications.

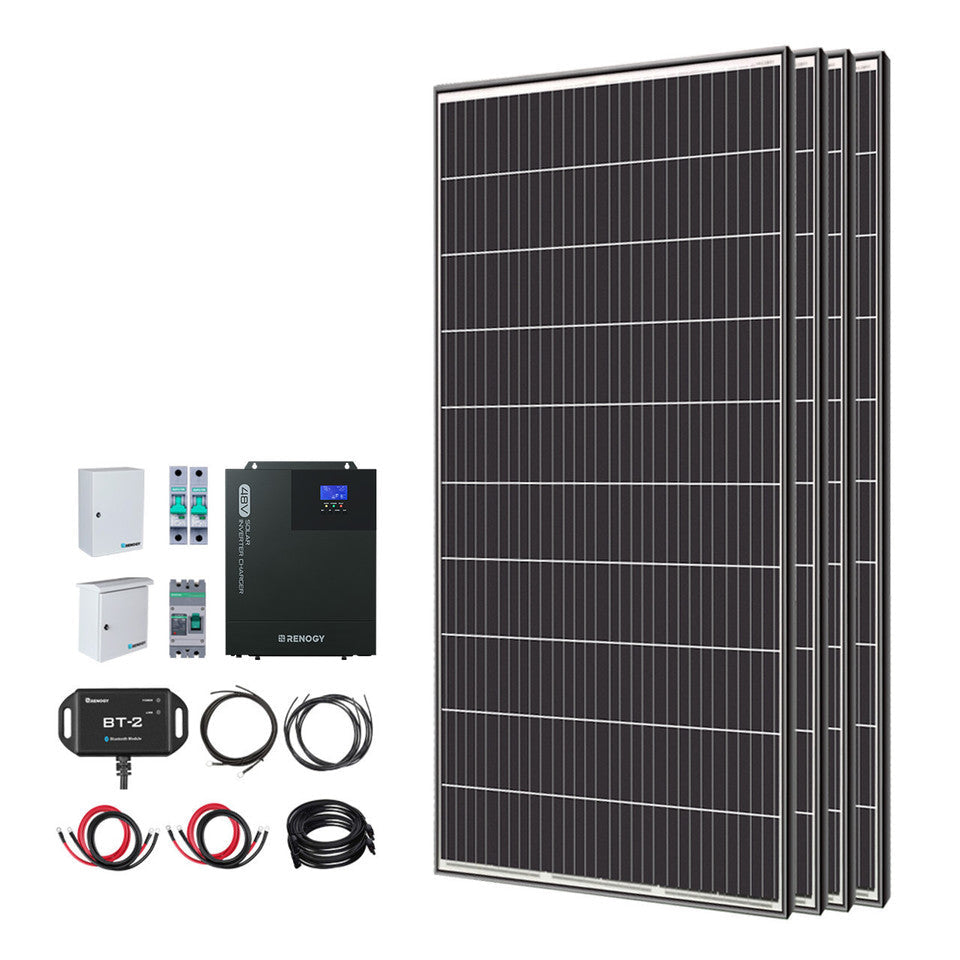

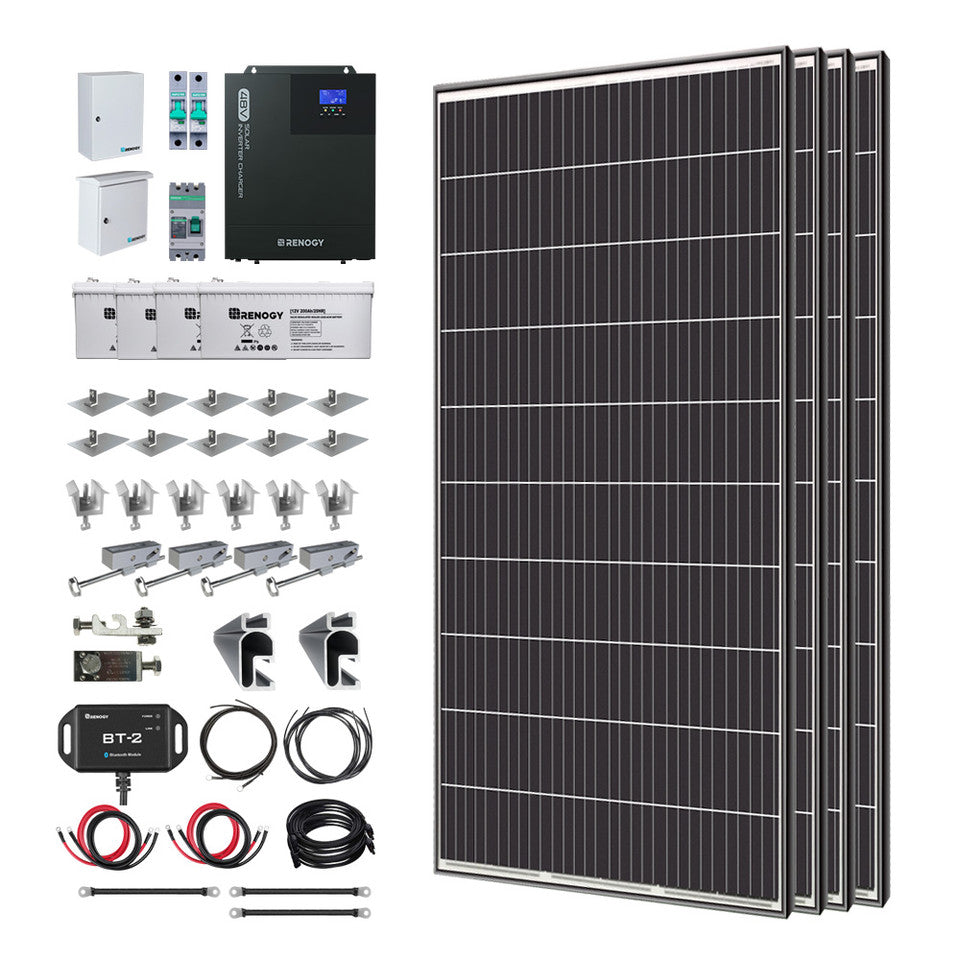

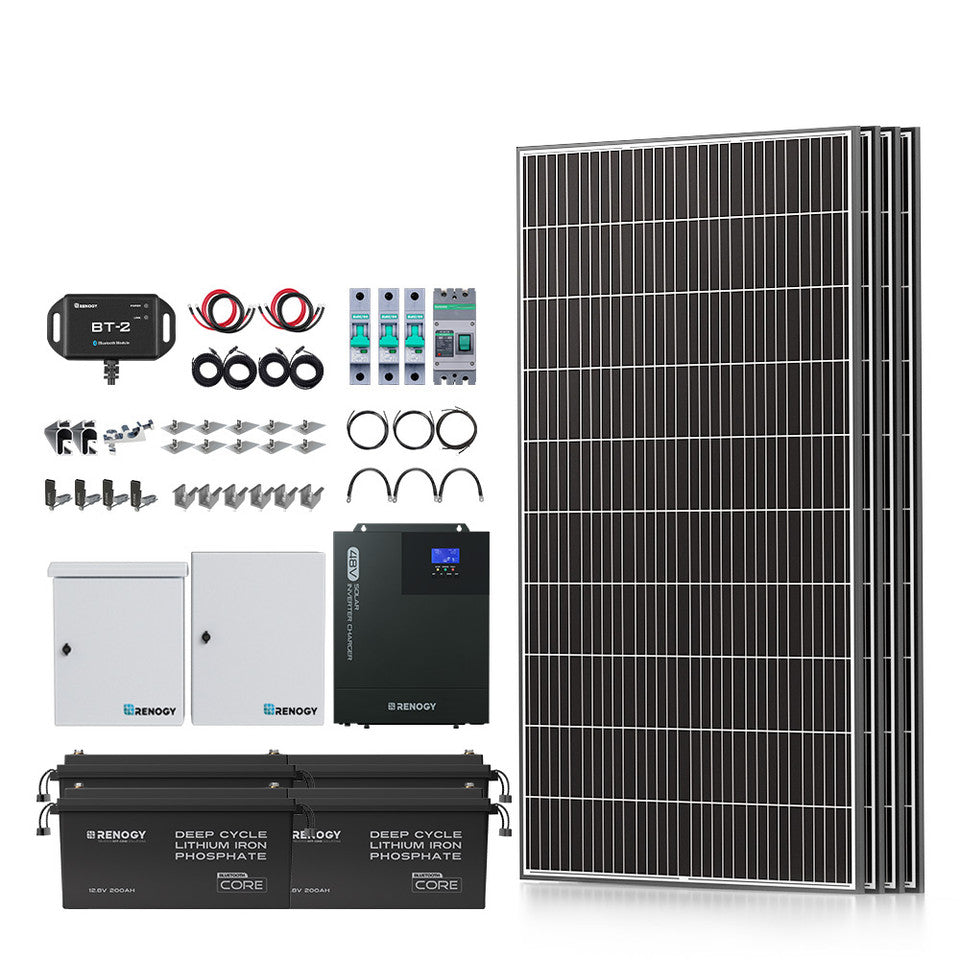

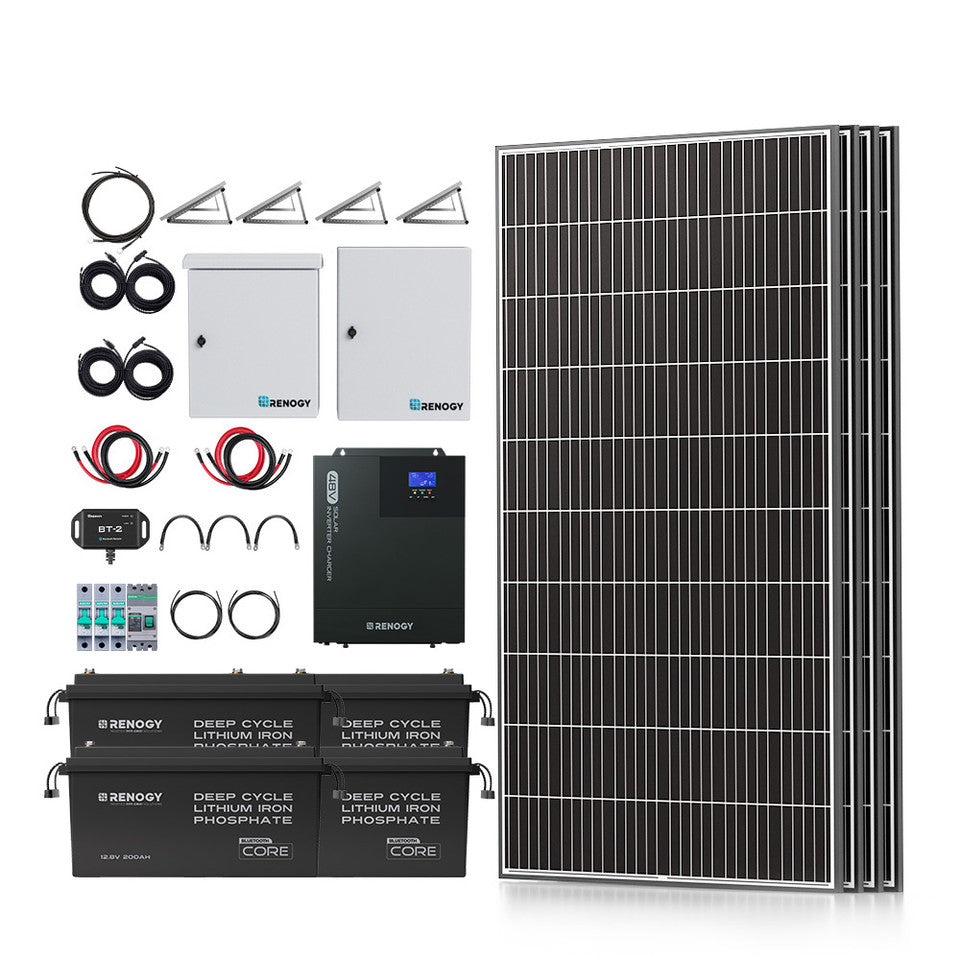

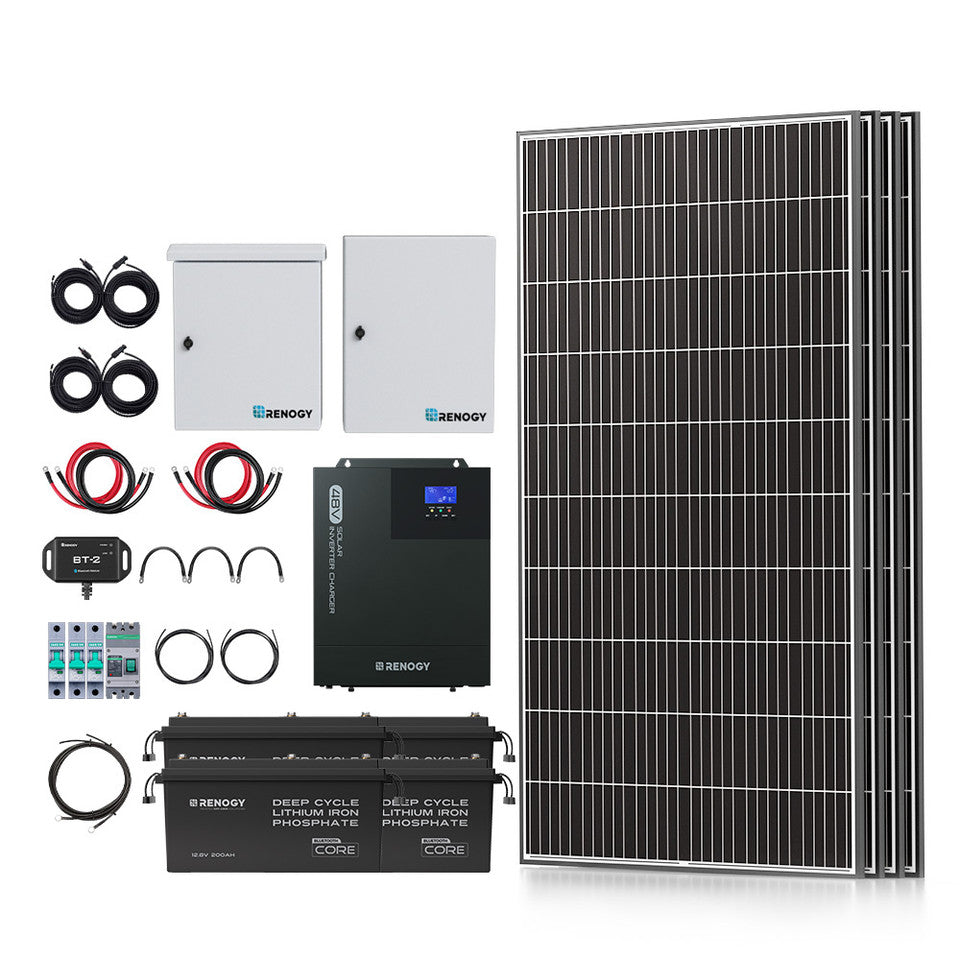

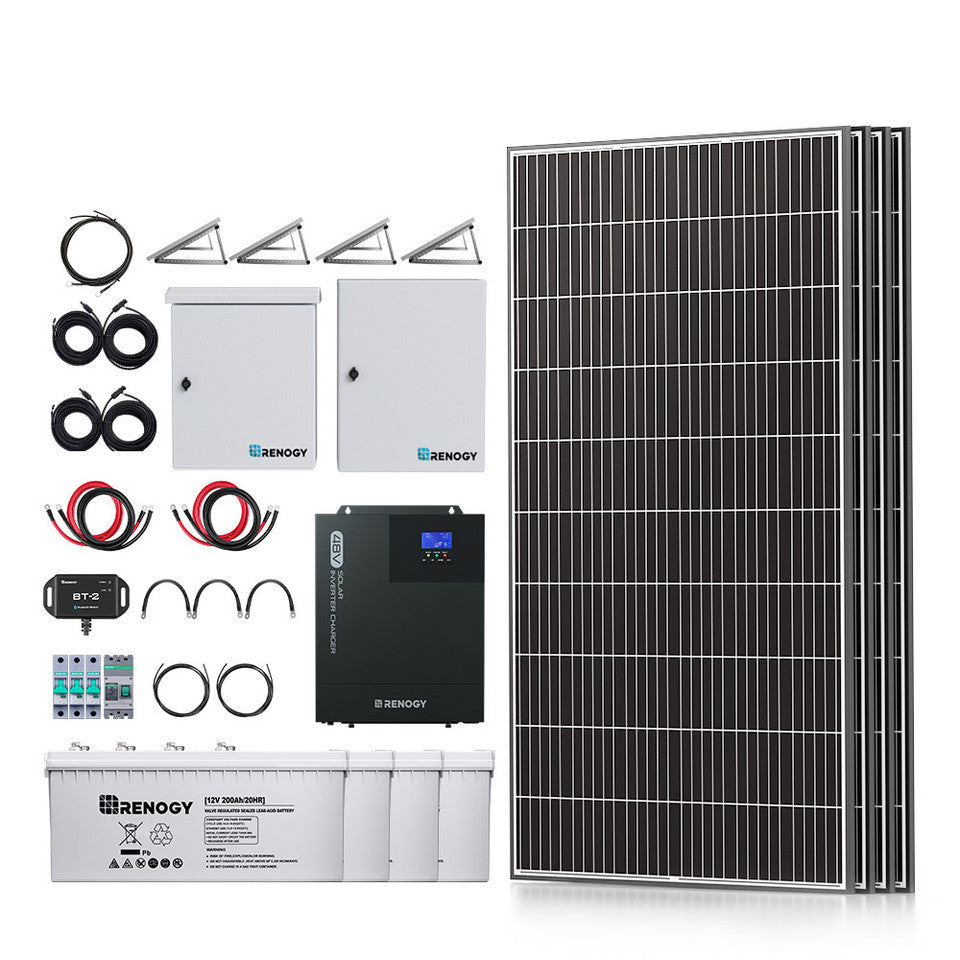

Complete Off-Grid Solar Power Kit

320W Monocrystalline Solar Panel

• Maximum Power: 320W

• Vmp: 32.7V | Voc: 40.1V

• Imp: 9.79A | Isc: 10.36A

• Cell Efficiency: 21%

• Operating Temperature: -40°F to 185°F

• Max System Voltage: 1000V DC (UL)

• Dimensions: 65.6 × 39.4 × 1.4 in | Weight: 39.7 lbs

• Certifications: CE, ISO, UL

48V 3500W Pure Sine Wave Solar Inverter Charger

• Output Waveform: Pure Sine Wave

• Rated Power: 3500W

• Input Voltage: 120VAC (85–140VAC range)

• Frequency: 50/60Hz Adjustable

• Output Voltage: 100–120VAC (in 5V increments)

• Controller Type: MPPT

• Max PV Input Power: 4400W | PV Charging Current: 80A

• Dimensions: 17.5 × 13 × 4.9 in | Weight: 22.4 lbs

12V 200Ah Deep Cycle AGM Battery

• Type: AGM | Capacity: 200Ah

• Nominal Voltage: 12V

• Internal Resistance: ~3.5mΩ

• Series/Parallel Connection: Up to 4 batteries

• Dimensions: 20.6 × 9.4 × 8.8 in | Weight: 127.9 lbs

Renogy 12V 200Ah Core Series LiFePO4 Battery

• Nominal Voltage: 12.8V | Capacity: 200Ah

• Voltage Range: 10V–14.8V

• Cycle Life: 5000 cycles @ 80% DOD

• Max Charge/Discharge Current: 200A

• Protection Rating: IP67

• Dimensions: 18.4 × 8.4 × 8.2 in | Weight: 50.7 lbs

Warranty Information

• Panels: 25-year power output warranty (95% at 5 yrs, 90% at 10 yrs, 80% at 25 yrs), plus a 10-year material/workmanship warranty

• Accessories: 1-year material/workmanship warranty
