12 kWh Haven Home Backup

• The 12 kWh Backup System

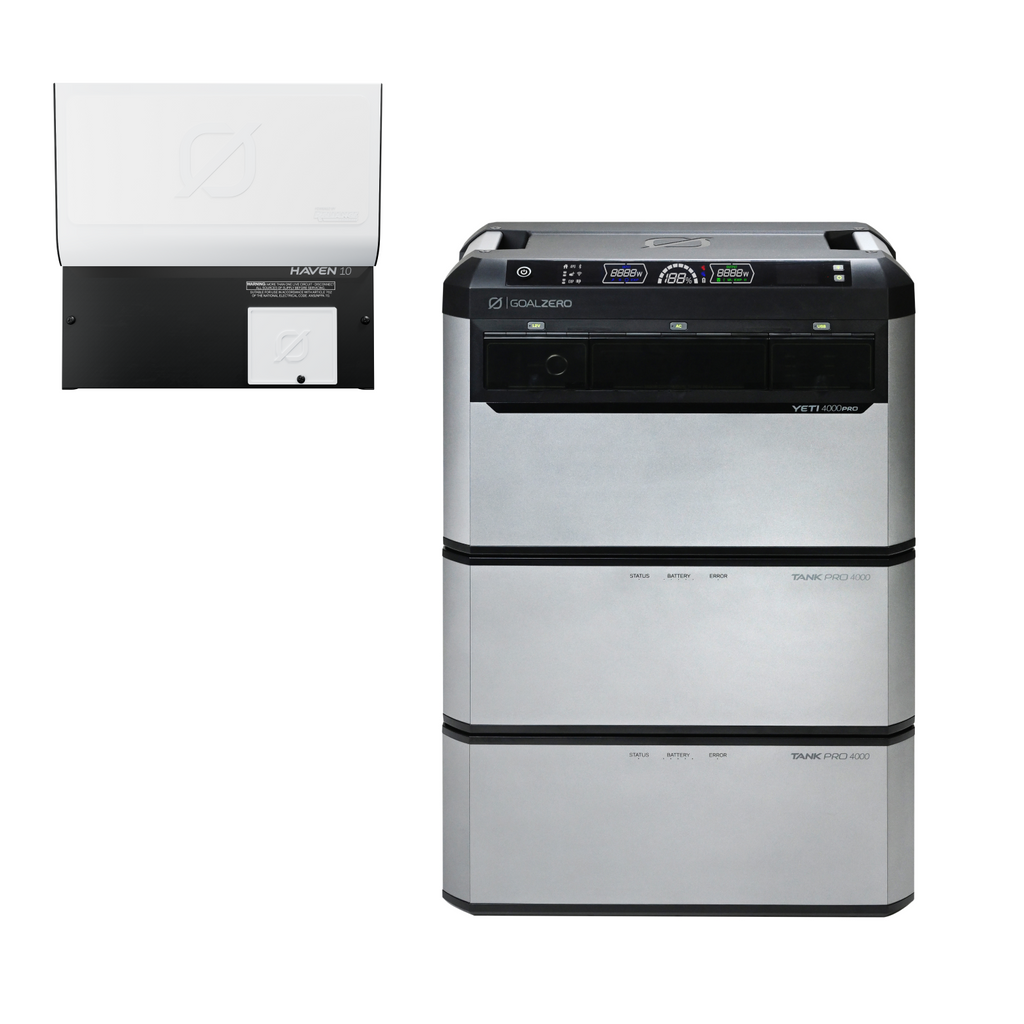

  Stay prepared with about 12,000 watt hours of reliable home backup power and the ability to support up to 10 essential circuits. This system includes the Yeti PRO 4000, two Yeti PRO Tank Batteries, and the Haven 10 transfer switch—keeping your home running smoothly during outages.

TANK PRO 4000 HIGHLIGHTS

Modular Scalability
Start with one or two batteries and expand later as your needs grow. The modular design makes it easy to scale your backup system over time.

Increased Capacity
Each Tank PRO 4000 adds substantial storage so you can power more devices for longer. Add multiple units to keep your home running for days.

Easy Integration

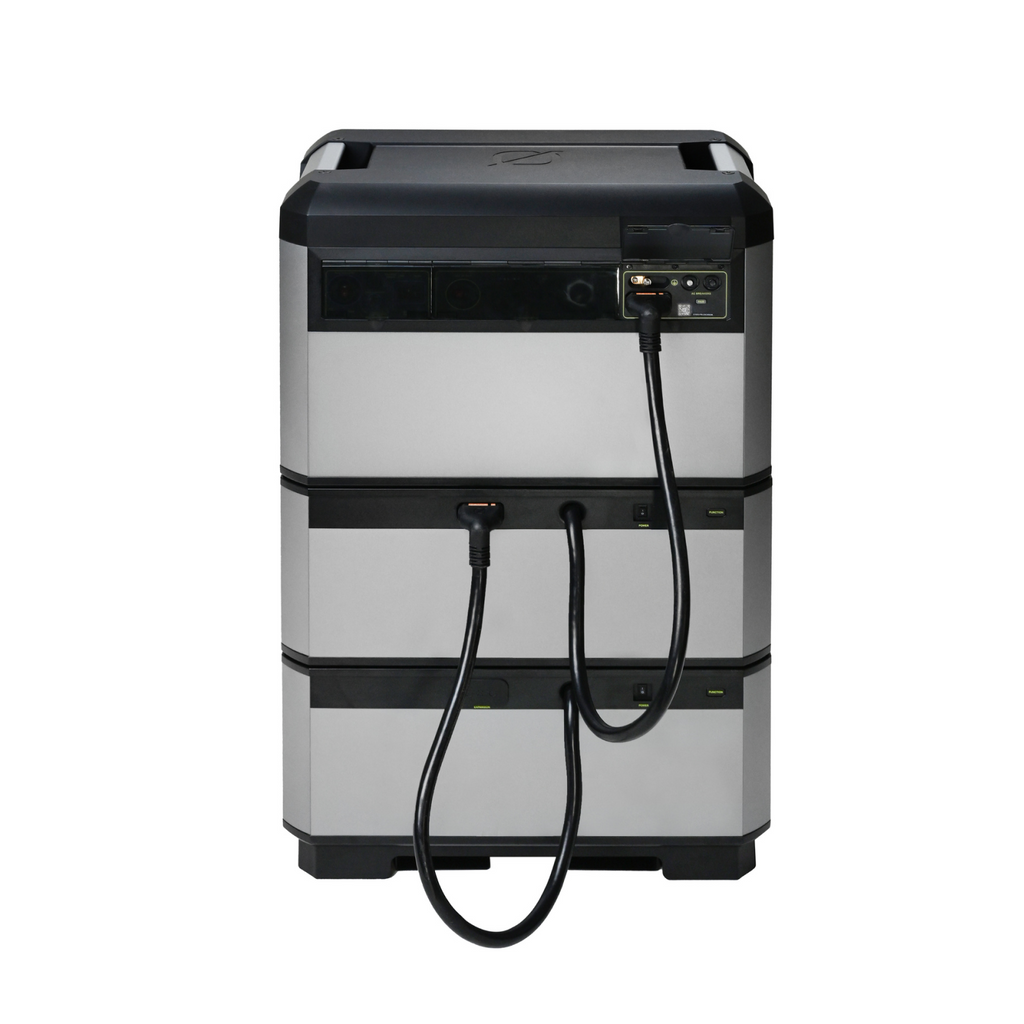

Designed to nest seamlessly with the Yeti PRO 4000—once connected, they function as one system, charging and discharging together.

Long Lifespan
Advanced LiFePO₄ battery technology gives the Tank PRO 4000 up to 8× the lifespan of previous models, providing years of reliable backup power.

GOAL ZERO POWER APP

The redesigned Goal Zero app works seamlessly with the Yeti PRO 4000, giving you full control from anywhere. Monitor battery levels, track power flow, and toggle ports on or off. Review historical data to better understand your energy use, and choose charge profiles that prioritize Performance, Battery Saver, or Balance modes—so your power station works exactly the way you need it to.

TURN YOUR YETI INTO A SOLAR GENERATOR

Go fully off-grid by pairing your Yeti with solar panels. Choose from ground-deployable options, roof-mounted panels for vehicles and cabins, or lightweight foldable panels perfect for camping and travel. Stay powered anywhere the sun shines.

HOME BACKUP POWER

Keep your home running during outages with customizable backup solutions. Connect your power station to the Haven 10 Manual Transfer Switch to cover up to 10 essential circuits. Power lights, refrigerators, medical devices, Wi-Fi routers, and more—all with reliable backup when you need it most.

• Yeti PRO 4000 + Haven 10 + Tank PRO 4000 Tech Specs

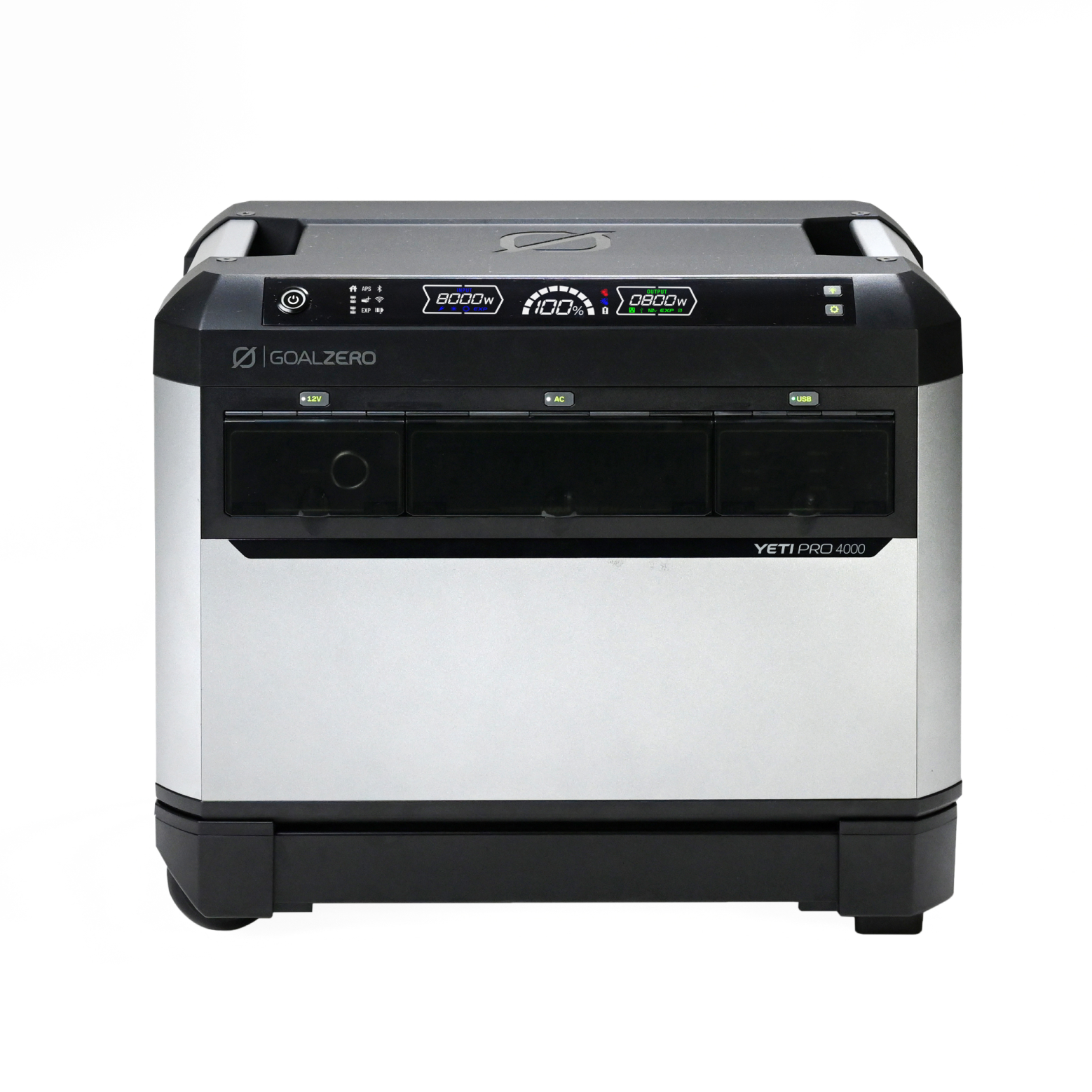

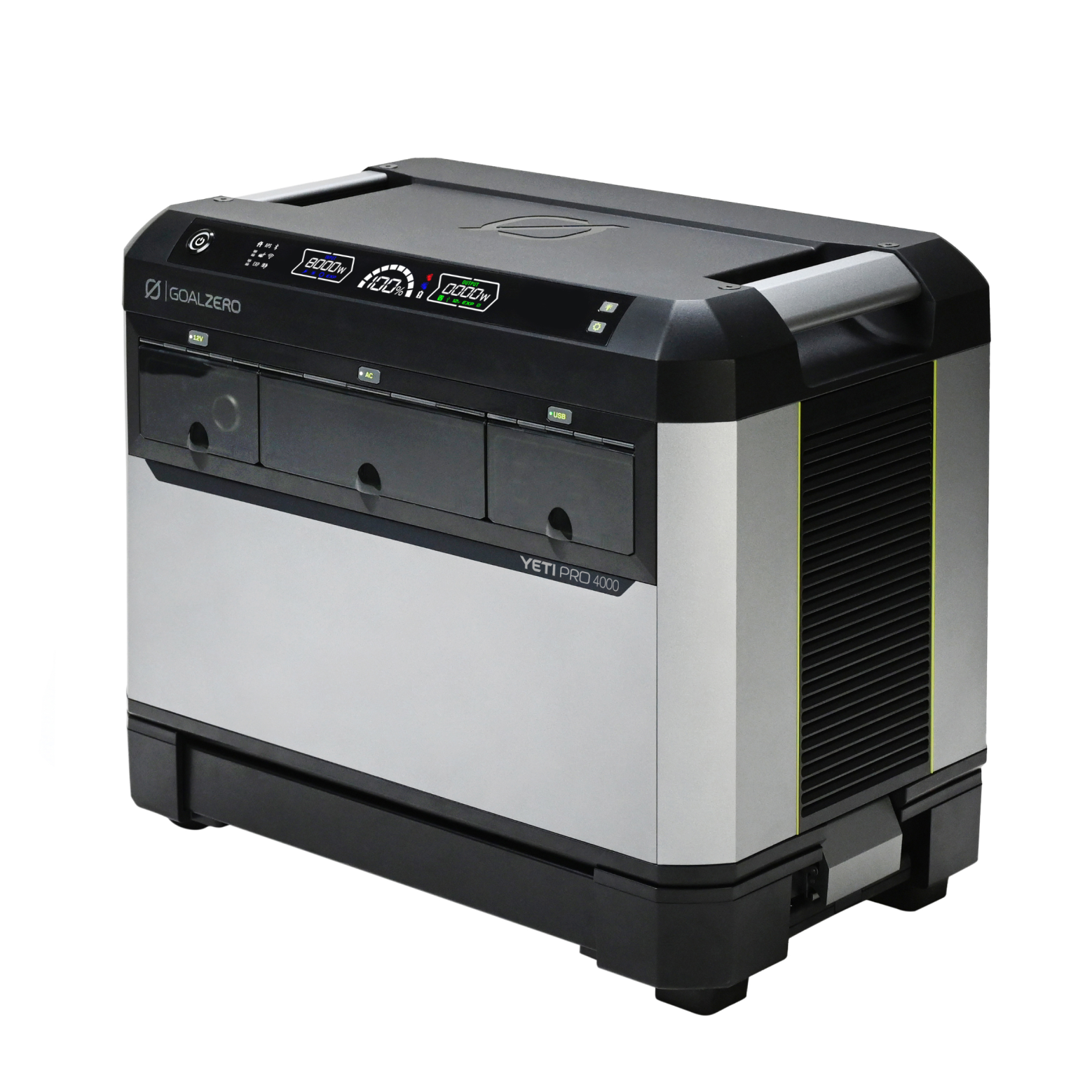

  YETI PRO 4000

  Input

  • AC Fast Charge: 1800W (90–144V, up to 15A)

  • Power+: 1800W (90–144V, 15A)

  • HPP High Voltage Input: 3000W Max (13.3–150V, up to 40A)

  • 8mm Low Voltage Input: 275W Max (12.3–28V, up to 10A)

  • Expansion Port (Tank Pro 4000): 100A, 100V Max

  • Reunion Auto-Lock (Input): 3000W (90–254V, 30A)

  • Reunion Auto-Lock (Pass-Thru): 3600W, 90–129V AC, 60Hz, 30A

  • Reunion Auto-Lock (Output): 3600W, 120V AC, 60Hz, 30A

  • Accessory Port (Input/Output): 56V DC, 100A

  Output

  • USB-A (x3): 18W, 5–12V DC, up to 3A (Total 54W)

  • USB-C: 100W (5–20V DC, up to 5A)

  • USB-C (x2): 30W (5–20V DC, up to 3A) – Total Combined USB-C Output: 160W

  • 12V Auxiliary Port: 162W (13.5V DC, 12A continuous, 40A surge)

  • 12V High Power Port (HPP): 405W (13.5V DC, 30A continuous, 40A surge)

  • 12V 6mm Ports (x2): 135W (13.5V DC, 10A continuous, 40A surge) – Total Combined 12V Output: 375W

  • AC Inverter: 3600W continuous, 7200W surge, 120V AC, 60Hz, 30A

  • AC Single Port: 2400W, 120V AC, 60Hz, 20A

  • AC TT-30R: 3600W, 120V AC, 60Hz, 30A

  • Total Combined Output: 4189W

  Battery

  • Chemistry: LiFePO₄

  • Capacity: 3993.6Wh (51.2V, 78Ah)

  • Single Cell Equivalent: 1248Ah @ 3.2V

  • Lifecycles: 4000 (to 80% capacity)

  • Shelf Life: 12–18 months

  Charging Speed

  • Solar (3000W Max): 2 hrs

  • 400W (Boulder 200 x2): 12 hrs

  • 600W (Boulder 200 x4): 6 hrs

  • 1200W (Ranger 300 x4): 4 hrs

  • Car Charger (10A): 37 hrs

  • Vehicle Alternator (400W): 11 hrs

  General

  • Dimensions: 21.4 × 13.8 × 14.8 in (54.3 × 35.1 × 37.7 cm)

  • Dimensions (with cart): 21.4 × 13.8 × 18.1 in (54.3 × 35.1 × 45.9 cm)

  • Weight: 115.7 lbs (52.5 kg) | With cart: 125.7 lbs (57.0 kg)

  • Operating Temp: Charge 32–125.6°F (0–52°C), Discharge -4–140°F (-20–60°C)

  • Warranty: 5 Years

  • Communication: Bluetooth 4.1, Wi-Fi a/g/n (Goal Zero App)

  ---

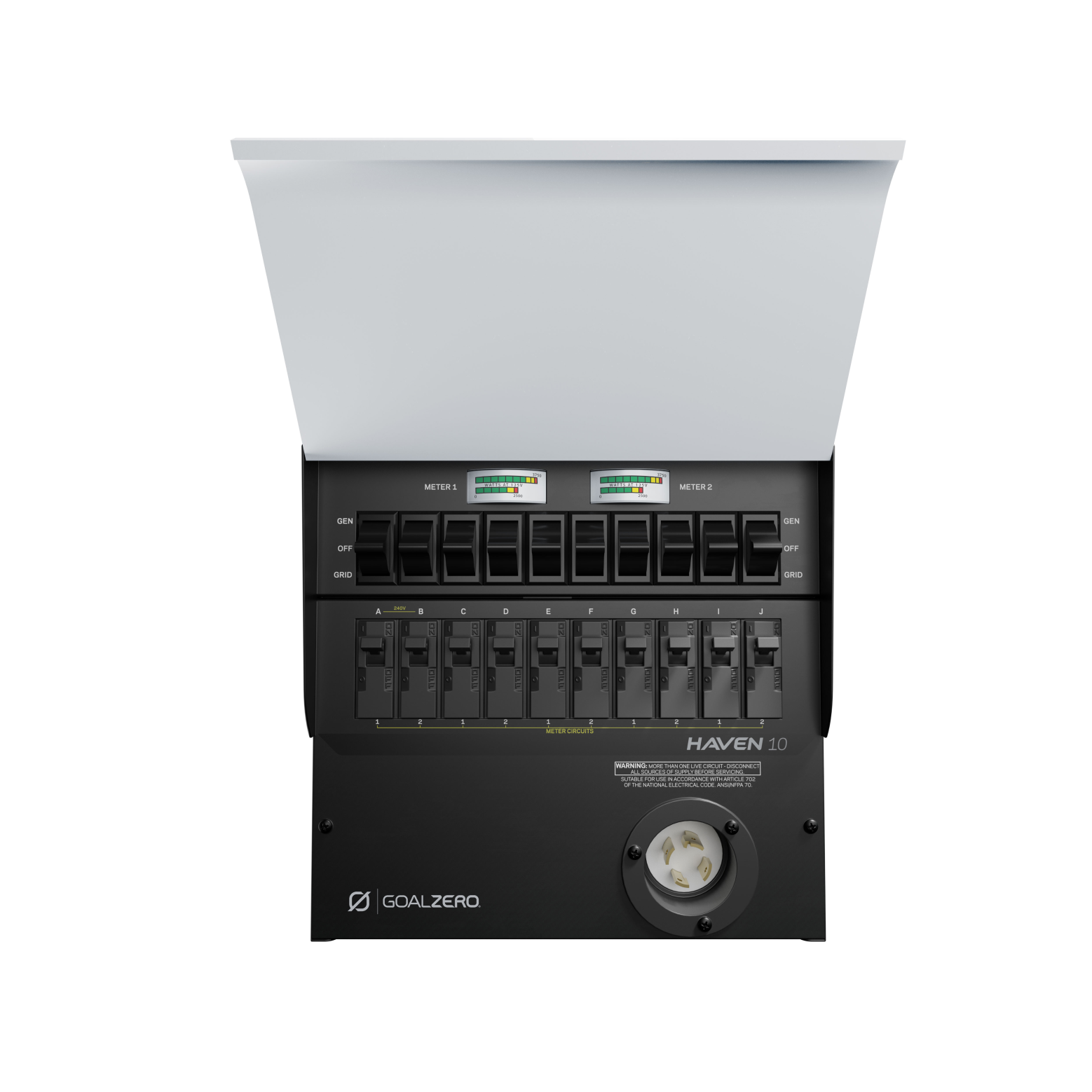

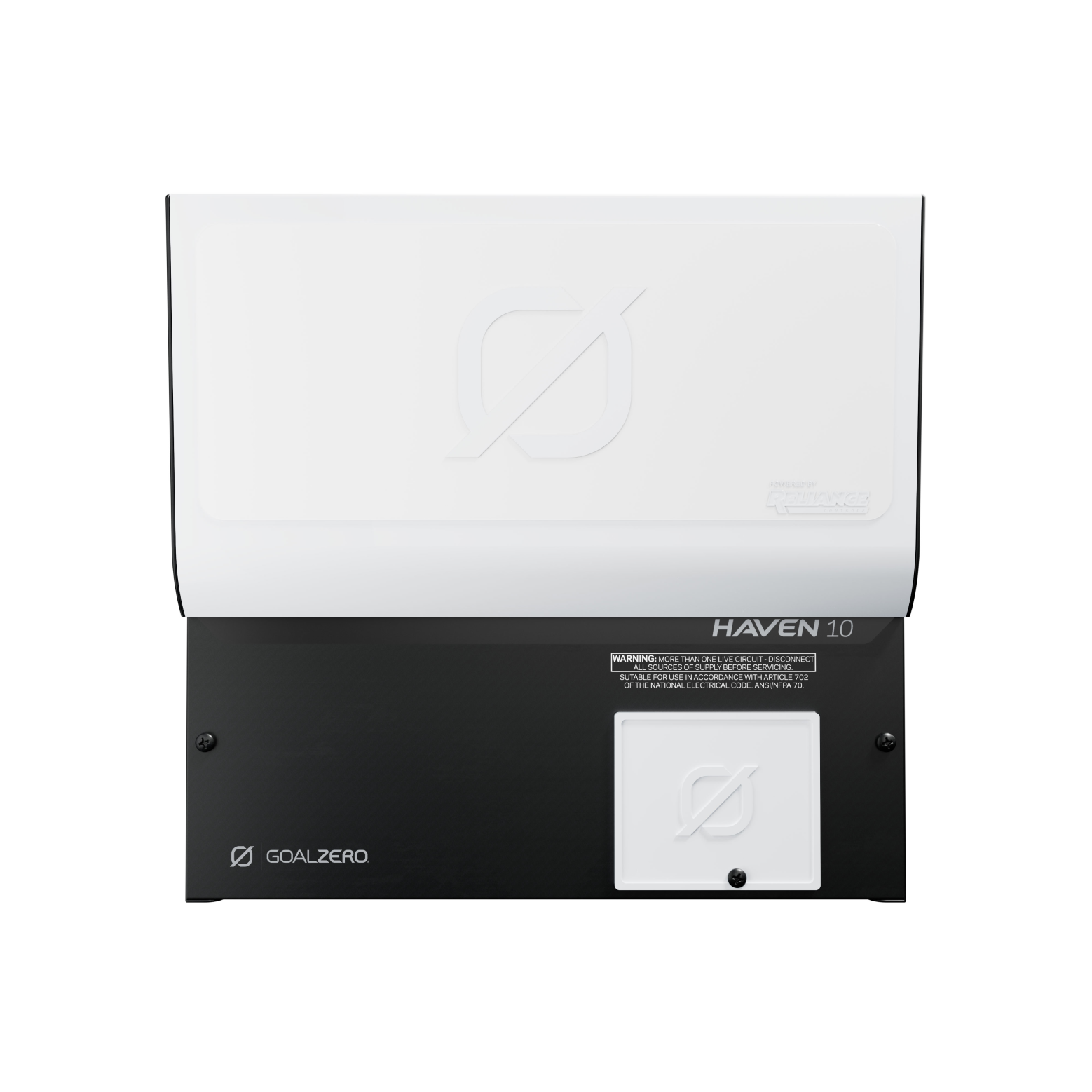

  HAVEN 10

  Ports & Circuits

  • Max Circuits: 10 (Single-Pole)

  • Circuit Breaker Ratings: 6 × 15A, 4 × 20A

  • Max Supported Breakers: 2 × 30A, 8 × 20A

  • Total Power: 7500W

  • Power Inlet: NEMA L14-30R

  • Protection: Breaker on each circuit

  General

  • Dimensions: 11.8 × 11 × 4.5 in (29.9 × 27.9 × 11.4 cm)

  • Weight: 13 lbs (5.9 kg)

  • Conduit: 18 in (45.7 cm), 1 in (2.5 cm) size

  • Warranty: 5 Years

  • Made in USA | UL Listed

  • Compatibility: Yeti PRO 4000

  Cables

  • 3600W Pass-Through Cable: 8 ft, 10AWG, 40A

  • Yeti PRO 4000 to Haven 10 Cable: 10 ft, TT-30P (Yeti) to L14-30 (Haven)

  ---

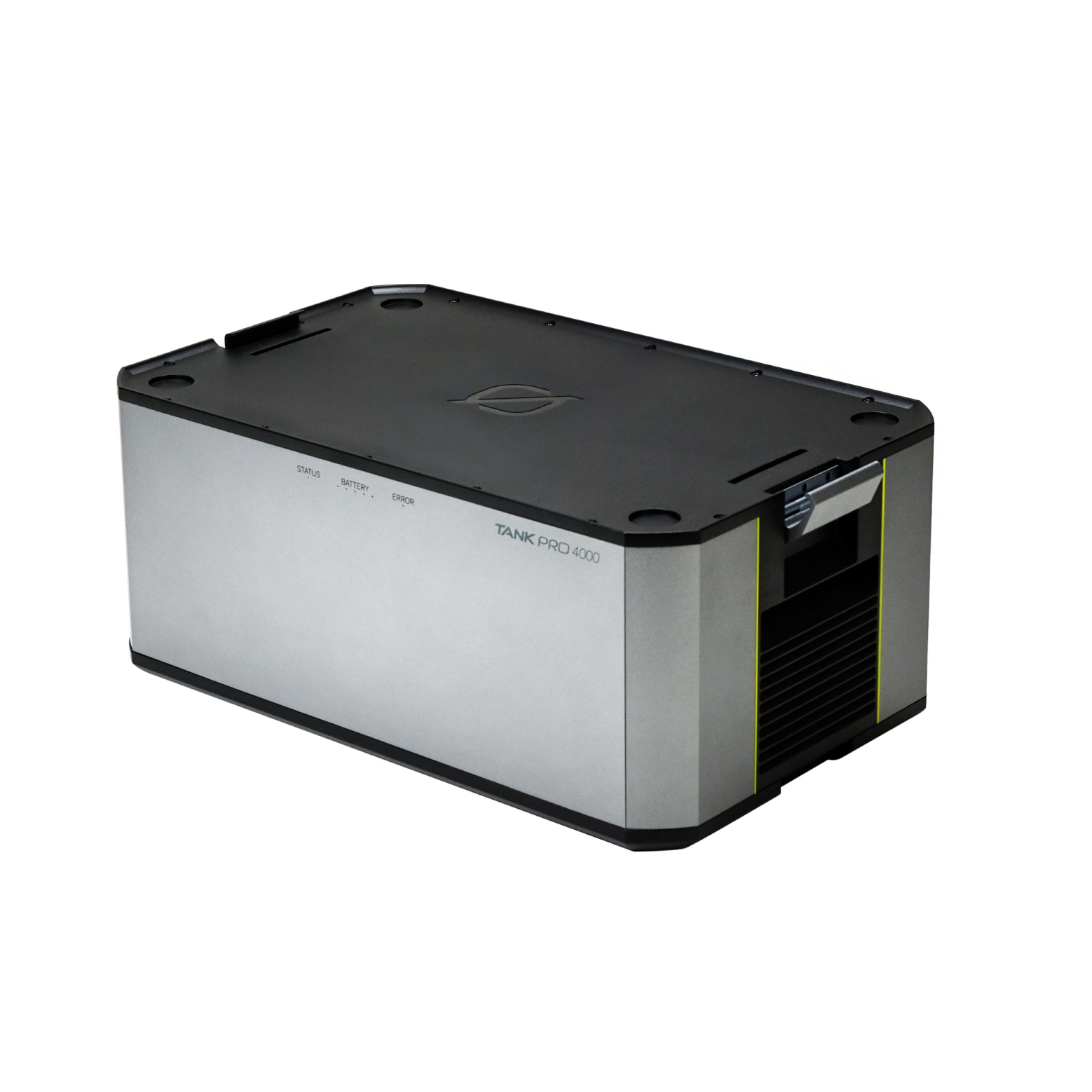

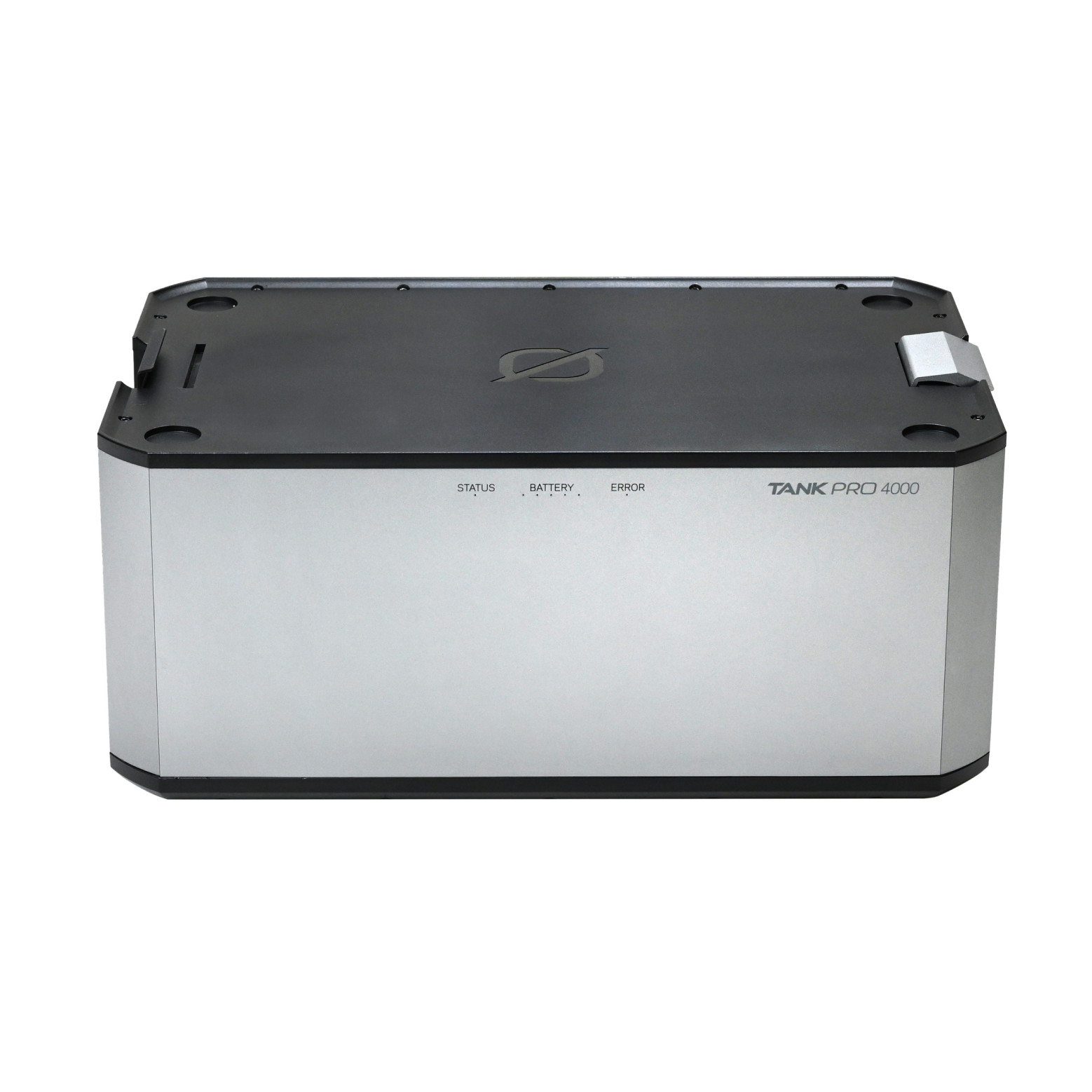

  TANK PRO 4000

  Ports

  • Accessory Cable (Built-In): 3600W, 60V, 75A, 30 in length, 17mm diameter

  • Accessory Port: 3600W, 60V, 75A

  Battery

  • Chemistry: LiFePO₄

  • Capacity: 3994Wh (51.2V, 78Ah)

  • Single Cell Equivalent: 5120Ah @ 3.2V

  • Lifecycles: 4000 (to 80% capacity)

  Charge Time

  • Via Yeti AC Fast Charge: 6.25 hrs

  General

  • Dimensions: 21.4 × 13.8 × 9.2 in (54.3 × 35.1 × 23.3 cm)

  • Weight: 80.3 lbs (36.4 kg)

  • Operating Temp: Charge 32–125.6°F (0–52°C), Discharge -4–140°F (-20–60°C)

  • Warranty: 5 Years

  • Compatibility: Works with Yeti PRO 4000
