20-Amp Charge Controller

• 20A Charge Controller
  Regulates and monitors solar input for 12V batteries. Built with a High Power Port connector, LED screen, and IP65-rated weather resistance.

  Features

  • Ideal for solar charging above 100W (use 10A controller for 100W or less).

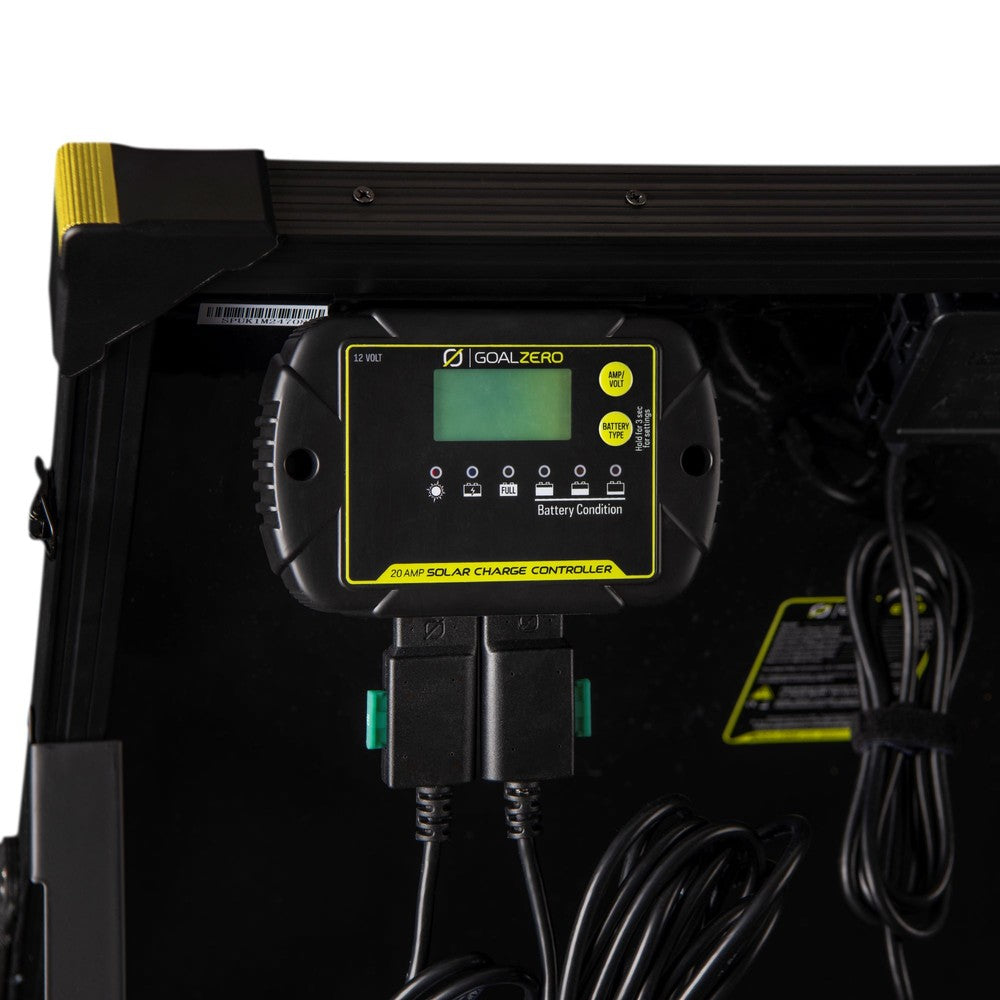

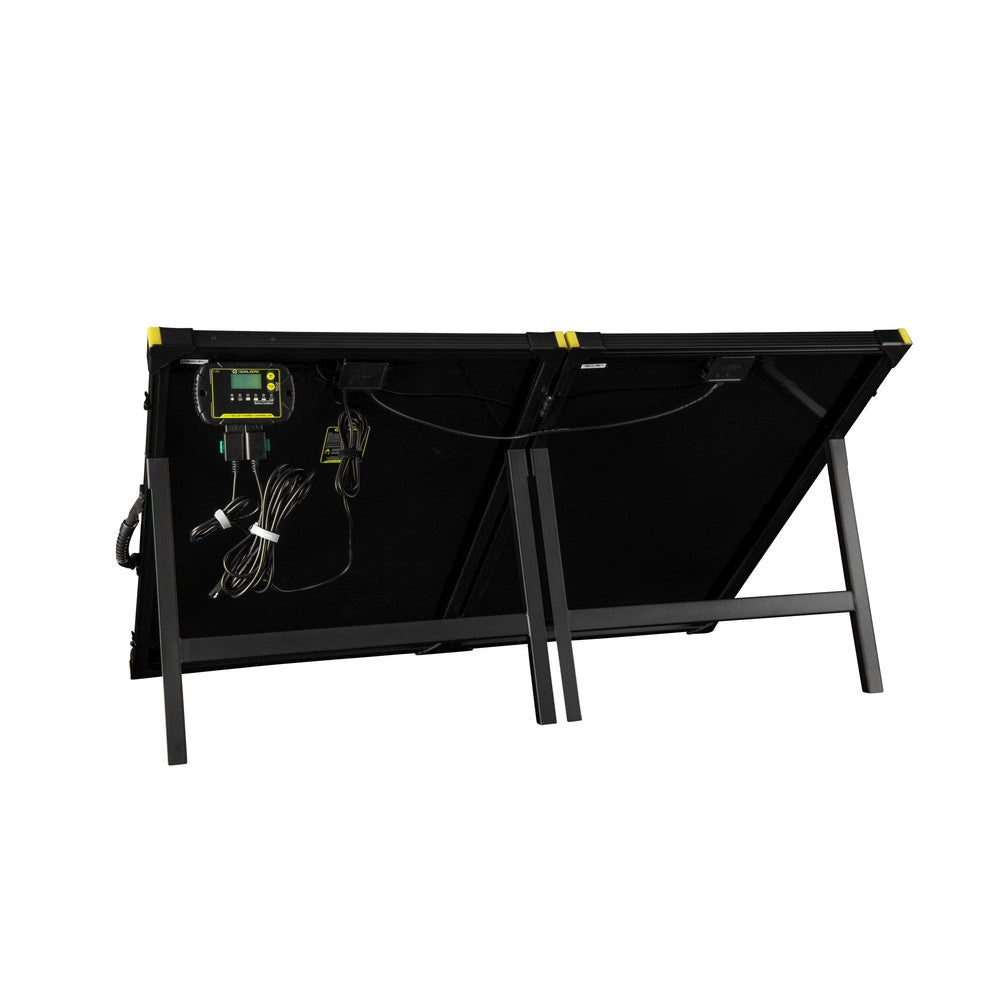

  • Connects directly with Boulder 200 solar panels.

  • Requires additional SAE cables to connect to 12V batteries.

  • Not compatible with Yeti X Power Supply.

  Included

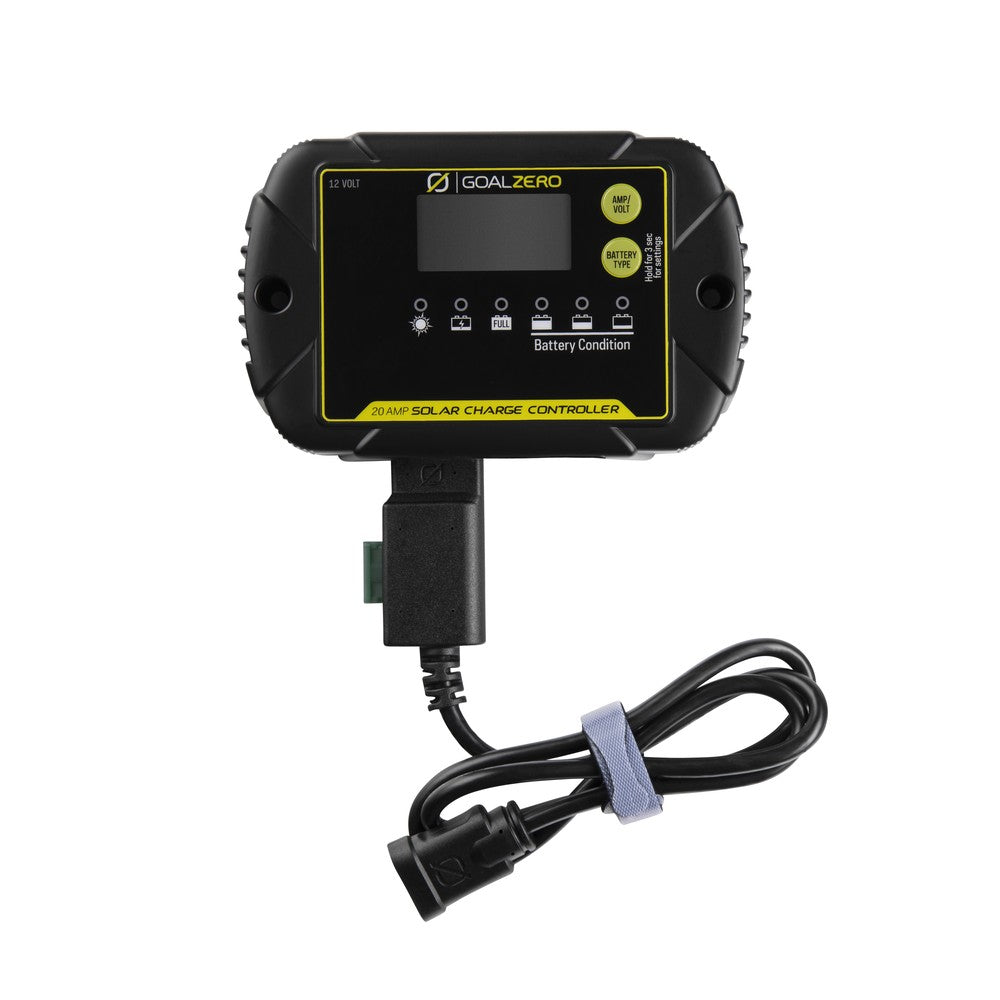

  • 20A Charge Controller

  • Spade to HPP Cable

tech

PORTS

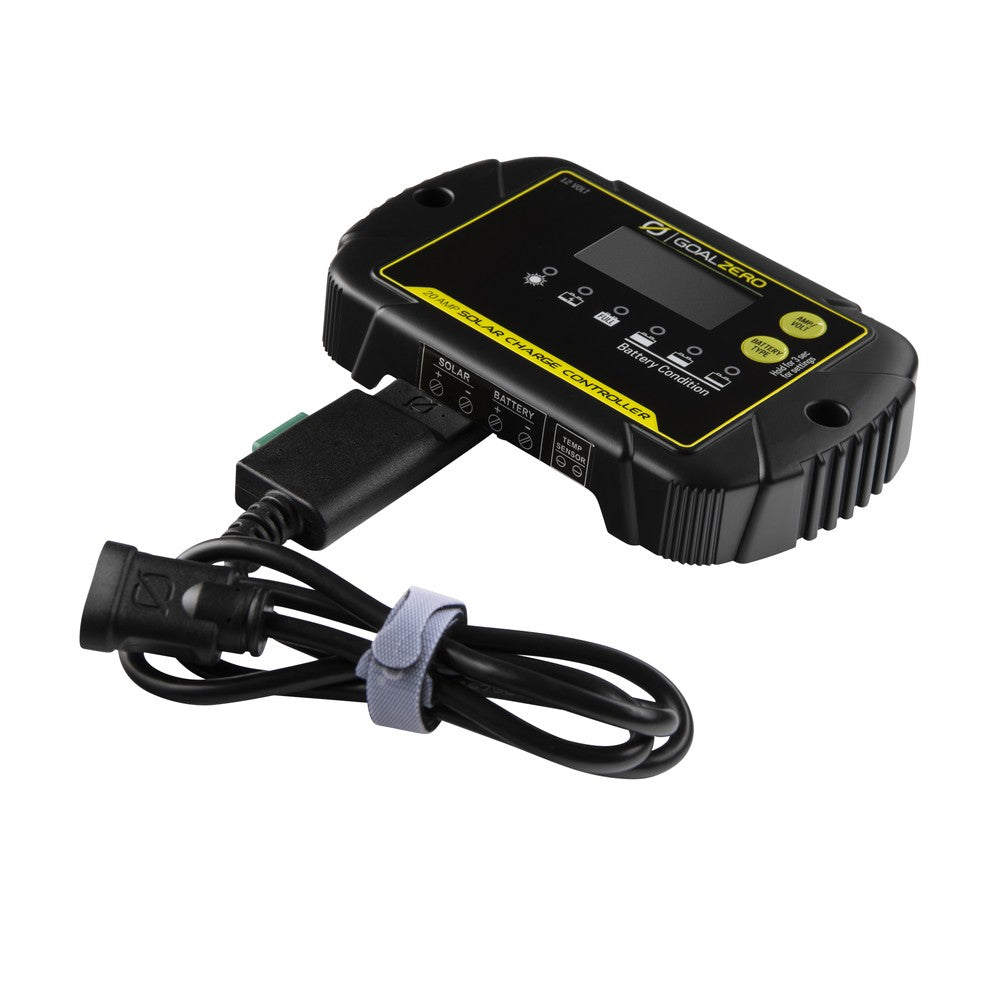

• Input/Output terminal: M5 terminals
• Solar Input Port (High Power Port): 14-23V, up to 14A
• Fuse: 25A replaceable

GENERAL

• Product SKU: 96110
• Weight: 17.6 oz (499 g)
• Dimensions: 6.10 x 3.90 x 1.02 in. (15.5 x 9.91 x 2.6 cm)
• IP Grade: IP65
• Spade to HPP Cable Length: 3 ft
• Operating temperature: -25 to 50°C/ -13 to 122°F
• Warranty: 2 Years
• Certs: IC, FCC, CE-EMC, CE-LVD

BATTERY DETAILS

• Charge Controller: PWM
• Rated solar panel amps GZ-10: 20A
• Normal input solar cell array voltage: 15-22V
• Max solar cell array voltage (output has no load): 25V
• Lowest operating voltage at solar or battery side: 8V Minimum
• Charging Characteristics:
• Start Voltage at 25°C: 3-10V
• Charge Voltage at 25°C:
• LTO battery: 14.0V
• Gel battery: 14.1V
• LiFePO4 battery: 14.4V
• Charge Voltage at 25°C: AGM battery-14.4V
• WET battery: 14.7V
• Calcium battery: 14.9V
• Equalizing Voltage at 25°C: WET or Calcium battery-15.5V
• Float Voltage at 25°C:
• Gel, AGM, WET, Calcium batteries-13.6V
• LTO and LiFePO4 batteries-13.4V
• Battery temperature compensation
  coefficient: -24mV/°C
