20 kWh Haven Home Backup

• Short Description

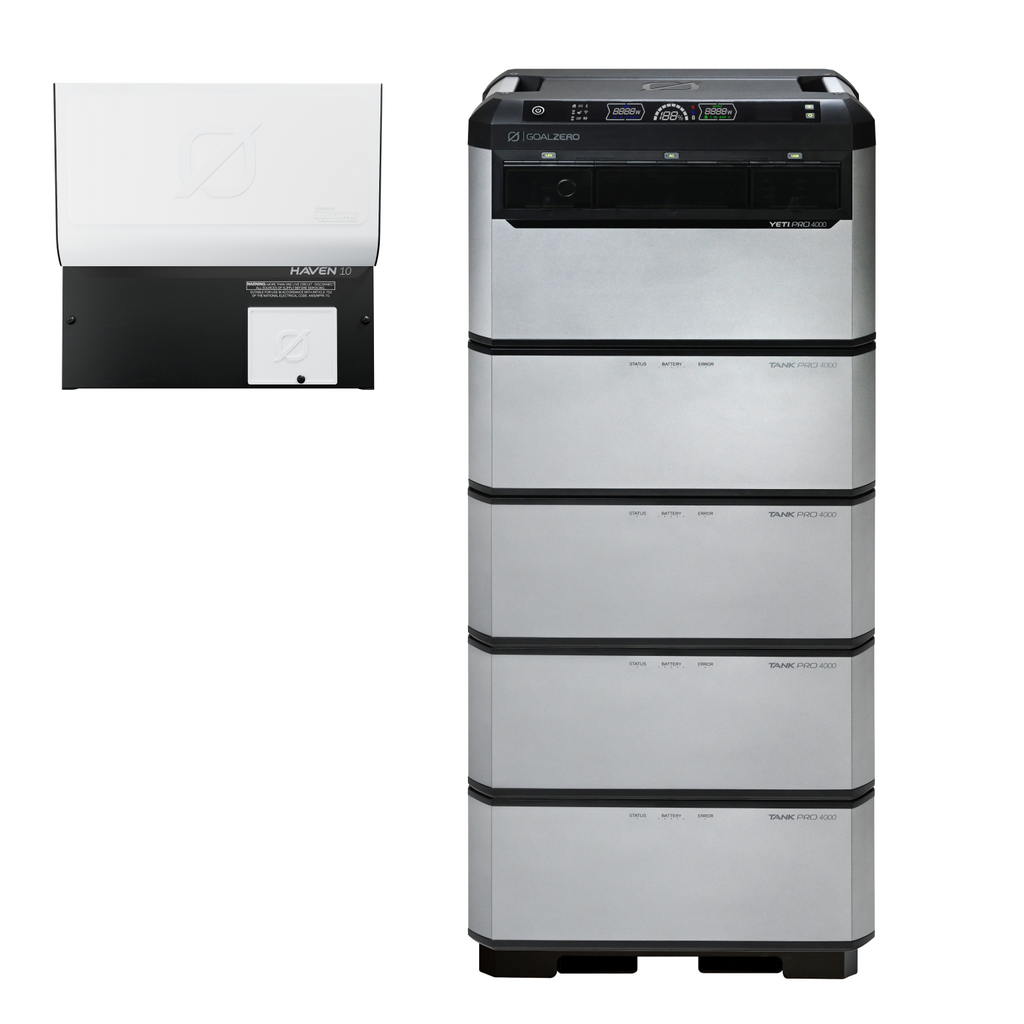

  A powerful home backup system delivering about 20,000 watt hours of energy with support for up to 10 essential circuits. Includes the Yeti PRO 4000, four Yeti PRO Tank Batteries, and the Haven 10 transfer switch—keeping your home running smoothly through any outage.

  ---

  Box 2 – Haven 10 Highlights

  Customized Backup During Outages
  Pair the Haven 10 with your Yeti PRO 4000 to power critical home circuits during blackouts.

  Cover 10 Essential Circuits
  Choose up to 10 circuits to back up—such as your Wi-Fi, refrigerator, living room, or kitchen outlets.

  Convenient Setup
  Keep your Yeti PRO in one spot, connected to the Haven 10, for whole-home coverage instead of powering items one by one.

  Automatic Power Switching
  Switches to backup power in under 10 milliseconds when the grid goes down—fast enough that you may not even notice the outage.

• TANK PRO 4000 HIGHLIGHTS

  Modular Scalability
  Start with one or two expansion batteries today and easily add more as your power needs grow.

  Increased Capacity
  Delivers greater capacity than older models, giving you the ability to run essentials for days at a time.

  Easy Integration

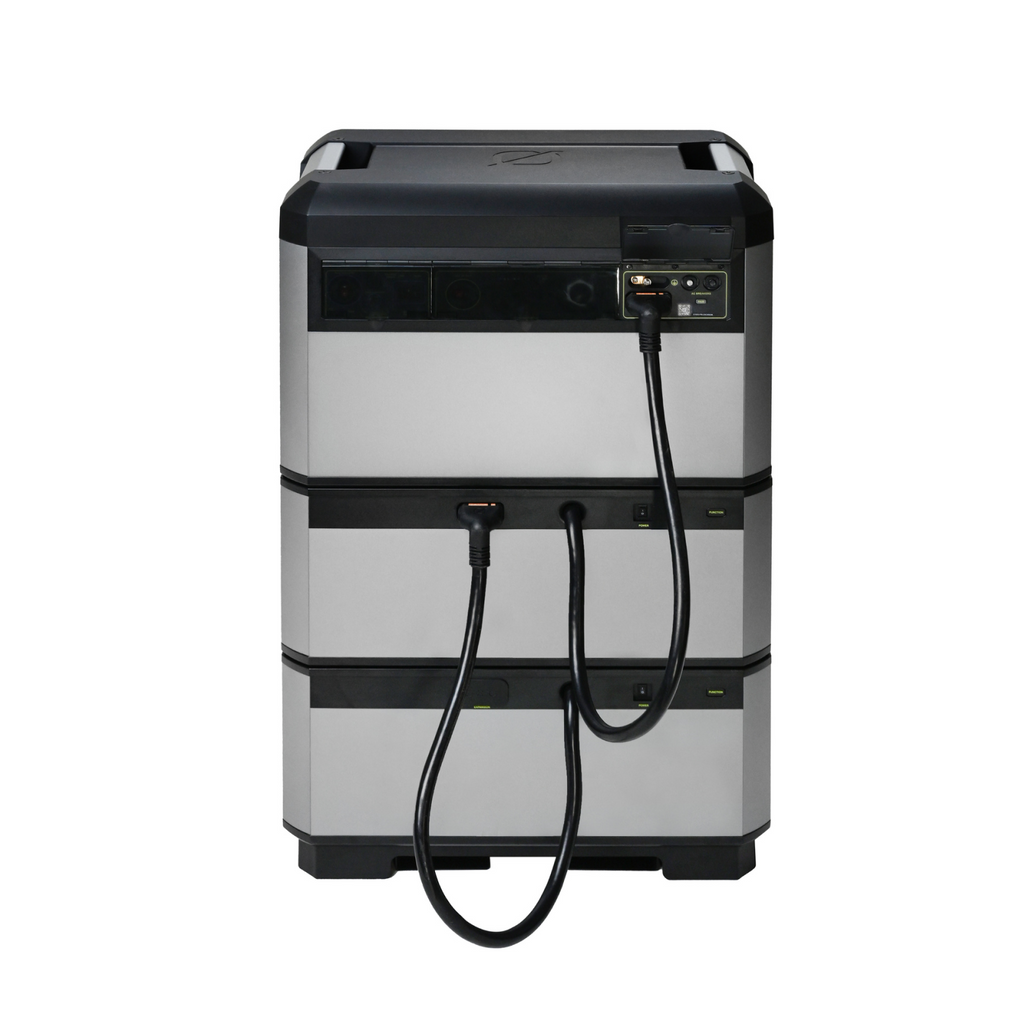

  Pairs seamlessly with the Yeti PRO 4000, operating as a single system that charges and discharges together.

  Long Lifespan
  Upgraded LiFePO₄ technology provides up to 8x longer lifespan than previous expansion batteries, ensuring reliable backup power for years.

GOAL ZERO POWER APP

The redesigned Goal Zero App works seamlessly with the Yeti PRO 4000. Monitor, control, and track your power usage from anywhere—check battery levels, view power flow, turn ports on or off, and compare real-time and historical energy data. Select from Performance, Battery Saver, or Balance modes to match your needs.

TURN YOUR YETI INTO A SOLAR GENERATOR

Go fully off-grid by pairing your Yeti with solar panels. Choose from ground-deployable panels, rooftop mounts for vehicles and off-grid cabins, or lightweight foldable panels for camping. Power your life sustainably, anywhere.

HOME BACKUP POWER

Cover up to 10 essential circuits in your home with our customizable backup power solutions. Pair your power station with the Haven 10 Manual Transfer Switch for seamless energy during outages. Keep lights on, fridges running, medical devices powered, and Wi-Fi connected, so you stay safe and comfortable when the grid goes down.

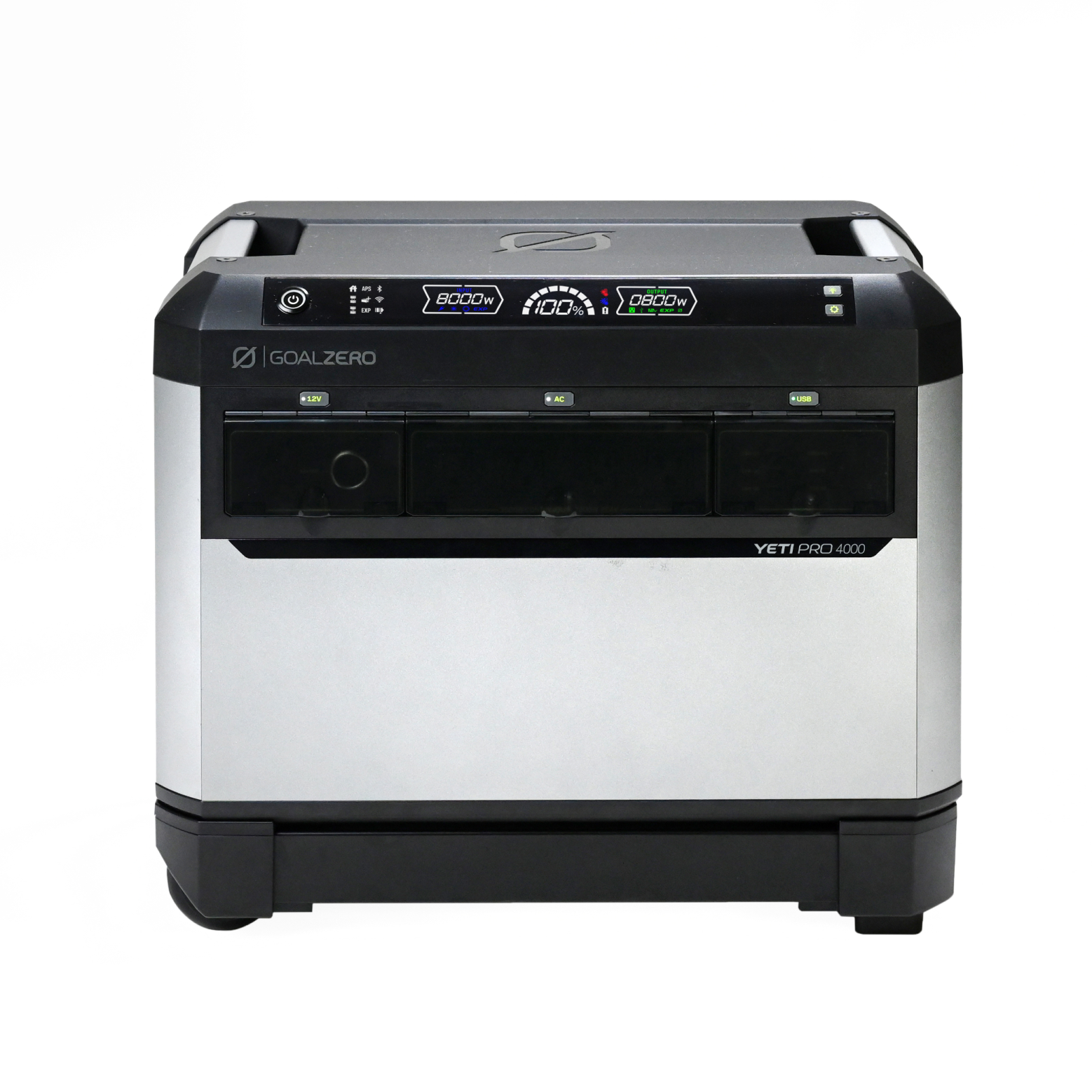

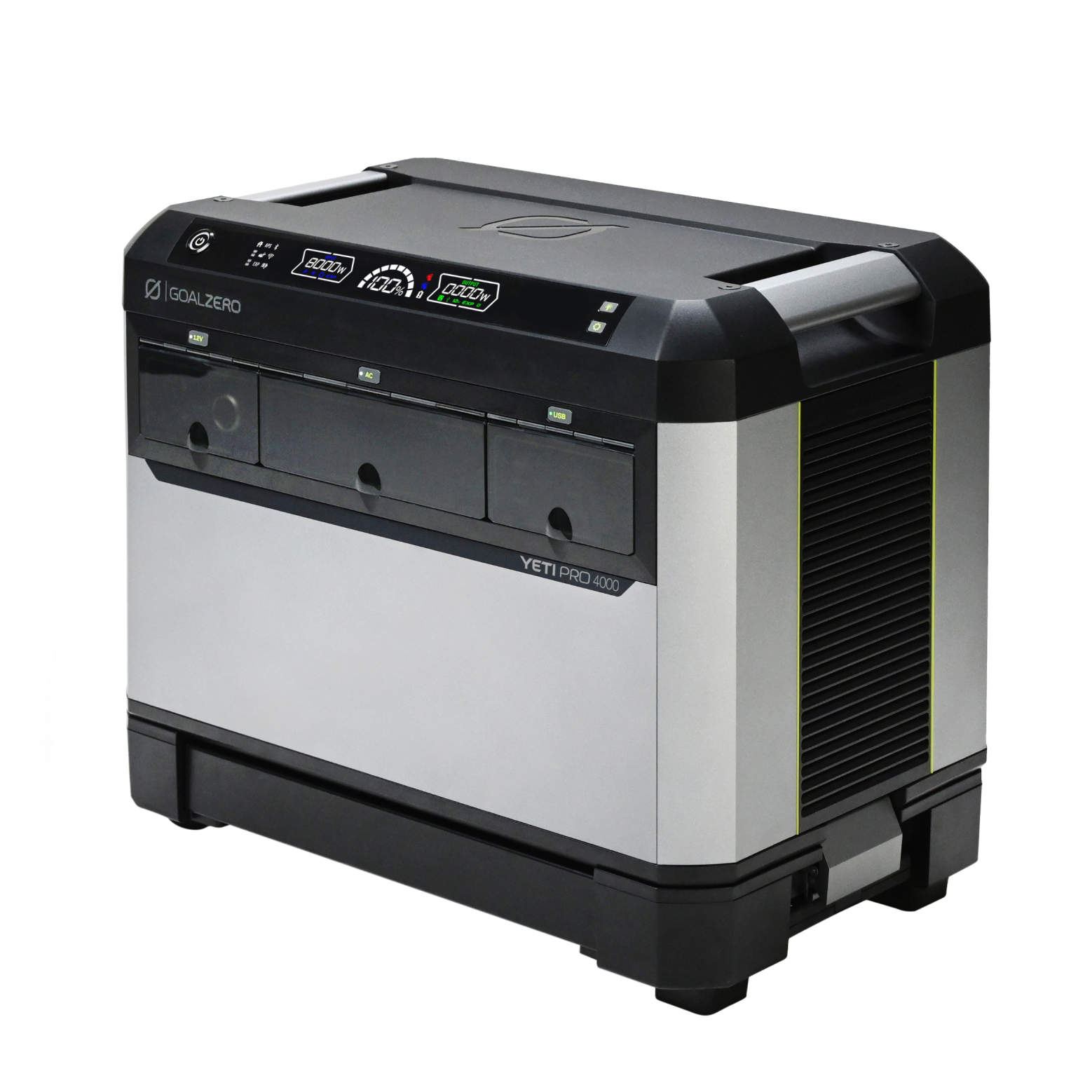

• Yeti PRO 4000 – Tech Overview

  Input Options

  • AC Fast Charge: 1800 W (90–144 V, 15 A)

  • Power+: 1800 W (90–144 V, 15 A)

  • HPP High Voltage: 3000 W max (13.3–150 V, 40 A)

  • 8 mm Input: 275 W max (12.3–28 V, 10 A)

  • Expansion Port: For Tank PRO 4000 (100 A, 100 V max)

  • Reunion Auto-Lock: 3000 W input (90–254 V, 30 A)

  Output Options

  • USB-A x3: 18 W each (54 W total)

  • USB-C: 100 W + (2x) 30 W (160 W total)

  • 12 V Ports: 375 W combined (Aux, HPP, 6 mm)

  • AC Inverter: 3600 W continuous, 7200 W surge (pure sine wave)

  • TT-30R: 3600 W, 120 V AC, 60 Hz, 30 A

  • Total Output: 4189 W

  Battery

  • LiFePO₄, 3994 Wh (51.2 V, 78 Ah)

  • 4000 lifecycles (to 80% capacity)

  • Shelf life: 12–18 months

  Performance

  • Solar (3000 W max): 2 hrs full charge

  • Vehicle Alternator (400 W): 11 hrs

  • AC Fast Charge: ~2 hrs

  • App: Bluetooth 4.1, Wi-Fi a/g/n

  General

  • SKU: 37500 | Kit SKU: 44594

  • Weight: 115.7 lbs (125.7 lbs with cart)

  • Size: 21.4 x 13.8 x 14.8 in. (18.1 in. w/ cart)

  • Warranty: 5 years

  ---

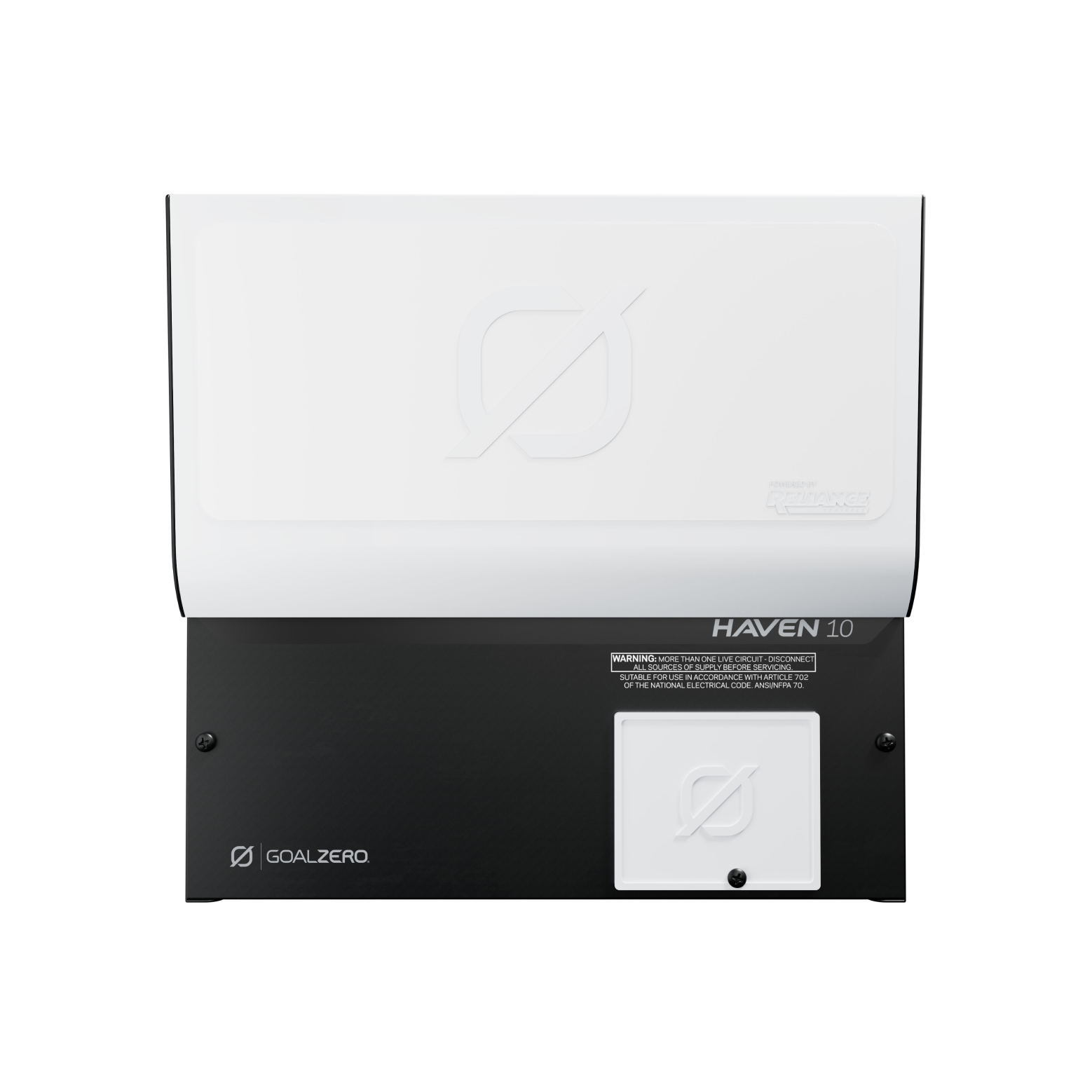

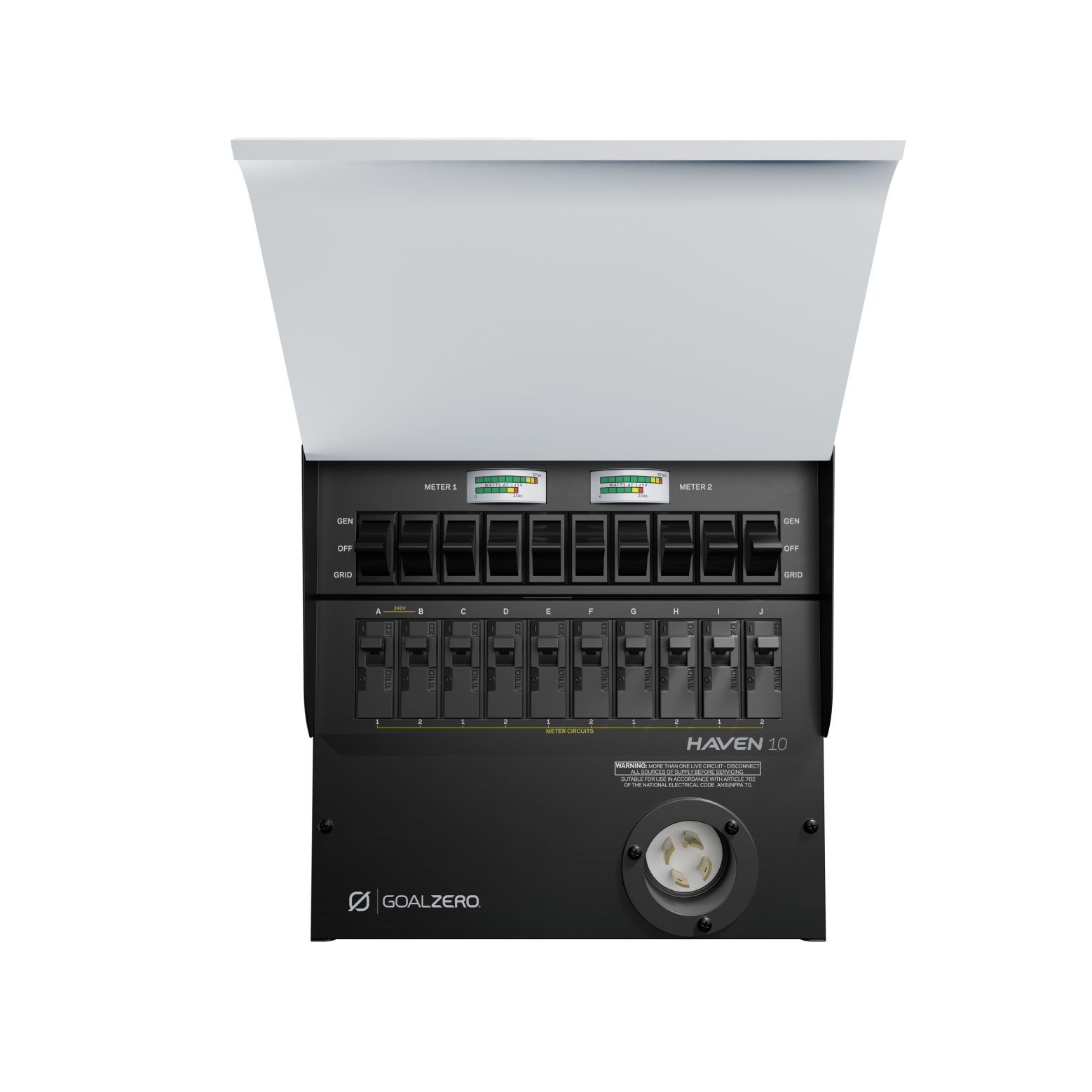

   Haven 10 – Tech Overview

  Capacity & Ports

  • Supports up to 10 single-pole circuits

  • Total Max Power: 7500 W

  • Circuit Breakers: 6x 15 A, 4x 20 A

  • Max Supported: 2x 30 A, 8x 20 A

  • Power Inlet: NEMA L14-30R

  • Cable: 10 ft (TT-30P → L14-30)

  General

  • SKU: 70050

  • Weight: 13 lbs

  • Dimensions: 11.8 x 11 x 4.5 in.

  • UL Listed | Made in USA

  • Warranty: 5 years

  ---

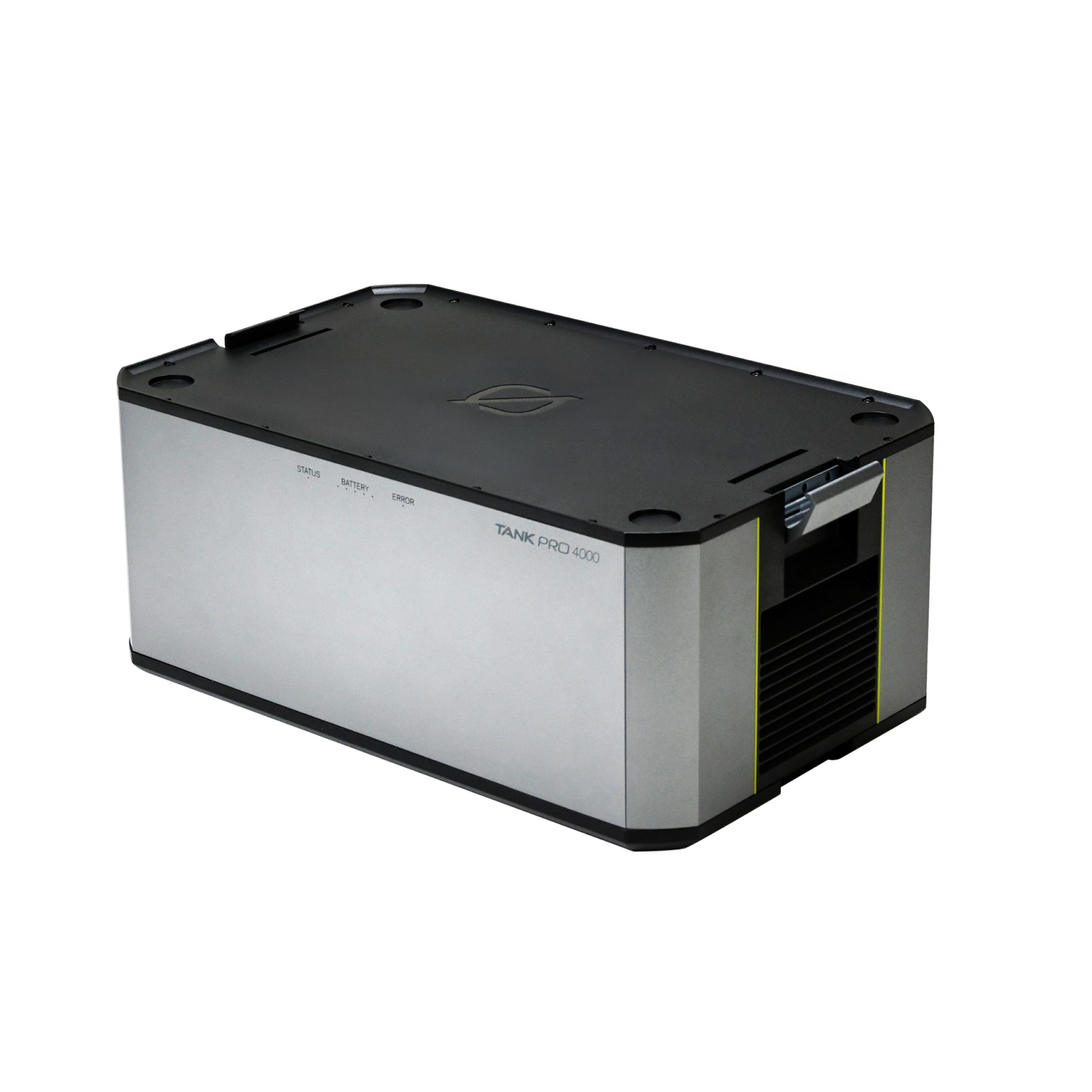

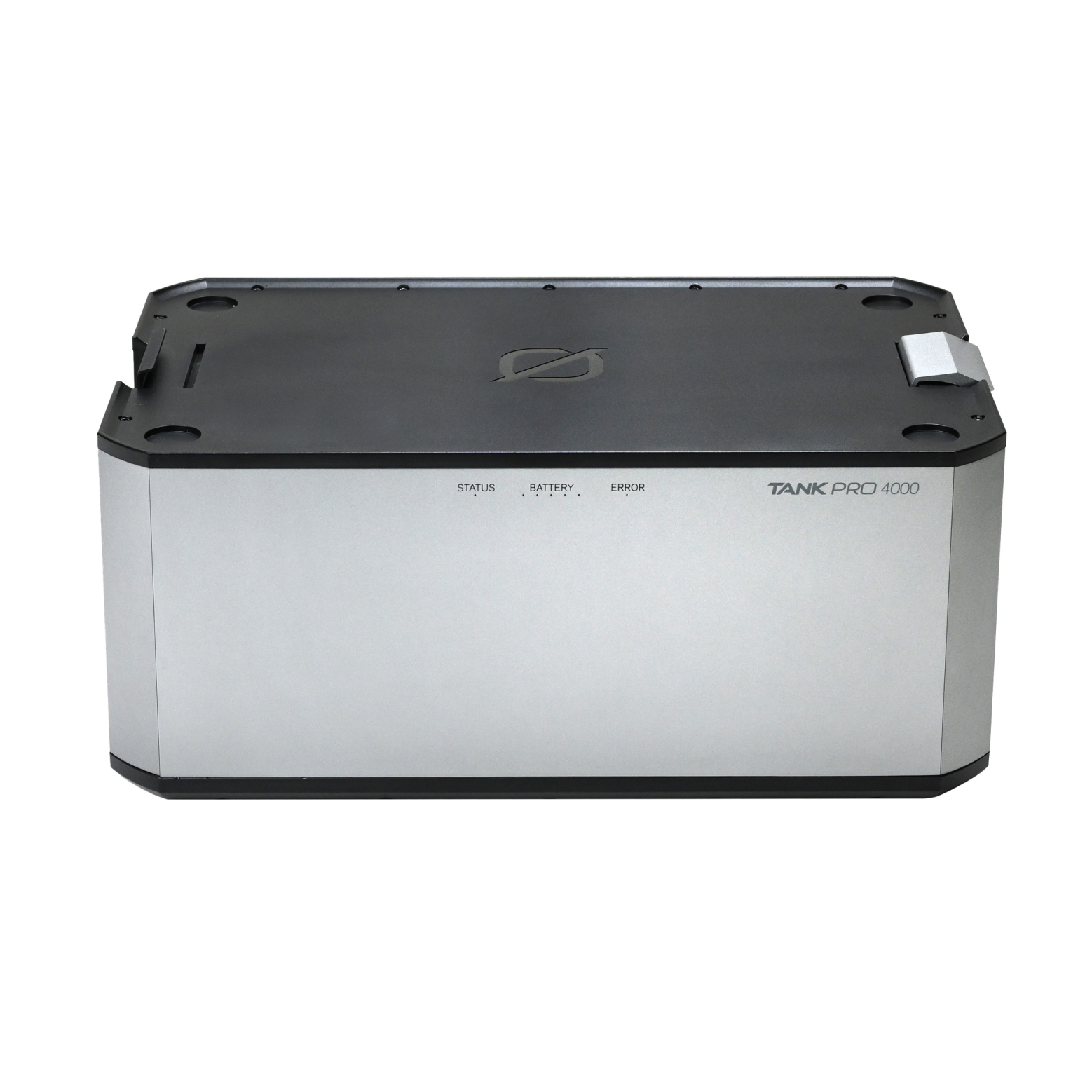

   Tank PRO 4000 – Tech Overview

  Battery & Ports

  • LiFePO₄, 3994 Wh (51.2 V, 78 Ah)

  • 4000 lifecycles (to 80% capacity)

  • Accessory Port: 3600 W, 60 V, 75 A

  • Cable: 30 in., 17 mm diameter

  Charge Time

  • Via Yeti AC Fast Charge: ~6.25 hrs

  General

  • SKU: 23110

  • Weight: 80.3 lbs

  • Dimensions: 21.4 x 13.8 x 9.2 in.

  • Warranty: 5 years

  • Compatible with Yeti PRO 4000
