3900Wh Home Backup System

• 3,900Wh Backup Bundle

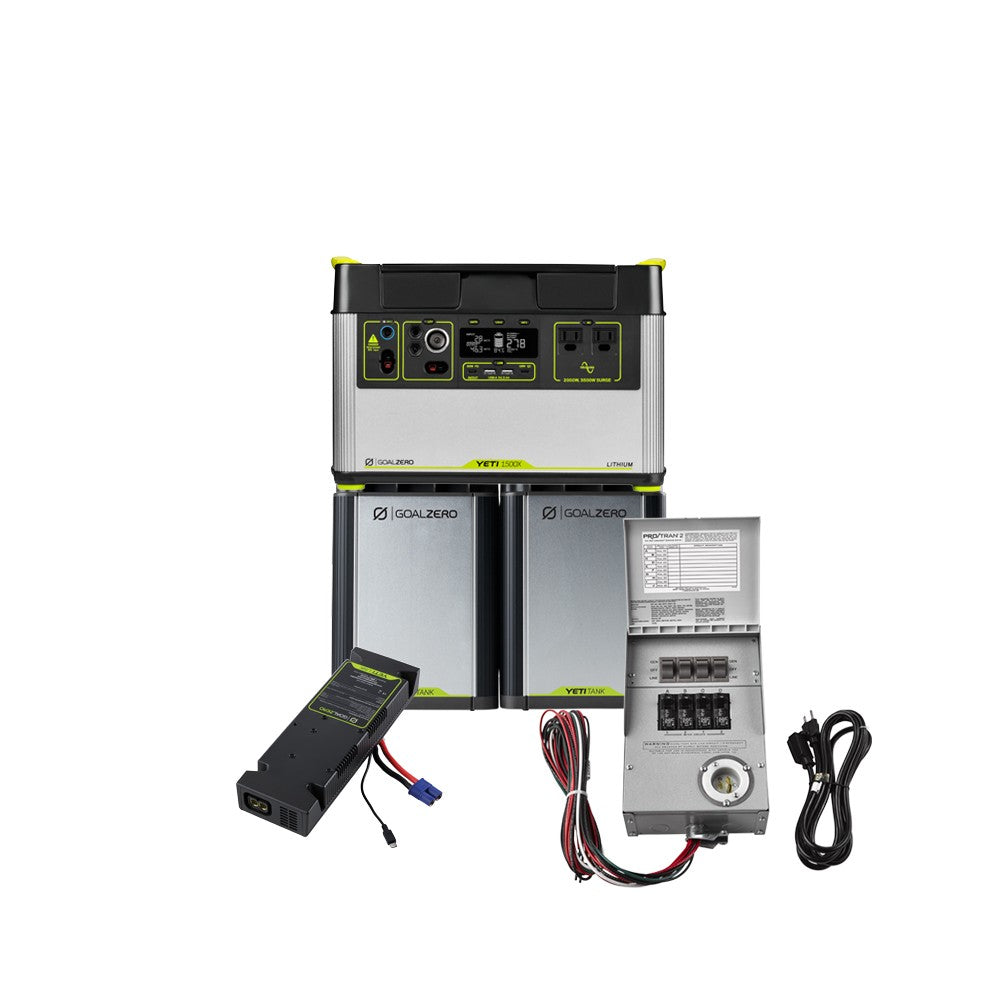

  A portable home energy kit with the Yeti 1500X, Home Integration Kit transfer switch, two Yeti Tank Expansion Batteries, and the Link Expansion Module—delivering safe, reliable backup power.

  ---

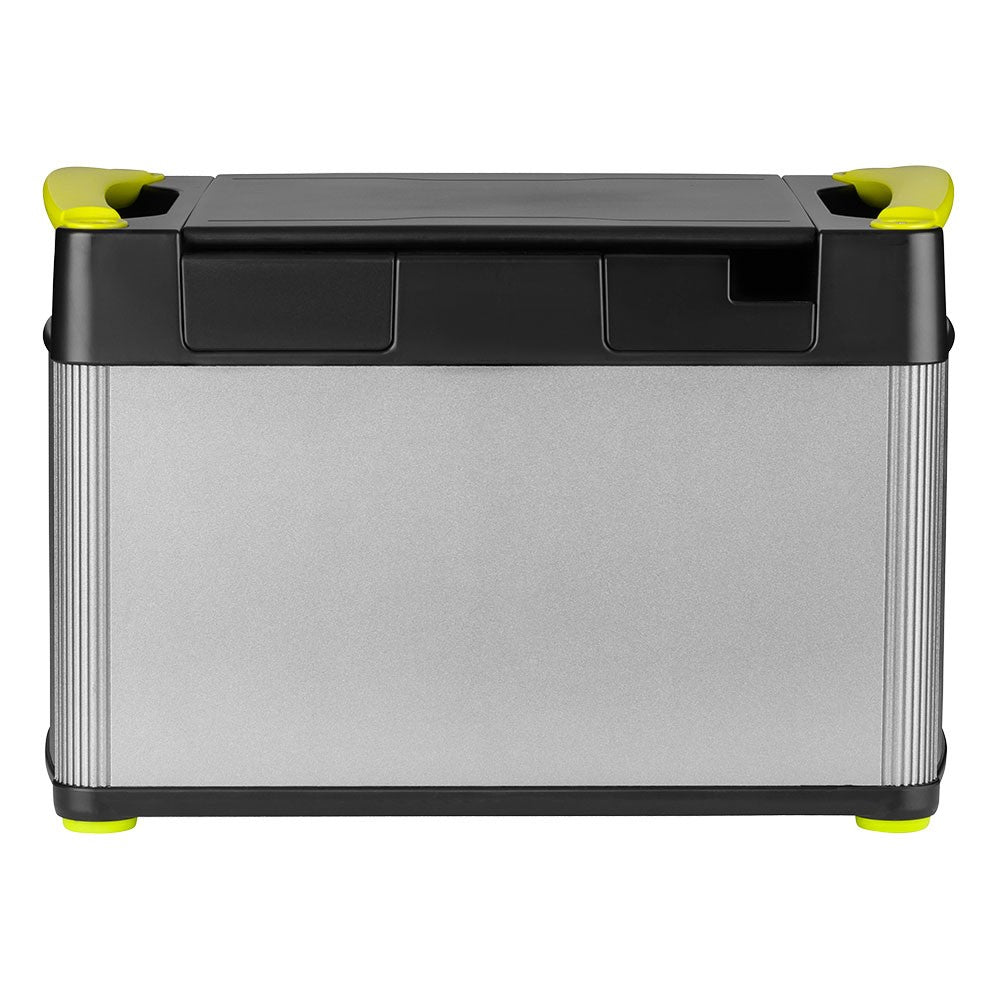

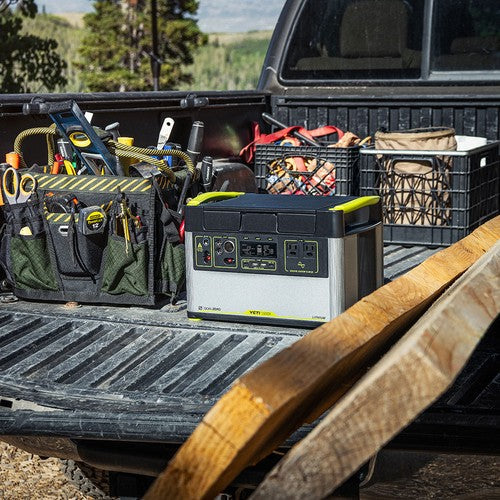

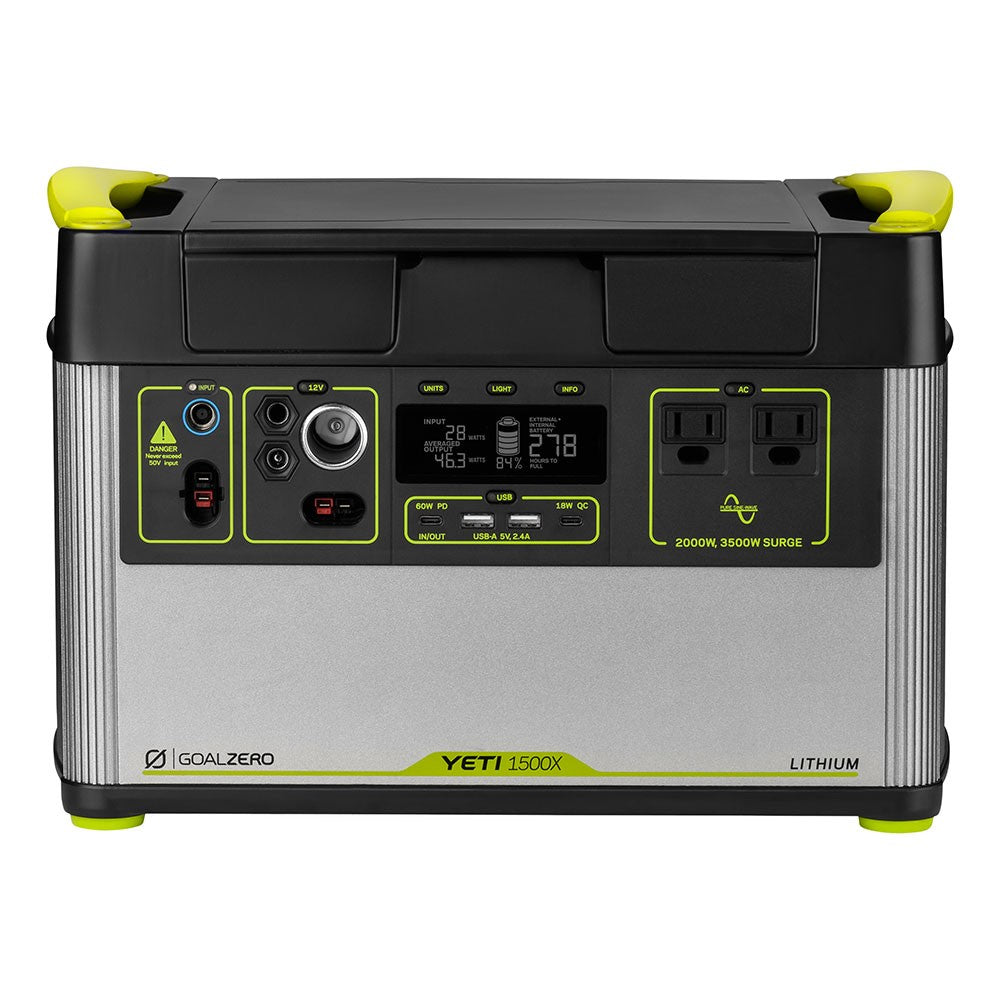

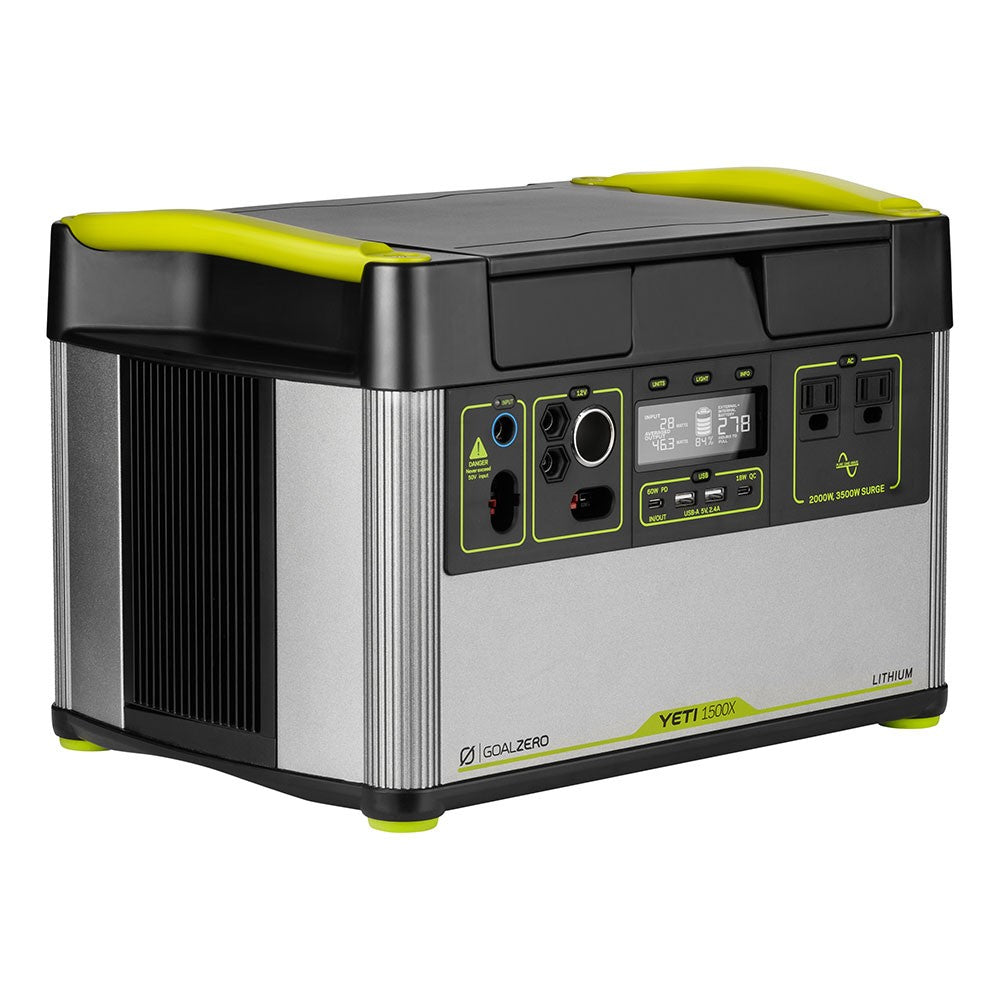

  Yeti 1500X Highlights

  • Gas-Free Power: Clean lithium-ion battery for home, work, or off-grid use.

  • Strong Output: 2000W AC inverter (3500W surge) handles fridges, tools, and medical devices.

  • Multiple Ports: Includes USB-C PD (60W), USB-A, regulated 12V, and dual 120V AC.

  • Flexible Charging: Solar-ready with MPPT efficiency or recharge via wall outlet.

  • Smart Control: Yeti App 3.0 lets you monitor and manage usage remotely.

  ---

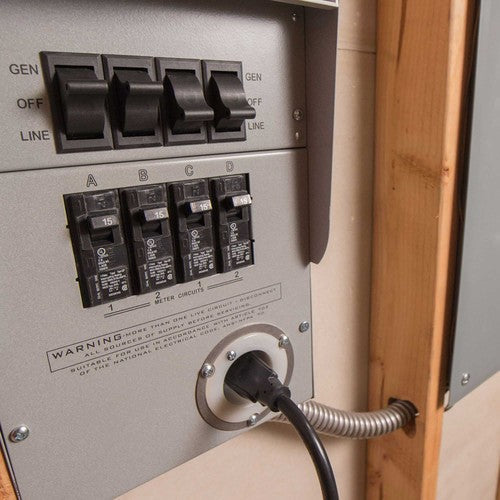

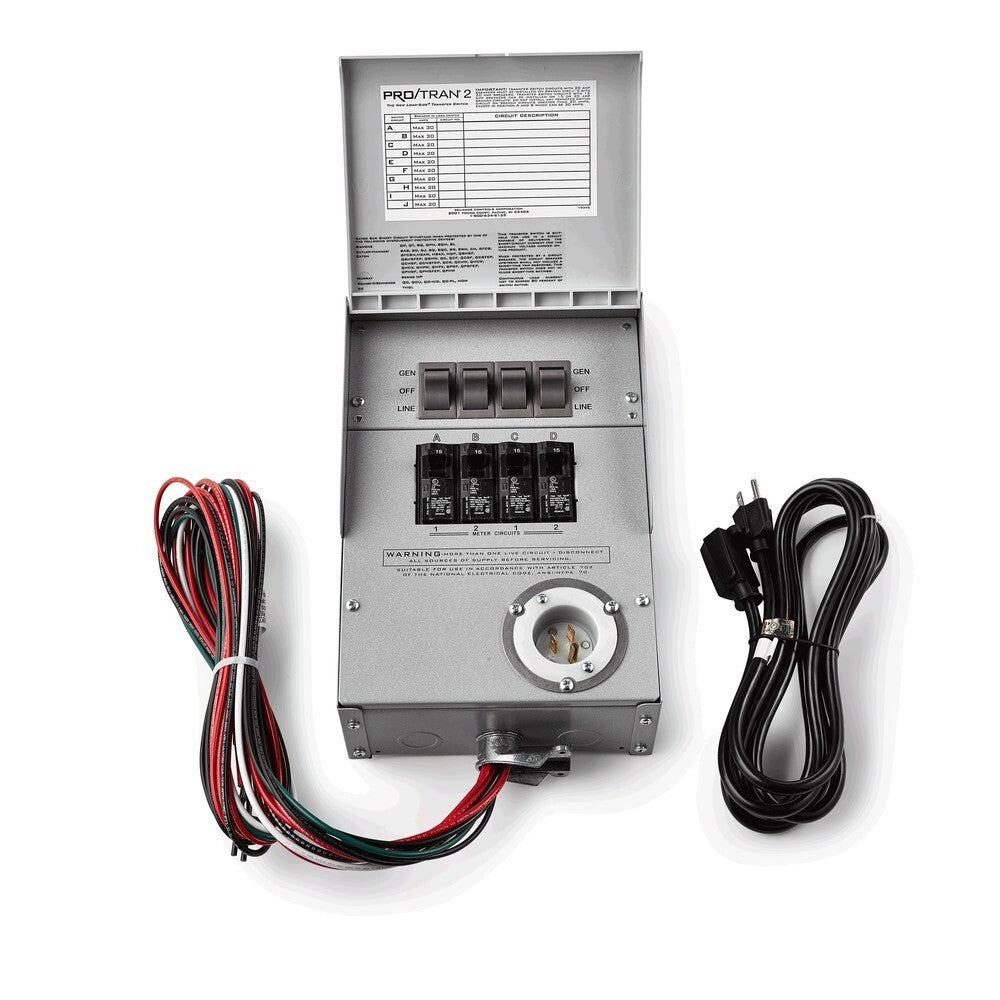

  Home Integration Kit Highlights

  • Custom Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit transfer switch.

  • Flexible Setup: Power up to four essential home circuits (fridge, garage, outlets, lights).

  • Extension Cable: 10 ft. 14AWG cord connects your Yeti station with ease.

• BACK UP YOUR HOME

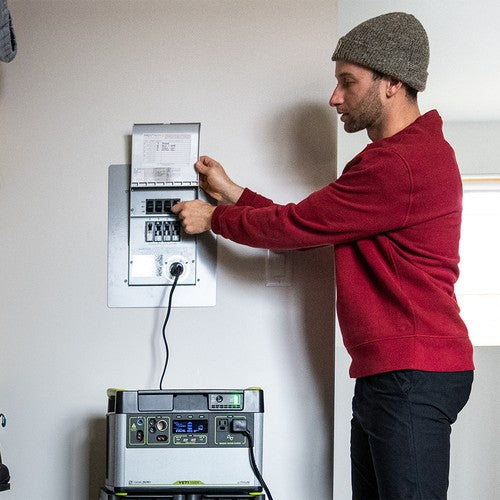

  A flexible energy storage system that supports four essential circuits and expands as your needs grow. Power critical items like lights, refrigerators, medical equipment, and internet modems. With the Yeti Home Integration Kit, it connects directly to your home’s circuits for smooth, reliable backup power.

• Tech 1 – Recharge & Battery

  Recharge Times (0–100%)

  • AC Charging (max 600W input):
    • 120W (included): ~14 hrs
    • 230W (add-on): ~7 hrs
    • 600W (add-on): ~3 hrs

  • Solar Charging (max 600W input):
    • 100W panels: 18–36 hrs sunlight
    • 200W panels: 9–18 hrs sunlight
    • 400W panels: 4–8 hrs sunlight
    • 800W setups: 3–4 hrs sunlight
    • 1200W setups: ~3 hrs sunlight
    (Higher-rated systems above 600W improve chances of hitting max input in non-ideal conditions.)

  Battery Details

  • Type: Li-ion NMC

  • Capacity: 1516Wh (10.8V, 140.4Ah)

  • Equivalent: 421Ah @ 3.6V

  • Lithium content: 126g

  • Lifespan: ~500 cycles to 80% (1C discharge, 25°C)

  • Shelf life: Recharge every 3–6 months

  • Charge controller: MPPT

  Ports

  • Input:
    • 1× High Power port: up to 600W (14–50V, max 50A)
    • 2× 8mm ports: up to 150W each (14–50V, max 10A)

  • Input/Output:
    • 1× USB-C PD: 60W (5–20V, up to 3.0A), regulated

  • Output:
    • 2× AC: 2000W (3500W surge), pure sine, 120VAC 60Hz, 16.5A
    • 2× USB-A: 12W (5V, up to 2.4A), regulated
    • 1× USB-C: 18W (5–12V, up to 3.0A), regulated
    • 2× 6mm: 120W (12V, up to 10A), regulated
    • 1× Car port: 160W (12V, up to 13A), regulated
    • 2× High Power ports: 360W (12V, up to 30A), regulated
    • Expansion Module port (under lid, Goal Zero only)

  General

  • Kit SKU: 44530

  • Chainable: No

  • Simultaneous charge/discharge: Yes

  • Weight: 45.64 lbs (20.7 kg)

  • Dimensions: 15.25 × 10.23 × 10.37 in (38.74 × 25.98 × 34.54 cm)

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 24 months

  ---

  Tech 2 – HIK

  Ports

  • Voltage: 120V single-phase

  • Frequency: 60Hz

  • Rated output: 1875W

  • Current: 15A @ 120V

  • Circuit breakers: 4

  • Max generator input: 15A

  • Transfer switch circuits: 15A, 120V

  • Protection: each circuit individually

  General

  • Product SKU: 44060

  • Origin: USA

  • Weight: 9.5 lbs (4.3 kg)

  • Dimensions: 7.75 × 11.25 × 4.5 in

  • Enclosure: NEMA 1R

  • Conduit length: 18 in

  • UL Listed: Yes

  • Compatible with Yeti X & Lithium stations (1000W+)

  ---

  Tech 3 – Yeti Link & Power Supply

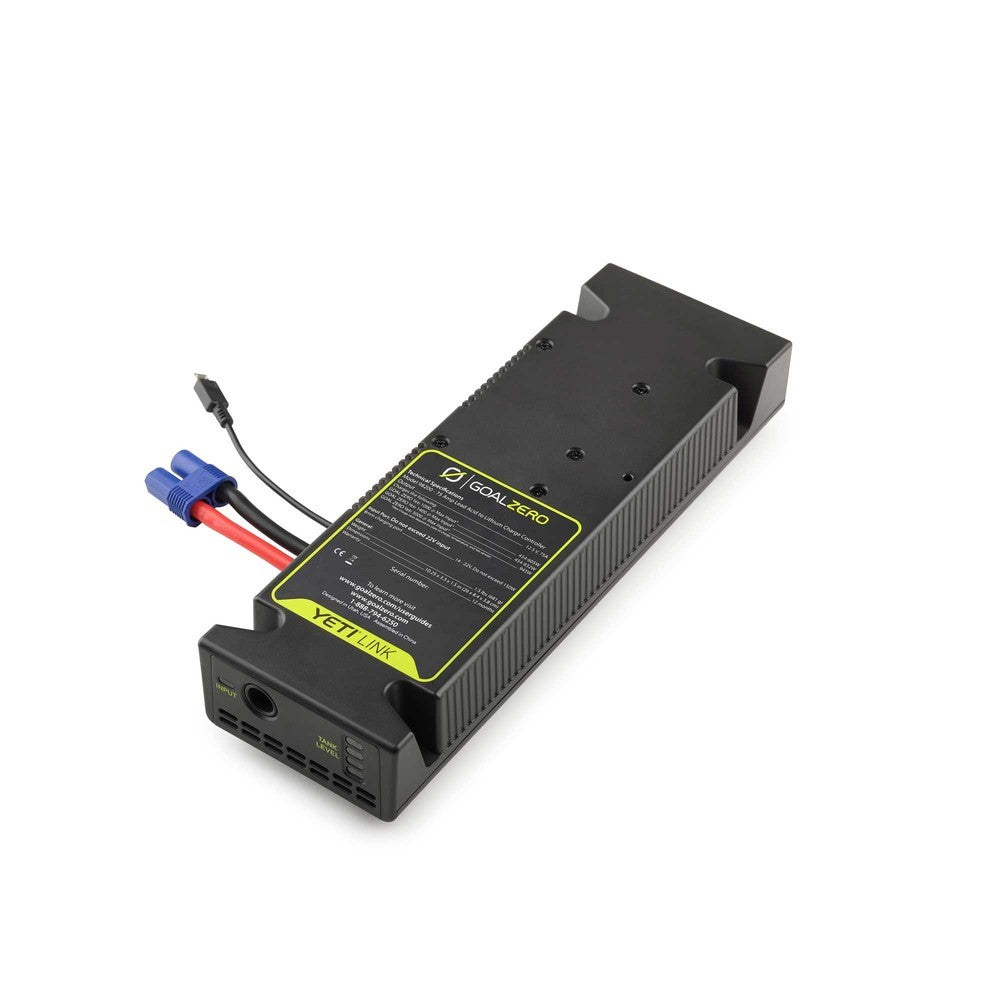

  Yeti Link

  • Product SKU: 98210

  • Weight: 1.5 lbs (680 g)

  • Dimensions: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

  • Warranty: 12 months

  Ports

  • Max input: 22V

  • 8mm charging port (input): 14–22V, up to 150W (10A) each

  • External battery connector (output): 65A charge controller

  • External battery connector (I/O): 10.7–15V, max 15V

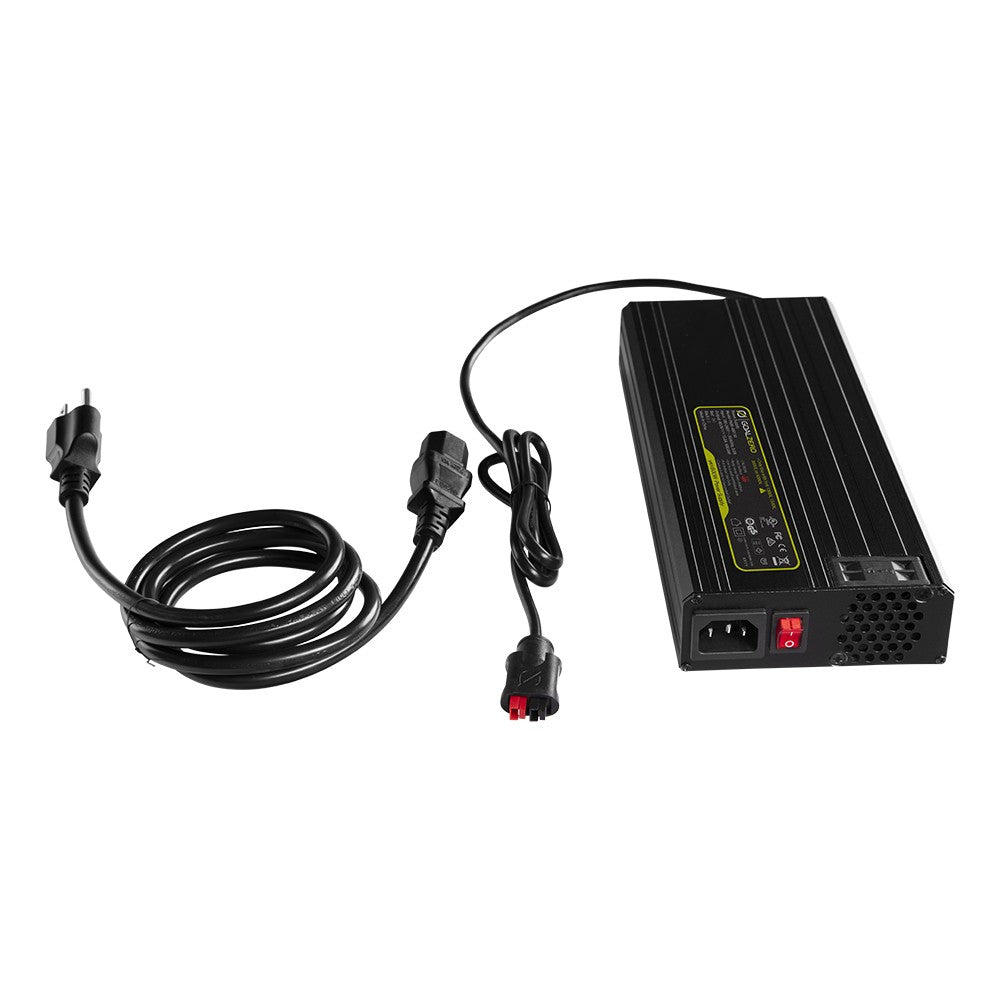

  Yeti X 120W Power Supply

  • Gauge: 16AWG

  • Cable: 9 ft 4 in

  • Dimensions: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

  • Input: AC 100–240V, 50/60Hz, 3.0A

  • Output: 8mm, 16V–7.5A, 120W

  ---

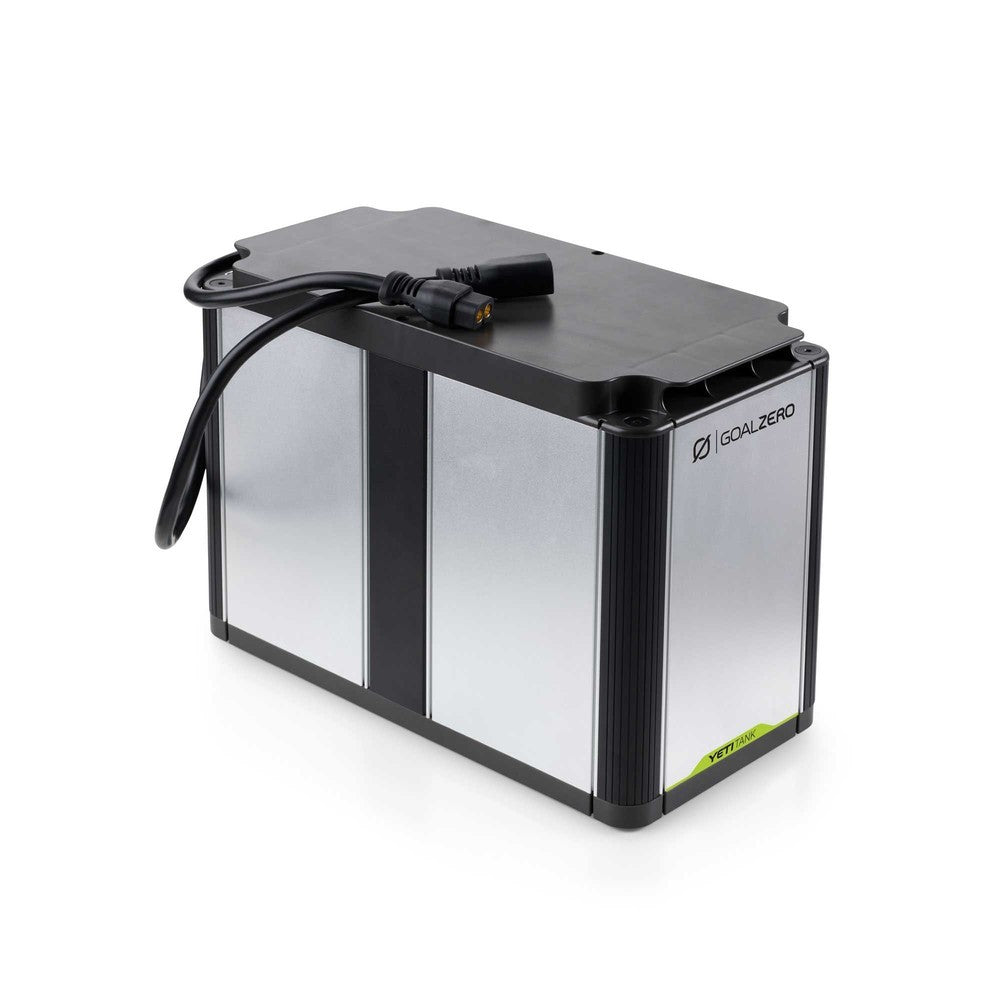

  Tech 4 – Yeti Tank

  Charge Times

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:
    • Yeti 1000/1000X: 454–605W
    • Yeti 1400/1500X: 454–750W
    • Yeti 3000/3000X: 750W
    • Yeti 6000X: 750W

  Battery

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports

  • Expansion port male (I/O): up to 100A

  • Expansion port female (I/O): up to 100A

  General

  • Product SKU: 23105

  • Dimensions: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

  • Weight: 77.1 lbs (34.97 kg)

  • Warranty: 12 months
