6300Wh Home Backup System

• 6,300Wh Backup System

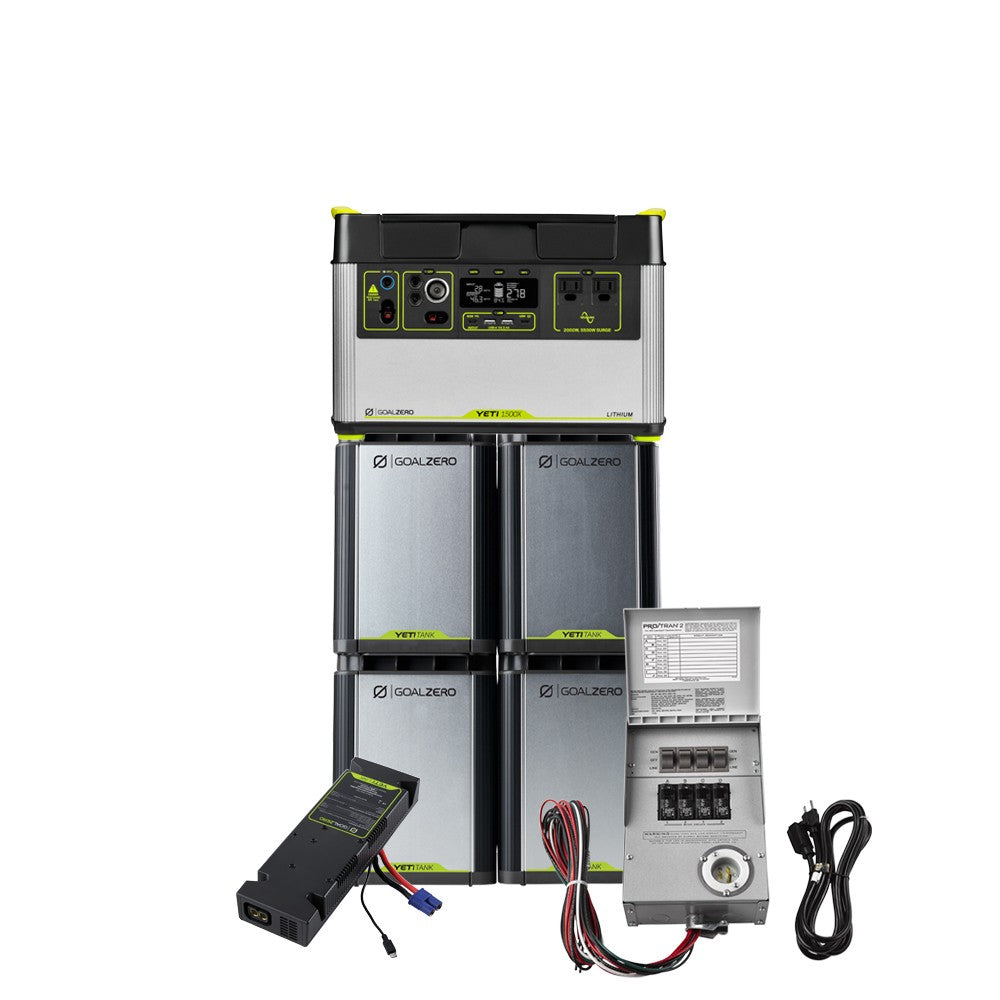

  A complete package delivering around 6,300Wh of portable power. Includes the Yeti 1500X, Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries, and the Link Expansion Module.

  ---

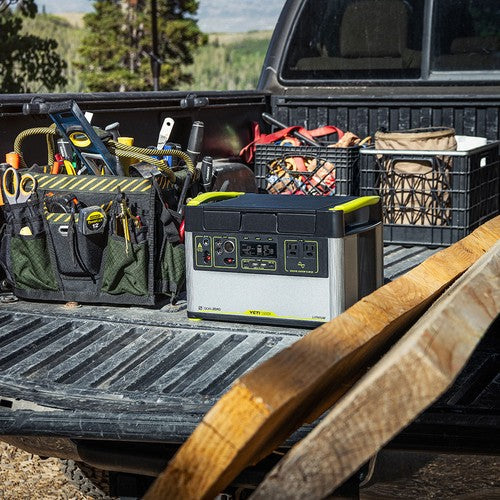

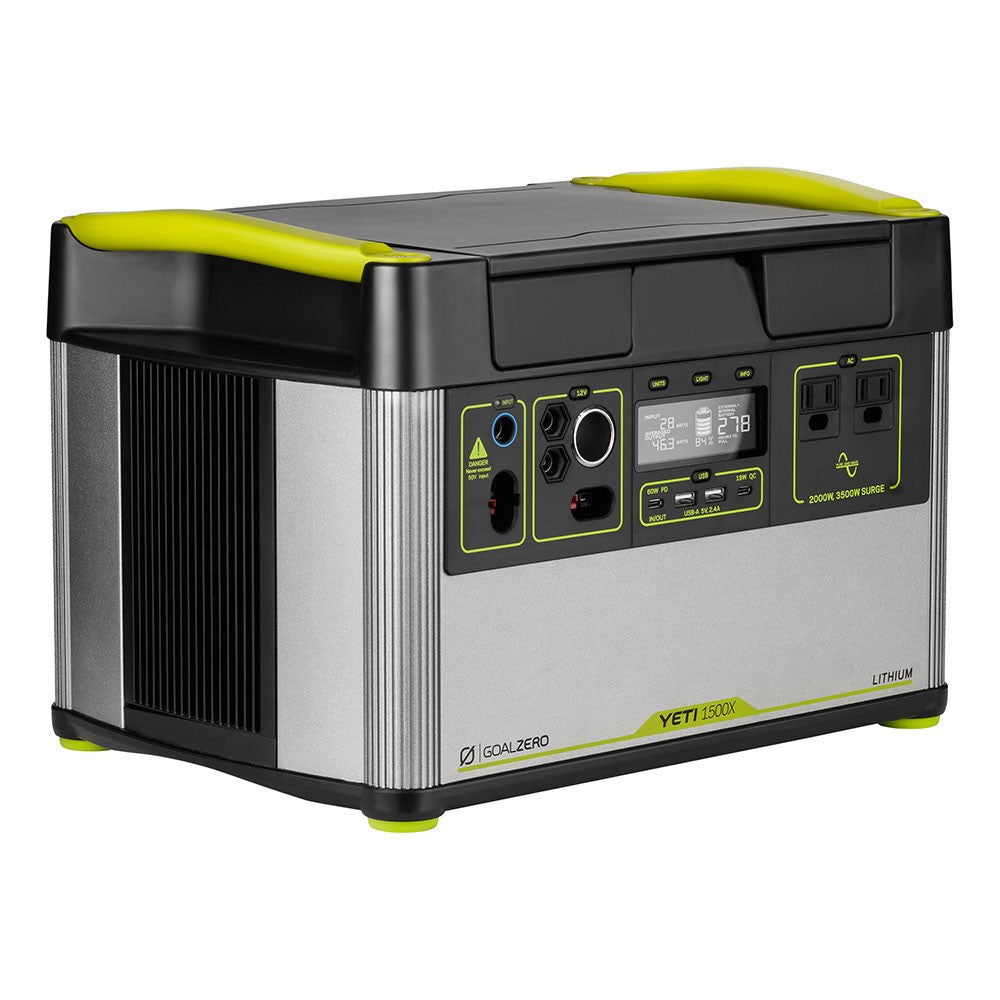

  Yeti 1500X Highlights

  • Gas-Free Power: Clean lithium battery for home, work, or off-grid use.

  • Strong Output: 2000W AC inverter (3500W surge) runs fridges, tools, and medical devices.

  • Versatile Ports: Seven options including 60W USB-C PD, multiple USB-A, regulated 12V, and dual 120V AC.

  • Flexible Charging: Recharge from solar panels or wall outlet, with MPPT for maximum solar efficiency.

  • Smart App Control: Yeti App 3.0 offers remote monitoring, usage tracking, and battery optimization.

  ---

  Home Integration Kit Highlights

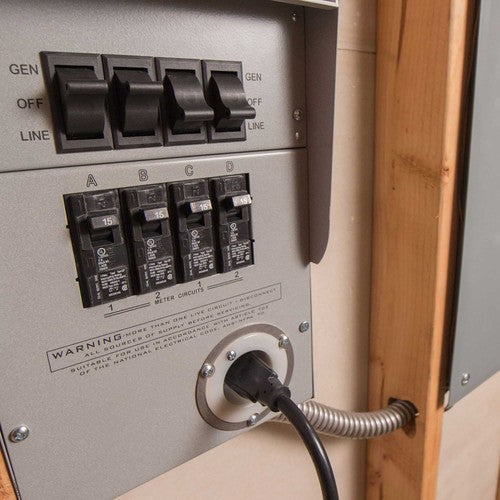

  • Custom Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit manual transfer switch.

  • Flexible Setup: Power up to four critical circuits like fridge, garage, outlets, or lights.

  • Included Cable: 10 ft 14AWG extension cord to connect your Yeti Power Station.

box1

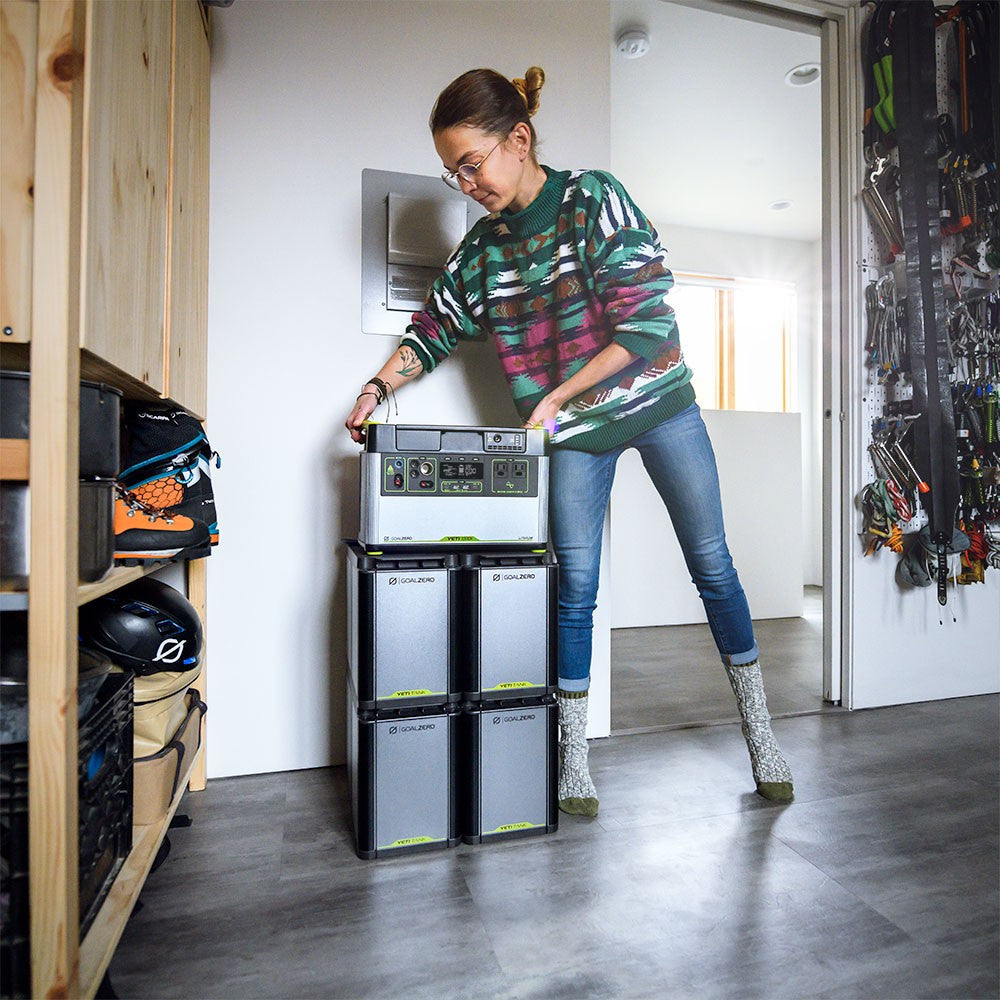

• BACK UP YOUR HOME

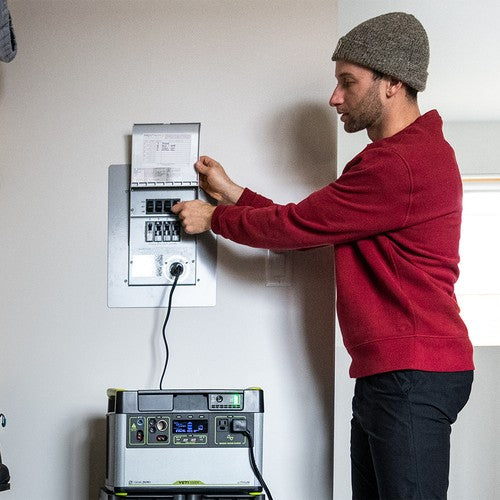

  A scalable energy storage system that supports up to four essential circuits. Keep critical devices, like lights, refrigerators, medical equipment, and internet routers, powered through seamless integration with your home’s circuits.

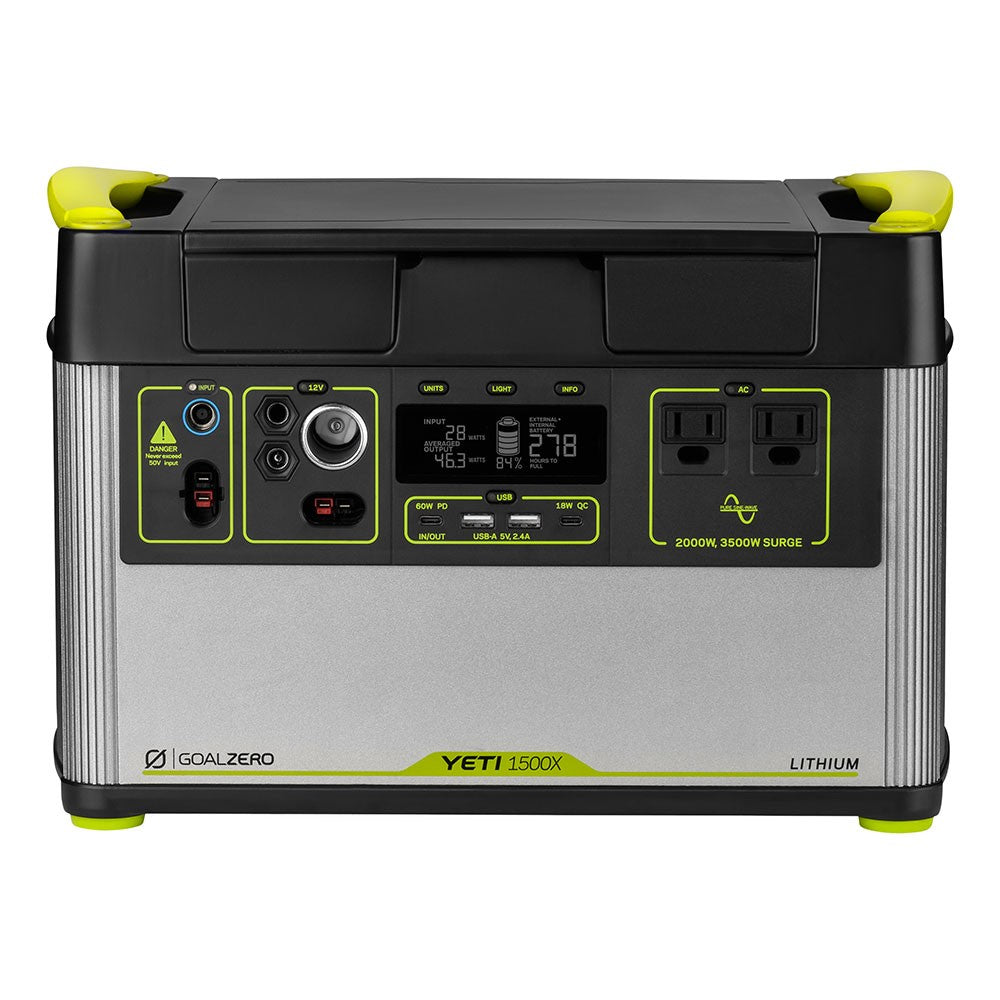

• Tech 1 – Yeti Power Station

  Recharge Times (0–100%)

  • AC Wall Chargers (max 600W input):
    • 120W (included): ~14 hrs
    • 230W (add-on): ~7 hrs
    • 600W (add-on): ~3 hrs

  • Solar Charging (max 600W input):
    • 100W panels: 18–36 hrs
    • 200W panels: 9–18 hrs
    • 400W panels: 4–8 hrs
    • 800W setups: 3–4 hrs
    • 1200W setups: ~3 hrs
    Note: Higher-rated panel systems (>600W) improve the chance of sustaining maximum solar input in real conditions.

  Battery

  • Chemistry: Li-ion NMC

  • Capacity: 1516Wh (10.8V, 140.4Ah)

  • Equivalent: 421Ah @ 3.6V

  • Lithium content: 126g

  • Lifespan: ~500 cycles to 80% (1C discharge, 25°C)

  • Shelf life: Recharge every 3–6 months

  • Charge controller: MPPT

  Ports

  • Inputs:
    • 1× High Power port (AC/Solar): 600W max (14–50V, up to 50A)
    • 2× 8mm ports (AC/Solar): 150W max each (14–50V, up to 10A)

  • Input/Output:
    • 1× USB-C PD: 60W max (5–20V, up to 3.0A), regulated

  • Outputs:
    • 2× AC outlets: 2000W (3500W surge), pure sine, 120VAC 60Hz, 16.5A
    • 2× USB-A: 12W (5V, up to 2.4A), regulated
    • 1× USB-C: 18W (5–12V, up to 3.0A), regulated
    • 2× 6mm: 120W (12V, up to 10A), regulated
    • 1× Car port: 160W (12V, up to 13A), regulated
    • 2× High Power ports: 360W (12V, up to 30A), front/under lid
    • Expansion Module port: under lid (Goal Zero modules only)

  General

  • Kit SKU: 44533

  • Weight: 45.64 lbs (20.7 kg)

  • Dimensions: 15.25 × 10.23 × 10.37 in (38.74 × 25.98 × 34.54 cm)

  • Chainable: No | Simultaneous use: Yes

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 2 years

  ---

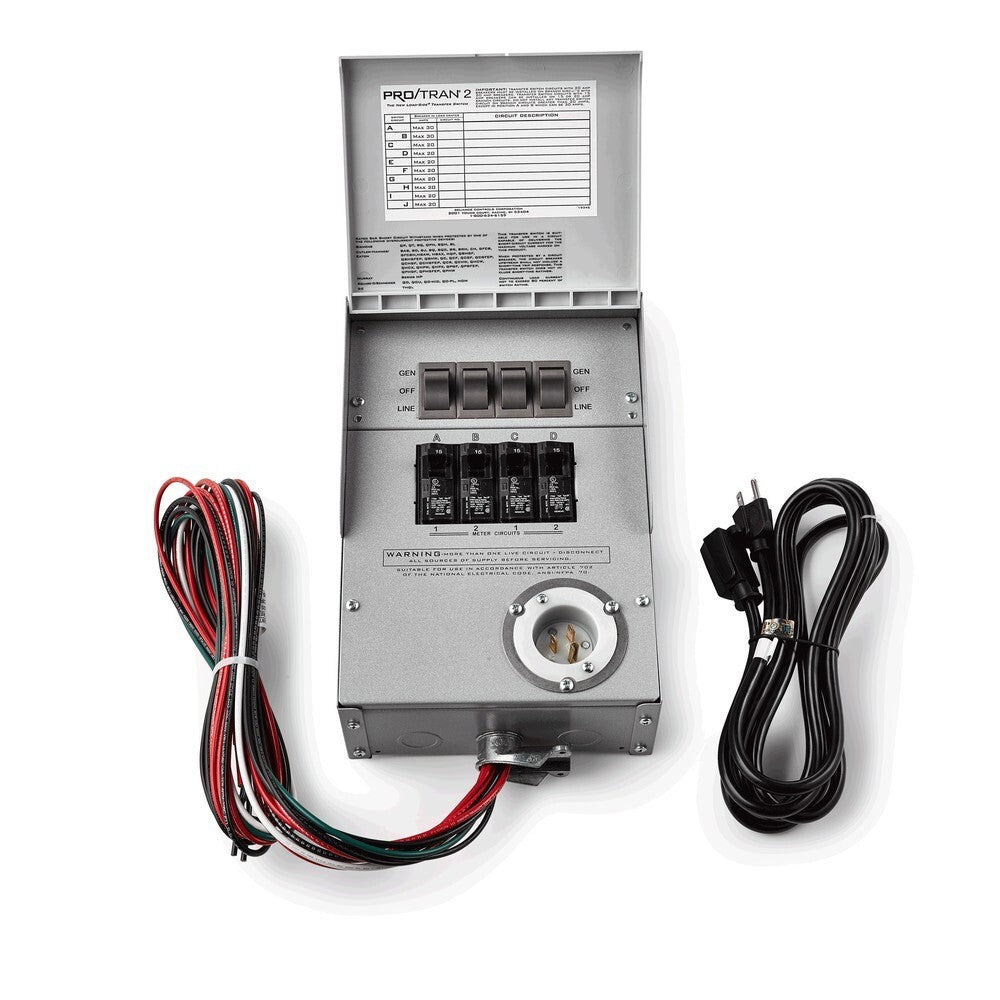

  Tech 2 – Home Integration Kit (HIK)

  Specs

  • Voltage: 120V single-phase | Frequency: 60Hz

  • Rated power: 1875W | Current: 15A

  • Circuit breakers: 4 | Max generator input: 15A

  • Transfer switch circuits: 15A, 120V | Protection: per circuit

  General

  • Product SKU: 44060 | Made in USA

  • Weight: 9.5 lbs (4.3 kg)

  • Dimensions: 7.75 × 11.25 × 4.5 in

  • Enclosure: NEMA 1R | Conduit length: 18 in

  • UL listed | Compatible with Yeti X & Lithium stations 1000W+

  ---

  Tech 3 – Yeti Link & Power Supply

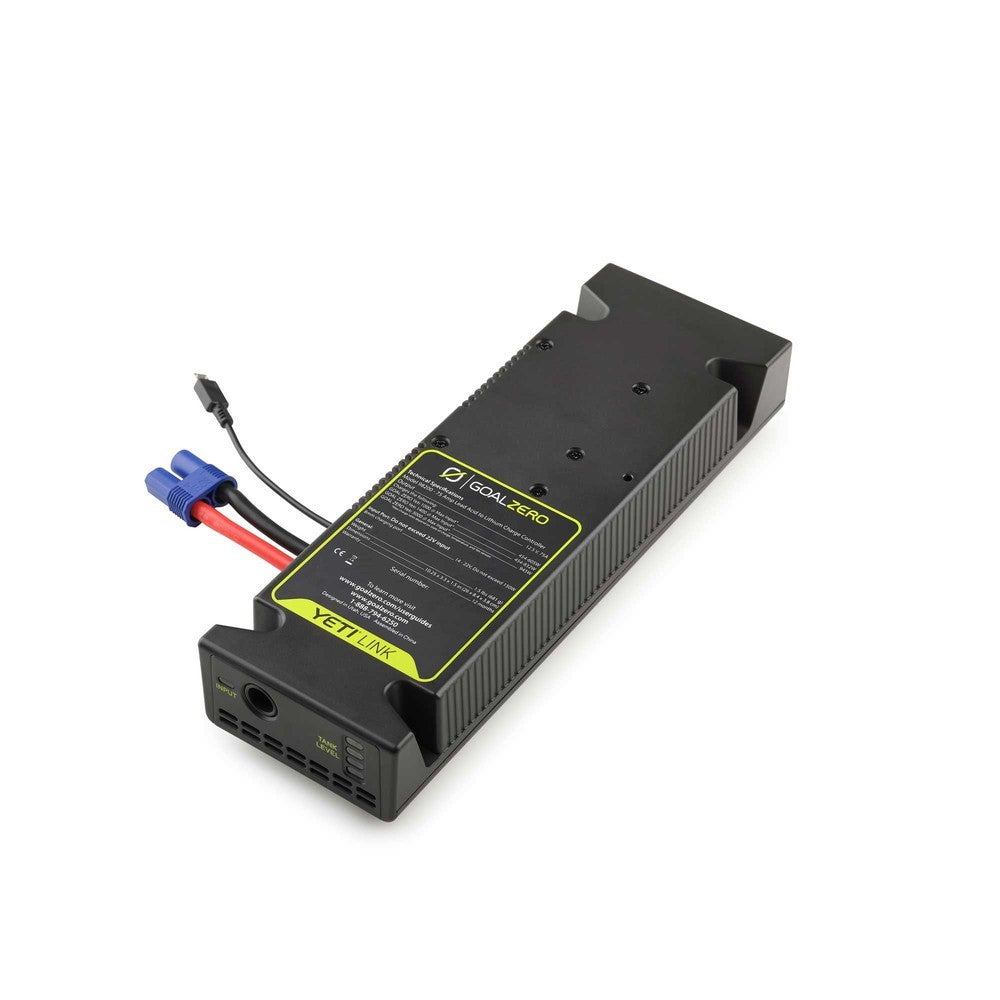

  Yeti Link

  • Product SKU: 98210

  • Weight: 1.5 lbs (680 g)

  • Dimensions: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

  • Warranty: 12 months

  Ports

  • Max input: 22V

  • 8mm charging ports: 14–22V, up to 150W (10A) each

  • External battery connector (output): 65A charge controller

  • External battery connector (I/O): 10.7–15V, max 15V

  120W Power Supply

  • Cable: 16AWG, 9 ft 4 in

  • Dimensions: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

  • Input: AC 100–240V, 50/60Hz, 3.0A

  • Output: 8mm, 16V–7.5A (120W)

  ---

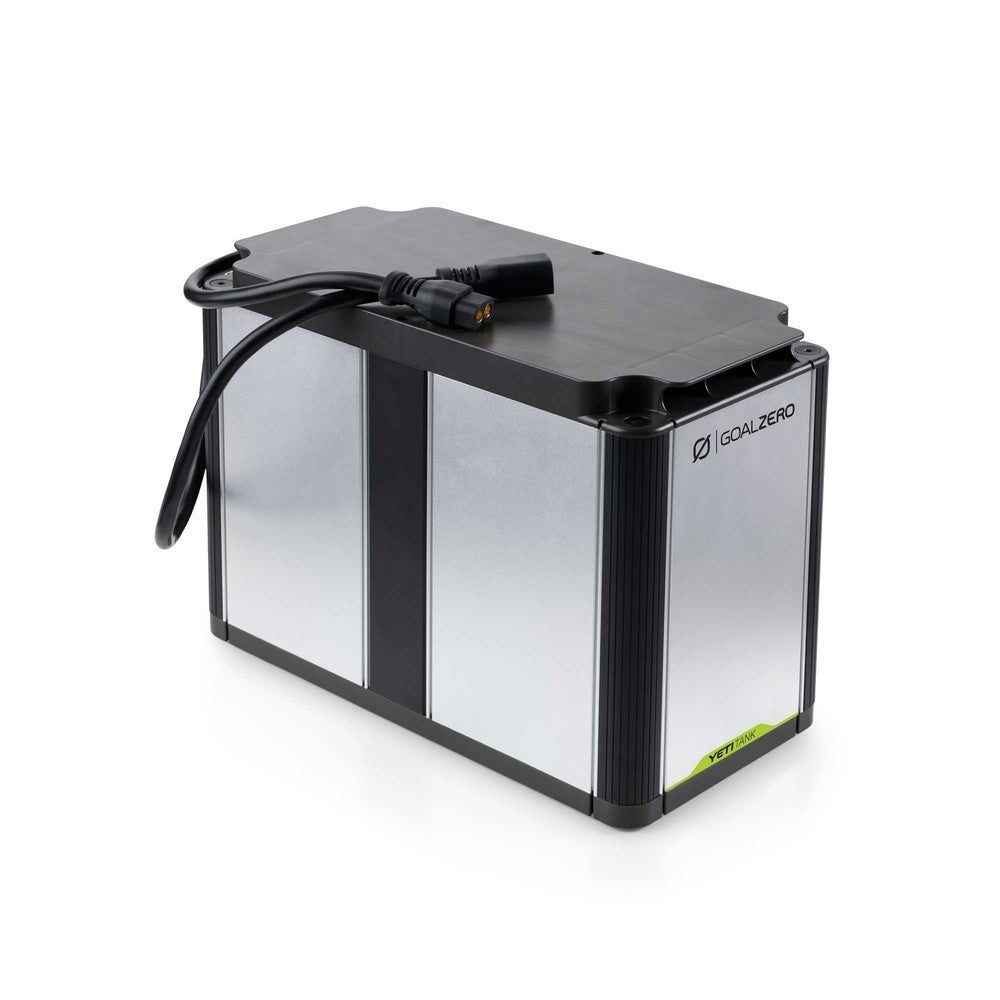

  Tech 4 – Yeti Tank Battery

  Charge Times

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:
    • Yeti 1000/1000X: 454–605W
    • Yeti 1400/1500X: 454–750W
    • Yeti 3000/3000X: 750W
    • Yeti 6000X: 750W

  Battery

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports

  • Expansion male connector: up to 100A

  • Expansion female connector: up to 100A

  General

  • Product SKU: 23105

  • Weight: 77.1 lbs (34.97 kg)

  • Dimensions: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

  • Warranty: 12 months
