7800Wh Home Backup System

• 2.5+ Day Backup System
  A complete package delivering about 7,800Wh of power. Includes the Yeti 3000X, Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries, and the Link Expansion Module for reliable portable home energy.

  ---

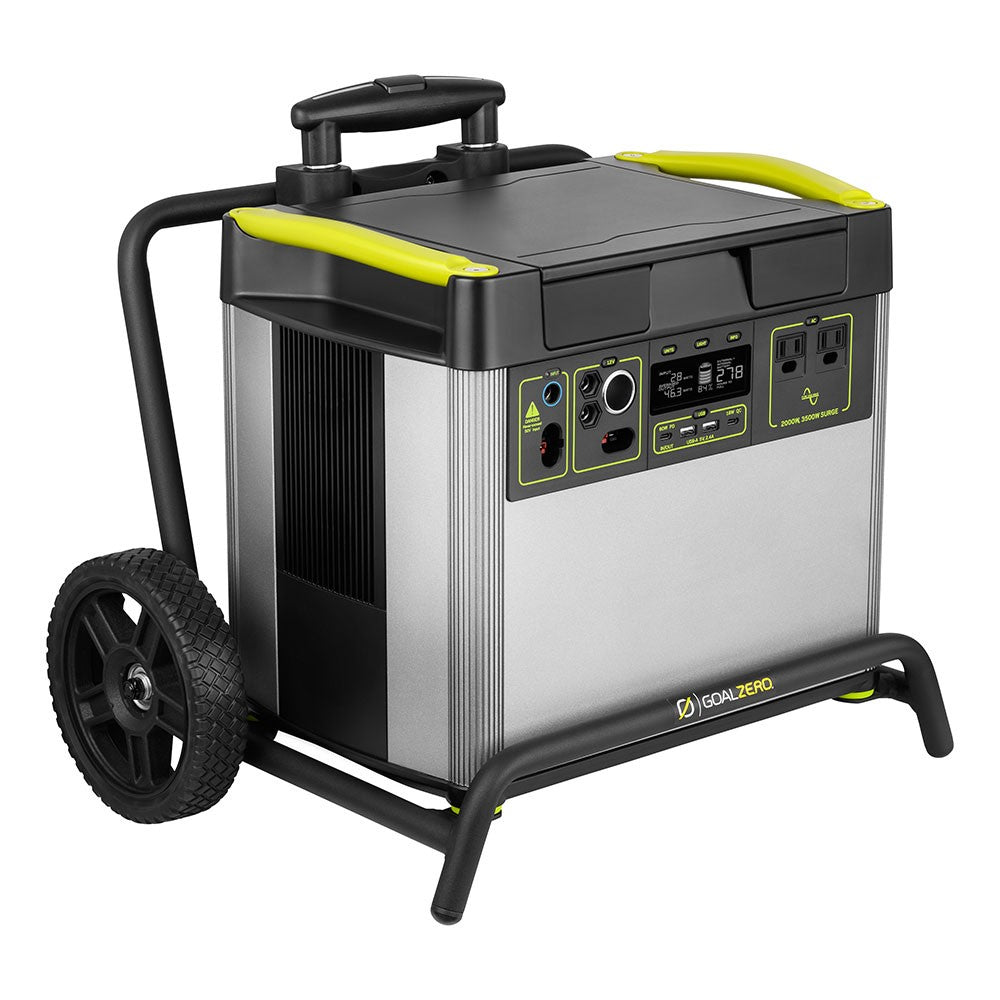

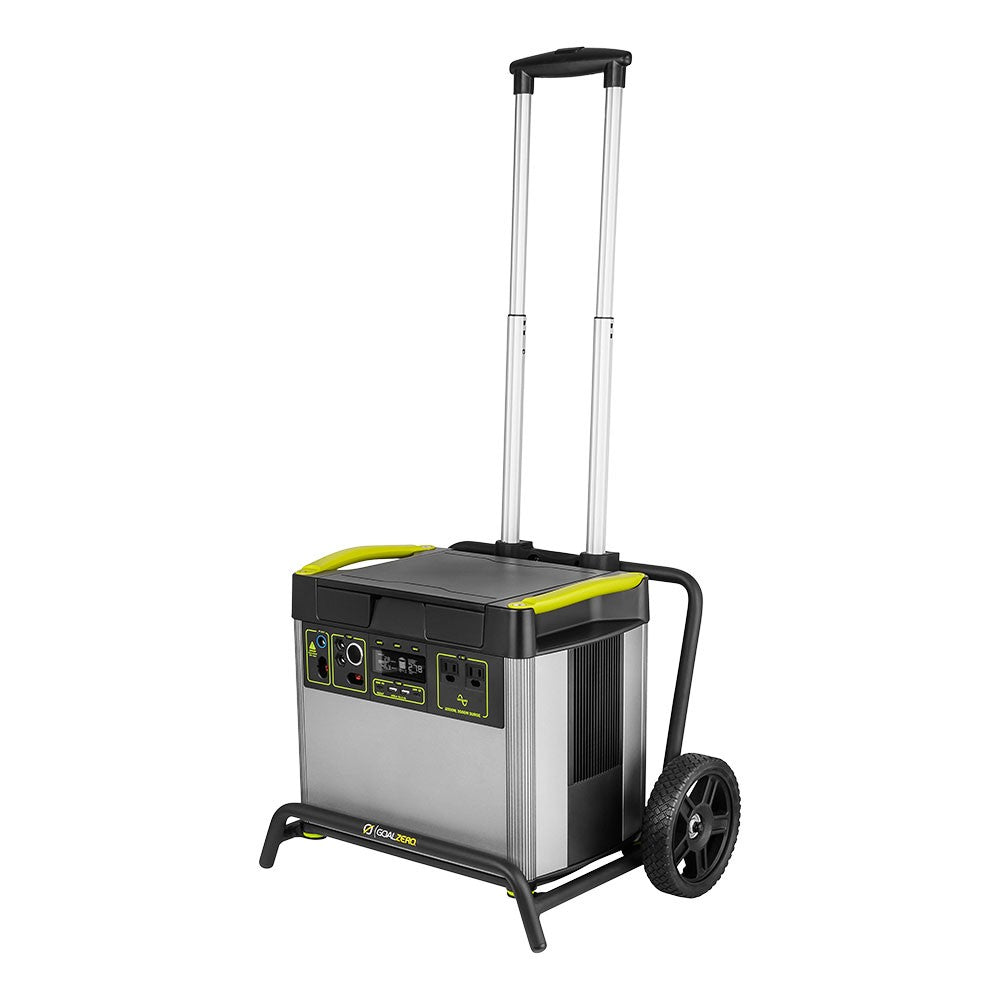

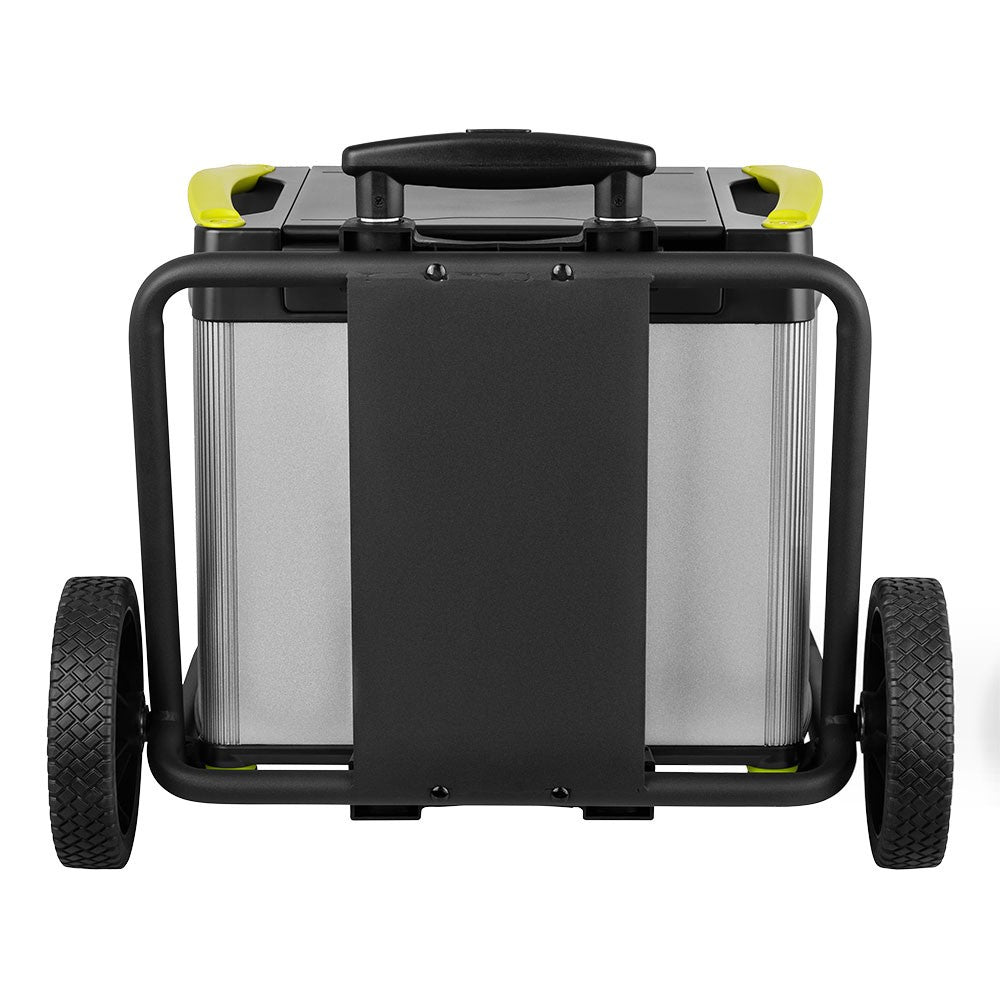

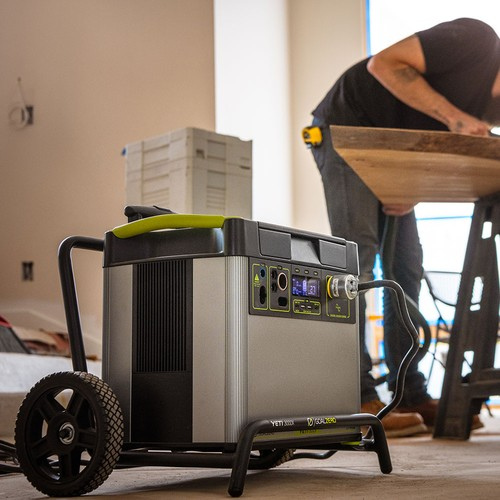

  Yeti 3000X Highlights

  • Gas-Free Power: Clean lithium battery for home backup, off-grid use, or events.

  • Strong Output: 2000W AC inverter (3500W surge) runs appliances, tools, and medical devices.

  • Versatile Ports: Seven options including 60W USB-C PD, USB-A, regulated 12V, and dual 120V AC.

  • Flexible Charging: Recharge via solar or wall outlet with efficient MPPT controller.

  • Smart App Control: Yeti App 3.0 offers remote monitoring, usage tracking, and battery optimization.

  ---

  Home Integration Kit Highlights

  • Custom Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit manual transfer switch.

  • Flexible Setup: Power up to four essential household circuits (fridge, garage, outlets, lights).

  • Included Cable: 10 ft 14AWG extension cord connects your Yeti Power Station.

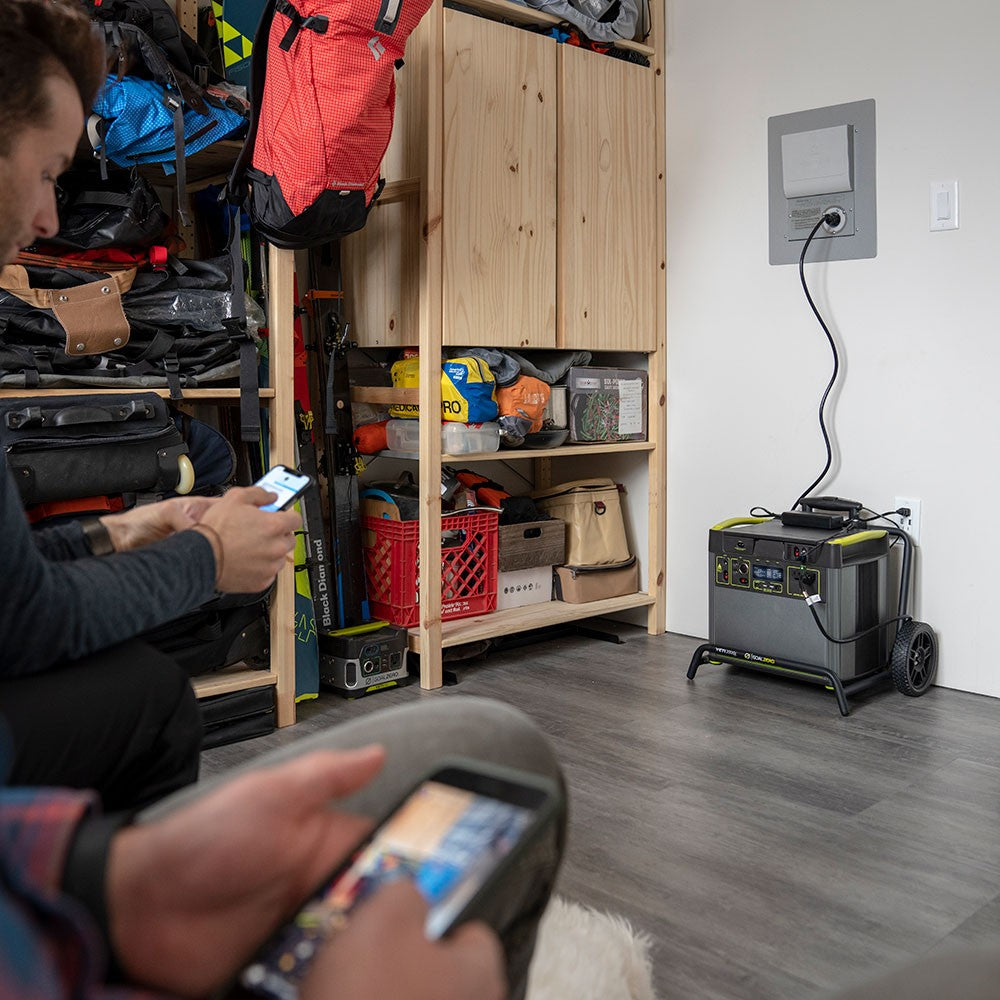

• BACK UP YOUR HOME
  A customizable energy storage solution that supports up to four essential home circuits and expands as your needs grow. Keep critical devices running, lights, refrigerators, medical equipment, and internet routers, through seamless circuit integration for dependable backup power.

Tech 1 – Yeti Power Station

Charge Times (0–100%)

• AC Wall Charger:
  • 230W: ~14 hrs
  • 600W: ~6 hrs

• Solar Charging:
  • 100W panels: 36–72 hrs
  • 200W panels: 18–36 hrs
  • 400W panels: 9–18 hrs
  • 600W panels: 6–12 hrs
  • 800W panels: 6–9 hrs
  • 1200W panels: ~6 hrs

Battery

• Chemistry: Li-ion NMC

• Capacity: 3032Wh (10.8V, 280.8Ah)

• Equivalent: 842.4Ah @ 3.6V

• Lithium content: 253g

• Cycle life: ~500 cycles to 80% (1C discharge, 25°C)

• Shelf life: Recharge every 3–6 months

• Controller: MPPT

Ports

• USB:
  • 1× USB-A: 5V, 2.4A max (12W)
  • 1× USB-C: 5–12V, 3.0A max (18W)
  • 1× USB-C PD (in/out): 5–20V, 3.0A max (60W), regulated

• 12V:
  • 1× 6mm: 12V, 10A max (120W)
  • 1× Car port: 12V, 13A max (160W)
  • 1× High Power port: 12V, 30A max (360W), front/under lid

• AC Output:
  • 2× AC outlets: 2000W continuous, 3500W surge (120VAC, 60Hz, 16.5A), pure sine

• Charging Inputs:
  • 1× 8mm: 14–50V, 10A max (150W), front/under lid
  • 1× High Power port: 14–50V, 50A max (600W)

• Expansion:
  • Module port under lid (Goal Zero expansion modules only)

General

• Kit SKU: 44534 | Product SKU: 36400

• Weight: 69.78 lbs (31.65 kg)

• Dimensions: 15.25 × 10.23 × 13.6 in (38.74 × 25.98 × 34.54 cm)

• Chainable: No | Simultaneous charge/discharge: Yes

• Operating temp: 32–104°F (0–40°C)

• Warranty: 24 months

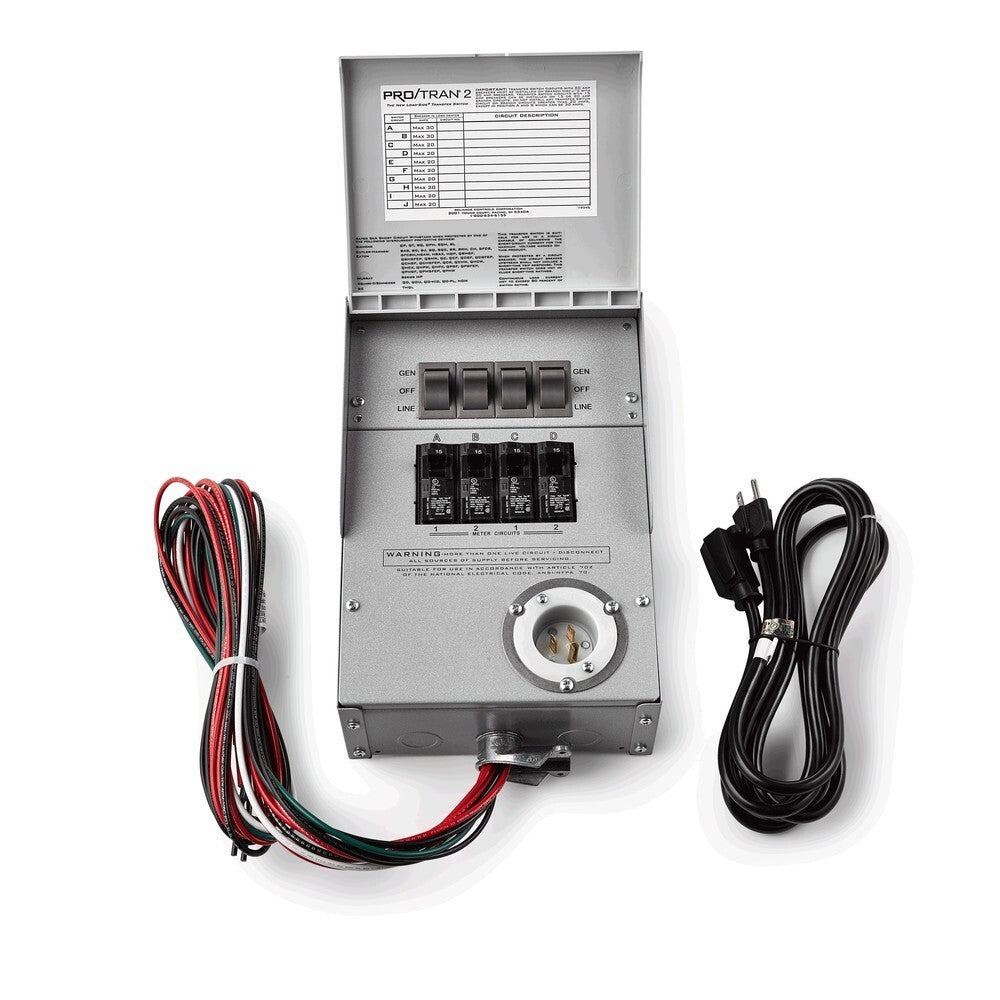

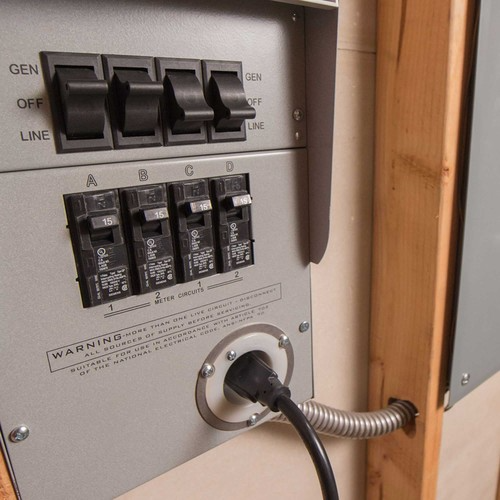

Tech 2 – Home Integration Kit (HIK)

Specs

• Voltage: 120V single-phase | Frequency: 60Hz

• Rated power: 1875W | Current: 15A

• Circuit breakers: 4 | Max generator input: 15A

• Transfer circuits: 15A, 120V | Protection: each circuit

General

• Product SKU: 44060 | Made in USA

• Weight: 9.5 lbs (4.3 kg)

• Dimensions: 7.75 × 11.25 × 4.5 in

• Enclosure: NEMA 1R | Conduit: 18 in

• UL listed | Compatible with Yeti X & Lithium stations (1000W+)

Tech 3 – Yeti Link & Power Supply

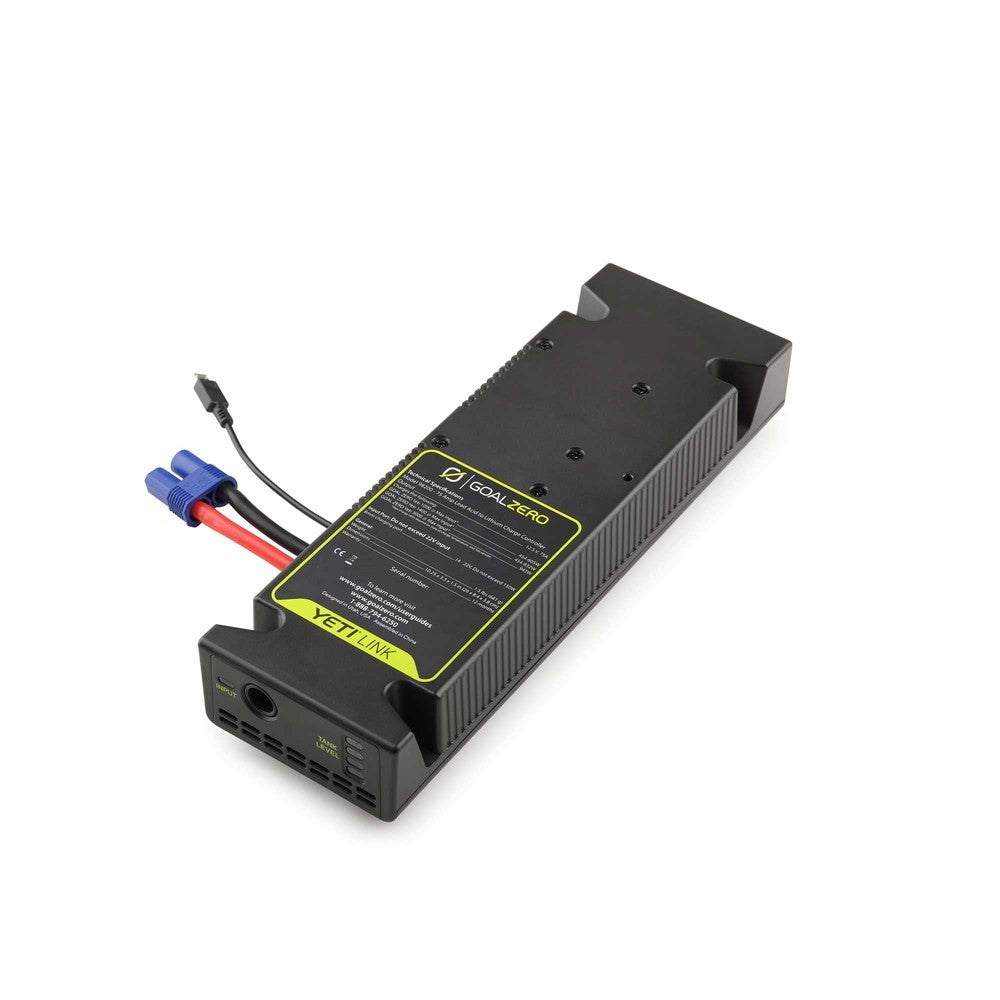

Yeti Link

• Product SKU: 98210

• Weight: 1.5 lbs (680 g)

• Dimensions: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

• Warranty: 12 months

Ports

• Max input: 22V

• 8mm charging (input): 14–22V, 150W max (10A) per port

• External battery connector (output): 65A charge controller

• External battery connector (I/O): 10.7–15V, max 15V

120W Power Supply

• Cable: 16AWG, 9 ft 4 in

• Dimensions: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

• Input: AC 100–240V, 50/60Hz, 3.0A

• Output: 8mm, 16V–7.5A (120W)

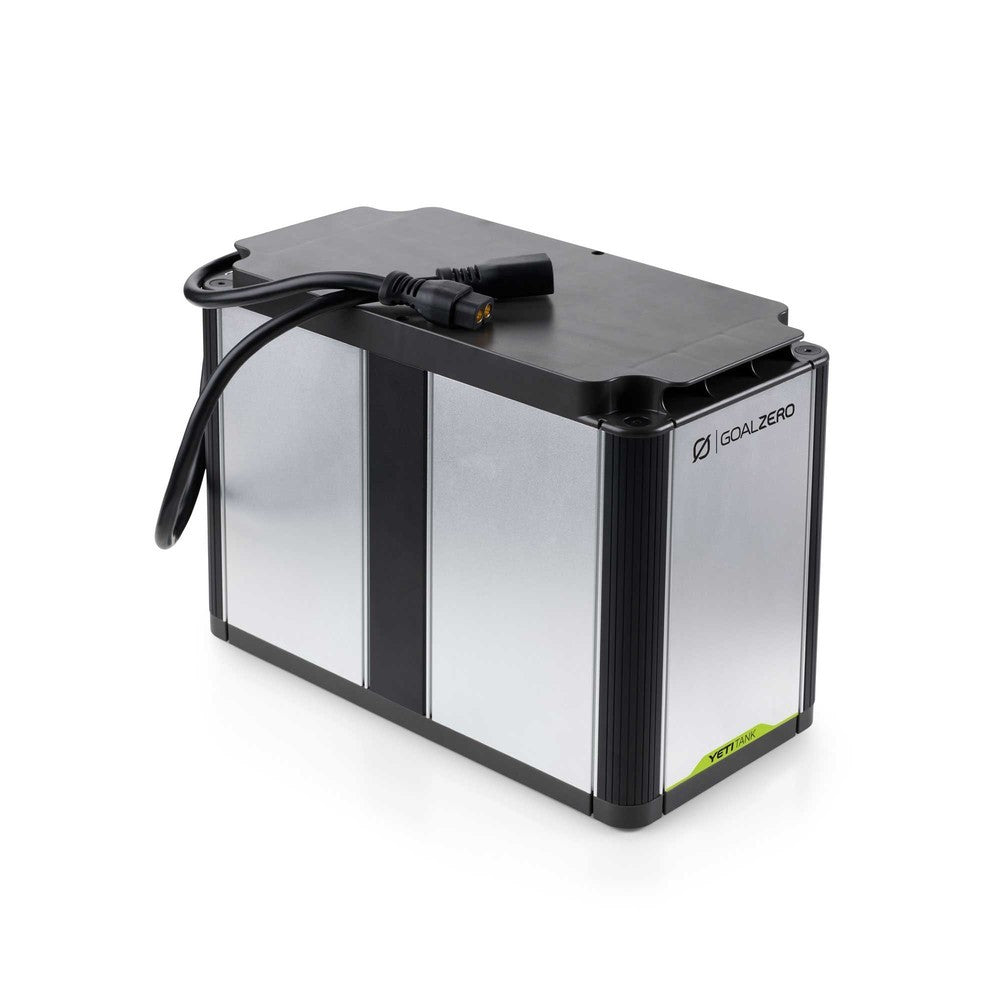

Tech 4 – Yeti Tank Battery

Charge Times

• Wall charger (120W): ~11 hrs per tank

• Yeti Link max input:
  • Yeti 1000/1000X: 454–605W
  • Yeti 1400/1500X: 454–750W
  • Yeti 3000/3000X: 750W
  • Yeti 6000X: 750W

Battery

• Type: AGM lead-acid

• Capacity: 1200Wh (12V, 100Ah)

Ports

• Expansion male connector: up to 100A

• Expansion female connector: up to 100A

General

• Product SKU: 23105

• Weight: 77.1 lbs (34.97 kg)

• Dimensions: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

• Warranty: 12 months
