7800Wh Home Backup Solar Generator

• 2.5+ Day Backup System with Solar

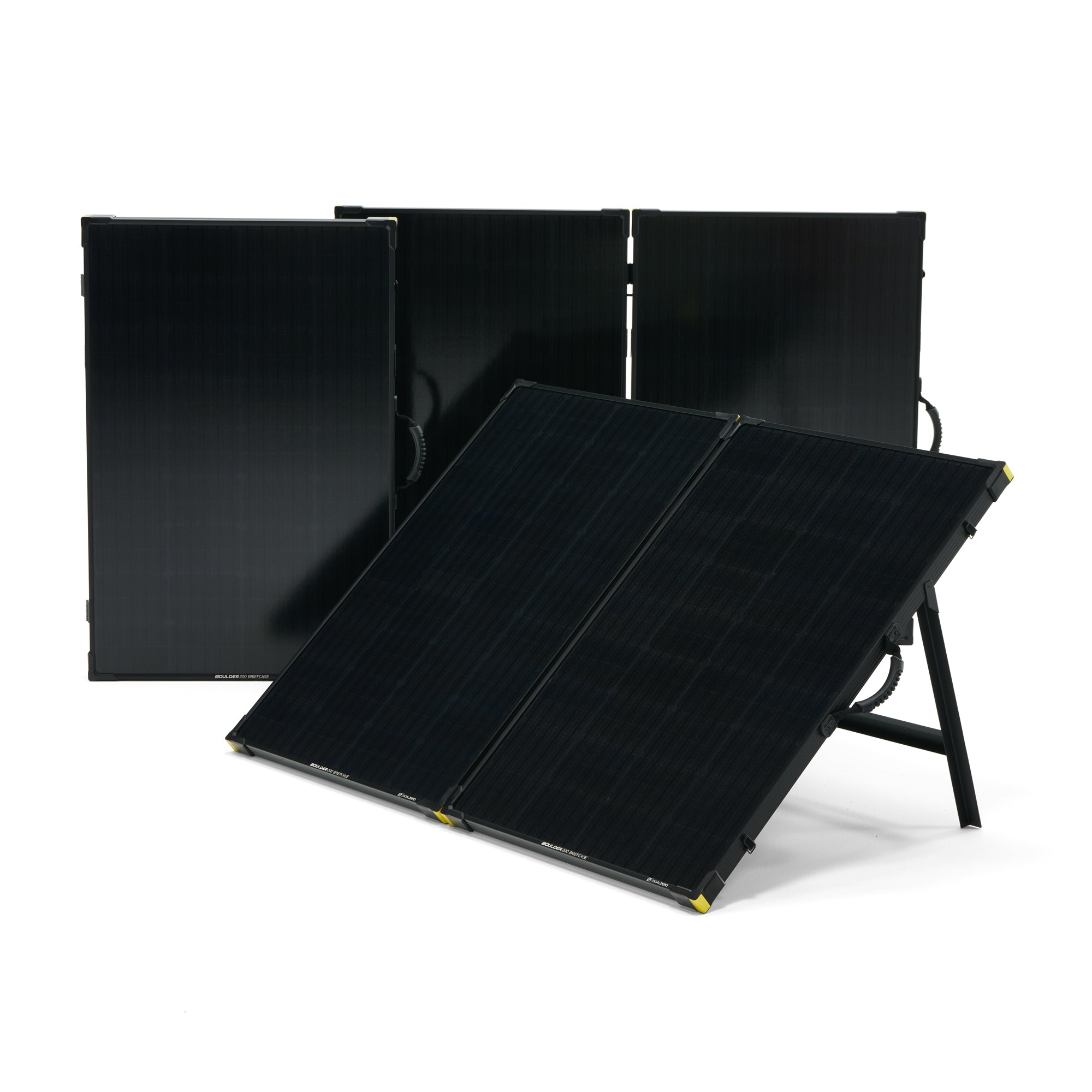

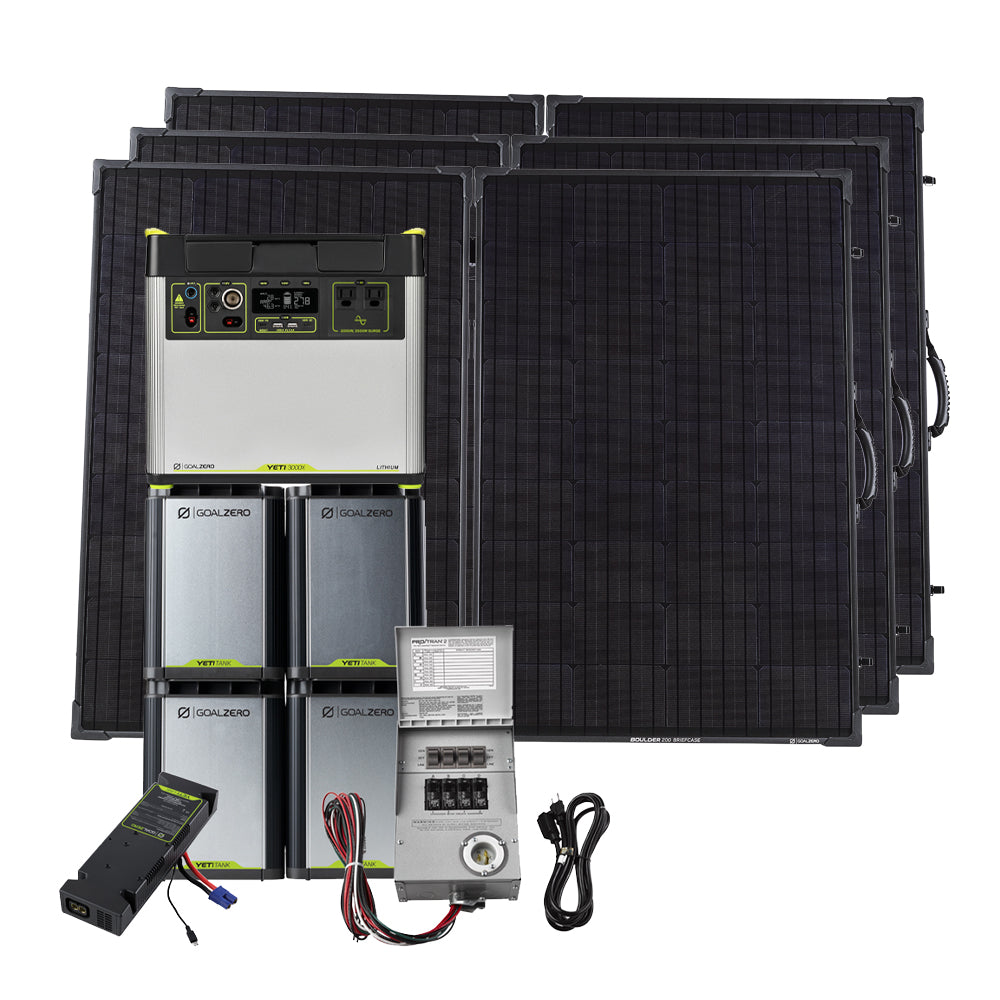

  An all-in-one package delivering about 7,800Wh of power plus 600W solar capacity. Includes the Yeti 3000X, Home Integration Kit transfer switch, four Yeti Tank Expansion Batteries, Link Expansion Module, and three Boulder 200 Briefcase solar panels with combiner and 30 ft extension cable.

  ---

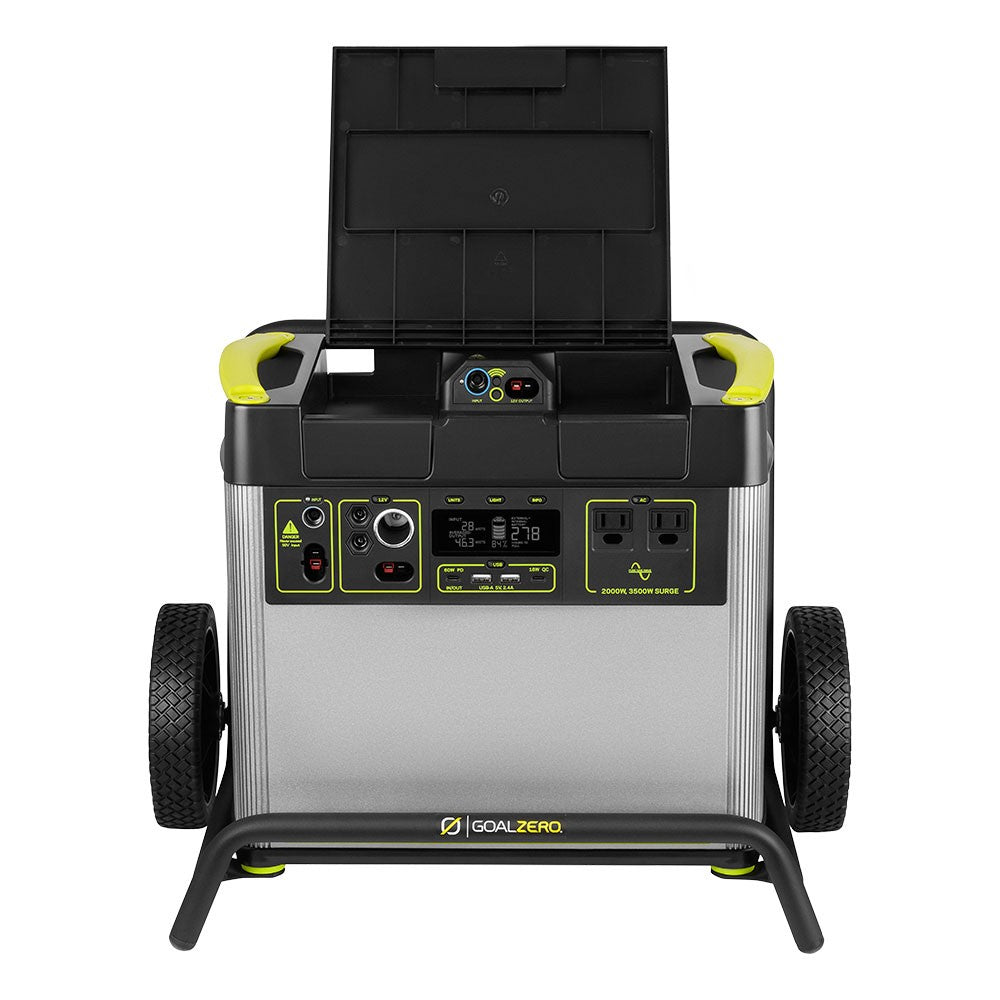

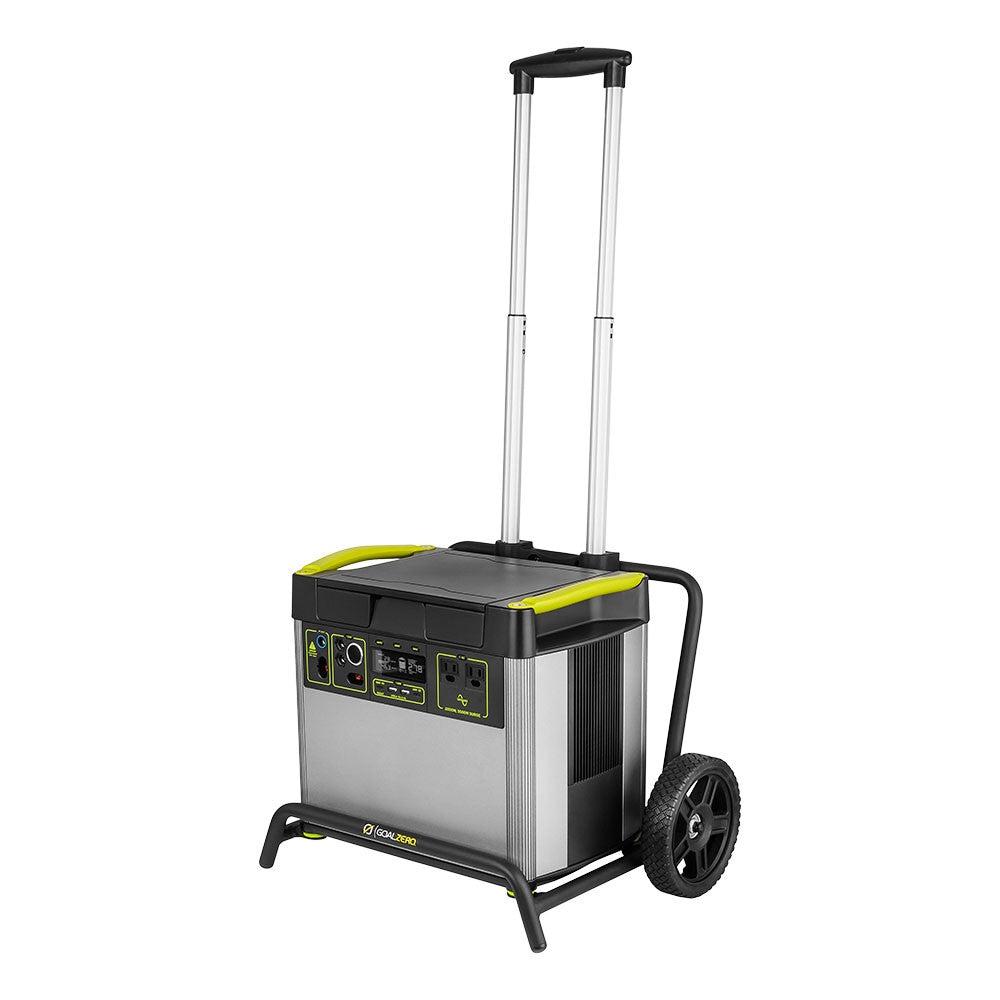

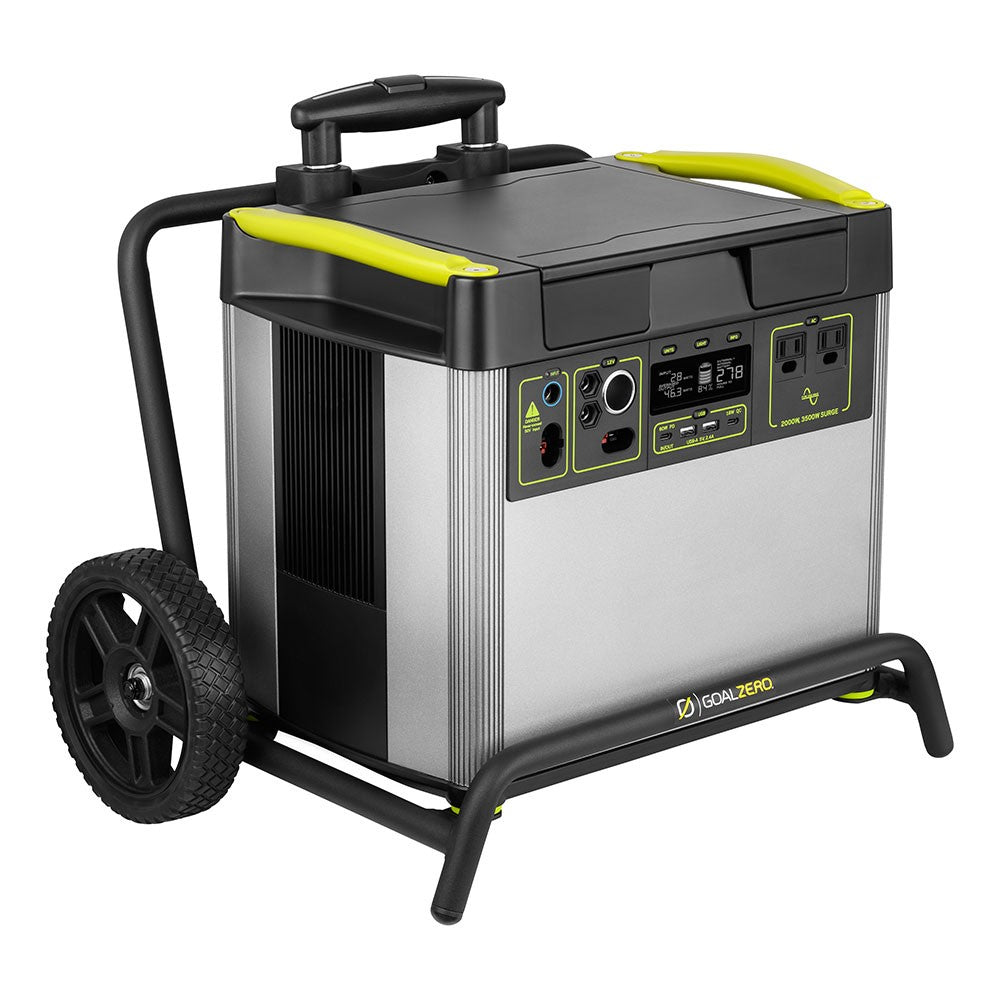

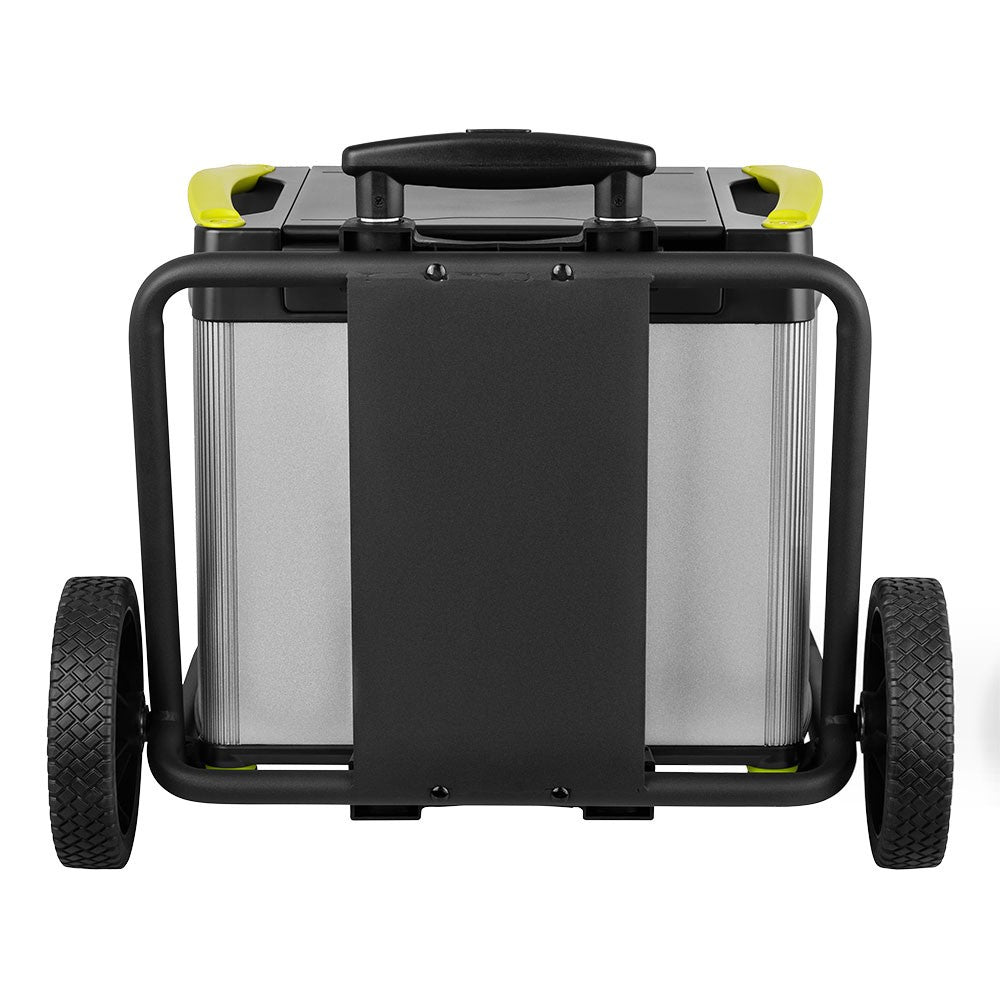

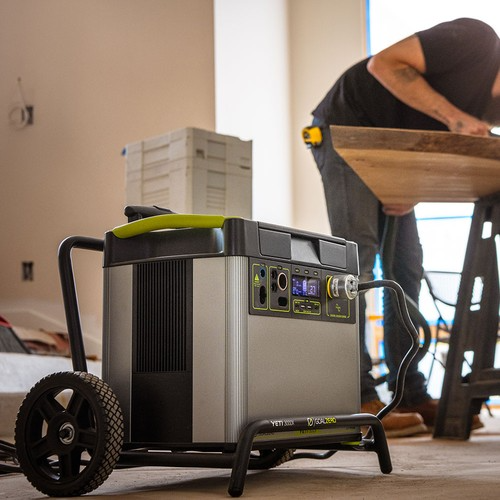

  Yeti 3000X Highlights

  • Gas-Free Power: Clean lithium battery for home backup, off-grid living, or events.

  • Heavy-Duty Output: 2000W AC inverter (3500W surge) runs fridges, tools, and medical devices.

  • Multiple Ports: Seven options including 60W USB-C PD, USB-A, regulated 12V, and dual 120V AC.

  • Flexible Charging: Recharge via solar panels or wall outlet, with MPPT for efficient solar input.

  • Smart App Control: Yeti App 3.0 offers remote monitoring, usage tracking, and battery optimization.

  ---

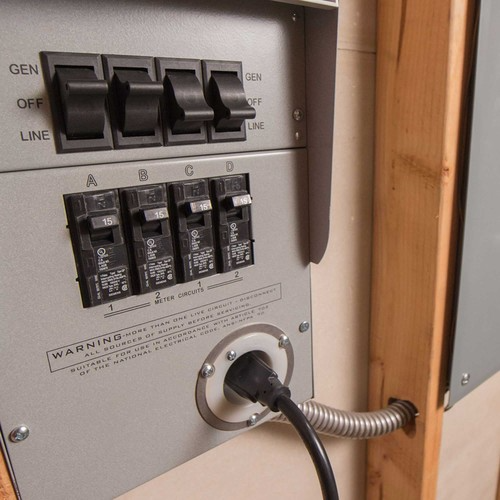

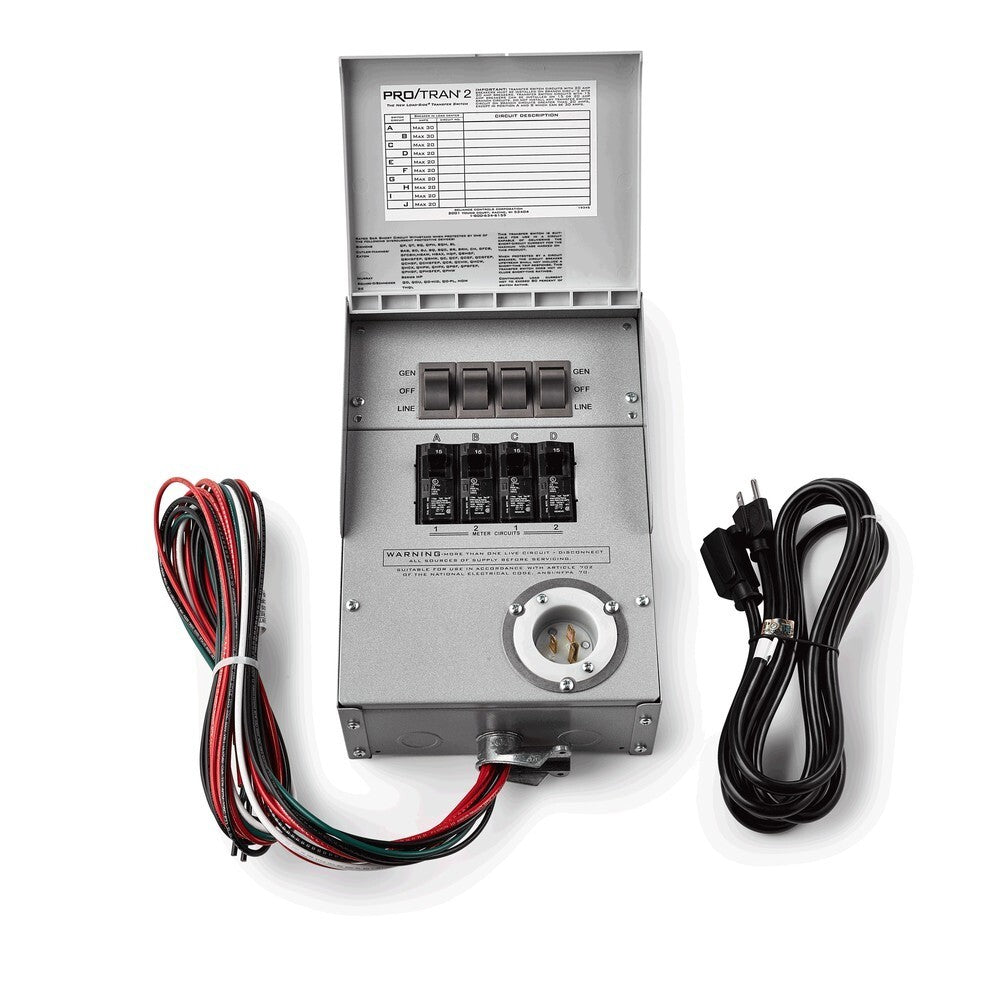

  Home Integration Kit Highlights

  • Customizable Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit manual transfer switch.

  • Flexible Setup: Power up to four essential household circuits (fridge, garage, outlets, lights).

  • Included Cable: 10 ft 14AWG extension cord connects your Yeti Power Station.

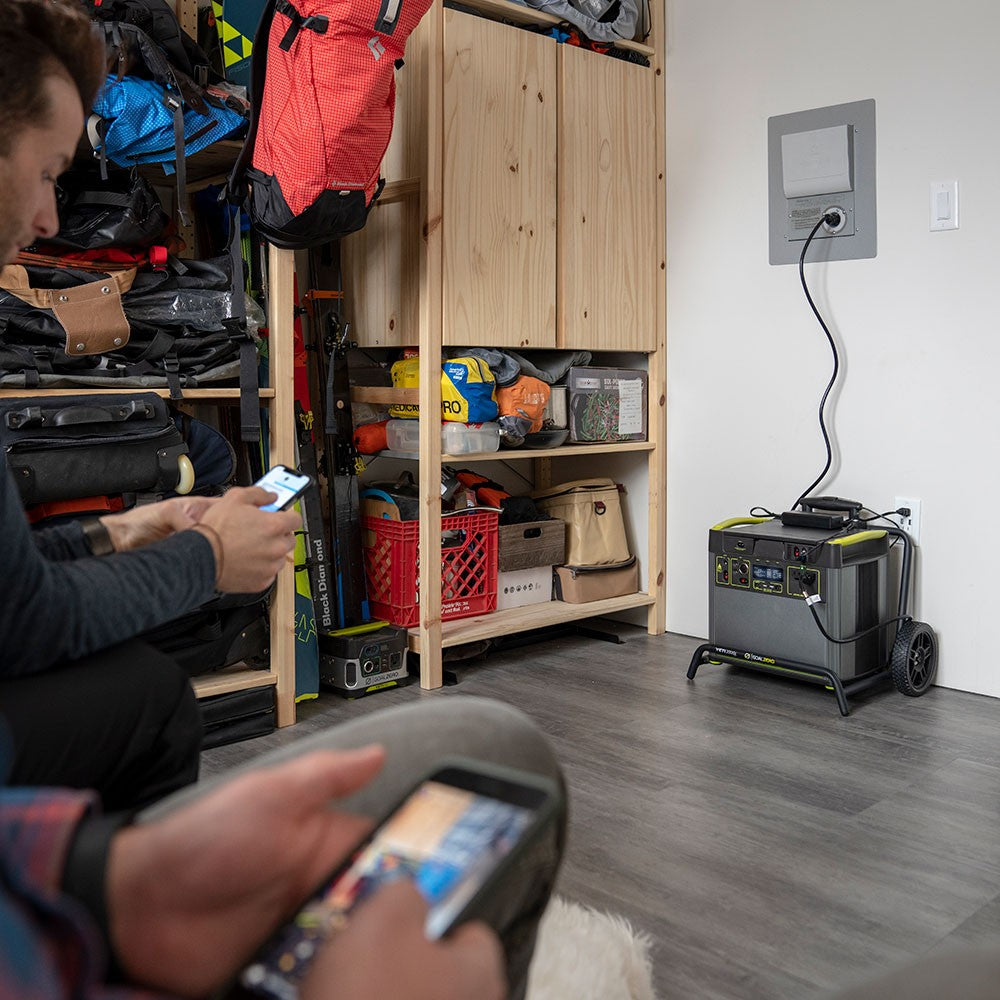

box1 BACK UP YOUR HOME
A customizable energy storage system designed to support four essential home circuits, with the flexibility to expand as your needs grow. Keep critical devices running, from lights and refrigerators to medical equipment and internet routers, through seamless circuit integration for reliable backup power.

• Tech 1 – Yeti Power Station

  Charge Times (0–100%)

  • AC Wall Charger:
    • 230W: ~14 hrs
    • 600W: ~6 hrs

  • Solar Charging:
    • 100W panels: 36–72 hrs sunlight
    • 200W panels: 18–36 hrs sunlight
    • 400W panels: 9–18 hrs sunlight
    • 600W panels: 6–12 hrs sunlight
    • 800W panels: 6–9 hrs sunlight
    • 1200W panels: ~6 hrs sunlight

  Battery Details

  • Chemistry: Li-ion NMC

  • Capacity: 3032Wh (10.8V, 280.8Ah)

  • Equivalent: 842.4Ah @ 3.6V

  • Lithium content: 253g

  • Cycle life: ~500 cycles to 80% (1C discharge, 25°C)

  • Shelf life: Recharge every 3–6 months

  • Controller: MPPT

  Ports

  • USB:
    • 1× USB-A: 5V, up to 2.4A (12W)
    • 1× USB-C: 5–12V, up to 3.0A (18W)
    • 1× USB-C PD (I/O): 5–20V, up to 3.0A (60W), regulated

  • 12V:
    • 1× 6mm port: 12V, up to 10A (120W)
    • 1× Car port: 12V, up to 13A (160W)
    • 1× High Power port: 12V, up to 30A (360W), front/under lid

  • AC Output:
    • 2× AC outlets: 2000W (3500W surge), pure sine, 120VAC 60Hz, 16.5A

  • Charging Input:
    • 1× 8mm port: 14–50V, up to 10A (150W), front/under lid
    • 1× High Power port: 14–50V, up to 50A (600W)

  • Expansion: Covered module port (under lid, Goal Zero modules only)

  General

  • Kit SKU: 44559 / Product SKU: 36400

  • Chainable: No

  • Simultaneous charge/discharge: Yes

  • Weight: 69.78 lbs (31.65 kg)

  • Size: 15.25 × 10.23 × 13.6 in (38.74 × 25.98 × 34.54 cm)

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 24 months

  ---

  Tech 2 – HIK (Home Integration Kit)

  Ports

  • Voltage: 120V single-phase

  • Frequency: 60Hz

  • Rated power: 1875W

  • Current: 15A @ 120V

  • Circuit breakers: 4

  • Max generator input: 15A

  • Transfer switch circuits: 15A, 120V

  • Protection: each circuit

  General

  • Product SKU: 44060

  • Made in USA

  • Weight: 9.5 lbs (4.3 kg)

  • Size: 7.75 × 11.25 × 4.5 in

  • Enclosure: NEMA 1R

  • Conduit length: 18 in

  • UL listed: Yes

  • Compatible with Yeti X & Lithium stations 1000W+

  ---

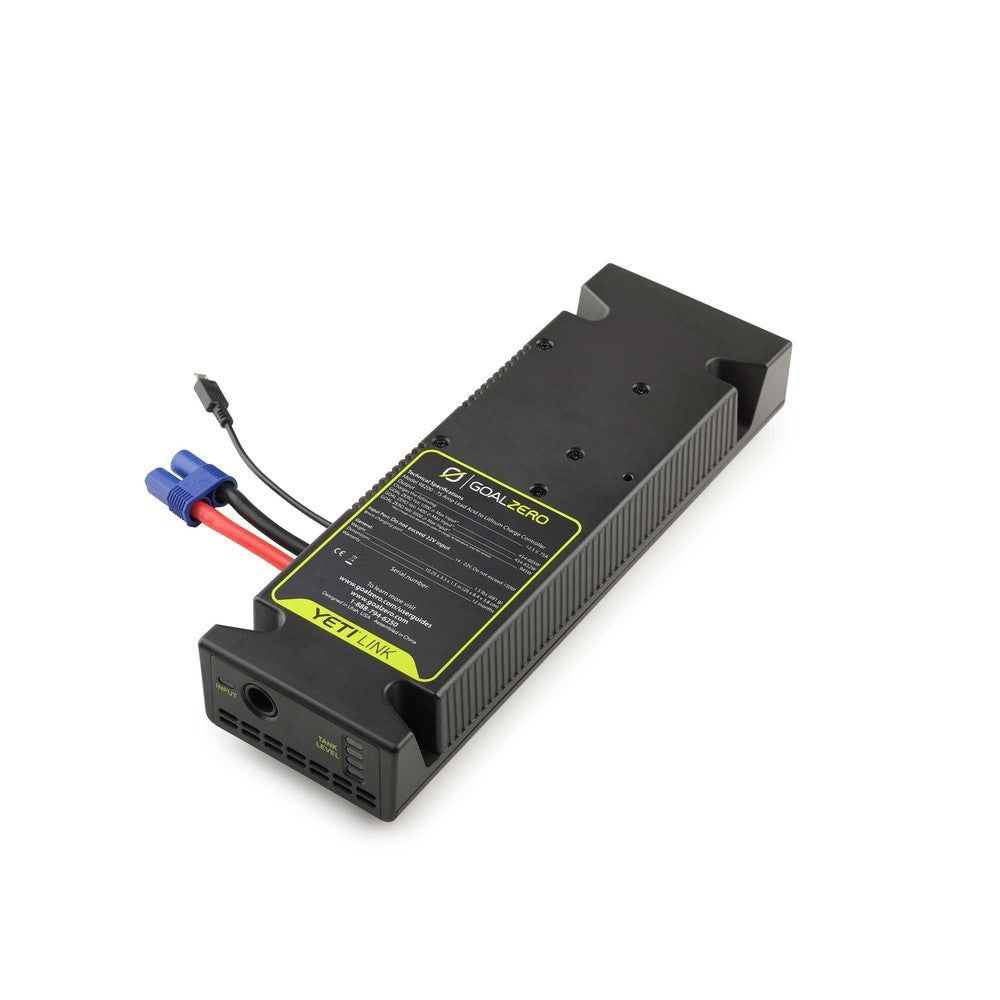

  Tech 3 – Yeti Link & Power Supply

  Yeti Link (General)

  • Product SKU: 98210

  • Weight: 1.5 lbs (680 g)

  • Size: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

  • Warranty: 12 months

  Ports

  • Max input: 22V

  • 8mm input: 14–22V, up to 150W (10A) each

  • External battery connector (output): 65A charge controller

  • External battery connector (I/O): 10.7–15V, max 15V

  Yeti X 120W Power Supply

  • Cable: 16AWG, 9 ft 4 in

  • Size: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

  • Input: AC 100–240V, 50/60Hz, 3.0A

  • Output: 8mm, 16V–7.5A, 120W

  ---

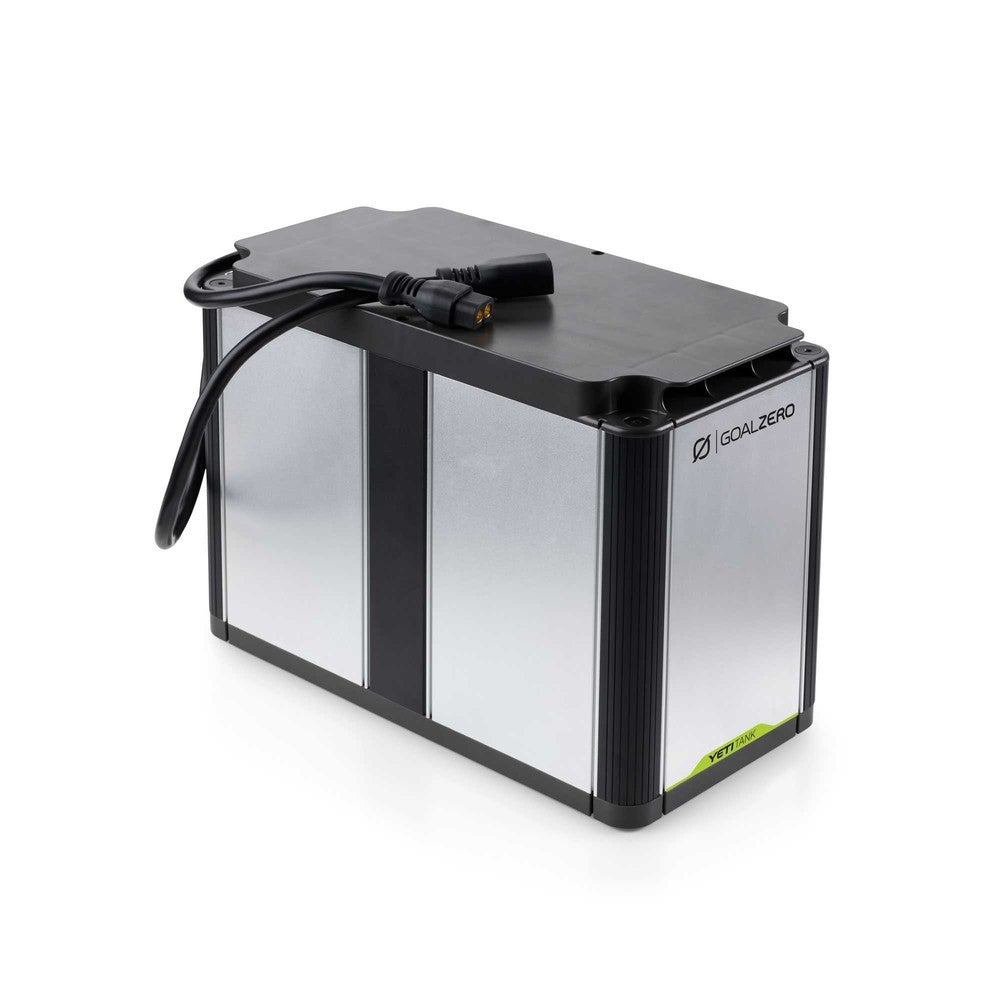

  Tech 4 – Yeti Tank Battery

  Charge Times

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:
    • Yeti 1000/1000X: 454–605W
    • Yeti 1400/1500X: 454–750W
    • Yeti 3000/3000X: 750W
    • Yeti 6000X: 750W

  Battery

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports

  • Expansion male connector (I/O): up to 100A

  • Expansion female connector (I/O): up to 100A

  General

  • Product SKU: 23105

  • Size: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

  • Weight: 77.1 lbs (34.97 kg)

  • Warranty: 12 months
