8400Wh Home Backup System

• 8,400Wh Backup System
  A complete bundle delivering about 8,400Wh of portable home power. Includes the Yeti 6000X, Home Integration Kit transfer switch, two Yeti Tank Expansion Batteries, and the Link Expansion Module.

  ---

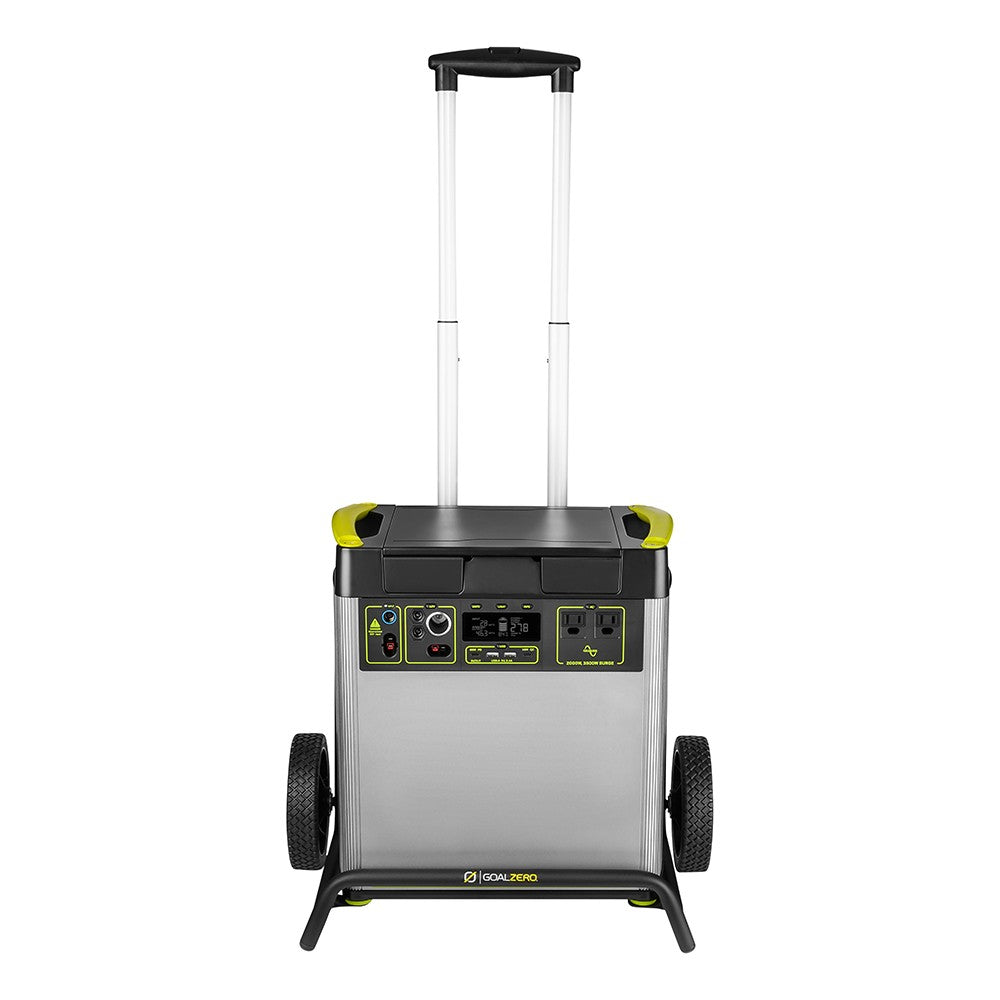

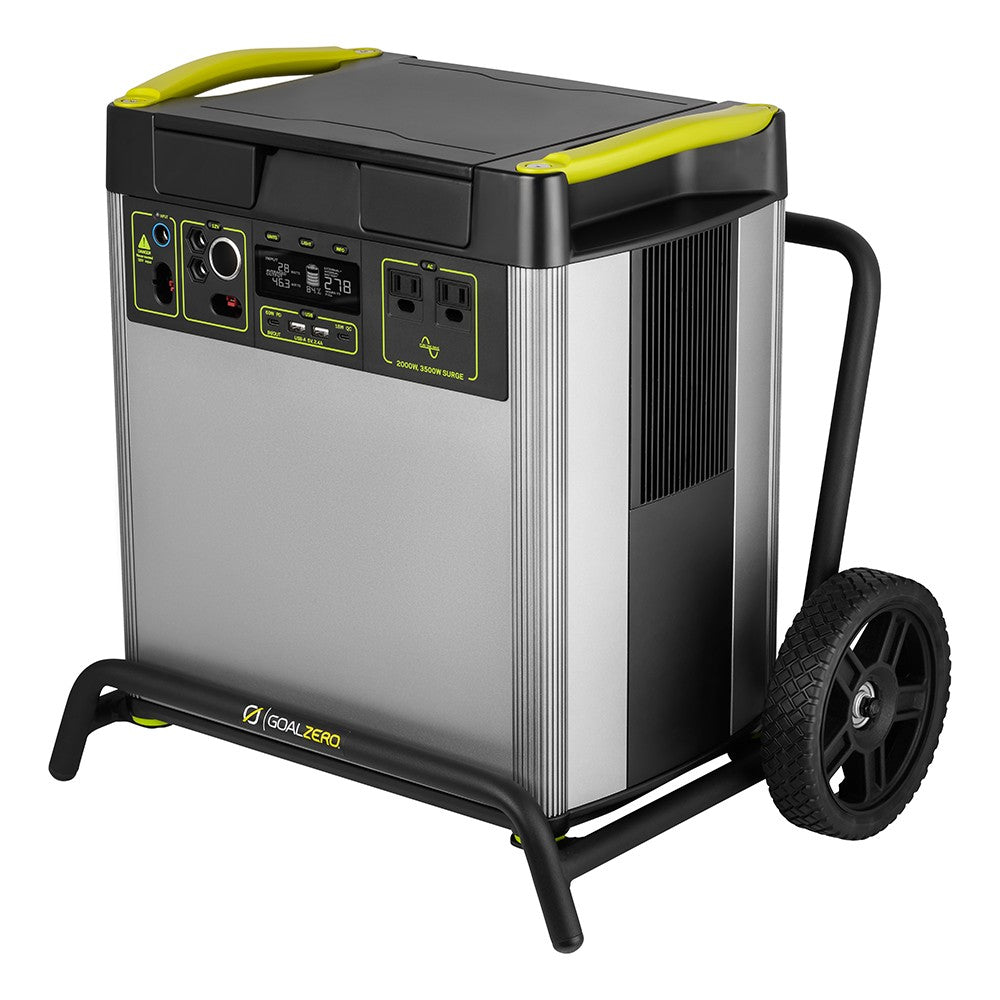

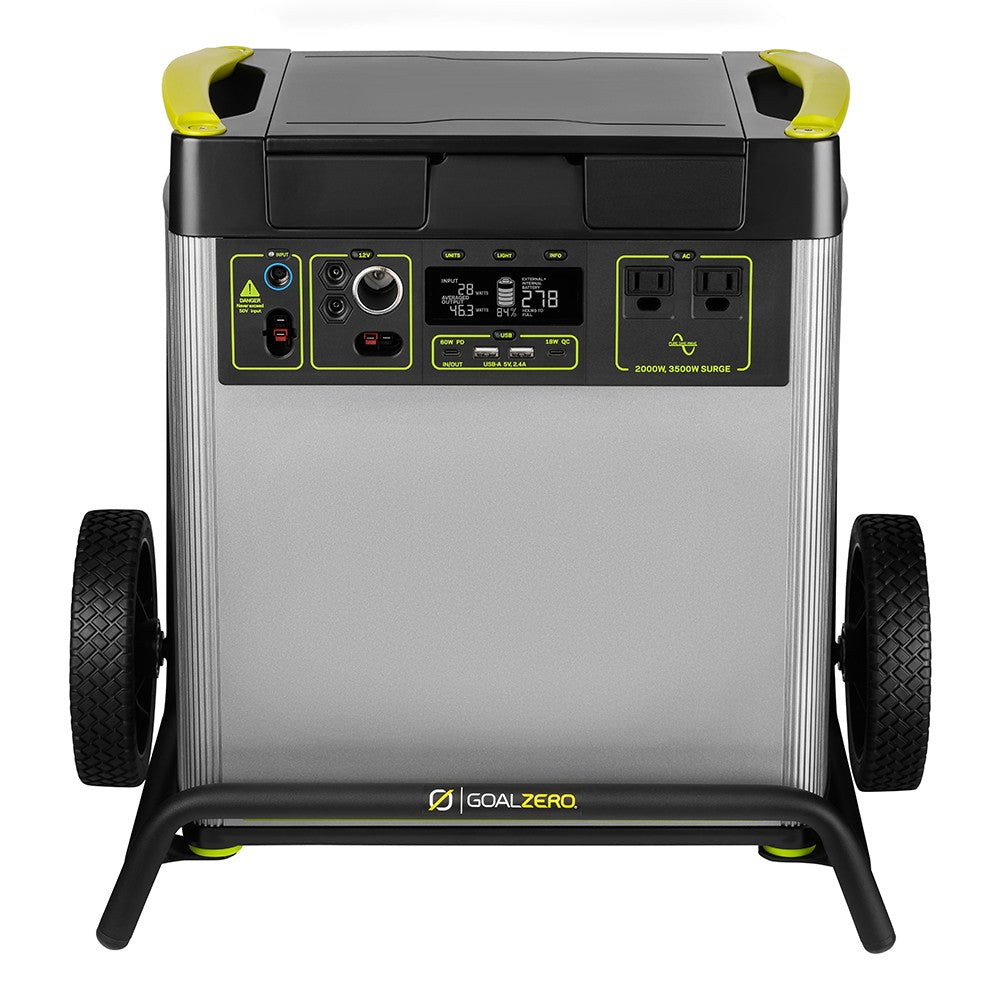

  Yeti 6000X Highlights

  • Gas-Free Power: Safe, clean lithium battery for home backup, off-grid use, or events.

  • Heavy-Duty Output: 2000W AC inverter (3500W surge) powers appliances, tools, and medical devices.

  • Versatile Ports: Seven outputs including 60W USB-C PD, USB-A, regulated 12V, and dual 120V AC.

  • Flexible Charging: Recharge from wall or solar panels, with MPPT for maximum solar efficiency.

  • Smart App Control: Yeti App 3.0 enables remote monitoring, usage tracking, and battery optimization.

  ---

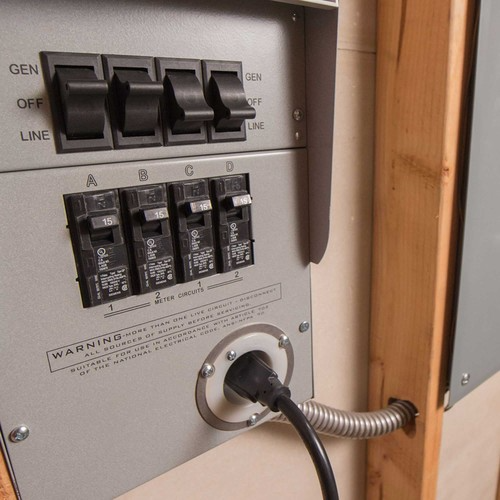

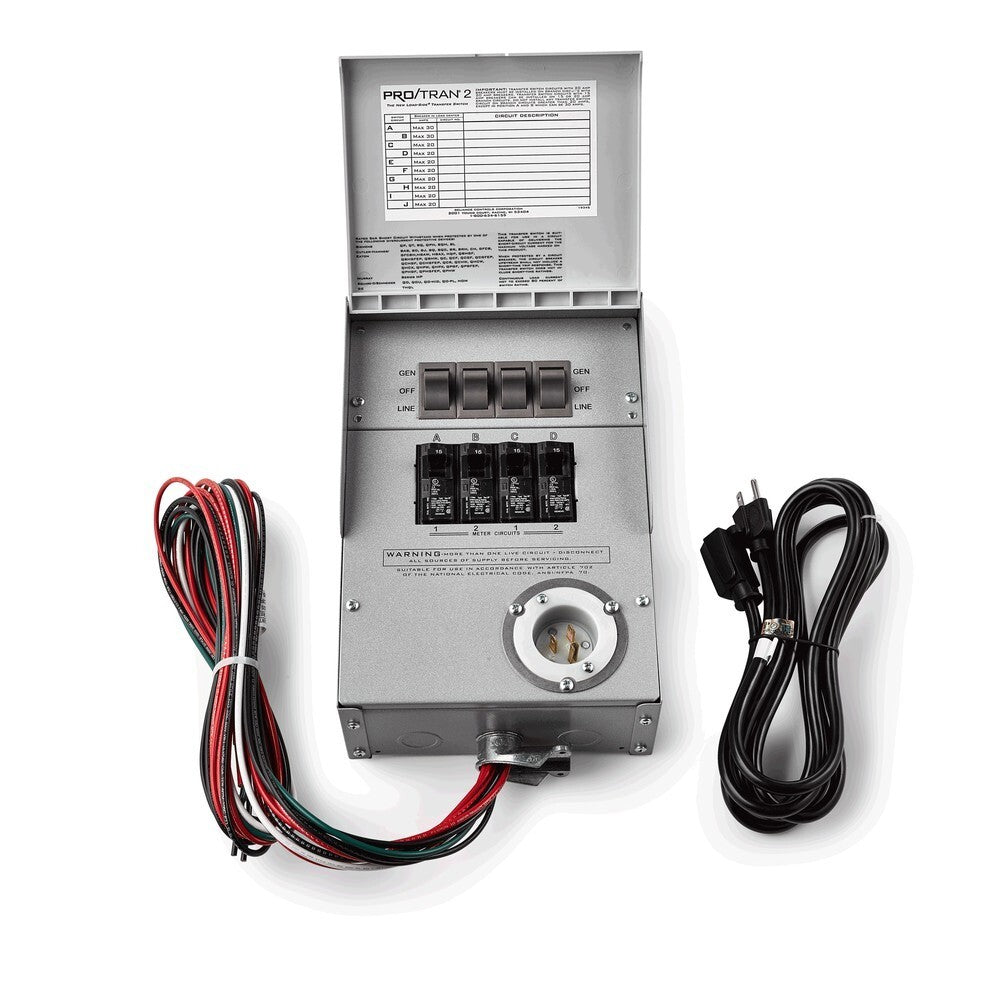

  Home Integration Kit Highlights

  • Custom Backup: Reliance Pro/Tran 2 Series, 15A, 4-circuit manual transfer switch.

  • Flexible Setup: Power up to four critical circuits such as fridge, garage, outlets, or lights.

  • Included Cable: 10 ft 14AWG extension cord for direct connection to your Yeti Power Station.

box1

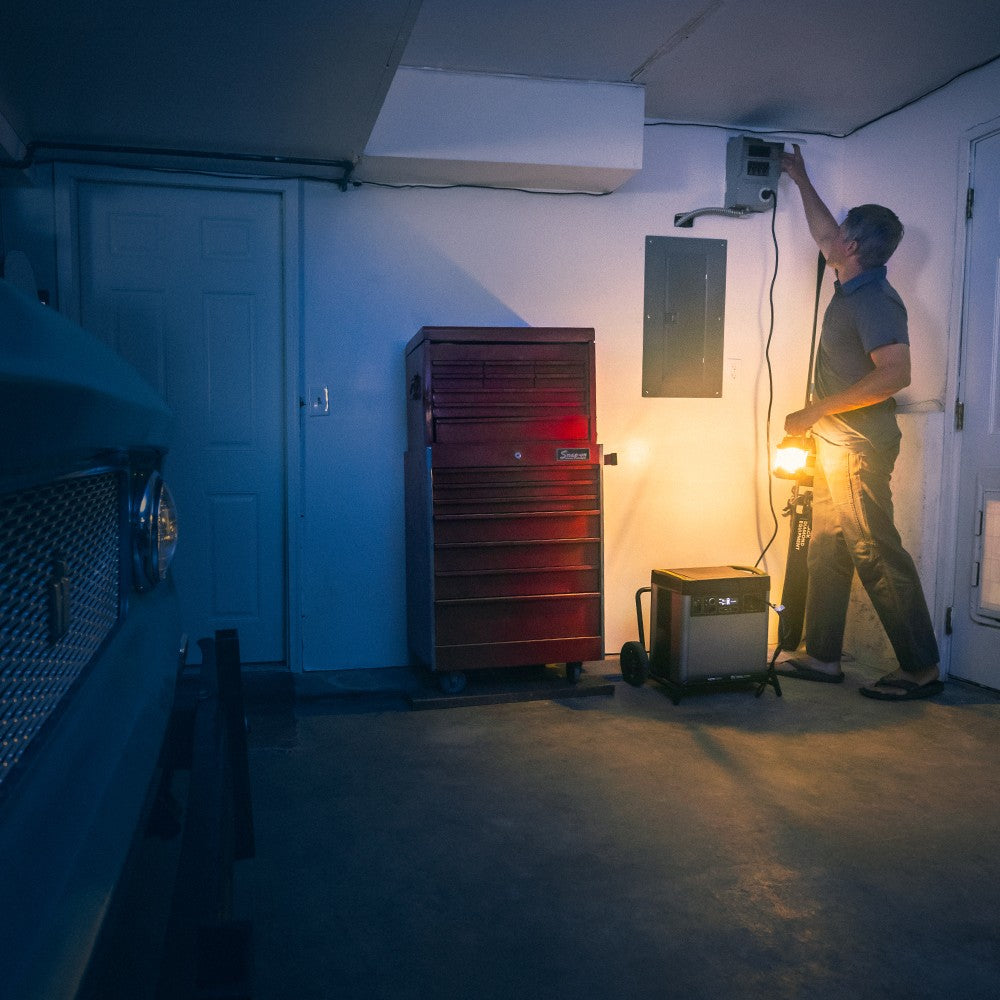

• BACK UP YOUR HOME
  A versatile energy storage system that powers up to four essential circuits and expands as your needs grow. Keep lights, refrigerators, medical devices, and internet routers running with seamless circuit integration for reliable backup power.

• Tech 1 – Yeti Power Station

  Ports

  • 1× USB-A: 5V, 2.4A (12W max), regulated

  • 1× USB-C: 5–12V, 3.0A (18W max), regulated

  • 1× USB-C PD (in/out): 5–20V, 3.0A (60W max), regulated

  • 1× 6mm: 12V, 10A (120W max), regulated

  • 1× 12V car port: 12V, 13A (160W max), regulated

  • 1× 12V High Power Port (HPP): 12V, 30A (360W max), regulated (front/under lid)

  • 2× AC outlets: 120VAC 60Hz, 16.5A, 2000W continuous (3500W surge), pure sine wave

  • 1× 8mm charging port (input): 14–50V, 10A (150W max), front/under lid

  • 1× HPP charging port (input): 14–50V, 50A (600W max)

  • Expansion Module Port: under lid (Goal Zero modules only)

  Battery

  • Chemistry: Li-ion NMC

  • Capacity: 6071Wh (10.9V, 556Ah)

  • Equivalent: 1668Ah @ 3.6V

  • Lithium content: 500g

  • Cycle life: ~500 cycles to 80% (1C, 25°C)

  • Shelf life: Recharge every 3–6 months

  • Management: MPPT charge controller

  General

  • Kit SKU: 44535 | Product SKU: 36500

  • Weight: 106 lbs (48.1 kg)

  • Dimensions: 15.3 × 10.1 × 17 in (38.9 × 25.7 × 43.2 cm)

  • Chainable: No | Simultaneous charge/discharge: Yes

  • Operating temp: 32–104°F (0–40°C)

  • Warranty: 24 months

  ---

  Tech 2 – Home Integration Kit (HIK)

  Ports

  • Voltage: 120V single-phase | Frequency: 60Hz

  • Rated watts: 1875W | Rated current: 15A

  • Circuit breakers: 4 | Max generator input: 15A

  • Transfer switch: 15A, 120V circuits

  • Protection: Each circuit

  General

  • Product SKU: 44060 | Made in USA

  • Weight: 9.5 lbs (4.3 kg)

  • Dimensions: 7.75 × 11.25 × 4.5 in

  • Enclosure: NEMA 1R | Conduit: 18 in

  • UL listed | Compatible with Yeti X & Yeti Lithium (1000W+)

  ---

  Tech 3 – Yeti Link & Power Supply

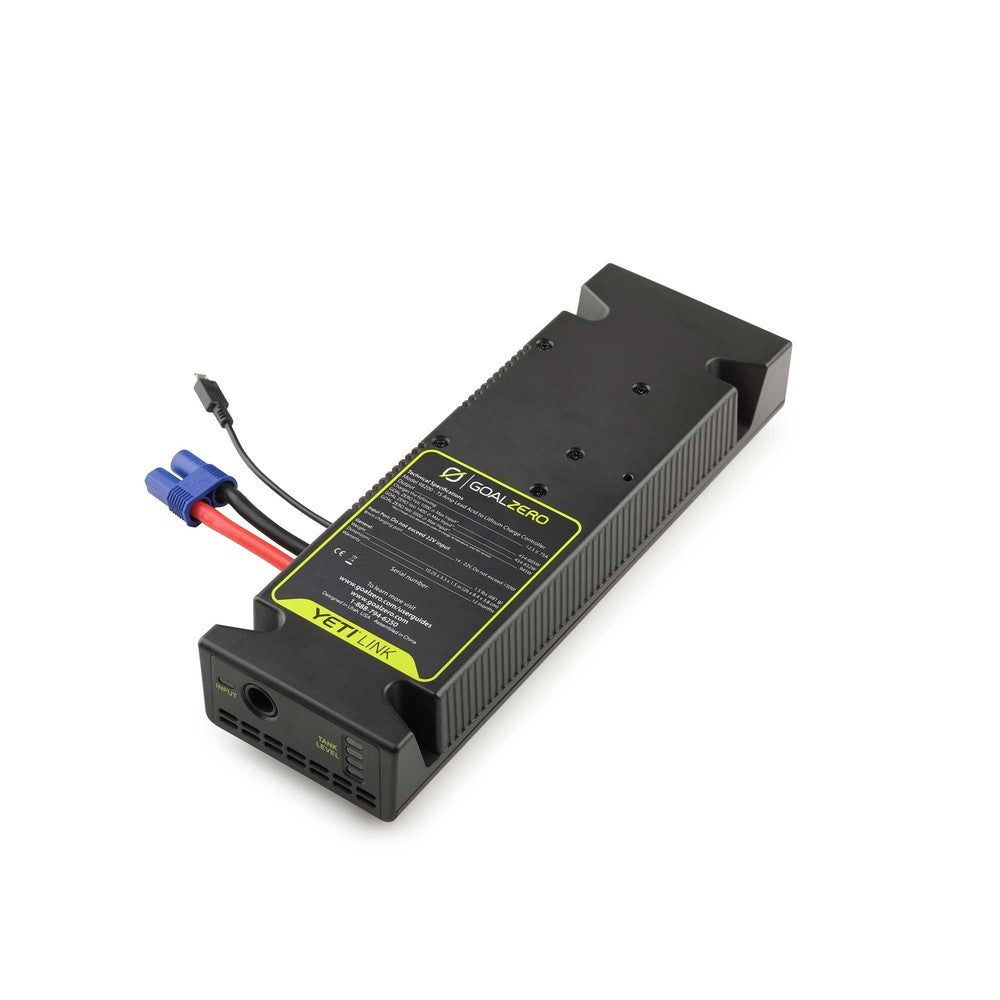

  Yeti Link

  • Product SKU: 98210

  • Weight: 1.5 lbs (680 g)

  • Dimensions: 10.25 × 3.3 × 1.5 in (26 × 8.4 × 3.8 cm)

  • Warranty: 12 months

  Ports

  • Max input: 22V

  • 8mm charging (input): 14–22V, 150W max (10A) per port

  • External battery connector (output): 65A charge controller

  • External battery connector (in/out): 10.7–15V, max 15V

  120W Power Supply

  • Cable: 16AWG, 9 ft 4 in

  • Dimensions: 2.5 × 5.9 × 1.4 in (6.5 × 15 × 3.5 cm)

  • Input: AC 100–240V, 50/60Hz, 3.0A

  • Output: 8mm, 16V–7.5A (120W)

  ---

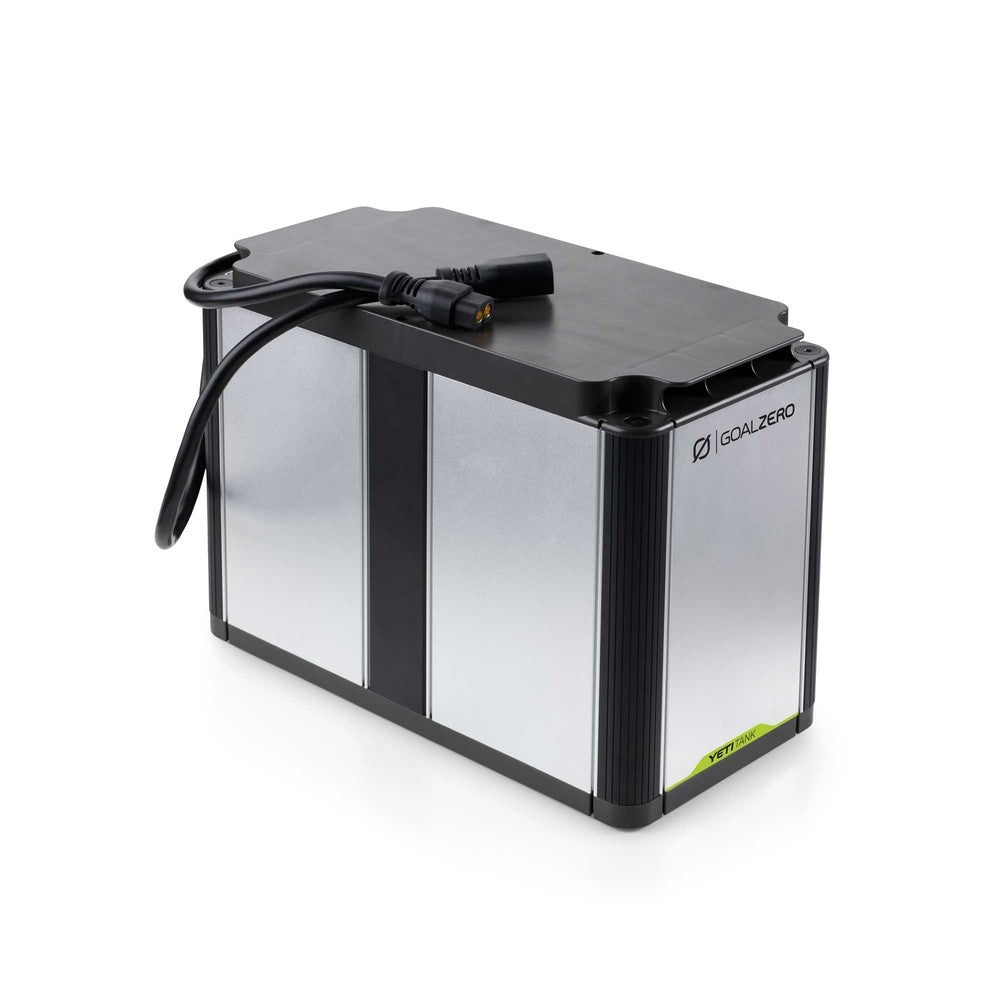

  Tech 4 – Yeti Tank Battery

  Charge Times

  • Wall charger (120W): ~11 hrs per tank

  • Yeti Link max input:
    • Yeti 1000/1000X: 454–605W
    • Yeti 1400/1500X: 454–750W
    • Yeti 3000/3000X: 750W
    • Yeti 6000X: 750W

  Battery

  • Type: AGM lead-acid

  • Capacity: 1200Wh (12V, 100Ah)

  Ports

  • Expansion male connector: up to 100A

  • Expansion female connector: up to 100A

  General

  • Product SKU: 23105

  • Weight: 77.1 lbs (34.97 kg)

  • Dimensions: 15.5 × 7.5 × 10.5 in (39.37 × 19.05 × 26.67 cm)

  • Warranty: 12 months
