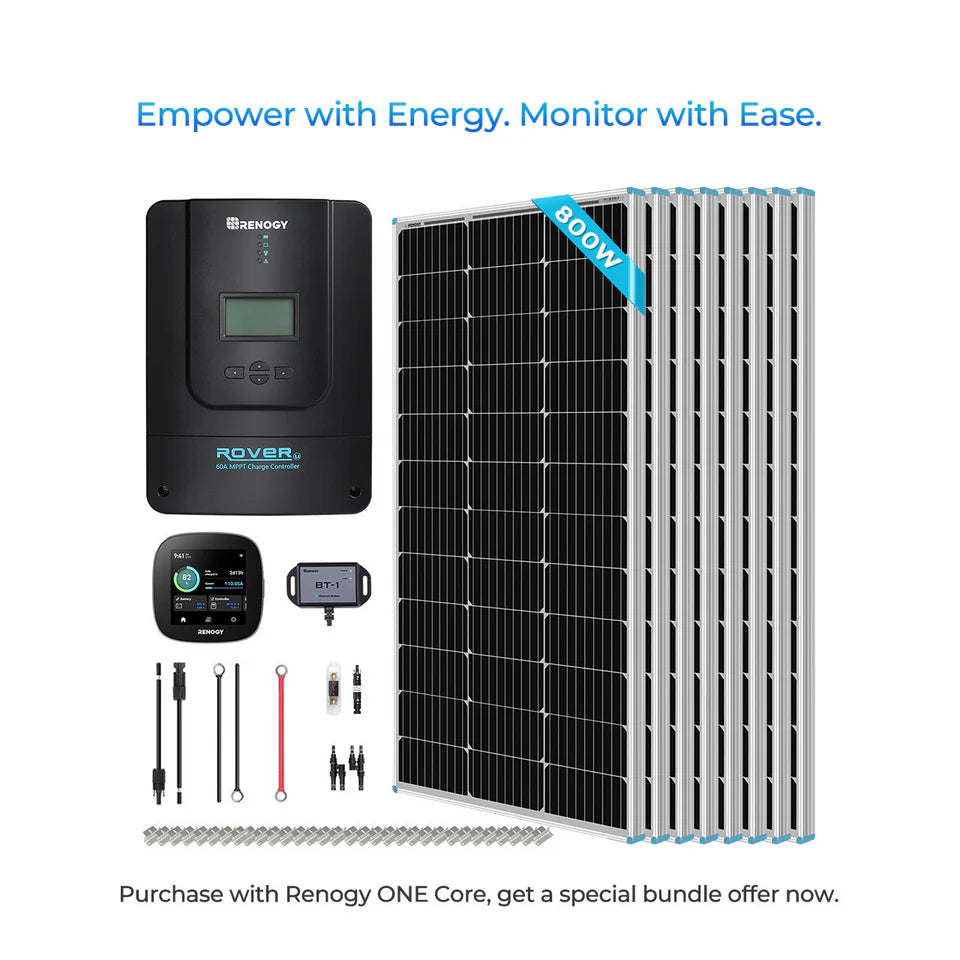

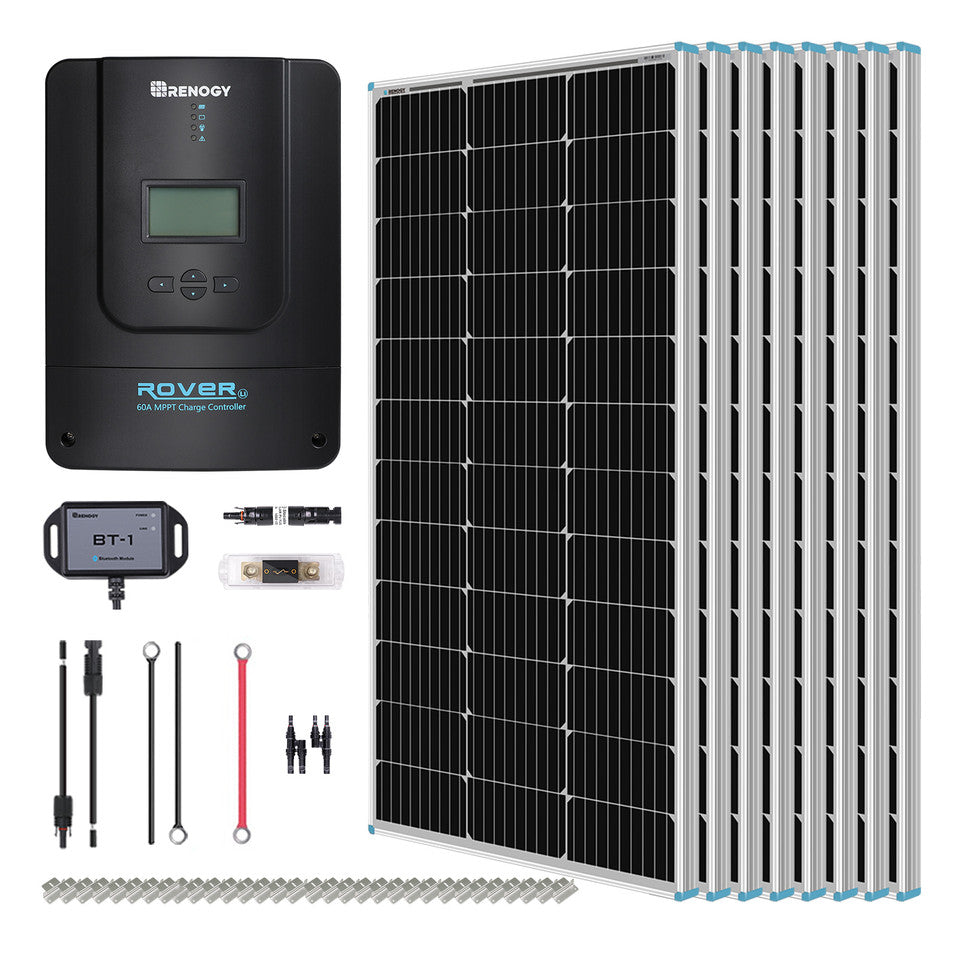

Renogy 800W 12V/24V Premium Solar Kit
Key Features
-
High-efficiency solar cells up to 21%
-
Comprehensive system protection with multiple electronic safeguards
-
Automatic voltage detection and broad battery compatibility
-
Phone monitoring capability for real-time updates
-
Straightforward installation for off-grid convenience
Product Overview

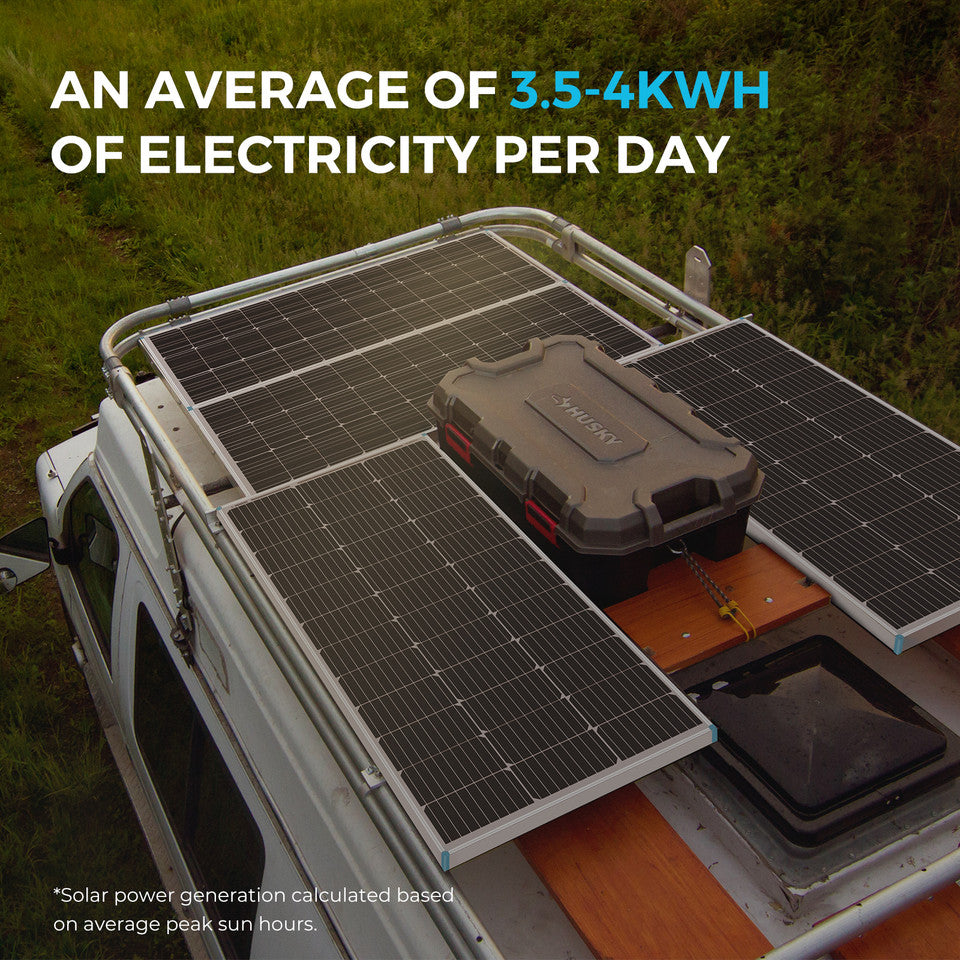

The Renogy 800W Premium Solar Kit is designed for off-grid enthusiasts who want a reliable, efficient, and economical power solution. Delivering an average of 3.5–4 kWh per day (with 5 hours of full sunlight), the system includes eight 100W solar panels that maximize output while minimizing roof space.
Equipped with the Rover Li 60A MPPT charge controller, the kit supports expansion up to 1600W at 24V, giving you the flexibility to scale your system as needed. It also comes complete with all the essentials—charge controllers, fuses, wiring, and monitoring equipment—for a seamless setup.
Perfect for yards, barns, RVs, boats, campers, and remote cabins, this kit also works well for ground-mounted setups at campsites or as a standalone energy source for greenhouses, water pumps, and other remote devices.
-
Efficient Performance
The bypass diode helps maintain excellent panel performance even in low-light conditions, while the TPT backsheet effectively dissipates heat to ensure stable output. The module efficiency can reach up to 17.8%.
Paired with the Rover Li 60A MPPT charge controller, this kit supports system expansion by adding more identical solar panels—for instance, a 12V system can be expanded up to 800W, and a 24V system up to 1600W.
The Rover Li 60A MPPT Charge Controller has built-in protection to safeguard your systems, such as reverse polarity, overcharging, overload, short-circuiting, and reverse current.
Automatically detects 12V, 24V, 36V or 48V DC system voltages, and the LCD screen and multiple LED indicators to display the solar charging and battery operation information, customizable parameters, and error codes.

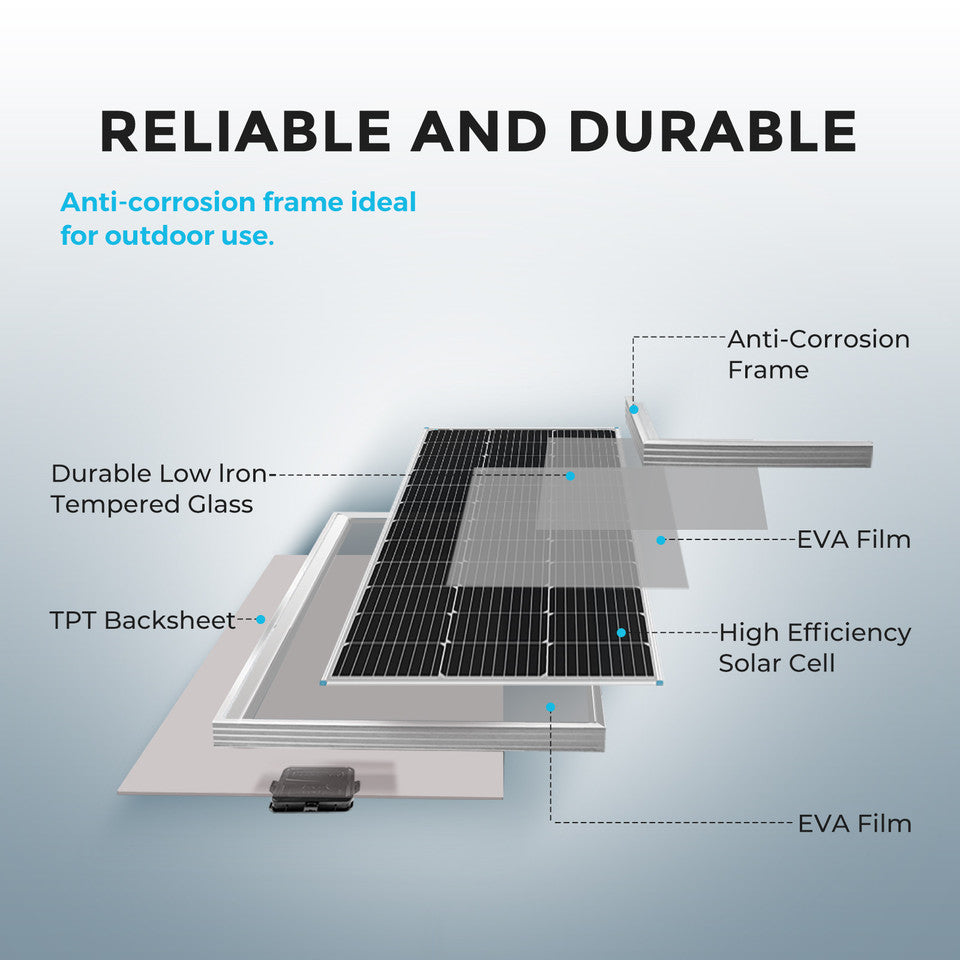

Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life.
The IP65 Junction Box protects against environmental particles and low-pressure water jets. These IP67 waterproof solar connectors ensure that the water and dust will not enter the connector during extended outdoor use. Effectively preventing water from seeping in.
This Renogy Solar Kit includes the equipment necessary for building a new system, such as necessary cables, Z-brackets, and pre-drilled holes on the back frame of the panel, allowing fast and secure mounting.
Renogy 100W Monocrystalline Solar Panel Kit with Accessories

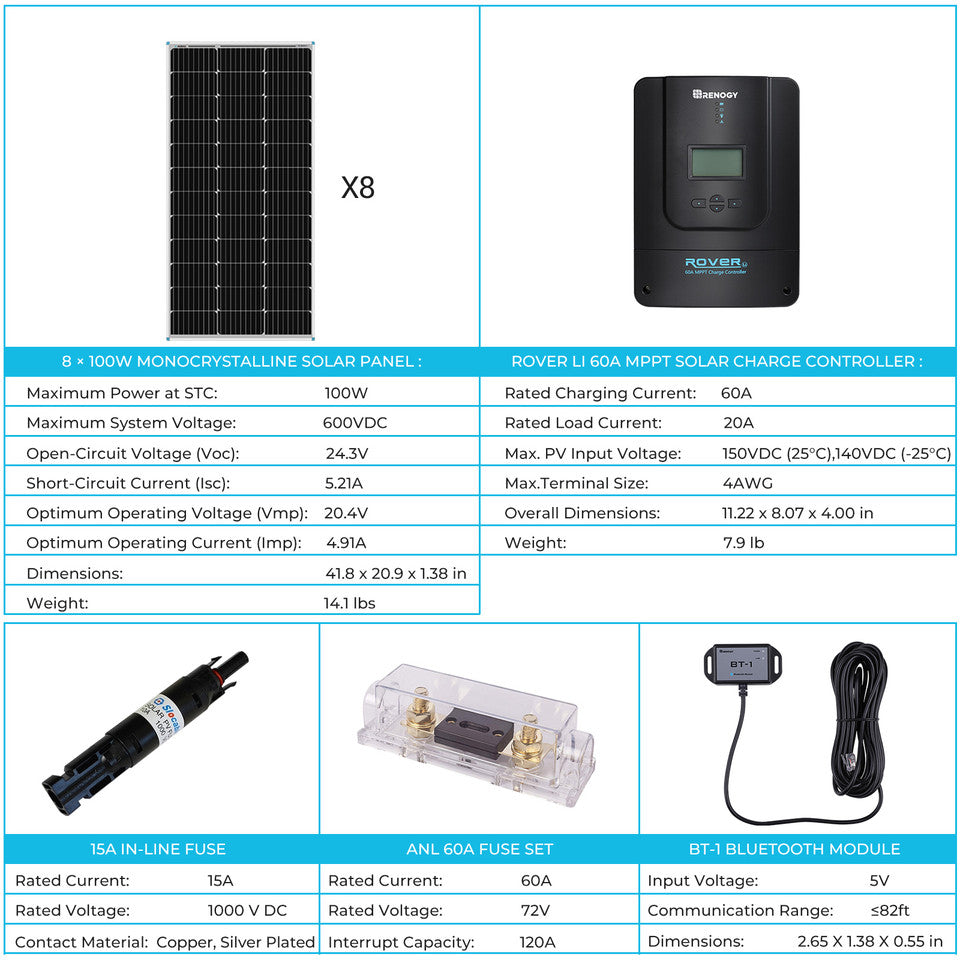

Solar Panel
-
Maximum Power: 100W
-
System Voltage: 600V DC (UL)
-
Voc: 24.3V | Vmp: 20.4V
-
Isc: 5.21A | Imp: 4.91A
-
Size: 41.8 × 20.9 × 1.4 in
-
Weight: 14.1 lbs (6.4 kg)

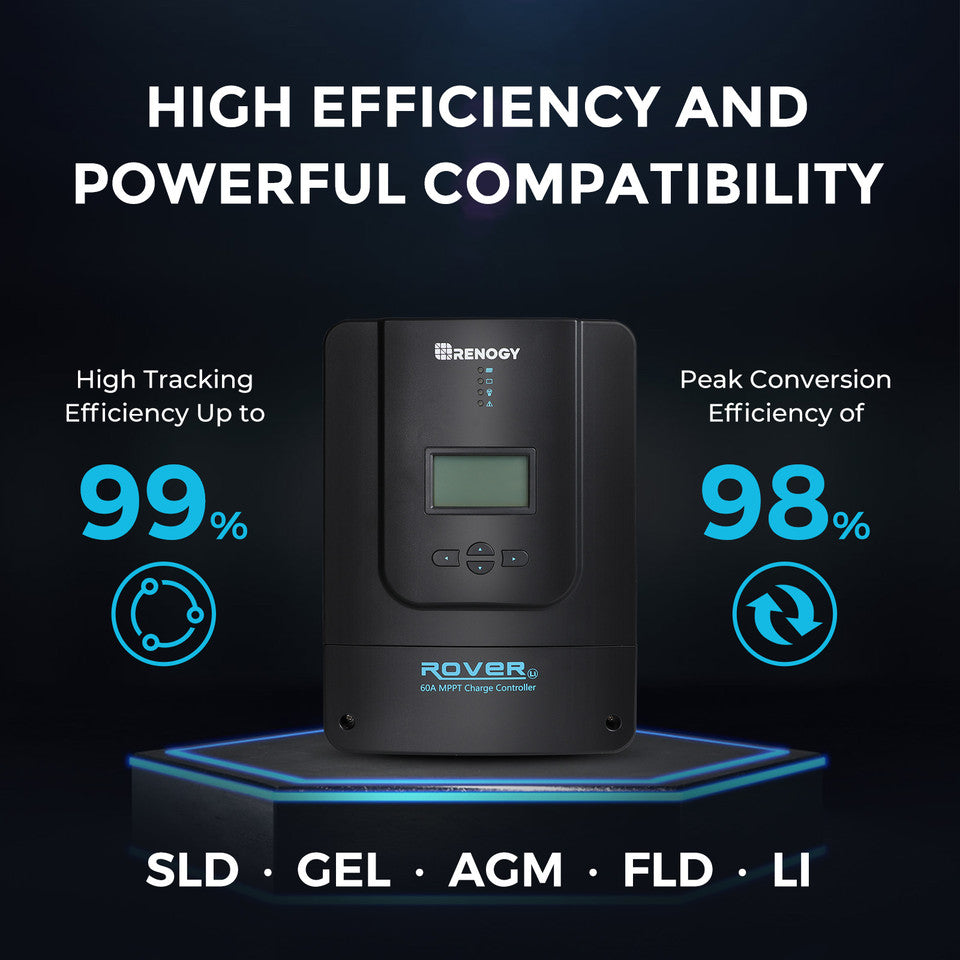

Rover Li 60A MPPT Charge Controller
-
Rated Charge Current: 60A | Load Current: 20A
-
Max PV Input Power: 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)
-
Max PV Input Voltage: 150 VDC (25°C), 140 VDC (-25°C)
-
Self-Consumption: 0.7W–1.2W
-
Size: 11.22 × 8.07 × 4 in | Weight: 7.9 lbs
-
Enclosure: IP32 | Terminals: 25mm² (4AWG)

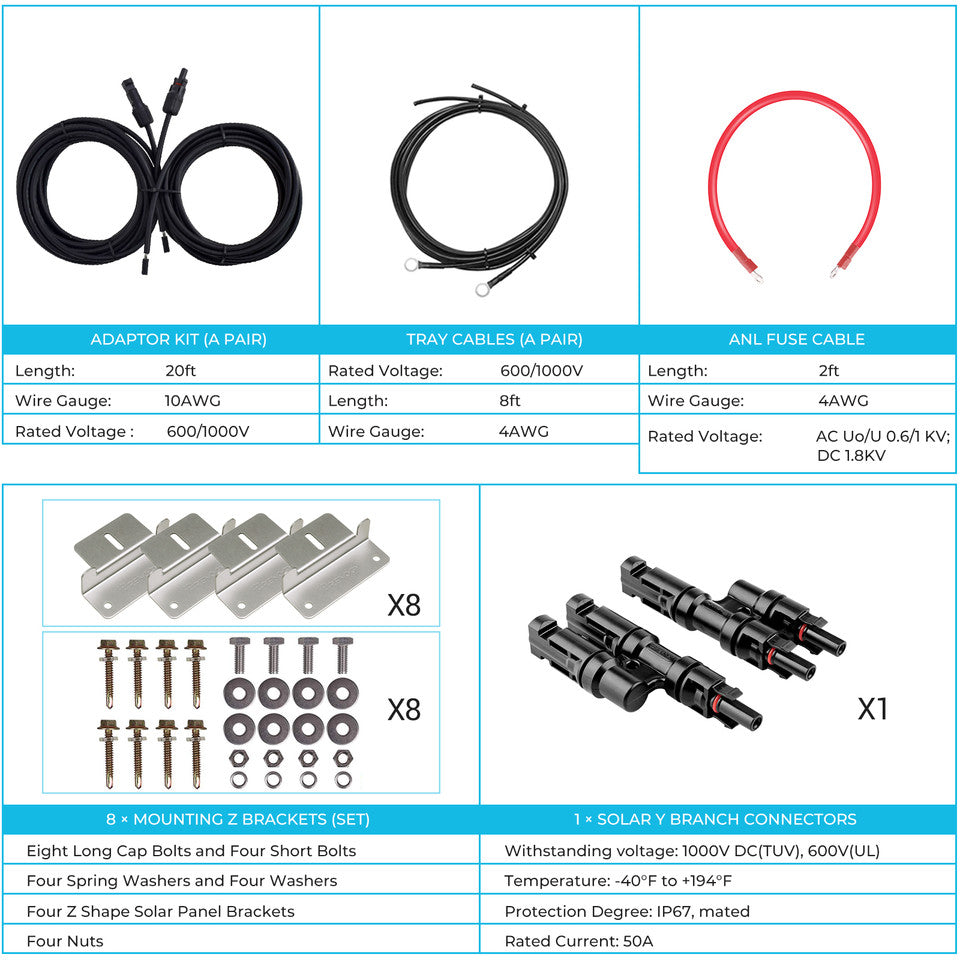

Cables & Protection
-
8FT 4AWG Tray Cables (Pair) – Rated 600/1000V, -40°F to 185°F
-
2FT 4AWG ANL Fuse Cable – Rated 0.6/1KV AC, 1.8KV DC, -40°F to 194°F
-
20FT 10AWG Solar Adaptor Kit (Pair) – Rated 600/1000V, -40°F to 185°F
-
15A Solar Connector Fuse Holder with Fuse – 1000V DC, copper with silver plating
-
ANL 60A Fuse Set – 72V rating, 360A interrupt capacity at 48V
Connectivity & Monitoring
-

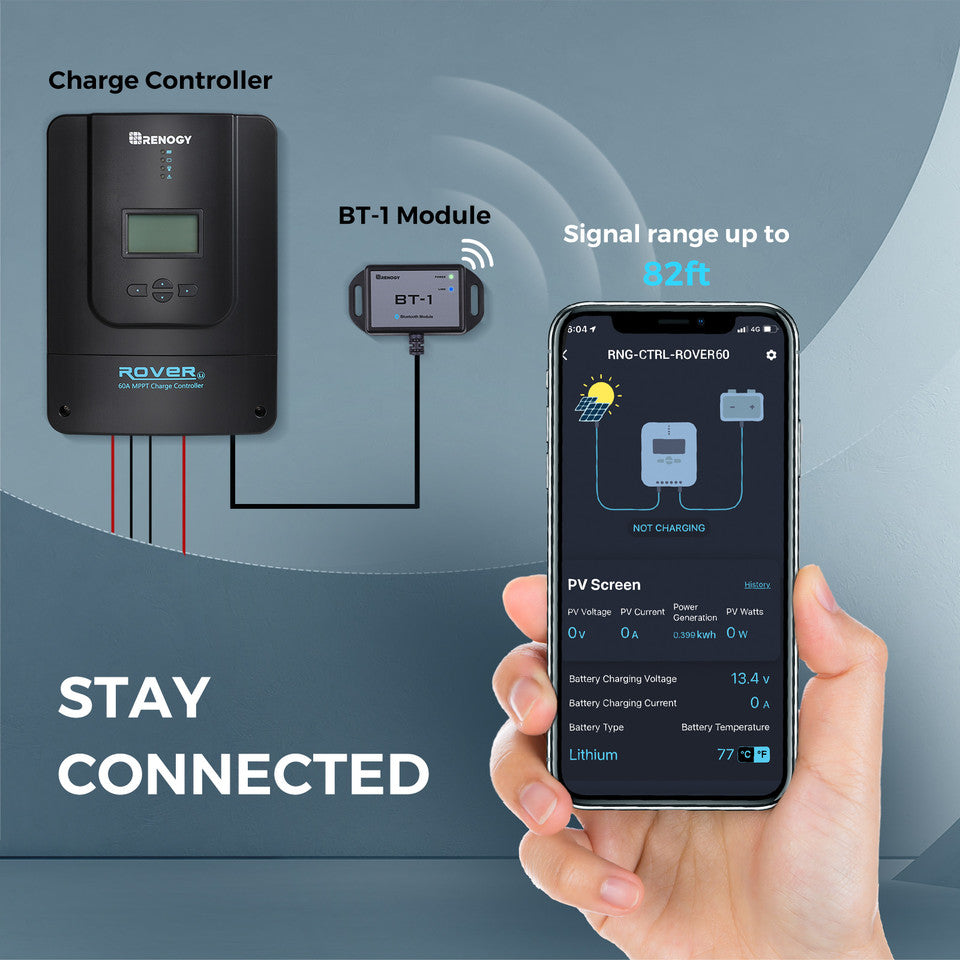

BT-1 Bluetooth Module – 5V input, ≤82 ft range, compatible with Renogy controllers (RJ12 port)
-
Solar Branch Connectors (MMF+FFM Pair) – Withstands 1000V DC (TUV) / 600V (UL), IP67 rated
-
Mounting Z Brackets Set – Includes bolts, nuts, and washers for secure panel installation
Warranty
-
Panels: 25-year power output warranty (5 yr 95%, 10 yr 90%, 25 yr 80%) + 10-year workmanship warranty
-
Accessories: 1-year workmanship warranty
