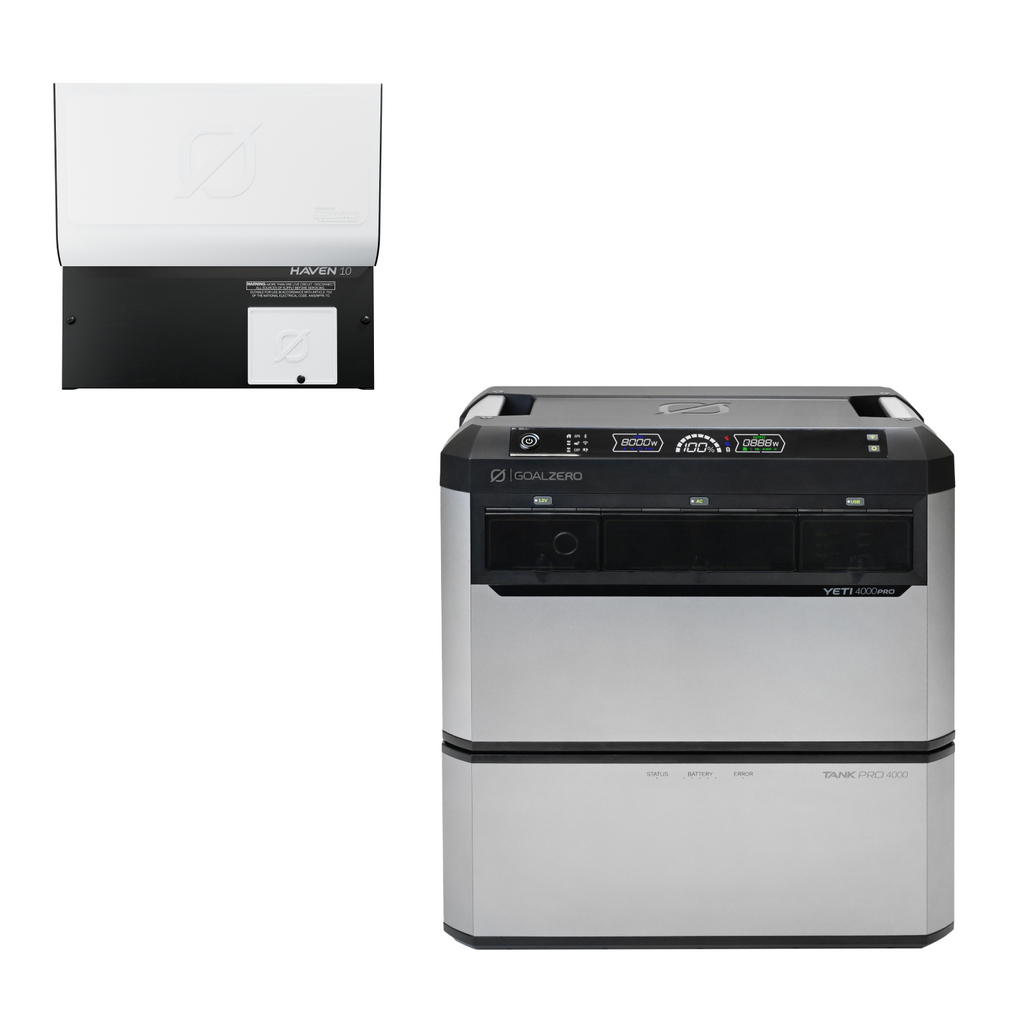

8 kWh Haven Home Backup

• HOME BACKUP SOLUTION – 7,988 Wh
  Stay prepared with reliable backup power for up to 10 essential circuits. This system includes a Yeti PRO 4000, one Tank PRO 4000 battery, and the Haven 10 transfer switch—keeping lights, fridges, Wi-Fi, and more running during outages.

• TANK PRO 4000 HIGHLIGHTS

  Modular Scalability
  Start small and expand as your needs grow. Add one or more batteries now and easily scale up later with the modular design.

  Expanded Capacity
  With more capacity than previous models, the Tank PRO 4000 keeps your home powered longer. Add additional expansion batteries to run essentials for days.

  Seamless Integration
  Designed to pair perfectly with the Yeti PRO 4000, the Tank PRO 4000 connects easily and functions as one system—charging and discharging together.

  Long Lifespan
  Built with advanced LiFePO₄ technology, it lasts up to 8× longer than earlier models, providing reliable, high-capacity backup power for years.

GOAL ZERO POWER APP

The redesigned Goal Zero app works seamlessly with the Yeti PRO 4000. Monitor, control, and track your power from anywhere. Check battery levels, manage port activity, and view real-time power flow. Compare usage to historical data and select charge profiles to optimize for Performance, Battery Saver, or Balance modes.

TURN YOUR YETI INTO A SOLAR GENERATOR

Go completely off-grid by pairing your Yeti with solar panels. Choose from ground-deployable panels, roof-mounted options for vehicles and off-grid homes, or lightweight foldable panels for camping and travel.

HOME BACKUP POWER

Stay prepared for outages with a customizable backup power system that supports up to 10 essential circuits when paired with the Haven 10 Manual Transfer Switch. Keep your home running by powering lights, refrigerators, medical devices, Wi-Fi routers, and more—all with reliable, seamless backup power.

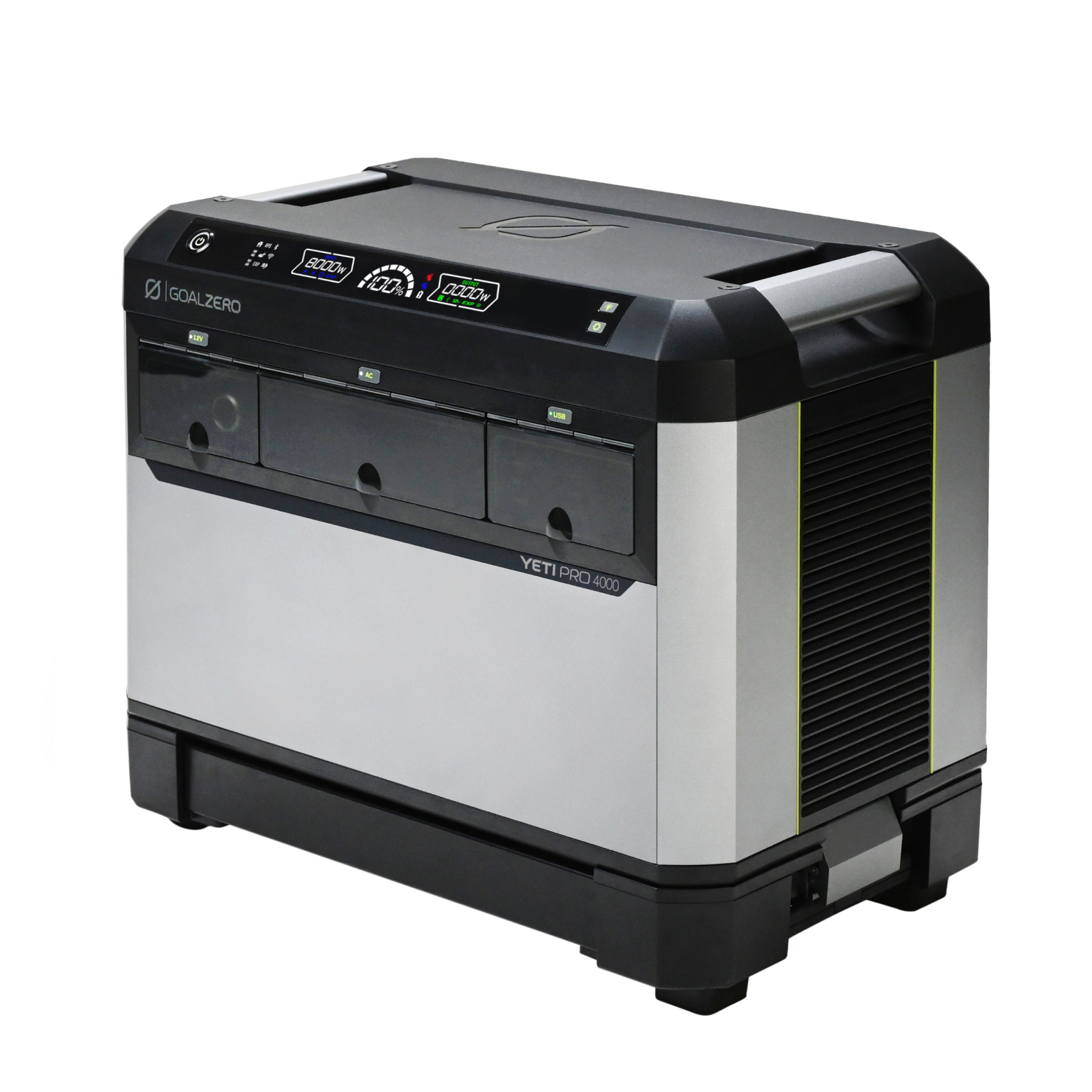

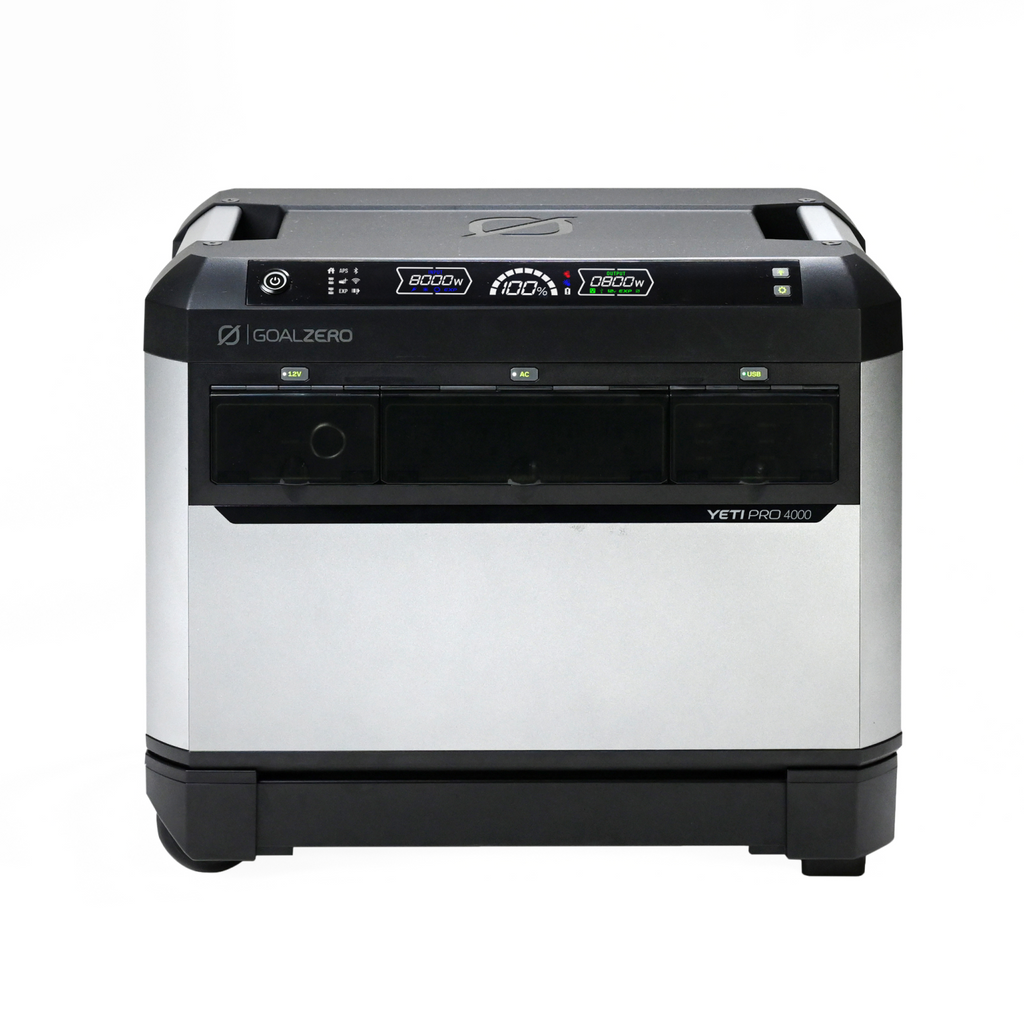

• Yeti PRO 4000

  Input

  • AC Fast Charge: 1800W (90–144V, up to 15A)

  • Power+: 1800W (90–144V, 15A)

  • HPP High Voltage Input: 3000W Max (13.3–150V, up to 40A)

  • 8mm Low Voltage Input: 275W Max (12.3–28V, up to 10A)

  • Expansion Port (Tank Pro 4000): 100A, 100V Max

  • Reunion Auto-Lock (Input): 3000W (90–254V, 30A)

  • Reunion Auto-Lock (Pass-Thru): 3600W, 90–129V AC, 60Hz, 30A

  • Reunion Auto-Lock (Output): 3600W, 120V AC, 60Hz, 30A

  • Accessory Port: 56V DC, 100A (Input/Output)

  Output

  • USB-A (x3): 18W (5–12V DC, up to 3A) → 54W combined

  • USB-C PD: 100W (5–20V DC, up to 5A)

  • USB-C QC (x2): 30W (5–20V DC, up to 3A) → 160W combined

  • 12V Auxiliary Port: 162W (13.5V DC, 12A continuous, 40A surge)

  • 12V High Power Port (HPP): 405W (13.5V DC, 30A continuous, 40A surge)

  • 12V 6mm Ports (x2): 135W (13.5V DC, 10A continuous, 40A surge) → 375W combined

  • AC Inverter: 3600W continuous, 7200W surge, 120V AC, 60Hz, 30A

  • AC Single Port: 2400W, 120V AC, 60Hz, 20A

  • AC TT-30R: 3600W, 120V AC, 60Hz, 30A

  • Total Combined Output: 4189W

  Battery

  • Chemistry: LiFePO₄

  • Capacity: 3993.6Wh (51.2V, 78Ah)

  • Equivalent Capacity: 1248Ah @ 3.2V

  • Lifecycles: 4000 (to 80% capacity at 25°C, 0.5C rate)

  • Shelf Life: 12–18 months

  Charging Speed

  • Solar (3000W Max): 2 hrs

  • 400W (Boulder 200 x2): 12 hrs

  • 600W (Boulder 200 x4): 6 hrs

  • 1200W (Ranger 300 x4): 4 hrs

  • Car Charger (10A): 37 hrs

  • Vehicle Alternator (400W): 11 hrs

  General

  • Dimensions: 21.4 × 13.8 × 14.8 in (54.3 × 35.1 × 37.7 cm)

  • Dimensions (with cart): 21.4 × 13.8 × 18.1 in (54.3 × 35.1 × 45.9 cm)

  • Weight: 115.7 lbs (52.5 kg) | With cart: 125.7 lbs (57.0 kg)

  • Operating Temp: Charge 32–125.6°F (0–52°C) | Discharge -4–140°F (-20–60°C)

  • Warranty: 5 Years

  • Communication: Bluetooth 4.1, Wi-Fi a/g/n (Goal Zero App required)

  ---

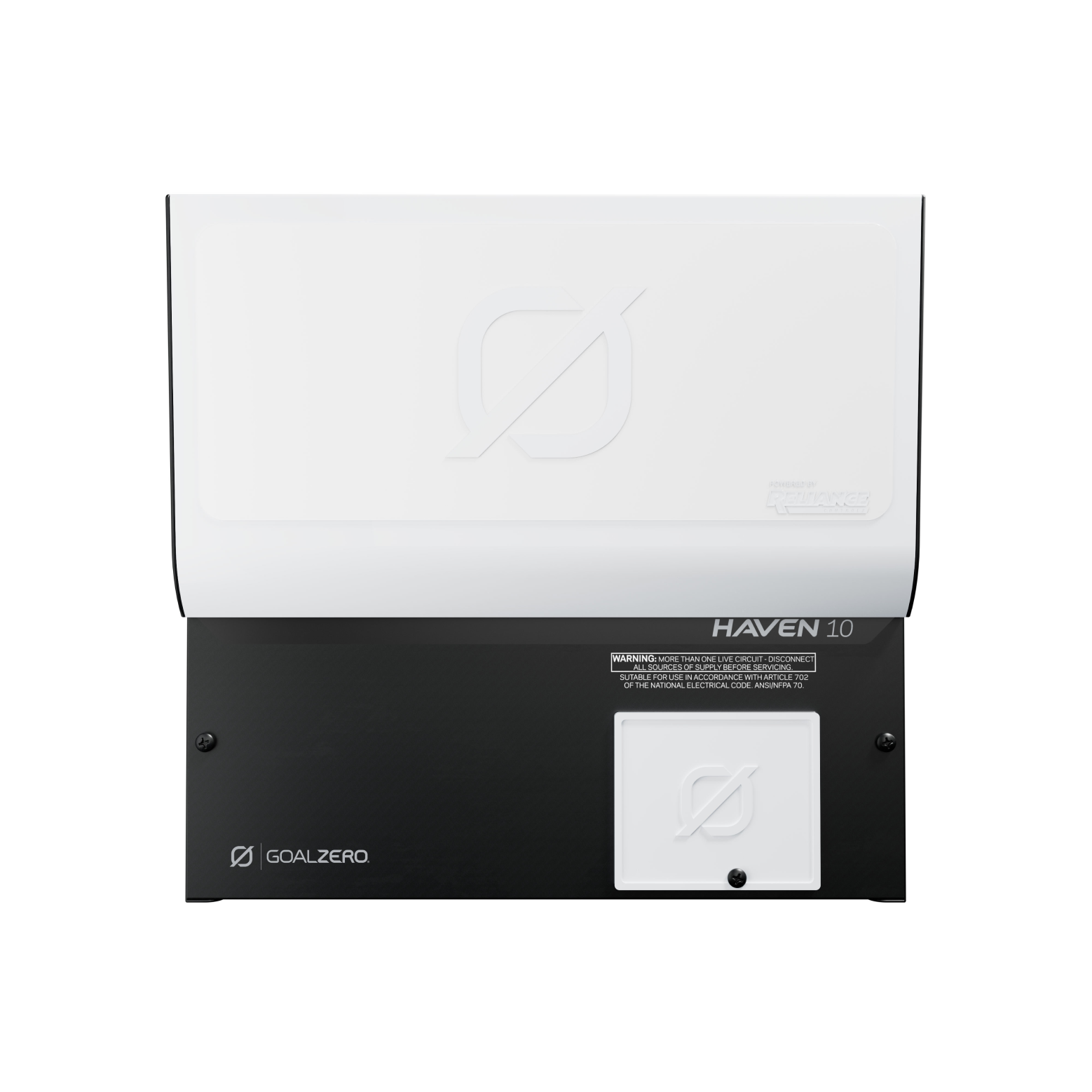

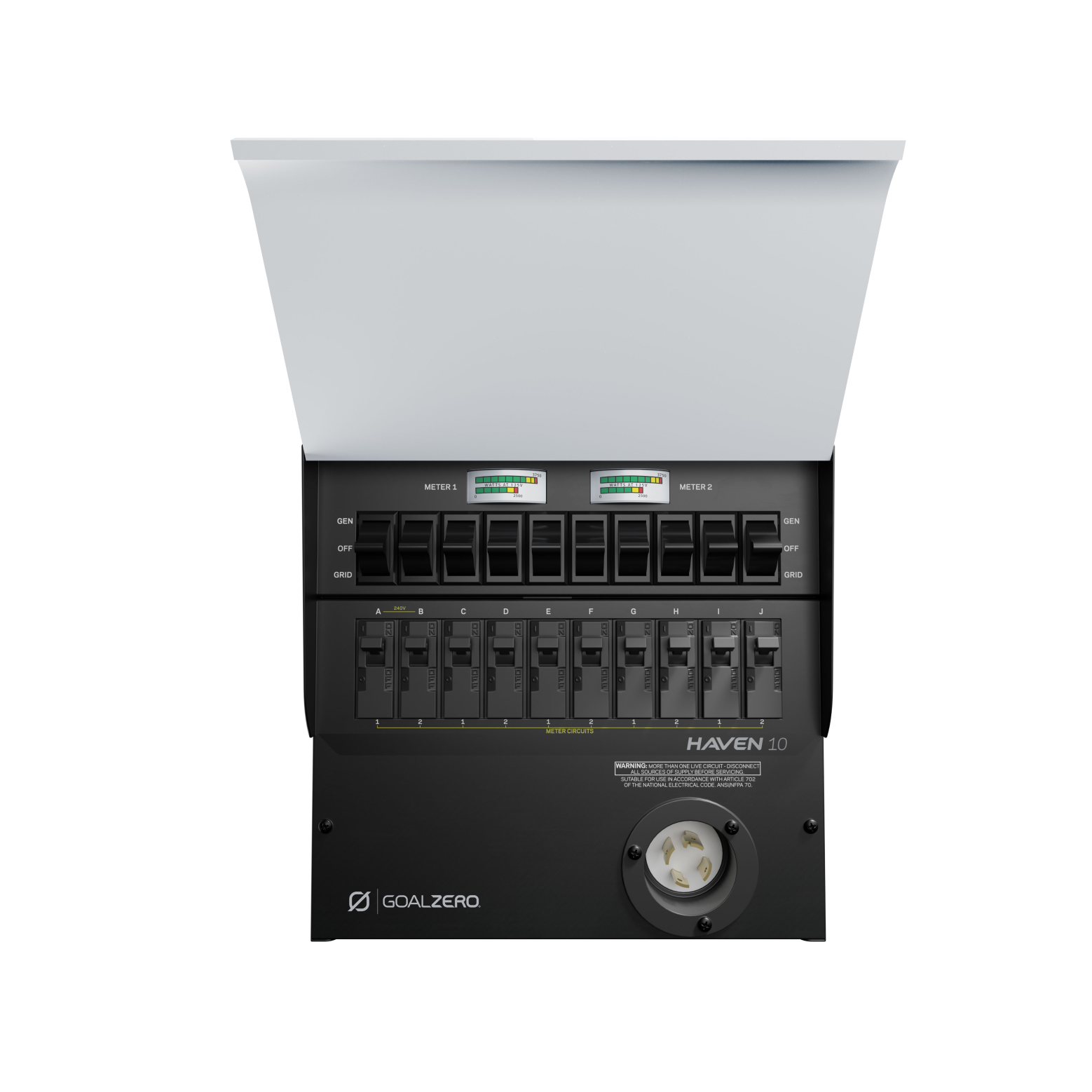

   Haven 10 Manual Transfer Switch

  Ports & Circuits

  • Max Circuits: 10 (Single-Pole)

  • Circuit Breaker Ratings: 6 × 15A, 4 × 20A

  • Max Supported Breakers: 2 × 30A, 8 × 20A

  • Total Max Power: 7500W

  • Power Inlet: NEMA L14-30R

  • Circuit Protection: Individual breaker per circuit

  General

  • Dimensions: 11.8 × 11 × 4.5 in (29.9 × 27.9 × 11.4 cm)

  • Weight: 13 lbs (5.9 kg)

  • Conduit: 18 in (45.7 cm) length, 1 in (2.5 cm) size

  • Certification: UL Listed

  • Made in USA

  • Warranty: 5 Years

  • Compatibility: Works with Yeti PRO 4000

  Cables

  • 3600W Pass-Through Cable: 8 ft, 10AWG, 40A

  • Yeti PRO to Haven Cable: 10 ft | TT-30P (Yeti) → L14-30 (Haven)

  ---

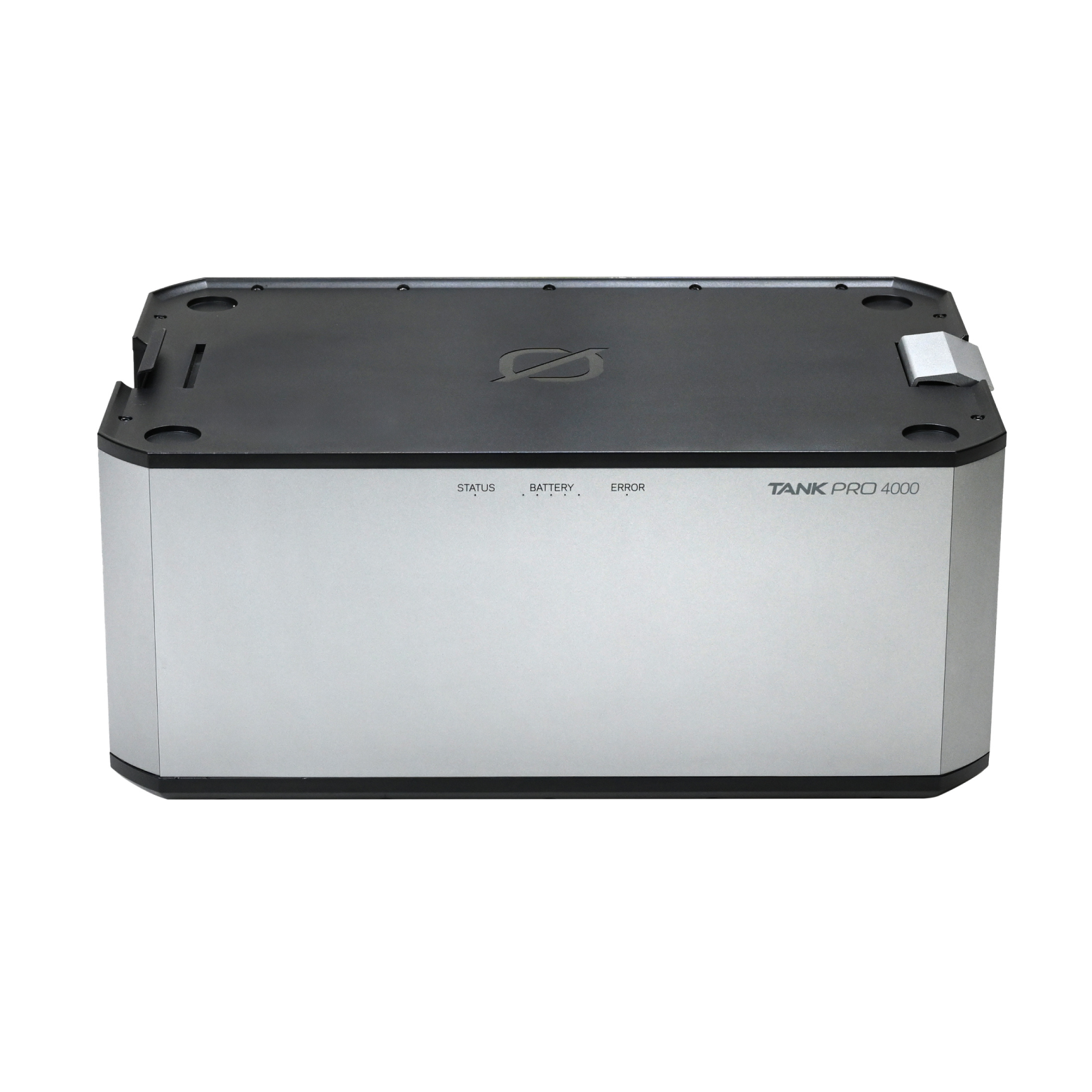

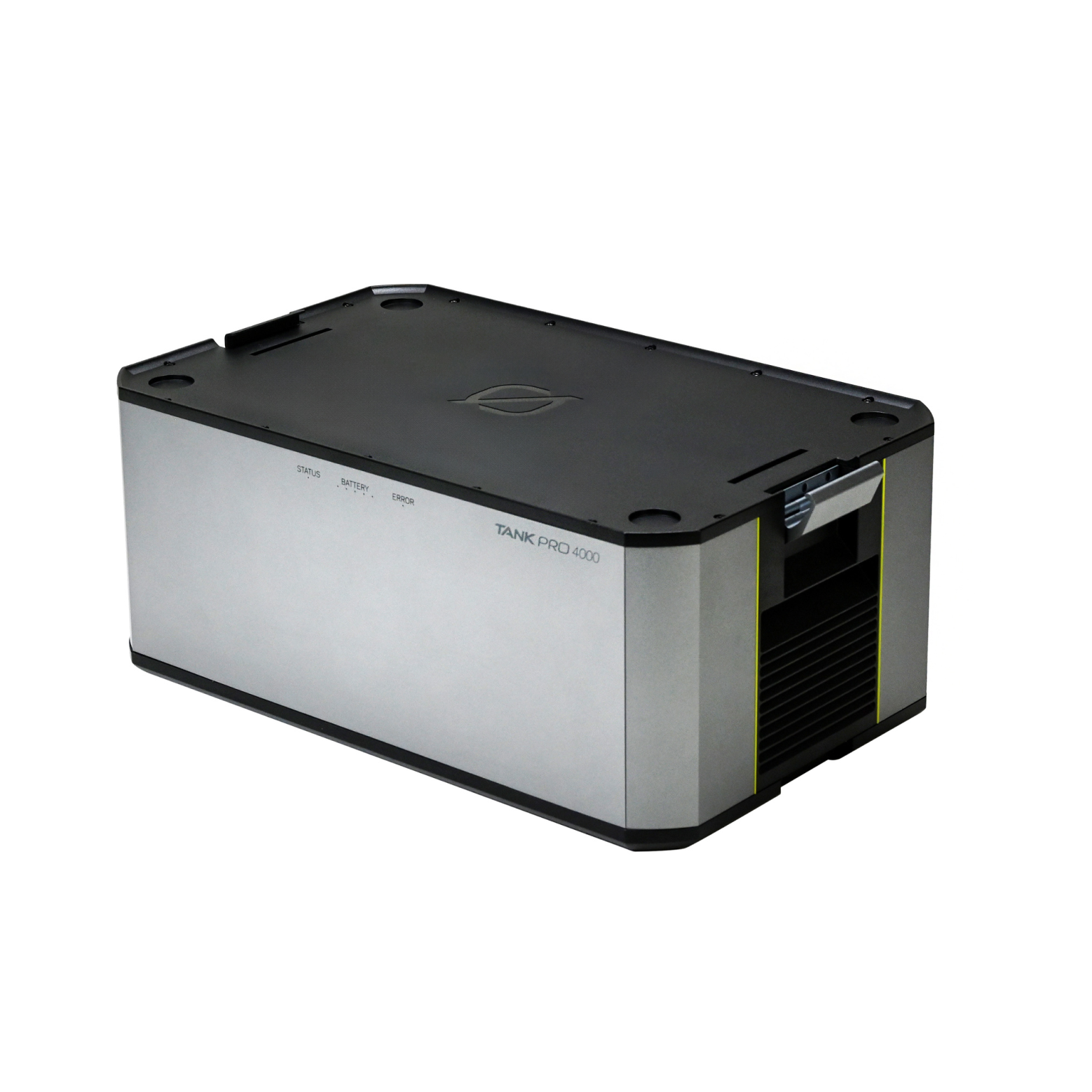

   Tank PRO 4000 Expansion Battery

  Ports

  • Accessory Cable (Built-In): 3600W, 60V, 75A | 30 in length, 17mm diameter

  • Accessory Port: 3600W, 60V, 75A

  Battery

  • Chemistry: LiFePO₄

  • Capacity: 3994Wh (51.2V, 78Ah)

  • Equivalent Capacity: 5120Ah @ 3.2V

  • Lifecycles: 4000 (to 80% capacity at 25°C, 0.5C rate)

  Charge Time

  • Via Yeti (AC Fast Charge): 6.25 hrs

  General

  • Dimensions: 21.4 × 13.8 × 9.2 in (54.3 × 35.1 × 23.3 cm)

  • Weight: 80.3 lbs (36.4 kg)

  • Operating Temp: Charge 32–125.6°F (0–52°C) | Discharge -4–140°F (-20–60°C)

  • Warranty: 5 Years

  • Compatibility: Works with Yeti PRO 4000
