Air Filter (Pro2 Series Only) [S]5.11.05005A04

Product Description:
During FFF 3D printing, filaments are heated to high temperatures and extruded through a nozzle to form models. Some filaments release fine particulate matter and volatile organic compounds (VOCs) into the air during this process. The Raise3D Pro2 Air Filter is designed to effectively filter fine particles and harmful volatiles with strong odors, helping maintain a cleaner and safer workspace.

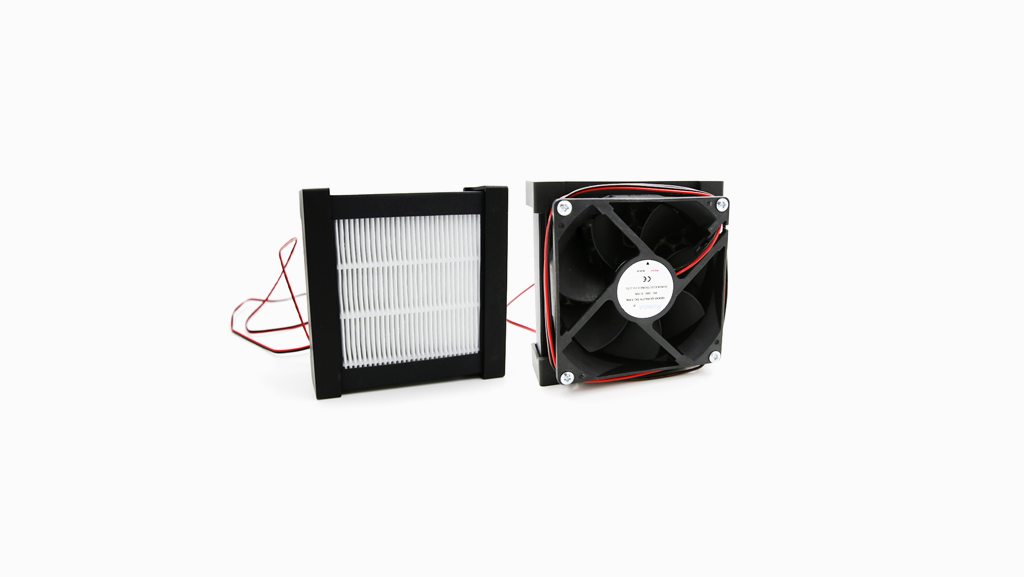

Included:

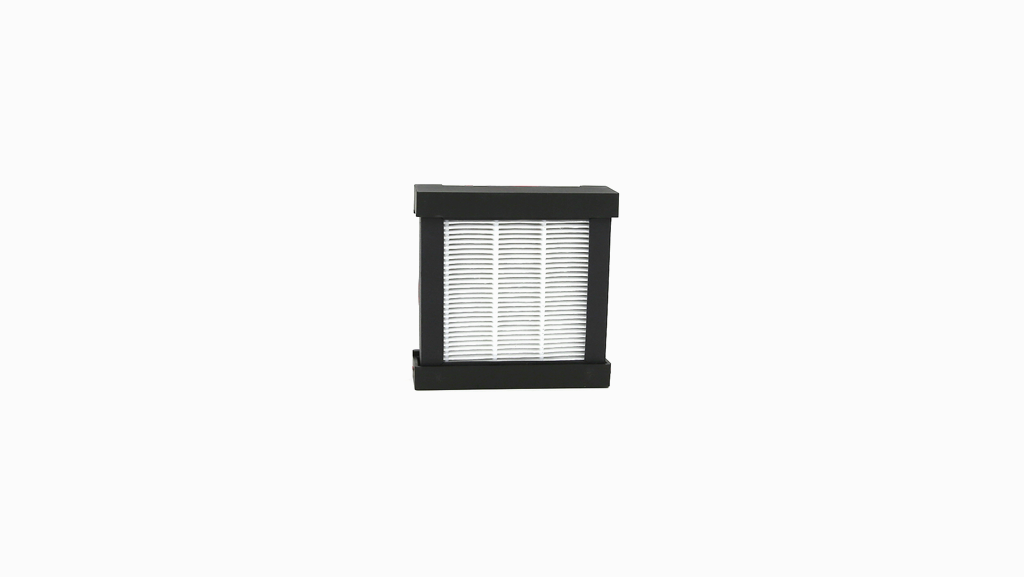

• 1 × Air Filter

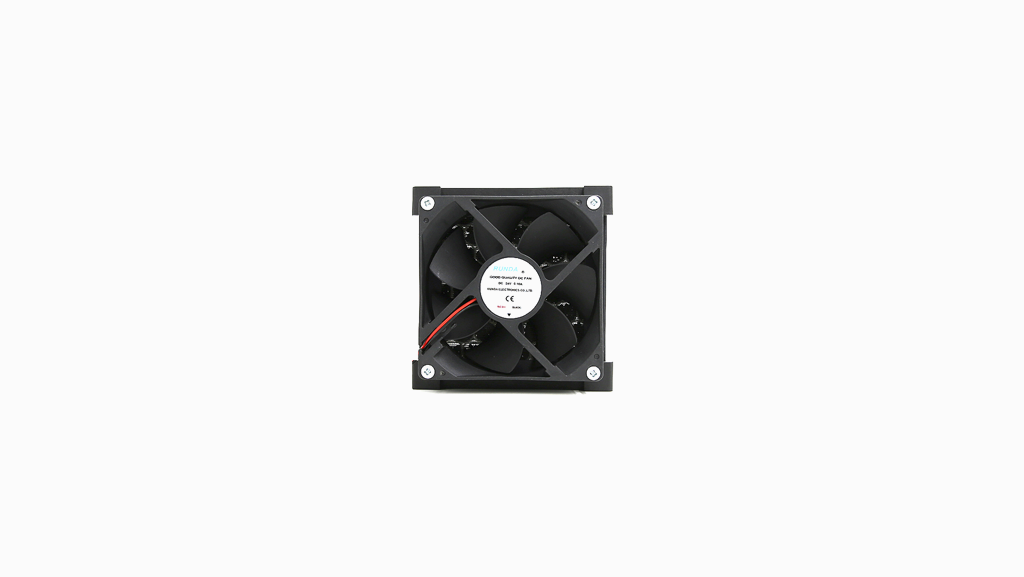

• 1 × Model Cooling Fan

Note: The fan and filter must be purchased together.
Compatible only with Raise3D Pro2 Series printers (Pro2 / Pro2 Plus).

Specifications:

• Fan Size: 90 × 90 mm

• Filter Size: 105 × 105 × 47 mm

• Packaging Size (W×D×H): 300 × 250 × 60 mm

• Weight with Packaging: 221 g

Key Features:

• Three-Stage Filtration System:

  • Pre-filter captures large particles like filament debris.

  • Carbon filter absorbs odors and smoke.

  • HEPA filter removes ultra-fine particles in the air.

• Easy Installation & Replacement: Filter can be replaced by simply removing the screw on the fan.

• Protective Design: Nylon grille protects the filter from scratches.

Maintenance Tips:

• When the filter turns black, its efficiency is reduced, and pollutants may remain in the air.

• Service life is 3–6 months, depending on usage and filament type.

• Replacement is recommended every 6 months.

• For step-by-step instructions, see How to Change the Air Filter.

Safety Warnings:

• Operate the Raise3D printer in a well-ventilated area to prevent the buildup of fumes and particulates.

• Always turn the printer off before replacing the filter.

• Different filaments emit different levels of fumes. For example:

  • ABS: Derived from petrochemicals, emits more harmful fumes when heated.

  • PLA: A plant-based biopolymer, produces less smoke and fewer emissions.

• It is recommended to use Raise3D Premium official filaments, which are ISO 9001 and ISO 14001 certified, for safer and higher-quality printing.
