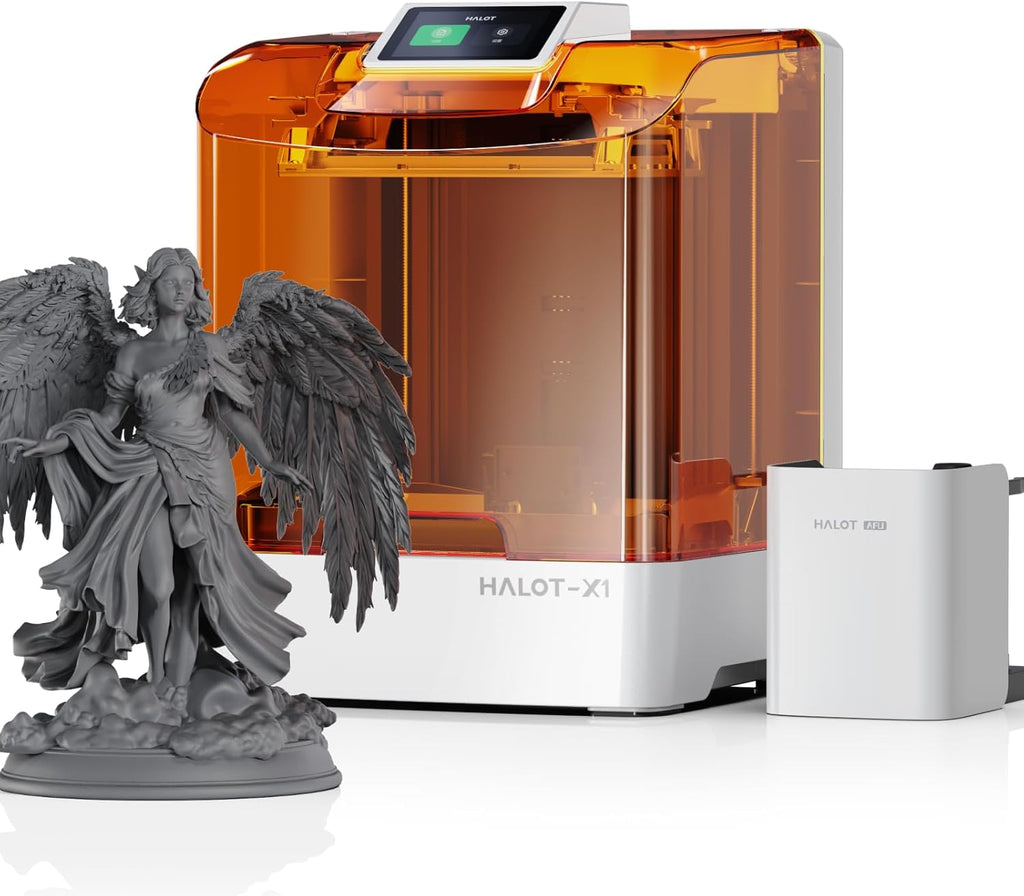

Creality HALOT-X1 Combo Resin 3D Printer
10.1″ 16K Mono LCD | 14 × 19 μm Pixel Size | Up to 170 mm/h Speed | Intelligent Resin Management | Auto-Leveling | Large Build Volume

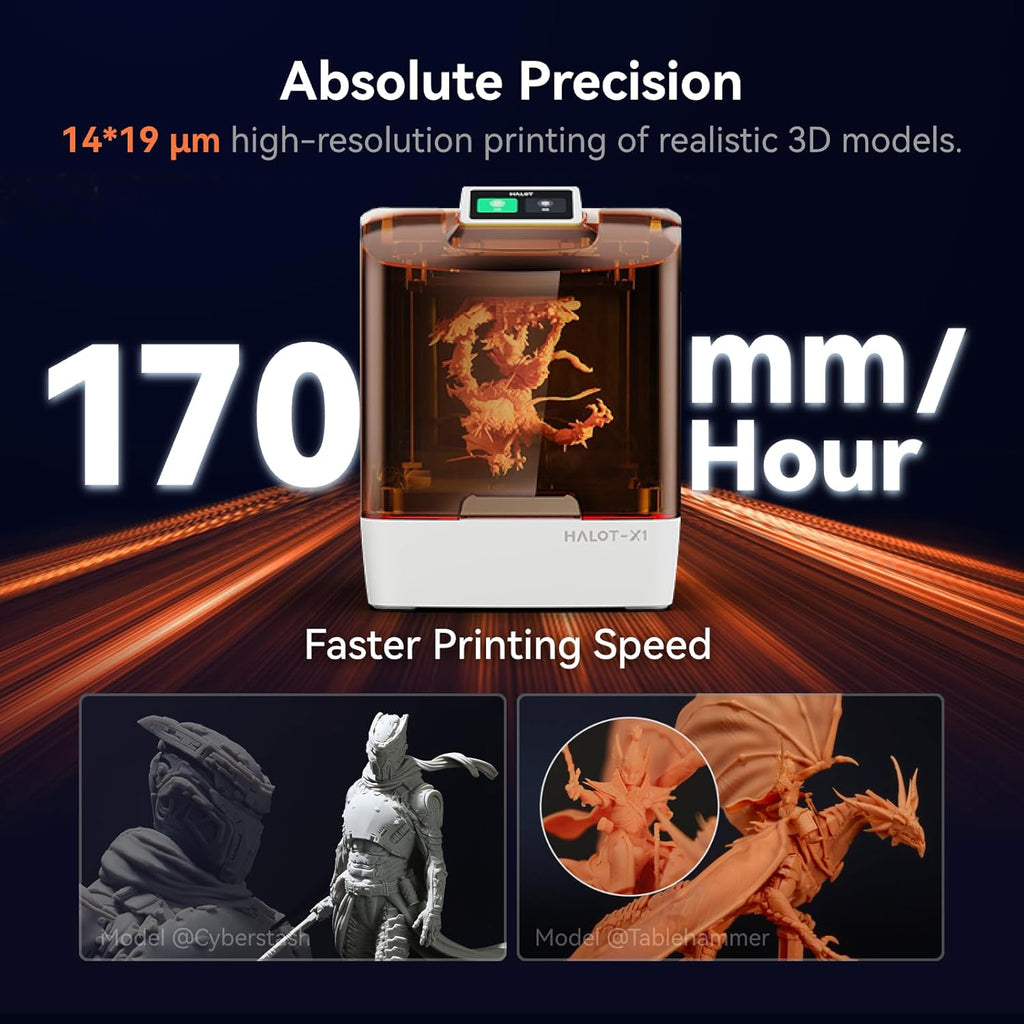

Ultra-High Resolution & High-Speed Printing
The HALOT-X1 Combo features a 10.1-inch 16K mono LCD with a resolution of 15,120 × 6,230 and an ultra-fine 14 × 19 μm pixel size, delivering exceptionally sharp, professional-grade resin prints. With printing speeds of up to 170 mm/h—up to 3× faster than conventional resin printers—and a generous 211.68 × 118.37 × 200 mm build volume, it offers both speed and flexibility. Its innovative fixed build plate design removes the need for manual leveling, allowing you to print immediately out of the box.

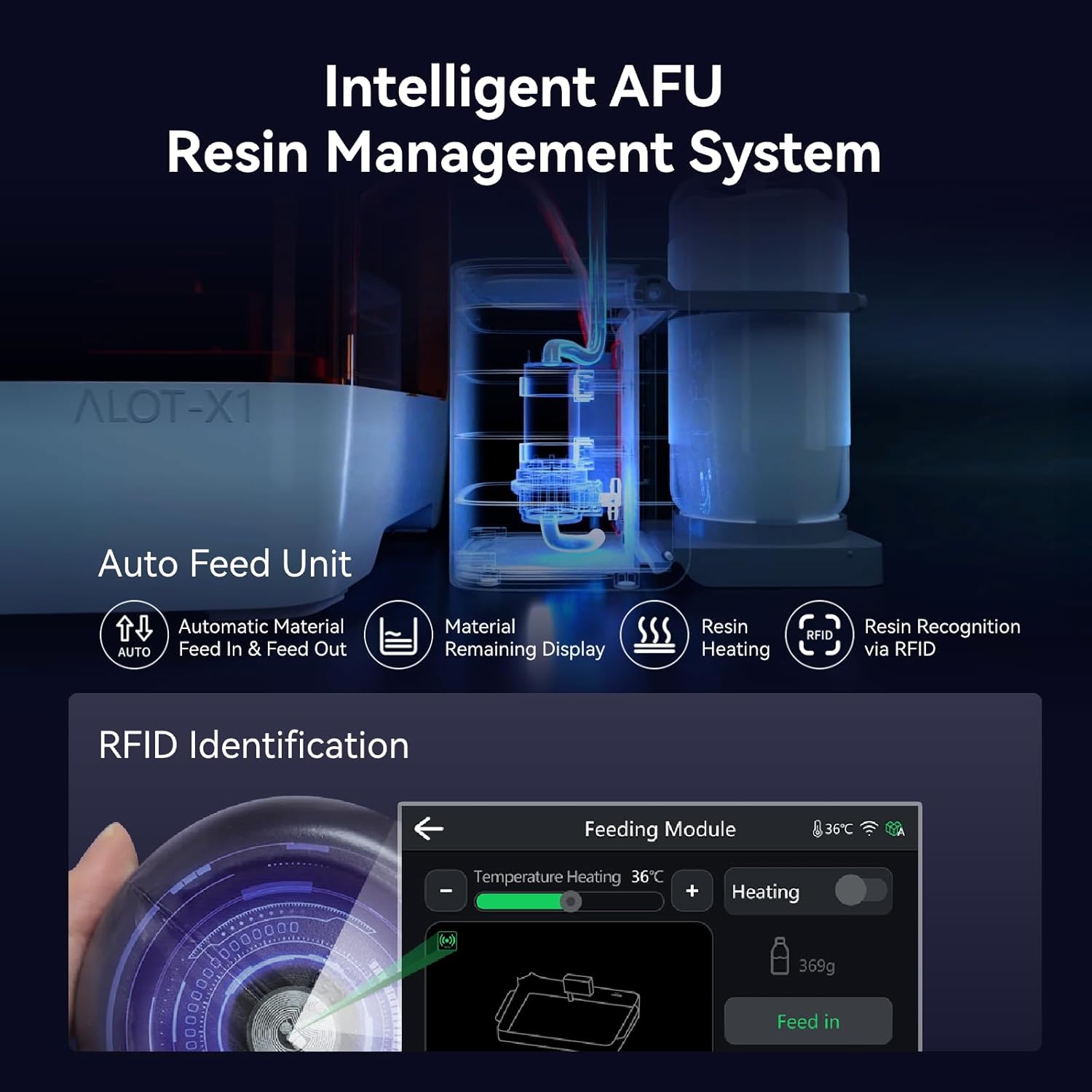

Intelligent Resin Management System
Creality’s AFU Intelligent Resin Management System enhances print reliability through rapid resin heating, warming resin to 30–45 °C in just 3 minutes to reduce viscosity and improve success rates. RFID resin recognition automatically loads optimal material parameters, while laser-based detection enables automatic resin feeding and recycling. Real-time weight monitoring ensures sufficient resin is available before each print begins.
Smart Exposure & Layout Optimization
With 92 independent light zones, the HALOT-X1 Combo activates UV LEDs only where needed, minimizing overexposure and extending screen lifespan. Creality’s proprietary slicing software intelligently recommends model placement to balance screen usage and enhance long-term durability.
Stable Motion & Precision Z-Axis Control
A unique top-down movable optical system allows the optical module and resin vat to move vertically while the build plate remains stationary, improving stability and accuracy. Dual linear rails and dual lead screws reinforce the Z-axis, delivering precise positioning accuracy of 0.01 mm throughout the printing process.

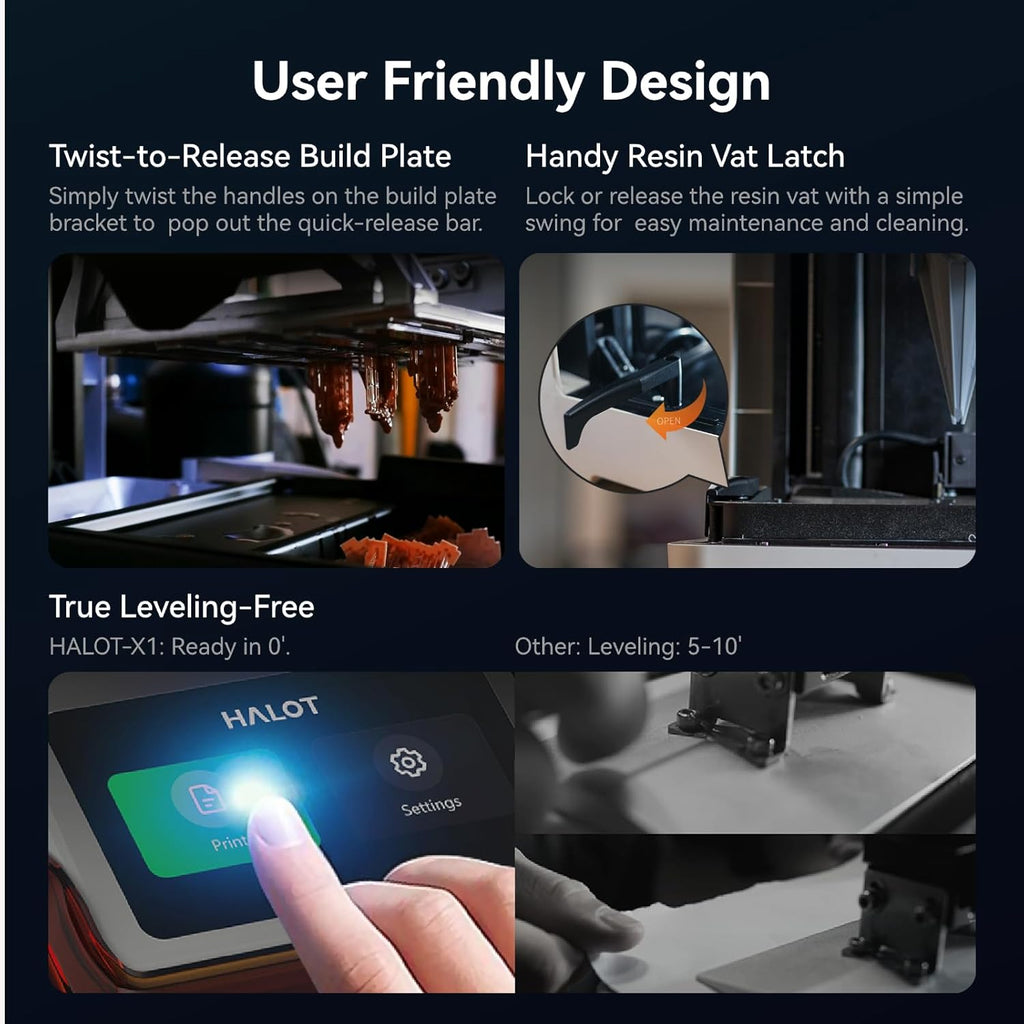

Durable, User-Focused Design
The twist-release build plate enables easy model removal without scraping, while the high-temperature NACF release film reduces release force and extends service life. Additional features include a quick-lock resin vat with pouring spout, a top-mounted 3.97-inch touchscreen, a 20% more compact footprint, and intelligent heat circulation for consistent, high-quality results.
