Description
-

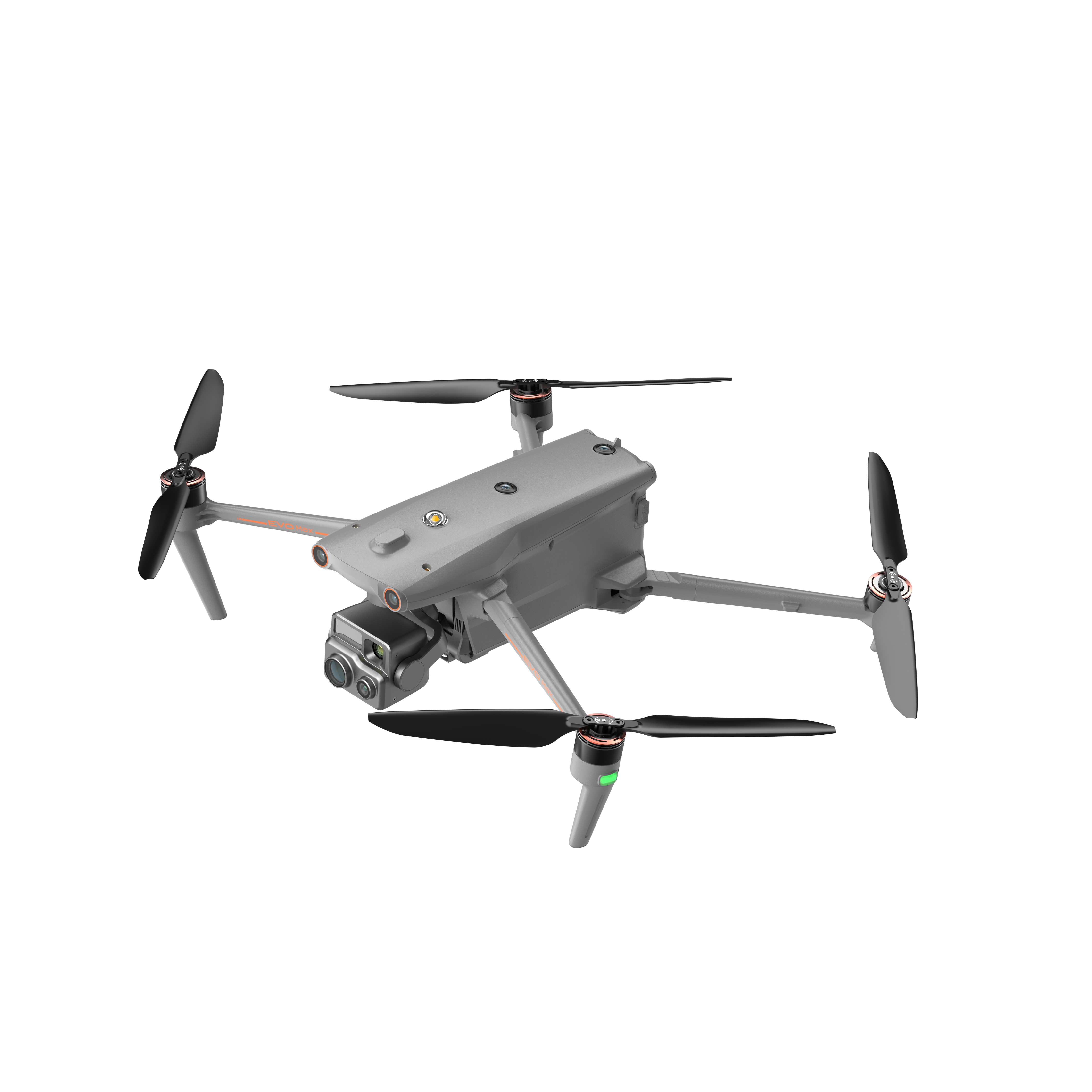

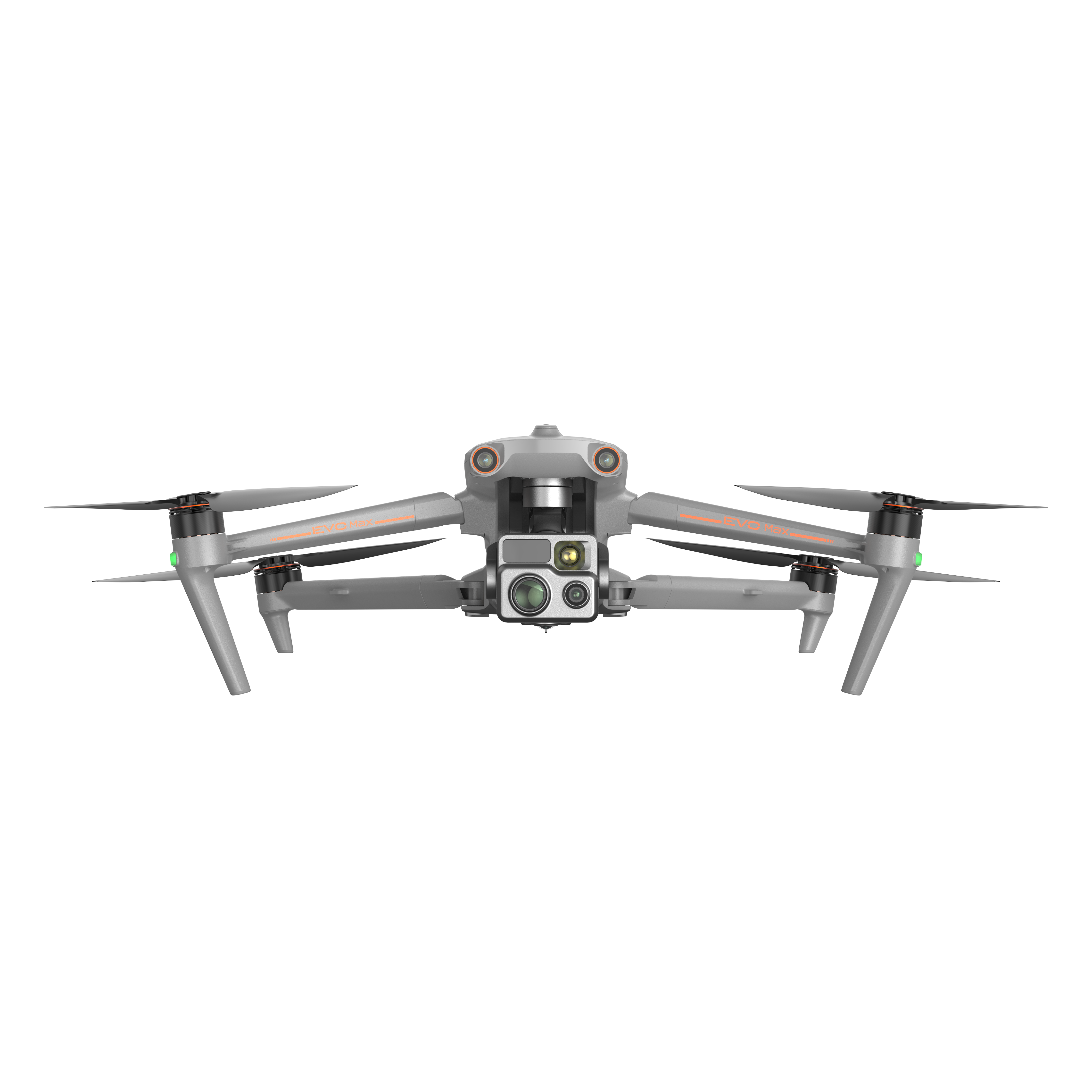

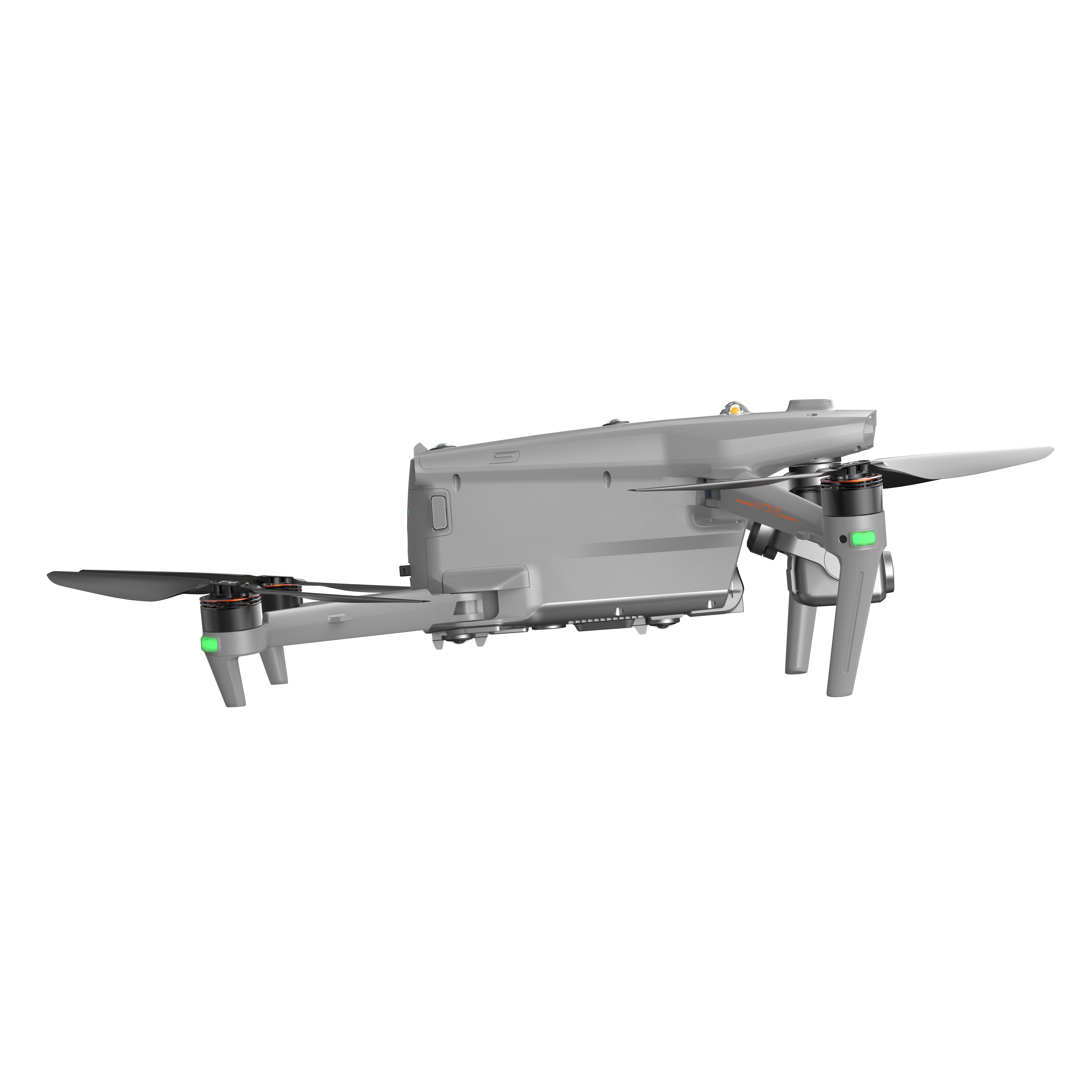

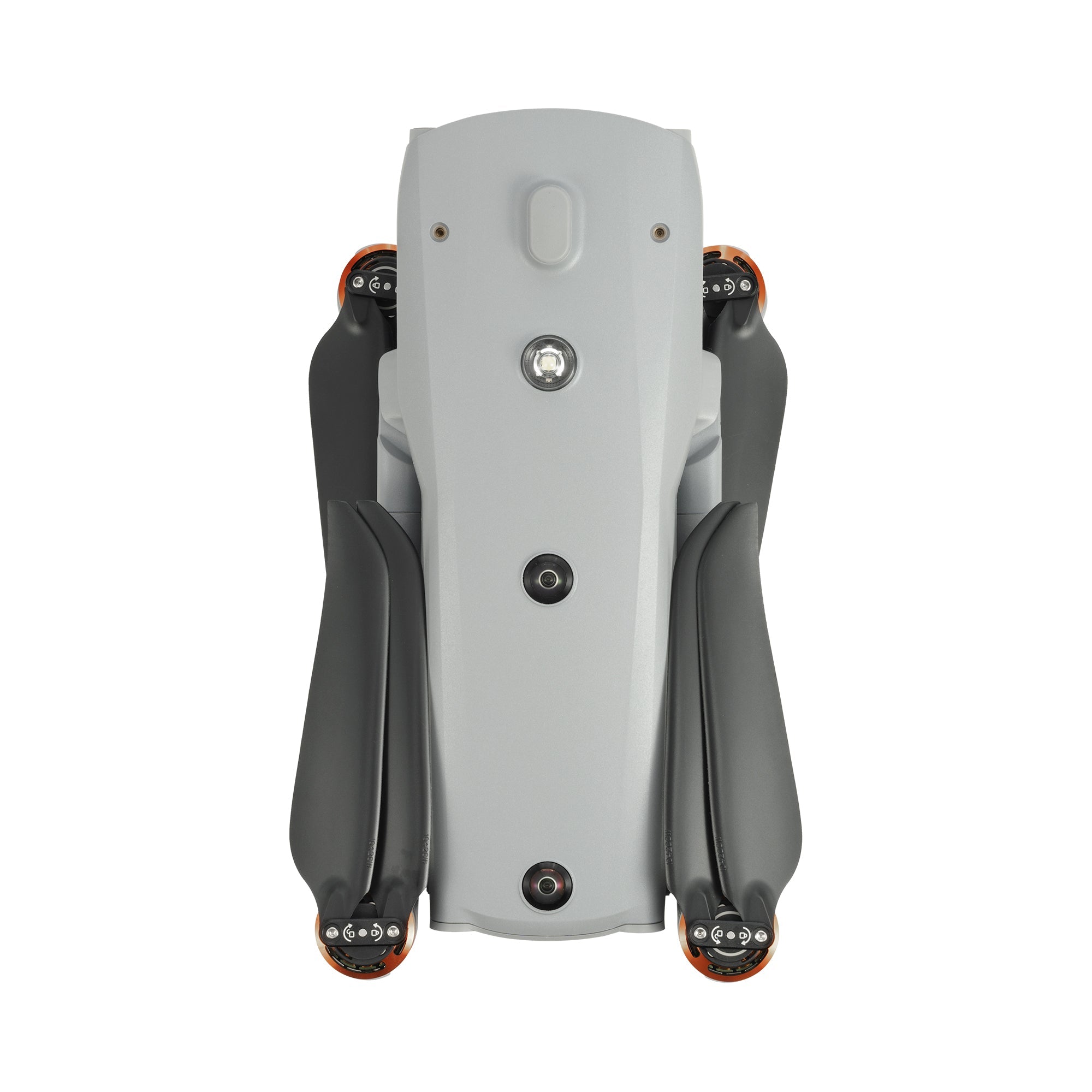

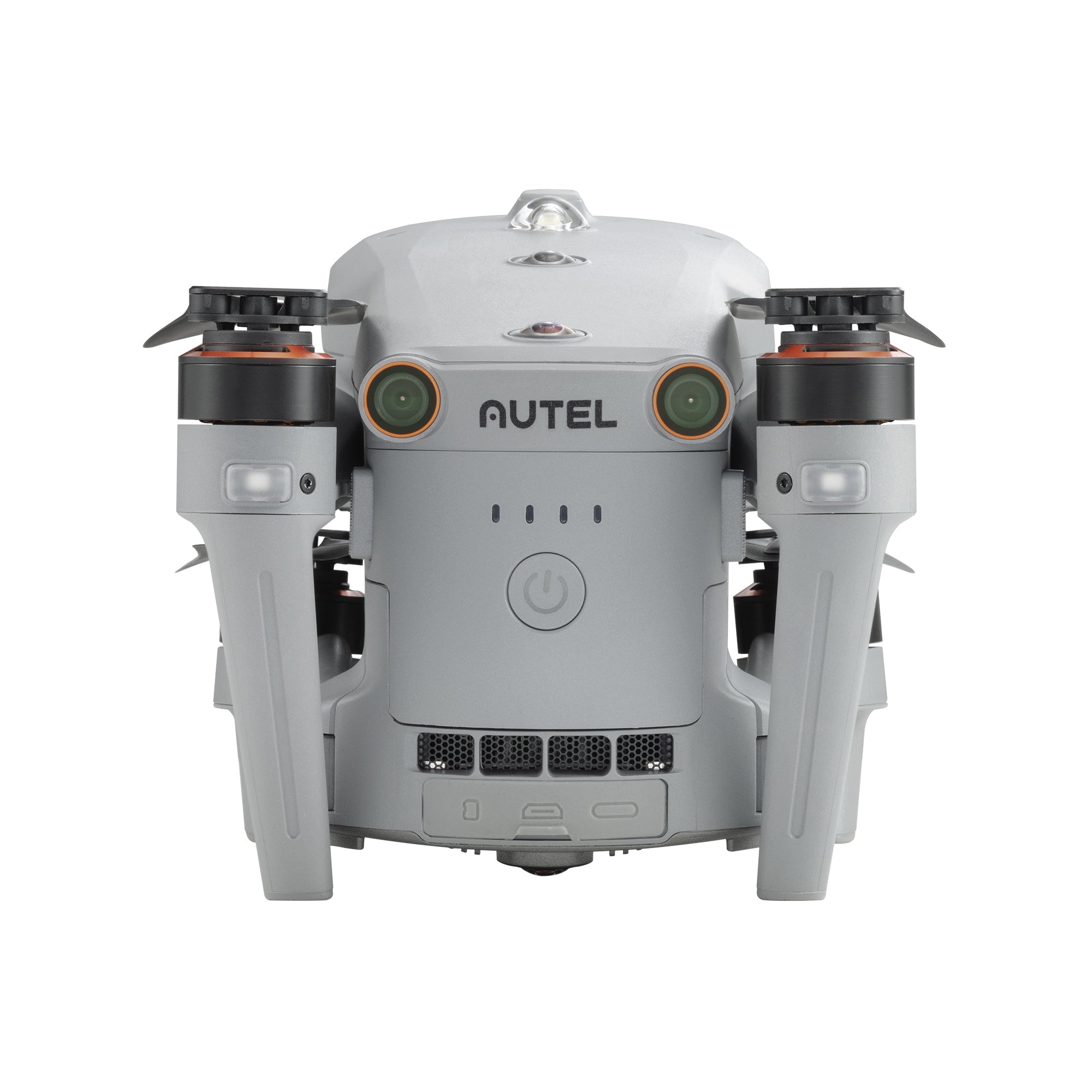

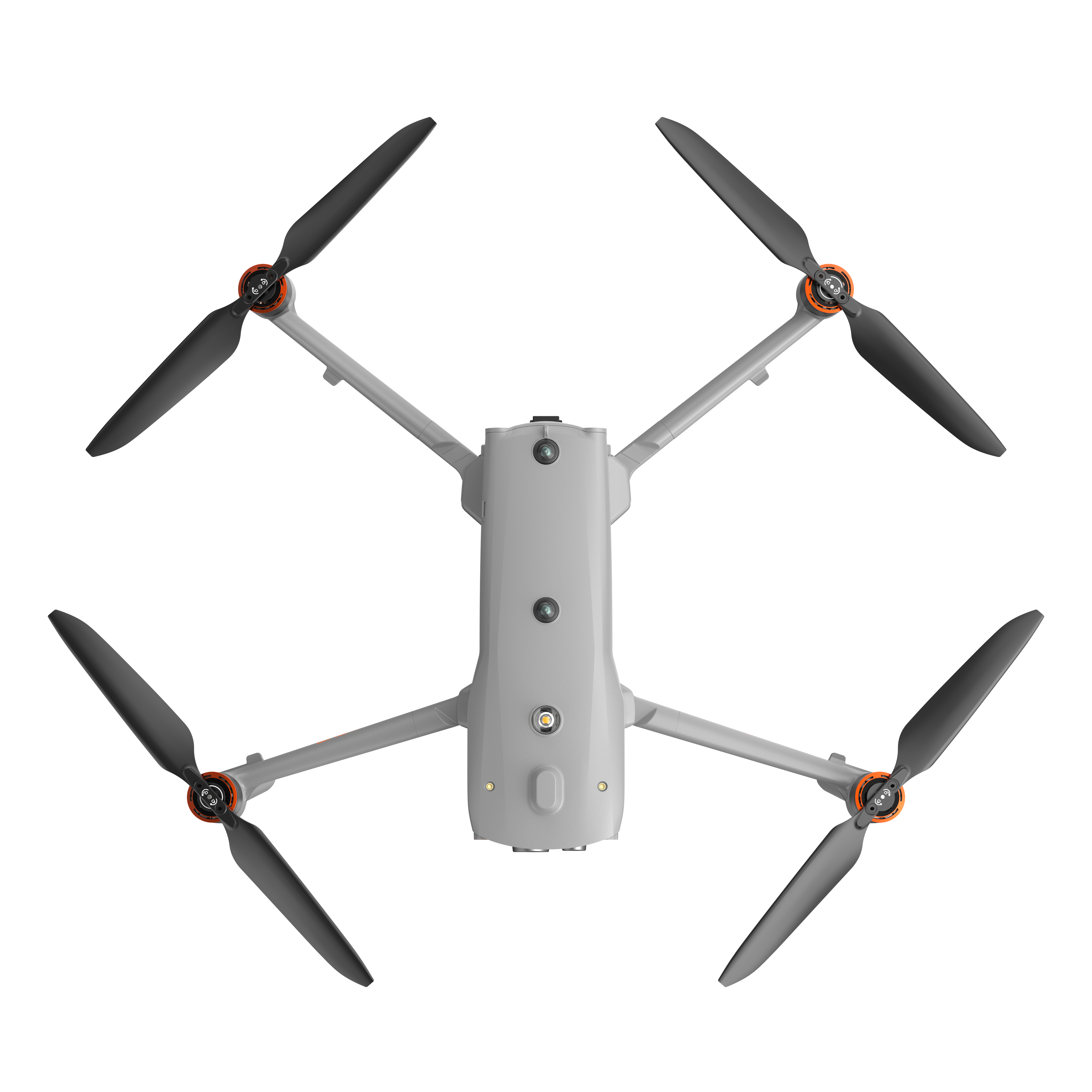

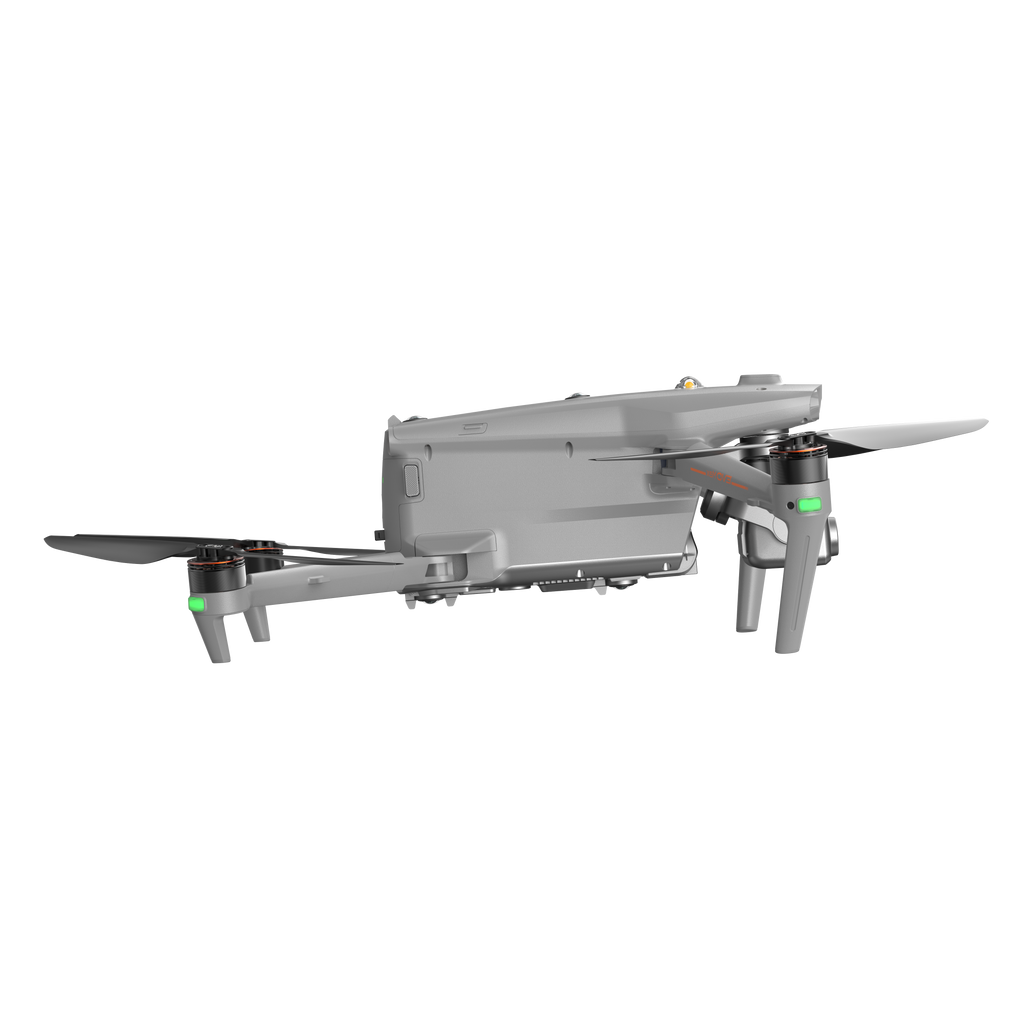

Autel EVO Max 4T Xe - A Leader of Drone Intelligence
The EVO Max 4T Xe delivers powerful technologies and advanced autonomy for demanding operations. It analyzes complex environments in real time to generate dynamic 3D flight paths, enabling exceptional obstacle avoidance. Advanced sensor systems allow reliable flight in GPS-denied environments, while the enhanced thermal payload enables new levels of object identification and tracking. With a foldable, weather-resistant design, the EVO Max 4T Xe combines high portability with professional-grade capability.
- Integrated Wide, Zoom, and Thermal cameras with a Laser Rangefinder sensor
- Autel SkyLink 3.0 | 12.4 miles Transmission Range
- 720° Obstacle Avoidance
- A-Mesh 1.0 | Mesh Networking Technology
- 3D Map Planning | Multiple Mission Types | Data Security
- Navigation in GPS Denied Environments
- 42 mins Max Flight Time
- IP43 ingress protection, and -3° F～122° F temperature operation range
-
-
15s
Take Off -
8K 10x
Optical Zoom -
IP43
Weather Rating -
Hot-Swappable
Batteries -
Navigation
In GPS Denied Environments -
12.4 miles
Transmission Range -
42 Minutes
Flight Time -
720°
Obstacle Avoidance
-
Autel Autonomy
The EVO Max 4T Xe is the only commercial drone to combine a traditional binocular vision system with millimeter-wave radar technology. This advanced integration enables the onboard Autel Autonomy Engine to detect objects as small as 0.5 inches, eliminating blind spots and allowing reliable operation in low-light, rain, and other challenging environmental conditions.
-
Binocular Vision System -
Millimeter Wave Radar
-
-
Autel Autonomy
EVO Max 4T Xe is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T Xe's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
-
Binocular
Vision System -
Millimeter
Wave Radar
-
-
-
Autonomous Path Finding Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
-
Navigation in GPS Denied Environment Advanced sensors allow the EVO Max 4T Xe to navigate within hardened structures, underground, or in environments without GPS.
-
Accurate Object Identification and Tracking Based on Autel's AI recognition technology, the EVO Max 4T Xe can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
-
-
-
Autonomous Path Finding Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.
-
Navigation in GPS Denied Environment Advanced sensors allow the EVO Max 4T Xe to navigate within hardened structures, underground, or in environments without GPS.
-
Accurate Object Identification and Tracking Based on Autel's AI recognition technology, the EVO Max 4T Xe can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.
-
No Blind Spots
Ultimate Obstacle Avoidance
EVO Max 4T Xe is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max 4T Xe's onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
Anti Jam, Anti Interference
EVO Max 4T Xe uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T Xe to fly confidently near power lines, critical structures, and in complex areas.
Weather Rating-IP43
Autel Robotics EVO Max 4T Xe with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.
-
Anti Jam, Anti Interference
The EVO Max 4T Xe uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max 4T Xe to fly confidently near power lines, critical structures, and in complex areas.
-
Weather Rating-IP43
Autel EVO Max 4T Xe with IP43 Ingress Protection rating, it means Max 4T is protected against solid objects greater than 1mm and against sprays of water up to 60 degrees from the vertical.
Operation Temperature
-4 ℉ to 122 ℉

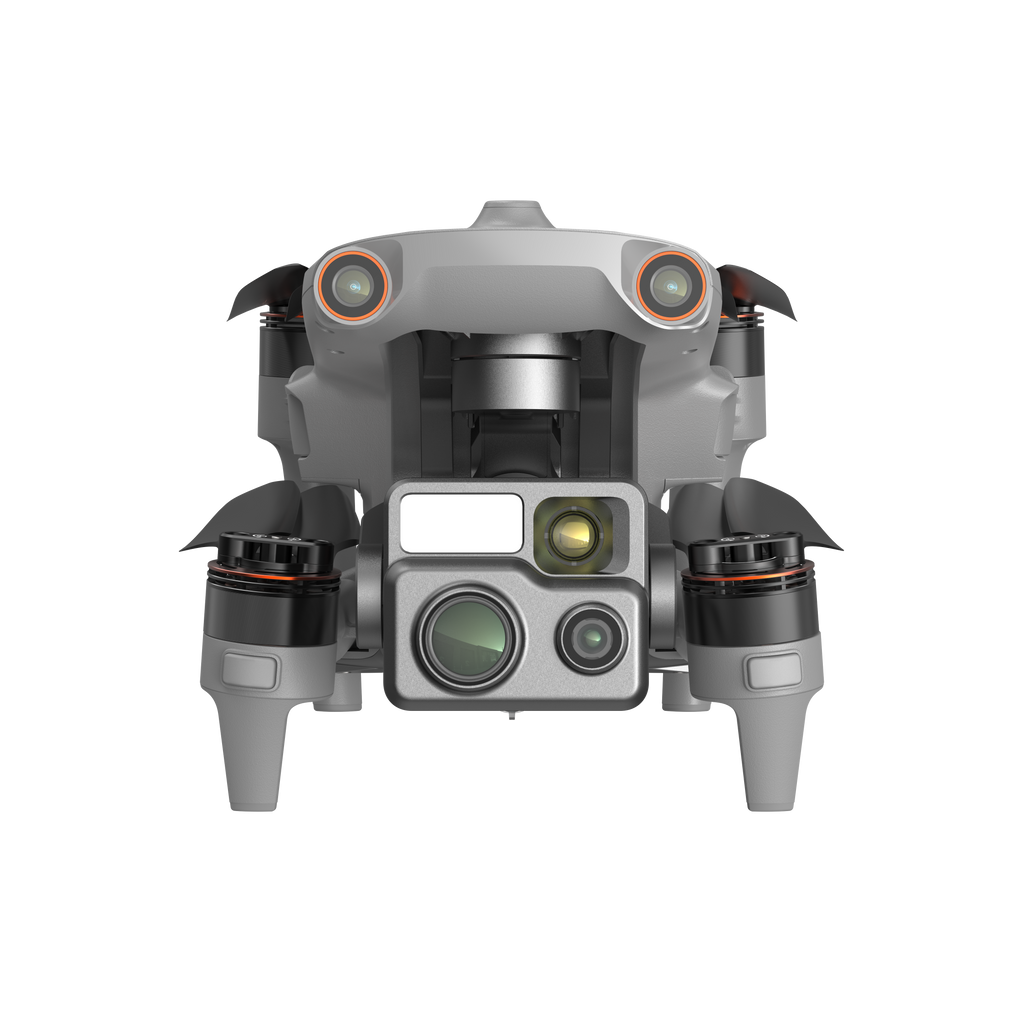

4T Xe Mission Ready Payload
Autel Max 4T Xe gimbal camera system combines a wide-angle camera, zoom camera, thermal camera, and a laser rangefinder, offering a comprehensive solution for data capture across a variety of environments. This versatile payload is designed to excel in multiple application scenarios, enabling precise decision-making and ensuring optimal performance under diverse conditions.
- 640*512 resolution
- 9.1 mm focal length
- 16x digital zoom
- Range: -4℉ to 1.22 ℉
- Temperature accuracy: ±2℃ or reading 2℃
- Measuring Rnage: 5-1200m(16.4-3737 ft)
- Measurement Accuracy: ±(1m+D*0.15%) *where D is the distance to a vertical reflecting plane
- 1/1.2" CMOS, 48MP
- Equivalent: 24mm
- Aperture: f/2.8
- DFOV: 83.4°
- 1/1.2" CMOS, 48MP
- Apeature: f/2.8-f/4.8
- 10x Optical Zoom
- 160x Max. Hybird Zoom
- Video Resolution:4000*3000 30fps
- Phote Size: 4000*3000, 8000*6000
Chase the Heat and Explore the Night
-
-
-
Automatic Mission Generation And Data Capture*
Automatically produce routes by adding regional boundary points through dots or importing KML files
-
Polygon Mission
Supports one-click automatic generation of polygon flight areas
-
Waypoint Missions
Users can add waypointsfor flexible, non-structured flight paths
Data Security
Privacy Protection: Data involving user and aircraft information, including flight logs, locations, and account information can only be physically accessed via the aircraft locally.
Encrypted Data Storage: Supports AES-256 encryption for photos, videos, and flight logs, are password-protected.
Autel SDK
The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.
-
-
Mobile SDK -
Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.
-
-
-
Mobile SDK -
Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.
-
-
-
-
Speaker and Spotlight Combo Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
-
RTK Module The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.
-
Payload Drop System The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.
-
Multi-charger The Autel EVO Max series offers a versatile multi-charger, designed to provide convenient and efficient charging solutions. With its ability to simultaneously charge the smart controller, batteries, and even mobile phones, the Autel EVO Max multi-charger provides a comprehensive charging solution for users. Its emphasis on safety, multi-device support, and efficiency make it an ideal accessory for EVO Max series users. Accessories
-
-
Speaker and Spotlight Combo Daylight Readable Display: 7.9 inches, 2000nit maximum brightness, 2048*1536 resolution. SuperDownload: Download footage from drone to mobile device at a maximum rate of 20MB/s. Functional Interface: HDMI ports allow connection to 3rd party displays or monitors. Ultra-Long Battery Life: Up to 4.5 hours of continuous operation. 2-hr fast charging from empty. Local Storage: Built-in 128G storage space allows 3rd party apps and mission media storage.
-
RTK Module The Autel Robotics EVO Lite Intelligent Flight Battery is a spare or replacement battery for the EVO Lite series of drones. The EVO Lite Battery boasts up to 40 minutes of flight time thanks to its 6,175mAh, 11.13v lithium polymer battery technology. This added flight time is about 30 percent more than the competition.
-
Payload Drop System The Autel EVO Lite+ On the Go Bundle is an accessory bundle that includes many essentials for the EVO Lite series including a shoulder bag, multi-charger, 2 spare batteries, 2 pairs of propellers, and a set of ND (Neural Density) filters. Everything you need to make the most of your new Lite+ drone.
-
Multi-charger The Autel EVO Max series offers a versatile multi-charger, designed to provide convenient and efficient charging solutions. With its ability to simultaneously charge the smart controller, batteries, and even mobile phones, the Autel EVO Max multi-charger provides a comprehensive charging solution for users. Its emphasis on safety, multi-device support, and efficiency make it an ideal accessory for EVO Max series users.
-
-
-
-
-
Aircraft
| Weight | 3.5 lbs (1600g, battery and gimbal included) |
| Dimensions | 576*660*149 (folded, incl. propellers) 340*407*148(folded, excl. propellers) 257*136*133 (unfolded, excl. propellers) |
| Diagonal Wheelbase | 1.52 ft (464mm) |
| Max Ascent Speed | 8m/s |
| Max Descent Speed | 6m/s |
| Max Horizontal Speed (windless near sea level) | 22m/s |
| Max Service Ceiling Above Sea Level | 23000ft (7000m) |
| Max Flight Time (windless) | 42 mins |
| Max Hovering Time (windless) | 40 mins |
| Max Wind Resistance | 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s). |
| IP Rating | IP43 |
| Max Tilt Angle | 35° |
| Max Angular Velocity | Pitch: 300°/s; Yaw: 120°/s |
| Operating Temperature | -4°F to 122°F (-20℃ - 50℃) |
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* |
| Transmitter Power (EIRP) | 2.4GHz:<33dBm(FCC), 20dBm(CE/SRRC/MIC) 5.8GHz:33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz:<30dBm(FCC), <23dBm(SRRC/MIC) |
| Hovering Accuracy | Vertical: ±0.1 m (Vision System enabled); ±0.3 m (GPS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.15 m (Vision System enabled); ±0.3 m (GPS enabled); |
Gimbal
| Mechanical Range | Pan: -135° to 45° Tilt: -45° to 45° Roll: -100° to 100° |
| Controllable Range | -90° to 45° |
| Stable system | 3-axis mechanical gimbal (pitch, tilt, roll) |
| Max Control Speed (pitch) | 200º/s |
| Angular Vibration Range | <0.005° |
Zoom Camera (Telephoto)
| Sensor | 1/2" CMOS, Effective pixels: 48M |
| Lens | Focal length: 11.8-43.3mm (35mm, equivalent: 64-234mm) Aperture: f/2.8-f/4.8 |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Normal Mode： Auto: ISO100 ~ ISO6400 Manual: Photo: ISO100 ~ ISO12800 Video: ISO100 ~ ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max Photo Size | 8000×6000 |
| Max Video Resolution | 7680×4320 |
Wide Camera
| Sensor | 1/1.28 CMOS, Effective pixels: 50M |
| Lens | DFOV: 85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night scene mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Shutter Speed | Photo: 8s ~ 1/8000s Video: 1s ~ 1/8000s |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 8192*6144 4096*3072 |
Thermal Camera
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 64° Aperture: 13mm Focus: f/1.2 |
| Infrared Temperature Measurement Accuracy |
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution | 640*512 |
| Photo Size | 640*512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Center measurement, pot measurement, rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperaturevalues |
Laser Range Finder
| Measurement Accuracy | ±1m |
| Measuring Range | 1.2km |
Image Transmission
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* |
| Max Transmission Distance (unobstructed, free of interference) | 20km |
| Independent Networking | 7.9-inch Smart Controller |
| Transmitter Power (EIRP) | 2.4GHz:<33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz:<33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm(FCC/SRRC/MIC) |
Autonomy
| Non-GPS Hovering and Manual Flight | Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home | Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting | High Speed Obstacle Rerouting: Flight speed up to 20m/s when Min. safety distance to obstacle is 1.5m High Precision Obstacle Rerouting: Flight speed could reach 3m/s when Min. safety distance to obstacle is 0.2m |
| Multi-target Recognition and Tracking | Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85% |
Millimeter-wave Radar
| Operating Frequency | 60G: 60Ghz~64Ghz 24G: 24.0~24.25GHz Please note: US regulations require that millimeter wave radar only supports 24GHz. |
| Effective Isotropic Radiated Power (EIRP) | 60G: ≤20dBm (CE/UKCA/FCC) 24G: ≤20mW (SRRC) |
| Sensing Range | 60G millimeter-wave radar: Upward: 0.3 - 20 m Downward: 0.15 - 80 m Forward & Backward: 0.3 - 50 m 24G millimeter-wave radar: Downward: 0.8 - 12 m |
| FOV | Horizontal (6dB): ±60°/±22° (60 GHz/24 GHz) Vertical (6dB): ±30°/±20° (60 GHz/24 GHz) |
| Operating Environment | 60 GHz millimeter-wave radar sensing system: Supports all-weather obstacle avoidance for glass, water, wires, buildings, and trees in 4 directions. Its obstacle avoidance distance varies with the obstacle's ability to reflect electromagnetic waves and its surface size. 24 GHz millimeter-wave radar sensing system: Supports downward sensing, and its sensing range varies by the ground material. For example, the sensing range of cement ground is 12 meters, and the sensing range of grass with a thickness of more than 3 cm is less than 6 meters. |
| Aircraft Version Limitations* | To comply with (national) regional regulations, certain aircraft versions use a 24 GHz millimeter-wave radar in the downward direction and use 60 GHz radars in the forward, backward, and upward directions. In the 24 GHz aircraft version, the 60GHz radars in the forward, backward, and upward directions are disabled in the flight software at the factory, and only the 24GHz radar in the downward direction is enabled to assist in landing. The 24 GHz aircraft version only supports visual obstacle avoidance under good lighting conditions and does not support millimeter-wave radar obstacle avoidance at night. |
Visual Sensing System
| Obstacle Sensing Range | Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
7.9-inch smart controller
| Screen | 7.9 inch, 2000nits max. brightness, 2048*1536 resolution |
| External Battery | Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery |
| Operating Time | 3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference) | FCC: 20km CE: 7km |
| Storage | 128G |
| GNSS | GPS+GLONASS+Galileo+Beidou |
| Operating Temperature | -20℃ to 40℃ |
| Protocol | WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency | 2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP) | 2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm |
Aircraft Battery
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120wh |
| Net Weight | 520g |
| Charging Temperature | 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap | Support |
