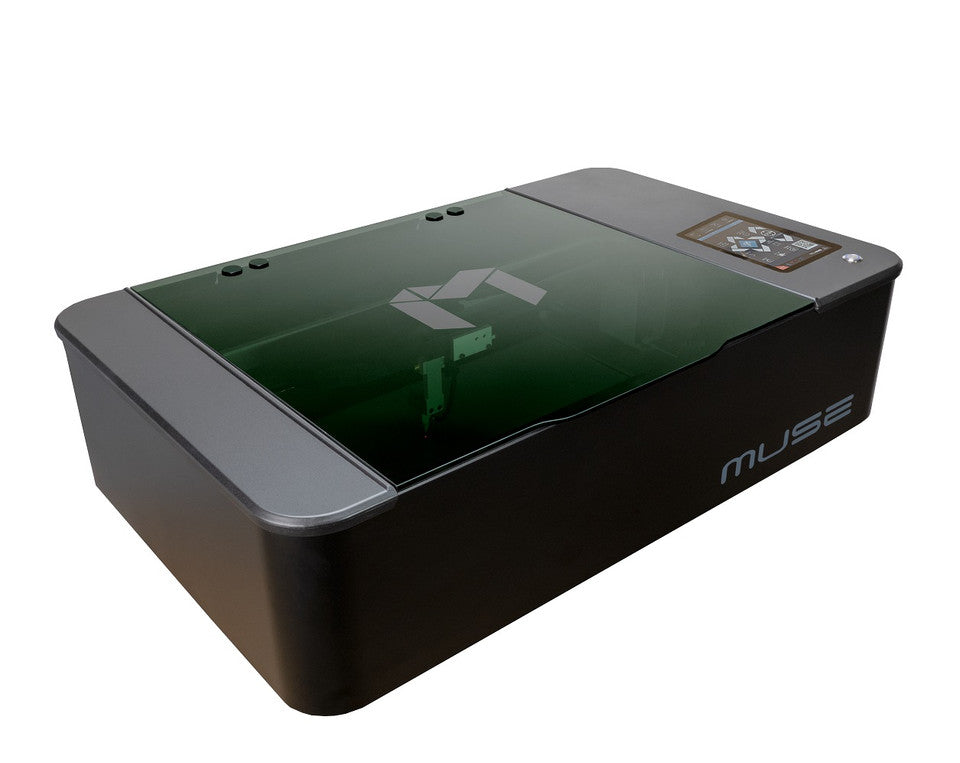

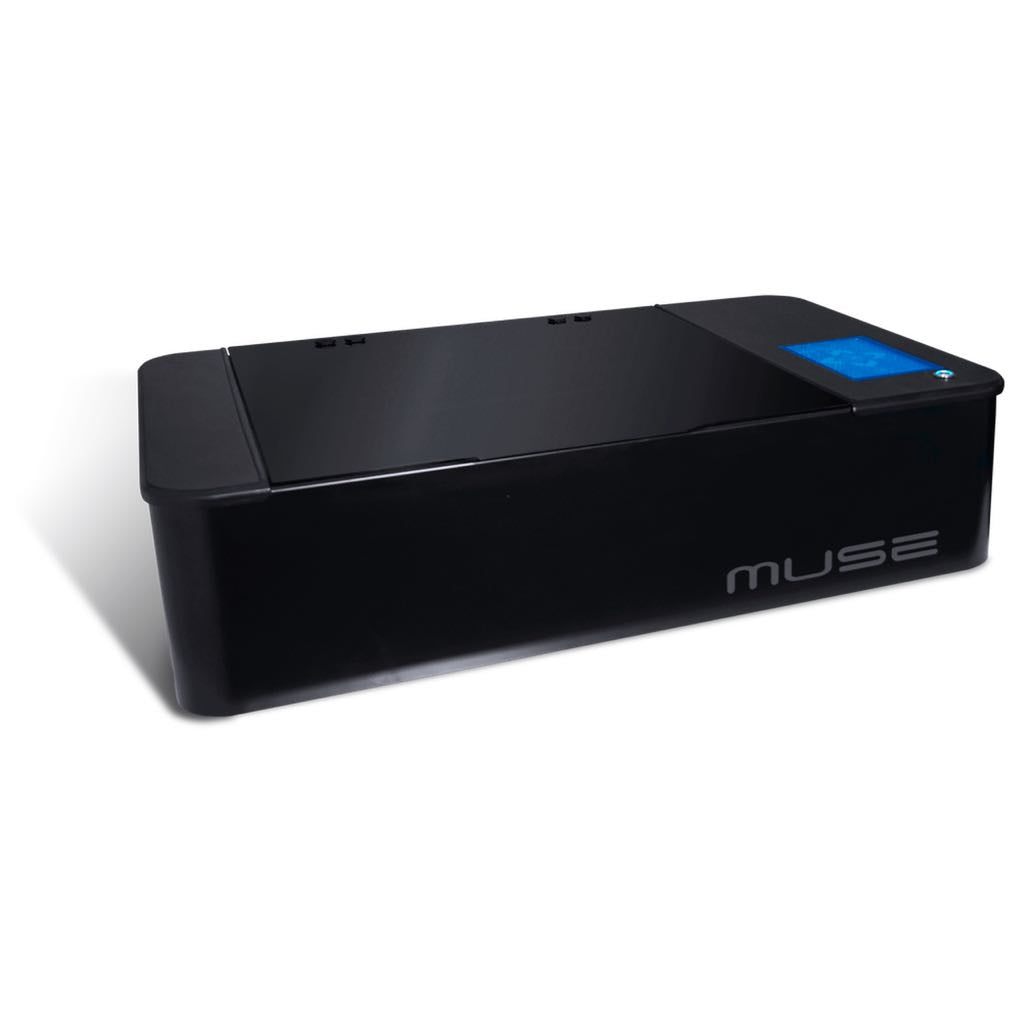

Muse Core Laser Cutting & Engraving Machine | 20" × 12" Work Area | 40W CO₂ Desktop Laser
Compact, precise, and powerful — the Muse Core Laser Cutting and Engraving Machine delivers professional-grade performance in a true desktop form factor.
Built for creators, designers, and small businesses, Muse Core combines a 40W sealed CO₂ laser, a 7" LCD touchscreen, and browser-based RetinaEngrave v3.0 software for an intuitive, all-in-one experience.
With a 20" × 12" engraving area, high-speed stepper motors, and support for raster, vector, and combined modes, Muse Core offers reliable precision for materials such as wood, acrylic, leather, fabric, and coated metals — ideal for engraving, cutting, and prototyping projects.
Key Features
-
Browser-Based RetinaEngrave v3.0 Software: Works on Windows, macOS, and Linux — no internet connection required.
-
7" LCD Touchscreen: Access and control major laser functions directly from the machine.
-
Removable Floor Design: Engrave larger or thicker materials by removing the bottom panel.
-
Rotary Attachment (Optional): Expand capabilities to engrave cylindrical objects such as mugs and tumblers.
-
High-Precision Stepper Motors: Deliver smooth motion for consistent, detailed engraving.
-
Integrated Red Guiding Laser: Provides precise visual alignment for accurate project placement.
-
Up to 1000 DPI Resolution: Produces sharp, professional-quality results.
-
Compact and Durable: Designed to fit easily on a standard workbench without sacrificing build quality.
-
Dedicated Support: Professional technical assistance available via phone and email.
-
1-Year Warranty: Full manufacturer coverage for peace of mind.
Technical Specifications
| Category |
Details |
| Engraving Area |
20" × 12" (508 mm × 305 mm) |
| Z-Height |
2.5" |
| Machine Dimensions |
32.3" (W) × 20.3" (D) × 8.5" (H) (820 mm × 515 mm × 215 mm) |
| Weight |
54 lbs (24.5 kg) |
| Laser Classification |
Class 3 |
| Laser Type |
Sealed CO₂ Laser Tube |
| Laser Power |
40 W |
| Focus Lens |
2" Included |
| Resolution |
Up to 1000 DPI |
| Guiding System |
Integrated Red Laser with Beam Combiner |
| Power Supply |
AC 110 V native |
| Gross Power |
< 1000 W |
| Operation Modes |
Raster, Vector, or Combined |
| Motion Control |
High-Speed Stepper Motors |
| Operating Temperature |
0 °C – 45 °C |
| Software |
RetinaEngrave v3.0 |
| Compatibility |
Windows, macOS, Linux |
| Browser Compatibility |
Chrome (recommended), Safari, Firefox, Edge |
| File Import Formats |
JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Minimum Screen Resolution |
1024 × 768 pixels |
| Wireless Connectivity |
802.11 n |
| Included Components |
Honeycomb Table |
| Not Included |
Air Compressor, Water Pump, Exhaust Fan |
Ideal For
-
Makers, crafters, and design studios
-
Small business owners launching engraving products
-
Hobbyists and artists needing high accuracy and flexibility
-
Educational and training environments
