Description

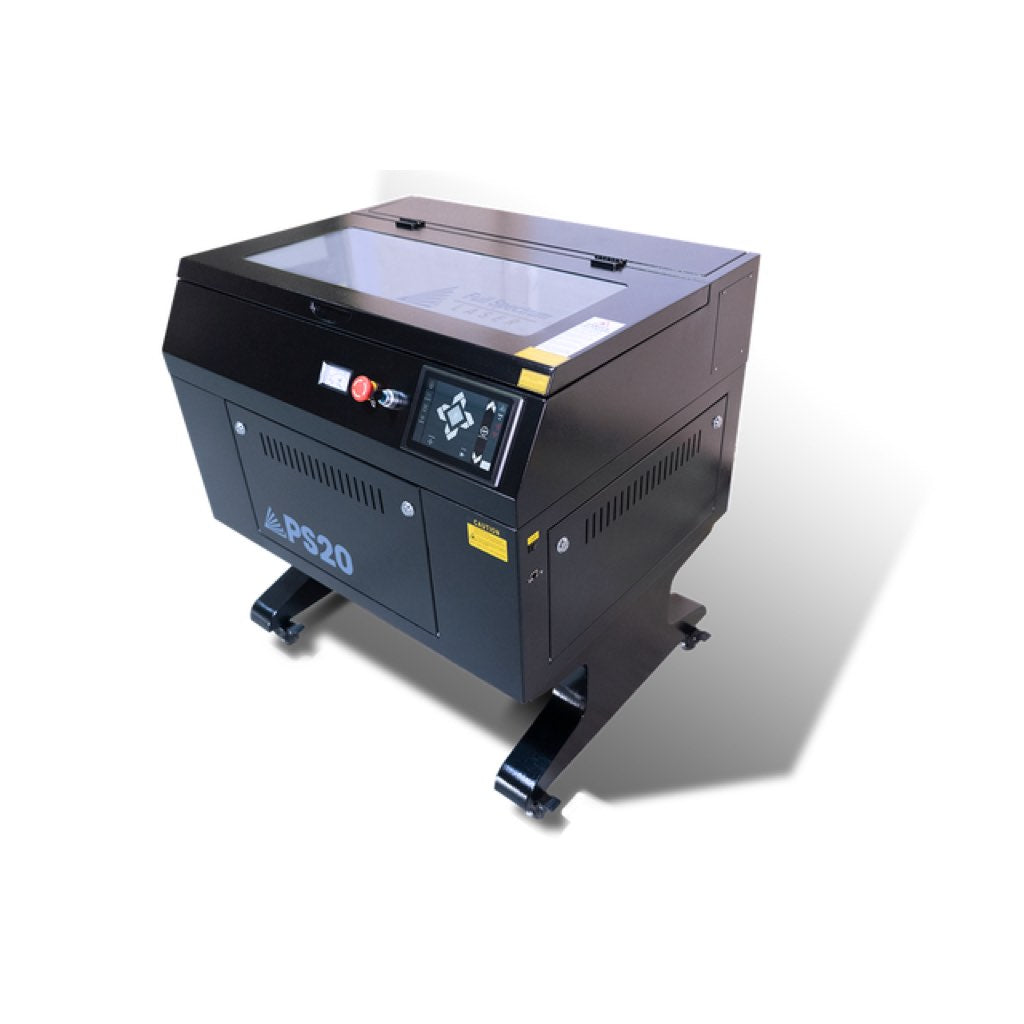

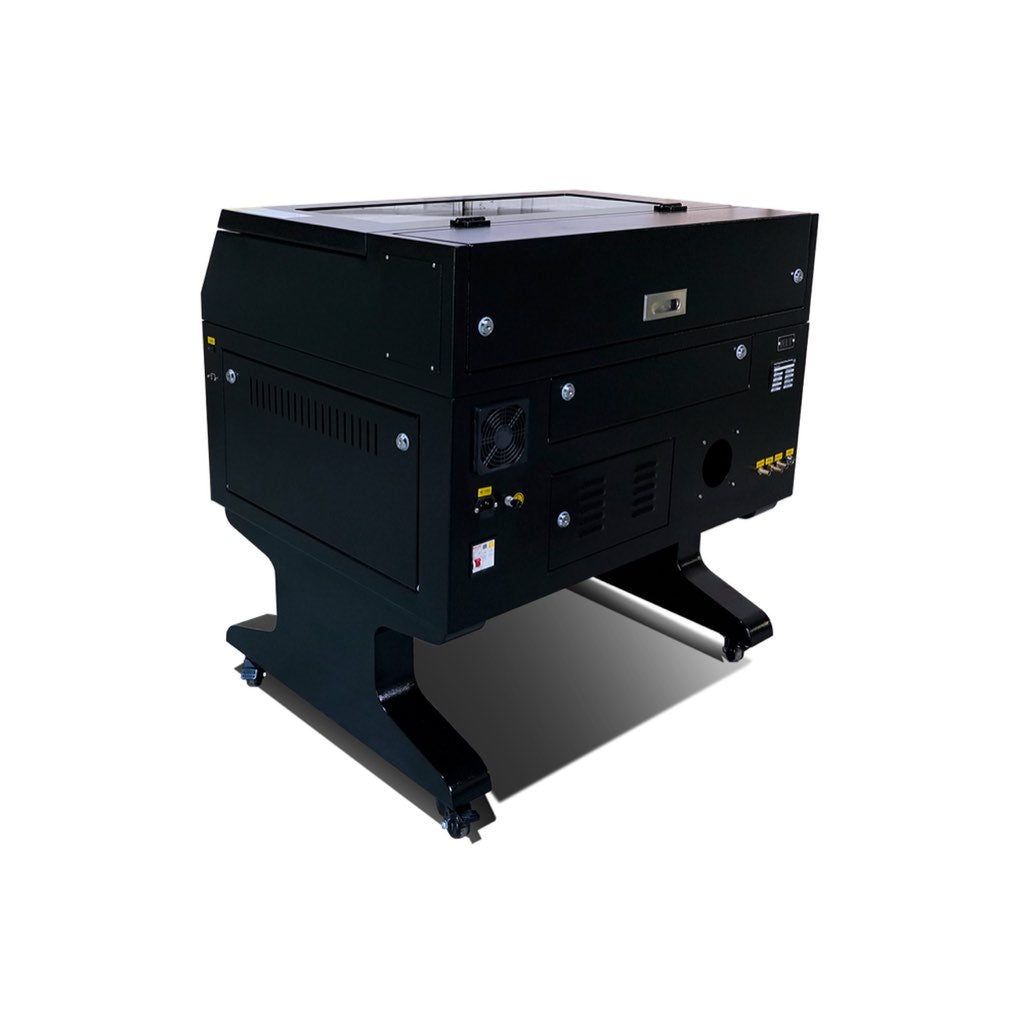

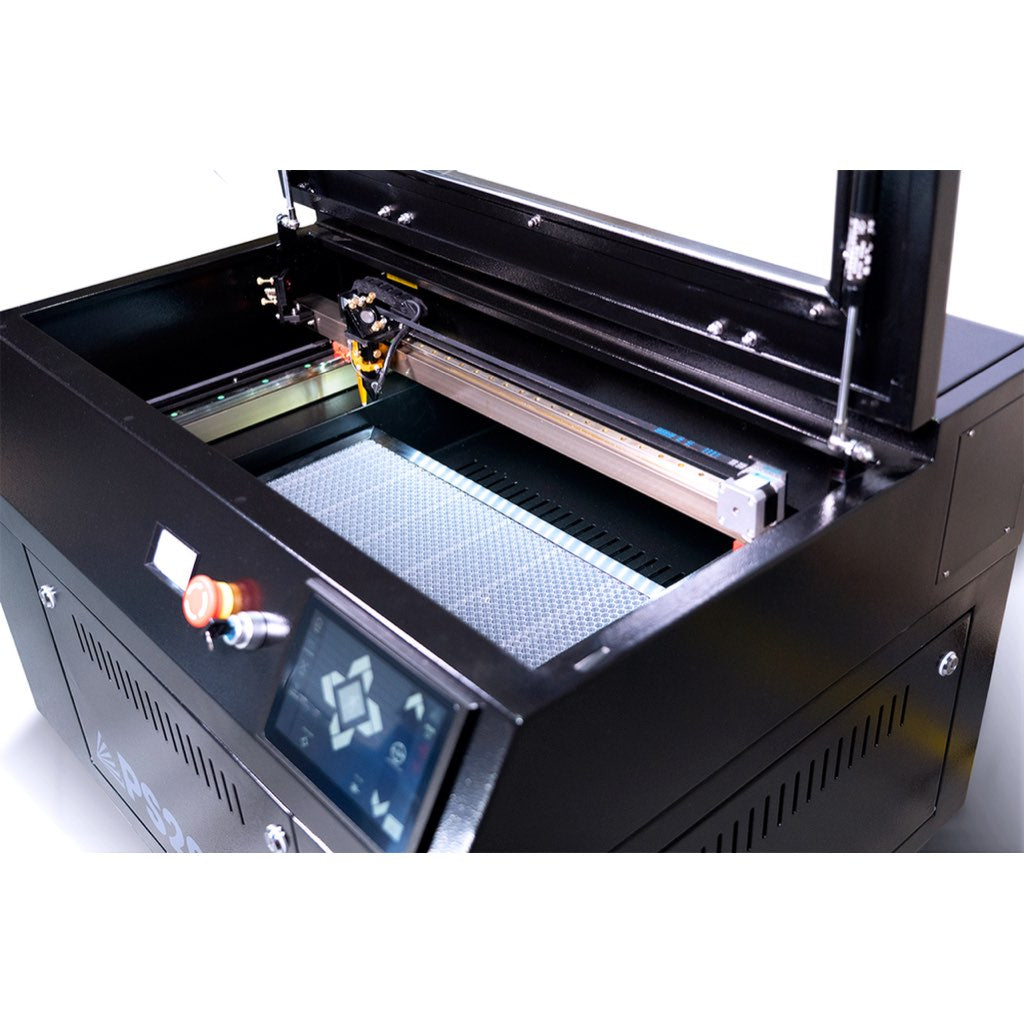

FSL PS20 P-Series Laser Cutting & Engraving System | 20" × 12" Work Area | 45W CO₂ Precision Laser
Compact in size but powerful in performance, the FSL PS20 Laser Cutting and Engraving System delivers industrial-grade precision in a format that fits through any standard doorway. Built for heavy, continuous use, this system is ideal for small businesses, workshops, and creators seeking professional results from a desktop-sized laser.
Powered by the industry-leading RetinaEngrave v3.0 browser-based software, the PS20 offers seamless control, effortless operation, and compatibility with Windows, macOS, and Linux — no downloads or internet connection required.
Key Features
-
Browser-Based Software: Works on Windows, Mac, and Linux — no installation needed.
-

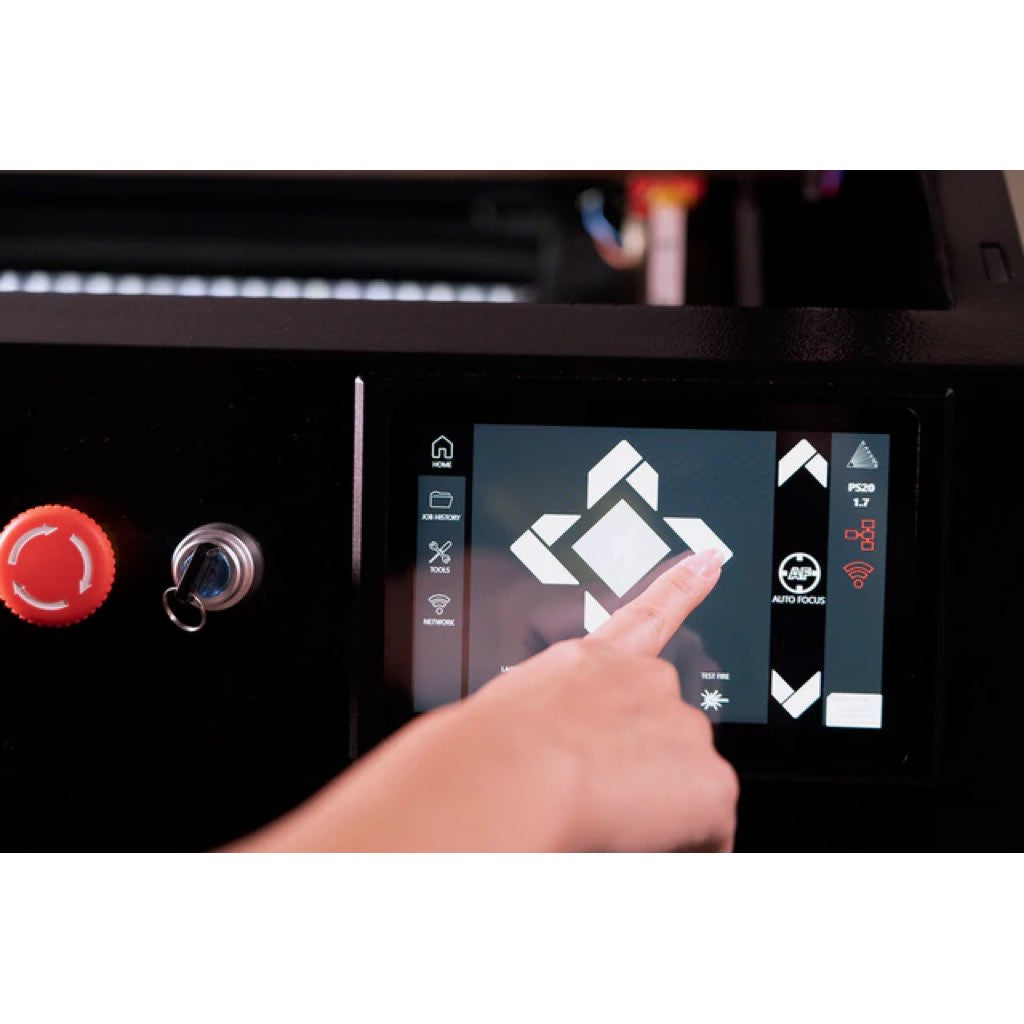

7" LCD Touchscreen: Control essential laser functions right from the machine.
-
Motorized Z-Table (8" Range): Adjust height for thick or large materials with ease.
-

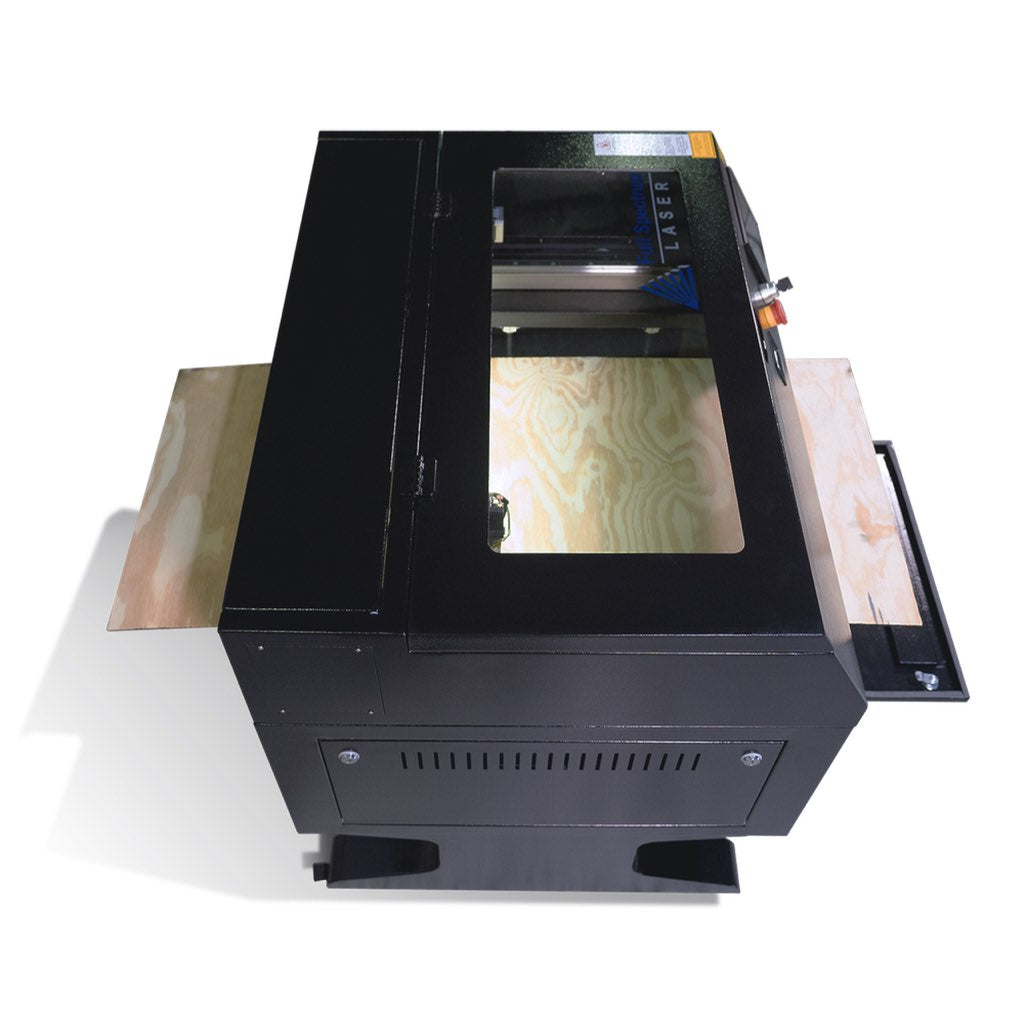

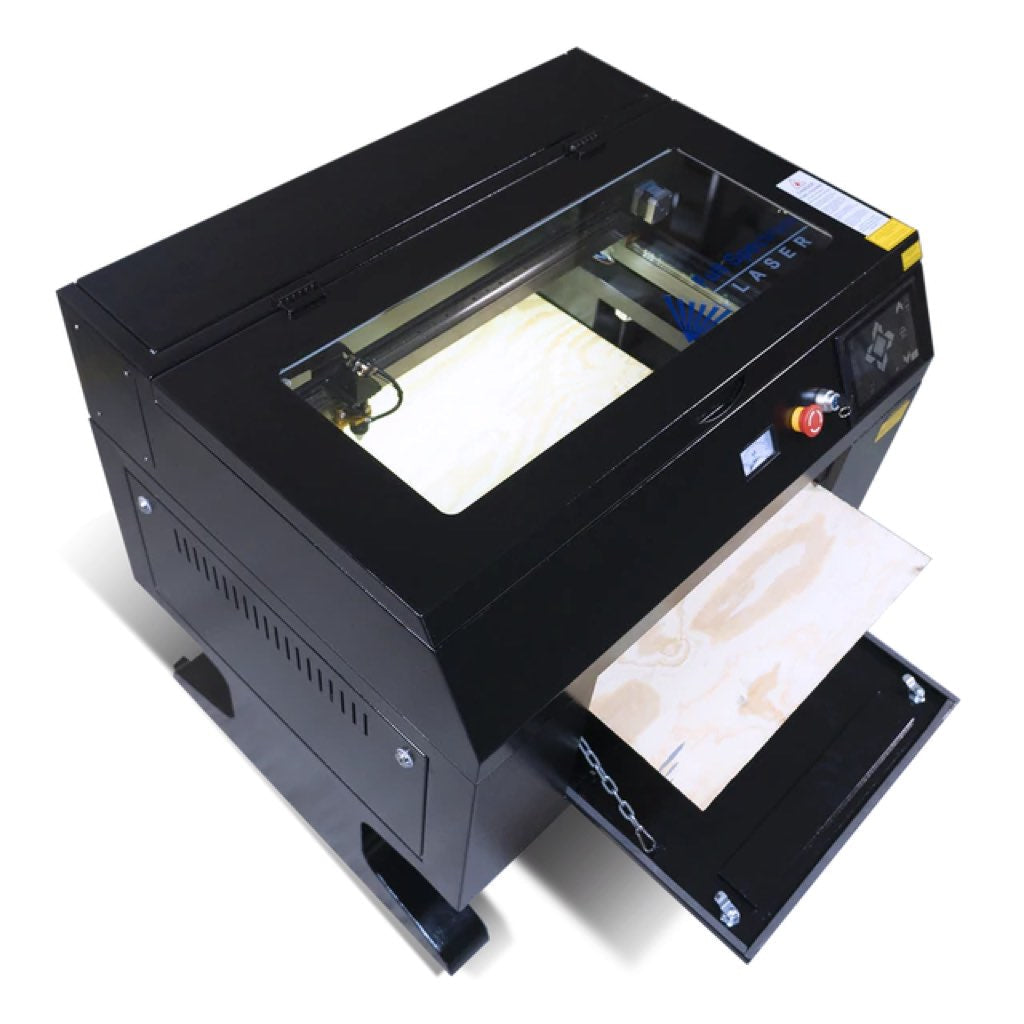

Pass-Through Doors: Handle larger sheets or continuous materials without restriction.
-
Auto Focus: Automatically adjusts focus for faster setup and consistent engraving results.
-
Rotary Attachment (Optional): Expand capabilities to engrave cylindrical objects like cups or tumblers.
-
RetinaEngrave v3.0 Software: Intuitive and powerful control system for raster, vector, or combined mode engraving.
-
Free Technical Support: Expert help via phone and email.
-
2-Year Warranty: Reliable coverage for peace of mind.
-
Included Accessories: Exhaust fan, air compressor, radiator water chiller, honeycomb table, knife-edge table, and tool box.
Technical Specifications
| Category | Details |
|---|---|
| Engraving Area | 20" × 12" (508 mm × 305 mm) |
| Machine Dimensions | 37" × 27.5" × 35.4" (940 mm × 698 mm × 899 mm) |
| Weight | 198 lbs (90 kg) |
| Z-Table Range | 8" |
| Laser Classification | Class 3R |
| Laser Type | Sealed CO₂ Laser Tube |
| Laser Power | 45 W |
| Focus Lens Included | 2.5" |
| Power Supply | AC 110 V native (220 V option available) |
| Gross Power | < 1000 W |
| Operation Modes | Raster, Vector, or Combined |
| Motion Control | High-Speed Stepper Motors |
| Operating Temperature | 0 °C – 45 °C |
| Software | RetinaEngrave v3.0 |
| Compatibility | Windows, macOS, Linux |
| Browser Compatibility | Chrome (recommended), Safari, Firefox, Edge |
| File Import Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Minimum Screen Resolution | 1024 × 768 pixels |
| Wireless Connectivity | 802.11 n |
| Included Components | Exhaust Fan, Air Compressor, Radiator Water Chiller, Honeycomb Table, Knife-Edge Table, Tool Box |
Ideal For
-
Small businesses and design studios
-
Makers, fabricators, and prototyping labs
-
Educational and training institutions
-
Hobbyists looking for a professional-grade desktop laser
