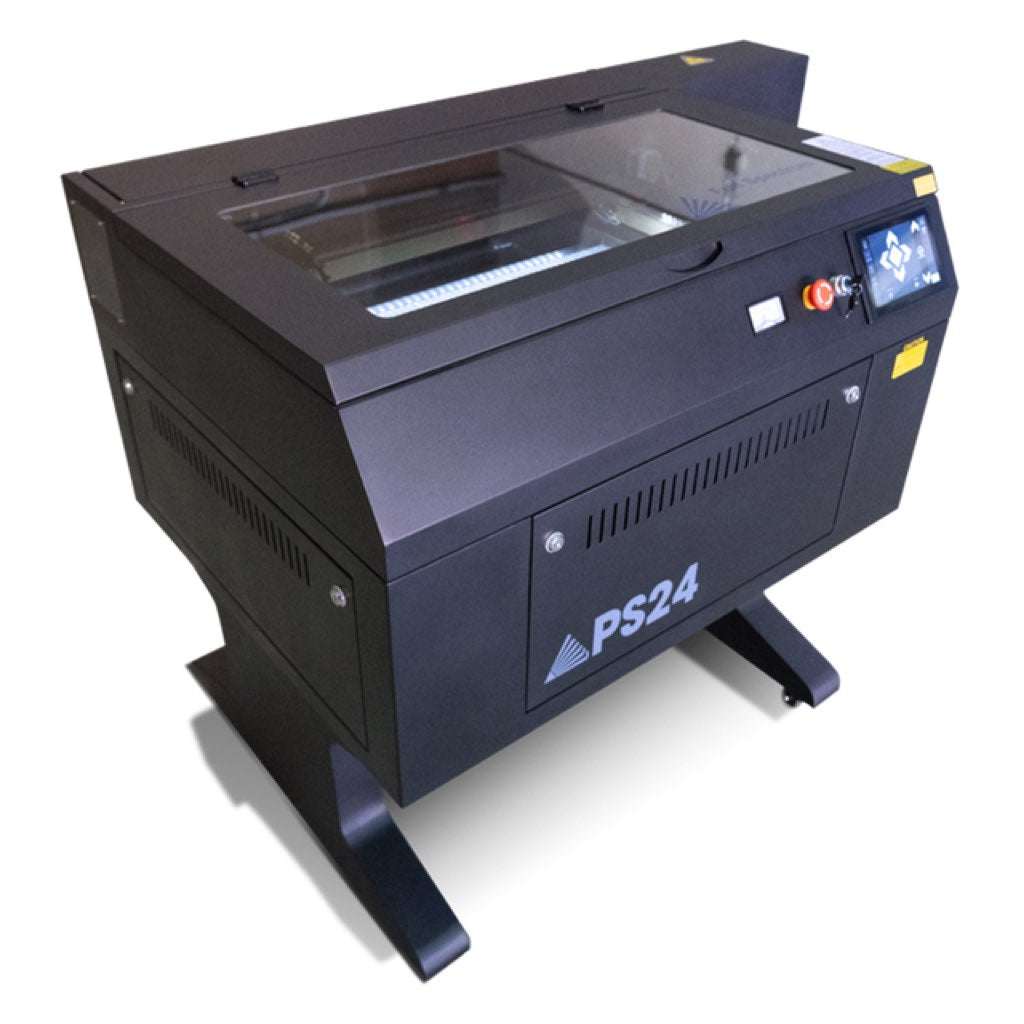

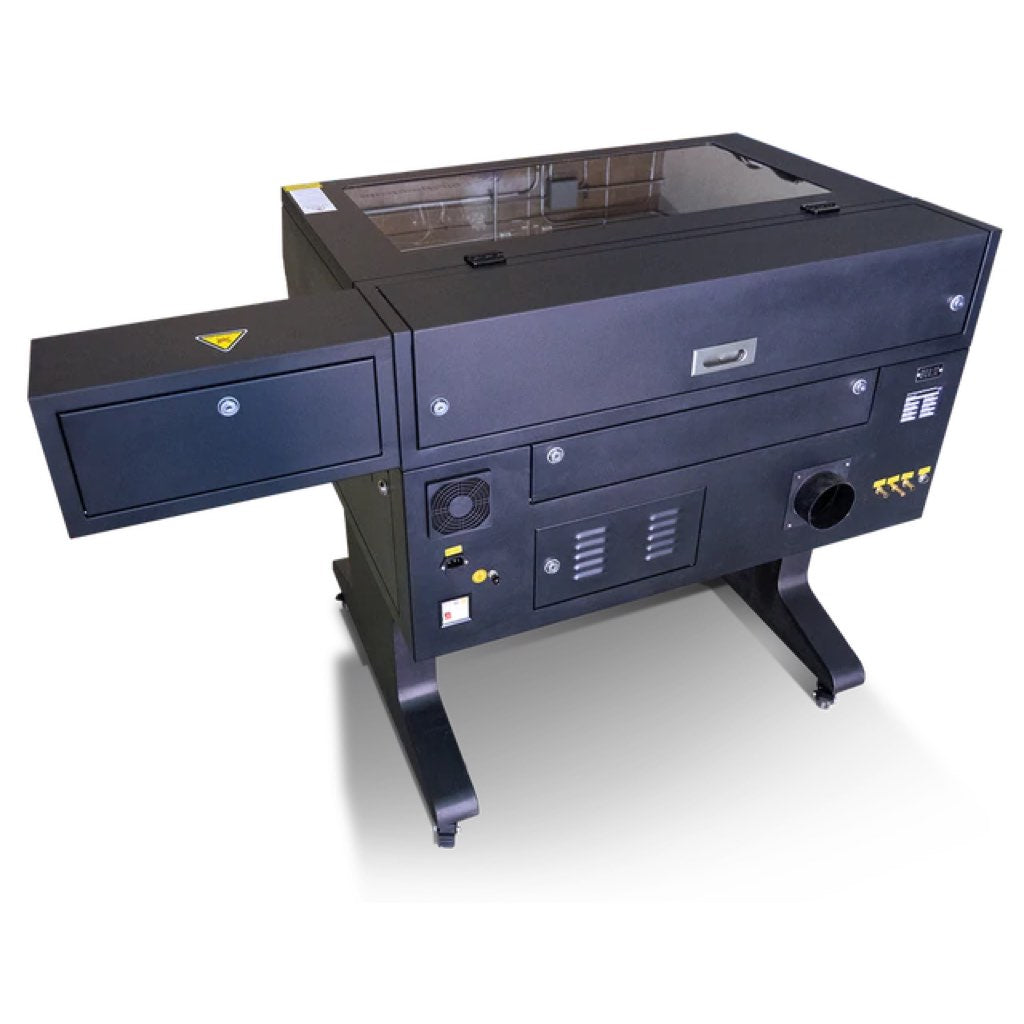

FSL P-Series 24" × 16" Laser Cutting & Engraving System | 90W Professional CO₂ Laser
The FSL P-Series 24" × 16" Laser Cutting and Engraving System is built for precision, power, and performance — the perfect solution for businesses, workshops, and serious creators who demand professional results in a compact footprint.
With a 90W sealed CO₂ laser, an intuitive 7" LCD touchscreen, and advanced RetinaEngrave v3.0 control software, this system delivers industrial performance and ease of use in one machine.
Designed for high-output production and accurate detail work, the P-Series 24" × 16" handles a wide range of materials including wood, acrylic, leather, glass, and plastics.
Key Features
-
Browser-Based Software: Operate directly from Windows, macOS, or Linux — no internet required.
-
7" LCD Touchscreen: Manage laser settings and job controls right from the machine.
-
RetinaEngrave v3.0: Powerful, user-friendly control software for precise raster and vector operations.
-
Motorized Z-Table (8" Range): Easily adjust the height to accommodate larger or thicker objects.
-

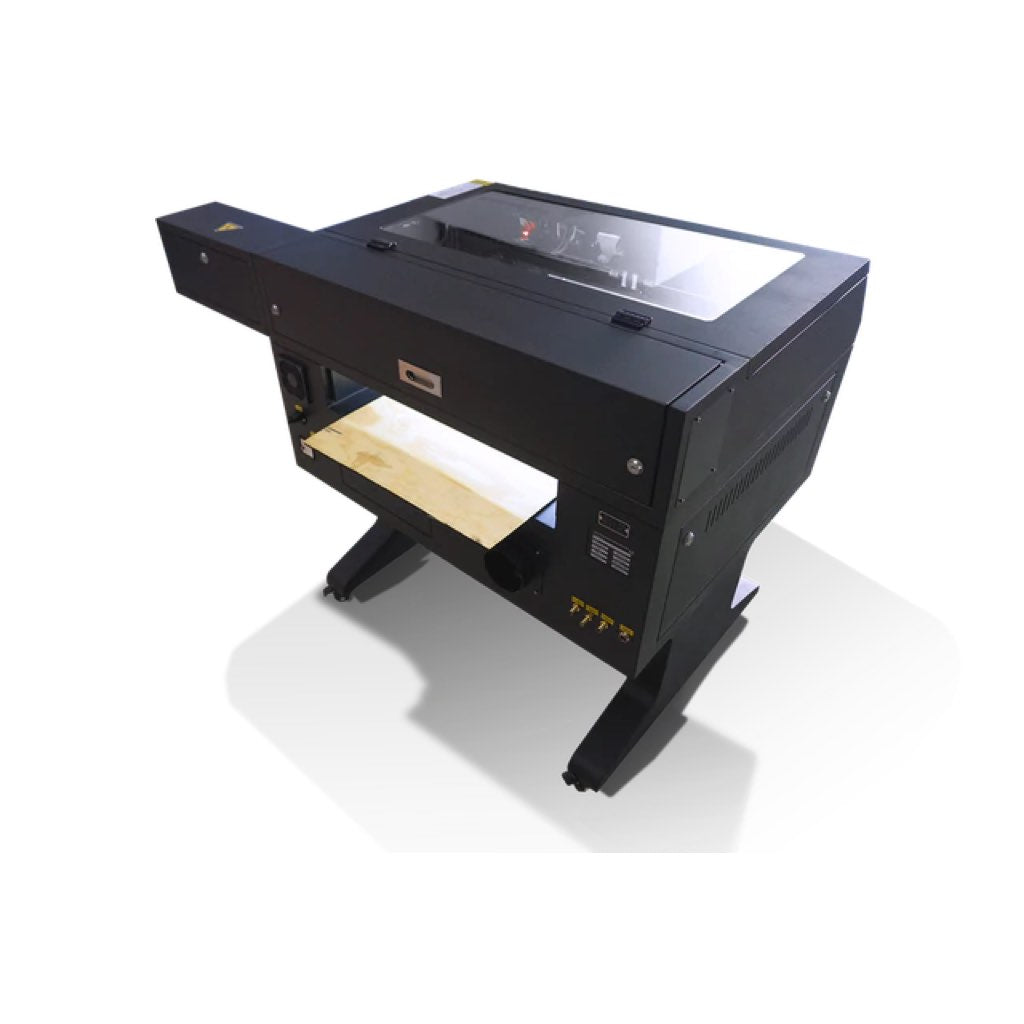

Pass-Through Doors: Supports longer materials for seamless cutting and engraving.
-
Auto Focus: Automatically sets the perfect focal distance, saving time and improving precision.
-
Rotary Attachment (Optional): Enables engraving on cylindrical objects such as cups and tumblers.
-
Free Technical Support: Expert assistance available via phone and email.
-
2-Year Warranty: Extended coverage for added peace of mind.
-
Included Accessories: Exhaust fan, air compressor, radiator water chiller, honeycomb table, knife-edge table, and tool box.
Technical Specifications
| Category | Details |
|---|---|
| Engraving Area | 24" × 16" (610 mm × 406 mm) |
| Machine Dimensions | 56" × 31.5" × 36.5" (1420 mm × 800 mm × 843 mm) |
| Weight | 260 lbs (110 kg) |
| Z-Table Range | 8" |
| Laser Classification | Class 3R |
| Laser Type | Sealed CO₂ Laser Tube |
| Laser Power | 90 W |
| Focus Lens Included | 2.5" |
| Power Supply | AC 110 V (native) / 220 V option available |
| Gross Power | < 1000 W |
| Operation Modes | Raster, Vector, or Combined |
| Motion Control | High-Speed Stepper Motors |
| Operating Temperature | 0 °C – 45 °C |
| Software | RetinaEngrave v3.0 |
| Compatibility | Windows, macOS, Linux |
| Browser Compatibility | Chrome (recommended), Safari, Firefox, Edge |
| File Import Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Minimum Screen Resolution | 1024 × 768 pixels |
| Wireless Connectivity | 802.11 n |
| Included Components | Exhaust Fan, Air Compressor, Radiator Water Chiller, Honeycomb Table, Knife-Edge Table, Tool Box |
Ideal For
-
Small to mid-size production environments
-
Makers and fabrication shops
-
Schools, labs, and prototype development teams
-
Entrepreneurs scaling creative or personalized product lines
