Description

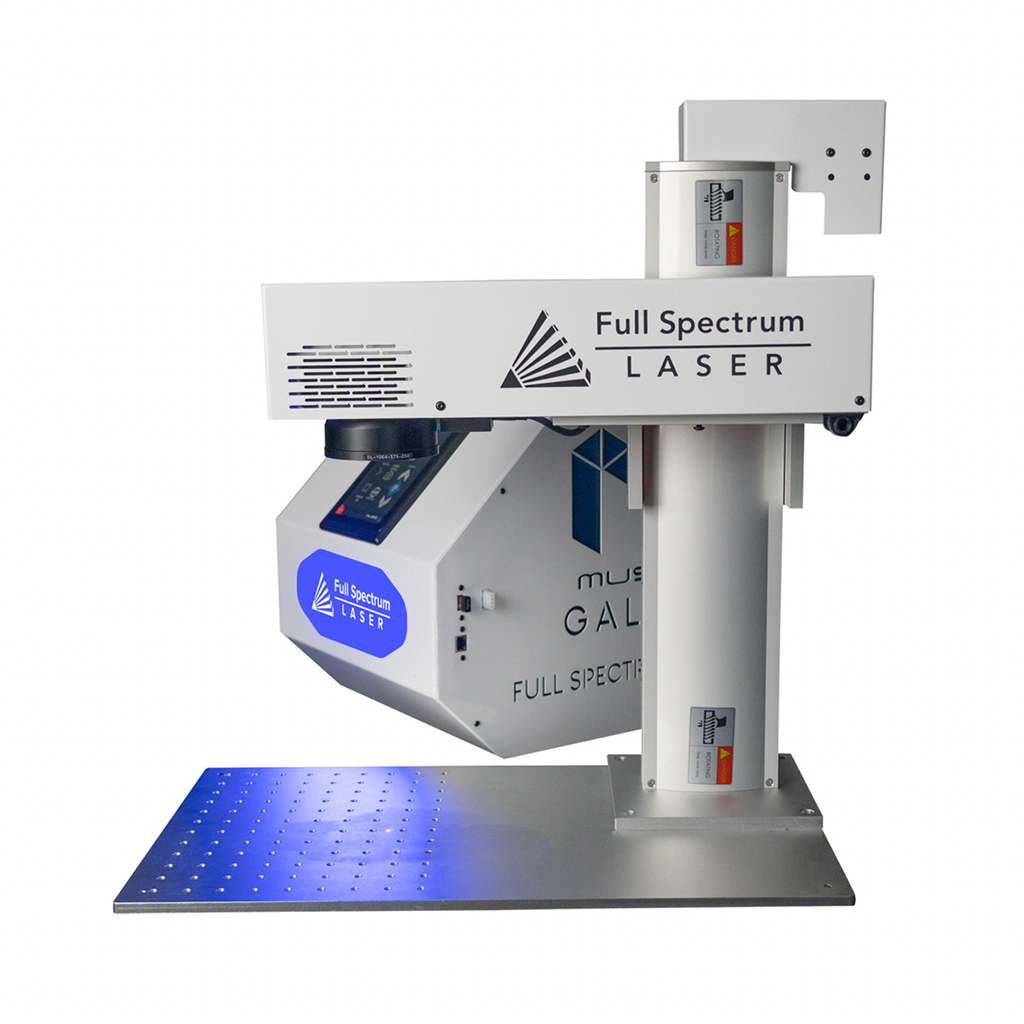

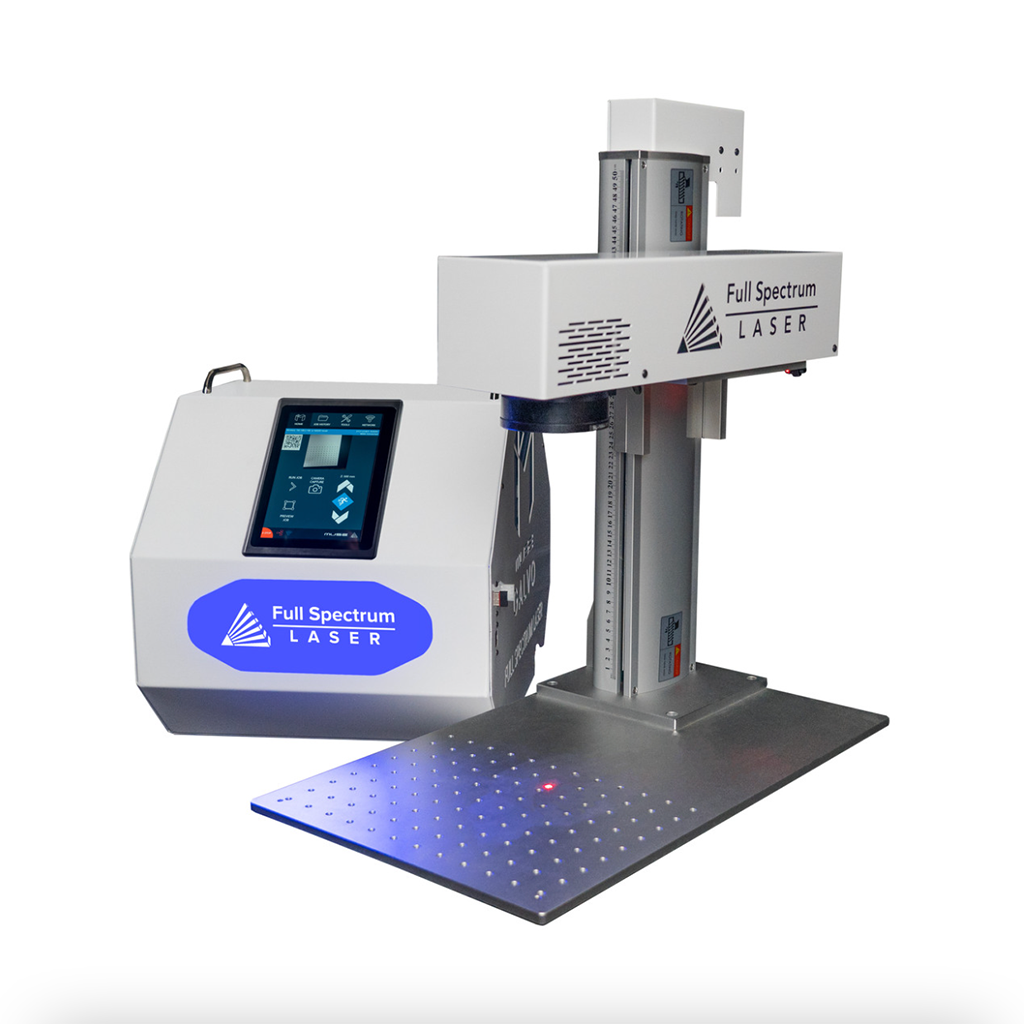

The Muse Economy Fiber Open Galvo Laser delivers fast, precise, and cost-effective engraving for metals, plastics, and coated materials.
Built for reliability and flexibility, it offers the speed and precision of a galvanometer-based system at an affordable price point — ideal for workshops, product manufacturers, and makers needing professional metal and polymer marking performance.
Available in 20 W, 30 W, and 50 W configurations, the Muse Open Galvo uses a pulsed fiber laser source to create crisp, durable marks without consumables or frequent maintenance.
Key Features
-
Browser-Based RetinaEngrave v3.0: Self-hosted control software compatible with Windows, macOS, and Linux — no downloads required.
-
Open-Platform Design: Engrave objects larger than the machine or integrate into production setups with ease.
-
Material Database: Built-in presets for aluminum, steel, black acrylic, lexan, leather, granite, and more.
-

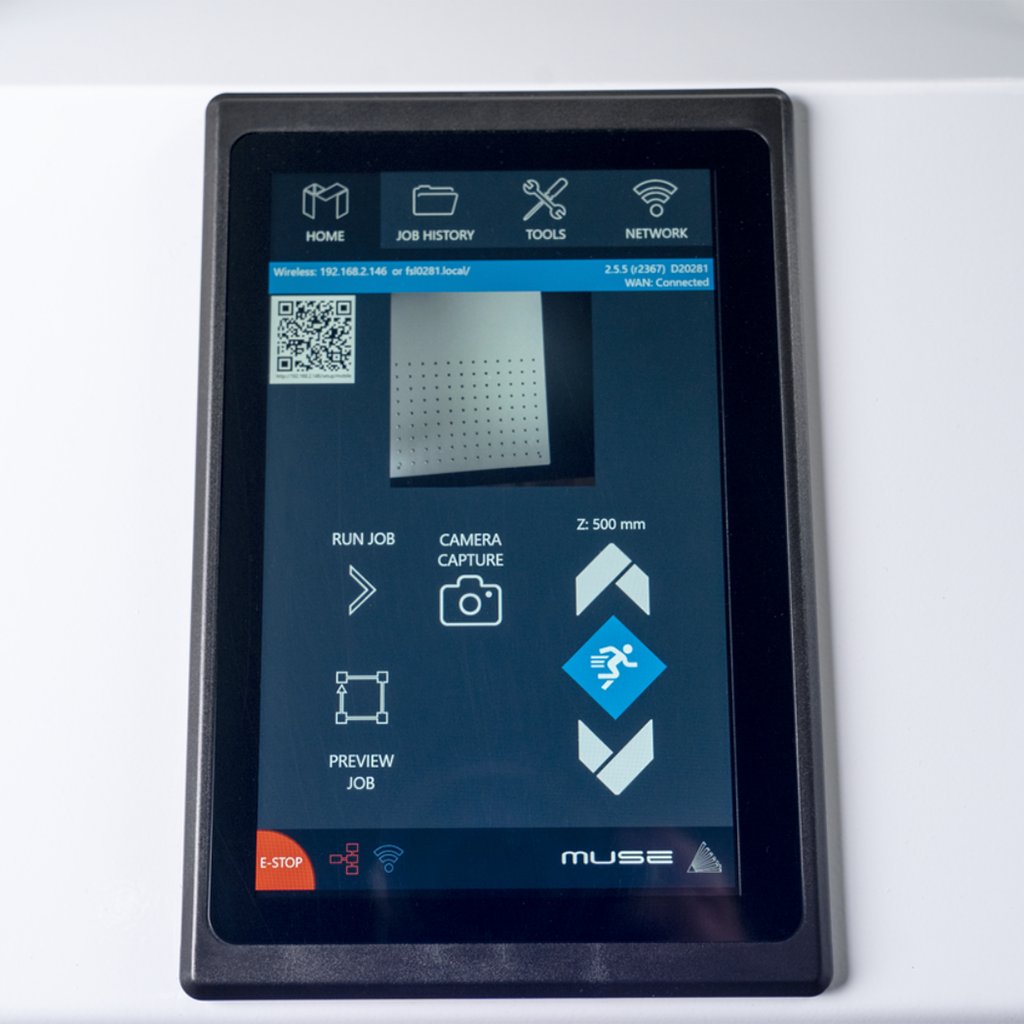

7" LCD Touchscreen: Manage laser power, focus, and job settings directly from the unit.
-
3D Camera-Powered Autofocus: Intel RealSense™ camera captures depth data for precise focus on uneven or multi-height surfaces.
-
Rotary Attachment (Optional): Expand capabilities for cylindrical items such as mugs, tumblers, and tools.
-
Ultra-Precision Galvo Motion: Closed-loop galvanometer scanners with encoder feedback provide repeatable accuracy with no belts or gears.
-
High-Speed Marking: Stationary mirrors direct the beam for up to 100× faster operation than traditional gantry systems.
-
Solid-State Durability: No consumable parts or water cooling required.
-
1-Year Warranty & Support: Expert technical assistance via phone and email.
Technical Specifications
| Category | Details |
|---|---|
| Engraving Area | 4" × 4" (100 mm × 100 mm) – 12" × 12" (300 mm × 300 mm) |
| Machine Dimensions | 25.5" × 13" × 23.5" + 18.5" × 8" × 16.5" |
| Weight | 150 lbs (68 kg) |
| Z-Table Range | 16.2" (412 mm) |
| Laser Classification | Class 4 (Open Laser System) |
| Laser Type | Pulsed 1064 nm Fiber Laser |
| Laser Power Options | 20 W / 30 W / 50 W |
| Focus Lens | 160 mm Included |
| Power Supply | AC 110 V (native) / 220 V Option Available |
| Gross Power | < 1000 W |
| Operation Modes | Raster, Vector, or Combined |
| Motion Control | Galvanometer (X+Y) / Stepper Motor (Z) |
| Software | RetinaEngrave v3.0 |
| Compatibility | Windows, macOS, Linux |
| Browser Compatibility | Chrome (recommended), Safari, Firefox, Edge |
| File Formats Supported | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Wireless Connectivity | 802.11 n |
| Included Components | Power Supply Tower, Fiber Laser Source |
Performance
The Muse Economy Fiber Open Galvo uses fast-rotating stationary mirrors to project the laser beam with no physical head movement — producing clean, detailed marks with exceptional speed.
The pulsed fiber laser source provides consistent engraving depth, minimal maintenance, and a long operational life, making it ideal for serial number marking, part identification, and logo engraving on metals and plastics alike.
Ideal For
-
Metal fabrication, jewelry, and firearm customization
-
Branding and serial-number marking for manufacturers
-
Product designers and prototyping labs
-
Hobbyists and small businesses expanding into fiber engraving
