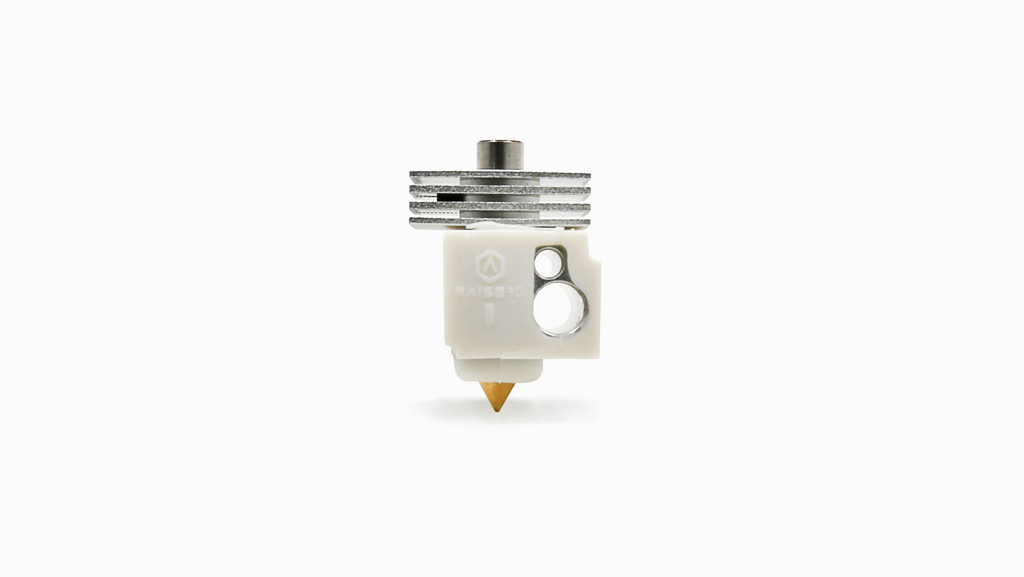

Hot End Assembly (Pro2 Series Only) [S]3.01.1.013.014A01

Product Description:

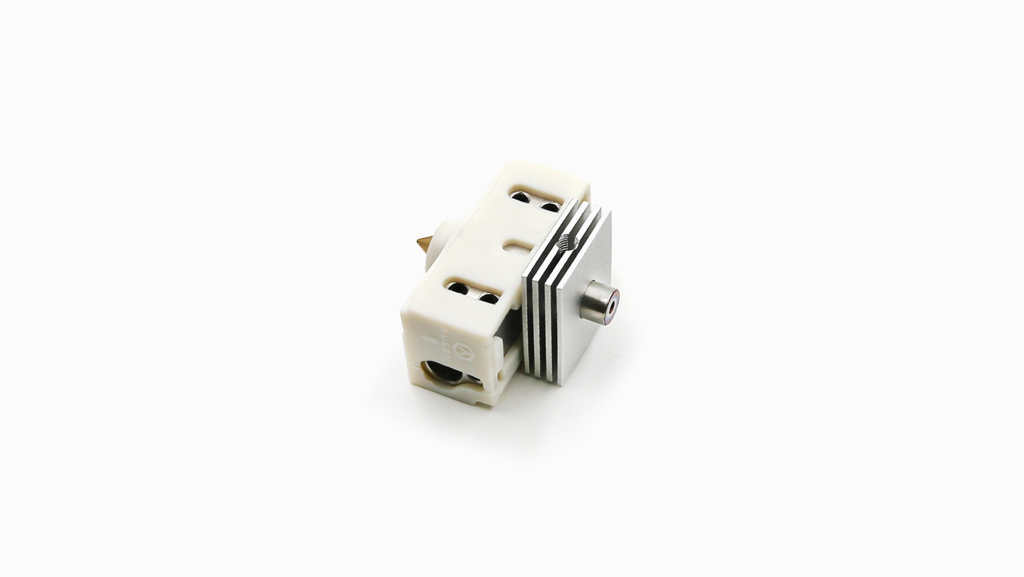

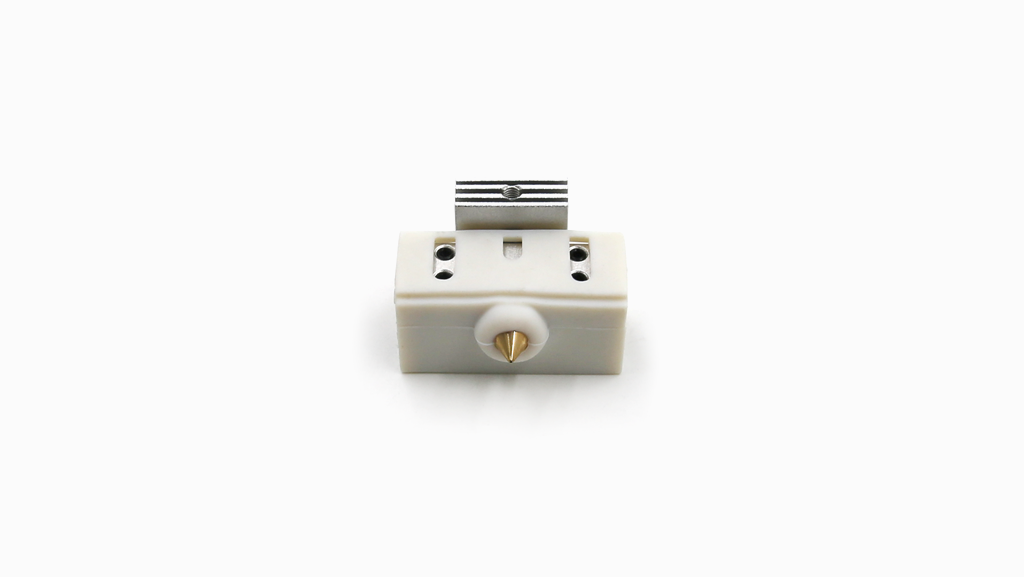

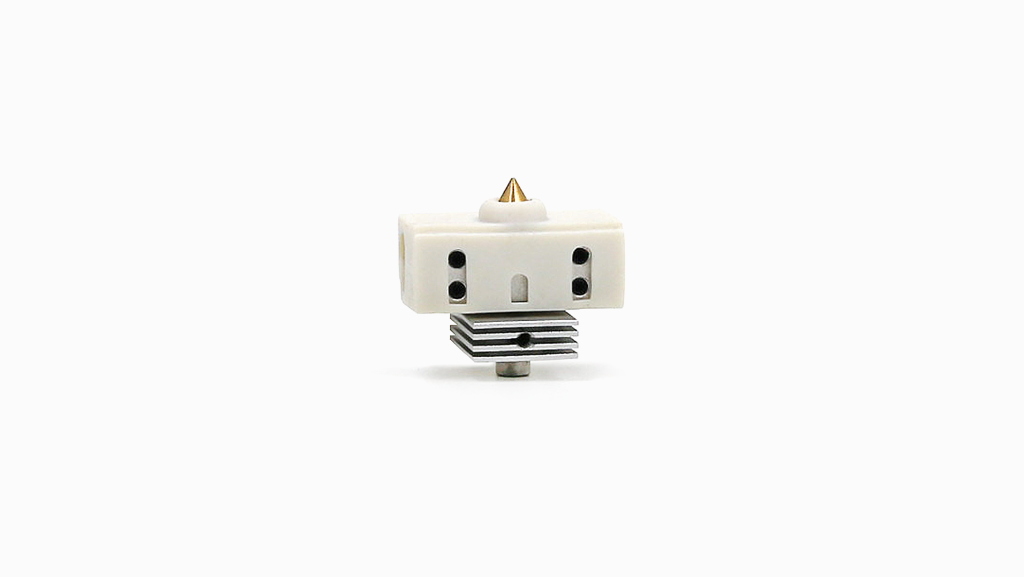

The Raise3D Hot End Assembly (Pro2 Series Only) is designed specifically for Pro2 and Pro2 Plus printers. This complete assembly includes a brass nozzle, aluminum heating block, titanium-alloy throat tube, heat sink, and silicone protective cover. Built for precision and reliability, it ensures smooth extrusion, efficient heat transfer, and consistent print quality. Compatible with Raise3D V3 Brass Nozzle (0.4 mm) and V3 Hardened Nozzle.

Included Components:

• 1 × 0.4 mm brass nozzle

• 1 × 20.7 mm titanium-alloy throat tube

• 1 × Aluminum heating block (33 × 15 × 10 mm)

• 1 × Heat sink

Specifications:

• Voltage: 24V

• Material: Aluminum + Titanium Alloy + Brass + Silicone

• Installation Type: Direct insert into extruder

• Nozzle Size: 0.4 mm

• Throat Tube Length: 20.7 mm

• Throat Tube Material: Titanium alloy

• Maximum Working Temperature: 330°C

• Package Size (W×H×D): 130 × 110 × 30 mm

• Package Weight: 30 g

• Printer Compatibility: Raise3D Pro2 Series (Pro2, Pro2 Plus)

Key Features:

• Perfect Compatibility: Designed exclusively for the Pro2 Series.

• Anti-Leakage & Anti-Clogging: Seamless nozzle-to-throat connection prevents blockages and filament leakage.

• High Heat Resistance: Supports printing at temperatures up to 330°C for a wide range of materials.

• Replaceable Nozzle: Works with Raise3D V3 Brass Nozzle (0.4 mm) and V3 Hardened Nozzle.

Compatible Filaments:
PLA, ABS, HIPS, PC, TPU, TPE, Nylon, PETG, ASA, PP, PVA, plus specialty filaments such as Glass Fiber Infused, Carbon Fiber Infused, Metal Fill, and Wood Fill.

• Filament Diameter: 1.75 mm

Installation Tips:

• Always power off the printer before disassembling or assembling the hot end.

• The hot end can reach very high temperatures—use heat-insulating gloves and needle-nose pliers during handling.

• Carefully check all wiring and power ratings before installation.

• Only replace or adjust the nozzle when the printer is powered off to avoid the risk of short circuits or fire.

• For detailed instructions, refer to the Manual – How to Replace the Hot End Assembly.
