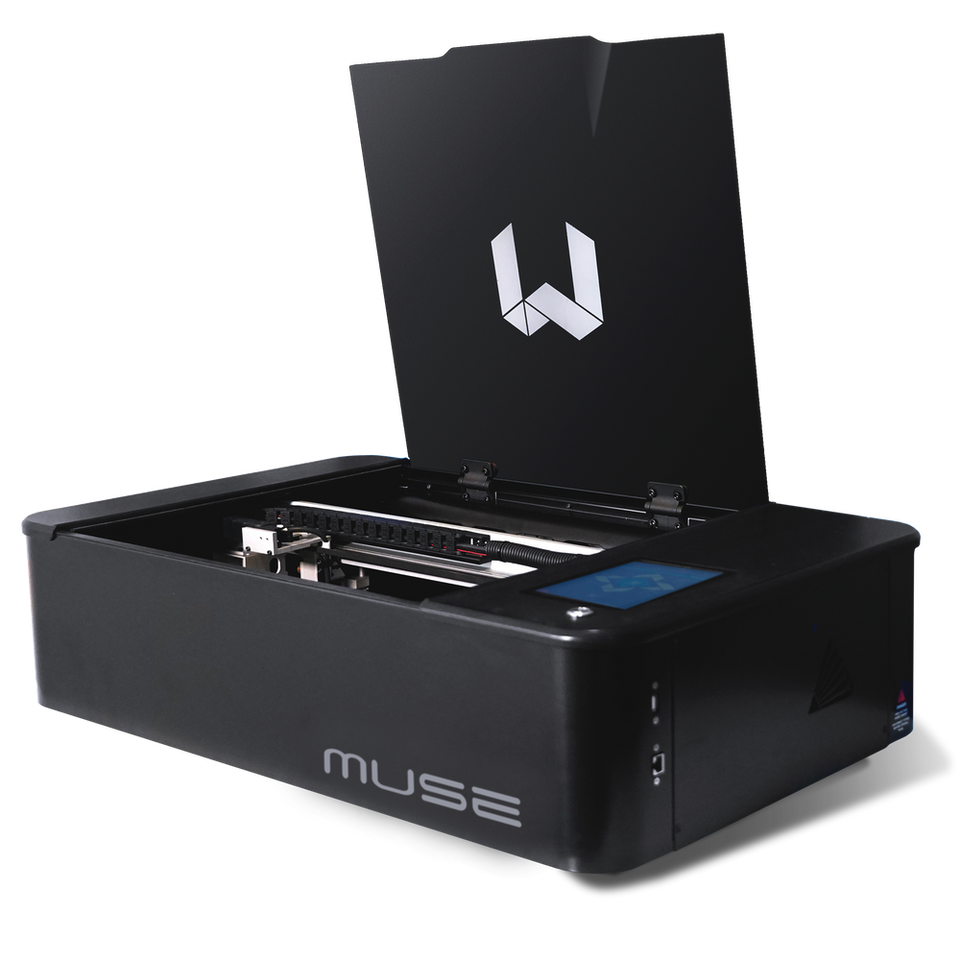

Muse 3D / Coolbox Laser Cutting & Engraving Machine Bundle | 40W CO₂ Laser with 3D Camera & Autofocus
Take your creativity and precision to the next level with the Muse 3D/Coolbox Laser Cutting and Engraving Machine Bundle — a compact, high-performance desktop laser designed for professional-quality results.
Featuring industry-leading RetinaEngrave v3.0 software, a motorized Z-axis with autofocus, and a patented removable floor, Muse 3D allows you to cut, engrave, and design beyond traditional size limits — all while maintaining exceptional accuracy.
Built with a durable metal frame and advanced CO₂ laser optics, this system combines industrial reliability with intuitive usability, perfect for designers, makers, and small business owners.
Key Features
-

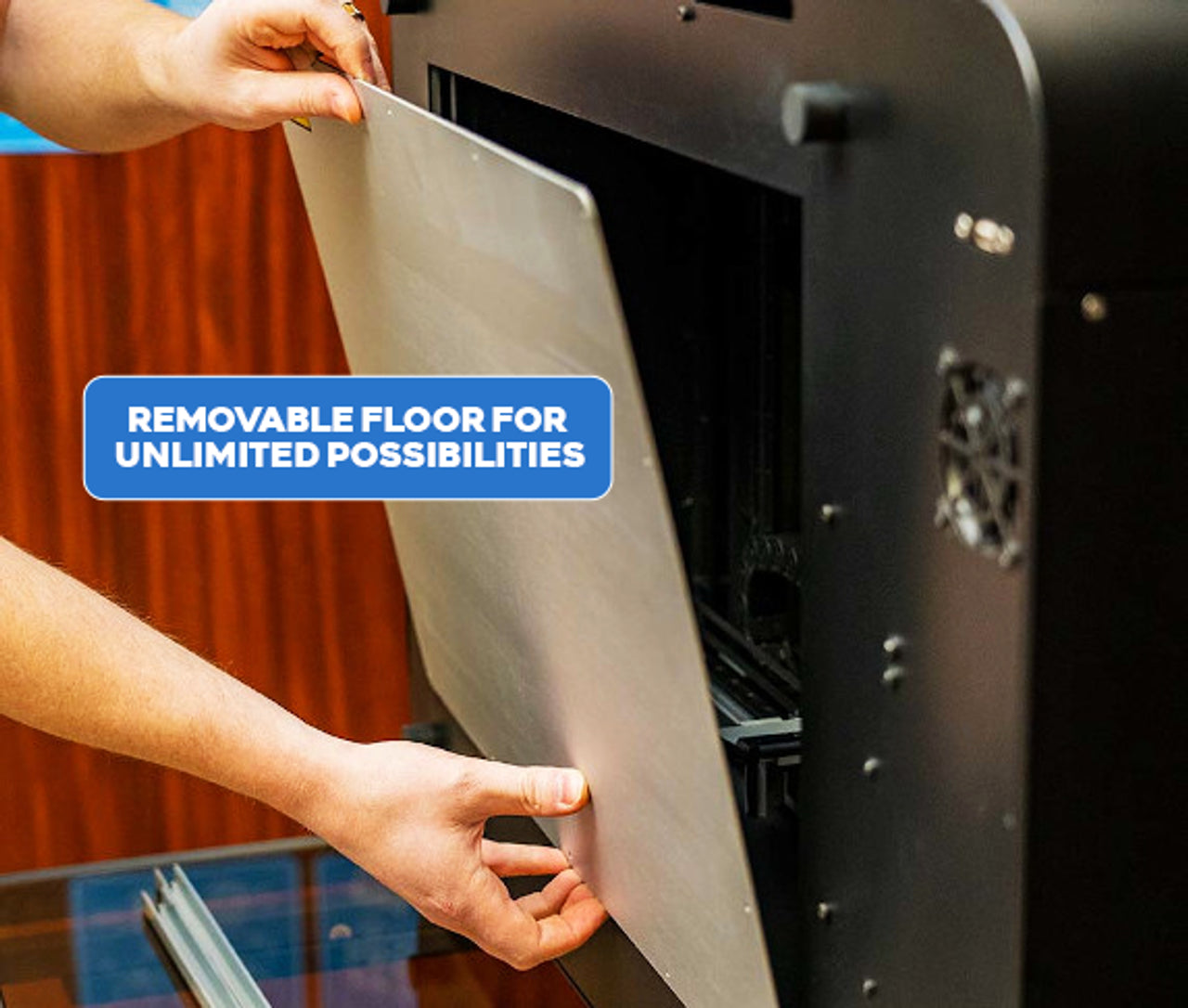

Removable Floor Design: Engrave on larger materials by removing the floor — no workspace restrictions.
-
3D Camera System: Integrated Intel RealSense™ 3D camera scans every pixel for sub-millimeter precision and perfect focus alignment.
-

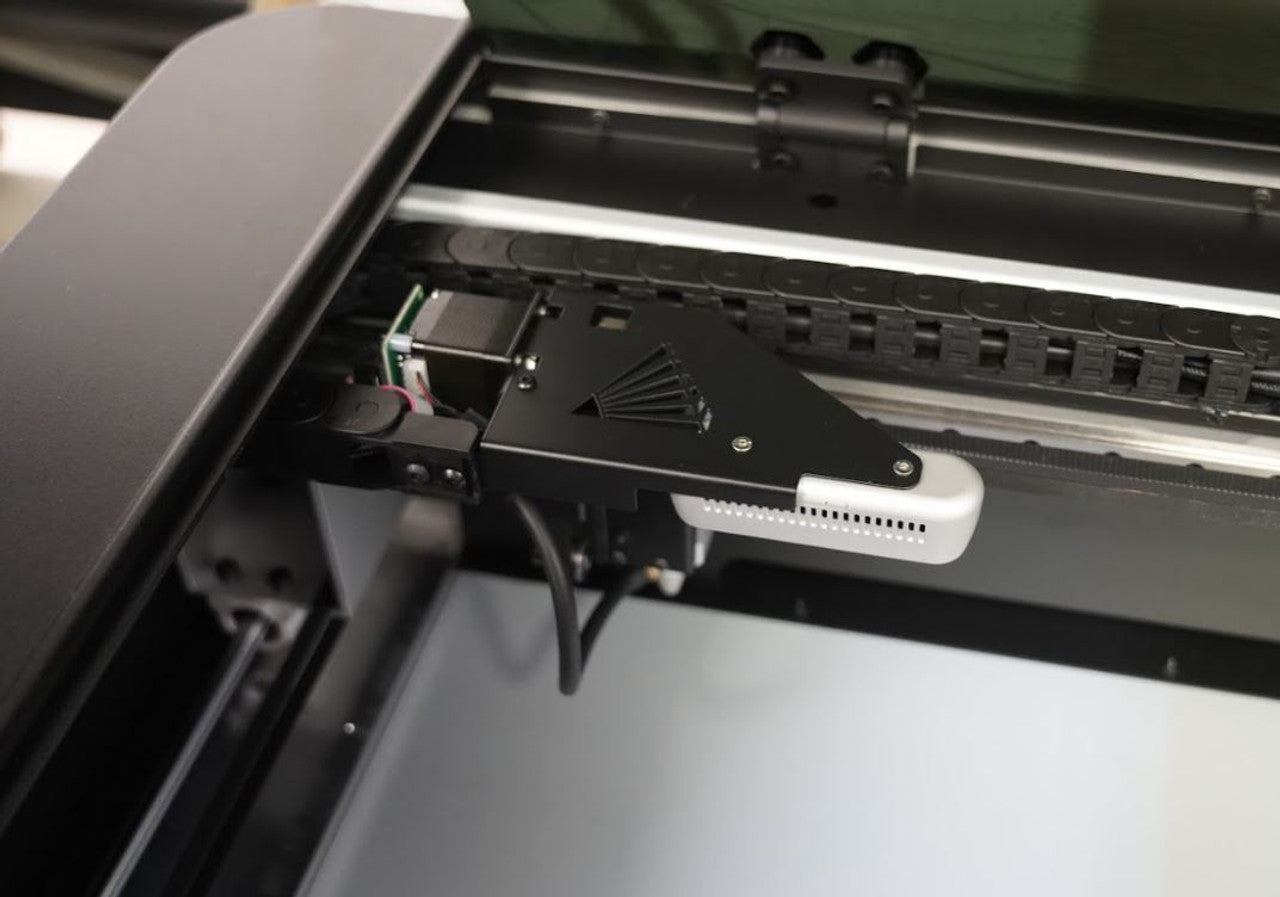

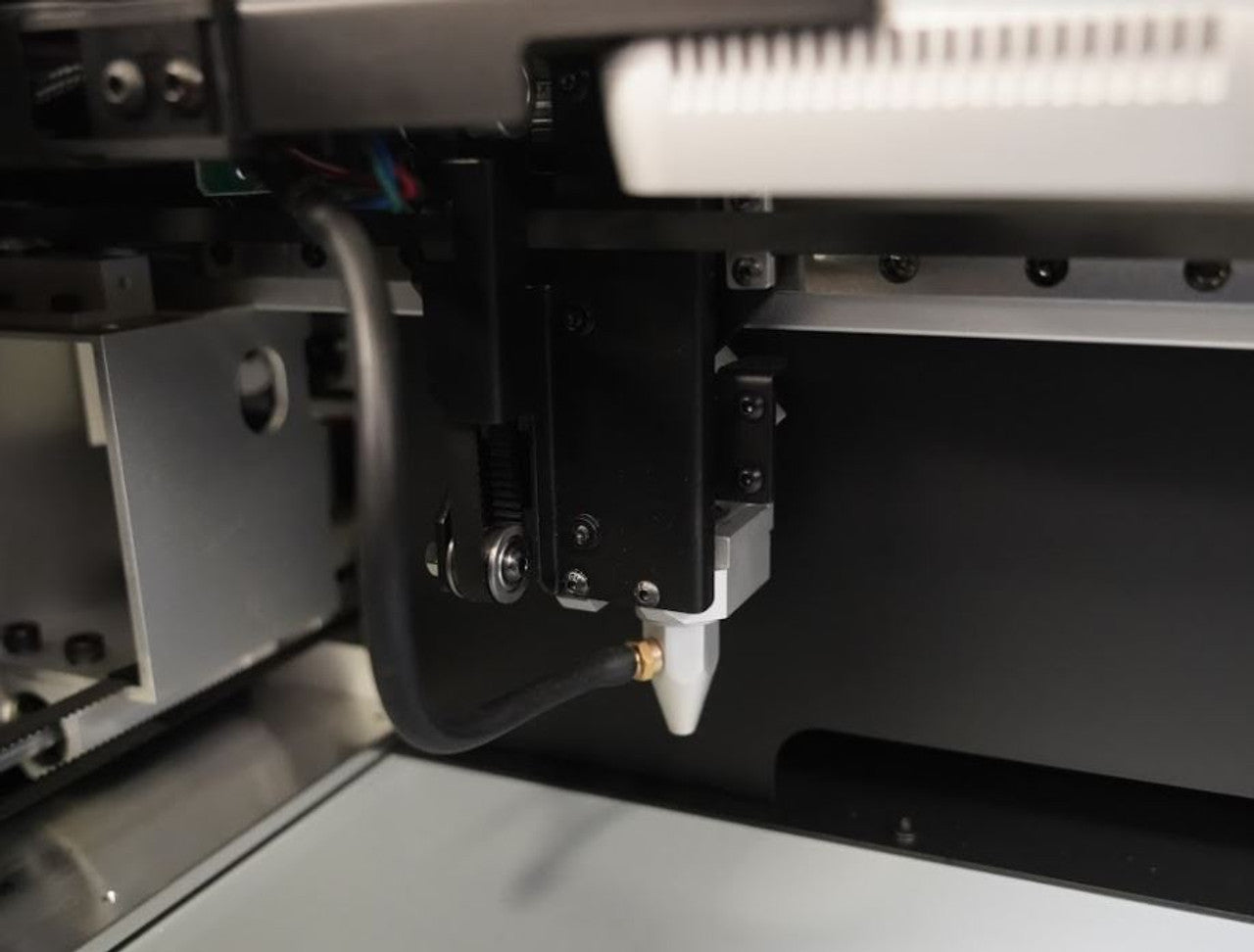

Motorized Autofocus: Automatically adjusts focal distance before each engraving for consistent results.
-
RetinaEngrave v3.0 Software: Browser-based and self-hosted; compatible with Windows, Mac, and Linux — no internet required.
-

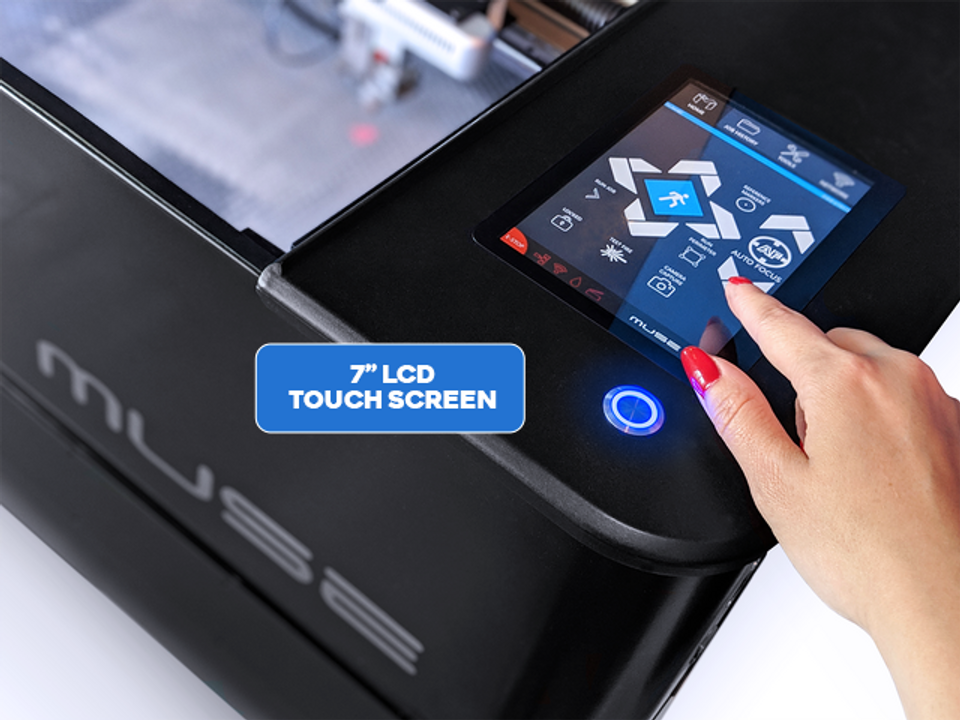

7" LCD Touchscreen: Access major controls and live job previews directly on the machine.
-
Vector, Raster, or Combined Modes: Easily switch between engraving and cutting workflows.
-

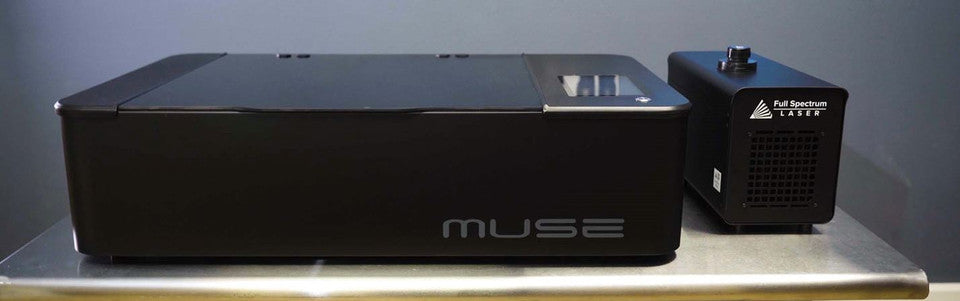

Integrated Exhaust Fan & Air Compressor (Coolbox): Keeps your workspace clean and ensures optimal laser performance.
-
Optional Rotary Attachment: Expand capability to engrave cylindrical items such as mugs, tumblers, and bottles.
-
Compact Yet Powerful: Fits comfortably on a workbench while offering industrial-level performance.
-
1-Year Warranty & Dedicated Support: Professional assistance via phone and email included.
Technical Specifications
| Category | Details |
|---|---|
| Engraving Area | 20" × 12" (508 mm × 305 mm) |
| Z-Height | 2.5" |

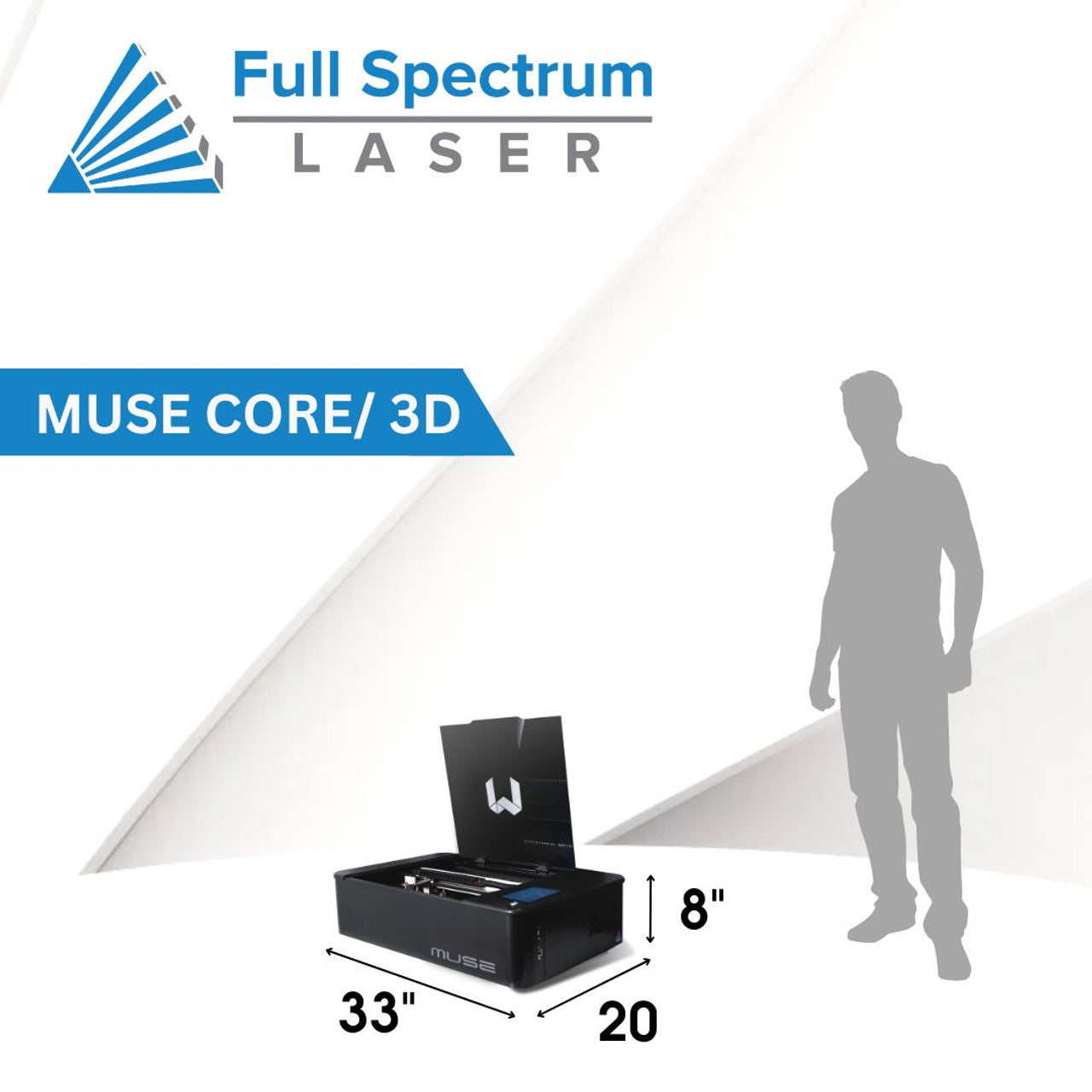

| Machine Dimensions | 32.3" (W) × 20.3" (D) × 8.5" (H) (820 mm × 515 mm × 215 mm) |
| Weight | 54 lbs (24.5 kg) |
| Laser Classification | Class 3 |
| Laser Type | Sealed CO₂ Laser Tube |
| Laser Power | 40 W |
| Focus Lens | 2" lens included |
| Resolution | Up to 1000 dpi |
| Guiding Laser | Integrated Red Beam with Combiner |
| Power Supply | AC 110 V native |
| Gross Power | < 1000 W |
| Operating Temperature | 0 °C – 45 °C |
| Software | RetinaEngrave v3.0 |
| Compatibility | Windows, macOS, Linux |
| Browser Compatibility | Chrome (recommended), Safari, Firefox, Edge |
| Supported File Types | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Wireless Connectivity | 802.11 n |
| Included Components | Internal Exhaust Fan, Air Compressor (Coolbox), Honeycomb Table, Water Cooling System |
| Optional Accessories | Rotary Attachment, Riser Base, Air Exhaust Upgrade |
Ideal For
-
Artists and designers creating custom products
-
Small business owners and engraving professionals
-
Educational makerspaces and prototyping labs
-
Hobbyists wanting to upgrade to professional-grade performance
