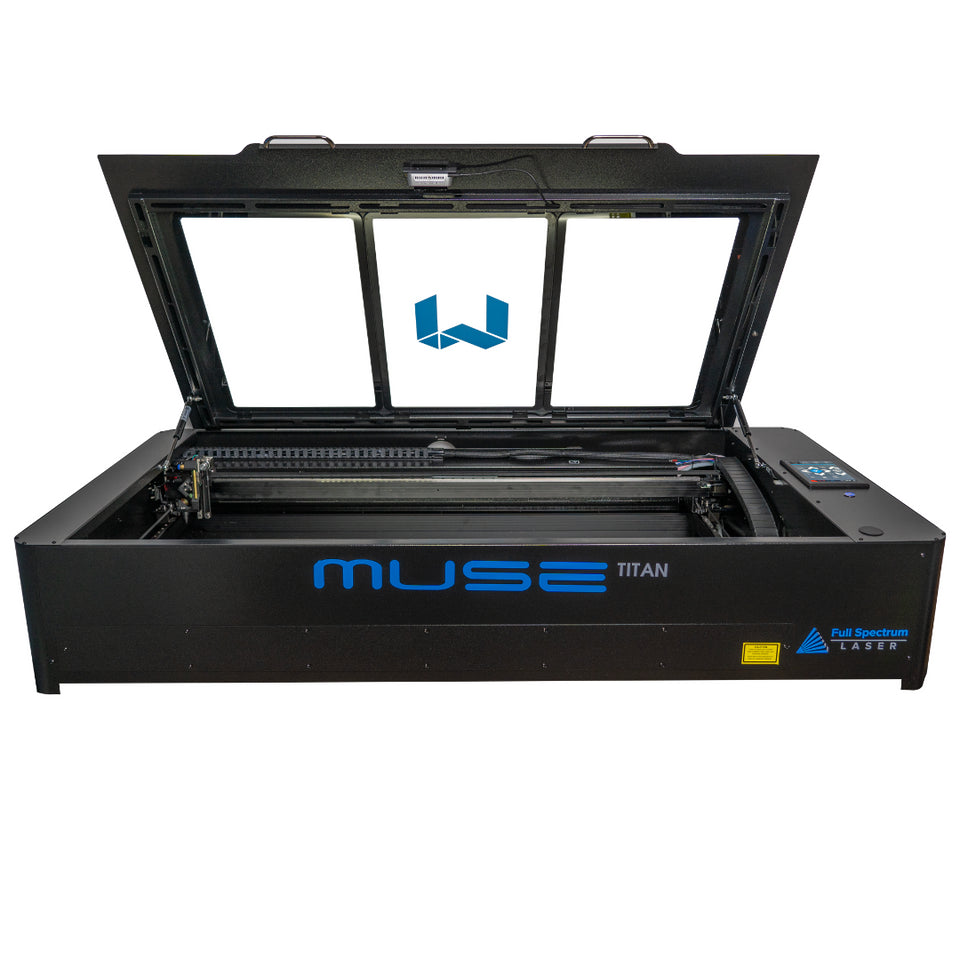

Muse Titan v3 48"x24" CO₂ Laser with AI 3D Camera – MUSETITAN

•

  Muse Titan v3 Laser Cutting & Engraving Machine | 48" × 24" Work Area | 75W–100W CO₂ Power

  The Muse Titan v3 represents the pinnacle of desktop laser innovation — combining industrial-scale power, precision engineering, and modern design in a compact footprint that still fits through a standard doorway.

  With an expansive 48" × 24" workspace and laser power options up to 100W, the Muse Titan delivers production-level results for cutting, engraving, and prototyping on wood, acrylic, leather, plastics, and more.

  ---

  Next-Generation Innovations

  The Muse Titan v3 introduces cutting-edge improvements for superior performance, reliability, and precision:

  • Redesigned Laser Head & Optics: Enhanced beam alignment for faster, cleaner, and sharper cuts.

  • Integrated Cooling System: Built-in temperature sensor maintains optimal performance and prolongs laser life.

  • All-Axis Steel Square Linear Rails: Provides sub-millimeter motion accuracy and long-term durability across the X, Y, and Z axes.

  • Dual Y-Axis Omega Drive System: Shorter belt path reduces stretch for consistent precision during extended operation.

  • Tempered Glass Lid Upgrade: Scratch-resistant, clearer view versus traditional acrylic lids.

  • Telescoping Z-Axis with Swivel Mount: Improved adjustability for tall or multi-layered materials.

  • Refined 3D Camera Algorithms: Delivers enhanced 3D scanning and design placement accuracy.

  ---

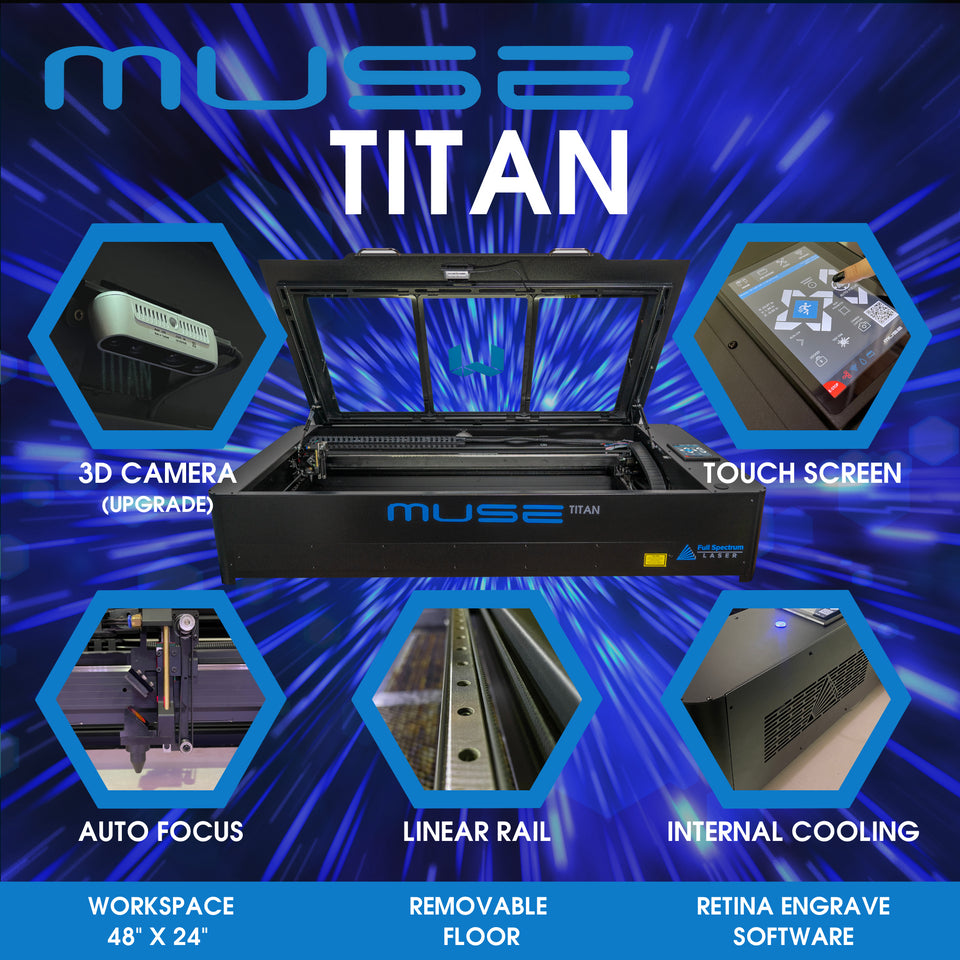

  Key Features

  • 48" × 24" Workspace: Accommodates large materials while maintaining a compact desktop footprint.

  • Browser-Based RetinaEngrave v3.0 Software: No installation or internet connection required — compatible with Windows, Mac, and Linux.

  • Removable Floor Design: Engrave materials larger than the machine by removing the bottom panel.

  • Four-Way Pass-Through: Feed material from any direction beneath the unit for continuous cutting.

  • Front-to-Back Pass-Through: Allows full 48" material feed without removing the floor.

  • 7" LCD Touchscreen: Manage settings, preview jobs, and monitor progress directly from the machine.

  • Precision 3D Camera: Captures real-time imaging for accurate design placement and live job monitoring.

  • Telescoping All-Metal Air Assist: Heat- and fire-resistant design (air compressor sold separately).

  • Auto Focus System: Automatically sets the laser height for optimal engraving results every time.

  • Rotary Attachment (Optional): Engrave cylindrical objects such as mugs, tumblers, and bottles.

  • 3-Piece Honeycomb Table: Provides support and ventilation for smooth, clean cuts.

  • Dedicated Support: Expert assistance available via phone and email.

  • 1-Year Warranty: Reliable coverage included for peace of mind.

  ---

  Technical Specifications

  Category	Details
  Workspace Area	48" × 24" (1219 mm × 610 mm)
  Machine Dimensions	66" × 33" × 14" (1676 mm × 838 mm × 356 mm)
  Weight	176 lbs (80 kg)
  Z-Table Range	3.5" (89 mm)
  Laser Classification	Class 3R
  Laser Type	Sealed CO₂ Laser Tube
  Laser Power Options	75 W / 90 W / 100 W
  Focus Lens Included	2.0"
  Power Supply	AC 110 V (native) / 220 V option available
  Gross Power	< 1000 W
  Operation Modes	Precision Engraving, Cutting, or Combination
  Software	RetinaEngrave v3.0
  Compatibility	Windows, macOS, Linux
  Browser Compatibility	Chrome (recommended), Safari, Firefox, Edge
  File Import Options	PDF, JPG, PNG, BMP, TIFF, SVG, DXF, DWG
  Wireless Connectivity	802.11 n

  ---

  Performance

  The Muse Titan’s CO₂ laser system combines high wattage, precision motion control, and real-time visual feedback for professional-grade cutting and engraving.
  Its dual-drive motion system and steel linear rails ensure consistent accuracy across every axis — whether you’re engraving delicate art pieces or running continuous industrial batches.

  ---

  Ideal For

  • Fabricators, designers, and prototype developers

  • Small businesses and makers seeking professional laser capability

  • Schools and innovation labs focused on digital fabrication

  • Artists producing large-format or high-precision designs
