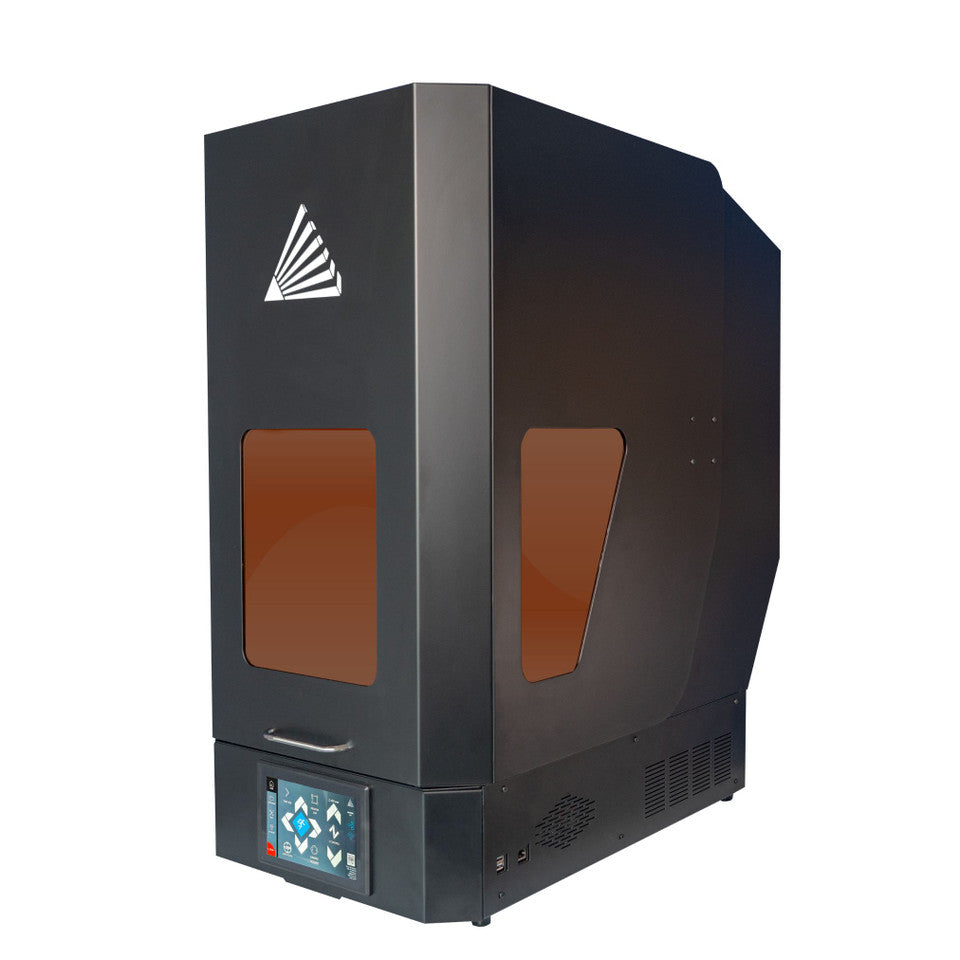

Muse UV Galvo Laser Marking & Engraving Machine | 5W–30W | 355nm Pulsed UV Laser

• The Muse UV Galvo Laser Marking & Engraving Machine defines the next level of precision, speed, and versatility in desktop laser technology.
  Powered by a 355 nm pulsed UV laser, Muse delivers a spot size up to 3× smaller than fiber lasers and 30× smaller than CO₂ systems, producing ultra-fine engraving detail across virtually any surface — from metal and polymer to glass, paper, wood, and coated materials.

  Using high-speed galvanometer mirrors instead of a moving laser head, Muse UV Galvo achieves processing speeds up to 100× faster than traditional systems, while maintaining stunning clarity and definition.

  ---

  2023 Upgrades & Innovations

  • New Dual-Camera System (Overview + Coaxial): Coaxial camera shares the same optical path through galvo mirrors for real-world alignment accuracy within 2 µm.

  • Swivel Enclosure Design: Helmet-style lid opens from three sides for full accessibility — easily engrave large objects such as guitars or rifles.

  • Full 3D Surface Engraving: Upload STL or OBJ files for wrapped, multi-axis engraving on curved surfaces like cylinders, cones, or spheres (up to 90° field of view).

  • 3D Subsurface Crystal Engraving: AI converts 2D portraits into 3D OBJ files for engraving inside glass crystals up to 4" deep — producing durable, tamper-proof floating marks.

  • AI Object Detection & Orientation: Advanced cloud GPU processing automatically identifies object placement for perfect alignment and consistent results.

  • Syncro Rotary Attachment (Optional): True 4th-axis synchronized rotary for smooth, continuous engraving without split lines.

  • Enhanced 3D Camera Autofocus: Intel RealSense™ system provides sub-mm design placement and fast focusing across multiple heights.

  • Motorized Z-Axis: 16.2" range for tall objects and 3D engraving workflows.

  • New Power Options: Configurable up to 30 W (custom optical design above 10 W for stability and performance).

  ---

  Key Features

  • Browser-Based RetinaEngrave v4.0: No installation needed; works on Windows, macOS, and Linux via Chrome, Safari, Edge, or Firefox.

  • 3D Engraving Capability: Motorized Z synchronization for true curved-surface engraving.

  • Material Database: Preloaded presets for aluminum, steel, acrylic, leather, glass, granite, and more.

  • 5" LCD Touchscreen Interface: Full control of job settings and real-time monitoring.

  • Ultra-Reliable UV Laser Source: Solid-state 24V DC system with 10,000+ hour life and zero consumables.

  • Ultra-Precise Galvo Motion: Closed-loop scanners with encoder feedback ensure consistent beam accuracy with no belts or gears.

  • Cutting Capabilities: Micromachining up to 3 mm glass, 3 mm aluminum, 3 mm steel, and 6 mm wood (10 W+ recommended).

  • Multi-Color Metal Marking: Achieve black, red, green, and white hues on steel surfaces.

  • Power Options: 5 W, 10 W, 15 W, 20 W standard; custom configurations up to 30 W available.

  • 1-Year Warranty & Expert Support: Technical support via phone and email included.

  ---

  Technical Specifications

  Category	Details
  Engraving Area	4" × 4" (100 mm × 100 mm) up to 12" × 12" (300 mm × 300 mm)
  Machine Dimensions	36" × 18" × 31" (914 mm × 457 mm × 787 mm)
  Weight	175 lbs (79 kg)
  Motorized Z-Table Range	16.2" (412 mm)
  Laser Classification	Class 3A (closed) / Class 4 (open)
  Laser Type	355 nm Pulsed UV Fiber Laser
  Laser Power Options	5 W, 10 W, 15 W, 20 W, up to 30 W custom
  Focus Lens Included	160 mm
  Power Supply	AC 110 V (native) / 220 V option available
  Gross Power	< 1000 W
  Operation Modes	Raster, Vector, or Combination
  Motion Control	Galvanometer (X, Y) + Stepper Motor (Z)
  Software	RetinaEngrave v4.0
  Compatibility	Windows, macOS, Linux
  File Import Formats	JPG, PNG, BMP, TIFF, SVG, DXF, DWG
  Wireless Connectivity	802.11 n
  Accessories	Power Supply Tower, Fiber Laser Source, Optional Syncro Rotary

  ---

  Performance & Material Capabilities

  The Muse UV Galvo’s 355 nm wavelength delivers unmatched material versatility — marking, cutting, or etching with extreme detail and contrast.
  It can:

  • Engrave metals, plastics, and coated materials

  • Subsurface mark glass crystals up to 4" deep

  • Create multicolor metal marks (black, red, green, white)

  • Cut wood, metal, and glass up to several millimeters thick

  • Engrave fine detail on paper or cardboard without scorching

  ---

  Ideal For

  • Industrial part marking and serial number engraving

  • Jewelry, firearm, and instrument customization

  • Research, aerospace, and high-precision applications

  • Art, branding, and small-business product customization
