Description

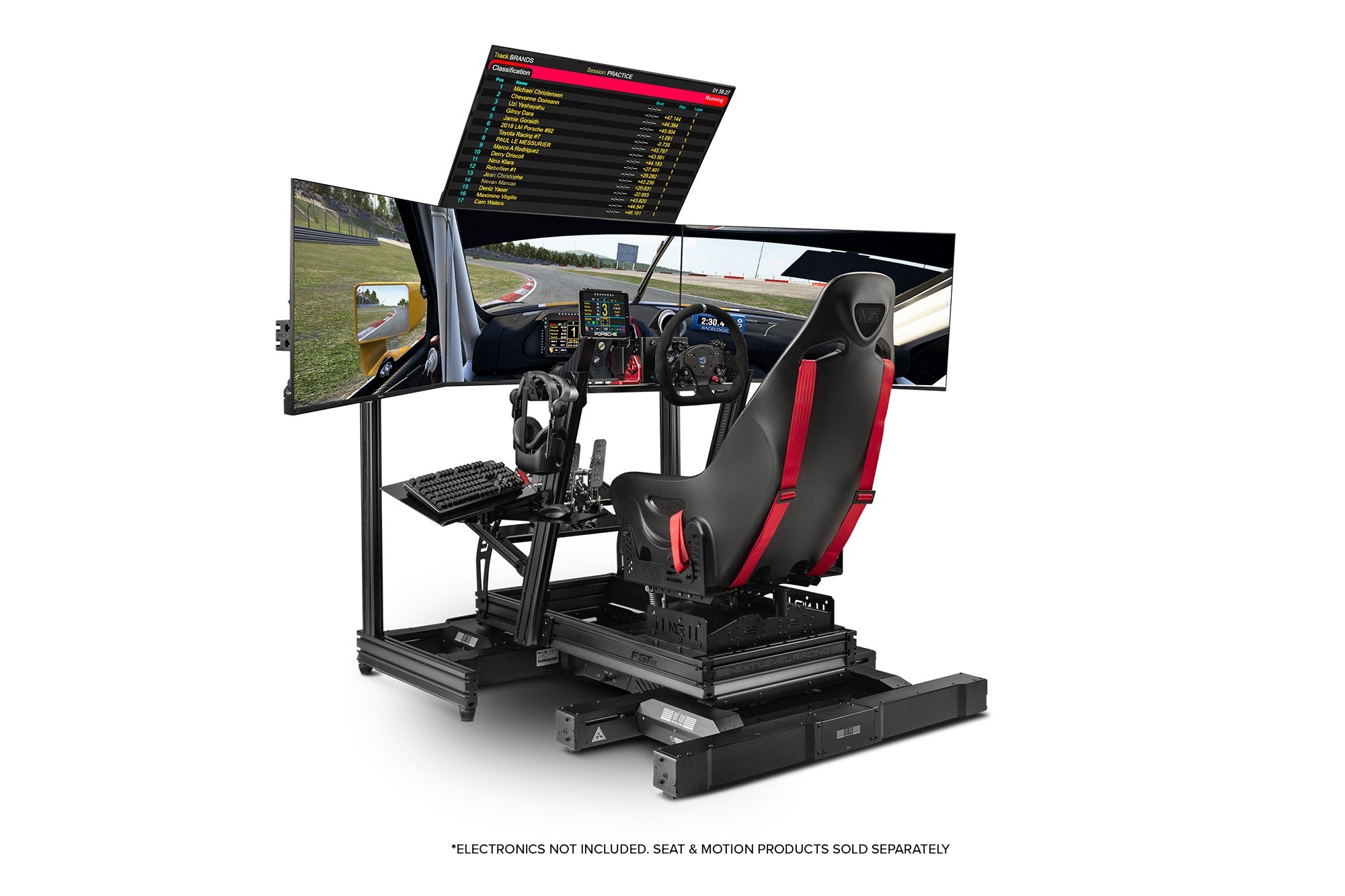

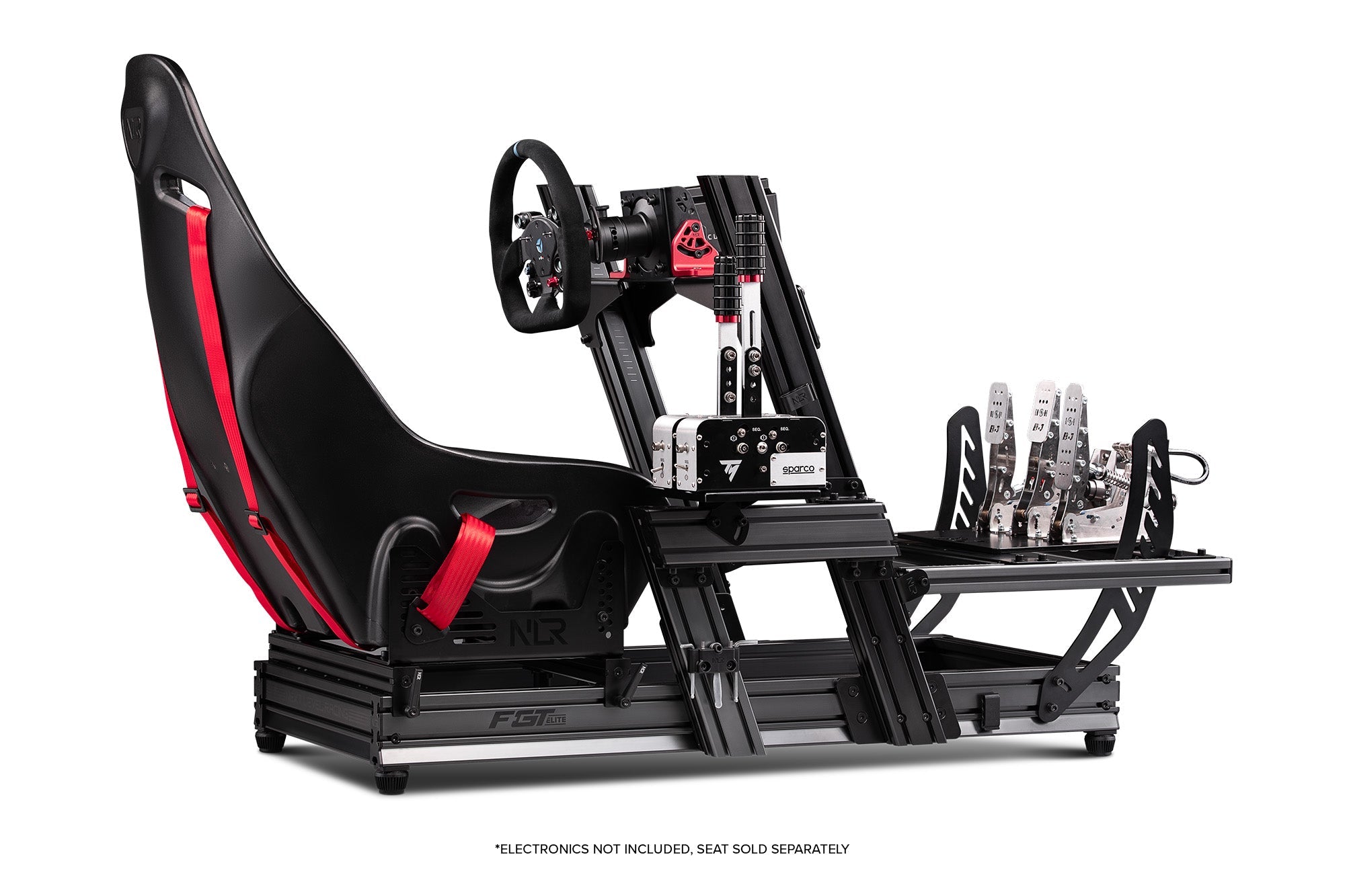

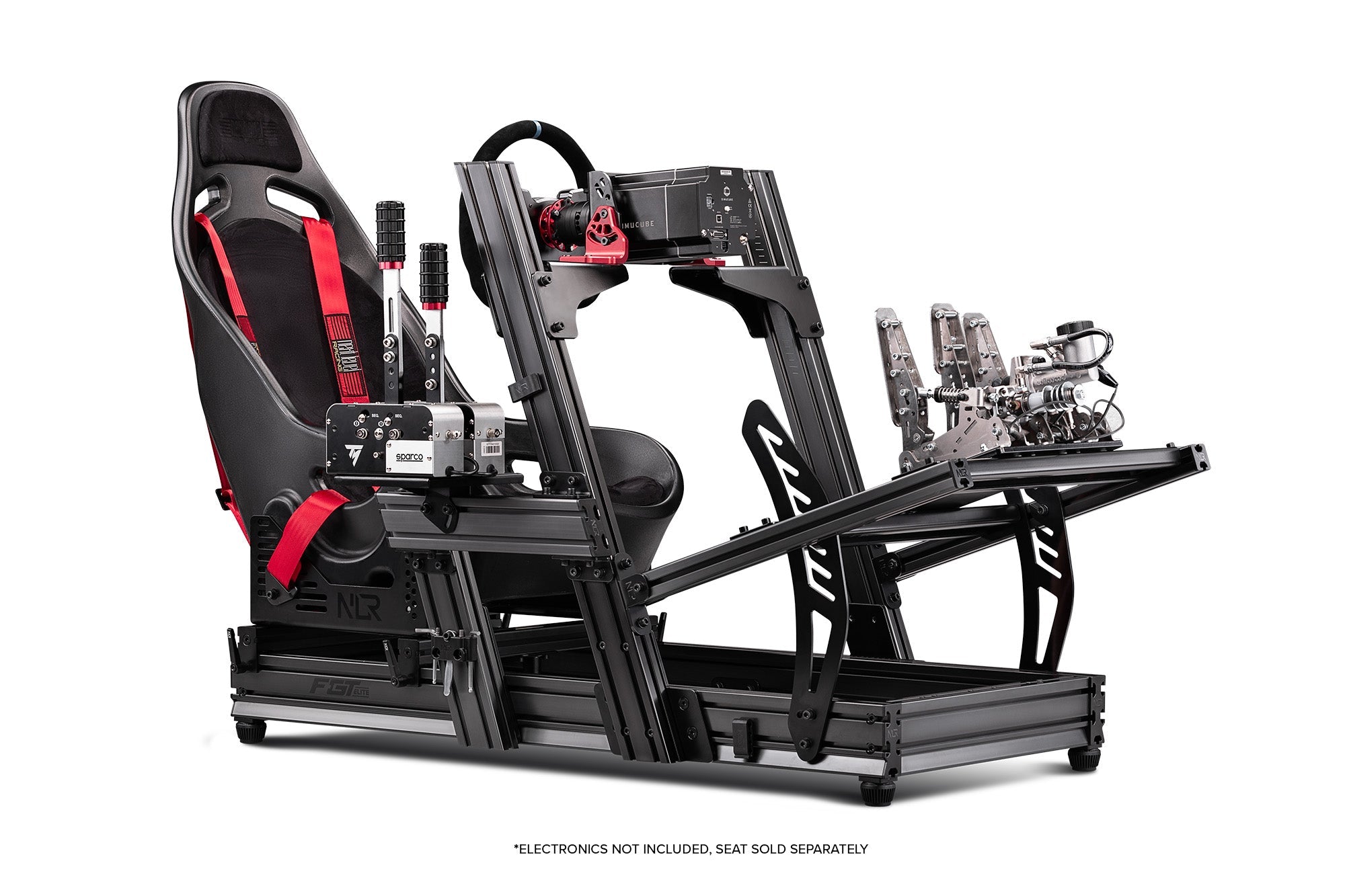

Next Level Racing® F-GT Elite Formula & GT Aluminium Profile Simulator Cockpit- Side and Front Mount Edition (NLR- E003)
- All in one cockpit with quick adjustments for all driving positions including true formula, GT, Hybrid, Truck, and Tank
- Zero-flex Front & Side Mount with 70 degrees of adjustability for Direct Drive wheelbases
- Rigid and highly adjustable mounting support included for your seat, wheel, pedals, shifter, handbrake
- Post anodized custom carbon grey (scratch resistant) aluminium profile with premium carbon steel powder coated components
- Pedal position height, angle and distance adjustable
- Pre-machined holes in aluminium profile for rigidity and ease of assembly
- Compatible and easy installation with Next Level Racing® Motion Platforms
- All the extra’s included such as NLR seat slider system, seat brackets, height adjustable shock absorption feet, gear shifter & handbrake support plate, foot step, Buttkicker® Gamer 2 adaptor, cable management clips, Motion Platform V3 adaptors, ratchet tool & more
- Premium packaging including double boxing and foam moulded cut outs for aluminium profile and parts
- T-slot extruded aluminium allows compatibility of accessories with other cockpit brands
- Fully enclosed base frame for strength and aesthetics
- Taller aluminium profile for wheel mount uprights allowing for wider range of driving positions and users
- Compatible with all major brands of electronics for wheels, pedals and shifters including Fanatec, Thrustmaster, Logitech, Simxperience and many more
Please note: For non-direct drive, bottom mounting wheel users such as Fanatec® Clubsport/ Thrustmaster® Next Level Racing® recommends the Next Level Racing® F-GT Elite Wheel Plate Edition Cockpit
ABOUT
Designed and engineered by using the feedback from our community, virtual and real motorsport industry feedback; the Next Level Racing® F-GT Elite racing simulator cockpit* is a true all in one formula/GT/Hybrid position racing cockpit pushing the boundaries of what is expected of an aluminium profile cockpit and setting a new standard for sim racing. As well as market leading features the F-GT Elite sets a new benchmark for aesthetics, functionality and quality for an aluminium profile cockpit or what’s commonly referred to as an “8020 racing simulator cockpit”.
The Next Level Racing® F-GT Elite is a product designed from ground up with attention to detail. The F-GT Elite cockpit is much more than just another aluminium extrusion cockpit by using custom premium parts, finish, components and cutting-edge manufacturing to take aluminium profile cockpits to the Next Level.
Providing a competitive edge to virtual racers, the Elite series will be used by racing professionals globally such as esports teams, race car drivers and sim racers seeking the ultimate in performance.
BUILT FOR THE ELITE DIRECT DRIVE RACER
Included in the F-GT Elite Front & Side Mount Edition are Next Level Racing’s bespoke Direct Drive mounting solution. CNC milled from a single billet of aluminium, Next Level Racing Front & Side Mount is a premium option for racers that demand the ultimate in versatility and rigidity from their cockpit. The 5mm thick, 6061 solid CNC anodized aluminium mount offers 70 degrees of tilt (40 degrees downward, 30 degrees upward), giving drivers the option to fine tune their Elite cockpit for the perfect driving position.
Our custom Front & Side Mount is compatible with the best Direct Drive wheelbase brands on the market, full compatibility below :
- Fanatec dd1/dd2 podium direct drive
- Simucube 2 Pro /Simucube 2 Sport/Simucube 2 Ultimate
- Simagic Alpha/M10
- Mige 130 motors
- VRS Directforce Pro
- Kollmorgen akm 52-53-54 (OSW and Leo Bodnar Simsteering systems)
+ more
ALL-IN-ONE, MULTI POSITION COCKPIT
Whilst providing complete rigidity and ultimate adjustability the F-GT Elite cockpit offers true and comfortable Formula, GT, hybrid, truck and tank driving positions with quick adjustments between positions making it a true one for all cockpit. The increased angle and range provided in the seat brackets, wheel and pedal plate caters for users of all sizes and driving styles by giving more adjustability than ever before.
INNOVATIVE FLEX-FREE NLR SEAT SLIDER & BRACKET SYSTEM
The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulation. The NLR ratchets are used to easily slide your seat back and forth to find the desired position for a flex free racing experience.
The Next Level Racing® Seat Brackets are constructed from 5mm carbon steel to provide the rigidity required for high end sim racers and the new design provides more adjustability than ever before to support multiple seating positions with 98 adjustment options. The optional Next Level Racing® ES1 Elite Sim Racing Seat is the recommended seat to use with the Elite range of cockpits as the seat has been designed and optimised for elite sim racers.
UNIVERSAL SLIDING PEDAL PLATES
The sliding pedal plates have been designed to provide easy and quick distance adjustments for pedals as well as compatibility with the continuously expanding pedal market. Equipped with 2 slotted 5mm carbon steel pedal plates with double precision folds, this setup ensures supreme rigidity but straightforward compatibility. The pedal tray area has been designed to offer more angle, height and distance adjustments to accommodate for a wider range of driving positions. The laser etched markings on the aluminium profile assist with making accurate adjustments.
CUSTOM PROFILE AND POST ANODIZING
When it comes to aluminium profiles, they are not all the same quality and strength. The F-GT Elite features a premium thick-walled profile and a custom NLR 100mm x 40mm profile for the base of the cockpit, with a total weight of 53kg. This custom shape of the base profile provides extra strength and refined aesthetics.
The post anodized carbon grey profile is achieved by a chemical balance and anodizing process that not only looks visually stunning but also provides a scratch resistant finish compared to your typical black profile that is prone to scratching. The premium post anodizing process means that even the ends of the profiles and holes are anodized for visual perfection as well as long term protection. The post anodizing process as a last step also prevents having sharp shavings/edging ensuring safe setup of your new cockpit.
MOTION ECOSYSTEM
Adding motion has never been easier as the F-GT Elite cockpit is compatible with all Next Level Racing® Motion products and designed for quick and simple installation with pre machined holes and included brackets.
DESIGN SHOULD BE BEAUTIFUL & FUNCTIONAL
The F-GT Elite cockpit provides a long list of unique custom engineered components to provide users with the highest quality and performing product on the market. Rather than adapting industrial off the shelf components, we are pioneering how aluminium profile cockpits should be designed. No industrial square brackets are required, profile pieces are pre-machined to allow for quicker, easier and stronger connections. We focused on the finer details like the black electroplated premium spring ball T-slot nuts and the custom NLR end caps to combine for improved functionality. The premium finish and materials, custom components and market leading design come together for a visual masterpiece.
NLR HEIGHT ADJUSTABLE SHOCK ABSORPTION FEET
Uneven floors should never spoil your simulation experience. We have kept this in mind when designing our height adjustment feet allowing independent adjustments for the height of each corner of your cockpit. The custom designed feet are not only a major aesthetical improvement on typical industrial feet commonly used in the simulation market, they also Include TPE shock absorption plugs designed to absorb vibrations and provide grip on slippery surfaces. For user experience, the custom Next Level Racing® Safety Step included with the cockpit allows easier access in and out of the cockpit for drivers
EASE OF ASSEMBLY AND USE
By designing custom components and using advanced manufacturing for precision machined holes in the aluminium profile this allows easier assembly and more rigid connection as the profile bolts together. The improved design means that the hassles of aligning fiddly corner brackets are a thing of the past. Combining the ease of assembly with the laser etched line markings on the profile help you to get racing quicker than any other aluminium cockpit before. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport and providing a seamless user experience from the time the packaging is opened.
ALL THE EXTRAS INCLUDED
- Next Level Racing® Premium 5mm Carbon Steel Seat Brackets with 98 adjustment options and compatible with side mounting bucket seats
- NLR Custom DD Side & Front Mount system
- Next Level Racing® Flex Free Seat Slider system eliminating flex found in sim cockpit seat sliders
- Pedal plate design provides sliding adjustability for quick distance adjustment
- Gear shifter and handbrake support plate and Buttkicker® Gamer 2 adaptor
- Next Level Racing® Foot Step making it more comfortable getting in and out of the seat/cockpit
- Next Level Racing® Tool Kit Holder to have your tools for adjustment connected to the cockpit for when needed
- Ratchet tool for ease of assembly and allowing for quick adjustments
- Next Level Racing® Custom Feet with height adjustable shock absorption feet
- 8 x Next Level Racing® Custom Cable Clips holding up to 4 larger cables or 8 smaller gauged cables
- Premium custom black electroplated spring ball T-slot nuts
- Laser engraved markings for ease of lining up and adjusting wheel and pedal positions
- Next Level Racing® Motion Brackets to bolt the Motion Platform V3 straight onto the profile with ease
Please note: For non-direct drive, bottom mounting wheel users such as Fanatec® Clubsport/ Thrustmaster® Next Level Racing® recommends the Next Level Racing® F-GT Elite Wheel Plate Edition Cockpit
SPECIFICATIONS
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: 120 cm (L) x 70 cm (W) x 84cm(H) 47.2inches(L) x 27.6 inches(W) x 33.1 inches(H)
- Box Dimensions: 125 cm (L) x 43cm (W) x 34.5 (H) 49.2 inches(L) x 16. 9inches (W) x 13.6 inches(H)
- Product Weight: 53kg or 117 lbs
- Boxed Weight – GW: 57kg or 126 lbs / NW: 53 kg or 117 lbs
- Part Number – NLR-E003
COMPATIBLE NLR PRODUCTS
- Next Level Racing® Motion Platforms
- Next Level Racing® Elite Freestanding Monitor Stands
- Next Level Racing® ES1 Elite Sim Racing Seat
- Next Level Racing® F-GT Elite Keyboard & Mouse Tray Carbon Grey
- Next Level Racing® Floor Mat
- Next Level Racing® Elite DD Side and Front Mount Adapter (already included in F-GT Elite front and side mount edition)
- Expansive ecosystem of elite accessories coming soon
WHAT’S IN THE BOX

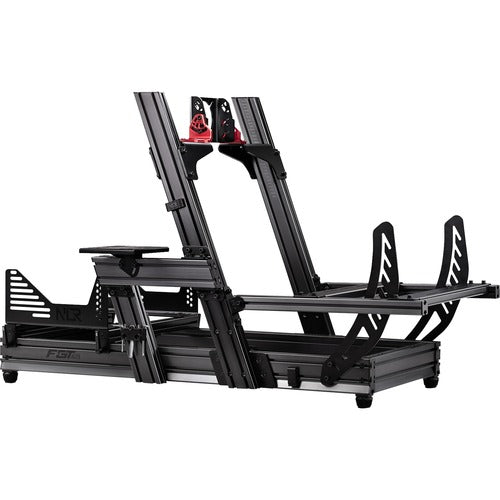

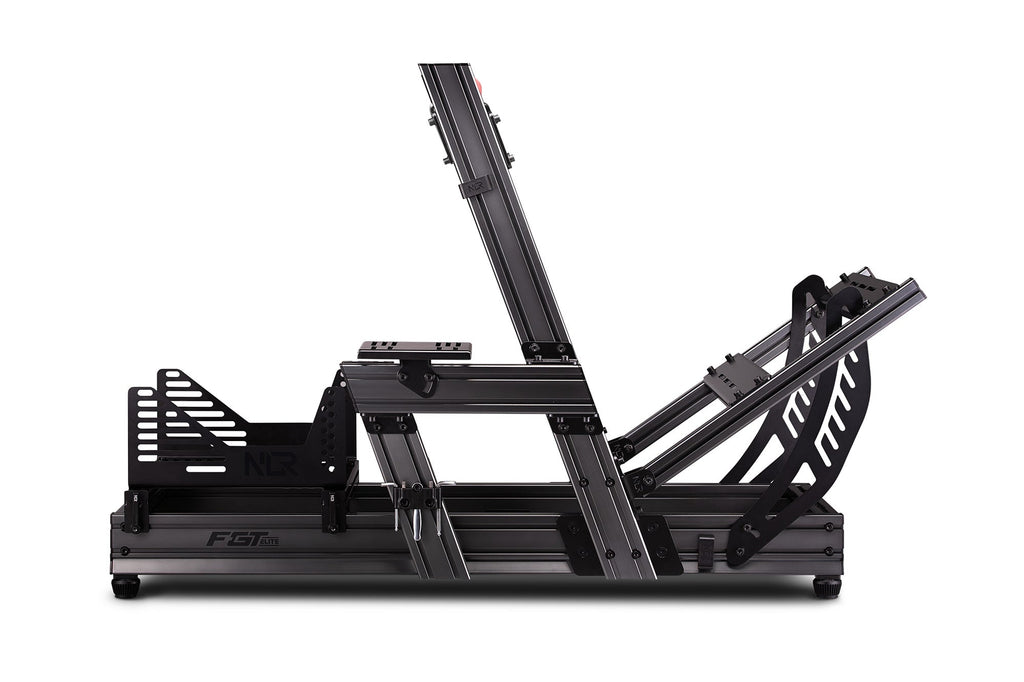

- Next Level Racing® F-GT Elite Frame
- Next Level Racing® DD side and front mount mounting solution
- Seat brackets to install side mounting racing seat
- Gear shifter and hand brake support plate
- Next Level Racing® Foot Step Plate
- Next Level Racing® Tool Holder and premium ratchet tool with M6 & M8 tips, spirit level
- Next Level Racing® height adjustable shock absorption feet
- 8 x Next Level Racing® Cable Management Clips
- Buttkicker® Gamer 2 adaptor
- Screws to hard mount your wheel, shifter and pedals
- Next Level Racing® Custom End Caps
- Magnetic spirit level
- Colour instruction booklet for quick and easy assembly
- Digital assembly instructions and assembly videos available here: http://bit.ly/nlr-instructions
Please note that the Bottom Mount Wheel Deck is not included in the box
