Nomad 200

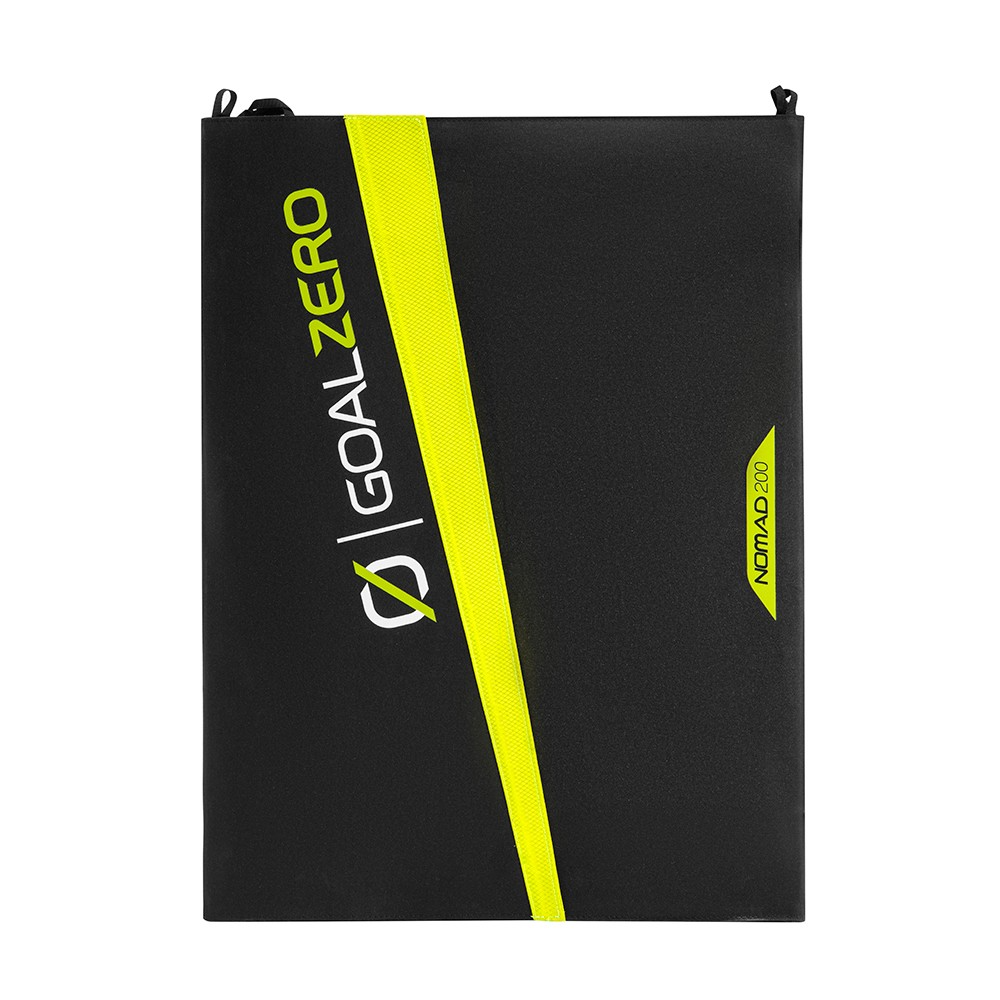

• Ideal for situations where power needs are large but space is limited, the Nomad 200 delivers 200 Watts of solar and folds down to a quarter of its full size for easy portability.

  ---

  Nomad 200 Highlights

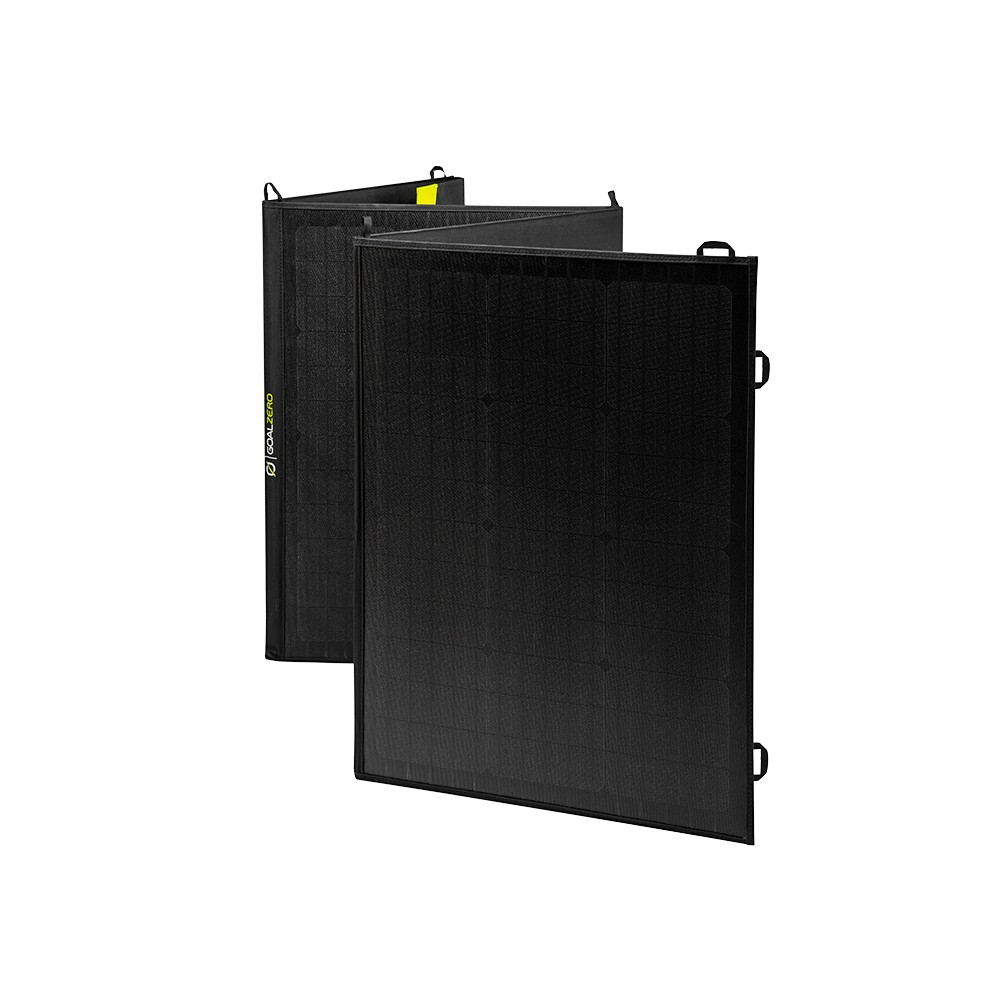

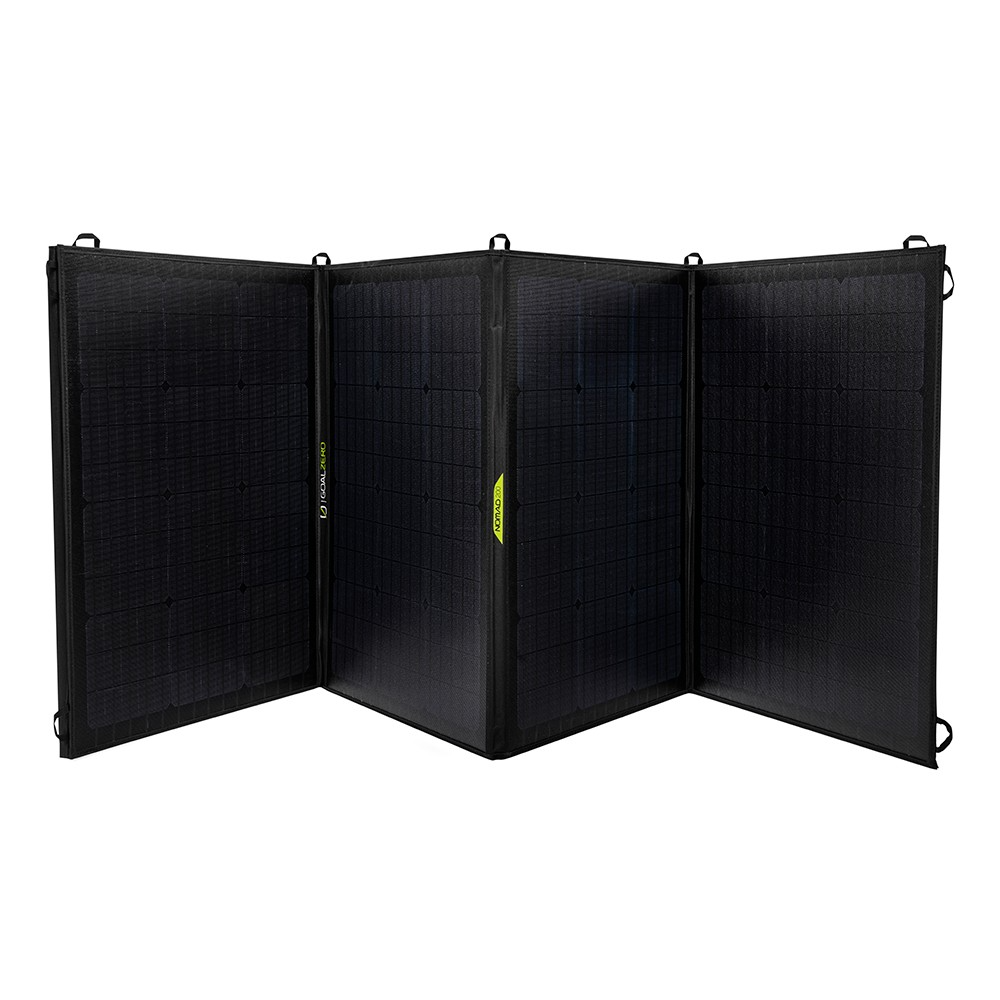

  • Protective Enclosure: Four monocrystalline panels enclosed in a rugged case fold down to a compact profile for transport and storage. Hanging loops let you strap the panel to vehicles, tents, and more.

  • Secure Placement: Built-in legs pop out to stabilize the panel during charging and fasten flat against the panel when stored. Each leg includes a stake-down loop for added security in windy conditions.

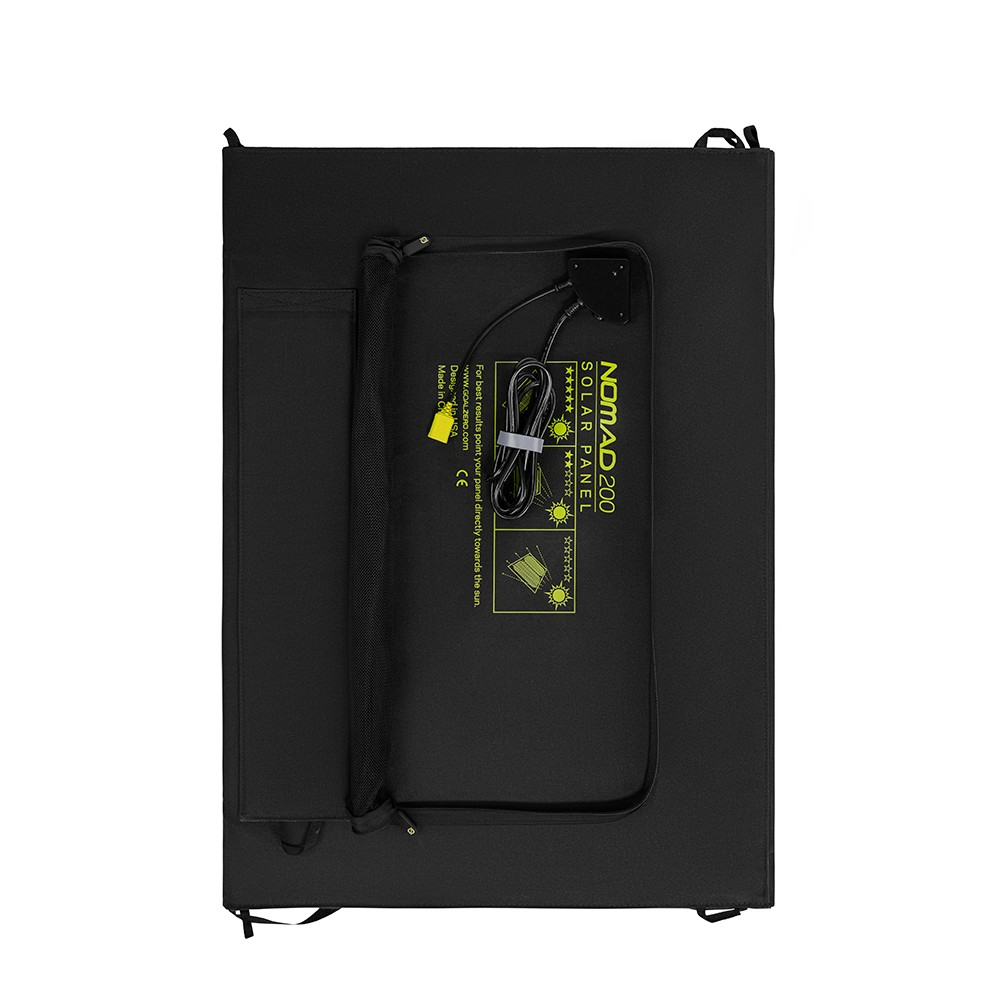

  • Integrated Cables: A 6 ft. High Power Port (HPP) charging cable is included and tucks away neatly in the built-in mesh case, designed to pair seamlessly with Goal Zero Yeti Power Stations.

Recommended Yeti Pairings

Solar charge times vary and are dependent on many factors such as elevation, temperature, time of year, angle and position to the sun.

Tips & Tricks for using solar panels

• The solar panel does not hold a charge - it produces power when it is exposed to sunlight.
• Place solar panels towards the sun at an angle.
• Connect High Power Port to Yeti Power Station.
• Adjust solar panel as the sun moves across the sky.

tech

CHARGE TIMES

• Yeti 400: 3-6 Hours
• Yeti 400 Lithium: 4-7 Hours
• Yeti 500X: 3-6 Hours
• Yeti 1000 Lithium: 8-16 Hours
• Yeti 1000X: 6-12 Hours
• Yeti 1400 Lithium: 11-22 Hours
• Yeti 1500X: 9-18 Hours
• Yeti 3000 Lithium: 18-36 Hours
• Yeti 3000X: 18-36 Hours
• Yeti PRO 4000: 24-48 Hours
• Yeti 6000X: 35-70 Hours

GENERAL

• SKU: 11930
• Weight: 22lbs (10.0 kg)
• Dimensions (folded): 28.2 x 22.3 x 2.0 in (71.6 x 56.6 x 5.0 cm)
• Dimensions (unfolded, without leg stand): 28.2 x 100.7 x 1.0 in (71.6 x 255.8 x 2.5 cm)
• Cable Length: 6ft
• Warranty: 2 Years
• UPC: 847974007983

PORTS

• High Power Port: 14-23V, up to 14A (200W max)
• USB-A: 5V, 2.4A(12W max)

SOLAR

• Rated Power: 200W
• Open Circuit Voltage (Voc): 23.0V
• Maximum Power Point Voltage (Vmpp): 19.1V
• Cell Type: Monocrystalline
