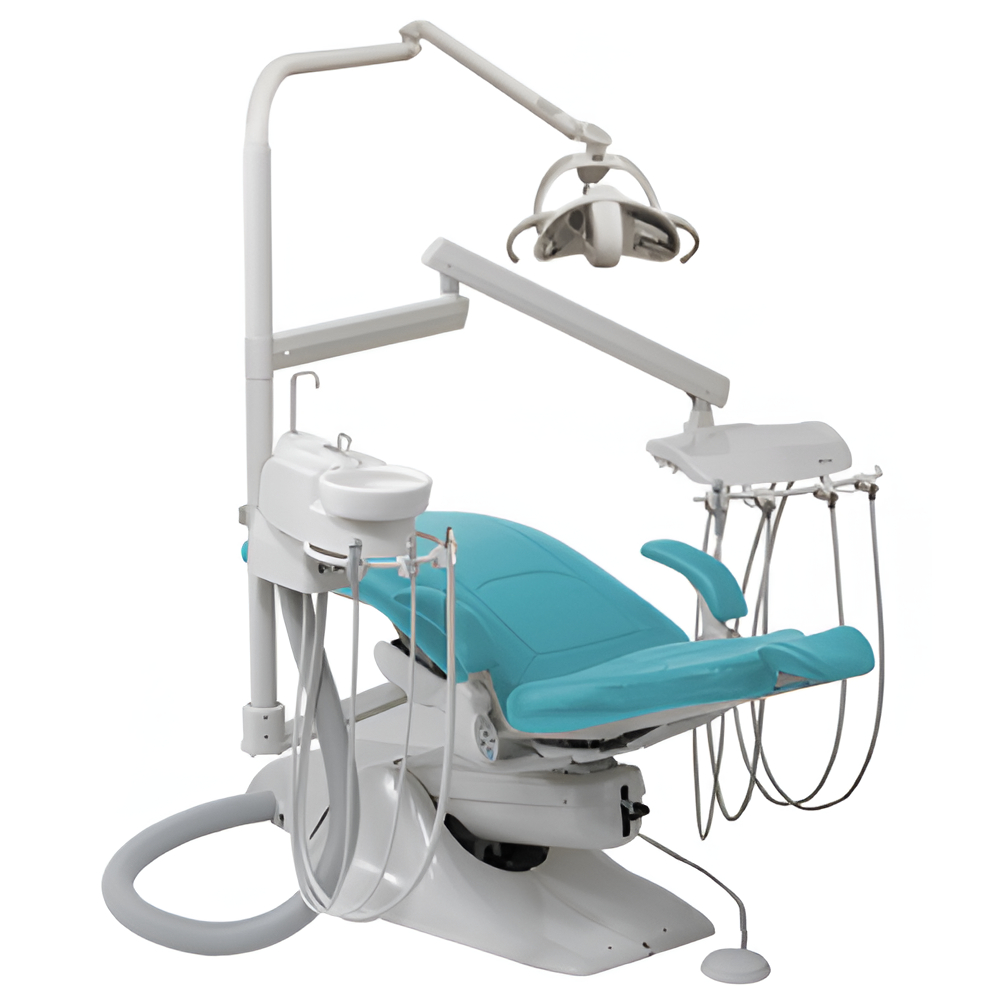

NEW Operatory System with cuspidor without Stools

Part # Columbia Operatory

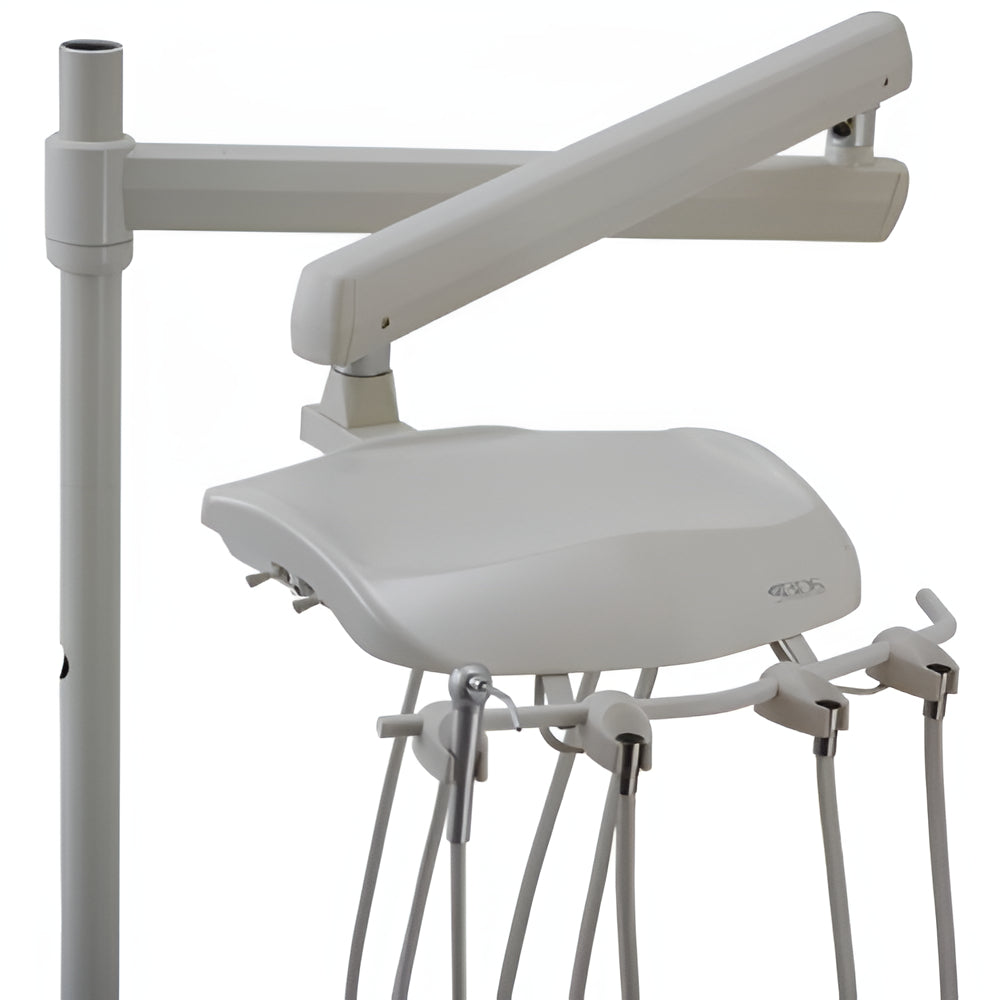

S-3600 – 3-Handpiece Automatic Control System

• Automatic control for three handpieces

• Side-mounted adjustment controls

• Integrated 3-way air/water syringe

• Master ON/OFF toggle with indicator light

• Individual pressure adjustment for each handpiece

• Easy-to-read pressure gauge

• Adjustable air coolant

• Non-retracting water coolant with flow adjustment and purge function

• Asepsis-grade sterling handpiece tubing

• Arm-mounted tray holder with stainless steel instrument tray

• Asepsis flex arm with pneumatic brake

• Standard disc-style foot control

• Utility center with regulators and master valves

• 7 ft. umbilical tubing

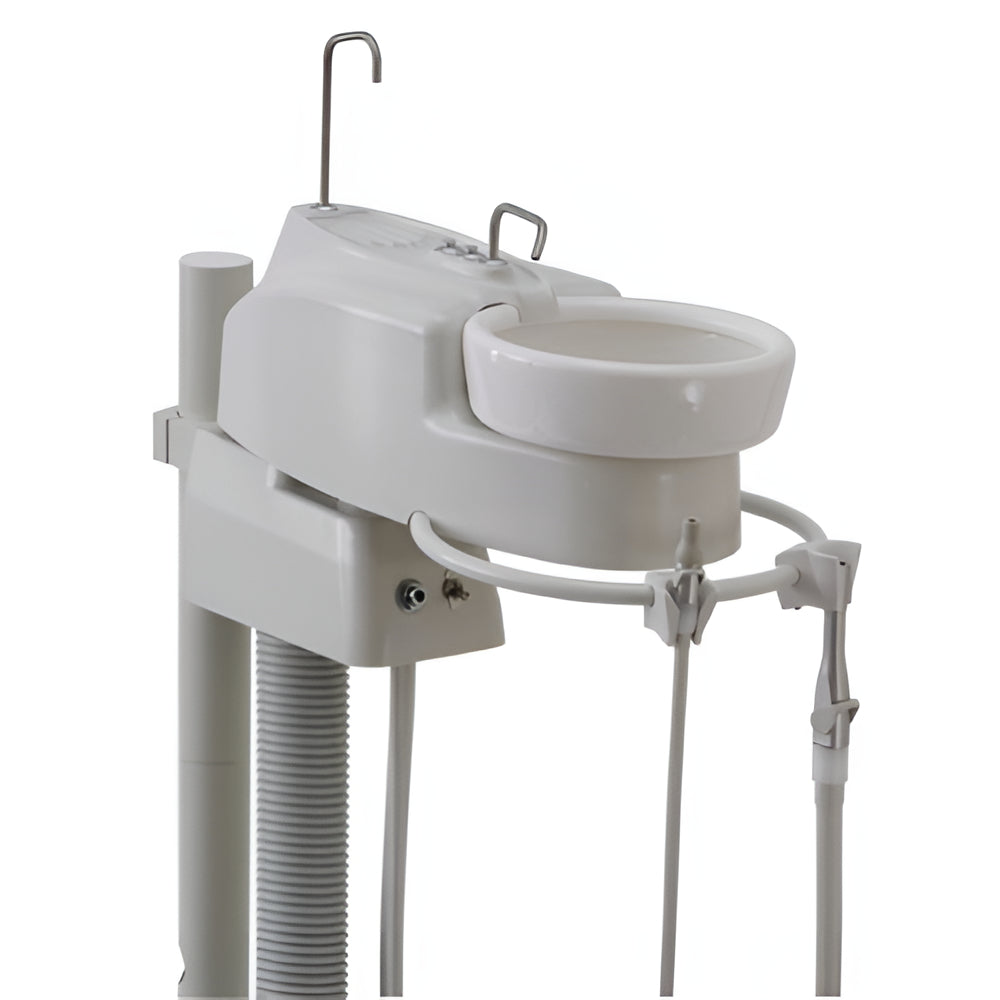

C-4250 – Cuspidor with Vacuum & Water Quick-Disconnect

• Easy-clean asepsis design

• Durable ceramic bowl

• Removable, autoclavable cup filler and rinse spout

• Adjustable timed bowl rinse

• Gravity drain with dual venting

• Vacuum canister with removable screen (uses screen #131-052)

• Autoclavable HVE and saliva ejector valves with tubing

• 1/4" female water quick-disconnect

• Low-voltage electric vacuum switch

• 2" diameter post mount

• 6 ft. umbilical tubing

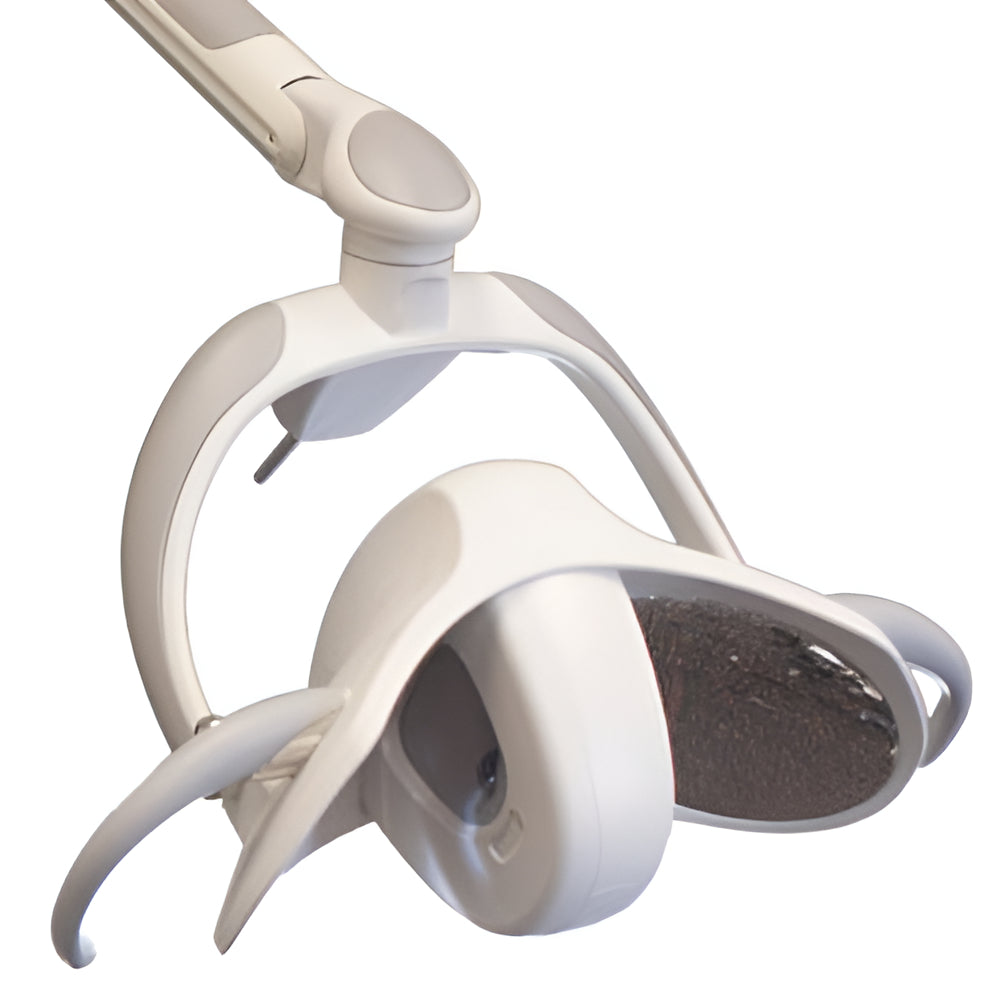

FL-3000 – LED Operatory Light

• 5000° Kelvin color temperature

• On/off toggle with dimmer and automatic intensity memory

• Adjustable brightness from 3,000 to 35,000 LUX

• Removable, autoclavable handles

• 320° rotation with dual-axis head movement

• Low energy consumption—under 12 watts

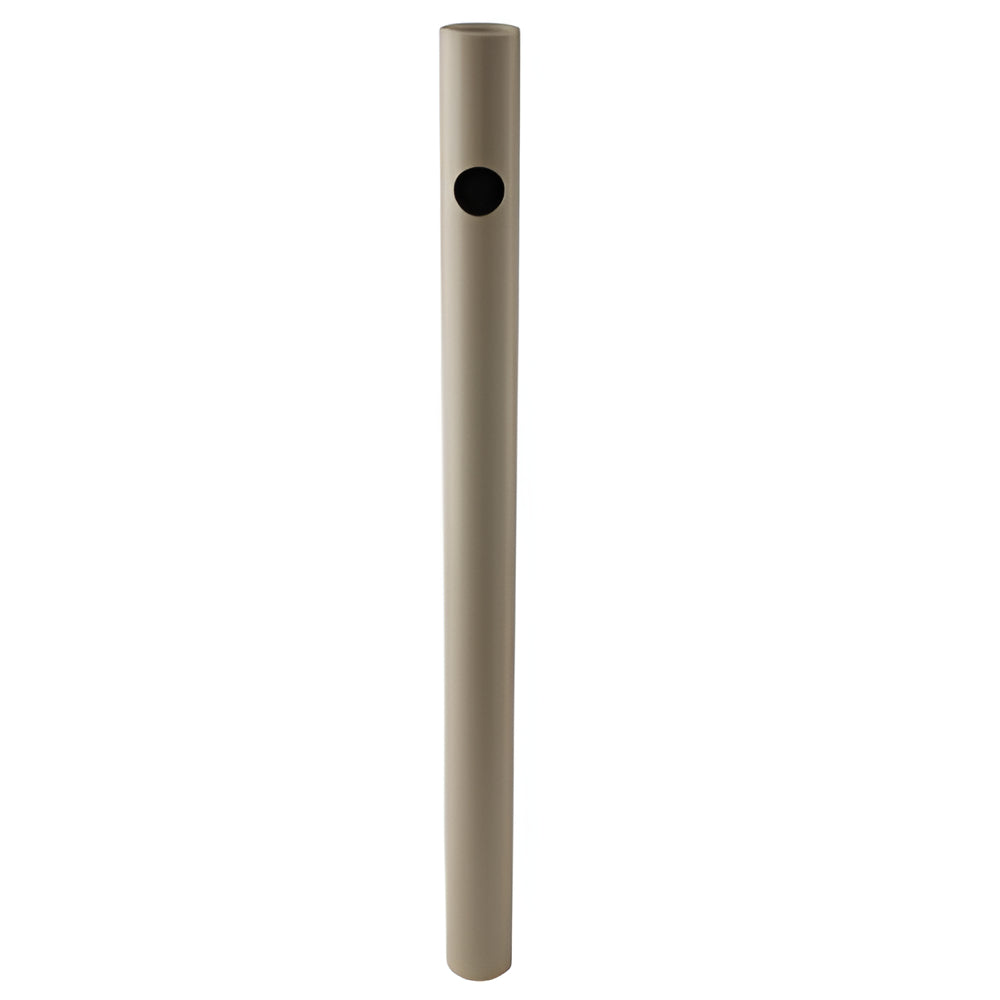

146-203 – 40" Light Post with Bushing

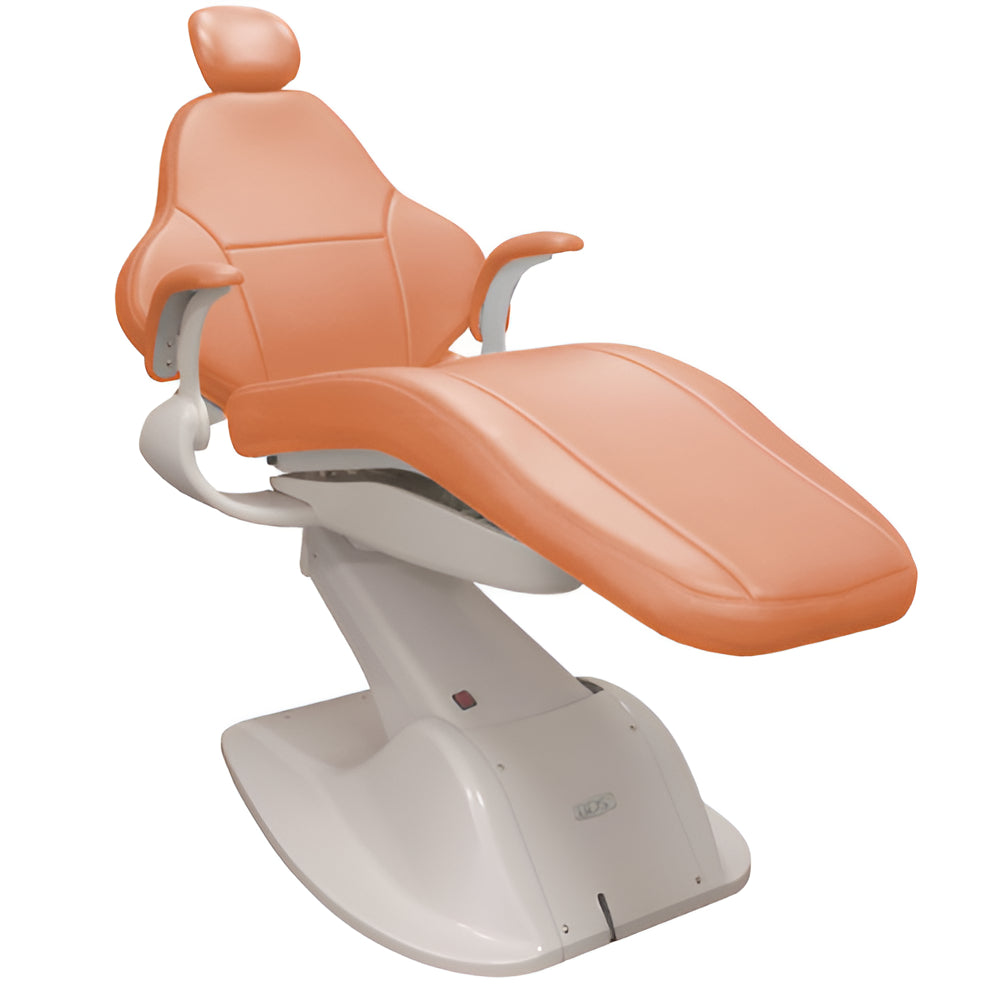

Epic – Epic Operatory Chair (110V)

• Heavy-duty cast iron construction

• Slim backrest with lumbar support

• Armrest-mounted touch pad control

• Four manual motions, plus three programmable positions and home setting

• Swing-down armrest

• Synchronized back and seat reclining

• Vinyl toe-board scuff guard

• Electromechanical operation (110 VAC)

• 600 lb. lifting capacity

• Double-articulating headrest

• 30° rotation to both left and right

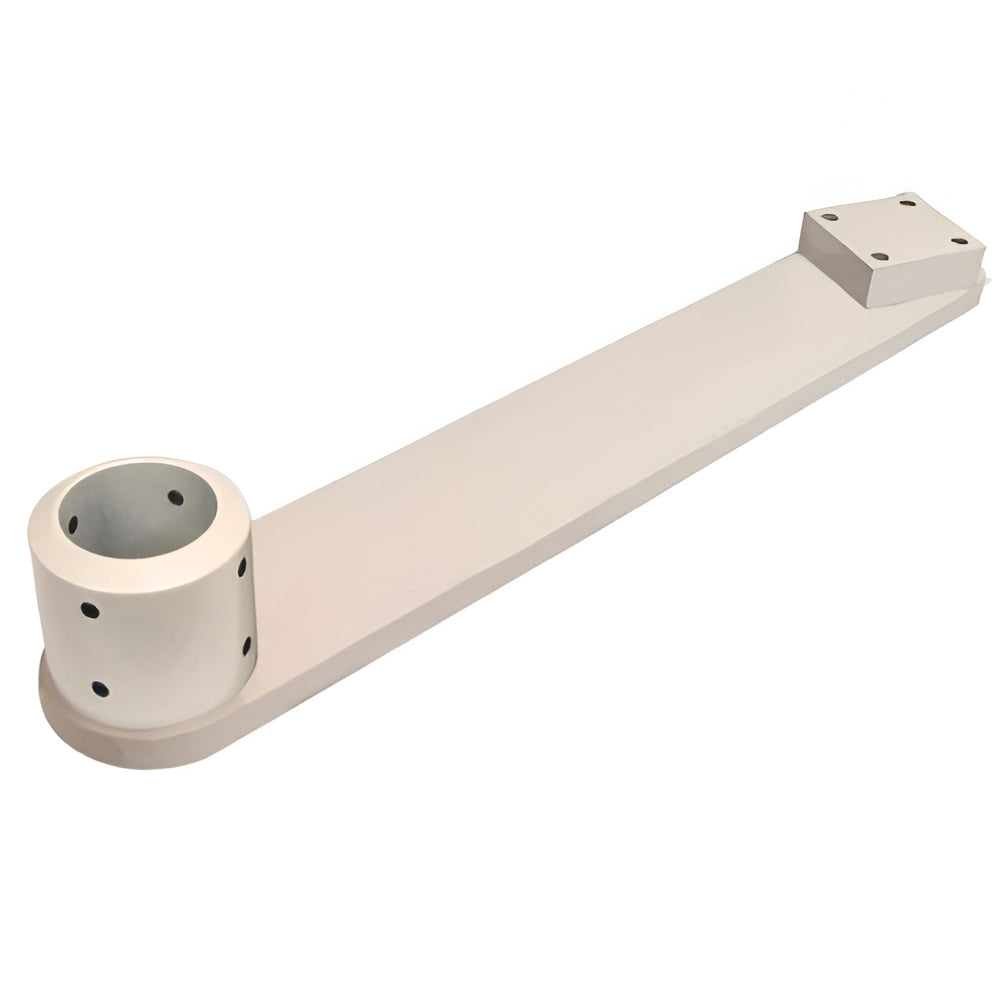

400-030 – Epic Chair Adapter

• Includes mounting hardware

• Fits 2" diameter posts

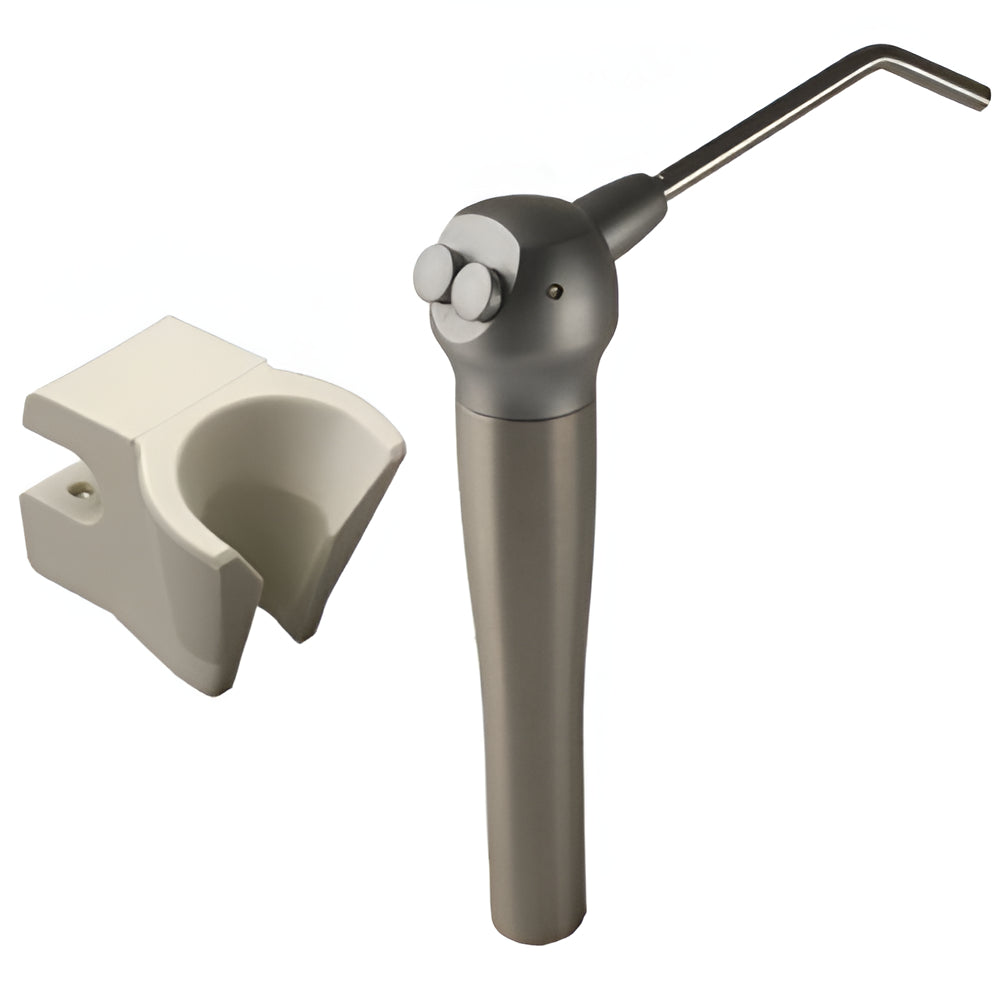

113-514 – Assistant’s Side Syringe

Note: Images are for illustration purposes only. Actual components may vary. Please refer to the detailed written specifications for accuracy.
