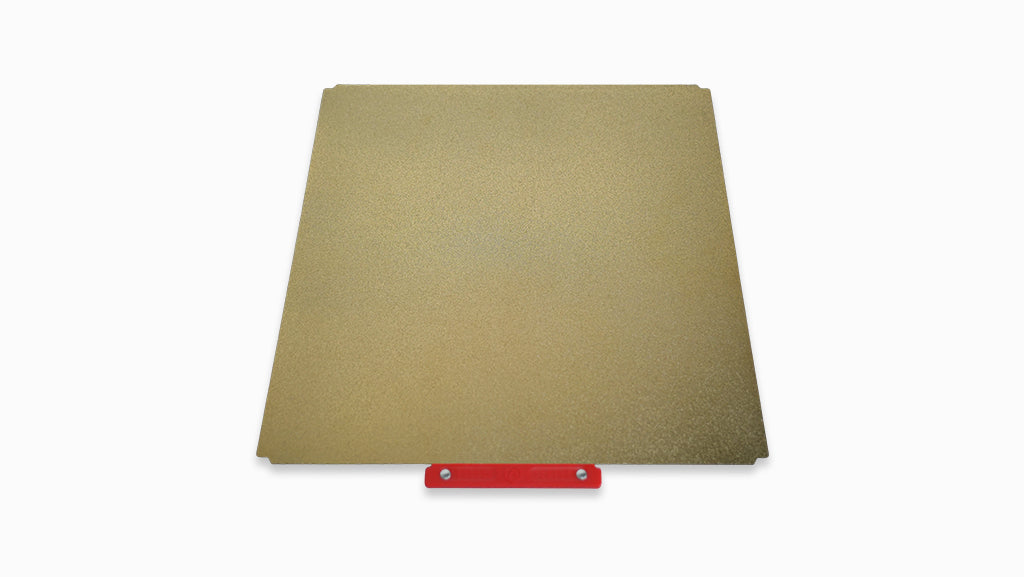

PEI Build Plate (Pro3 HS Series and Pro3 Series Only) [S]3.01.1.024.108A01

Product Description:
The Raise3D PEI Build Plate (Pro3 HS Series and Pro3 Series only) is built from high-strength spring steel with a double-sided PEI powder coating. It provides excellent heat resistance, flame retardancy, and rigidity, making it a durable and reliable build surface for consistent 3D printing performance.

Specifications:

• PEI Build Plate Size (W×D×H): 347.2 × 367.5 × 0.6 mm

• Print Area Size: 300 × 300 mm

• Printer Compatibility: Raise3D Pro3 HS Series, Raise3D Pro3 Series

• Included: 1 × PEI Build Plate (Pro3 HS Series and Pro3 Series only)

Key Benefits:

• Double-sided PEI coating allows both sides of the plate to be used, extending durability.

• High flatness and flexible design make removing printed models easy—simply bend the plate gently.

• Resistant to high temperatures with excellent flame retardancy, strength, and rigidity.

• Compatible with a wide range of filaments.

• Provides strong first-layer bonding (glue may be required for certain filaments).

Notes:

• After applying the PEI Build Plate, recalibrate nozzle height following the instructions for Pro3 HS and Pro3 Series.

• Current slicing profiles for these printers are compatible with this build plate.

• Clean regularly with mild detergent (alcohol and water recommended). Avoid acetone or strong cleaners.

• If adhesion decreases, lightly sand the surface with fine sandpaper (600 grit).

• The PEI surface may leave a textured finish on the model’s bottom. For smoother results, use a Raft (note: may require more filament and could risk model damage during removal).

• Do not use spatulas or sharp tools to remove prints as this may scratch or peel the PEI coating.

Safety Warnings:

• Handle with care—the plate edges are sharp.

• Do not touch the plate during printing; it becomes extremely hot.

• Wait until the plate cools to room temperature before removing.
