Description

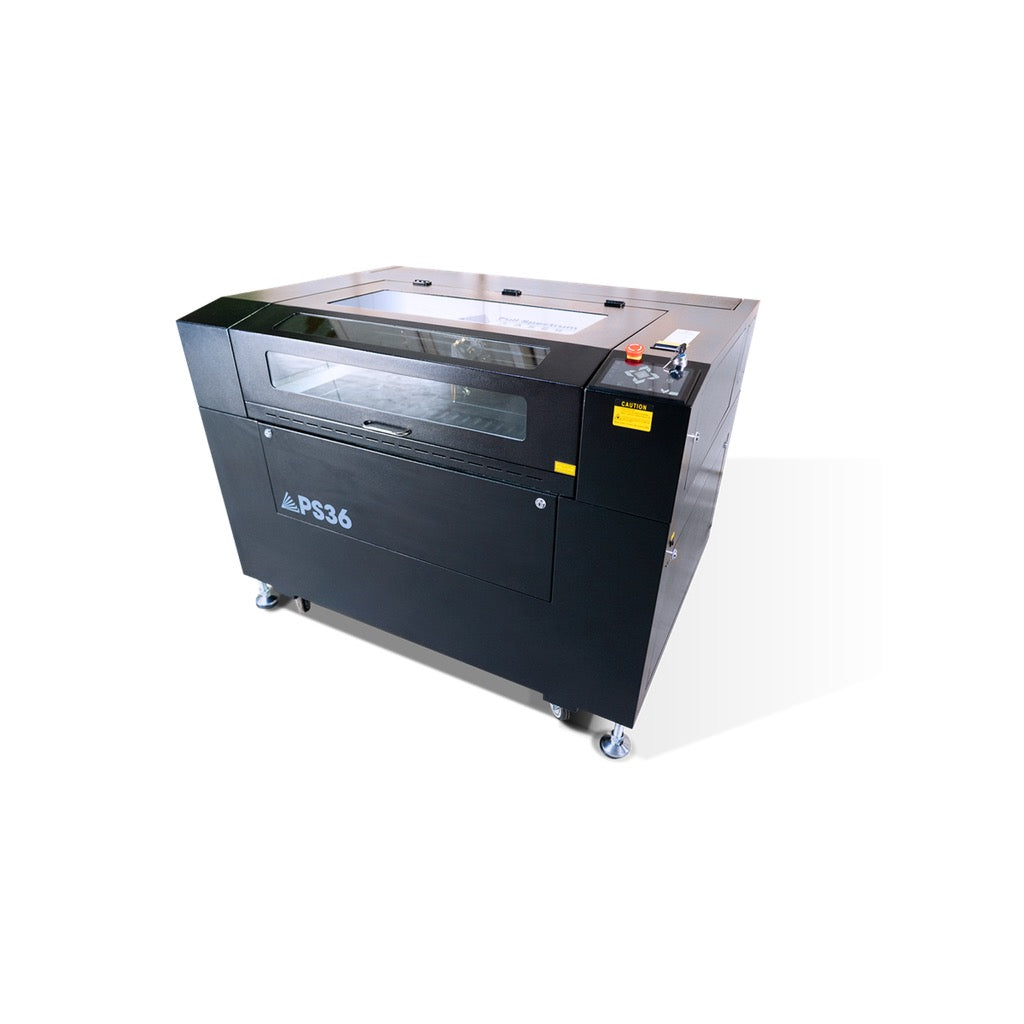

P-Series 36" × 24" Laser Cutting & Engraving System | 90W Precision CO₂ Laser Cutter
The P-Series 36" × 24" Laser Cutting and Engraving System combines industrial performance with professional-grade precision. Built for high-volume production and large-format projects, it delivers consistent accuracy and clean cuts across materials like wood, acrylic, leather, and plastic.
With 90W CO₂ laser power, a motorized Z-table, and browser-based RetinaEngrave v3.0 software, the P-Series ensures a seamless workflow for both professional shops and advanced creators.
Key Features
-
Large Engraving Area: 36" × 24" (914 mm × 610 mm) for full-size projects.
-
Browser-Based Software: Operate directly in Google Chrome, Safari, Edge, or Firefox — no internet connection needed.
-

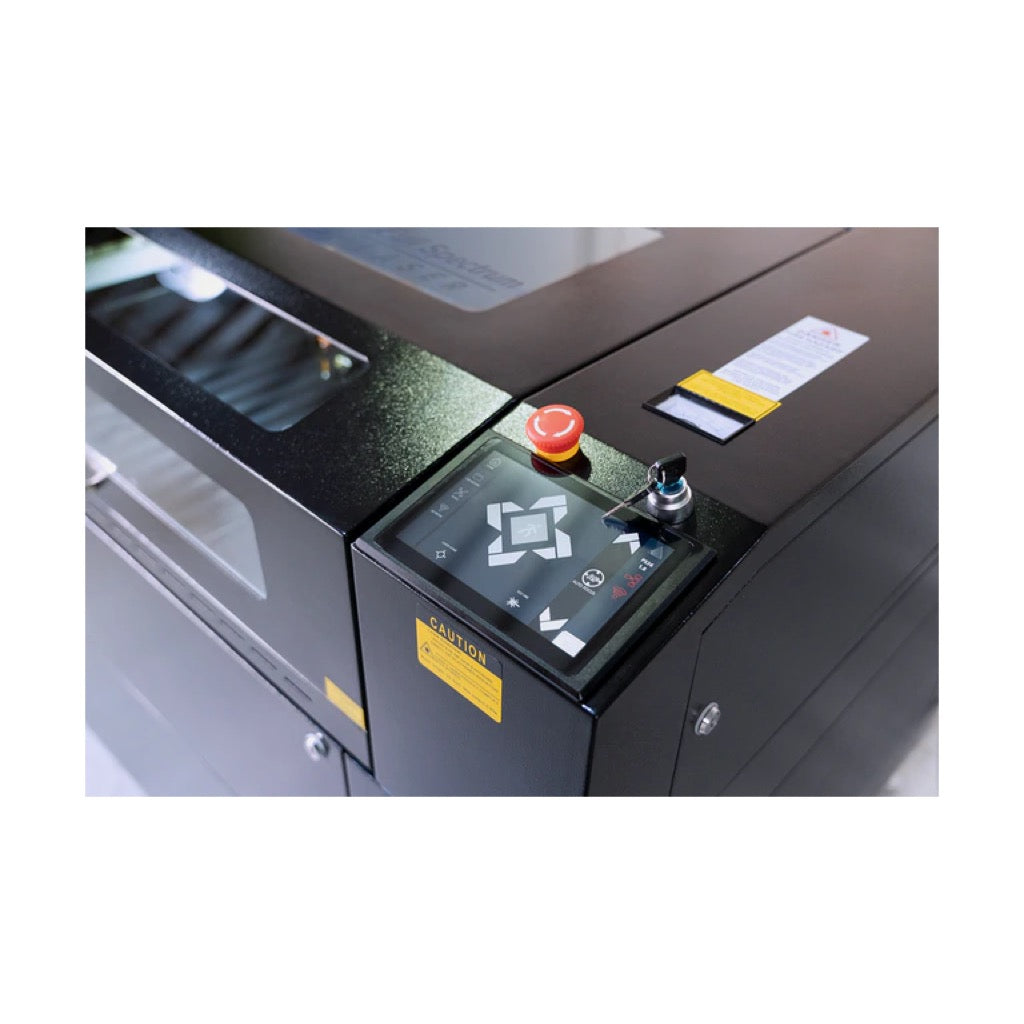

7" LCD Touchscreen: Full control of power, speed, and focus from the machine.
-
Motorized Z-Table (14" Range): Accommodates thick materials and multi-layer projects with ease.
-
Pass-Through Doors: Allows cutting and engraving of oversized sheets.
-
Auto Focus: Automates height calibration for fast and accurate results.
-
Rotary Attachment (Optional): Engrave cylindrical items such as mugs, tumblers, and bottles.
-
Free USA Support & Software: Includes U.S.-based technical support, browser software, and project files.
-
Durable Construction: Engineered for industrial longevity and stable operation.
Technical Specifications
| Category | Details |
|---|---|
| Engraving Area | 36" × 24" (914 mm × 610 mm) |
| Machine Dimensions | 56" × 40" × 41" (1422 × 1016 × 1041 mm) |
| Weight | 484 lbs (220 kg) |
| Z-Table Range | 14" |
| Laser Classification | Class 3R |
| Laser Type | Sealed CO₂ Laser Tube |
| Laser Power | 90 W |
| Focus Lens | 2.5" Included |
| Power Supply | AC 110 V (Native) / 220 V Option Available |
| Gross Power | < 1000 W |
| Operation Modes | Raster, Vector or Combined |
| Motion Control | High-Speed Stepper Motors |
| Operating Temperature | 0 °C – 45 °C |
| Software | RetinaEngrave v3.0 |
| Compatibility | Windows, macOS, Linux |
| Browser Compatibility | Chrome (Recommended), Safari, Firefox, Edge |
| Supported File Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Minimum Screen Resolution | 1024 × 768 pixels |
| Wireless Connectivity | 802.11 n |
| Included Components | Exhaust Fan, Air Compressor, Radiator Water Chiller, Honeycomb Table, Knife-Edge Table, Tool Box |
Ideal Applications
-
Sign making and industrial fabrication
-
Custom product engraving and prototyping
-
Educational and research labs
-
Maker spaces and high-end creative workshops
