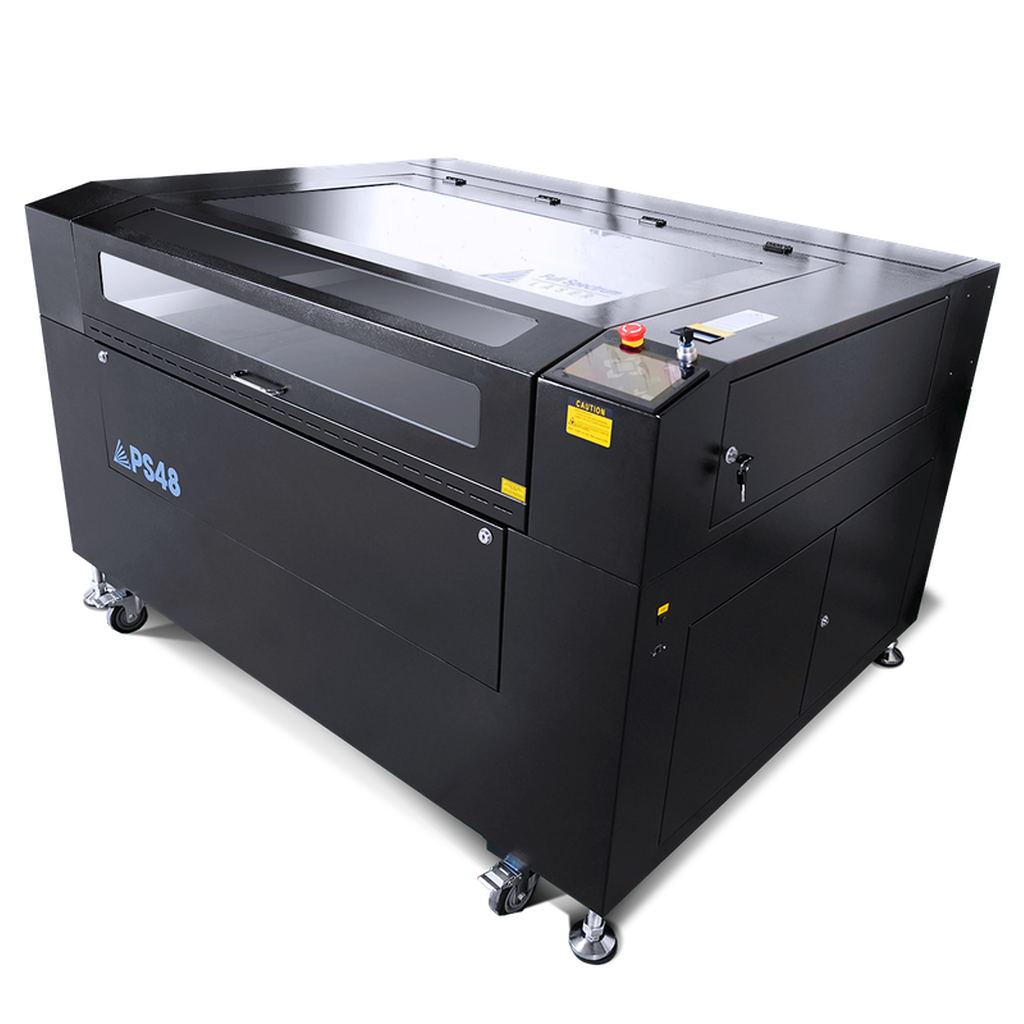

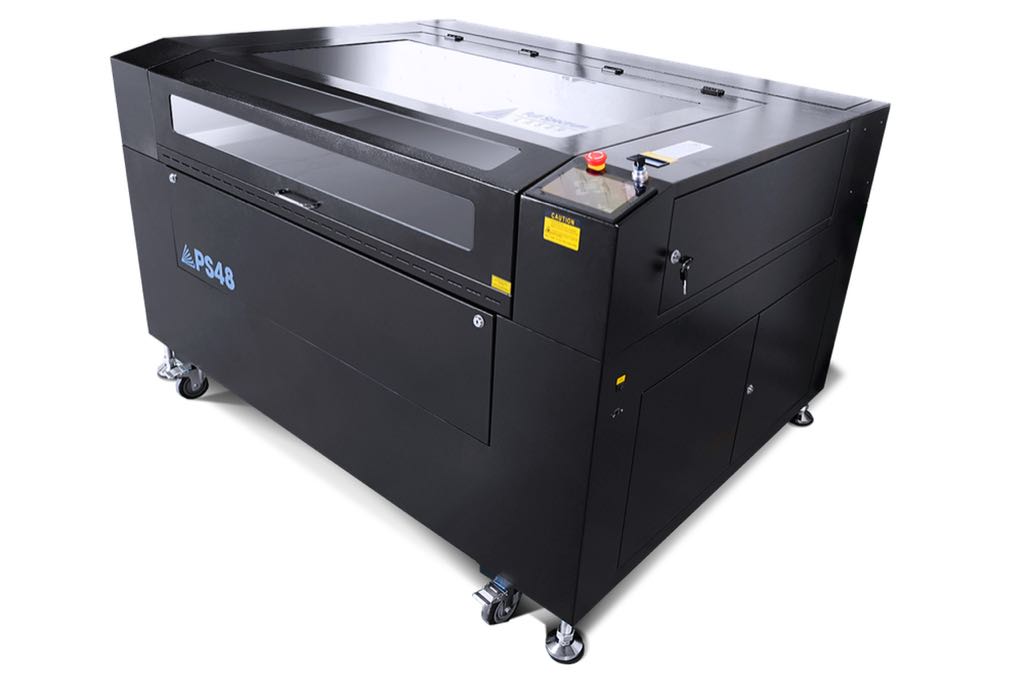

FSL PS48 P-Series 48" × 36" Laser Cutting & Engraving System | 90W–150W Industrial CO₂ Laser
The FSL PS48 P-Series Laser Cutting and Engraving System is the largest and most powerful model in the P-Series lineup — purpose-built for industrial-scale production, extended cutting sessions, and high-volume fabrication.
Available in 90W, 120W, and 150W CO₂ laser options, the PS48 delivers unmatched precision, speed, and reliability for professionals and creators alike.
Engineered with a spacious 48" × 36" work area, the PS48 is ideal for large-format projects in materials such as wood, acrylic, leather, and plastic. It features RetinaEngrave v3.0, a 7" LCD touchscreen, and seamless browser-based control compatible with Windows, macOS, and Linux — no internet connection required
Key Features
-
Massive 48" × 36" Work Area: Accommodates large-scale projects and full sheets of material.
-
Power Options: Choose from 90W, 120W, or 150W sealed CO₂ laser tubes for optimal depth and speed.
-
Browser-Based Operation: Works directly in Chrome, Safari, Edge, or Firefox — no installation or cloud access required.
-

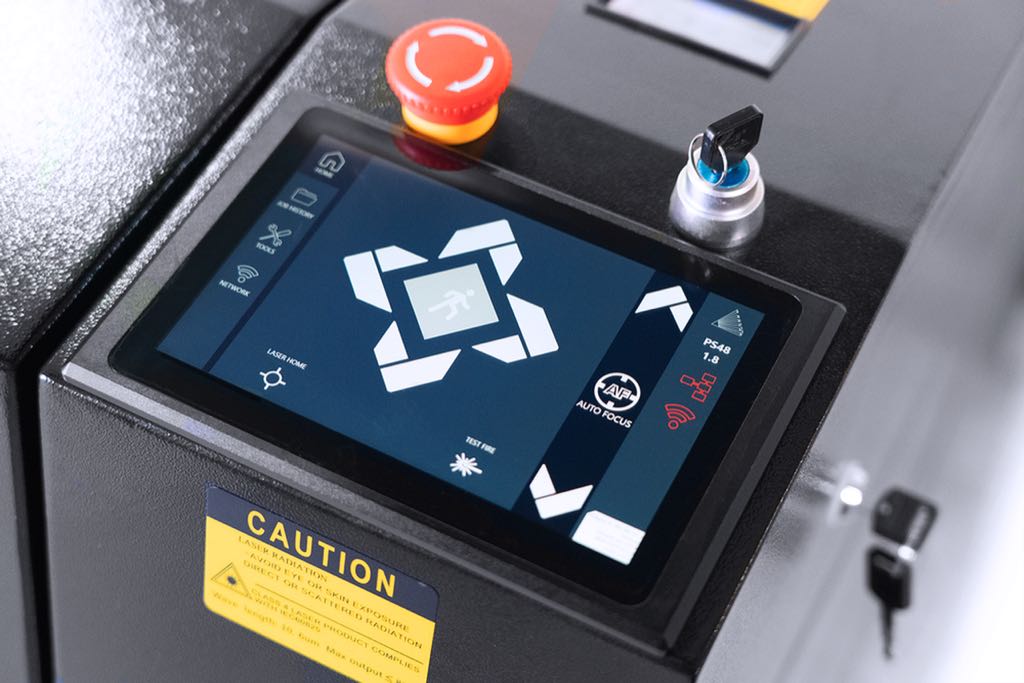

7" LCD Touchscreen: Control engraving speed, laser power, and auto-focus from the onboard interface.
-
Motorized Z-Table (14" Range): Handles tall or layered materials for maximum flexibility.
-

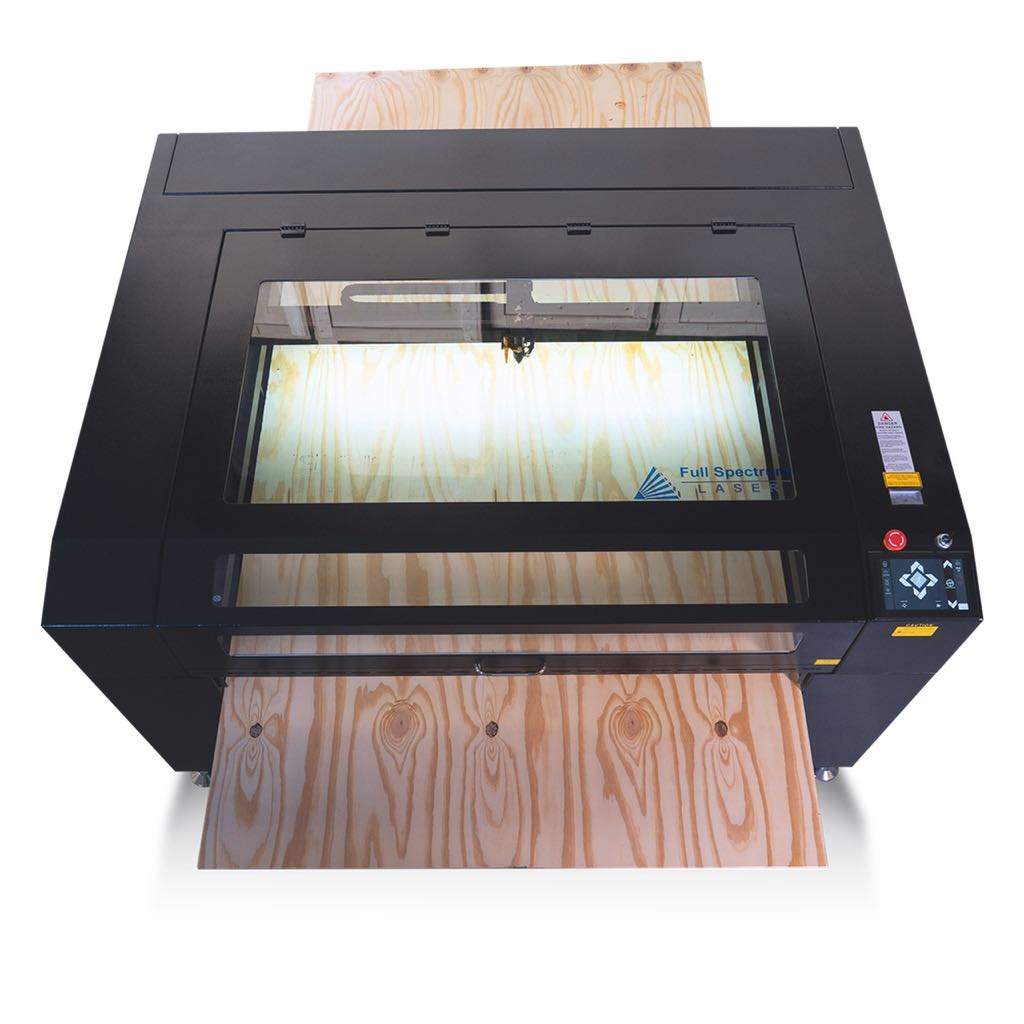

Pass-Through Doors: Easily work with oversized panels and continuous materials.
-
Auto Focus System: Ensures consistent precision and reduces setup time.
-
Rotary Attachment (Optional): Enables engraving on cylindrical items such as cups or tumblers.
-
Free USA-Based Support: Backed by responsive technical assistance via phone and email.
-
Included Accessories: Exhaust fan, air compressor, radiator water chiller, honeycomb and knife-edge tables, and tool box.
-
1-Year Warranty: Reliable coverage for peace of mind.
Technical Specifications
| Category | Details |
|---|---|
| Engraving Area | 48" × 36" (1219 mm × 914 mm) |
| Machine Dimensions | 68" × 52" × 42" (1727 mm × 1320 mm × 1067 mm) |
| Weight | 616 lbs (280 kg) |
| Z-Table Range | 14" |
| Laser Classification | Class 3R |
| Laser Type | Sealed CO₂ Laser Tube |
| Laser Power | 90 W / 120 W / 150 W Options |
| Focus Lens Included | 2.5" |
| Power Supply | AC 110 V (native) / 220 V option available |
| Gross Power | < 1000 W |
| Operation Modes | Raster, Vector or Combined |
| Motion Control | High-Speed Stepper Motors |
| Operating Temperature | 0 °C – 45 °C |
| Software | RetinaEngrave v3.0 |
| Compatibility | Windows, macOS, Linux |
| Browser Compatibility | Chrome (recommended), Safari, Firefox, Edge |
| File Import Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Minimum Screen Resolution | 1024 × 768 pixels |
| Wireless Connectivity | 802.11 n |
| Included Components | Exhaust Fan, Air Compressor, Radiator Water Chiller, Honeycomb Table, Knife-Edge Table, Tool Box |
Ideal For
-
Industrial fabrication and sign production
-
Educational and prototype labs
-
Maker spaces and creative studios
-
Businesses requiring large-format, high-power laser performance
