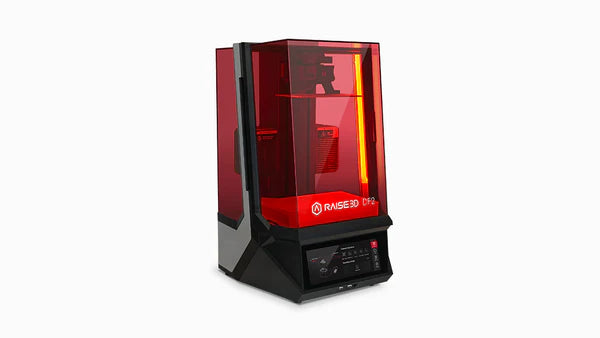

A resin DLP 3D printer for high precision parts with high precision, repeatability and reliability.

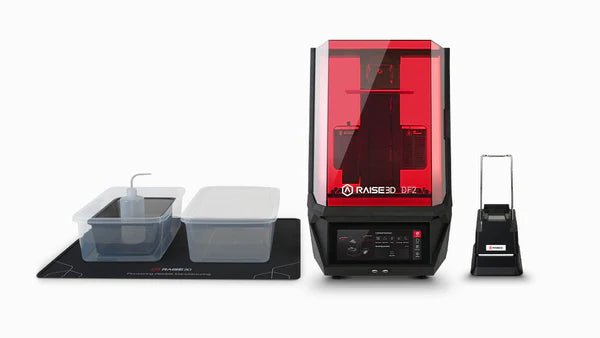

This product contains Auto Feeding Station, Resin Tank, Smart Build Plate, Tool Box, and Finish Box, and comes with Free slicing software – ideaMaker, and standard one-year warranty.
This printer does not come with resins.
Print Technology: Digital Light Printing (DLP)
Build Size (W × D × H): 200 × 112 × 300 mm (7.87 × 4.41 × 11.8 inch)
XY Resolution: 2560 x 1440
Max Part Weight: 10 kg
Max Printing Speed: 25 mm/h (0.1 mm per layer)
Layer Height: 50-100 micron
Resin Management: Auto Resin Feeding, Resin Level Detection, Resin Confirmation
Control Panel: Touch Screen (Resolution: 1920 × 720) with Magic Layout (Allow to
easily adjust the print layout and duplicate prints)
RFID Print Platform: Record the type of resin used and the printing, washing and curing settings
Level Calibration: Calibrated in factory
Chamber Heating: Max 40℃
GENERAL...
DLP
200 X 112 X 300
YIELD...
Approx. 600g /day
2-3 hours
MATERIAL...
Photopolymer Resin
Acrylic/Epoxy, etc
Black/White/Transparent
High-performance and Ultra high-Performance resins
Not Recommended
$10-$100
ACCURACY...
+-0.075 mm
100 microns
<30 microns
OTHER...
Washing/curing/support removal
STL/OBJ/3MF/OLTP
Standard 1-year warranty
