Renogy Energy 1.2kW Essential Kit SKU: RKIT1200CB-C43D4-A24-US

Renogy 1.2kW Essential Kit – Tiny Home Solar Solution

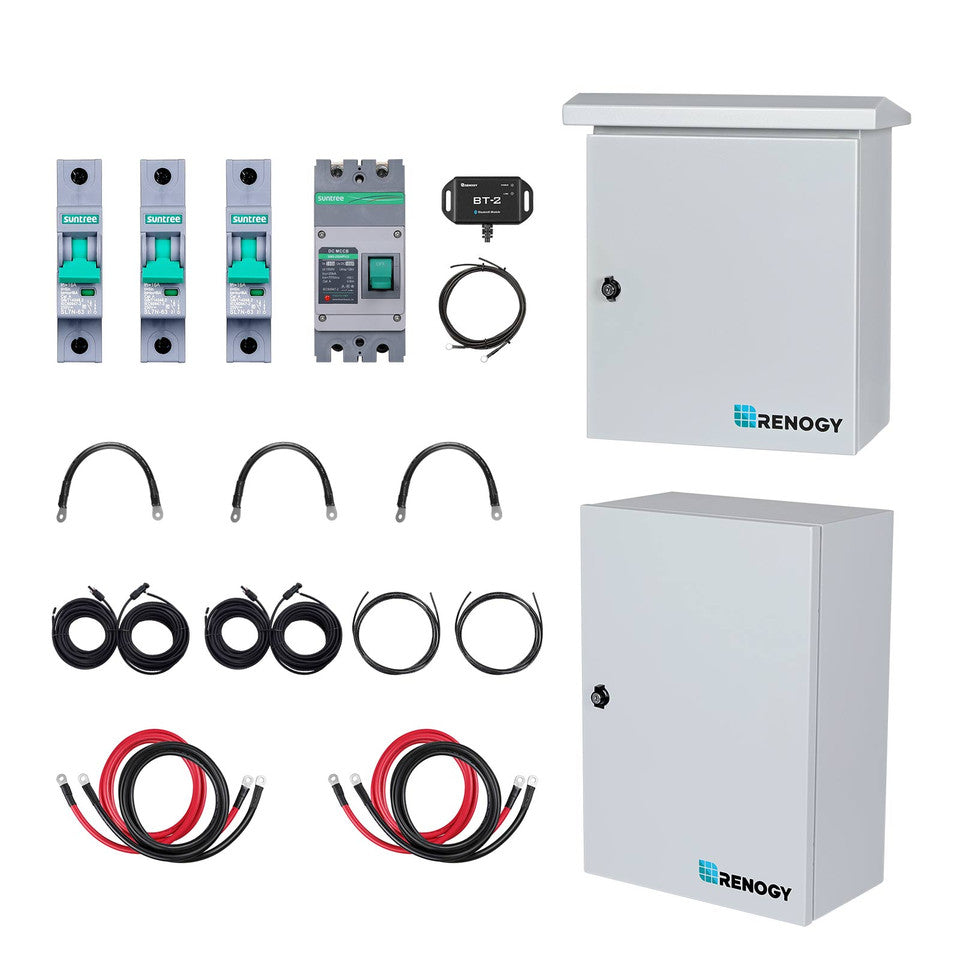

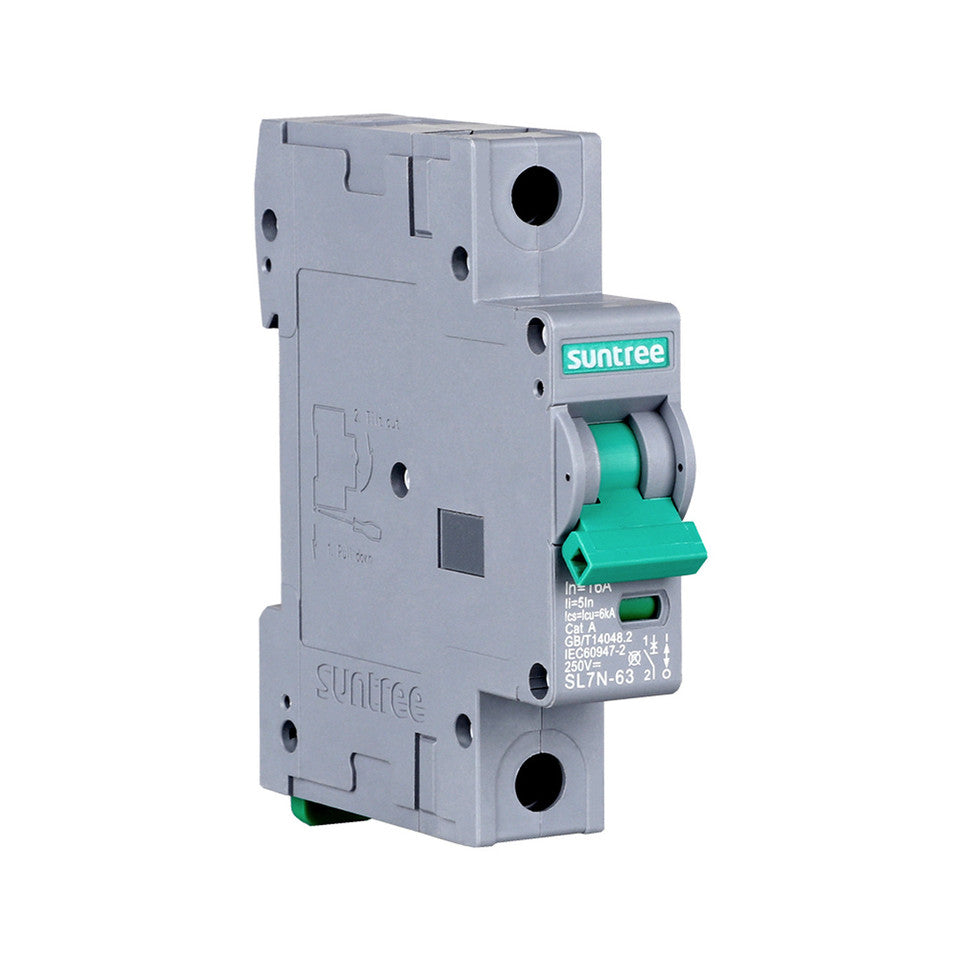

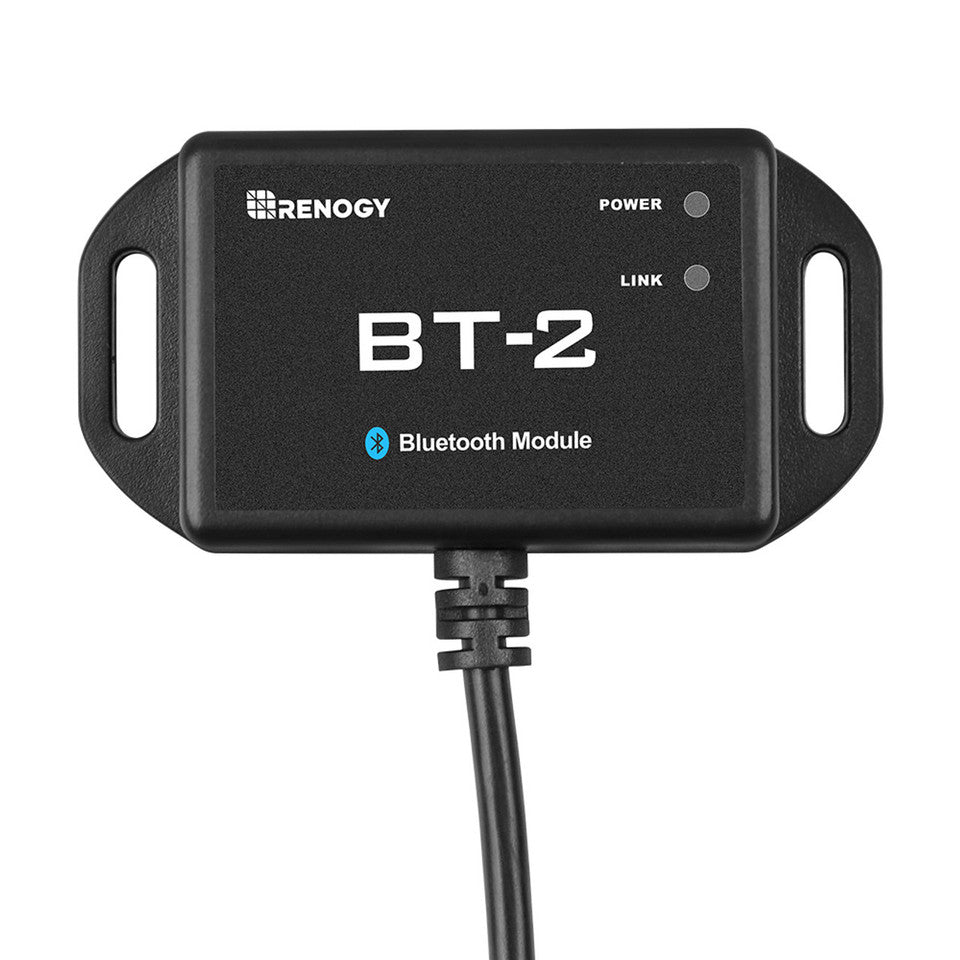

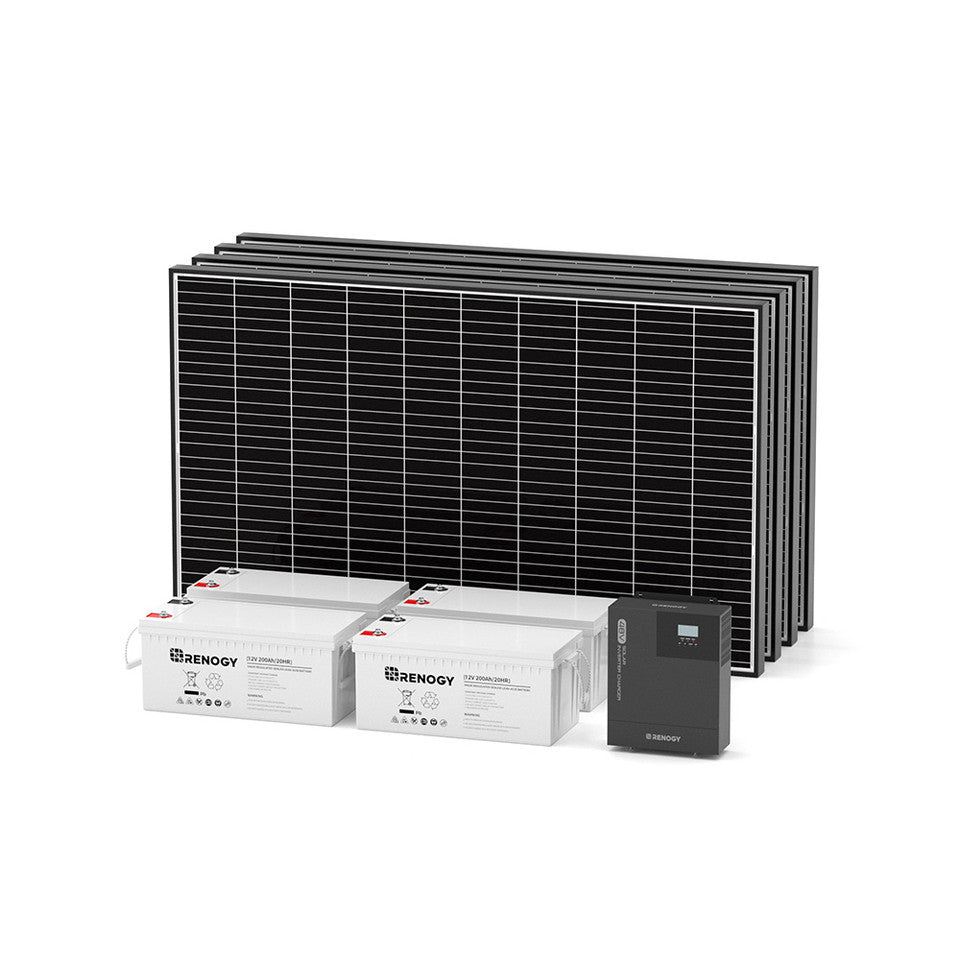

The Renogy 1.2kW Essential Kit is a cost-effective, entry-level package designed to power your tiny home with clean, reliable solar energy. This all-in-one system includes high-efficiency solar panels, a powerful inverter, dependable batteries, wiring, safety components, and Bluetooth monitoring—everything you need for a complete off-grid setup.

With this kit, you can keep your appliances powered for up to 7 days, making it a perfect choice for sustainable, independent living.

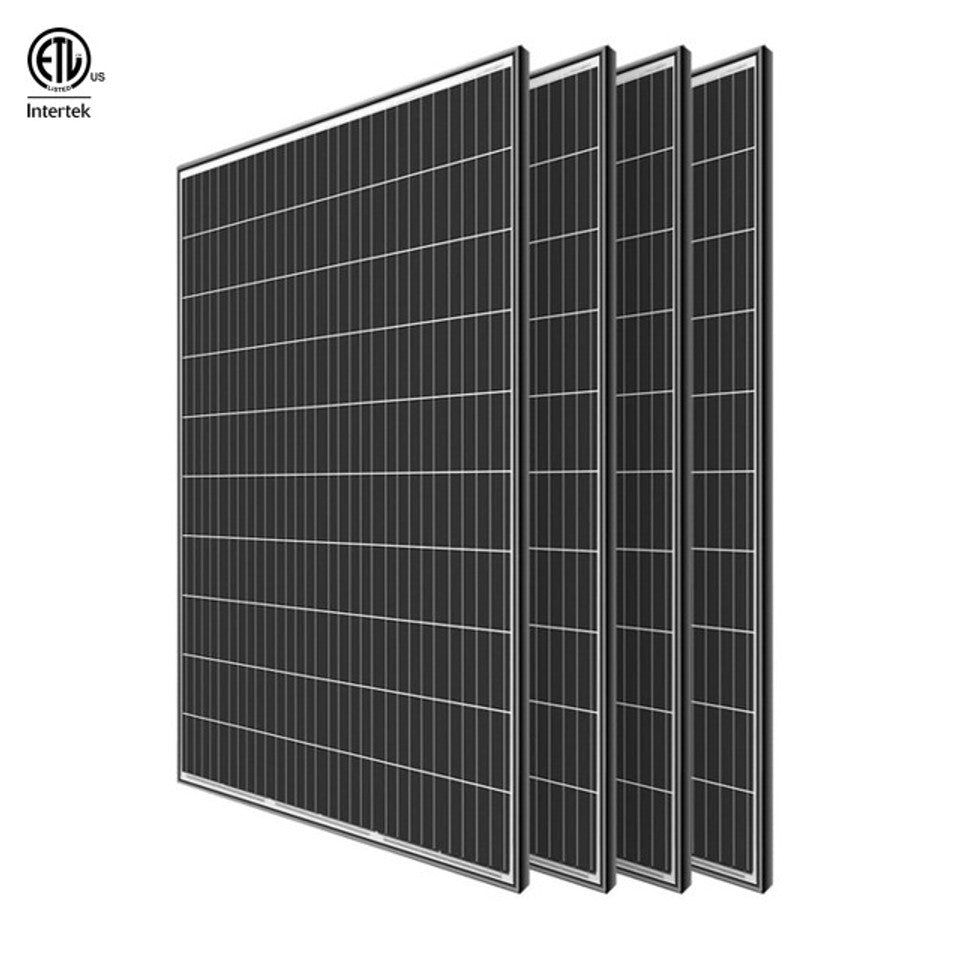

320W Monocrystalline Solar Panel

• Maximum Power: 320W | Cell Efficiency: 21%

• Vmp: 32.7V | Voc: 40.1V

• Imp: 9.79A | Isc: 10.36A

• Max System Voltage: 1000V DC (UL) | Fuse Rating: 15A

• Operating Temp: -40°F to 185°F

• Dimensions: 65.6 × 39.4 × 1.4 in | Weight: 39.7 lbs

• Certifications: CE, ISO, UL

48V 3500W Pure Sine Wave Inverter Charger

• Rated Power: 3500W | Waveform: Pure Sine Wave

• Input Voltage: 120VAC (Range: 85–140VAC)

• Frequency: 50/60Hz Adjustable

• Output Voltage: 100–120VAC (5V increments)

• Controller Type: MPPT

• Max PV Input: 4400W | Max PV Charging Current: 80A

• Dimensions: 17.5 × 13 × 4.9 in | Weight: 22.4 lbs

12V 200Ah Deep Cycle AGM Battery

• Capacity: 200Ah | Nominal Voltage: 12V

• Internal Resistance: ~3.5mΩ

• Configurations: Series & Parallel (up to 4 units)

• Dimensions: 20.6 × 9.4 × 8.8 in | Weight: 127.9 lbs

• Operating Temp: 77°F ± 9°F (25°C ± 5°C)

Warranty

• Panels: 25-year power output warranty (95% @ 5 yrs, 90% @ 10 yrs, 80% @ 25 yrs) + 10-year material/workmanship warranty

• Accessories: 1-year material/workmanship warranty

📞 For more details, contact 442 221 9746
