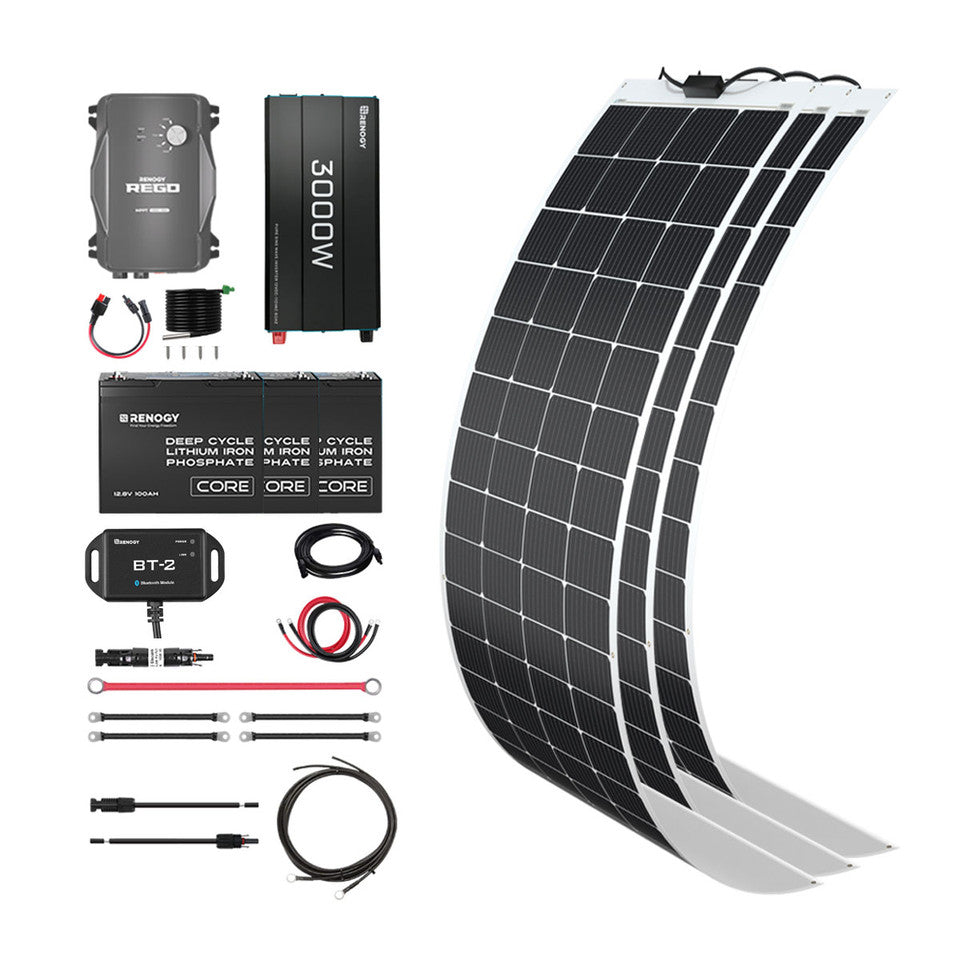

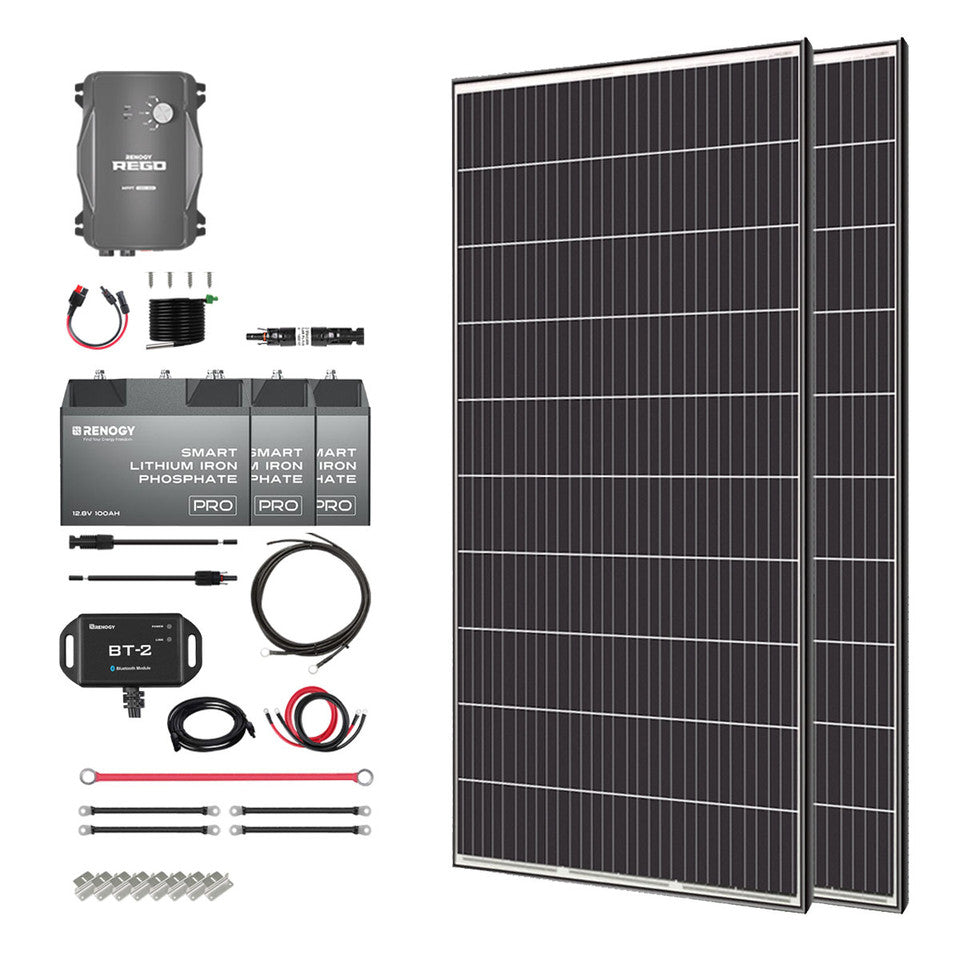

Renogy Custom Solar Kit
The Renogy Custom Kit delivers a hassle-free, tailored solar solution designed to meet your unique energy needs—whether for a home, RV, boat, or remote cabin. Each kit includes all the essentials to build a reliable, efficient solar power system without the challenge of sourcing compatible parts from multiple suppliers.
With a wide selection of components, you can easily mix and match panels, charge controllers, batteries, and inverters to create the setup that works best for you. Options include three 200W classic rigid or ultra-flexible panels, or two 320W rigid panels. Choose between a Rover 60A MPPT controller or the high-performance Rego series, and select from no battery, cost-effective lithium with Bluetooth, or up to three 100Ah smart lithium batteries with self-heating. Inverter choices include none, a 3000W pure sine wave inverter, or a 3000W inverter charger.
Every kit is packaged with all necessary accessories—cables, connectors, mounting brackets, and monitoring devices—to simplify installation. Built for high efficiency and long-term reliability, these kits provide dependable energy even in partial shade and are backed by a 25-year performance warranty.
Key Highlights
-
Customizable solar power kit with flexible component options
-
Enhanced energy output in a variety of conditions
-
Eco-friendly, steady power supply for off-grid or backup use
-
Streamlined installation with everything included in one package
-
Renogy Custom Solar Kit – Components & Specifications
Solar Panels
-
200W 16BB N-Type 24V Rigid Panel
-
Max Power: 200W | Vmp: 31.03V | Imp: 6.45A
-
Voc: 37.44V | Isc: 6.85A
-
Operating Temp: -40°F to 185°F (-40°C to 85°C)
-
Dimensions: 49.7 × 30.1 × 1.2 in | Weight: 23.4 lbs
-
Max System Voltage: 600V DC UL
-
-
200W 12V Flexible Panel
-
Max Power: 200W | Voc: 23.9V | Isc: 10.74A
-
Imp: 10.02A | Max System Voltage: 600V DC
-
Dimensions: 63.2 × 29.4 × 0.1 in | Weight: 10.8 lbs
-
Operating Temp: -40°F to 176°F (-40°C to 80°C)
-
-
320W 24V Rigid Panel
-
Max Power: 320W | Vmp: 33V
-
Certifications: CE, ISO, UL
-
Dimensions: 65.6 × 39.4 × 1.4 in | Weight: 39.7 lbs
-
Max System Voltage: 1500V DC UL
-
Charge Controllers
-
Rover 60A MPPT with LCD & BT2
-
Auto Voltage Recognition: 12V/24V/36V/48V
-
Rated Charge Current: 60A | Max PV Input: 3200W (48V)
-
Max PV Voltage: 150V DC
-
Dimensions: 11.2 × 8.1 × 4.0 in | Weight: 7.9 lbs
-
-
REGO 60A MPPT with Bluetooth
-
System Voltage: 12V | Rated Current: 60A
-
MPPT Range: 15–100V DC | Max PV Input: 800W
-
Dimensions: 9.4 × 7.4 × 4.3 in | Weight: 5.07 lbs
-
-
DCC50S 50A DC-DC MPPT Charger
-
System Voltage: 12V DC | Max Current: 50A
-
Max Solar Input: 25V | Max Power: 660W
-
Dimensions: 9.6 × 5.7 × 3.0 in | Weight: 3.1 lbs
-
Battery Options
-
12V 100Ah Pro Lithium (Bluetooth + Self-Heating)
-
5000 cycles at 80% DOD | IP67 protection
-
Max Charge/Discharge: 100A | Peak: 245A (30s)
-
Dimensions: 10.6 × 7.6 × 8.1 in | Weight: 26.9 lbs
-
-
12V 100Ah Core Mini Lithium (Self-Heating)
-
5000 cycles at 80% DOD | IP65 protection
-
Max Charge/Discharge: 100A | Series/Parallel up to 4S4P
-
Dimensions: 9.0 × 5.4 × 8.4 in | Weight: 21.4 lbs
-
Inverter Options
-
3000W 12V Pure Sine Wave Inverter
-
Continuous: 3000W | Surge: 6000W
-
Output: 120V AC | USB Port: 5V/2.1A
-
Dimensions: 18.9 × 9.0 × 4.0 in | Weight: 12.5 lbs
-
-
REGO 12V 3000W Inverter Charger with LCD
-
Continuous: 3000W | Surge: 9000W
-
Output: 100–120V AC configurable
-
Dimensions: 20.1 × 11.2 × 7.6 in | Weight: 63.5 lbs
-
Warranty
-
Panels: 25-Year Power Output Warranty
-
5-Year: 95% Output | 10-Year: 90% Output | 25-Year: 80% Output
-
-
Materials & Workmanship: 10-Year Coverage
📦 Package Includes: Choice of solar panels, charge controller, batteries, inverter, plus all cables, connectors, and mounting hardware needed for installation.
📞 For more details, contact 442 221 9746
