Renogy 800W 12V General Off-Grid Solar Kit SKU: RKIT800BC-R60D4

• Renogy 800W Solar Kit – General Off-Grid Series

  Key Features

  • Customizable design with flexible configuration options

  • High efficiency panels that generate more power even in partial shade

  • Provides a steady, eco-friendly energy supply for off-grid living

  • Durable and built to last, backed by a 25-year performance warranty

  • Ideal for yards, RVs, boats, remote cabins, and emergency backup

  Product Overview

  The Renogy 800W Solar Kit is a reliable, high-performance solution for powering a wide range of off-grid needs. Delivering 3.5–4kWh of daily output, this system ensures consistent, clean energy—perfect for outdoor adventures, emergency preparedness, or everyday off-grid use.

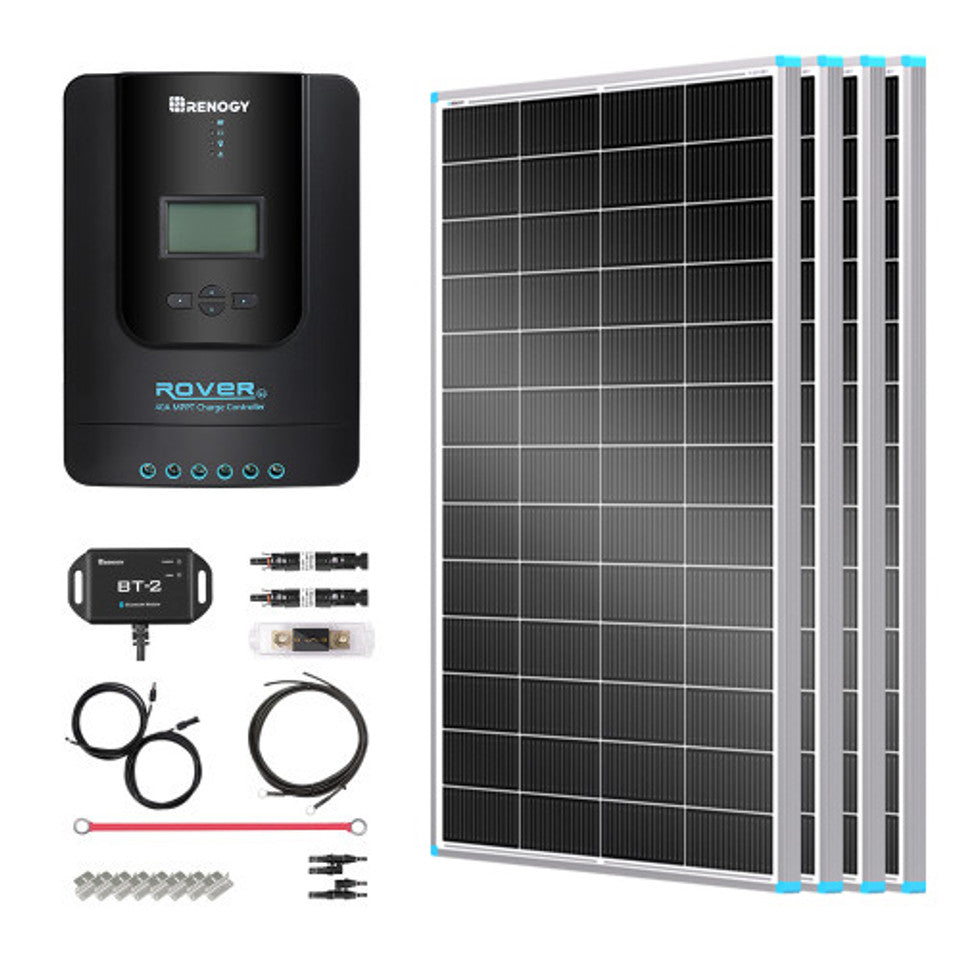

  This kit includes four 200W solar panels (choose between rigid or flexible designs) paired with a 60A MPPT charge controller from the Rover or Rego series for maximum efficiency and durability. Battery options include advanced smart lithium with self-heating or budget-friendly lithium with Bluetooth monitoring, giving you flexibility to match your needs. For AC power, select from a 3000W pure sine wave inverter or an inverter charger for added versatility.

  Complete with all required cables, connectors, mounting hardware, and monitoring tools, this all-in-one system is designed for a seamless installation and long-term reliability—providing you with dependable energy anywhere, anytime.

200W Solar Panels

200W 16BB N-Type 24V Rigid Panel

• Max Power: 200W

• Voc: 37.44V | Isc: 6.85A

• Vmp: 31.03V | Imp: 6.45A

• Operating Temp: -40°F to 185°F (-40℃ to 85℃)

• Max System Voltage: 600V DC UL

• Fuse Rating: 15A

• Size: 49.7 × 30.1 × 1.2 in | Weight: 23.4 lbs

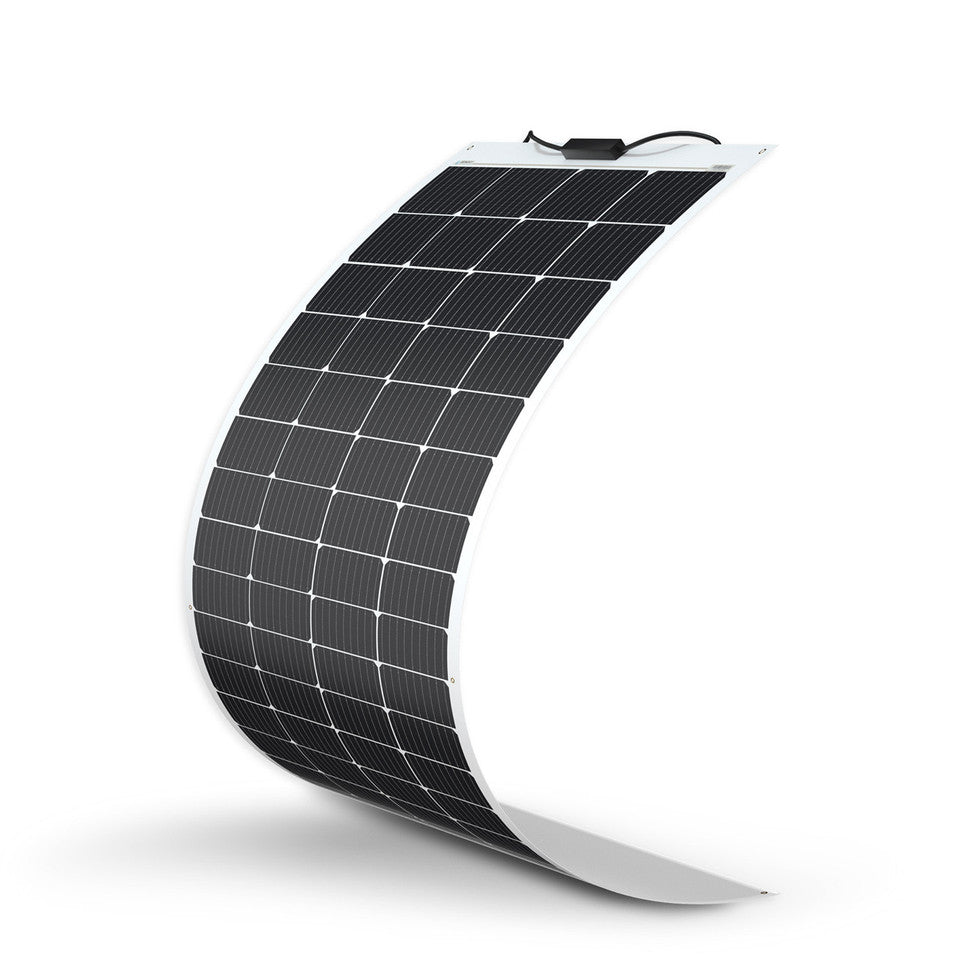

200W 12V Flexible Panel

• Max Power: 200W

• Voc: 23.9V | Isc: 10.74A

• Imp: 10.02A

• Operating Temp: -40°F to 176°F (-40℃ to 80℃)

• Max System Voltage: 600V DC

• Fuse Rating: 15A

• Size: 63.2 × 29.4 × 0.1 in | Weight: 10.8 lbs

Charge Controllers

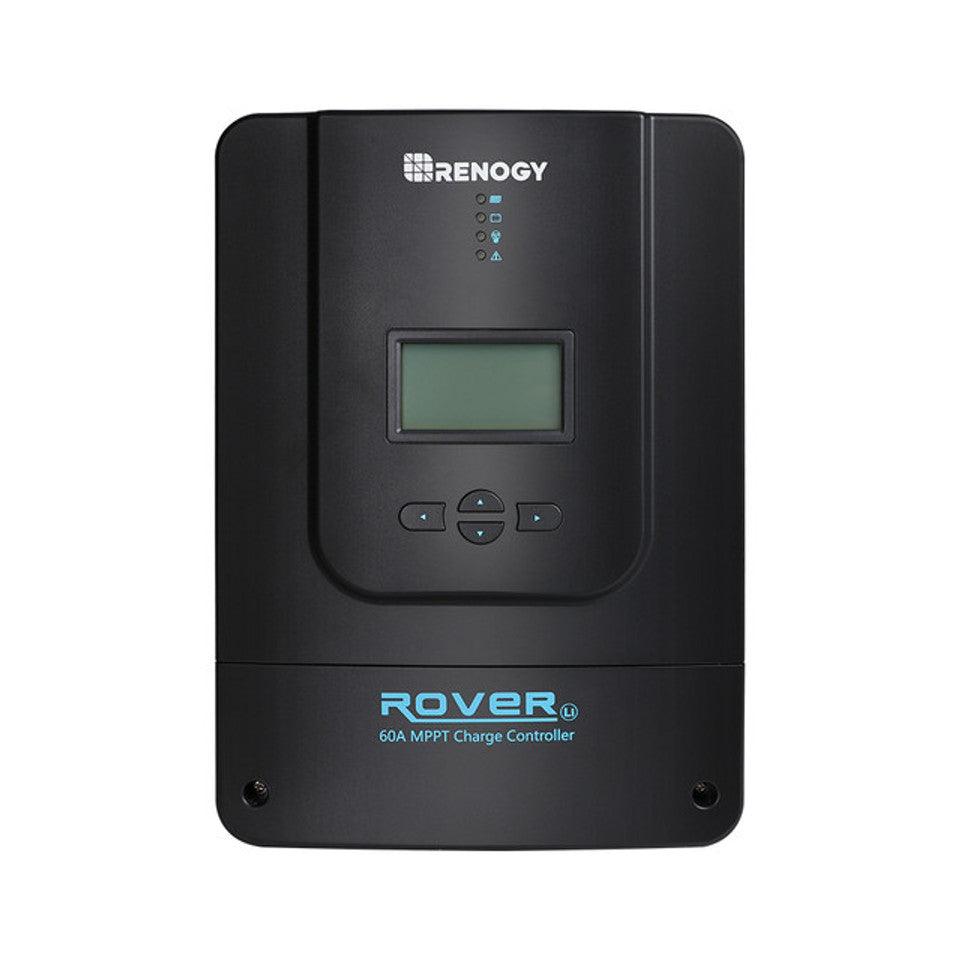

Rover 60A MPPT w/ LCD & BT2 Module

• System Voltage: 12V/24V/36V/48V Auto Recognition

• Charge Current: 60A | Load Current: 20A

• Max PV Input: 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V)

• Max PV Voltage: 150V DC

• Size: 11.2 × 8.1 × 4 in | Weight: 7.9 lbs

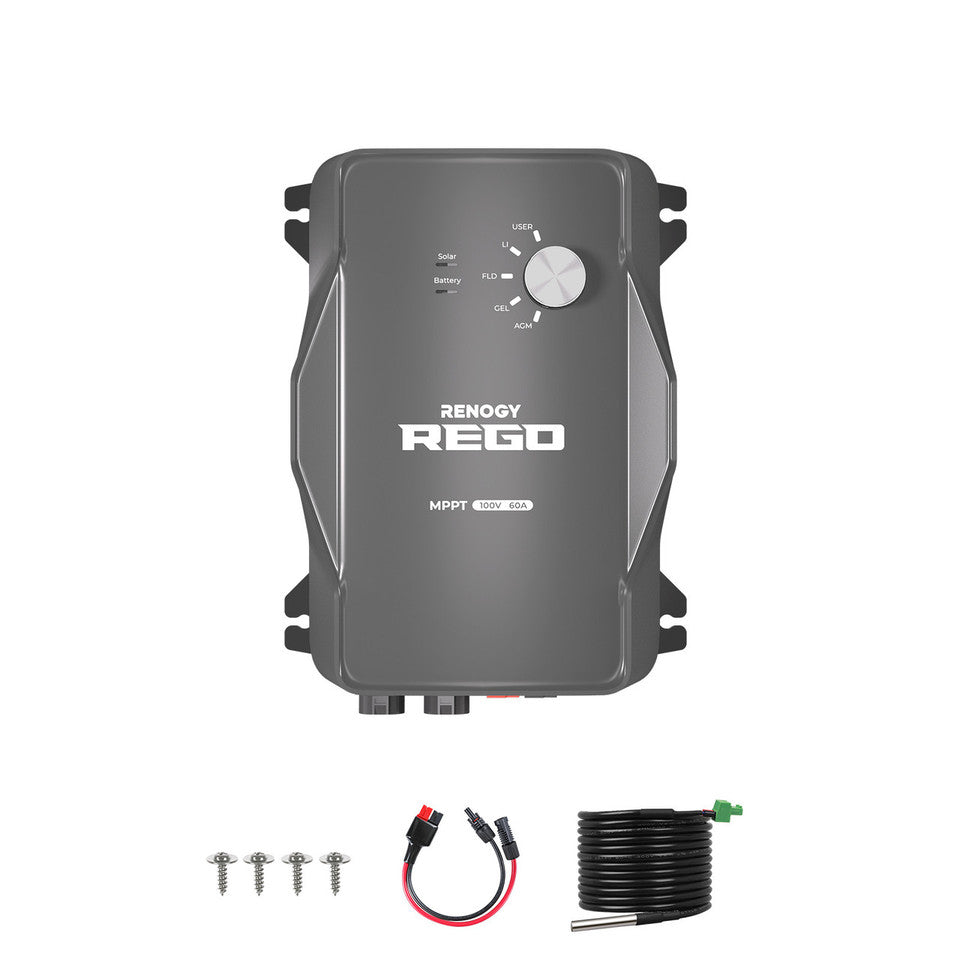

REGO 60A MPPT with Built-in Bluetooth

• Voltage: 12V | Rated Current: 60A

• Max PV Power: 800W

• MPPT Range: 15–100V DC

• Solar Input: 100V VOC | Max Input Current: 50A

• Size: 9.43 × 7.36 × 4.28 in | Weight: 5.07 lbs

Batteries

12V 100Ah Pro Lithium (Bluetooth + Self-Heating)

• LiFePO₄ | 100Ah Capacity

• Voltage Range: 10V–14.8V

• 5000 Cycles (80% DOD)

• Max Charge/Discharge: 100A | Peak Discharge: 245A (30s)

• Protection: IP67

• Size: 10.6 × 7.6 × 8.1 in | Weight: 26.9 lbs

12V 100Ah Core Mini Lithium (Self-Heating)

• LiFePO₄ | 100Ah Capacity

• Voltage: 12V | Charge Voltage: 14.6V

• 5000 Cycles (80% DOD)

• Max Charge/Discharge: 100A

• Protection: IP65

• Size: 9.0 × 5.4 × 8.4 in | Weight: 21.4 lbs

Inverters

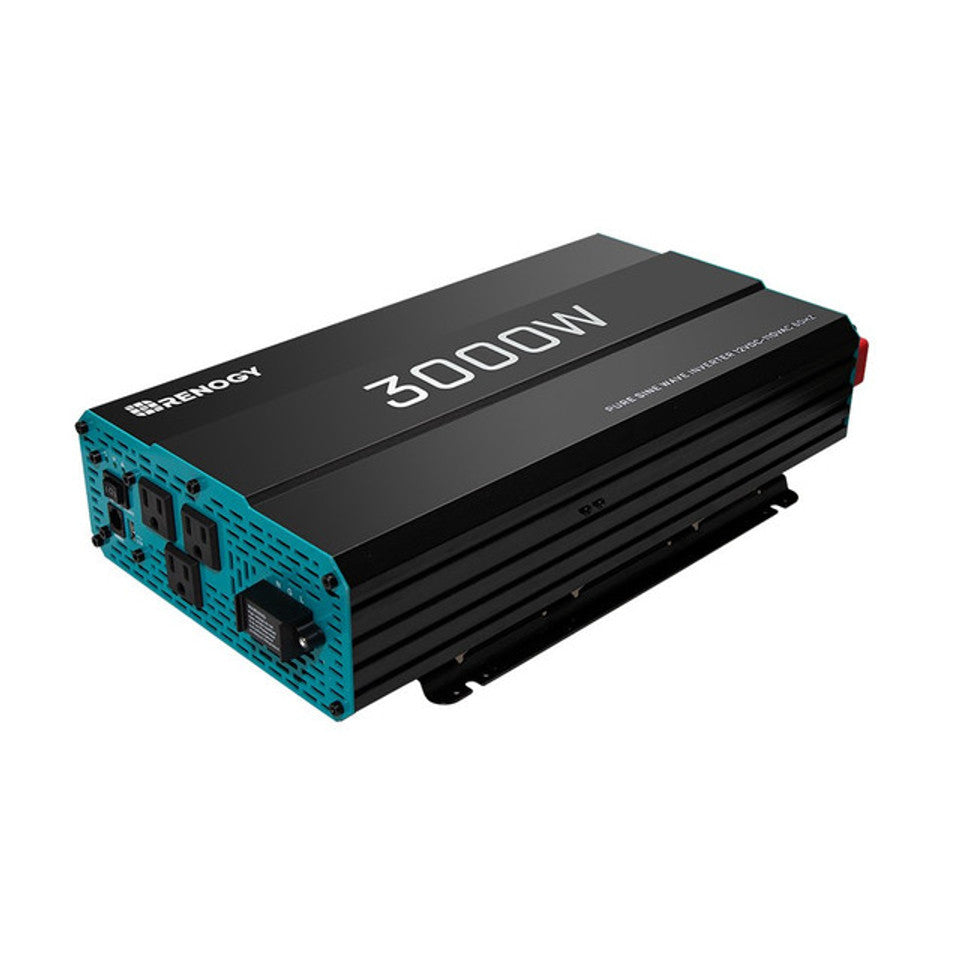

3000W 12V Pure Sine Wave Inverter

• Continuous: 3000W | Surge: 6000W

• Output: 120V | Frequency: 60Hz ± 0.1%

• 3 AC Sockets + 1 AC Terminal Block + USB Port

• Nominal Efficiency: >90%

• Size: 18.9 × 9.0 × 4 in | Weight: 12.5 lbs

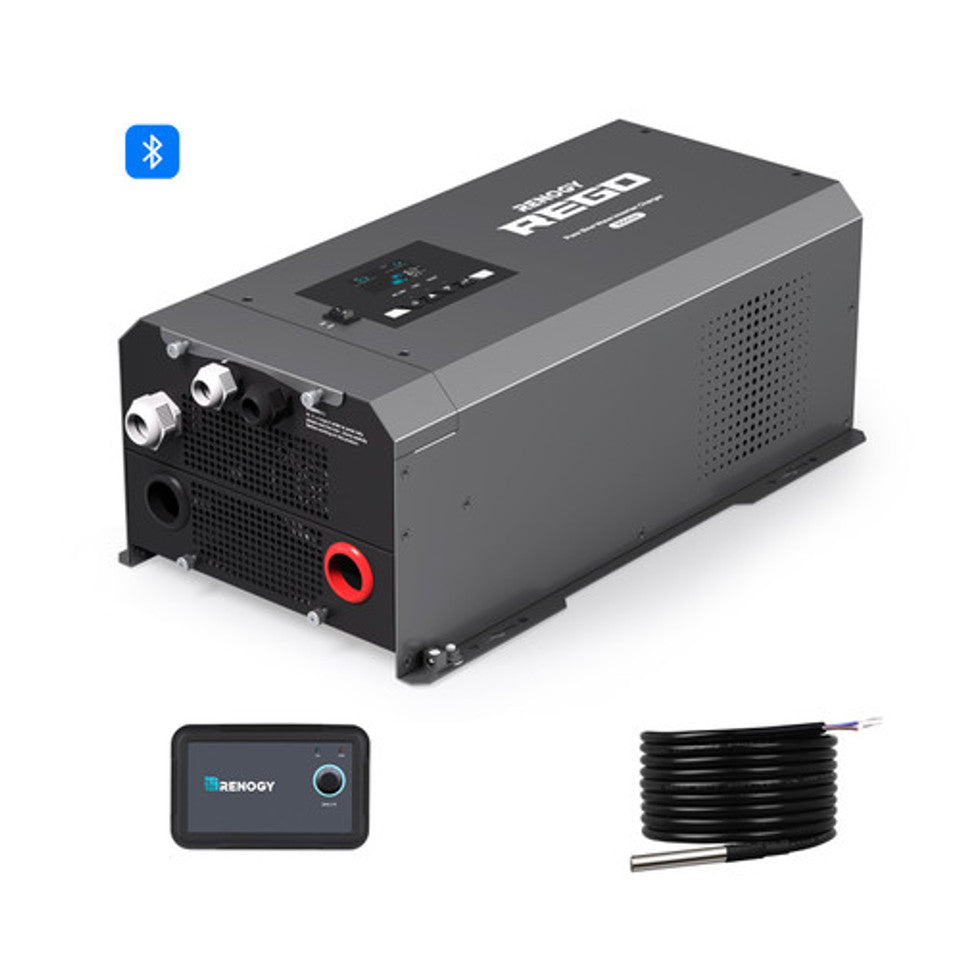

REGO 12V 3000W Pure Sine Wave Inverter Charger (LCD Display)

• Continuous: 3000W | Surge: 9000W

• Output Voltage: 100–120V AC Configurable

• Input Voltage: 90–138 VAC

• Efficiency: >90%

• Operating Temp: -4°F to 104°F

• Size: 20.1 × 11.2 × 7.6 in | Weight: 63.5 lbs

Warranty Information

• Panels: 25-Year Power Output Warranty

  • 5-Year: 95% Output | 10-Year: 90% Output | 25-Year: 80% Output

  • 10-Year Material & Workmanship Coverage

• Accessories: 1-Year Material & Workmanship Warranty
