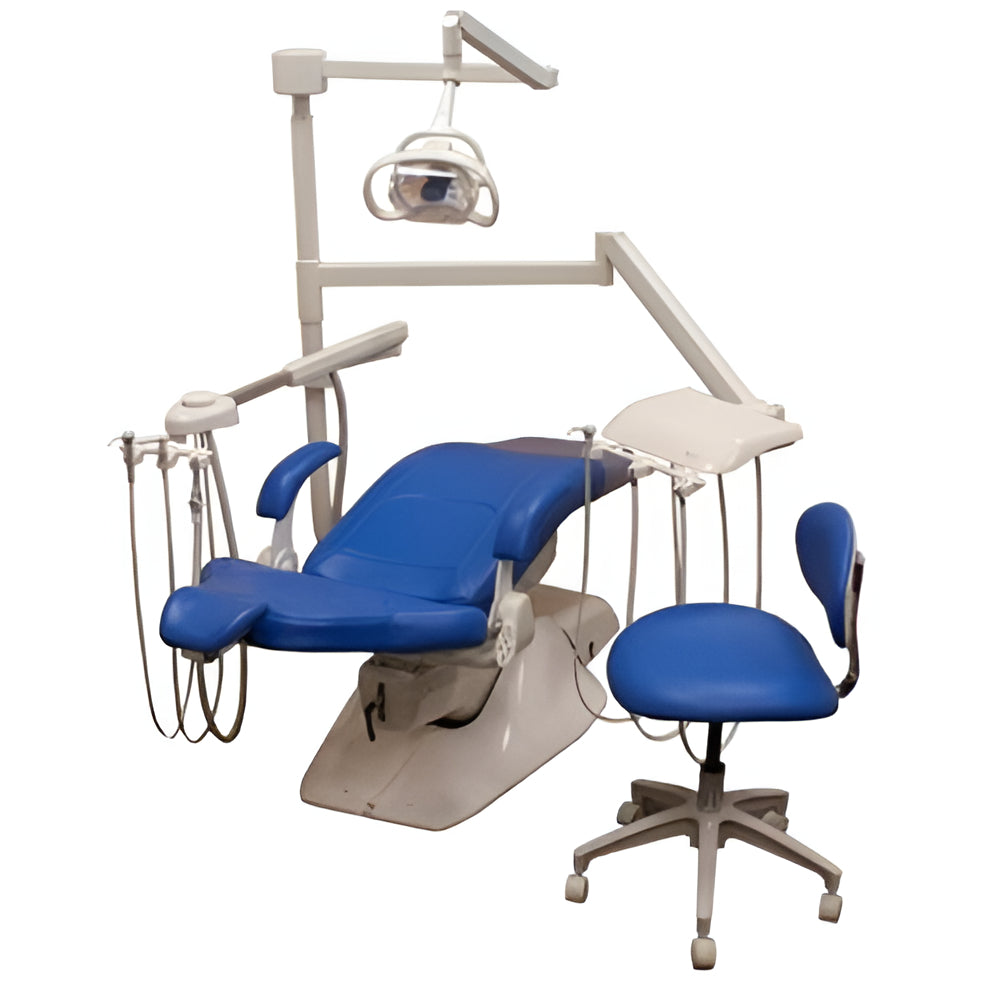

NEW Two Handpiece Operatory System with Telescoping Arm

Part # Cascade Operatory Package (Paraphrased)

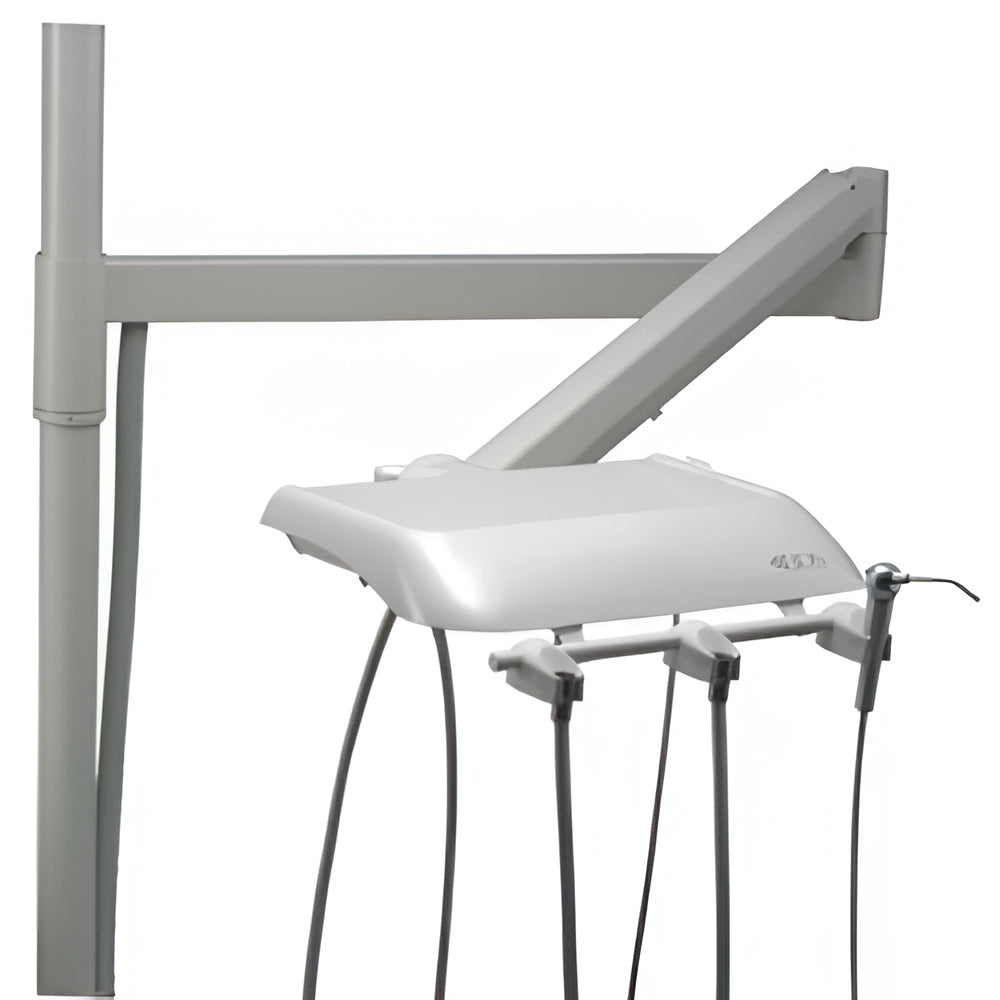

S-2500 – 2-Handpiece Automatic Control System (Post Mount)

• Automatic control for two handpieces (one wet, one dry)

• Built-in 3-way air/water syringe

• Master ON/OFF toggle

• Individual pressure regulation for each handpiece

• Clear, easy-to-read pressure gauge

• Adjustable, non-retracting water coolant

• Asepsis sterling handpiece tubing

• Manual flex arm with friction brake

• Standard disc-style foot control

• Utility center equipped with master valves and regulators

• 7 ft. umbilical tubing

• Air coolant adjustment

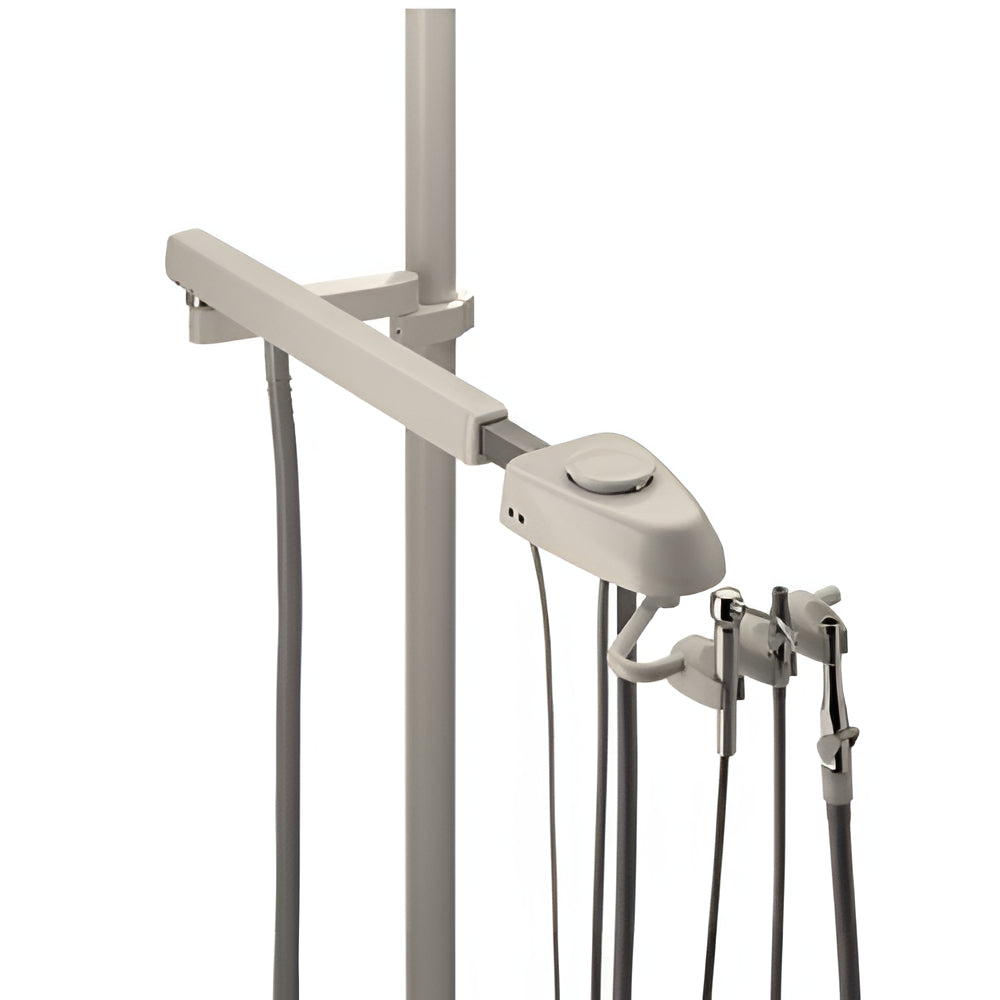

A-5200 – Telescoping Vacuum Arm

• Telescoping design with breakaway feature; 31"–42" reach

• Holder bar with three instrument holders

• Integrated 3-way air/water syringe

• Adjustable syringe flow

• Vacuum canister with removable screen (uses screen #131-053)

• Autoclavable HVE and saliva ejector valves with tubing

• 2" diameter post-mount design

• 10 ft. umbilical tubing

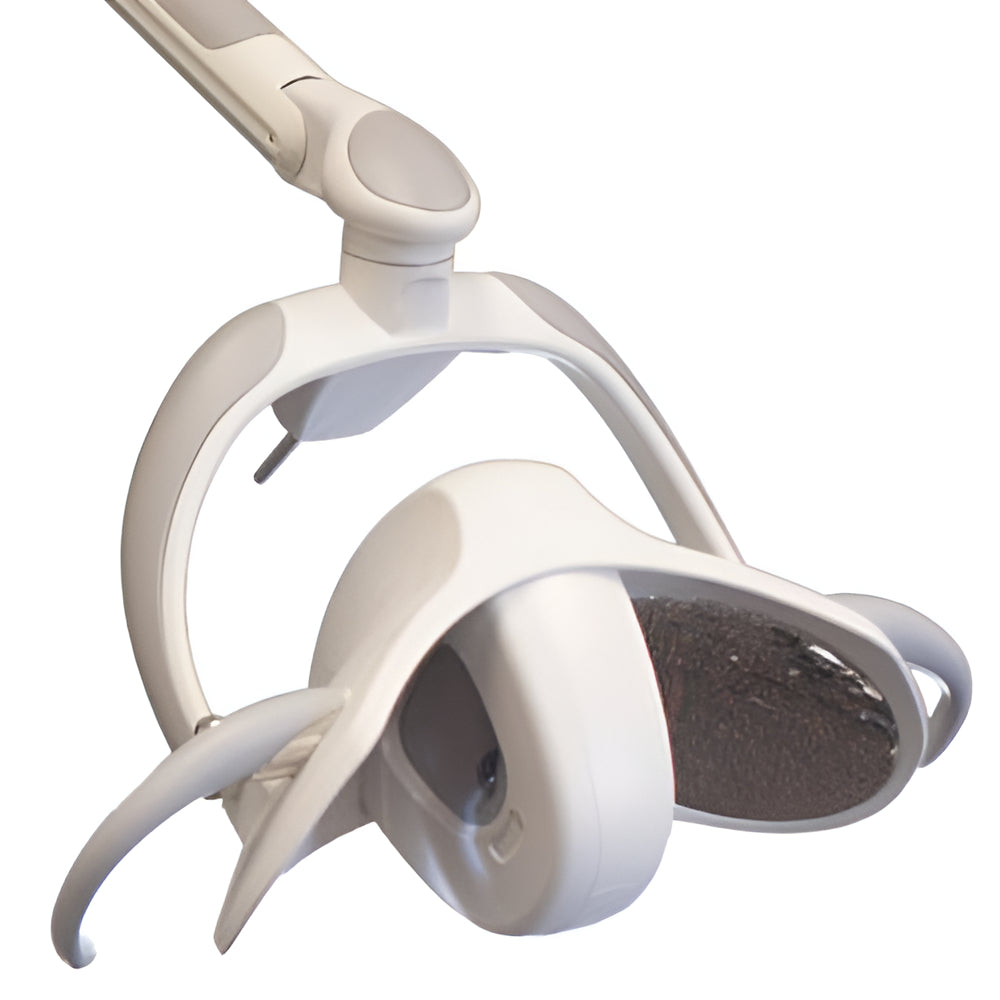

Celux Operatory Light

• Lamp head adjusts vertically, horizontally, or diagonally

• Produces a sharply defined rectangular light pattern

• Color temperature range: 3800°–4500° Kelvin

• Easy-reach ON/OFF intensity switch

• 12V, 55W tungsten halogen H-3 dual-filament bulb

• Fast, simple bulb replacement

• Removable safety shield for cleaning

• Requires Celux/Pelton bushing (Beaverstate Part #146-208)

• Light field at 28": 3" x 7"

• Operates on 110V

• Requires electrical plug (not included)

146-203 – 40" Light Post with Bushing

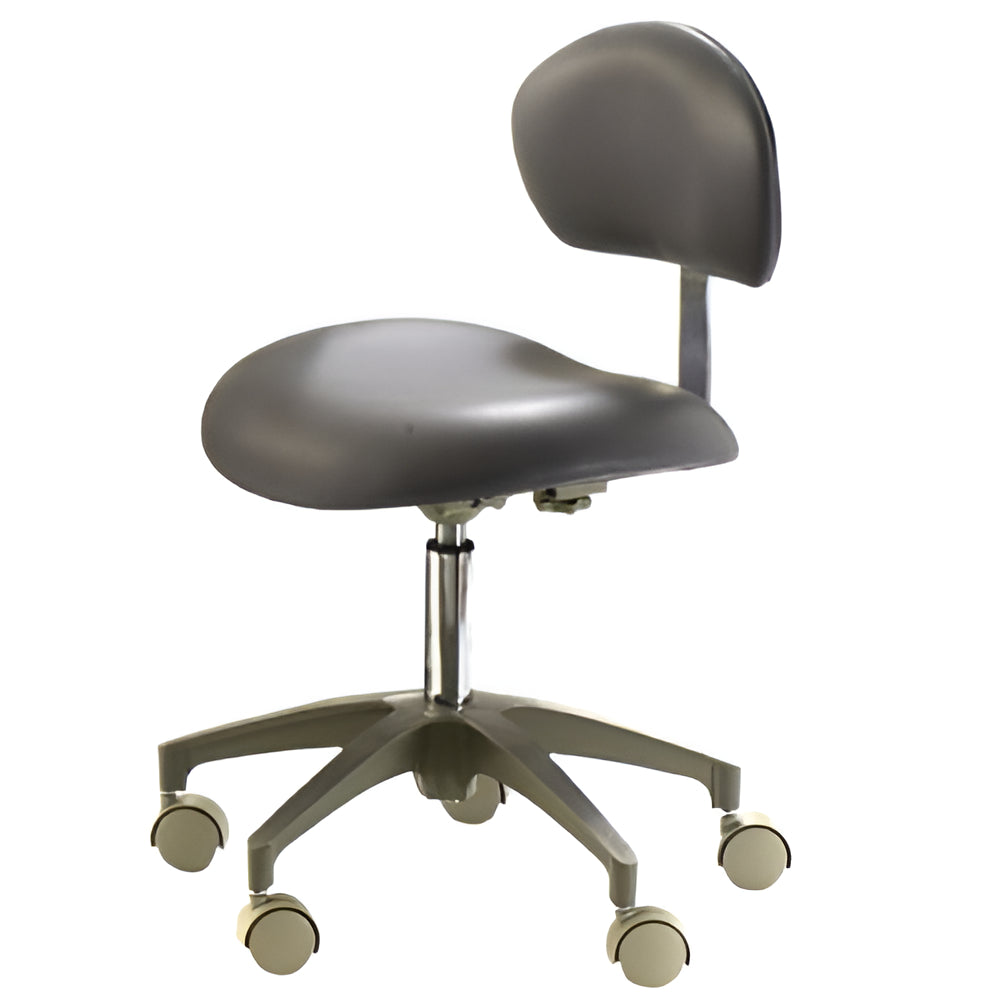

DR-96 – Doctor’s Operatory Stool

• Seamless, contoured seat design

• Chrome-plated upright back support

• Contoured semi-rectangular backrest

• Chrome-plated pneumatic lift; height adjusts 18"–22"

• Five-leg powder-coated base for stability

• Twin-wheel casters

• NaugaSoft standard upholstery

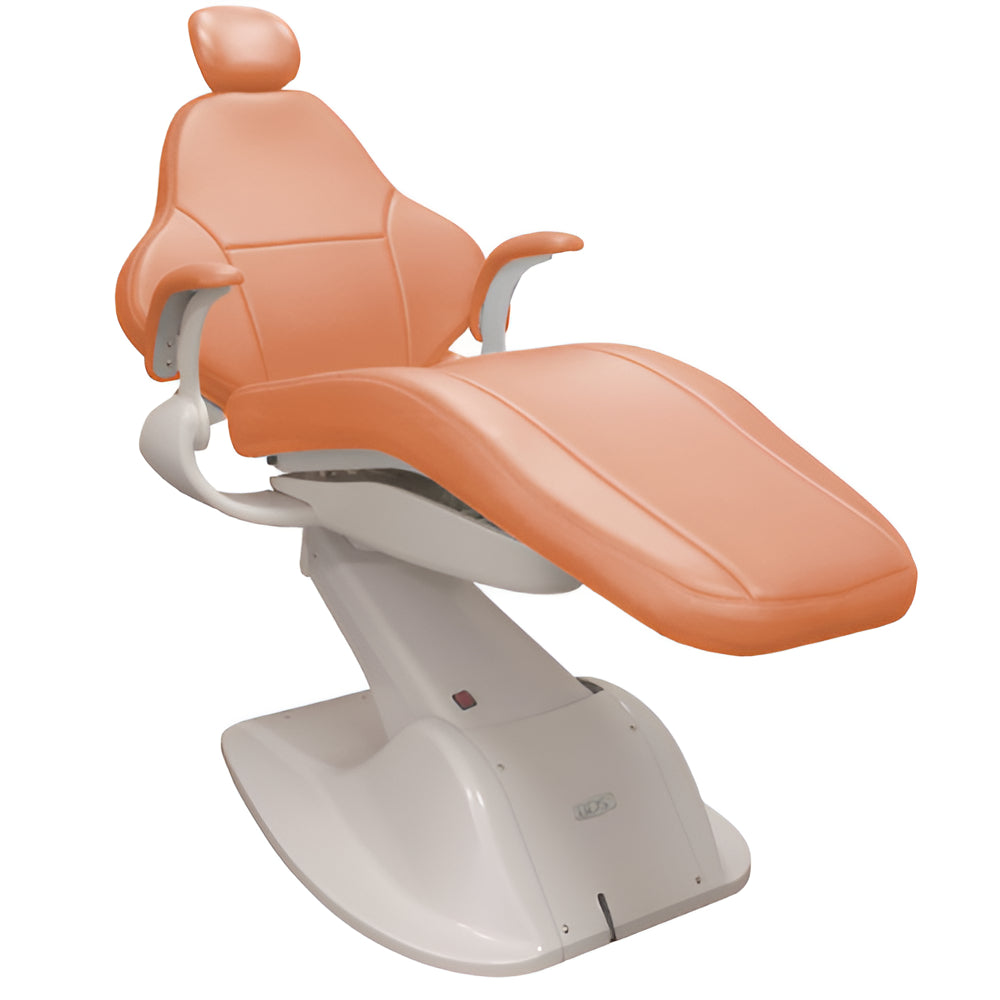

Epic – Epic Operatory Chair (110V)

• Heavy-duty cast-iron frame

• Slim back with built-in lumbar support

• Armrest-mounted touch-pad controls

• Four manual chair movements, plus three programmable memory positions and home setting

• Swing-down armrest

• Synchronized seat and back recline

• Vinyl toe-board scuff guard

• Electromechanical operation (110 VAC)

• 600 lb lifting capacity

• Double-articulating headrest

• Rotates 30° to both left and right

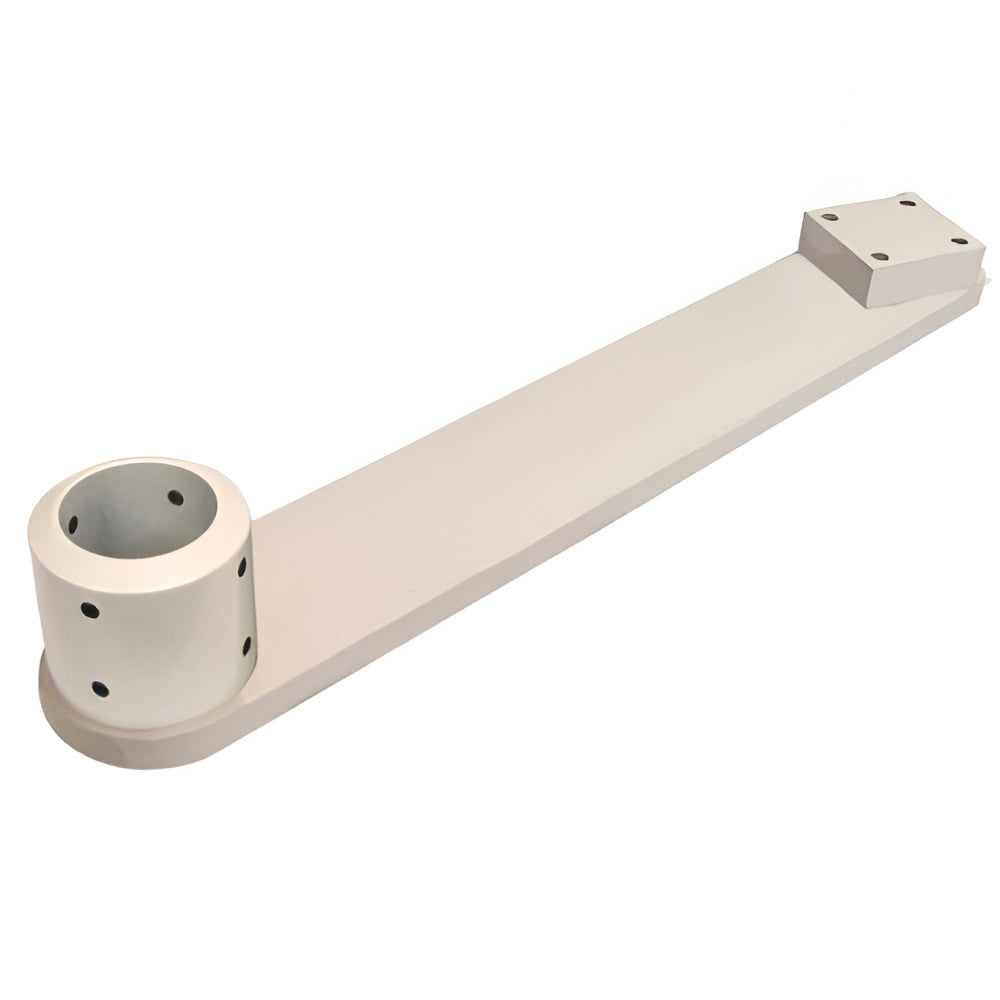

400-030 – Epic Chair Adapter

• Includes mounting hardware

• Fits 2" diameter posts

Note: Images are for illustration only. Actual components may vary. Refer to the written specifications for exact details.
